WLDH-1000
KARVIL
Product Description

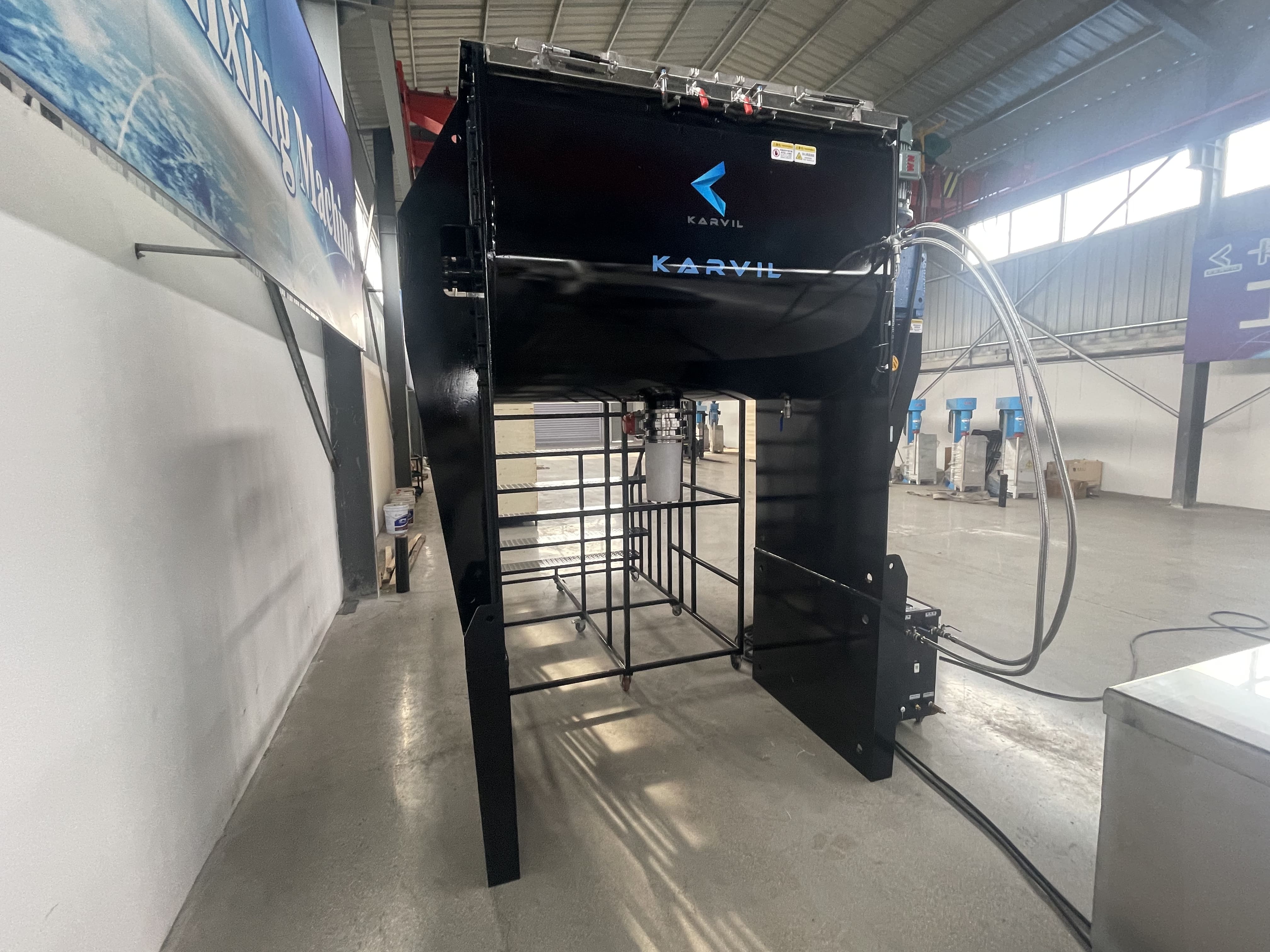

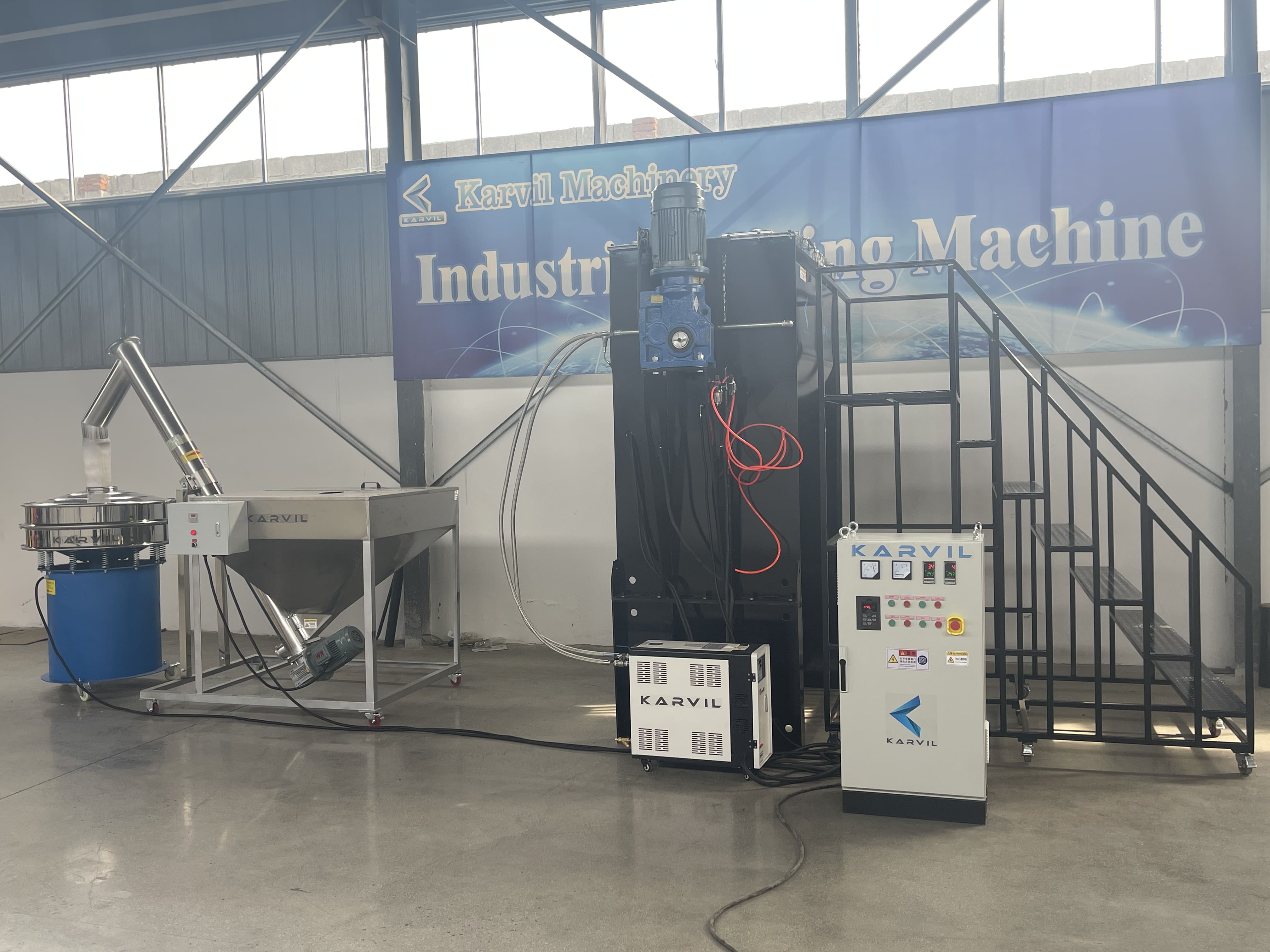

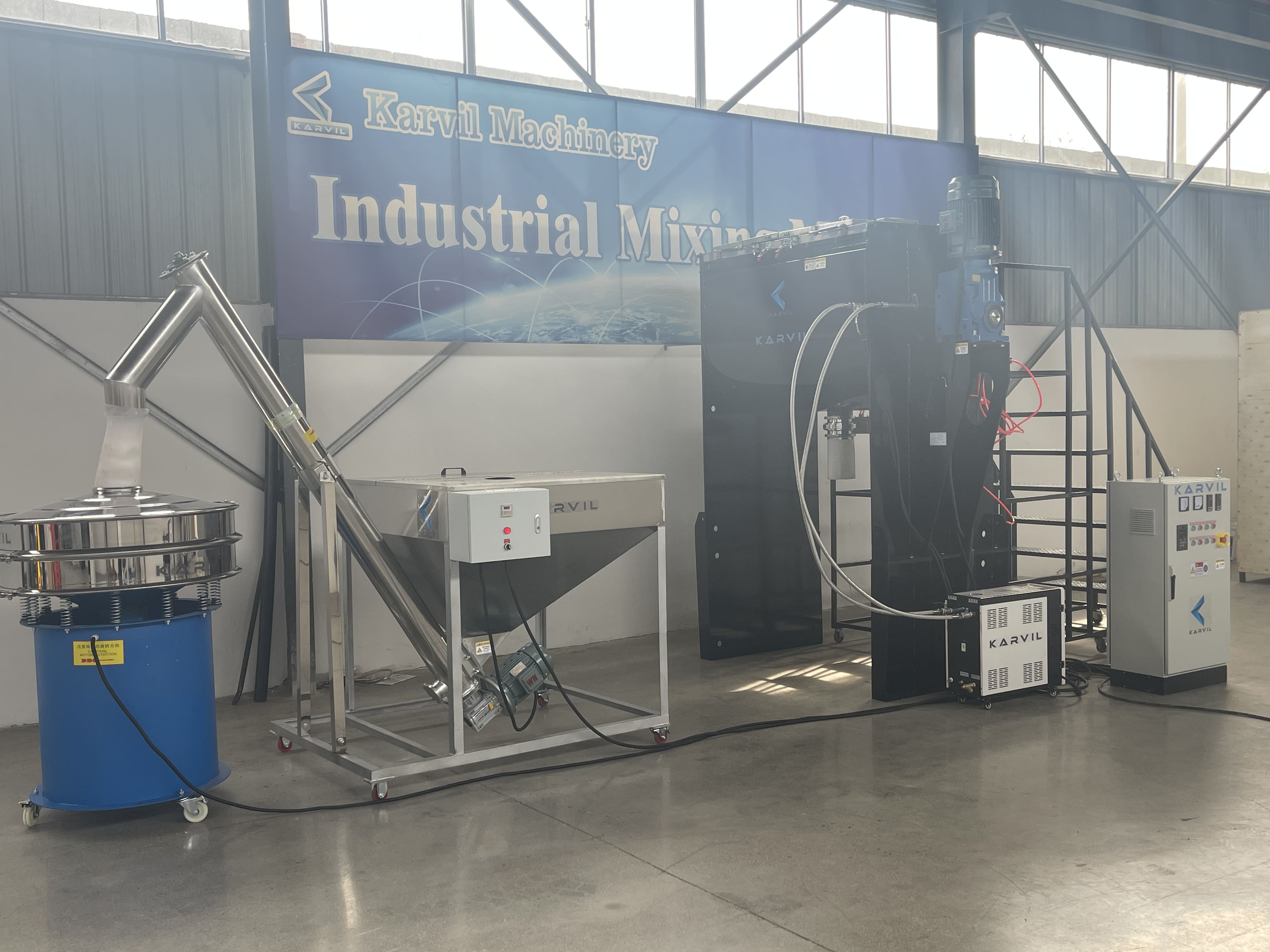

This 1000L horizontal ribbon blender system is a complete mixing solution designed for wax powder and small amounts of liquid additives. Supplied to a U.S. customer, the system integrates a ribbon mixer, a screw conveyor, a vibrating sieve, and a jacketed heating and cooling unit.
The mixing chamber is made of stainless steel 304 for safe and durable contact with raw materials. The outer frame and platform are constructed from carbon steel with anti-corrosion treatment, providing strong structural support and easy access for operation and maintenance.
Equipped with a jacket, the mixer allows circulation of hot and cold media for precise temperature control. The unit connects to an integrated chiller/heater system, making it suitable for materials requiring controlled thermal conditions during mixing.

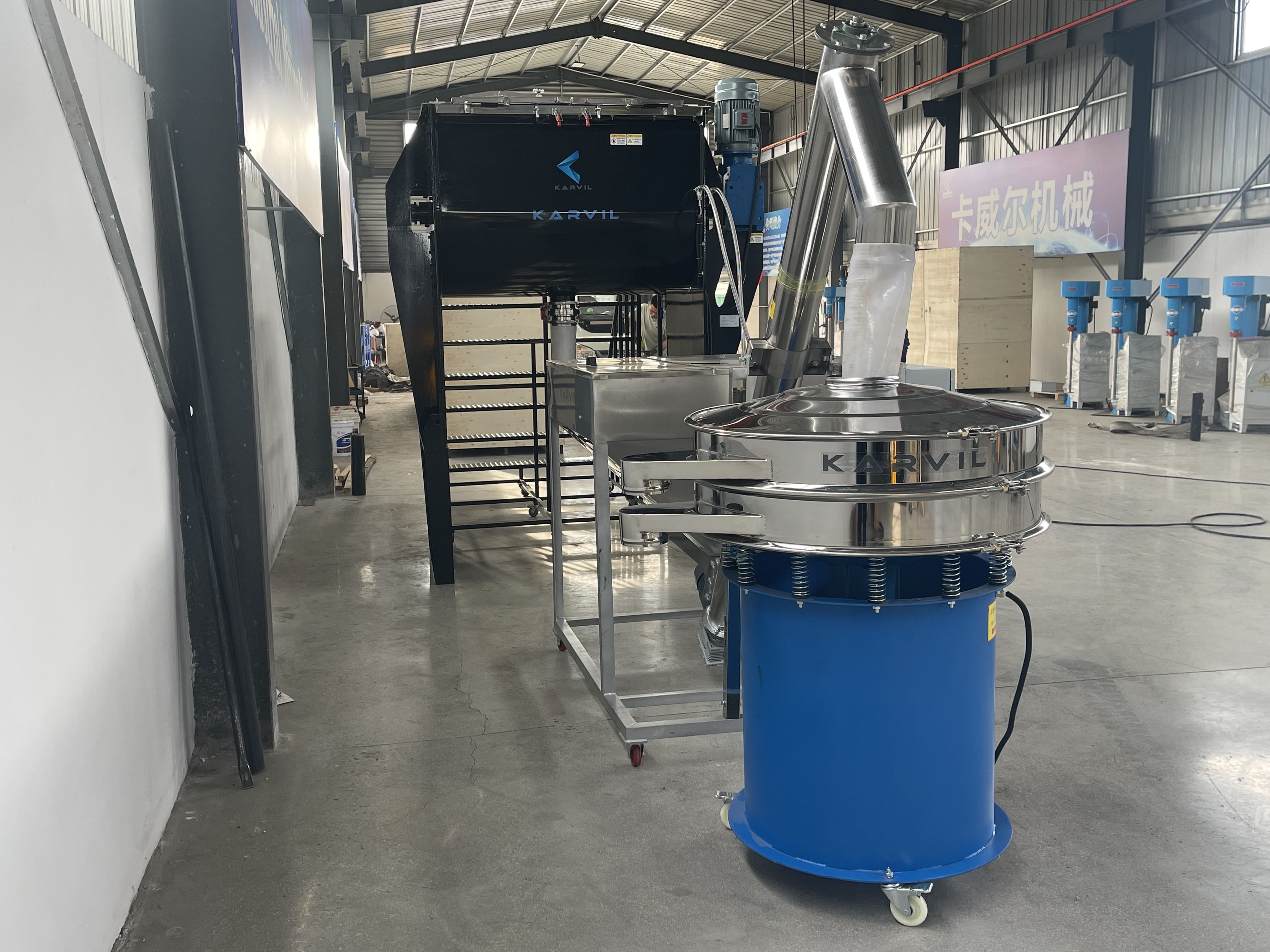

The screw conveyor ensures smooth and dust-free transfer of blended material to the vibrating screen, which removes oversize particles and improves final product uniformity.

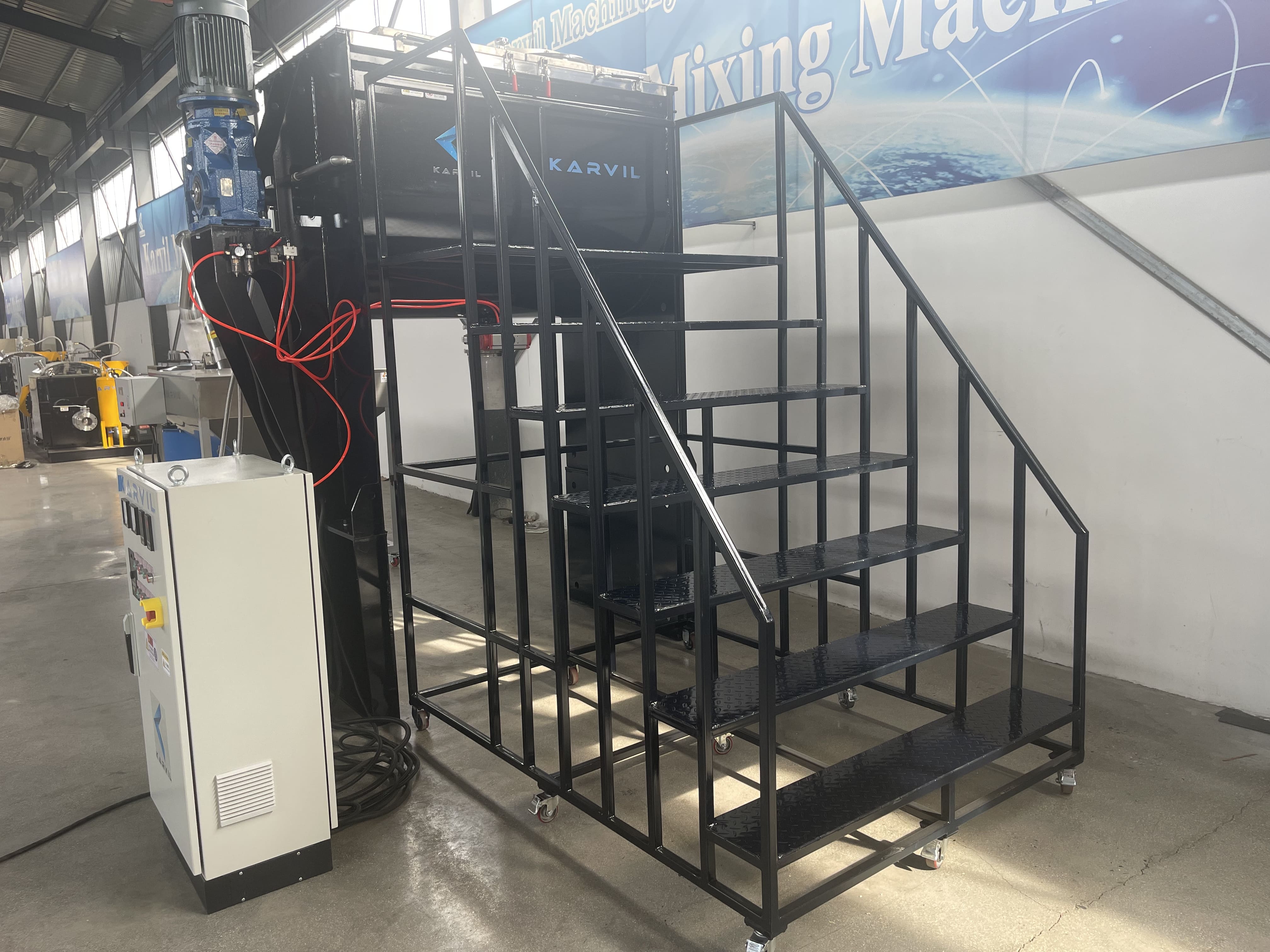

The entire setup is mounted with a carbon steel working platform, allowing operators safe and convenient access to all equipment components.
Contact Materials: 304 Stainless Steel, 316 optional
Interior Surfaces: Polished 180 Gri
Support Steel: 304 or 316 Stainless Steel
Exterior Surfaces: Glass Bead Blasted
Discharge: Swing away flush valve with pneumatic actuation
Working Capacities: 3 to 10,000 Cubic Feet
Drive: Hollow Bore SEW Eurodrive

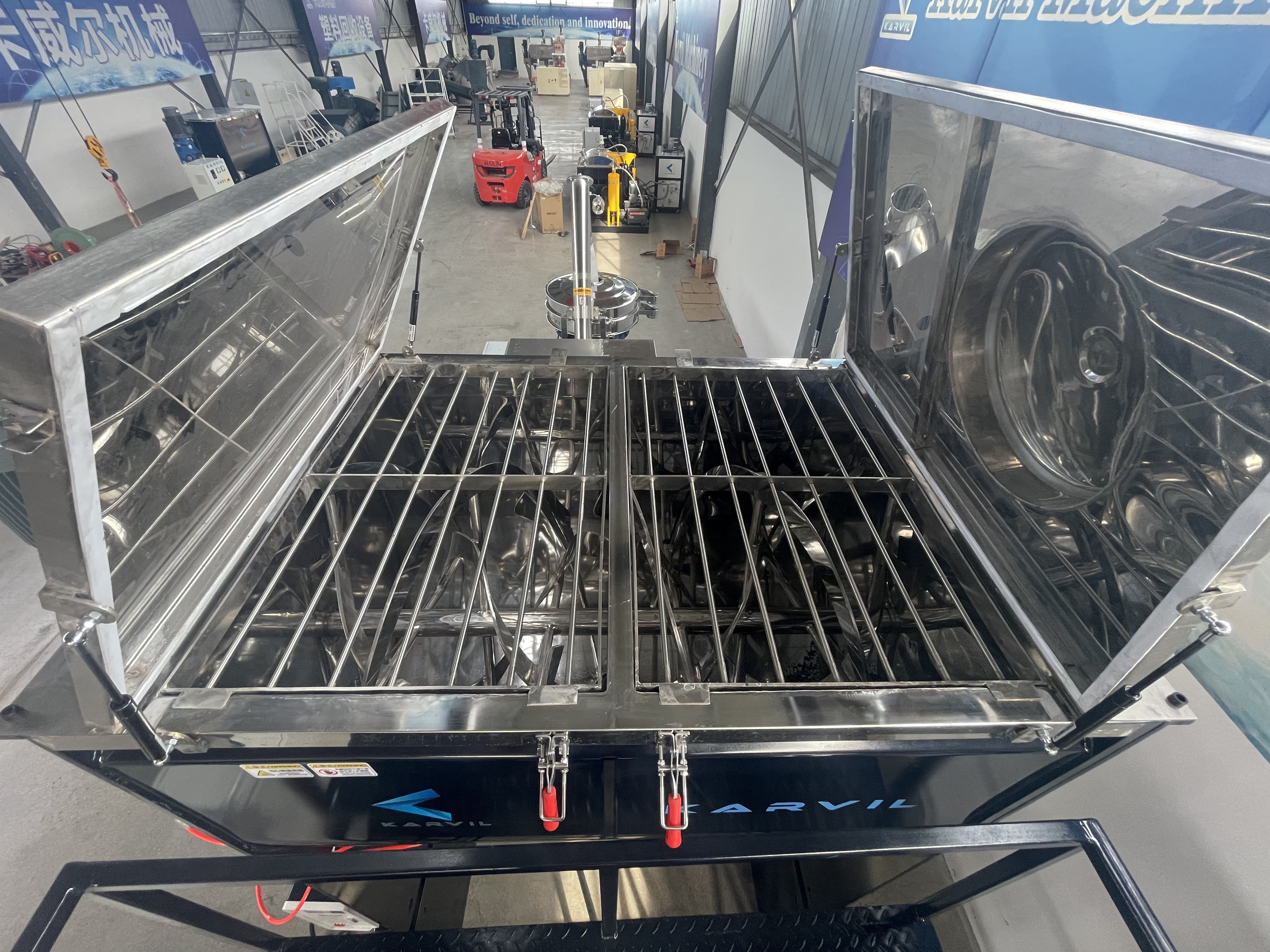

Loading: Loading Cover(s) with Welded Grate
Technical Parameters
| Spec | WLDH-100 | WLDH-300 | WLDH-500 | WLDH-1000 | WLDH-1500 | WLDH-2000 | WLDH-3000 | WLDH-4000 | WLDH-6000 | WLDH-8000 | WLDH-10000 |
| Total volume(L) | 100 | 300 | 500 | 1000 | 1500 | 2000 | 3000 | 4000 | 6000 | 8000 | 10000 |
| Mixed amount/batch (L) | 30-60 | 90-180 | 150-300 | 400-600 | 450-900 | 600-1200 | 900-1800 | 1200-2400 | 1800-3600 | 2400-4800 | 3000-6000 |
| Power (Kw) | 1.5-4 | 3-5.5 | 4-11 | 7.5-15 | 11-18.5 | 15-22 | 18.5-30 | 22-37 | 37-55 | 37-55 | 45-75 |
| Rotating speed (RPM) | 65 | 65 | 65 | 46 | 38 | 33 | 28 | 28 | 28 | 24 | 21 |
Applications
 |  |  |  |
 |  |  |  |
Our Services
 | LABORATORY TEST In order to be able to demonstrate the advantages and modes of action of our industrial mixing machine with your products, our fully equipped modern laboratory/technical center is at your disposal. |
PROFESSIONAL ENGINEER The experienced team of engineers is specialized in the R&D and design of mixers, grinding equipment, and plastic recycling machine. Karvil explores new technical points constantly to create perfect solutions for customers. |  |
 | DIRECT FACTORY Karvil factory has a series of strict standard system to control the procurement of raw materials, manufacturing process, in-process inspection, and product inspection, so as to ensure the quality of our products.
|
F.A.Q.
1. Manufacturer or trading company?
We are a manufacturer with strict production standards in China.
2. Where is your company?
Our company is located in Yantai, Shandong,——Powder Equipment Industry Belt.
3. About your company's visit?
We can pick you up at Qingdao Airport conveniently, and then we can take you to our factory.
4. What is the main market for your company?
Asia and Africa, Australia, America, Europe.
5. Can you provide customized products?
Yes, we have professional engineers to meet your special design needs, so we can provide customized products.
6. What is your delivery time?
It usually takes about 20 to 30 days, the exact time also depends on the type and quantity of the product.
7. About the product warranty?
Usually, we provide a 1-year warranty for the products that have been sold, but we can also provide life-long service when you need it to maintain a long-term relationship with you.
8. What are the payment terms?
T/T, L/C, etc.
