【Application Industry】：
Widely used in mixing and kneading of low-to-high viscosity products in many industries such as ceramics, silicone rubber, sealants, clay, chewing gum, candy, bakery food, pharmaceuticals, carbon paste, inks/pigments ,etc.
Karvil Machinery is the supplier of Siemens and provide the sigma blade mixer for its application
NH-600
KARVIL
| Availability: | |
|---|---|
Standard Design（Customizable）:
Material: SUS 304, 316 or mild steel
Discharging: Tilting discharging/Screw extruding discharging/Bottom plate
Heating: Electric heating/Water heating/Oil heating/Steam heating
Cooling: Water cooling/Jacket cooling
Vacuum: Water-ring vacuum pump/ buffer tank.
Motor: Explosion proof motor
Independent Control Panel: Variable speed/ Temperature/Discharging
Working Volume: 5 to10,000 Cubic Feet (from experiment to production)
Introduction

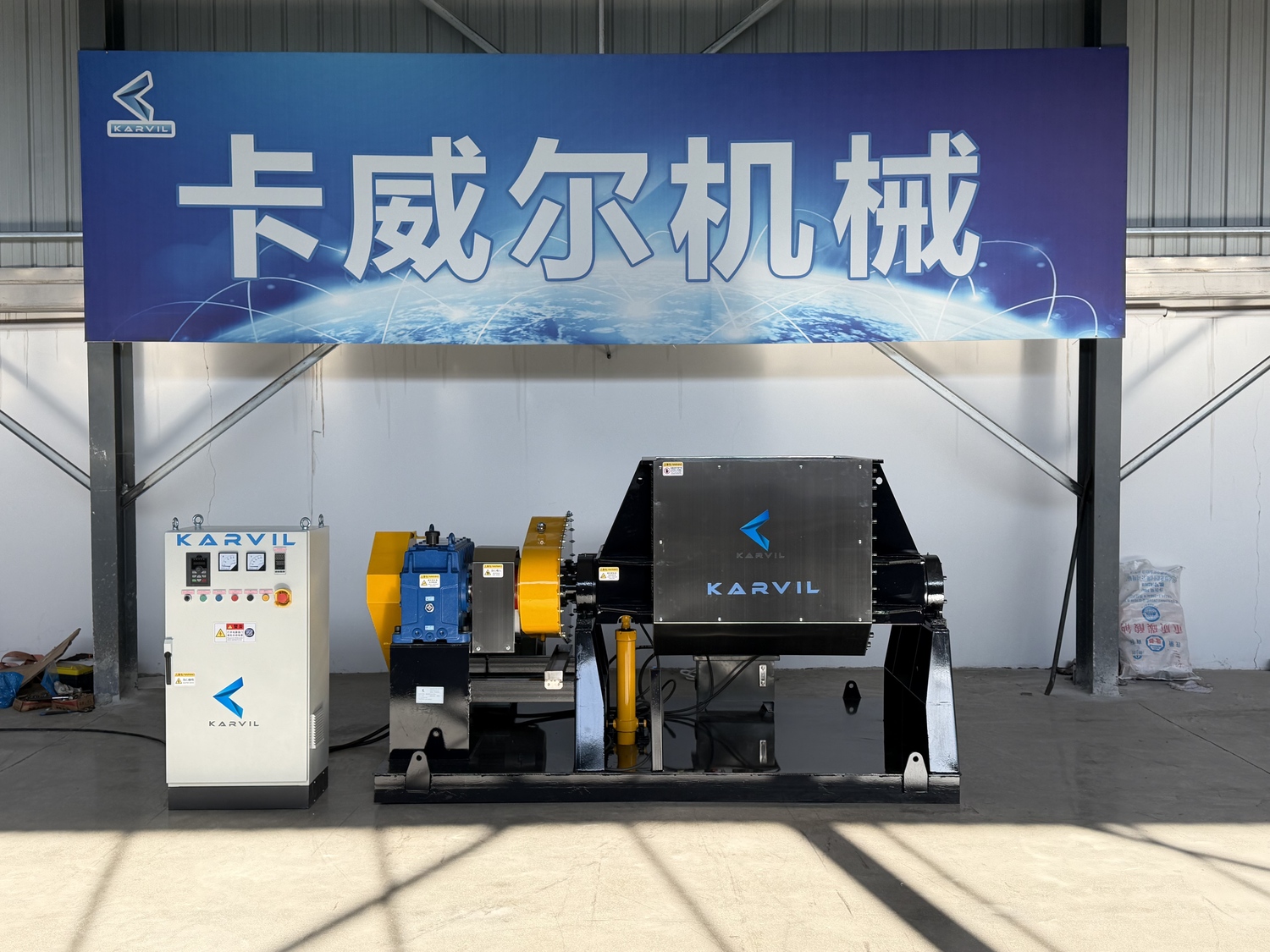

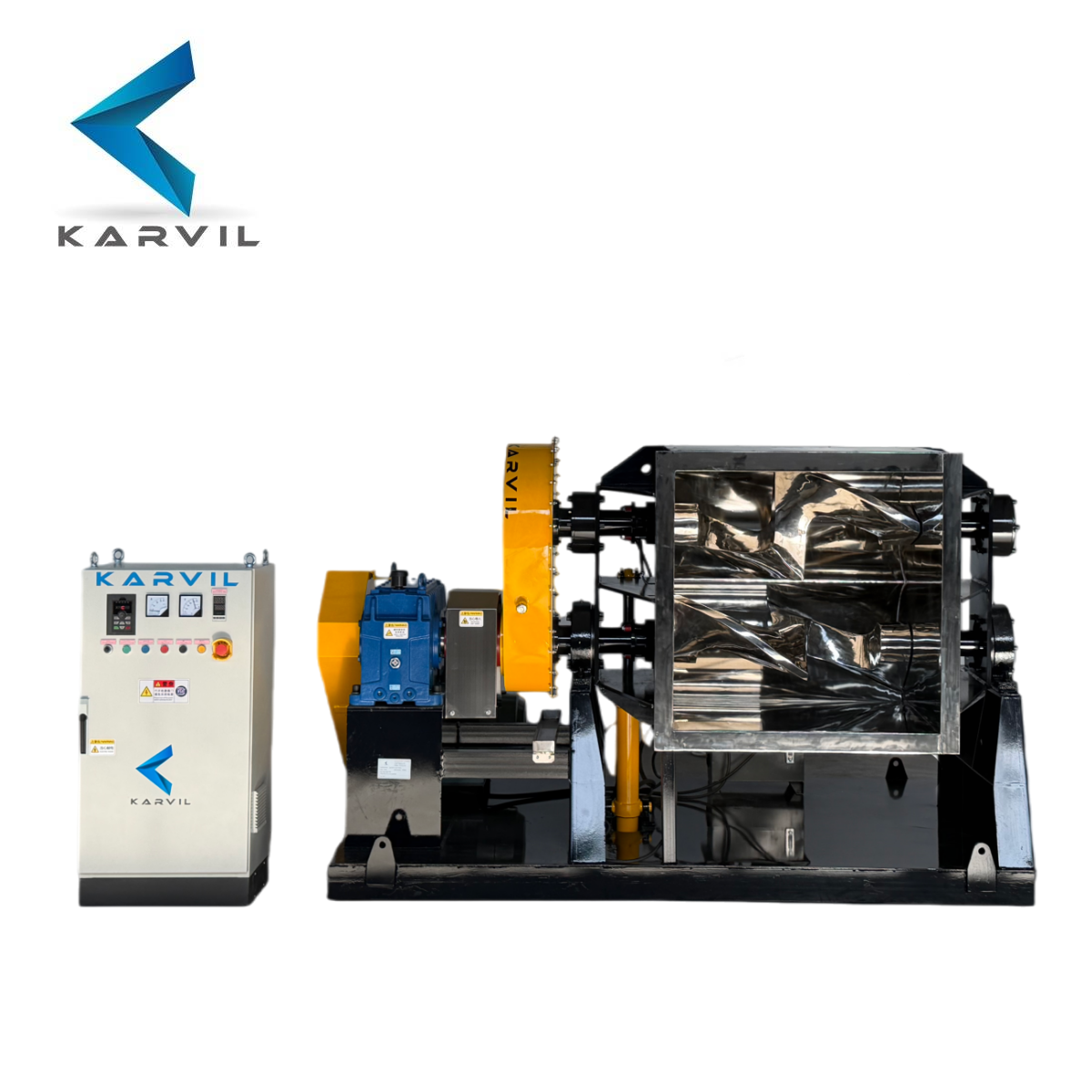

The Karvil NH-600 Sigma Mixer is a heavy-duty kneading solution specifically customized for high-viscosity food applications. Recently manufactured for our repeat client in Thailand, this machine is engineered to process tough Tamarind Paste (Tamarind Pulp) efficiently.

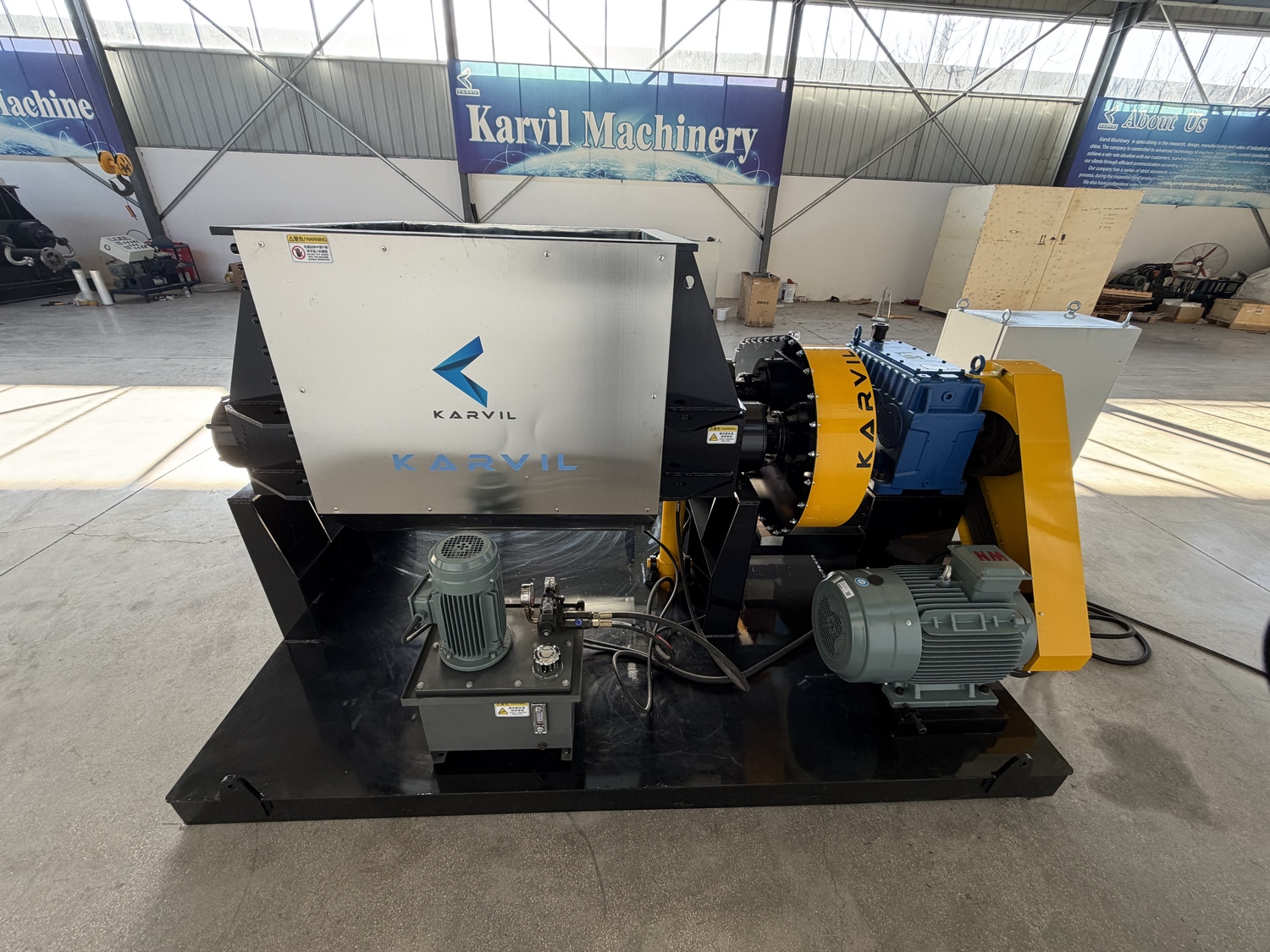

Unlike standard models, this kneader features a customized open-top design (no lid), allowing for continuous manual feeding and direct visual monitoring of the mixing process. It is equipped with premium components like SKF bearings and a Variable Frequency Drive (VFD) to ensure stability and precise speed control during the processing of sticky materials.
Precision Speed Control: Powered by a frequency inverter, allowing adjustable speeds to prevent heat buildup in sensitive food pastes.

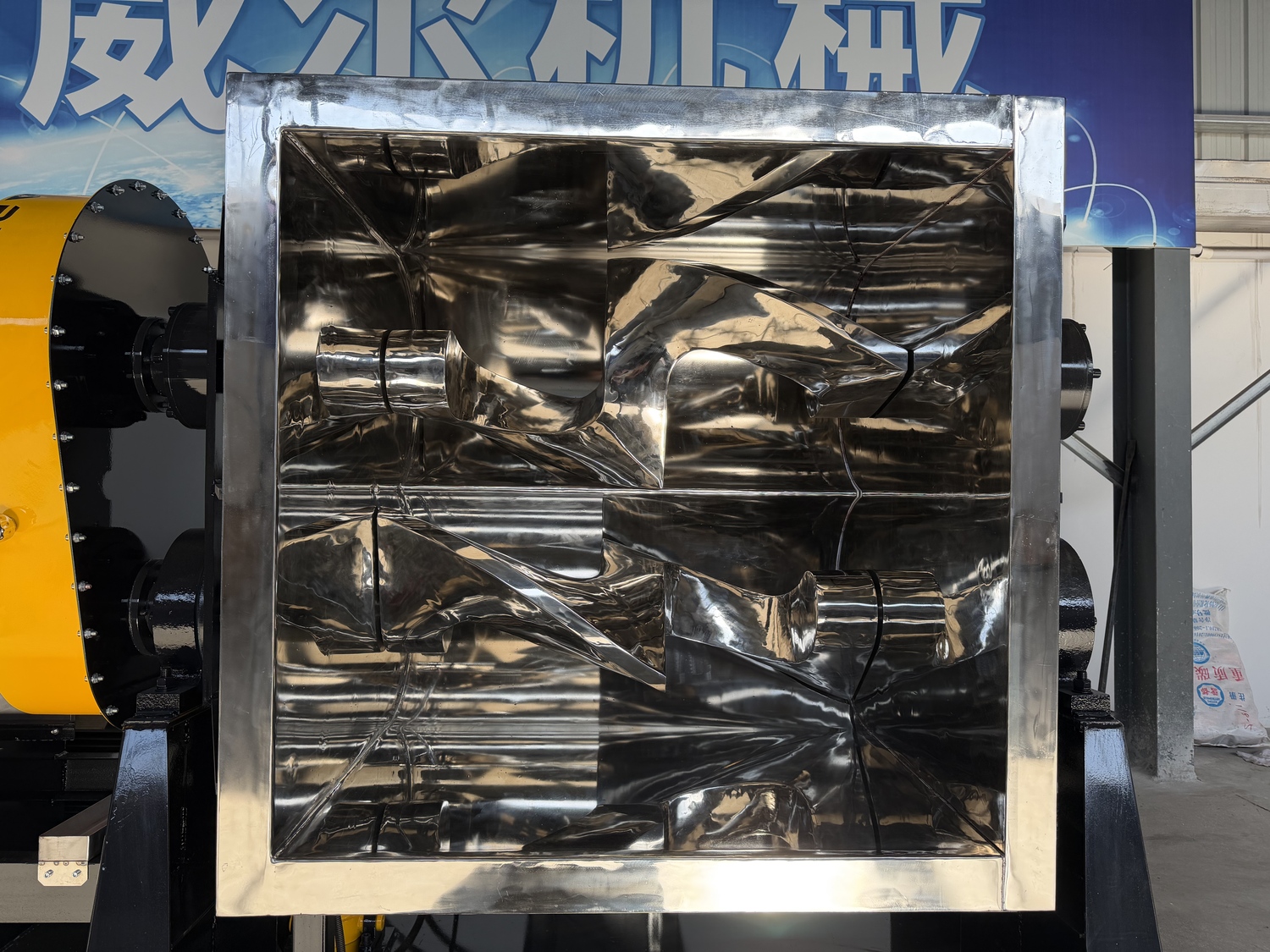

Sanitary Design: All contact parts are made of SUS304 Stainless Steel with Internal Mirror Polishing. This smooth finish prevents sticky tamarind from adhering to the walls and ensures easy cleaning.
Heavy-Duty Performance: Features Double Sigma Blades and reliable SKF Bearings to handle the high torque required for thick, elastoplastic materials.

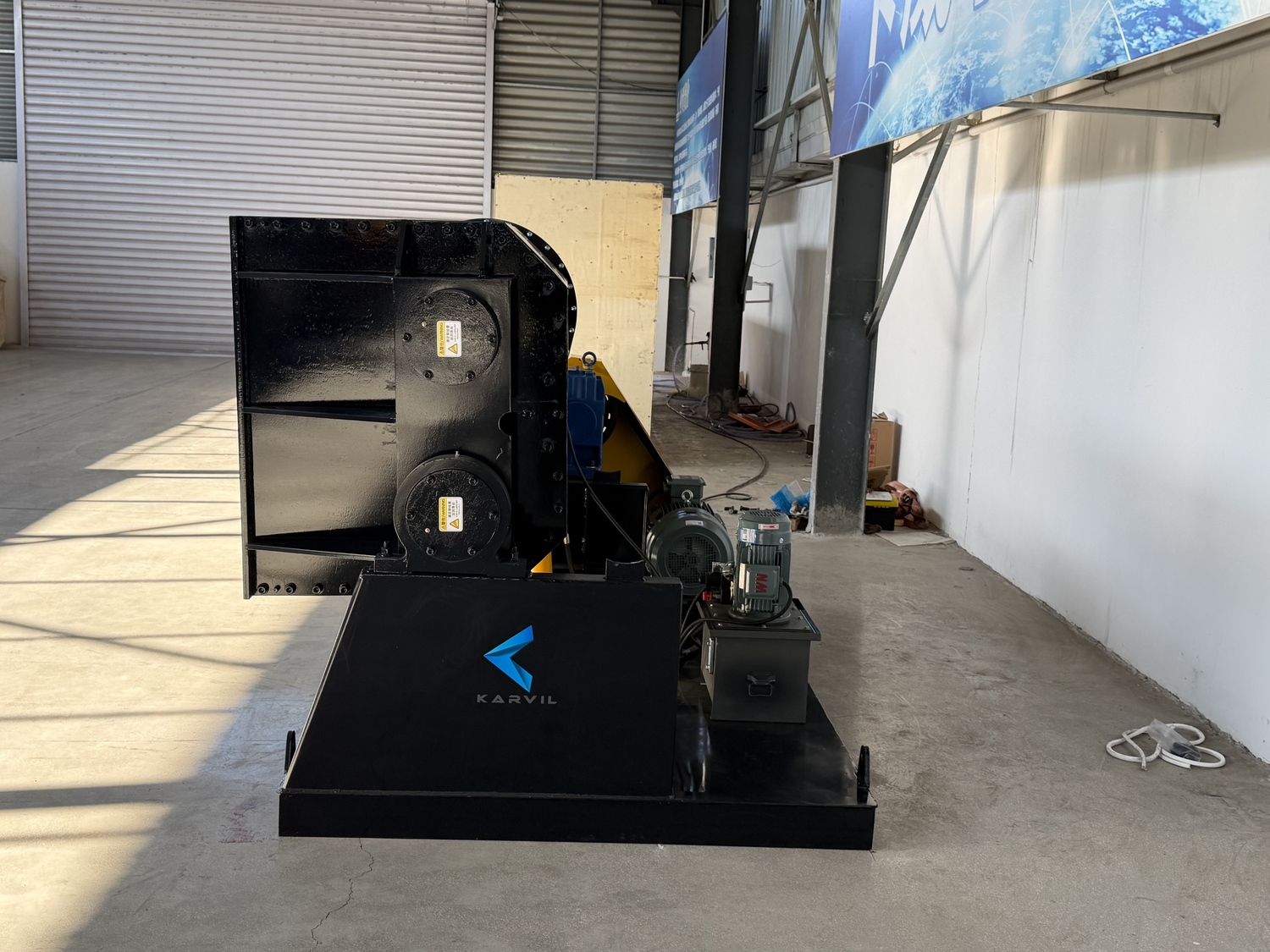

Hydraulic Discharge: The bowl tilts up to 90° via a hydraulic cylinder for fast, automated unloading.
Technical Parameters
| Type | NH-5 | NH-10 | NH-100 | NH-300 | NH-500 | NH-1000 | NH-1500 | NH-2000 | NH-3000 | NH-4000 | NH-5000 | |
| Total Volume (L) | 5 | 10 | 100 | 300 | 500 | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 | |
| Mixed amount/batch (L) | 1.5-3.5 | 3.0-7 | 30-70 | 90-210 | 150-350 | 300-700 | 450-1050 | 600-1400 | 900-2100 | 1200-2800 | 1500-3500 | |
| Rotation Speed (rpm) | 42/34 | 42/34 | 37/21 | 37/22 | 37/23 | 37/26 | 37/22 | 30/21 | 30/21 | 30/20 | 28/18 | |
| Main Motor Power (Kw) | 0.75-1.5 | 1.1-3 | 5.5-11 | 7.5-30 | 15-37 | 22-90 | 22-90 | 30-110 | 30-110 | 45-110 | 55-132 | |
| Heating Methods | Steam Pressure (MPa) | Jacket for steam ≤0.3MPa | ||||||||||
| Electric Power (Kw) | 2.4 | 2.4 | 6 | 12 | 18 | 30 | 45 | 54 | 72 | 72 | 90 | |
| Vacuum (MPa) | 0~ -0.096Mpa (Vacuum Kneader) | |||||||||||
| Discharging Method | Tilting cylinder | |||||||||||
| Screw extrusion | ||||||||||||
Applications
 |  |  |  |
 |  |  |  |
Our Services
 | LABORATORY TEST In order to be able to demonstrate the advantages and modes of action of our industrial mixing machine with your products, our fully equipped modern laboratory/technical center is at your disposal. |
PROFESSIONAL ENGINEER The experienced team of engineers is specialized in the R&D and design of mixers, grinding equipment, and plastic recycling machine. Karvil explores new technical points constantly to create perfect solutions for customers. |  |
 | DIRECT FACTORY Karvil factory has a series of strict standard system to control the procurement of raw materials, manufacturing process, in-process inspection, and product inspection, so as to ensure the quality of our products.
|
Certificaitons
F.A.Q.
1. Manufacturer or trading company?
We are a manufacturer with strict production standards in China.
2. Where is your company?
Our company is located in Yantai, Shandong,——Powder Equipment Industry Belt.
3. About your company's visit?
We can pick you up at Qingdao Airport conveniently, and then we can take you to our factory.
4. What is the main market for your company?
Asia and Africa, Australia, America, Europe.
5. Can you provide customized products?
Yes, we have professional engineers to meet your special design needs, so we can provide customized products.
6. What is your delivery time?
It usually takes about 20 to 30 days, the exact time also depends on the type and quantity of the product.
7. About the product warranty?
Usually, we provide a 1-year warranty for the products that have been sold, but we can also provide life-long service when you need it to maintain a long-term relationship with you.
8. What are the payment terms?
T/T, L/C, etc.
