【Application Industry】：
Widely used in mixing and kneading of low-to-high viscosity products in many industries such as ceramics, silicone rubber, sealants, clay, chewing gum, candy, bakery food, pharmaceuticals, carbon paste, inks/pigments ,etc.
Karvil Machinery is the supplier of Siemens and provide the sigma blade mixer for its application
NH-50
KARVIL
| Availability: | |
|---|---|
Standard Design（Customizable）:
Material: SUS 304, 316 or mild steel
Discharging: Tilting discharging/Screw extruding discharging/Bottom plate
Heating: Electric heating/Water heating/Oil heating/Steam heating
Cooling: Water cooling/Jacket cooling
Vacuum: Water-ring vacuum pump/ buffer tank.
Motor: Explosion proof motor
Independent Control Panel: Variable speed/ Temperature/Discharging
Working Volume: 5 to10,000 Cubic Feet (from experiment to production)

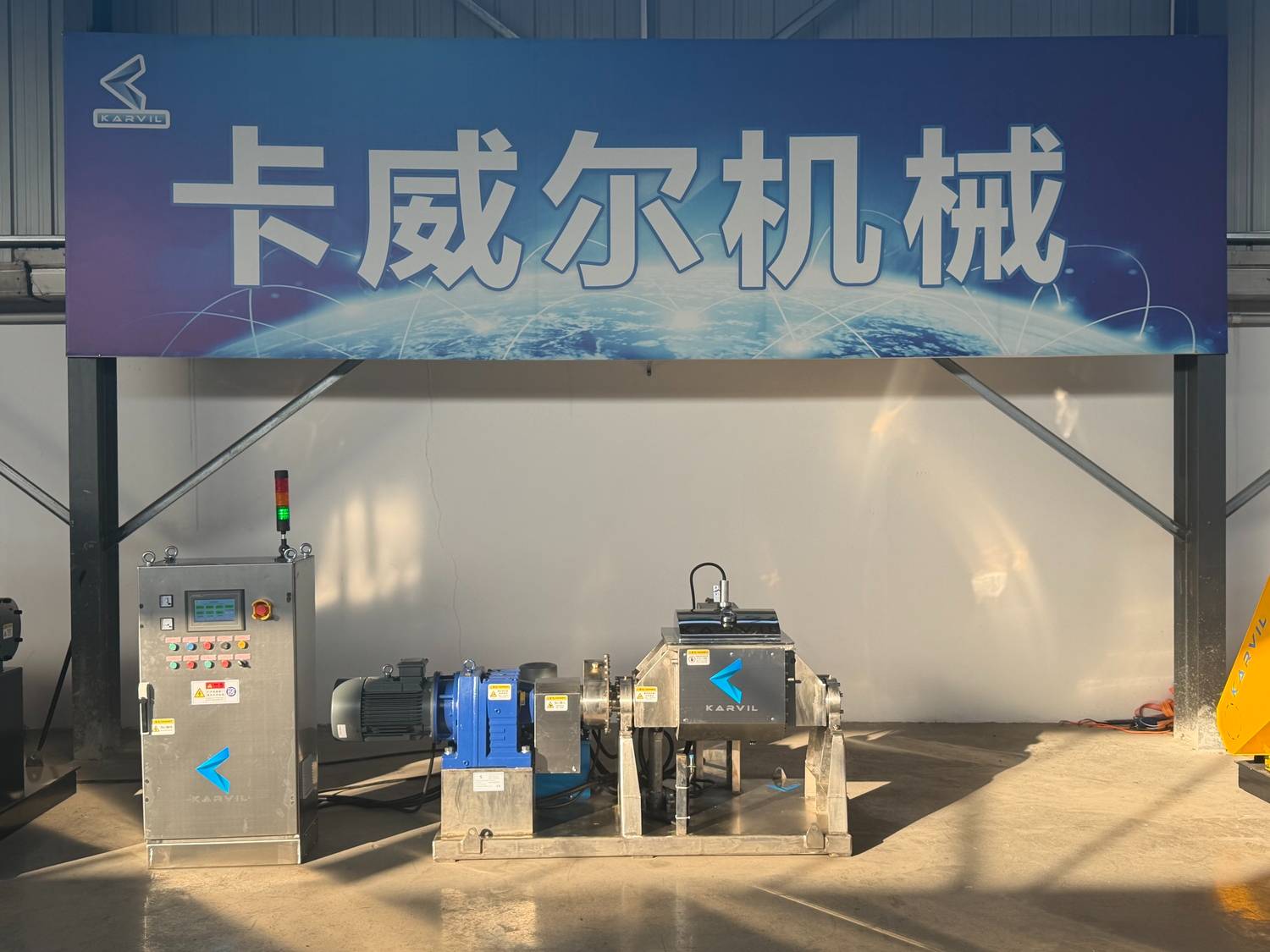

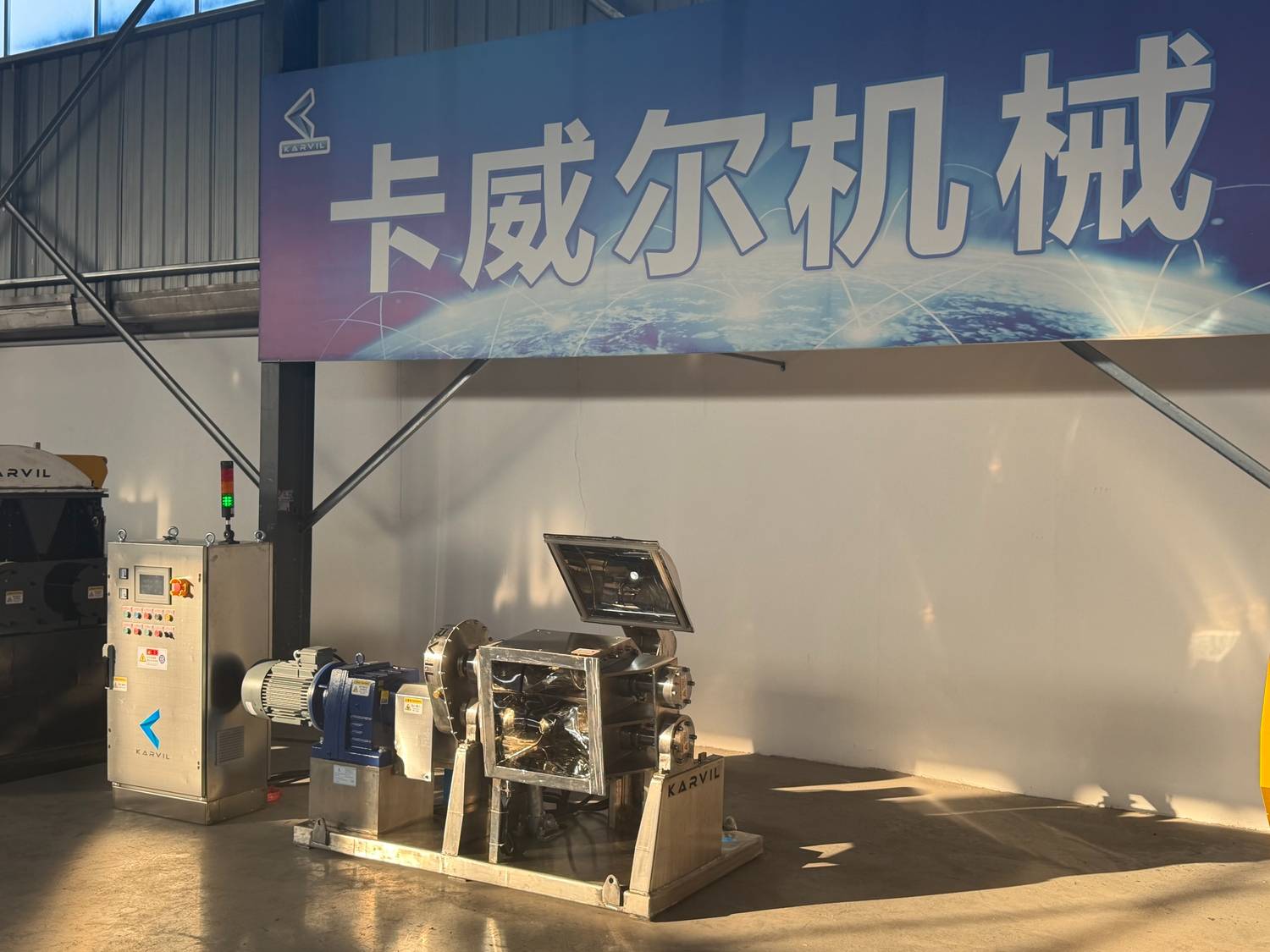

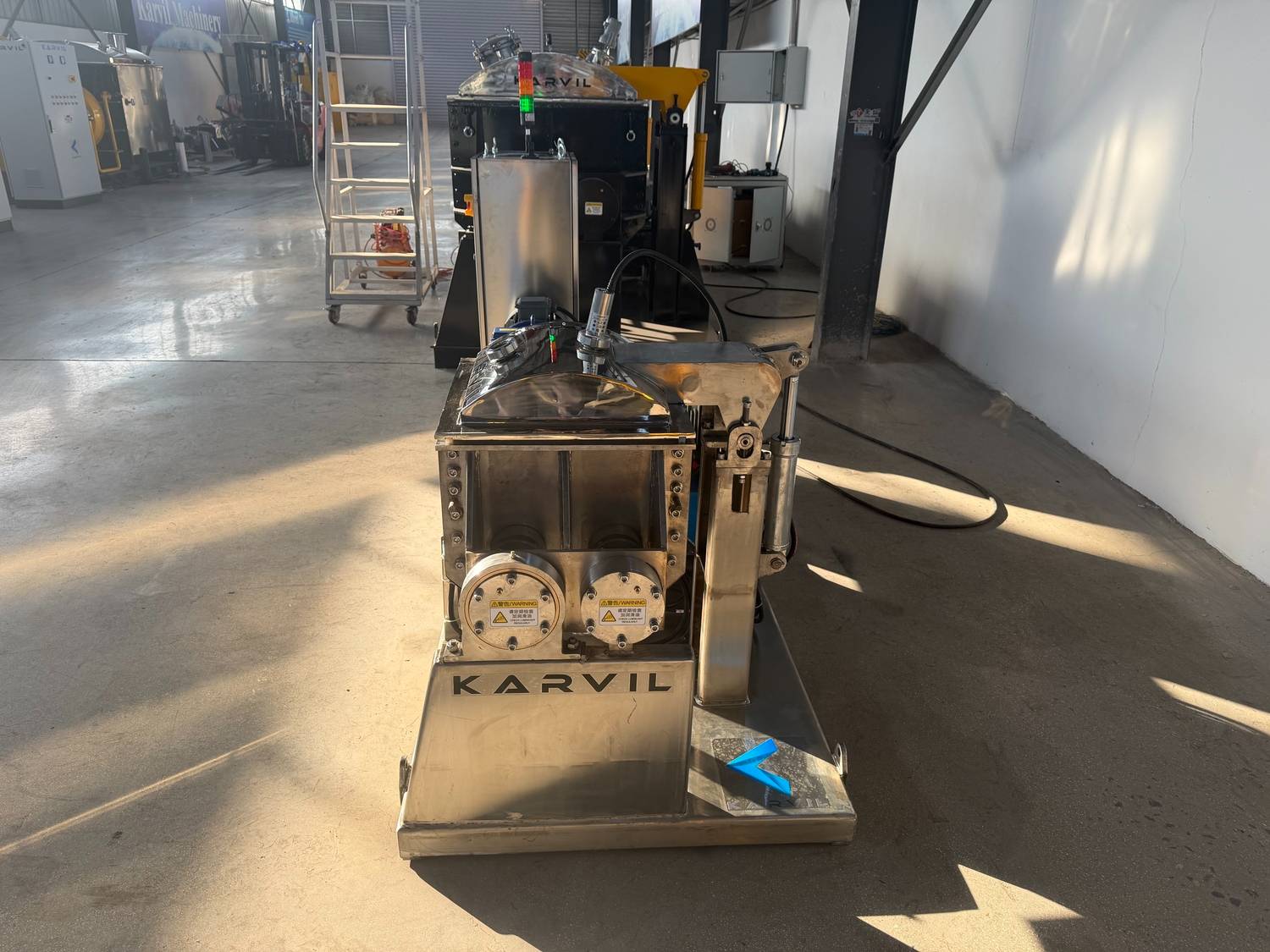

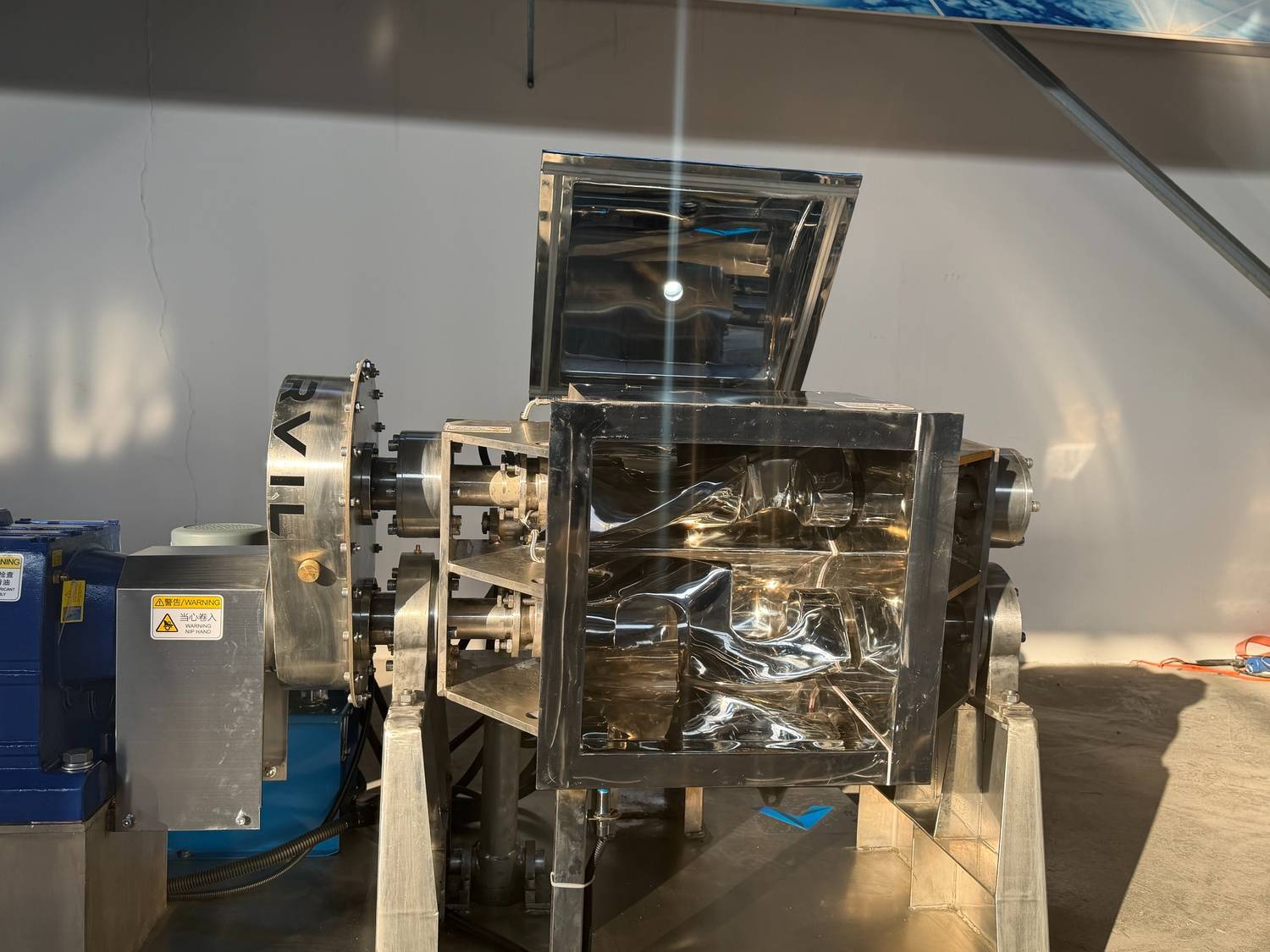

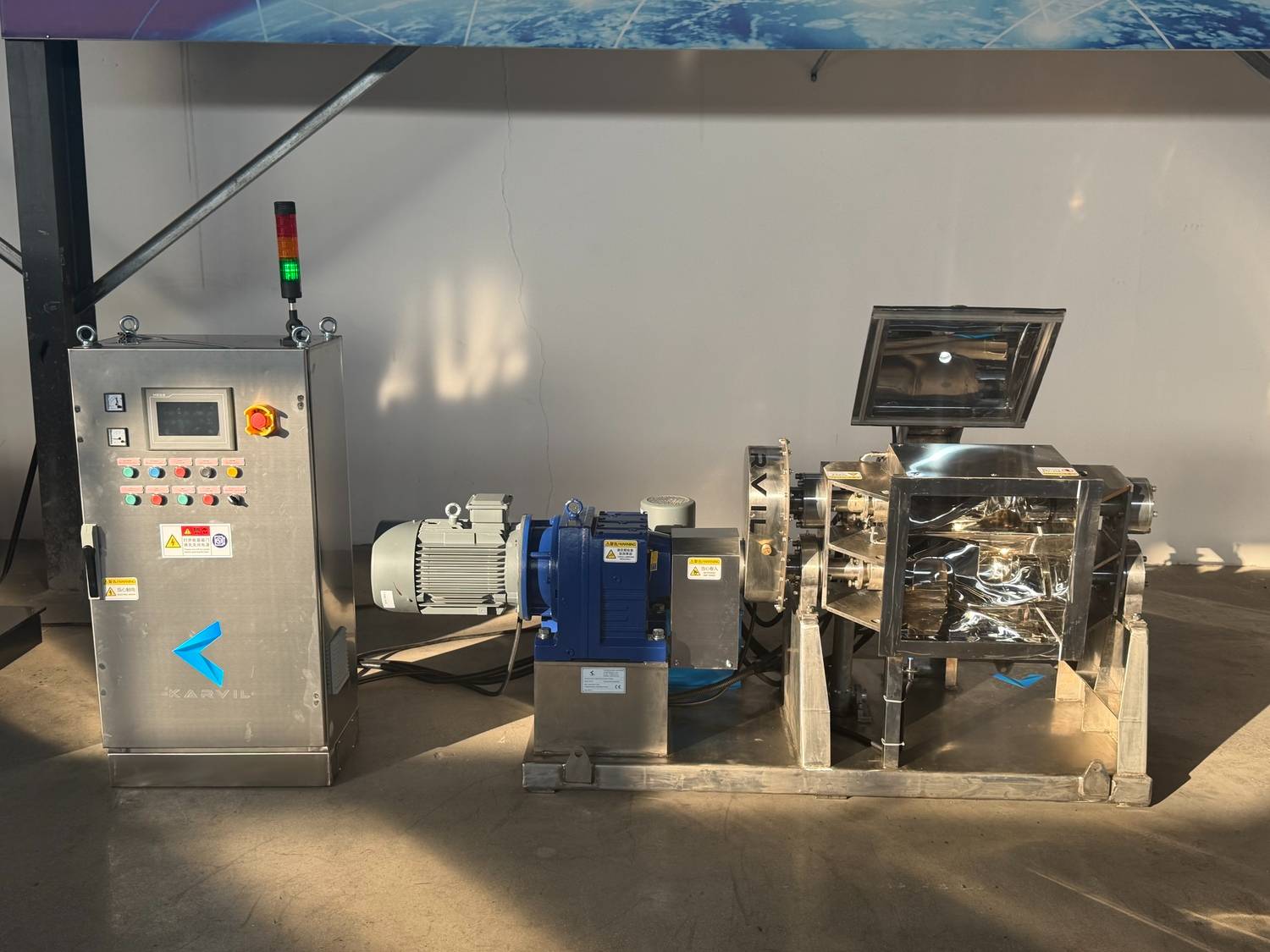

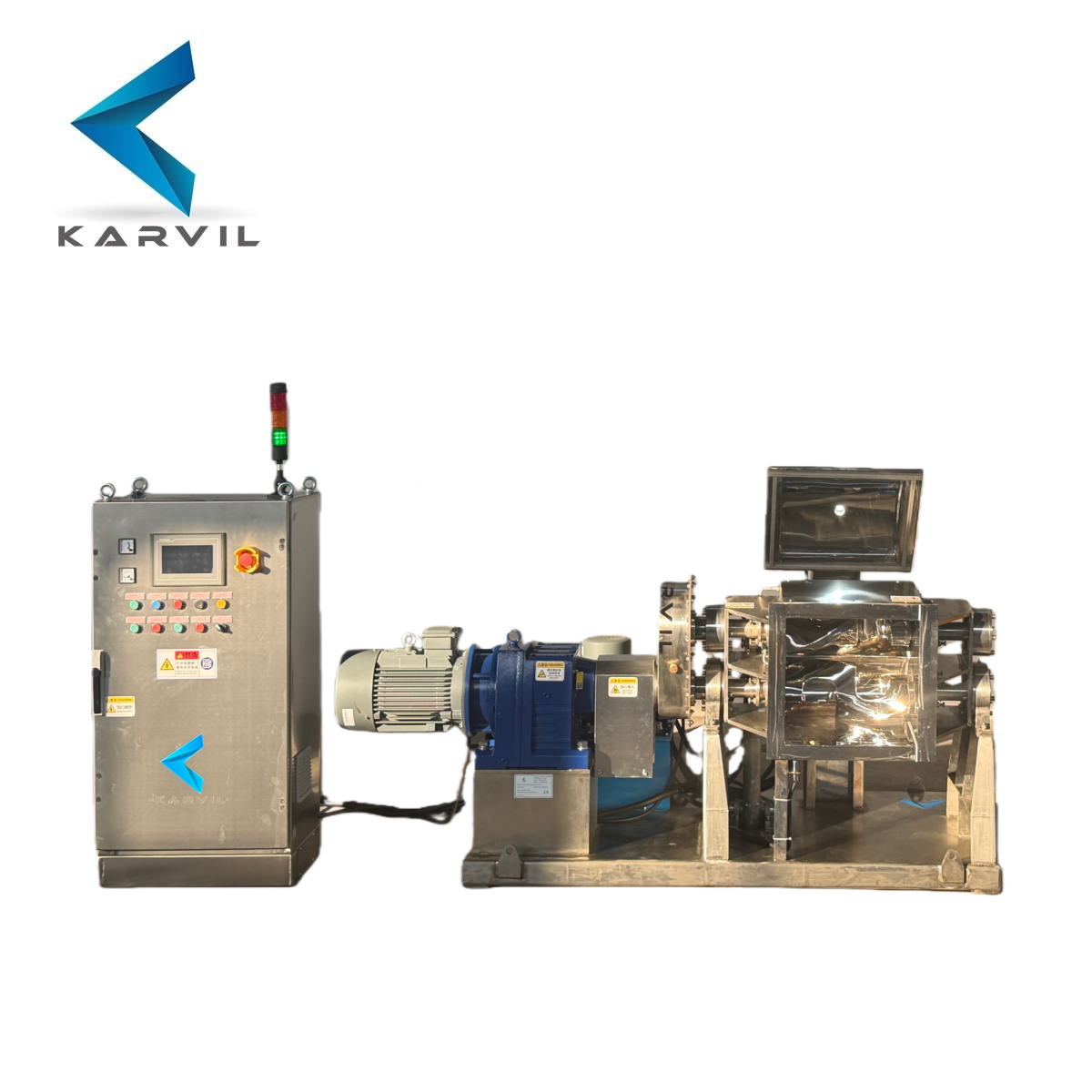

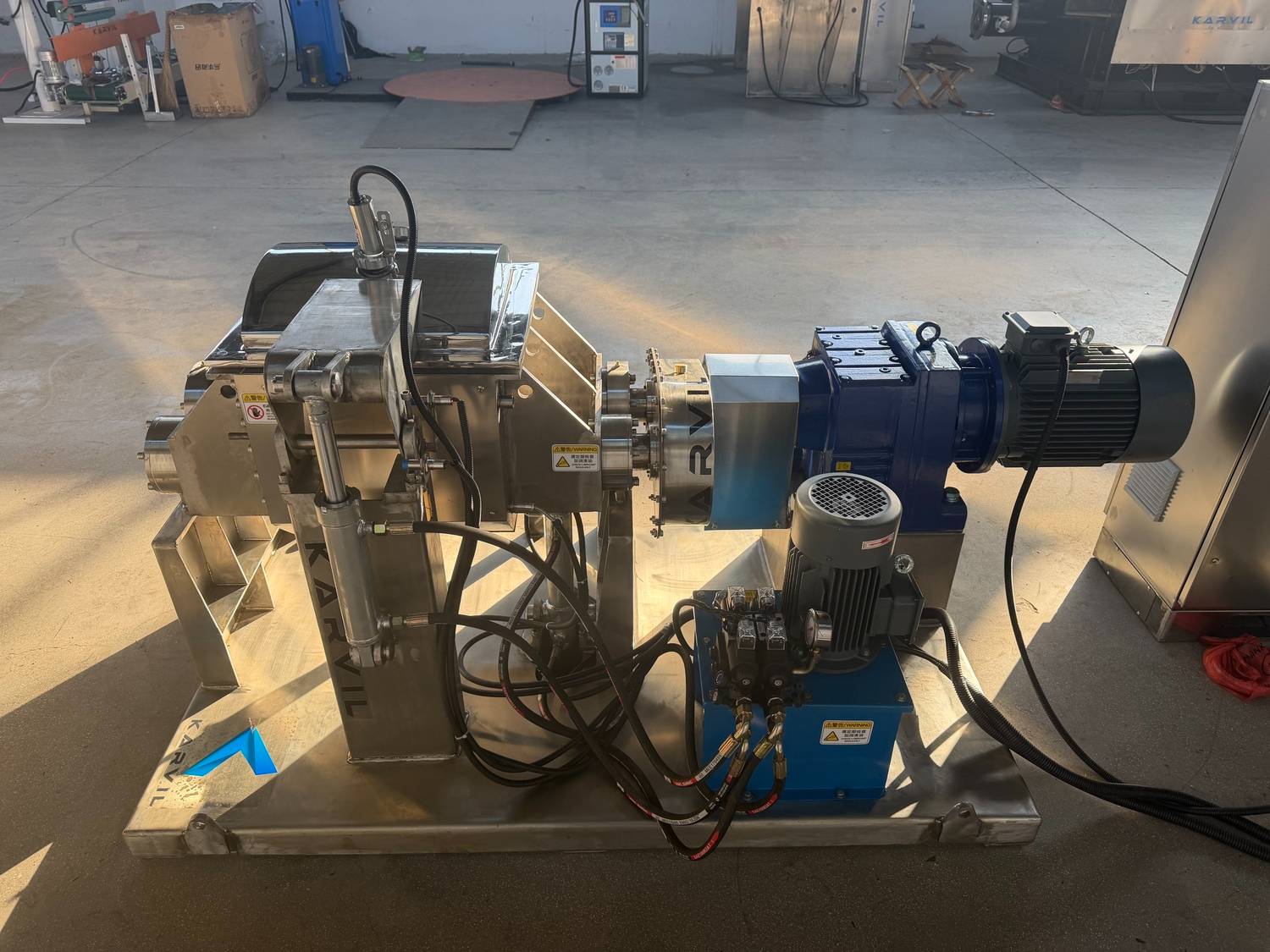

50L Sanitary Sigma Mixer: The Professional Solution for High-Viscosity Protein Bar Production
Engineered for the demanding requirements of the modern food industry, the Karvil 50L Sigma Mixer (Z-Blade Kneader) delivers exceptional torque and hygiene standards. Specifically designed for stiff, sticky, and heavy-viscosity materials like protein bars, energy bites, and nutrition doughs, this machine combines robust mixing power with pharmaceutical-grade sanitation.
Whether you are scaling up from R&D or running a boutique production line, this fully automated, PLC-controlled mixer ensures consistent texture and uniform dispersion of ingredients (proteins, syrups, nut butters, and inclusions) in every batch.
100% Sanitary Design (FDA & GMP Ready):
Food safety is non-negotiable. Our mixer features AISI 316L Stainless Steel for all product contact parts, offering superior resistance to corrosion from salty or acidic ingredients often found in flavorings. The exterior frame is constructed from polished AISI 304 Stainless Steel, ensuring the entire machine is easy to clean, rust-proof, and aesthetically pleasing for cleanroom environments.
User Benefit: Pass health inspections with ease and ensure zero contamination.
Precision Control with Siemens & PLC:

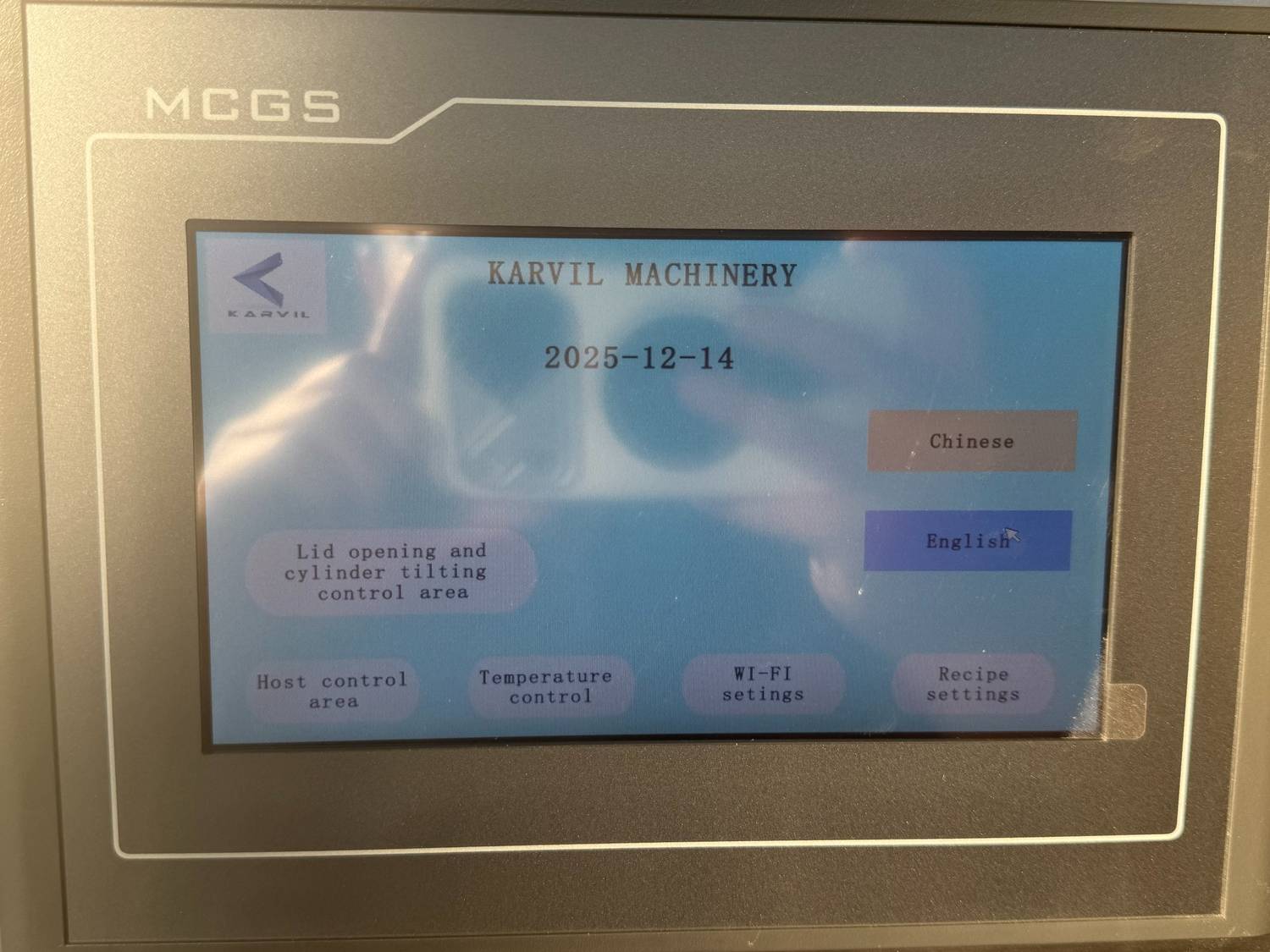

Equipped with a genuine Siemens Variable Frequency Drive (VFD) and a user-friendly PLC Touch Screen System, you have total control over mixing speeds and timers.
User Benefit: Protein bar dough viscosity changes as it mixes. The Siemens inverter provides stable torque at low speeds to prevent motor burnout, while the PLC allows you to save "recipes" for consistent product quality—crucial for brand reputation.
Technical Parameters
| Type | NH-5 | NH-10 | NH-100 | NH-300 | NH-500 | NH-1000 | NH-1500 | NH-2000 | NH-3000 | NH-4000 | NH-5000 | |
| Total Volume (L) | 5 | 10 | 100 | 300 | 500 | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 | |
| Mixed amount/batch (L) | 1.5-3.5 | 3.0-7 | 30-70 | 90-210 | 150-350 | 300-700 | 450-1050 | 600-1400 | 900-2100 | 1200-2800 | 1500-3500 | |
| Rotation Speed (rpm) | 42/34 | 42/34 | 37/21 | 37/22 | 37/23 | 37/26 | 37/22 | 30/21 | 30/21 | 30/20 | 28/18 | |
| Main Motor Power (Kw) | 0.75-1.5 | 1.1-3 | 5.5-11 | 7.5-30 | 15-37 | 22-90 | 22-90 | 30-110 | 30-110 | 45-110 | 55-132 | |
| Heating Methods | Steam Pressure (MPa) | Jacket for steam ≤0.3MPa | ||||||||||
| Electric Power (Kw) | 2.4 | 2.4 | 6 | 12 | 18 | 30 | 45 | 54 | 72 | 72 | 90 | |
| Vacuum (MPa) | 0~ -0.096Mpa (Vacuum Kneader) | |||||||||||
| Discharging Method | Tilting cylinder | |||||||||||
| Screw extrusion | ||||||||||||
Applications
 |  |  |  |
 |  |  |  |
Our Services
 | LABORATORY TEST In order to be able to demonstrate the advantages and modes of action of our industrial mixing machine with your products, our fully equipped modern laboratory/technical center is at your disposal. |
PROFESSIONAL ENGINEER The experienced team of engineers is specialized in the R&D and design of mixers, grinding equipment, and plastic recycling machine. Karvil explores new technical points constantly to create perfect solutions for customers. |  |
 | DIRECT FACTORY Karvil factory has a series of strict standard system to control the procurement of raw materials, manufacturing process, in-process inspection, and product inspection, so as to ensure the quality of our products.
|
Certificaitons
F.A.Q.
1. Manufacturer or trading company?
We are a manufacturer with strict production standards in China.
2. Where is your company?
Our company is located in Yantai, Shandong,——Powder Equipment Industry Belt.
3. About your company's visit?
We can pick you up at Qingdao Airport conveniently, and then we can take you to our factory.
4. What is the main market for your company?
Asia and Africa, Australia, America, Europe.
5. Can you provide customized products?
Yes, we have professional engineers to meet your special design needs, so we can provide customized products.
6. What is your delivery time?
It usually takes about 20 to 30 days, the exact time also depends on the type and quantity of the product.
7. About the product warranty?
Usually, we provide a 1-year warranty for the products that have been sold, but we can also provide life-long service when you need it to maintain a long-term relationship with you.
8. What are the payment terms?
T/T, L/C, etc.
SUCCESSFUL SHIPMENT: ECUADOR
 | 50L Full Stainless Steel Kneader for Protein Bars Core Component: Siemens Inverter Application: Protein Bar Production Manufacturer: Karvil Machinery |
