【Application Industry】：
Widely used in mixing and kneading of low-to-high viscosity products in many industries such as ceramics, silicone rubber, sealants, clay, chewing gum, candy, bakery food, pharmaceuticals, carbon paste, inks/pigments ,etc.
Karvil Machinery is the supplier of Siemens and provide the sigma blade mixer for its application
NH-300
KARVIL
Standard Design（Customizable）:
Material: SUS 304, 316 or mild steel
Discharging: Tilting discharging/Screw extruding discharging/Bottom plate
Heating: Electric heating/Water heating/Oil heating/Steam heating
Cooling: Water cooling/Jacket cooling
Vacuum: Water-ring vacuum pump/ buffer tank.
Motor: Explosion proof motor

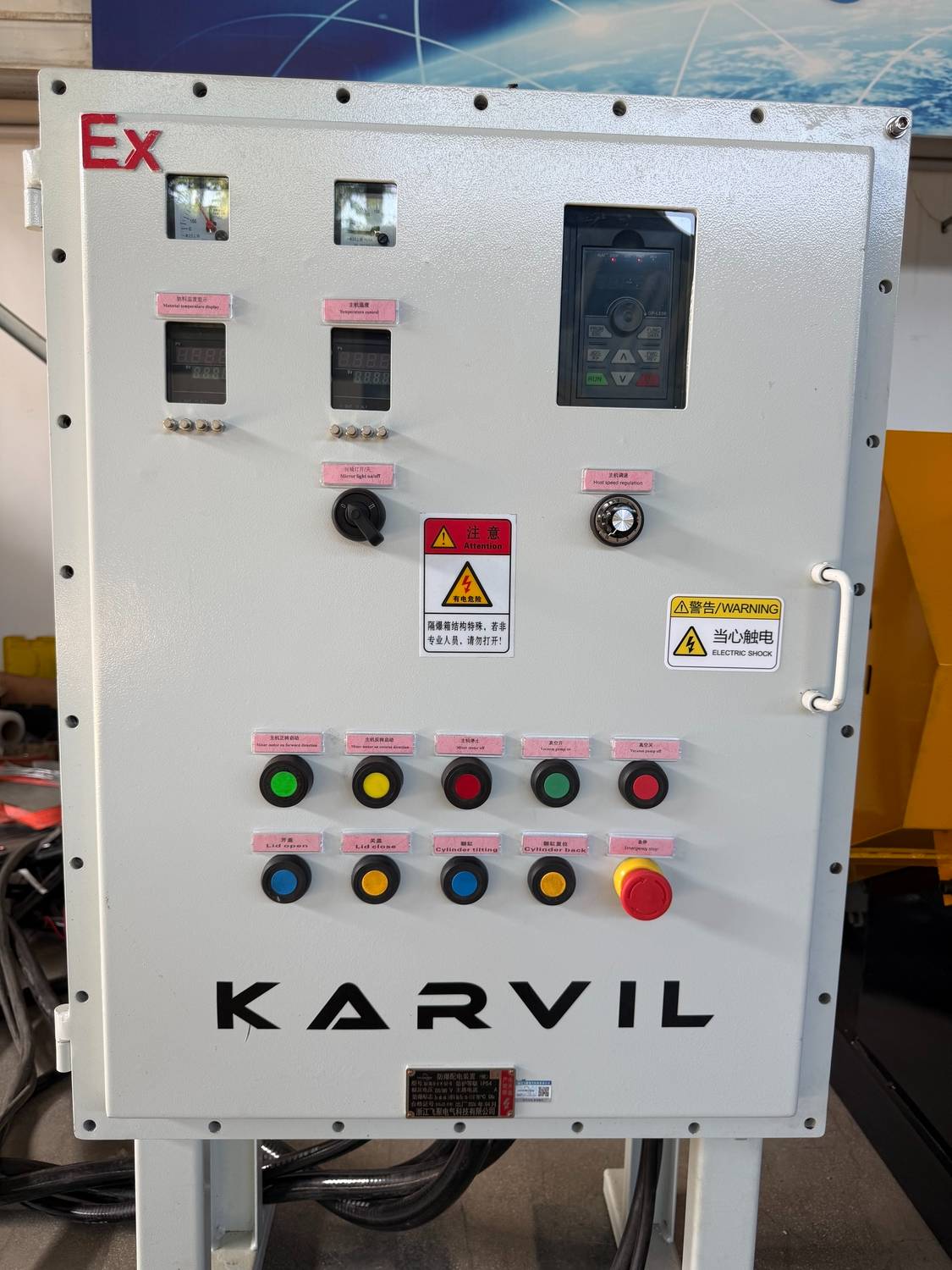

Independent Control Panel: Variable speed/ Temperature/Discharging
Working Volume: 5 to10,000 Cubic Feet (from experiment to production)

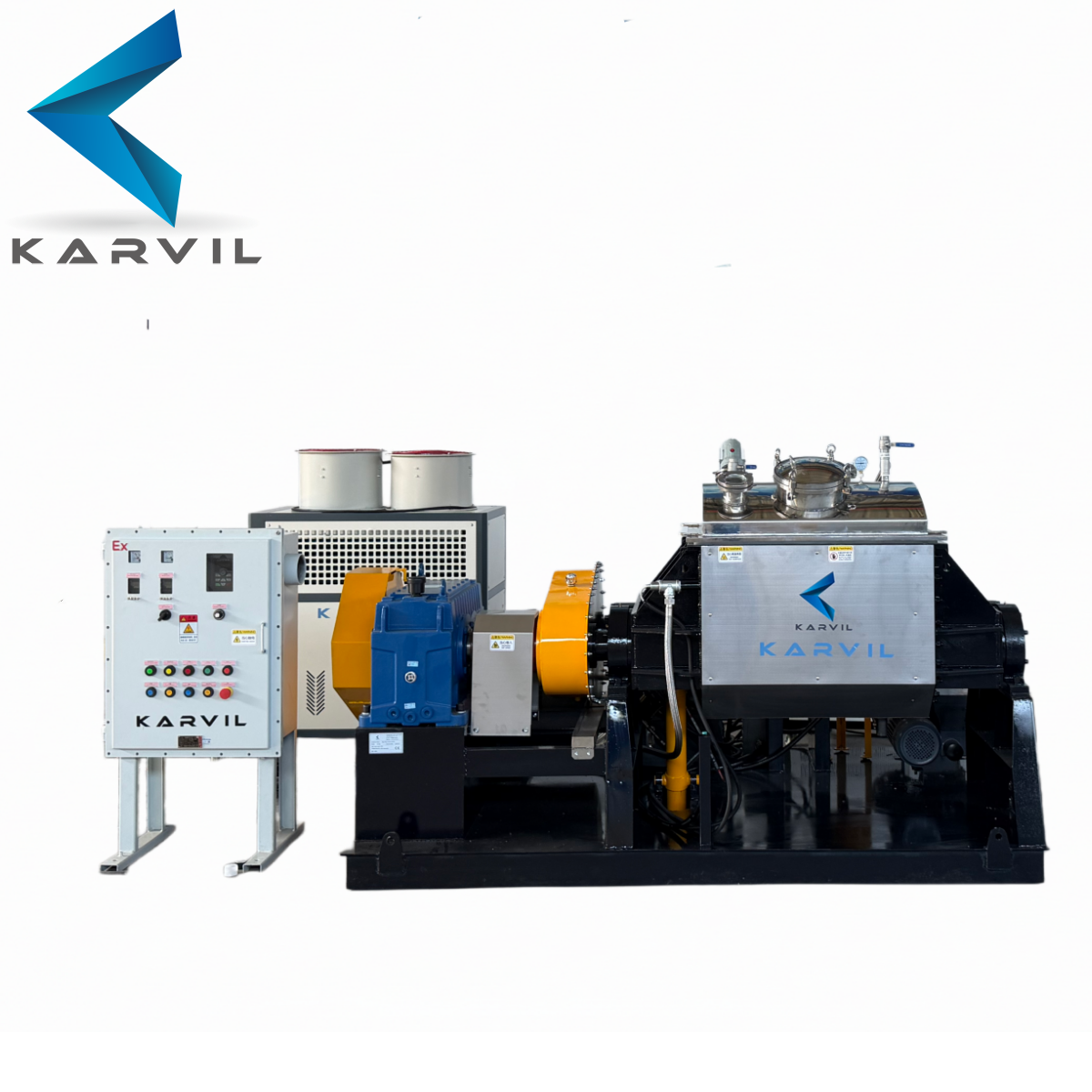

300L Explosion-Proof Double Sigma Kneader: The Ultimate Mixing Solution for NBR Rubber & High-Viscosity Materials

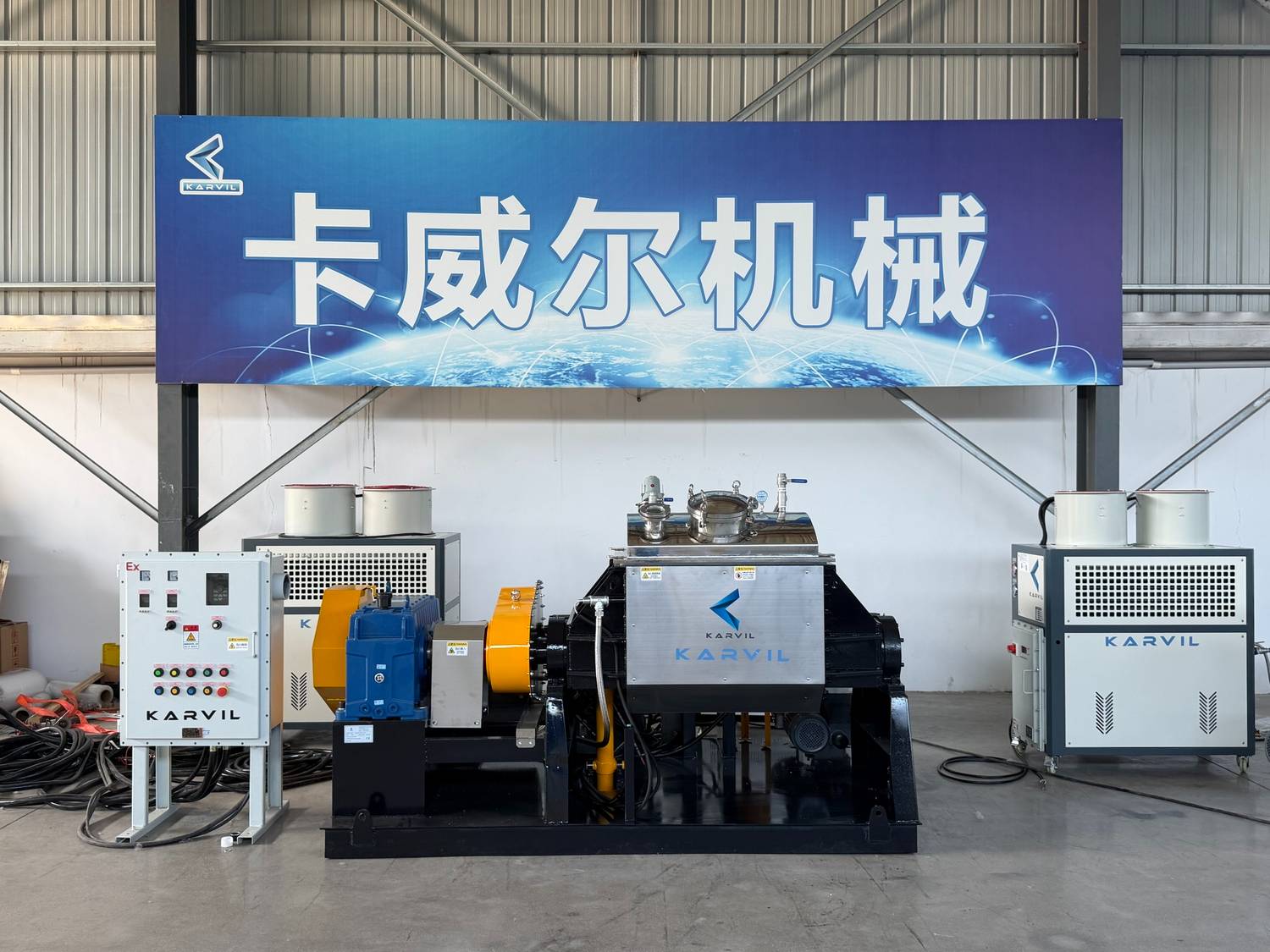

Recently exported to our long-term partners in Romania, this highly customized 300L Explosion-Proof Vacuum Sigma Kneader is specially engineered for mixing heavy-duty and heat-sensitive materials like Nitrile Butadiene Rubber (NBR) and various compound fillers.

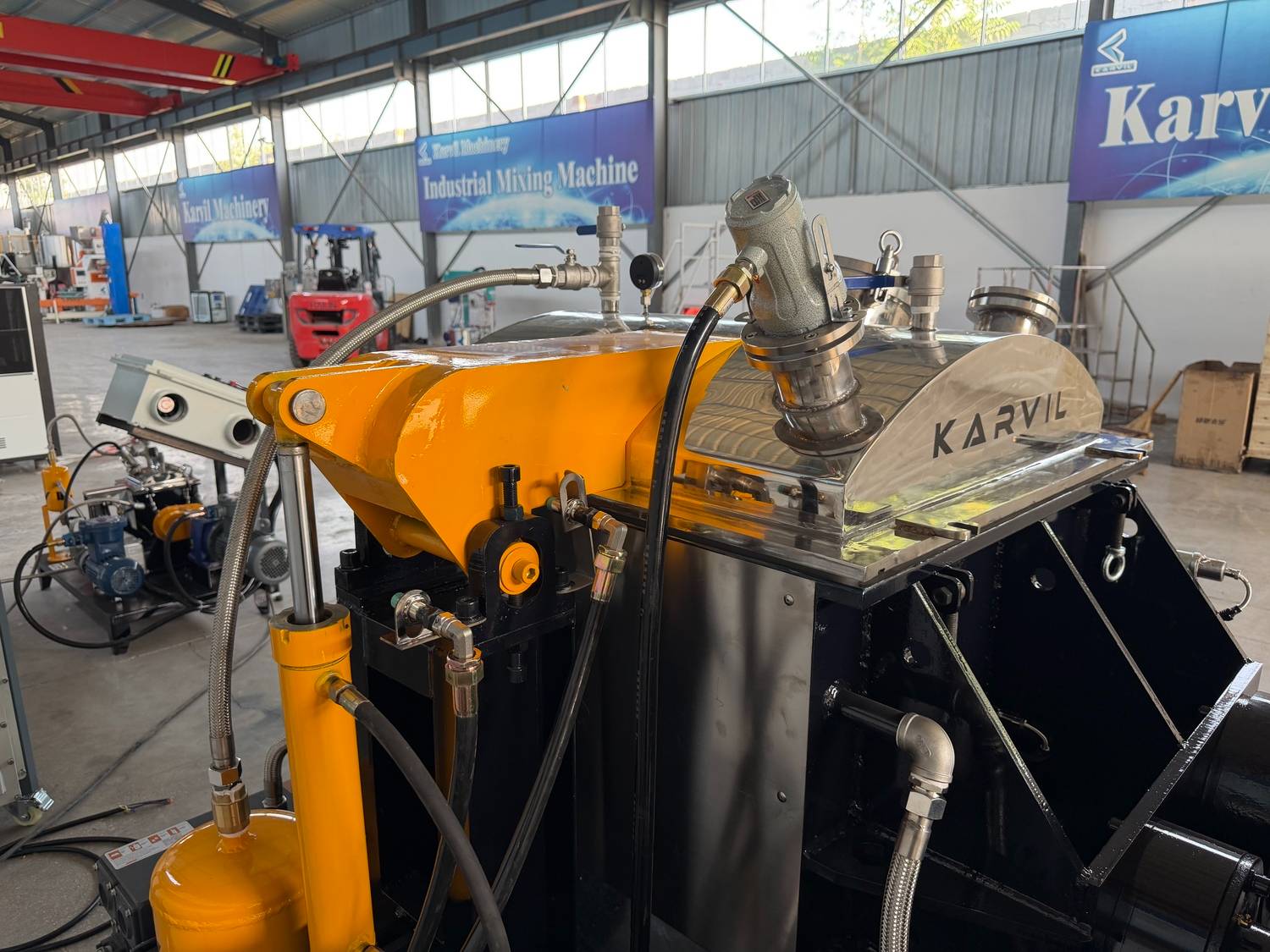

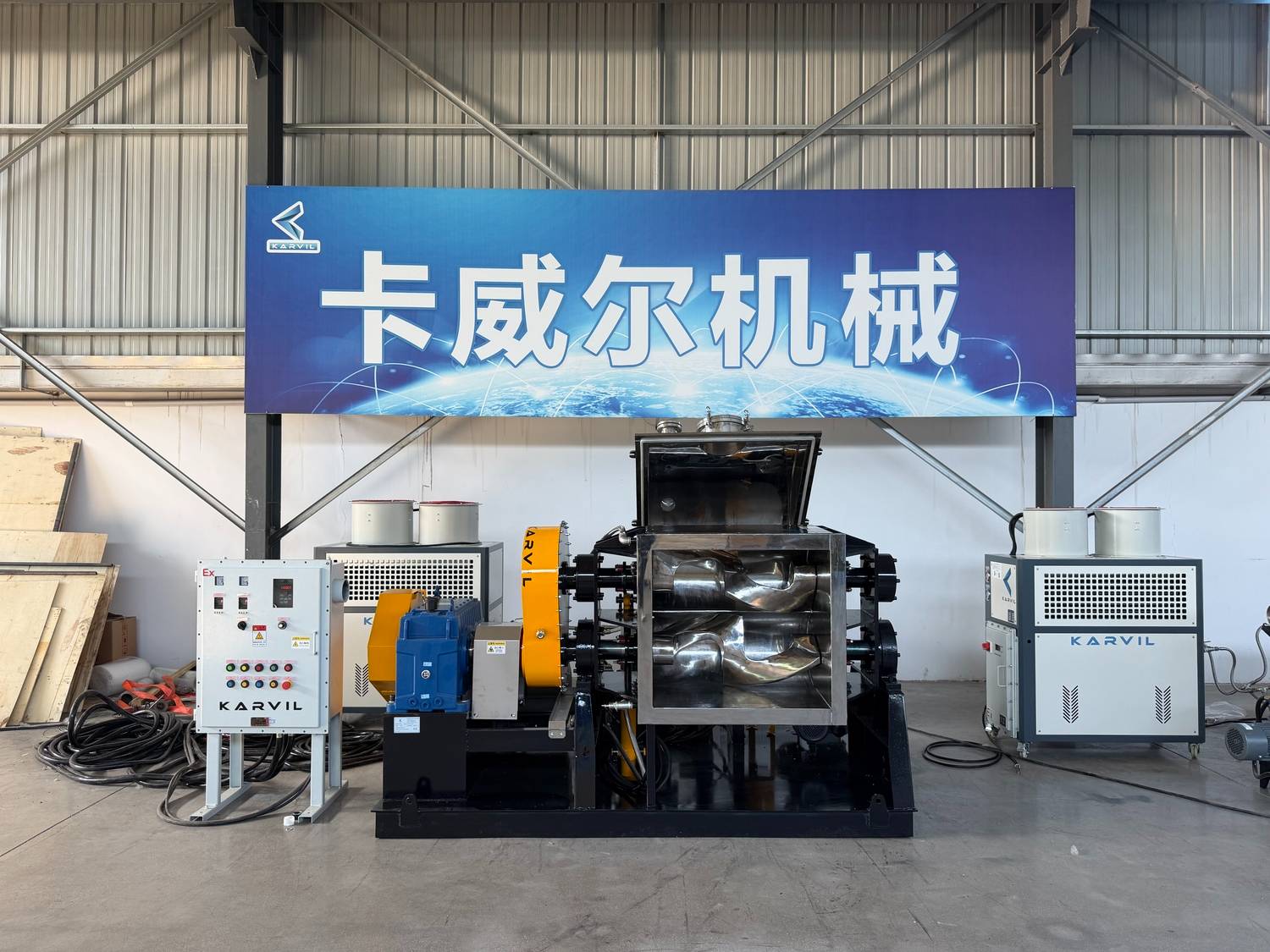

Equipped with a complete explosion-proof system—including the main motor, vacuum pump, thermal oil heater, and oil chiller—this kneader ensures maximum safety in hazardous working environments. Combined with an advanced hydraulic tilt discharge and mirror-polished SS304 contact parts, it delivers unmatched efficiency, easy cleaning, and precise temperature control.
Key Features & Advantages:

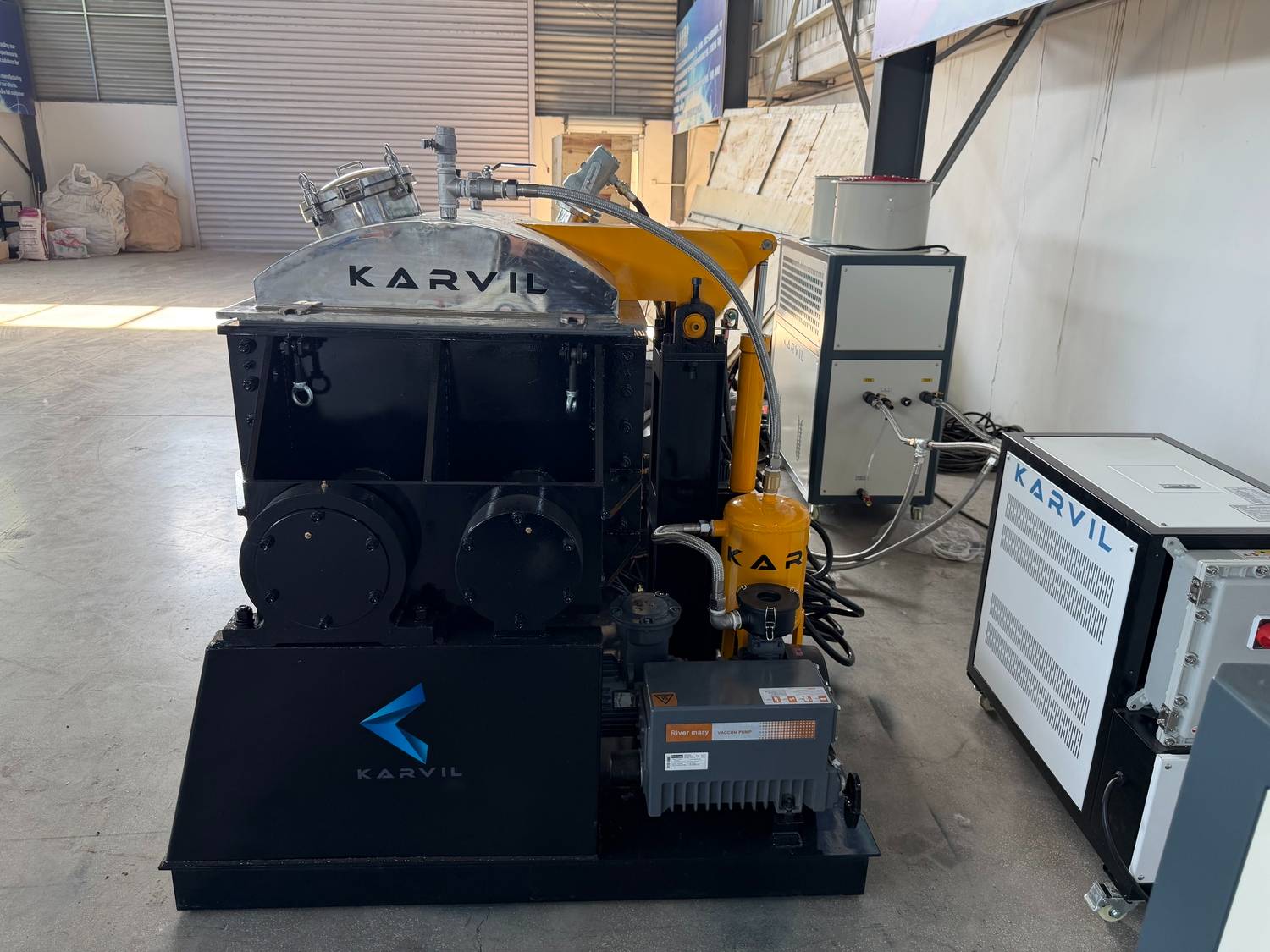

Comprehensive Explosion-Proof System: Powered by a premium 30KW Beide (Siemens) EX-proof motor, paired with an EX-proof vacuum system, Mold Temperature Controller, and Oil Chiller. 100% safe for processing solvent-based or volatile materials.
⚙️ Intelligent Safety Mechanism: Equipped with an automatic safety limit switch. The mixing blades will immediately stop rotating if the top cover is opened, ensuring absolute operator safety.
️ Precise Temperature Control: The mixing vessel features a thermal oil jacket connected to an independent EX-proof Thermal Oil Heater and an EX-proof Oil Chiller, allowing for rapid heating and cooling to perfectly control the vulcanization or curing state of rubber materials.
Superior Sealing Technology: Features a composite stuffing box design with PTFE packing and PTFE seals. Easy to maintain and replace, ensuring zero material leakage and maintaining high vacuum levels.

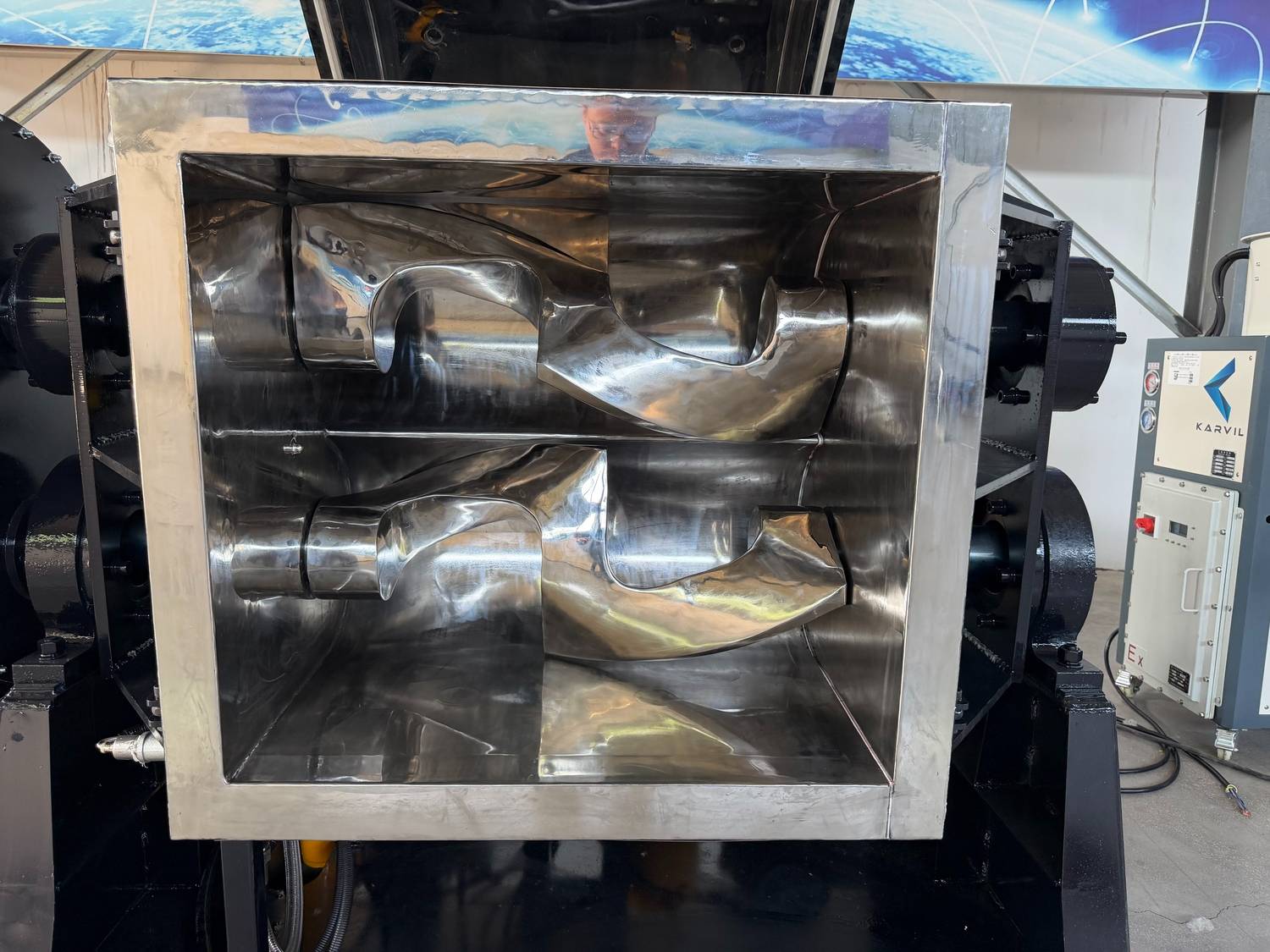

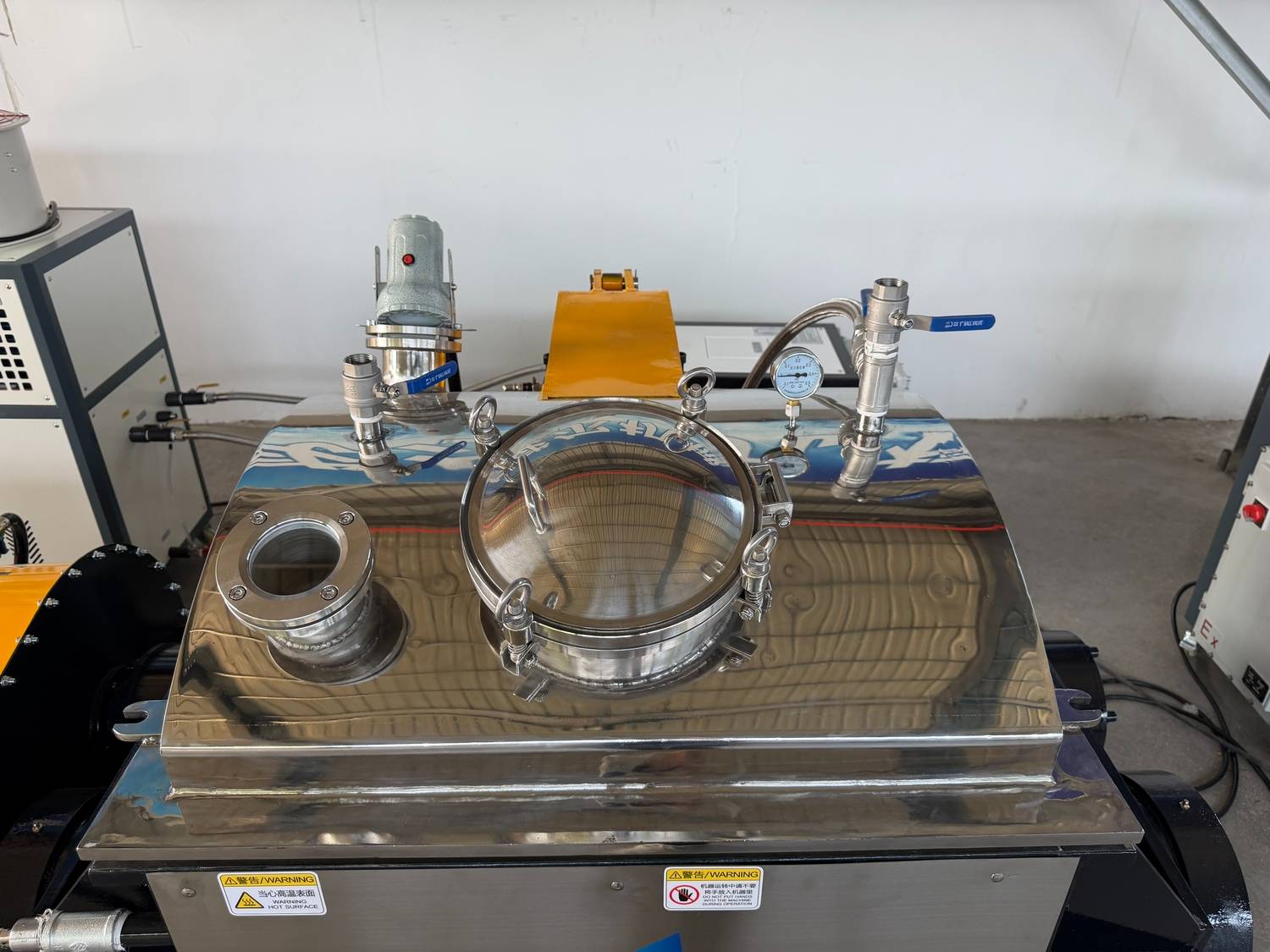

✨ Premium Material & Finish: All material contact parts (cylinder, double Sigma blades, top cover) are made of SUS304 stainless steel with a high-grade mirror polishing finish. No dead corners, preventing material sticking and cross-contamination.
| Type | NH-5 | NH-10 | NH-100 | NH-300 | NH-500 | NH-1000 | NH-1500 | NH-2000 | NH-3000 | NH-4000 | NH-5000 | |
| Total Volume (L) | 5 | 10 | 100 | 300 | 500 | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 | |
| Mixed amount/batch (L) | 1.5-3.5 | 3.0-7 | 30-70 | 90-210 | 150-350 | 300-700 | 450-1050 | 600-1400 | 900-2100 | 1200-2800 | 1500-3500 | |
| Rotation Speed (rpm) | 42/34 | 42/34 | 37/21 | 37/22 | 37/23 | 37/26 | 37/22 | 30/21 | 30/21 | 30/20 | 28/18 | |
| Main Motor Power (Kw) | 0.75-1.5 | 1.1-3 | 5.5-11 | 7.5-30 | 15-37 | 22-90 | 22-90 | 30-110 | 30-110 | 45-110 | 55-132 | |
| Heating Methods | Steam Pressure (MPa) | Jacket for steam ≤0.3MPa | ||||||||||
| Electric Power (Kw) | 2.4 | 2.4 | 6 | 12 | 18 | 30 | 45 | 54 | 72 | 72 | 90 | |
| Vacuum (MPa) | 0~ -0.096Mpa (Vacuum Kneader) | |||||||||||
| Discharging Method | Tilting cylinder | |||||||||||
| Screw extrusion | ||||||||||||
Applications
 |  |  |  |
 |  |  |  |
Our Services
 | LABORATORY TEST In order to be able to demonstrate the advantages and modes of action of our industrial mixing machine with your products, our fully equipped modern laboratory/technical center is at your disposal. |
PROFESSIONAL ENGINEER The experienced team of engineers is specialized in the R&D and design of mixers, grinding equipment, and plastic recycling machine. Karvil explores new technical points constantly to create perfect solutions for customers. |  |
 | DIRECT FACTORY Karvil factory has a series of strict standard system to control the procurement of raw materials, manufacturing process, in-process inspection, and product inspection, so as to ensure the quality of our products.
|
Certificaitons
F.A.Q.
1.Manufacturer or trading company?
We are a professional manufacturer with over 20 years of experience, specializing in Sigma Mixers, Ribbon Blenders, and Planetary Mixers. Unlike trading companies, we have our own R&D team and strict quality control system, which allows us to offer direct factory prices and technical support.
2.What is the main market for your company?
Our machines have been exported to over 50 countries, including markets in Europe, America,Australia and Southeast Asia. We serve industries ranging from chemicals, energetic materials, adhesives, and sealants to food and pharmaceuticals.
3.How do you ensure the quality of the machine before delivery?
Quality is our priority. After production, we conduct a strict FAT (Factory Acceptance Test). We run the machine empty and with load (if applicable) for continuous hours to check noise, vibration, sealing, and temperature. We will send you a detailed running video. You are also welcome to visit or hire a third party (like SGS/BV) for inspection.
4.Can I track the production progress of my order?
Yes. During the production process, our sales team will update you with photos and videos of key stages (machining, welding, assembly, painting) so you can know exactly the status of your equipment.
5.How about the installation and services?
We provide comprehensive support:
Documents: Detailed English manual, electric diagram.
Online Support: Lifetime remote video guidance for installation and troubleshooting.
On-site Service: If needed, we can dispatch engineers to your factory for installation, commissioning, and staff training.
6.How do you pack the machine to ensure safety during long shipping?
We use export-standard plywood cases ensuring stability. For the machine surface, we wrap it with multiple layers of stretch film to prevent moisture and corrosion during sea transportation.
7.Can you provide customized products?
Yes, we have professional engineers to meet your special design needs, so we can provide customized products.
8. What are the payment terms and delivery time?
Production begins after confirming details and receiving a 50% deposit. It usually takes 20-30 days. Once you approve the machine via test videos or on-site inspection, we will arrange shipment immediately after the balance payment.
9.About the product warranty?
We provide 12-month warranty starting. Within the warranty period, we provide free replacement parts with DHL/Fedex . Beyond the warranty, we offer cost-price spare parts and lifetime technical support.
