Electric Heating Sigma Mixer

Specifications:
  • 210L working capacity (300L full capacity)
  • Main motor: 30kw-4 Siemens

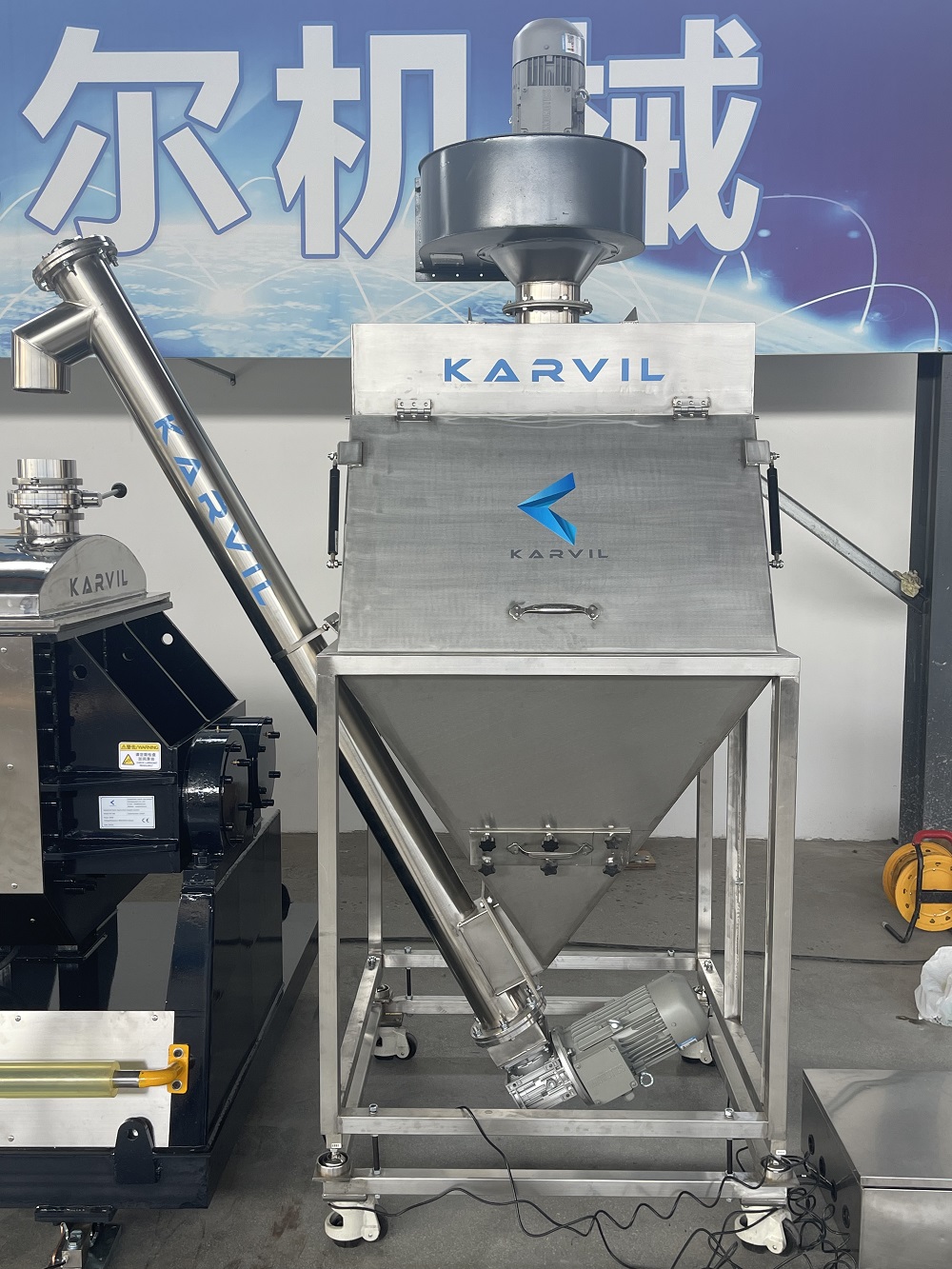

  • Equipped with weighing sensor system and dust removal station

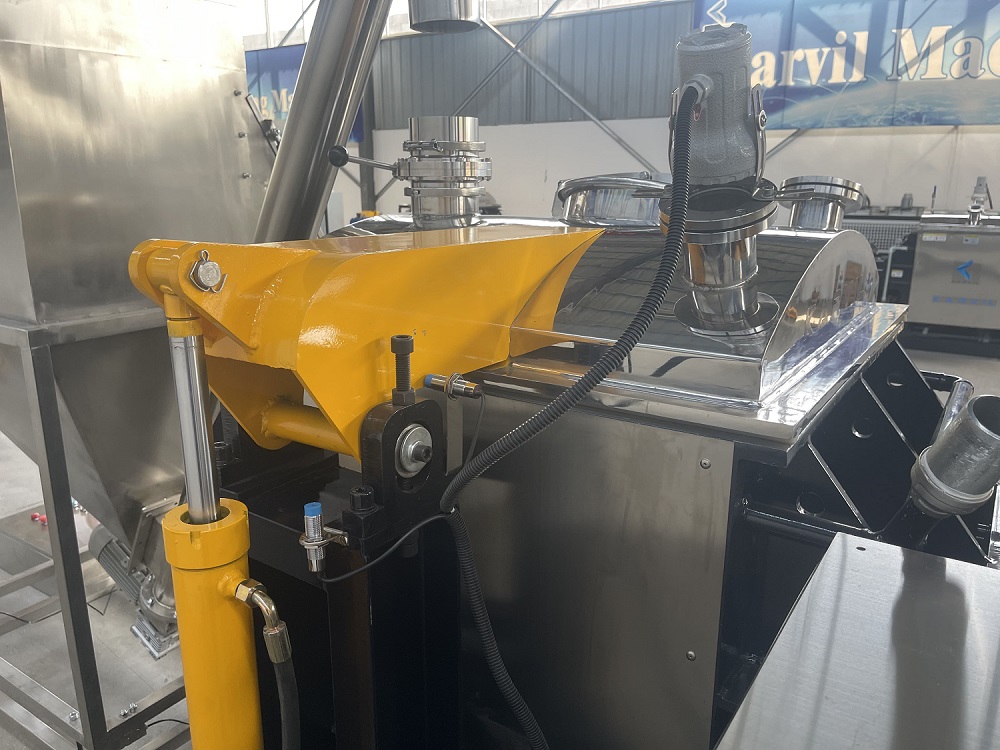

  • Upper cover: Hydraulic opening/closing cover, with two sight glasses, one with light, food grade silicone rubber seal
  • Blades: Double sigma blades with speed 0-37 rpm (fast); 0- 22 rpm (slow)
  • Discharging method: Hydraulic cylinder discharging, hydraulic station motor power 1.5kw, Siemens
  • Heating: Electric heating, 2Kw*6=12Kw
  • All material contact parts are made of SS304 (mirror polished)
  • The motor hydraulic station and all external transmission parts are covered with SUS304 plate
  • PLC control distribution cabinet, Schneider electronic components, circuit breaker protection

【Application Industry】:
Widely used in mixing and kneading of low-to-high viscosity products in many industries such as ceramics, silicone rubber, sealants, clay, chewing gum, candy, bakery food, pharmaceuticals, carbon paste, inks/pigments ,etc.
  • NH-300

  • KARVIL

Availability:

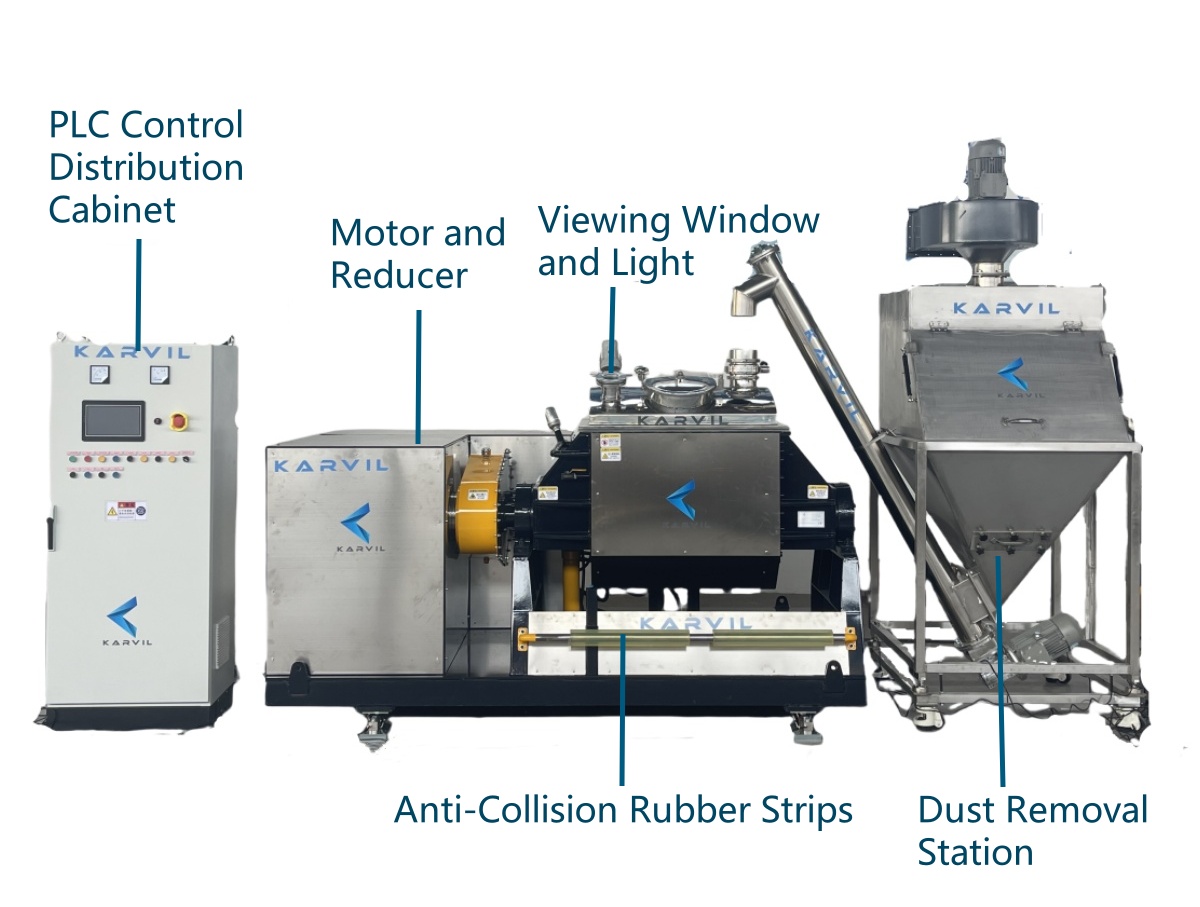

PLC-Tilting-Kneader-Mixer_副本

Standard Design(Customizable):


Material: SUS 304, 316 or mild steel

Discharging: Tilting discharging/Screw extruding discharging/Bottom plate

Heating: Electric heating/Water heating/Oil heating/Steam heating

Cooling: Water cooling/Jacket cooling

Vacuum: Water-ring vacuum pump/ buffer tank.

Motor: Explosion proof motor

Independent Control Panel: Variable speed/ Temperature/Discharging

Working Volume: 5 to10,000 Cubic Feet (from experiment to production)


Details

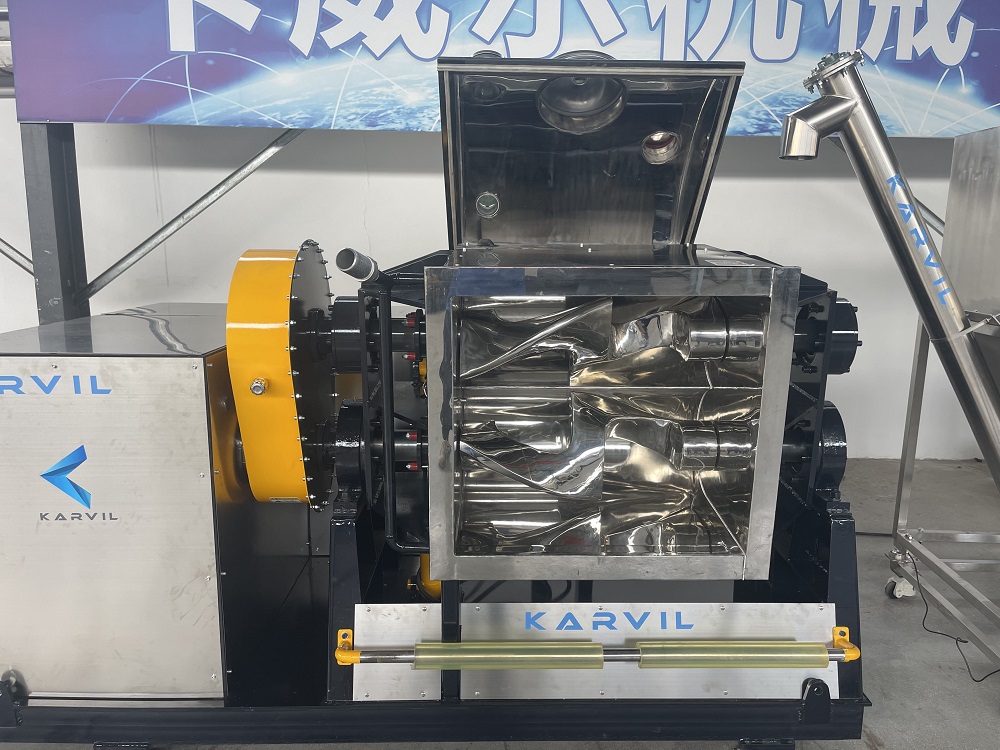

PLC-Tilting-Kneader-Mixer (11)
PLC-Tilting-Kneader-Mixer (9)

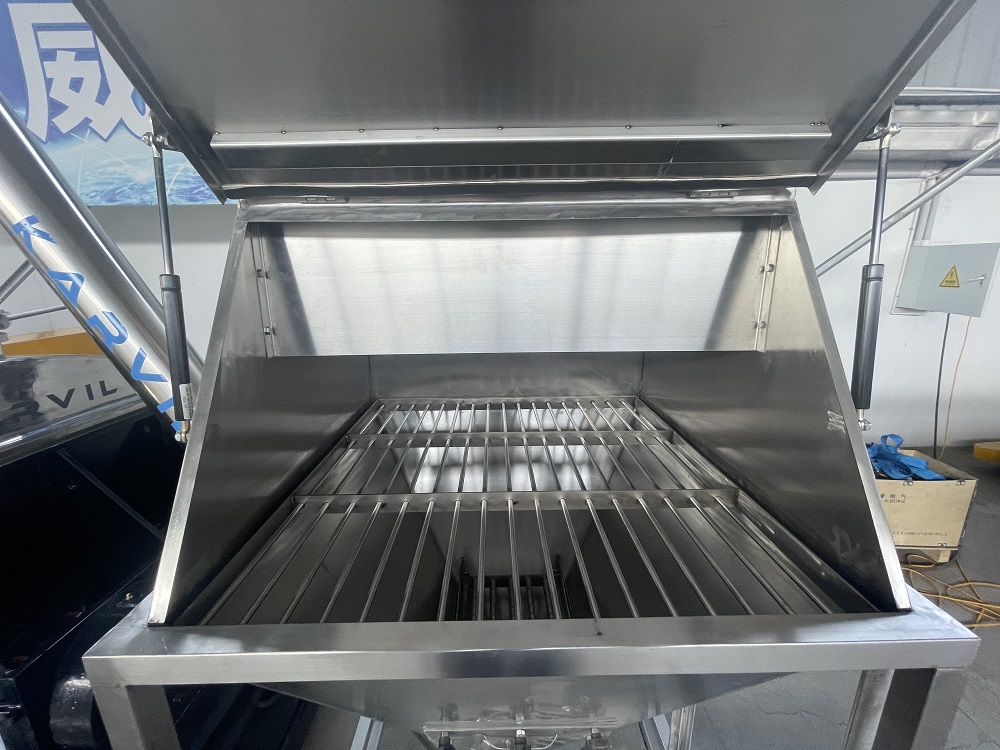

Electric-Heating-&-PLC-Control-Tilting-Kneader- for-Protein-Bars (5)

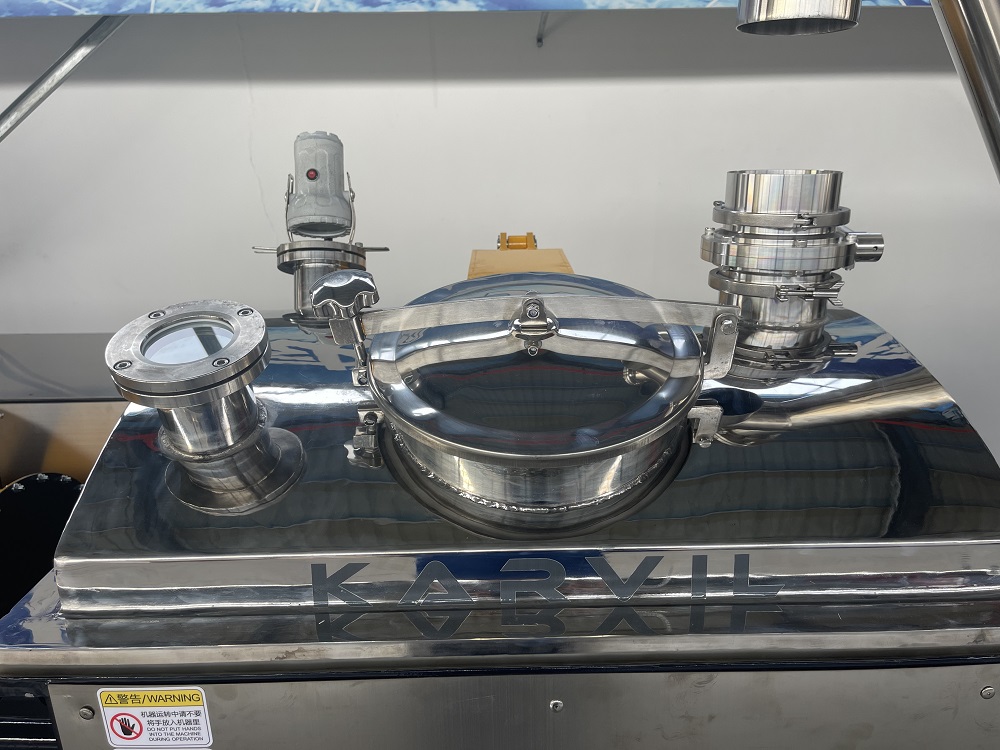

PLC-Tilting-Kneader-Mixer (7)



300L-Double-Sigma-Blade-Titling-Kneader-Mixer

300L-Double-Sigma-Blade-Titling-Kneader-Mixer-3

>The Karvil sigma mixer is consist of mixing chamber, frame support, hydraulic system, electric control system, discharge system and two Z shape blade in the chamber drove by the motor.

>In the field of sigma mixers, Karvil Machinery satisfy completely their customers’ needs. Through the action of the sigma blade, the hard and tough paste is mixed for a perfectly homogeneous mixture.

>Please contact us  and we will assist you in developing the right solution for you. There is also a laboratory size z blade mixer available. Click here.

Technical Parameters


          Type NH-5 NH-10 NH-100 NH-300 NH-500 NH-1000 NH-1500 NH-2000 NH-3000 NH-4000 NH-5000
Total Volume (L) 5 10 100 300 500 1000 1500 2000 3000 4000 5000
Mixed amount/batch (L) 1.5-3.5 3.0-7 30-70 90-210 150-350 300-700 450-1050 600-1400 900-2100 1200-2800 1500-3500
Rotation Speed (rpm) 42/34 42/34 37/21 37/22 37/23 37/26 37/22 30/21 30/21 30/20 28/18
Main Motor Power (Kw) 0.75-1.5 1.1-3 5.5-11 7.5-30 15-37 22-90 22-90 30-110 30-110 45-110 55-132
Heating Methods Steam Pressure (MPa)                                                                             Jacket for steam
                                                                                   ≤0.3MPa
Electric Power (Kw) 2.4 2.4 6 12 18 30 45 54 72 72 90
Vacuum (MPa)                                                                 0~ -0.096Mpa (Vacuum Kneader)
Discharging Method                                                                             Tilting cylinder
                                                                            Screw extrusion


Our Services

d3decc020c846de83e6cd0ddfddaae9



LABORATORY TEST


In order to be able to demonstrate the advantages and modes of action of our industrial mixing machine with your products, our fully equipped modern laboratory/technical center is at your disposal.


  4cc6a298bf03570b88509020de7d969


PROFESSIONAL ENGINEERFood-Powder-Horizontal-Ribbon-Mixer-2_副本


The experienced team of engineers is specialized in the R&D and design of mixers, grinding equipment, and plastic recycling machine.  Karvil explores new technical points constantly to create perfect solutions for customers.


                   4cc6a298bf03570b88509020de7d969


karvil-machinery-sigma-mixer-ribbon-mixer_副本
karvil-machinery-sigma-mixer-and-ribbon-mixer



DIRECT FACTORY


Karvil factory has a series of strict standard system to control the procurement of raw materials, manufacturing process, in-process inspection, and product inspection, so as to ensure the quality of our products.


4cc6a298bf03570b88509020de7d969

Applications

silicone-rubber-mixing-machine sealants-mixing-machine 粘合剂 clay-mixer-machine-karvil
karvil-medicine-mixer-machine ceramics-mixing-machine chewing-gum-mixing-machine masteratc-mixing-machine

F.A.Q.


FAQ about Sigma Mixers



1. What materials can be processed?

High-viscosity compounds such as epoxy resin, rubber, silicone, sealants, adhesives, and ceramic pastes.



2. Are customs available?

Yes. Blade type, motor power, vacuum system, heating jacket, and discharge method can be tailored per application.



3. What is the capacity range?

Standard models from 2L to 1000L+. Larger sizes available on request.



4. What heating options are supported?

Electric, thermal oil, or steam heating.



5. Can it operate under vacuum?

Yes. Vacuum system available for degassing and improved dispersion quality.



6. How is product discharged?

Manual or hydraulic tilting, or bottom discharge valve—based on material flowability and process setup.



7. Do you offer installation and support?

Yes. Remote or on-site installation guidance, with 12-month warranty and lifelong service support.
