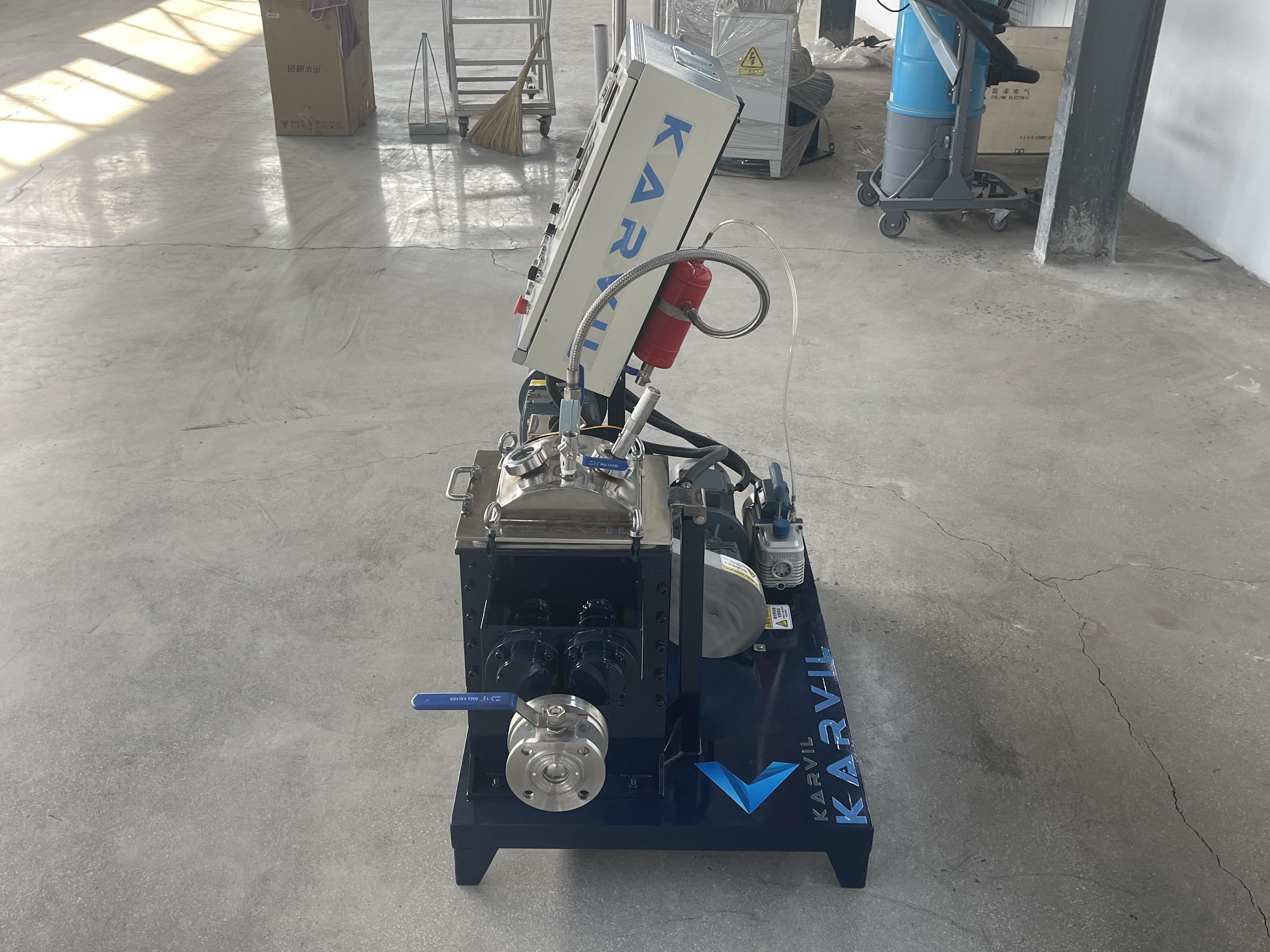

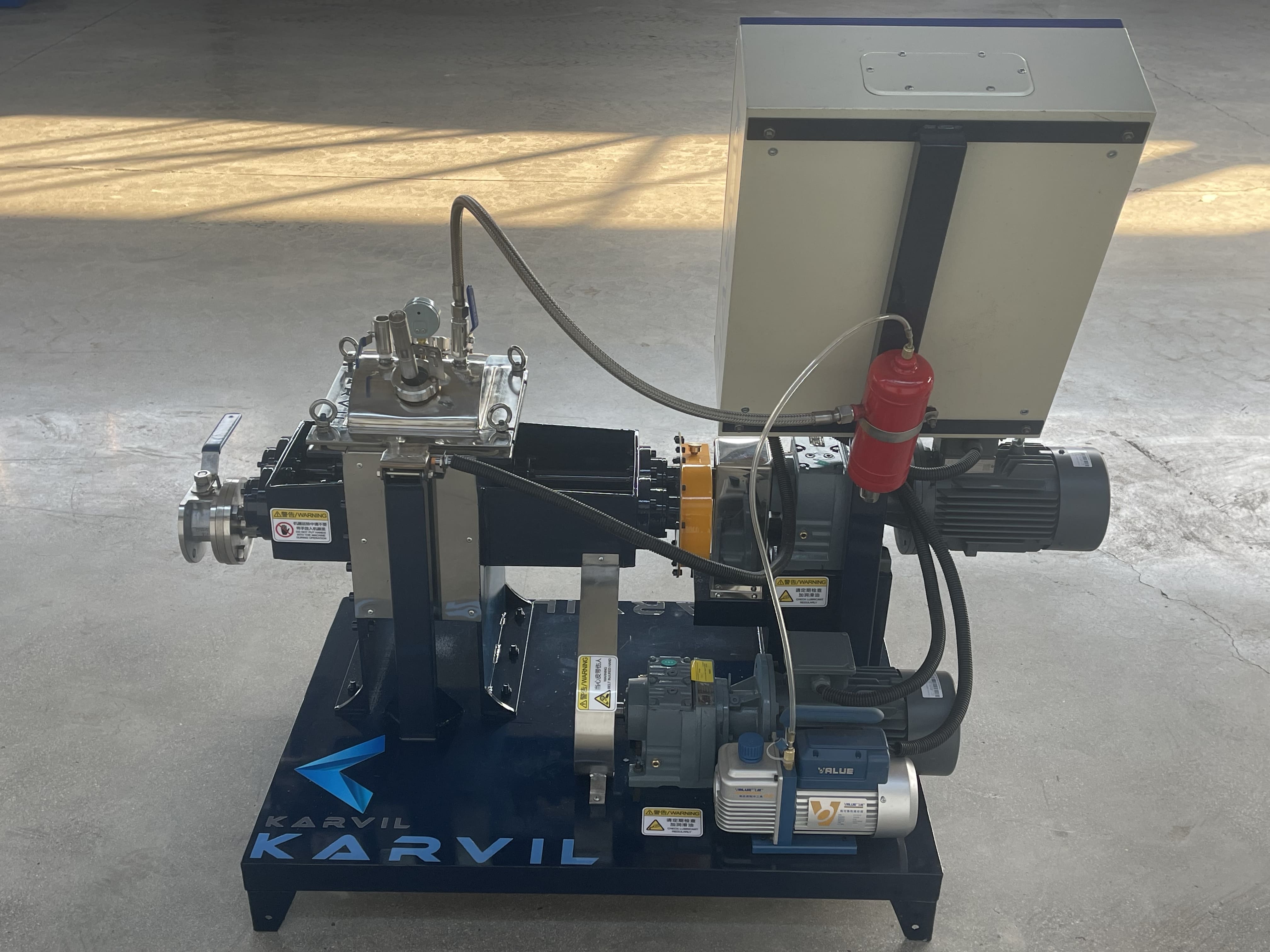

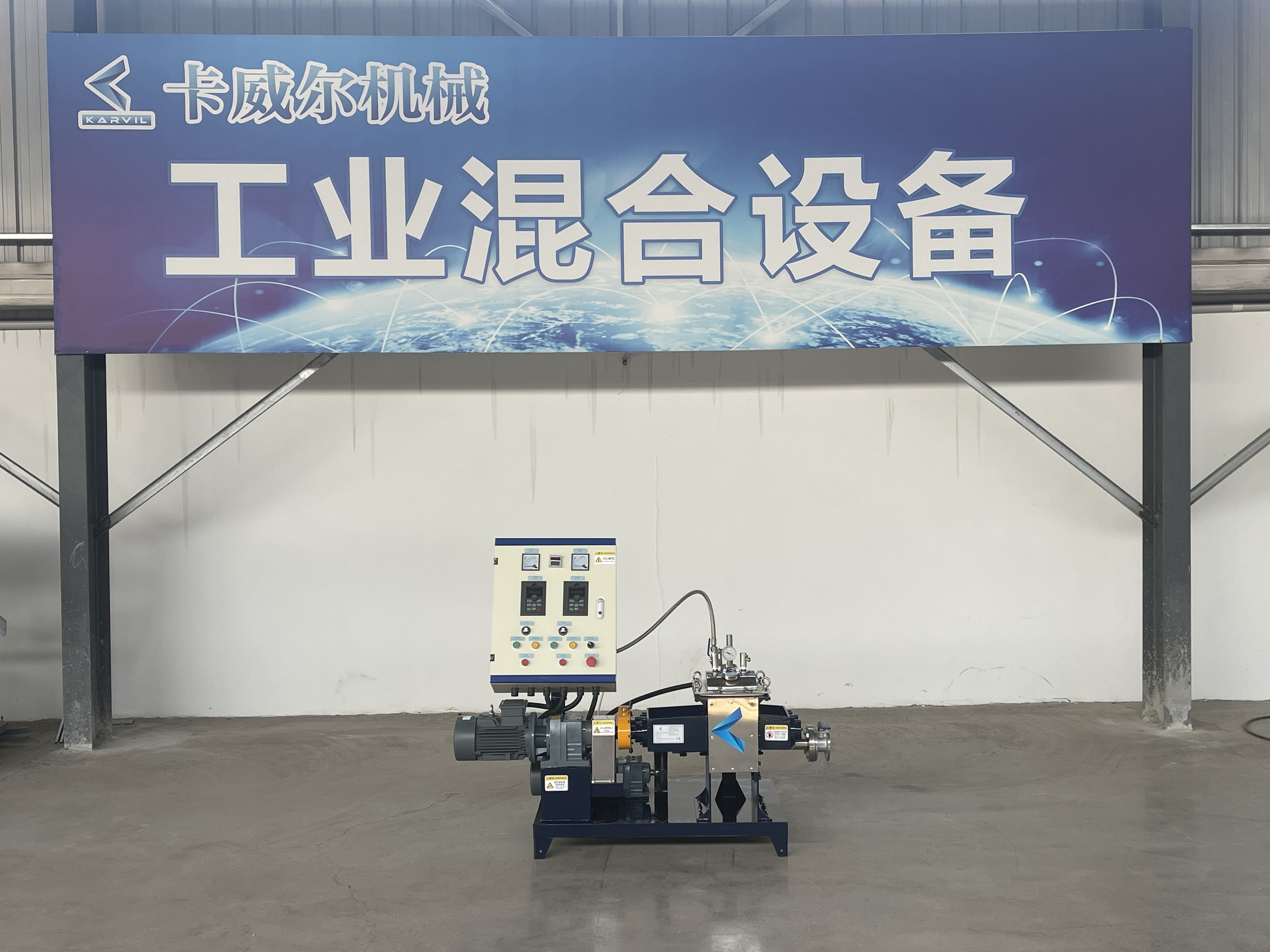

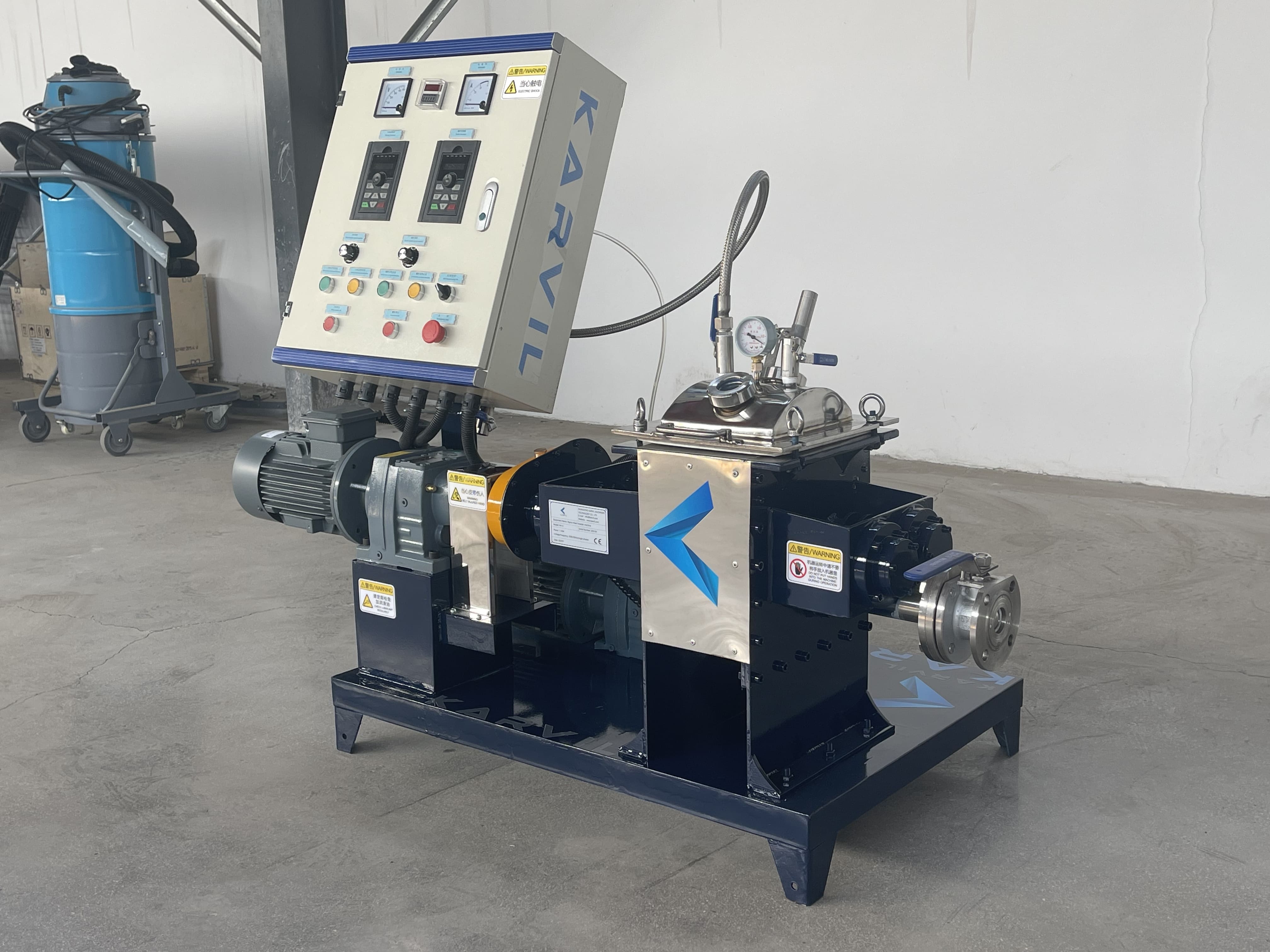

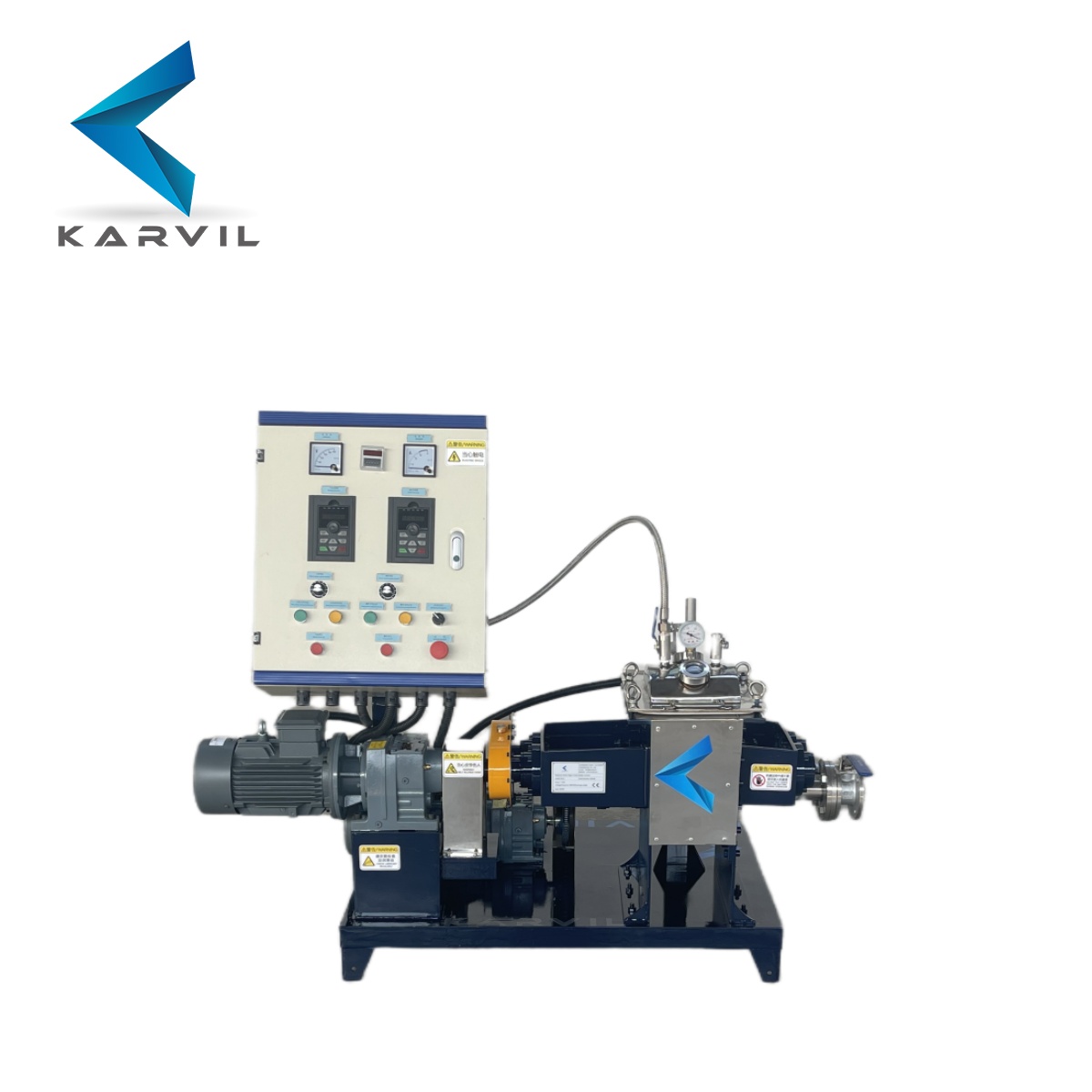

2L Laboratory Z Blade Mixer

  • This 2L laboratory z blade mixer was exported to Poland for the mixing of chemical materials.
  • Karvil Machinery is the supplier of Siemens and provide the sigma blade mixer for its application.
  • The Karvil sigma mixer is also known as the Z blade mixer or sigma kneader mixer. It is used for the mixing and  kneading of high viscosity materials.

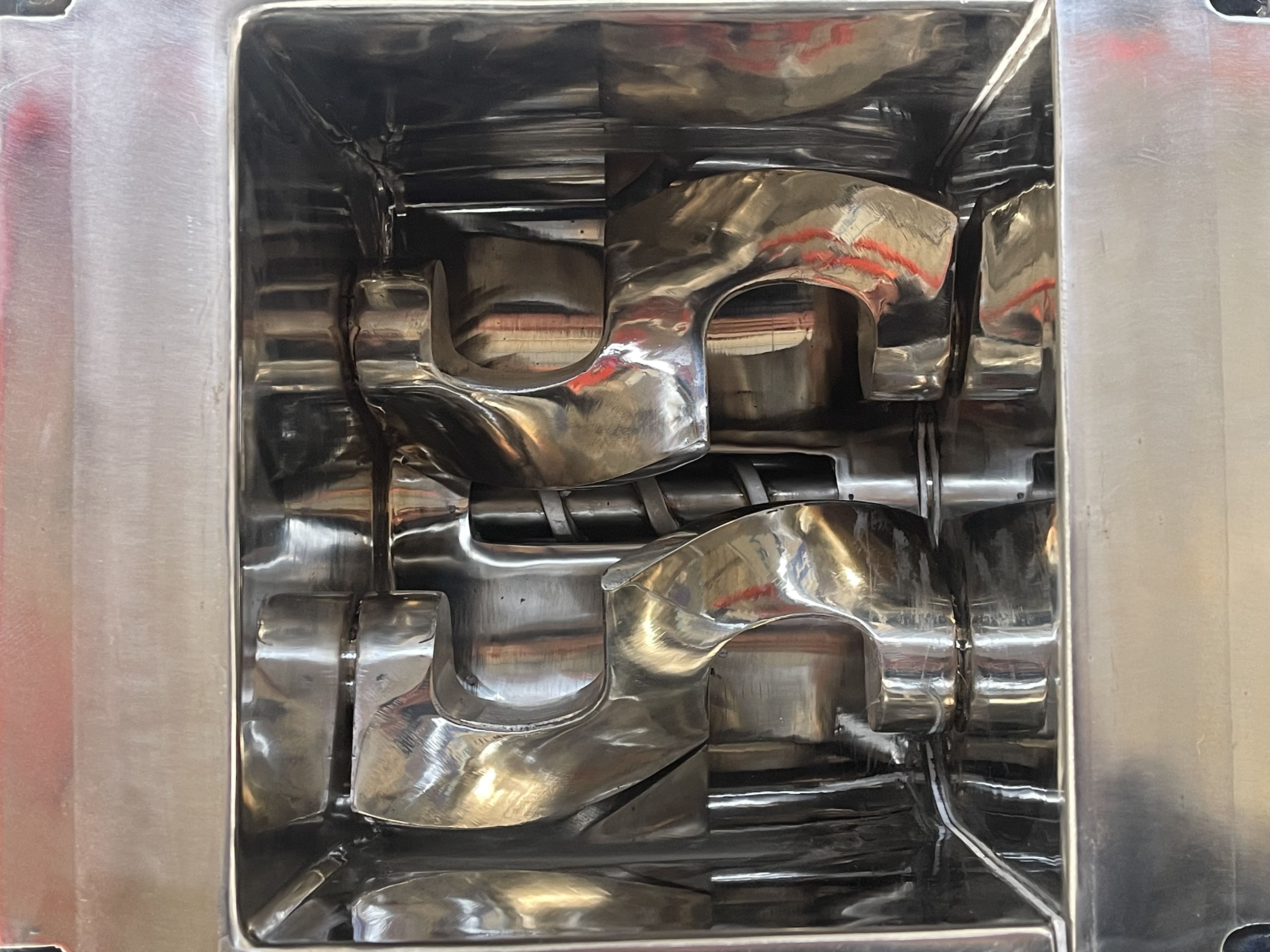

  • The Karvil sigma blade mixer caused by a pair of mutually cooperating and rotating Z blades to produce a strong shearing action so that the viscous materials enables to react quickly to obtain a uniform mixing.

【Application Industry】:
Widely used in mixing and kneading of low-to-high viscosity products in many industries such as ceramics, silicone rubber, sealants, clay, chewing gum, candy, bakery food, pharmaceuticals, carbon paste, inks/pigments ,etc.
  • NH-2

  • KARVIL

Availability:

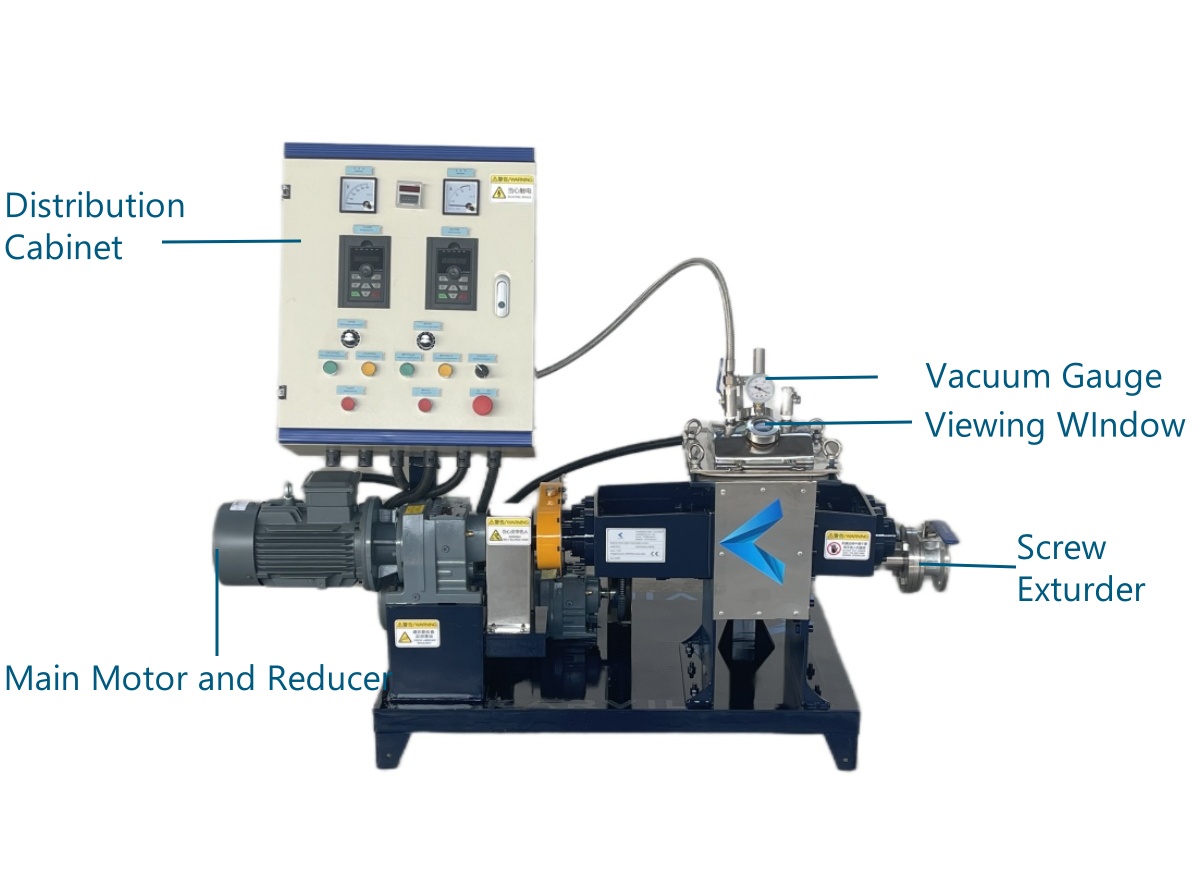

2L-Laboratory-Z-Blade-Mixer_副本

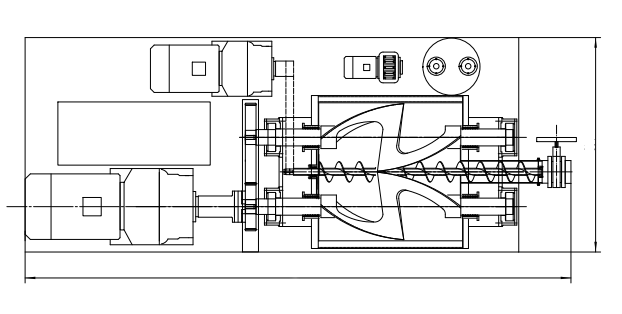

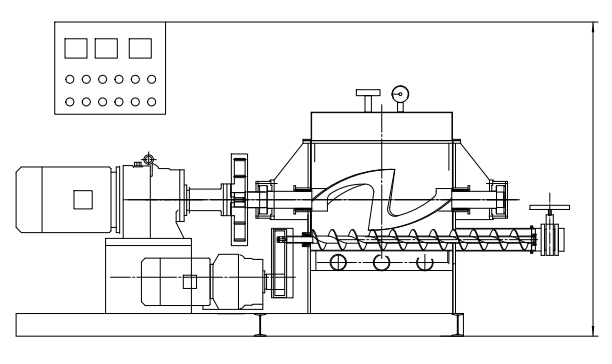

Standard Design(Customizable):


Material: SUS 304, 316 or mild steel

Discharging: Tilting discharging/Screw extruding discharging/Bottom plate

Heating: Electric heating/Water heating/Oil heating/Steam heating

Cooling: Water cooling/Jacket cooling

Vacuum: Water-ring vacuum pump/ buffer tank.

Motor: Explosion proof motor

Independent Control Panel: Variable speed/ Temperature/Discharging

Working Volume: 5 to10,000 Cubic Feet (from experiment to production)

Lab-Scale-Horizontal-Sigma-Mixer-with-CE-Certification

Lab-Scale-Sigma -Z-Blade-Kneader-Mixer-2

  • All Karvil Machinery sigma blade mixers include CE markings and are manufactured in accordance with ISO9001 accreditation;  Supplied complete with electrical equipment to operate the blades.

  • Karvil Machinery z kneaders are available with capacities range from 5 to 10000 liters; Supplied vacuum design, jacketing, explosion proof motor, heating/cooling and others.

  • Please contact us  and we will assist you in developing the right solution for you. There is also a production size z blade mixer available. Click here.

Technical Parameters

          Type NH-5 NH-10 NH-100 NH-300 NH-500 NH-1000 NH-1500 NH-2000 NH-3000 NH-4000 NH-5000
Total Volume (L) 5 10 100 300 500 1000 1500 2000 3000 4000 5000
Mixed amount/batch (L) 1.5-3.5 3.0-7 30-70 90-210 150-350 300-700 450-1050 600-1400 900-2100 1200-2800 1500-3500
Rotation Speed (rpm) 42/34 42/34 37/21 37/22 37/23 37/26 37/22 30/21 30/21 30/20 28/18
Main Motor Power (Kw) 0.75-1.5 1.1-3 5.5-11 7.5-30 15-37 22-90 22-90 30-110 30-110 45-110 55-132
Heating Methods Steam Pressure (MPa)                                                                             Jacket for steam
                                                                                   ≤0.3MPa
Electric Power (Kw) 2.4 2.4 6 12 18 30 45 54 72 72 90
Vacuum (MPa)                                                                 0~ -0.96MPa (Vacuum Kneader)
Discharging Method                                                                             Tilting cylinder
                                                                            Screw extrusion

Our Services

d3decc020c846de83e6cd0ddfddaae9



LABORATORY TEST


In order to be able to demonstrate the advantages and modes of action of our industrial mixing machine with your products, our fully equipped modern laboratory/technical center is at your disposal.


  4cc6a298bf03570b88509020de7d969



PROFESSIONAL ENGINEERFood-Powder-Horizontal-Ribbon-Mixer-2_副本


The experienced team of engineers is specialized in the R&D and design of mixers, grinding equipment, and plastic recycling machine.  Karvil explores new technical points constantly to create perfect solutions for customers.


                   4cc6a298bf03570b88509020de7d969


d1e139188cac52c6159e923028a9a7b_副本
e5105655ad36bdba6d25397a9594f37_副本



DIRECT FACTORY


Karvil factory has a series of strict standard system to control the procurement of raw materials, manufacturing process, in-process inspection, and product inspection, so as to ensure the quality of our products.


4cc6a298bf03570b88509020de7d969

Applications

ceramics-mixing-machine clay-mixer-machine-karvil masteratc-mixing-machine bakery-food-mixing-machine
silicone-rubber-mixing-machine chewing-gum-mixing-machine 粘合剂 candies-mixing-machine

F.A.Q.

1. Manufacturer or trading company?

We are a manufacturer with strict production standards in China.

2. Where is your company?

Our company is located in Yantai, Shandong,——Powder Equipment Industry Belt.

3. About your company's visit?

We can pick you up at Qingdao Airport conveniently, and then we can take you to our factory.

4. What is the main market for your company?

Asia and Africa, Australia, America, Europe.

5. Can you provide customized products?

Yes, we have professional engineers to meet your special design needs, so we can provide customized products.

6. What is your delivery time?

It usually takes about 20 to 30 days, the exact time also depends on the type and quantity of the product.

7. About the product warranty?

Usually, we provide a 1-year warranty for the products that have been sold, but we can also provide life-long service when you need it to maintain a long-term relationship with you.

8. What are the payment terms?

T/T, L/C, etc.
