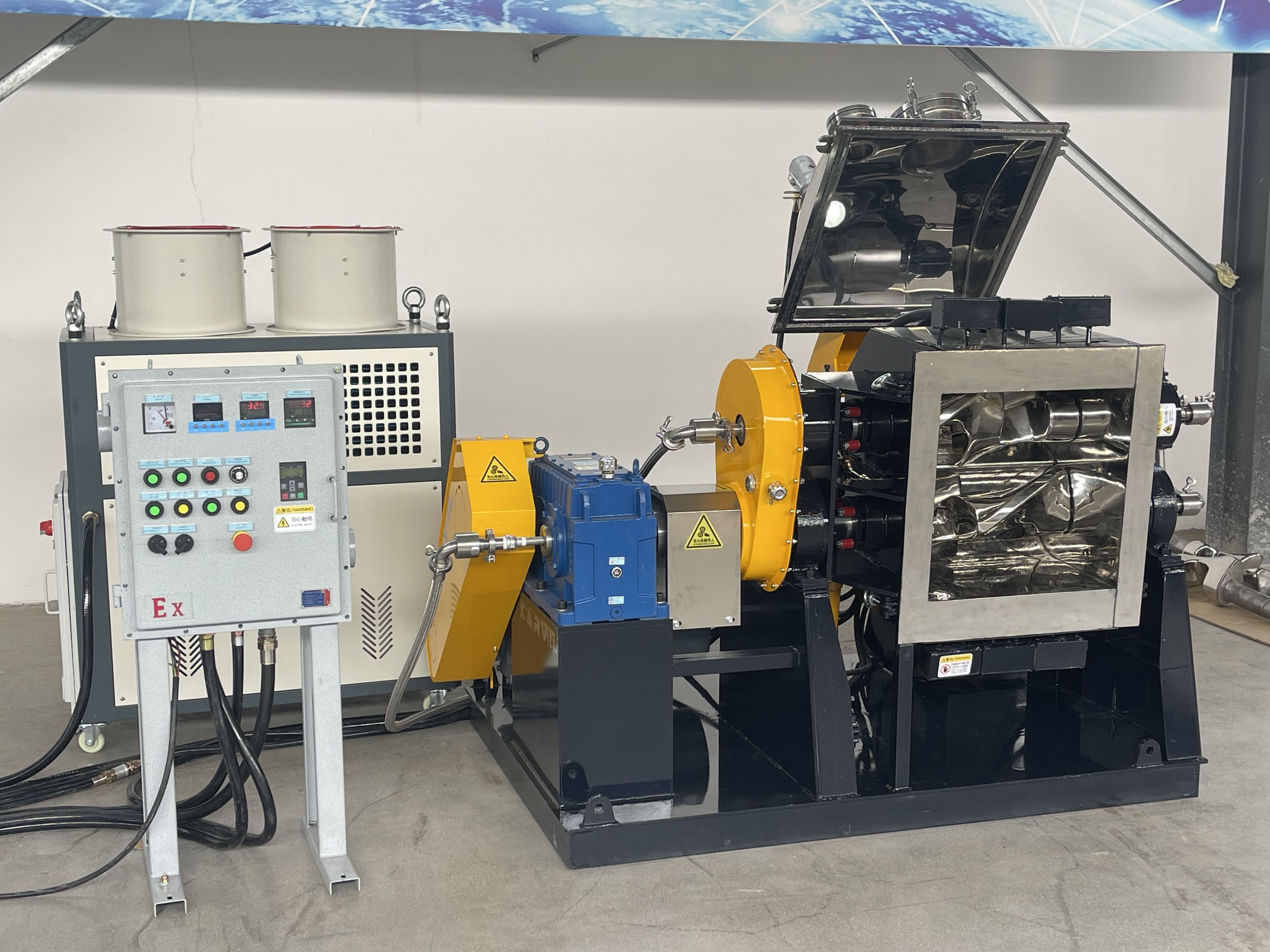

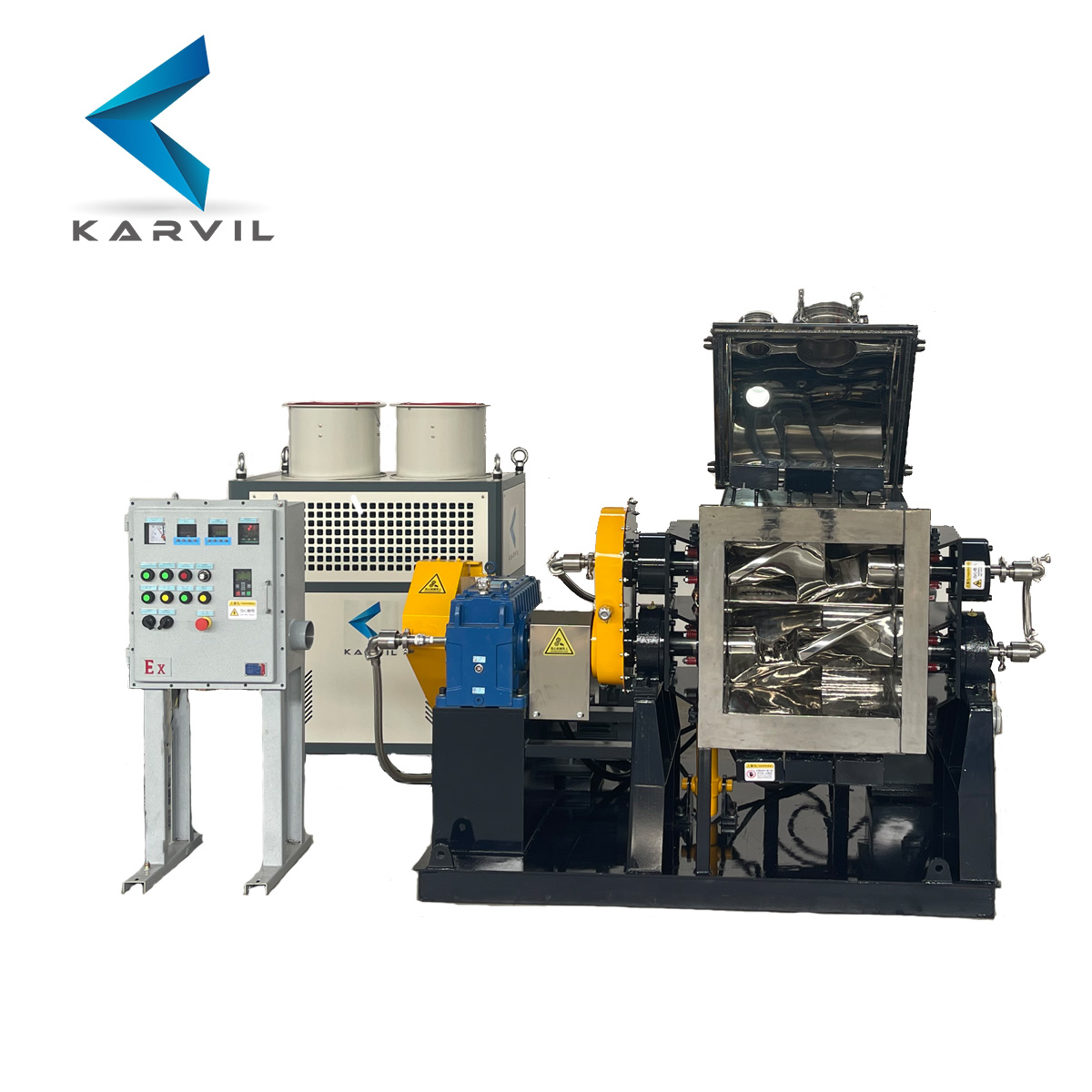

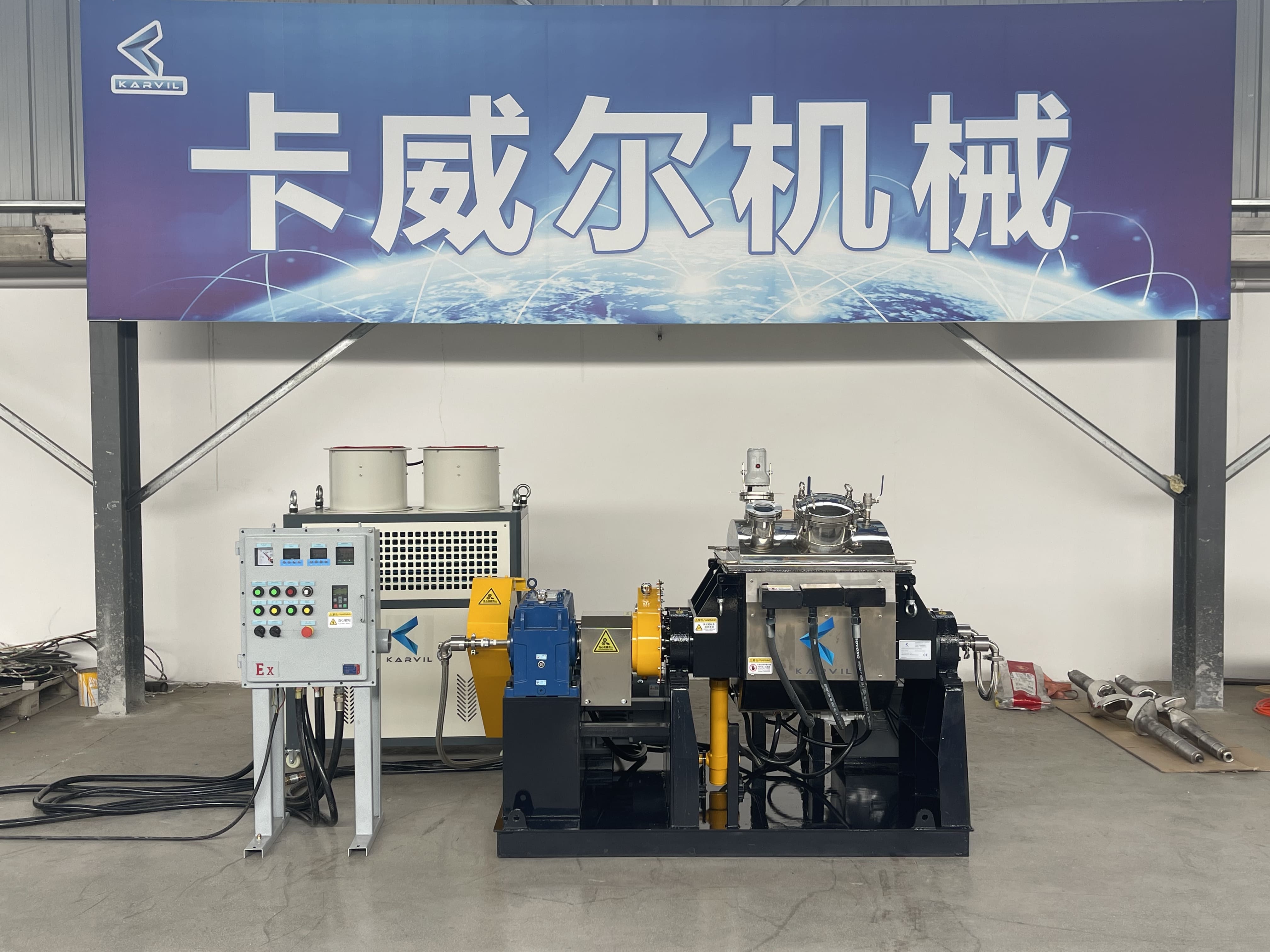

![Explosion-Proof Tilting-Discharge-Kneader-with-Heating-System-&-Axial-Water-Cooling (7)]( "Explosion-Proof Tilting-Discharge-Kneader-with-Heating-System-&-Axial-Water-Cooling (7)")
Standard Design（Customizable）:
Material: SUS 304, 316 or mild steel
Discharging: Tilting discharging/Screw extruding discharging/Bottom plate
Heating: Electric heating/Water heating/Oil heating/Steam heating
Cooling: Water cooling/Jacket cooling
Vacuum: Water-ring vacuum pump/ buffer tank.
Motor: Explosion proof motor
Independent Control Panel: Variable speed/ Temperature/Discharging
Working Volume: 5 to10,000 Cubic Feet (from experiment to production)
Points
ATEX-Certified Safety
Fully compliant with ATEX Directive 2014/34/EU for explosive atmospheres.
Zero-Distance Heating Technology
Uniform temperature control (±1°C accuracy) with integrated heating jackets.

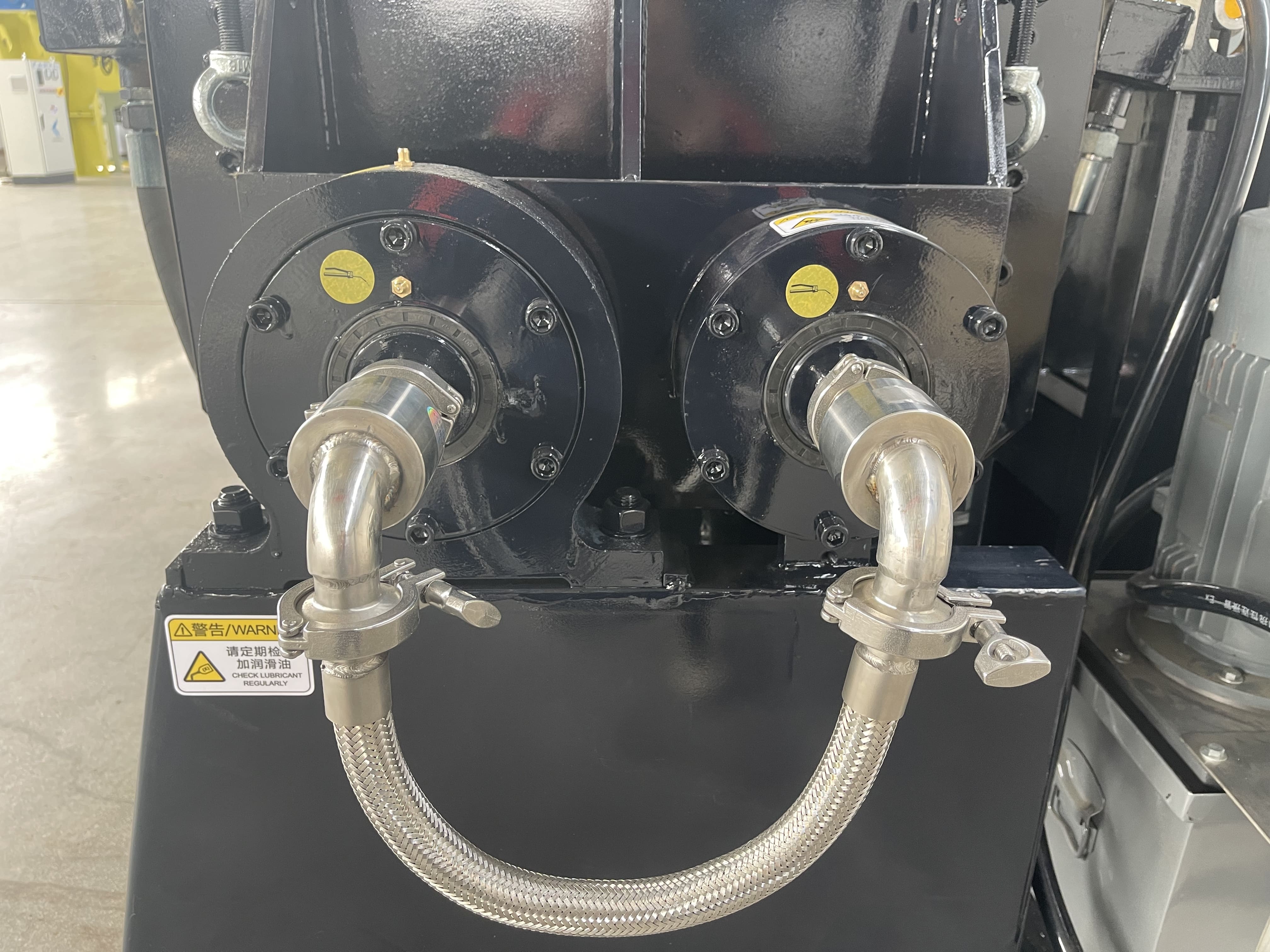

Axial Water Cooling System
Rapid cooling cycles reduce downtime by 30% vs. conventional mixers.

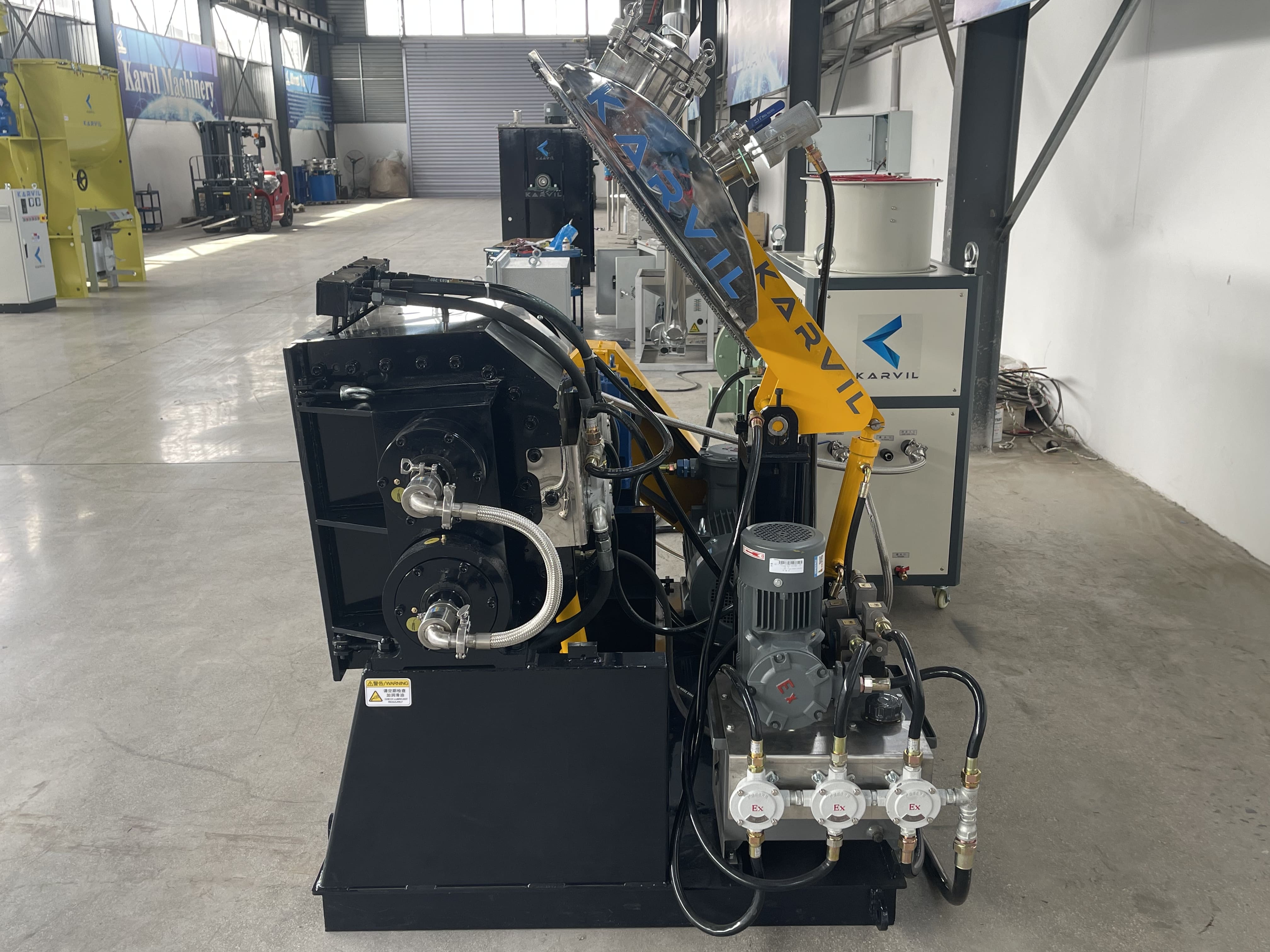

Tilting Discharge Design
15°-70° tilt range for complete material evacuation (0 residue).
Heavy-Duty Construction
316L stainless steel with Siemens explosion-proof motor.

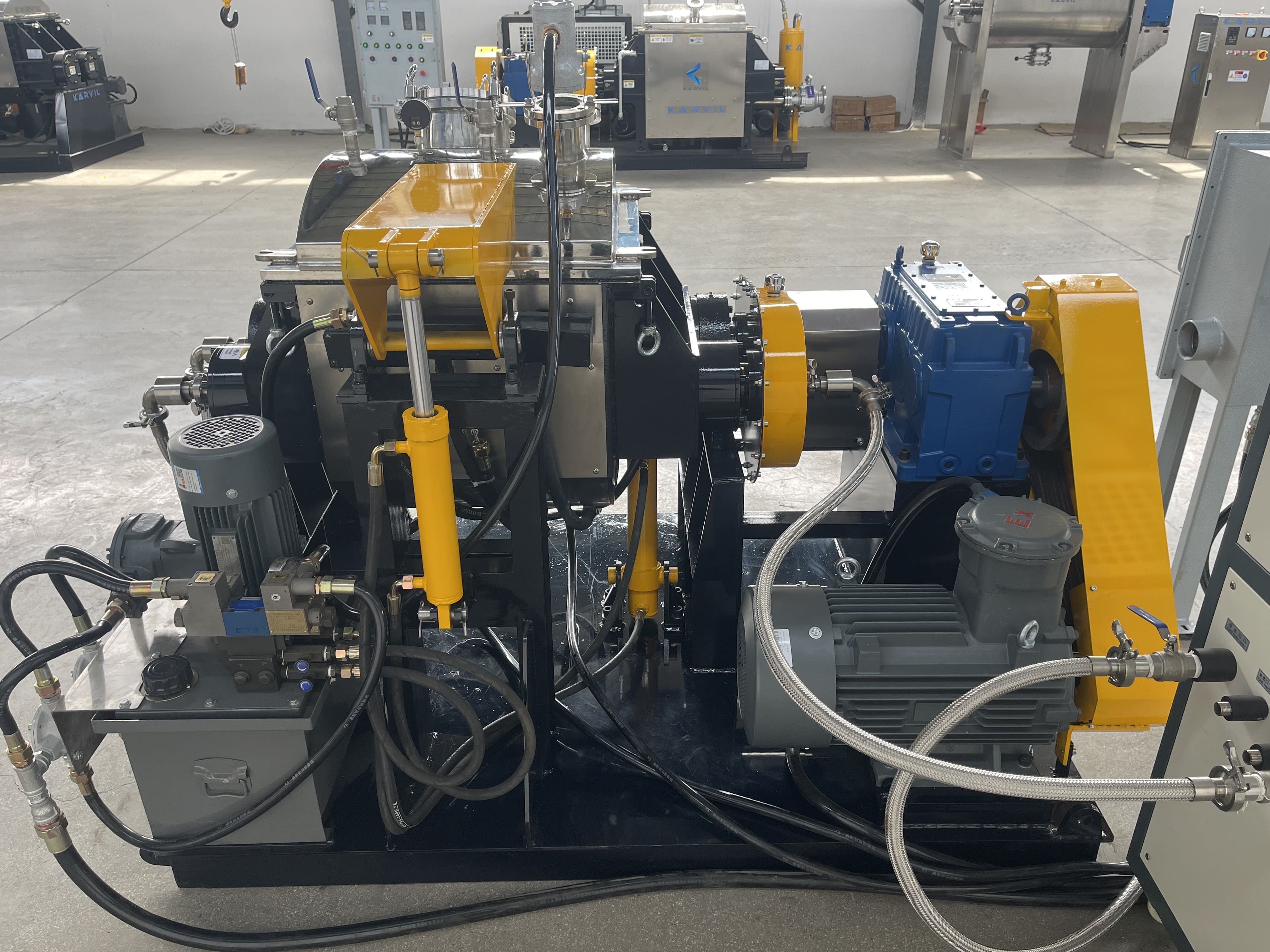

＞The Karvil sigma mixer is consist of mixing chamber, frame support, hydraulic system, electric control system, discharge system and two Z shape blade in the chamber drove by the motor.
＞In the field of sigma mixers, Karvil Machinery satisfy completely their customers’ needs. Through the action of the sigma blade, the hard and tough paste is mixed for a perfectly homogeneous mixture.
＞Please contact us and we will assist you in developing the right solution for you. There is also a laboratory size z blade mixer available. Click here.
Technical Parameters
| Type | NH-5 | NH-10 | NH-100 | NH-300 | NH-500 | NH-1000 | NH-1500 | NH-2000 | NH-3000 | NH-4000 | NH-5000 |
| Total Volume (L) | 5 | 10 | 100 | 300 | 500 | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 |
| Mixed amount/batch (L) | 1.5-3.5 | 3.0-7 | 30-70 | 90-210 | 150-350 | 300-700 | 450-1050 | 600-1400 | 900-2100 | 1200-2800 | 1500-3500 |
| Rotation Speed (rpm) | 42/34 | 42/34 | 37/21 | 37/22 | 37/23 | 37/26 | 37/22 | 30/21 | 30/21 | 30/20 | 28/18 |
| Main Motor Power (Kw) | 0.75-1.5 | 1.1-3 | 5.5-11 | 7.5-30 | 15-37 | 22-90 | 22-90 | 30-110 | 30-110 | 45-110 | 55-132 |
| Heating Methods | Steam Pressure (MPa) | Jacket for steam
≤0.3MPa |
| Electric Power (Kw) | 2.4 | 2.4 | 6 | 12 | 18 | 30 | 45 | 54 | 72 | 72 | 90 |
| Vacuum (MPa) | 0~ -0.096Mpa (Vacuum Kneader) |
| Discharging Method | Tilting cylinder |
| Screw extrusion |
Our Services
![d3decc020c846de83e6cd0ddfddaae9]( "d3decc020c846de83e6cd0ddfddaae9") |
LABORATORY TEST
In order to be able to demonstrate the advantages and modes of action of our industrial mixing machine with your products, our fully equipped modern laboratory/technical center is at your disposal.
![4cc6a298bf03570b88509020de7d969]( "4cc6a298bf03570b88509020de7d969") |
PROFESSIONAL ENGINEER![Food-Powder-Horizontal-Ribbon-Mixer-2_副本]( "Food-Powder-Horizontal-Ribbon-Mixer-2_副本")
The experienced team of engineers is specialized in the R&D and design of mixers, grinding equipment, and plastic recycling machine. Karvil explores new technical points constantly to create perfect solutions for customers.
![4cc6a298bf03570b88509020de7d969]( "4cc6a298bf03570b88509020de7d969")
| ![karvil-machinery-sigma-mixer-ribbon-mixer_副本]( "karvil-machinery-sigma-mixer-ribbon-mixer_副本") |
![karvil-machinery-sigma-mixer-and-ribbon-mixer]( "karvil-machinery-sigma-mixer-and-ribbon-mixer") |
DIRECT FACTORY
Karvil factory has a series of strict standard system to control the procurement of raw materials, manufacturing process, in-process inspection, and product inspection, so as to ensure the quality of our products.
![4cc6a298bf03570b88509020de7d969]( "4cc6a298bf03570b88509020de7d969")
|
