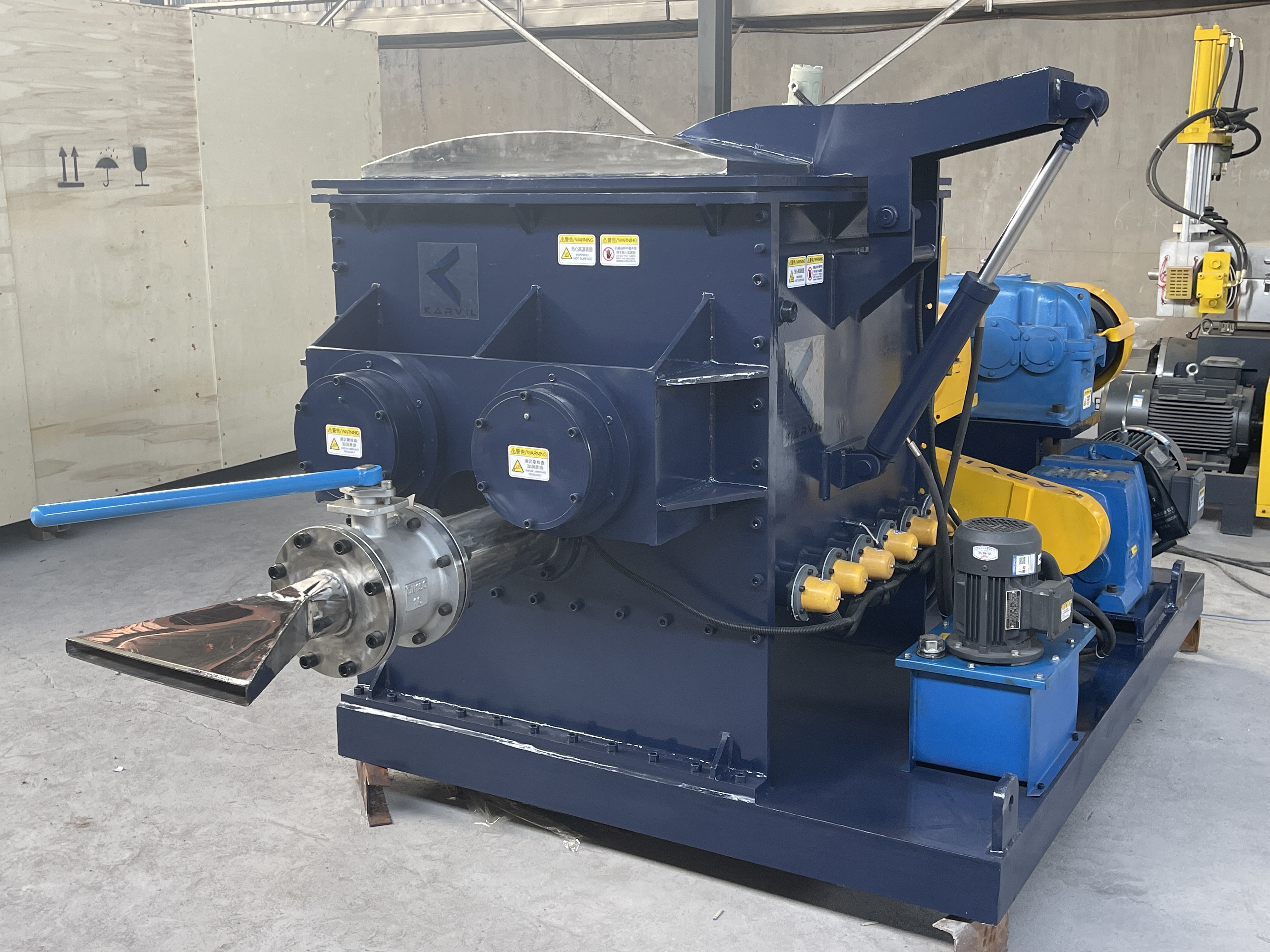

Z Blade Mixer Extruder

Specifications:
  • 105L working capacity (150L full capacity)
  • Sigma blades speed: 0~37rpm(quick)0~22rpm(slow)
  • Electric heating 3kw*3pcs=9kw
  • The upper cover is connected with the safety hinge on the back of the mixer, and it stops when the cover is opened
  • The contact material is stainless steel 304 with mirror polished
  • Screw discharging, equipped with DN100 manual ball valve


【Application Industry】:
Widely used in mixing and kneading of low-to-high viscosity products in many industries such as ceramics, silicone rubber, sealants, clay, chewing gum, candy, bakery food, pharmaceuticals, carbon paste, inks/pigments ,etc.

Karvil Machinery is the supplier of Siemens and provide the sigma blade mixer for its application

  • NH-150

  • KARVIL

Availability:
Z-Blade-Mixer-Extruder_副本

Standard Design(Customizable):


Material: SUS 304, 316 or mild steel

Discharging: Tilting discharging/Screw extruding discharging/Bottom plate

Heating: Electric heating/Water heating/Oil heating/Steam heating

Cooling: Water cooling/Jacket cooling

Vacuum: Water-ring vacuum pump/ buffer tank.

Motor: Explosion proof motor

Independent Control Panel: Variable speed/ Temperature/Discharging

Working Volume: 5 to10,000 Cubic Feet (from experiment to production)

Food-Grade-Sigma-Z-Blade-Mixer

Food-Grade-Sigma-Z-Blade-Mixer-2

Technical Parameters

          Type NH-5 NH-10 NH-100 NH-300 NH-500 NH-1000 NH-1500 NH-2000 NH-3000 NH-4000 NH-5000
Total Volume (L) 5 10 100 300 500 1000 1500 2000 3000 4000 5000
Mixed amount/batch (L) 1.5-3.5 3.0-7 30-70 90-210 150-350 300-700 450-1050 600-1400 900-2100 1200-2800 1500-3500
Rotation Speed (rpm) 42/34 42/34 37/21 37/22 37/23 37/26 37/22 30/21 30/21 30/20 28/18
Main Motor Power (Kw) 0.75-1.5 1.1-3 5.5-11 7.5-30 15-37 22-90 22-90 30-110 30-110 45-110 55-132
Heating Methods Steam Pressure (MPa)                                                                             Jacket for steam
                                                                                   ≤0.3MPa
Electric Power (Kw) 2.4 2.4 6 12 18 30 45 54 72 72 90
Vacuum (MPa)                                                             0~ -0.096Mpa (Vacuum Kneader)
Discharging Method                                                                             Tilting cylinder
                                                                            Screw extrusion

Our Services

Safety

All Karvil Machinery sigma blade mixers include CE markings and are manufactured in accordance with ISO9001 accreditation;  Supplied complete with electrical equipment to operate the blades.

sigma-mixer-karvil-machinery--

Customizable

Karvil Machinery z kneaders are available with capacities range from 5 to 10000 liters; Supplied vacuum design, jacketing, explosion proof motor, heating/cooling and others.

sigma-mixer-karvil-machinery-2

Technological Superiority

Karvil Machinery has focused on sigma mixers for more than 20 years and has rich experience in application and production. Exported to 50+ countries, served 20+ industries

sigma-mixer-karvil-machinery-3

Applications

ceramics-mixing-machine clay-mixer-machine-karvil masteratc-mixing-machine sealants-mixing-machine
silicone-rubber-mixing-machine chewing-gum-mixing-machine 粘合剂 candies-mixing-machine

F.A.Q.

1. Manufacturer or trading company?

We are a manufacturer with strict production standards in China.

2. Where is your company?

Our company is located in Yantai, Shandong,——Powder Equipment Industry Belt.

3. About your company's visit?

We can pick you up at Qingdao Airport conveniently, and then we can take you to our factory.

4. What is the main market for your company?

Asia and Africa, Australia, America, Europe.

5. Can you provide customized products?

Yes, we have professional engineers to meet your special design needs, so we can provide customized products.

6. What is your delivery time?

It usually takes about 20 to 30 days, the exact time also depends on the type and quantity of the product.

7. About the product warranty?

Usually, we provide a 1-year warranty for the products that have been sold, but we can also provide life-long service when you need it to maintain a long-term relationship with you.

8. What are the payment terms?

T/T, L/C, etc.
