Views: 0 Author: Site Editor Publish Time: 2025-12-11 Origin: Site
In the field of factory mixing, planetary mixers get noticed for their great flexibility and work—mainly when working with thick materials. These mixers get known for their skill in creating even, uniform mixes in tough recipes like sealants, pastes, adhesives, and battery slurries.
A planetary mixer works by using one or more mixing blades. These blades turn around their own center and circle around the main center of the mixing bowl at the same time. This two-part action makes sure materials inside the mixing pot move in many directions. As a result, it leads to good kneading, folding, and cutting. The stirring paddles can revolve around the axis of the kettle body and rotate around their own axis at the same time. Its speed can be frequency-controlled to make the material move in a complex way.
Planetary mixers fit well for thick and high-cut materials. They mix in an even way and remove gas. This makes them a good choice for fields like drug making, food, power, electronics, and adhesives. The circling motion plays a key role in getting rid of dead spots. It also makes sure that even heavy and sticky materials get fully blended.
If you want solid mixing tools made for your exact recipe needs, think about checking options from Karvil. With years of good standing in exact mixing gear, Karvil supplies factory-level planetary mixers supported by many years of new ideas. Their line of items includes both small lab sizes and big batch making systems. These come with choices for vacuum mixing, heat control, and auto running. Whether you work in beauty products, lithium battery making, or strong adhesives, Karvil gives building help and custom plans to make sure you get the best process outcomes.
To understand more about how these mixers help in daily factory tasks, consider the basic way they handle tough mixes. For example, in battery production, getting the slurry just right can mean the difference between a good product and one that fails tests. Karvil's tools take that worry away by offering reliable performance that keeps up with fast-paced needs. Plus, their focus on easy use means workers can learn them quickly without long training times. This saves money and boosts output in busy shops.
A planetary mixer’s build aims to get the most from mixing work. The main parts cover mixing blades, a bowl setup, a drive setup, and control screens.
The mixing blades get made to take both turning and circling paths. This action lets them touch every spot in the pot—top, bottom, and sides. In the end, it means no dead spots. Blade shapes change based on the job: sigma blades for working thick mixes, or finger-style paddles for softer blends.
The mixing bowl often uses stainless steel or other rust-proof materials. It might have a jacket for warming or cooling. Double Planetary Mixer adopts planetary gear wheel drive, there is a large output torque, suitable for high temperature, high solids, high viscosity, and other difficult working conditions.
Drive systems in new mixers use planetary gearboxes to give power and control. High-detail PLC screens let workers set auto recipes, change speed plans, and watch process details right away.
When looking at the full design, each part works together to make the mixer strong for long runs. For instance, the bowl's strong build handles heat changes without warping, which keeps mixes safe and even. Controls add safety checks that stop problems before they start, like over-speed or low oil. This setup not only boosts work but also cuts repair costs over time. Factories that use these find less waste and better product flow, which helps meet tight deadlines.
Single planetary mixers run with one main stirrer. This stirrer turns on its center while circling the mix bowl’s middle. This movement works well enough for average-thick materials. It gives fair cutting forces and helps material flow inside the pot.
These mixers get used for items like lotions, salves, and glues that stay under about 300,000 centipoise in thickness. You see them a lot in beauty, drug, and food fields where soft but full mixing matters.
When dealing with very heavy or gummy materials—such as epoxy resins or silicone sealants—single planetary mixers often do not measure up. Their smaller power output and fewer mixing routes lead to weak spreading and more time for processing. Incomplete dispersion in dense or sticky materials can lead to uneven product quality and increased downtime for cleaning and maintenance. In such cases, batches might need re-work, which raises costs and slows down lines. Workers may face more clogs or build-up, making daily tasks harder.
Overall, while single mixers suit lighter jobs, pushing them on heavy loads can wear parts faster. This leads to more breaks and higher upkeep bills. Choosing the right fit from the start saves headaches later.

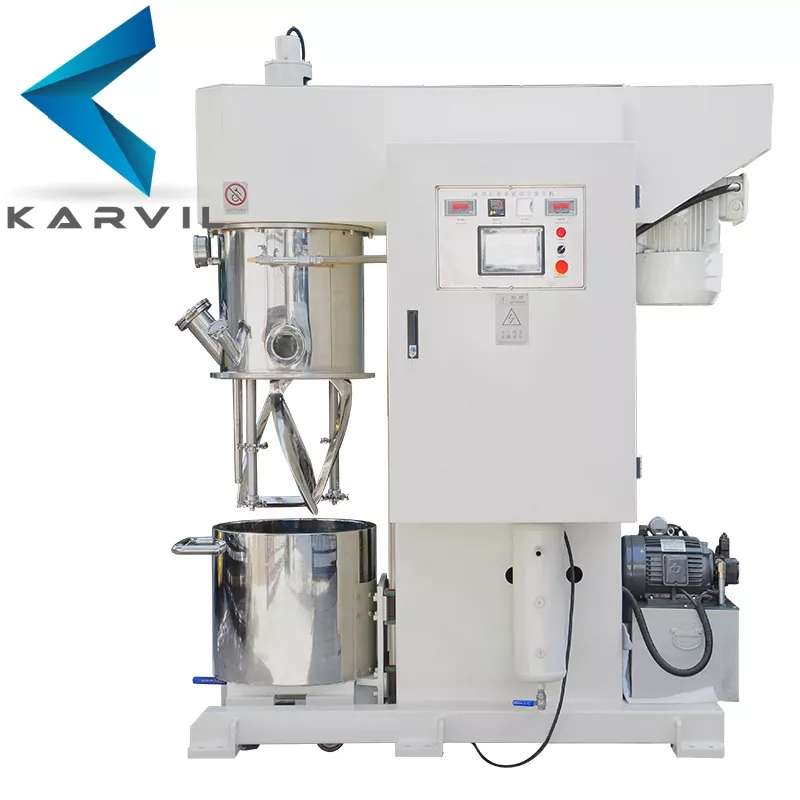

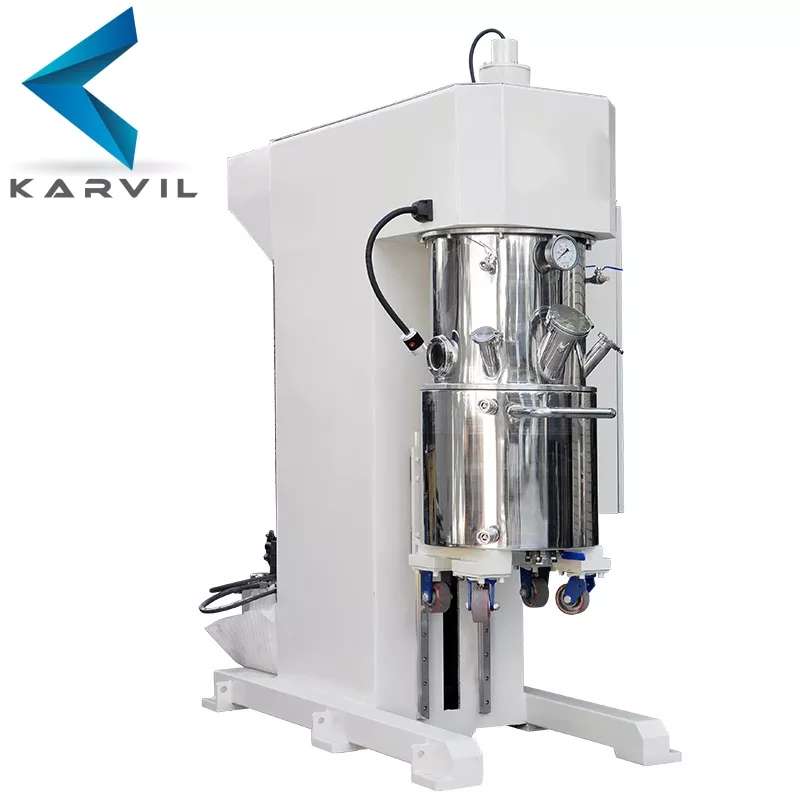

Double planetary mixers build on single-planetary types by using two stirrers. Each one turns on its own center while circling the middle of the mixing pot. The stirring blades of the double planetary mixer rotate while revolving, so that the materials in the tank move up and down and around in a circular motion. This creates strong kneading forces. It also boosts evenness a lot, even with super-thick mixes.
Double Planetary Mixer adopts planetary gear wheel drive, there is a large output torque, making it capable of handling viscosities up to 10 million cps—ideal for industrial-scale adhesive or battery slurry production. This power lets it tackle tough jobs without slowing down, keeping runs smooth and fast.
Karvil double planetary mixers offer a range of specialized blade configurations to suit different material viscosities and process requirements. Options include helical (twist) blades for intensive vertical kneading of ultra-high-viscosity materials (up to 2,000,000 cps), rectangular (frame/gate) blades for gentle mixing with superior heat transfer, butterfly (tri-foil) blades for strong axial flow in heavy putties and sedimentation-prone formulations, and claw (hook) blades for reduced drag in highly resistant compounds. Multi-agitator systems combining low-speed planetary blades with high-speed dispersers, along with integrated PTFE wall scrapers, further enhance homogeneity and eliminate dead zones. Selecting the appropriate blade type ensures optimal mixing efficiency, uniform temperature control, and consistent product quality.
The company’s double planetary mixer adopts vacuum design to achieve high-quality mixing. This gets rid of air caught during blending—a key need in battery making where trapped bubbles hurt electrode work. Jacketed pots also allow exact heat control in processes with touchy parts. Such features make the mixer fit for clean rooms or spots where quality rules are strict.
Adding these options means less post-mix fixes, like removing bubbles by hand. It cuts time and boosts yield, which shows in better profits for makers.
It is widely used in chemical products such as batteries, organic silicone, inks, dyes, adhesives, high-viscosity coatings. In lithium battery production specifically, the stirring process is the core link that determines battery performance—hence the reliance on double planetary systems for consistent slurry properties. Fields like energy storage see big gains from the even flow it gives, cutting defects and raising safety.
Other areas, such as making paints or glues, use it to blend hard fillers without lumps. This leads to stronger end products that meet market needs. In food, it handles thick sauces without breaking down heat-sensitive bits.
Double planetary mixers give many-way stirring that speeds up batch changes with better evenness. have good mixing, reacting, kneading, dissolving effect—a claim validated by their strong adoption across chemical processing sectors. Users report quicker cycles and fewer errors, which ties to real savings in time and money.
Single planetary models work well up to 300,000 cps in general. In contrast, double planetary mixers can handle viscosities less than 10,000,000cps, making them suitable for most high-density industrial formulations. This wide range means one machine covers more jobs, cutting the need for multiple tools.
Though double planetary mixers need more power because of two centers and higher power needs, their end quality makes the energy use worth it—mainly when making exact-needed mixes like electrode pastes or medical sealants. The better results often offset the extra cost through less waste and higher sales value.
Modern double planetary designs such as Karvil's feature easy to clean tanks with polished interiors. Scraper attachments minimize residue buildup on walls or bottom surfaces—cutting down downtime between batches. Simple upkeep routines keep the machine running longer, with parts that last through heavy use.
Factories praise how quick cleans mean more batches per shift. This setup fits well in places with high hygiene rules, like drug or food plants.
Before picking any mixing gear, check your product's thickness level, bit size spread needs, heat touchiness, and cut strength. These body traits decide if a single or double planetary mixer fits right. Taking time here avoids wrong buys that lead to rework or low output.
For example, if your mix heats up easy, look for cooling options. If bits are big, choose blades that break them down without harm.
If you’re growing from test runs to full factory lines, Karvil offers made-to-order systems from 5L lab models up to 1000L factory units. Their Double Planetary Mixer is engineered to adapt across applications with minimal configuration changes—ensuring smooth transitions as your operation grows. This scalability helps small teams start and big ones expand without big overhauls.
Matching size to goals keeps costs in check and flow steady. Karvil's range covers it all, from small trials to daily high-volume turns.
Tight tolerances ensure repeatable mixing cycles across batches. This mechanical sameness is key when dealing with hard rules in drug making or high-end electronics building. Each run matches the last, building trust in the product line.
Karvil’s mixers support PLC control system and variable frequency speed regulation to adapt to the speed requirements of different process stages, with recipe storage and real-time monitoring options available. This ties into factory software for full oversight, making changes easy and data clear.
Their systems incorporate emergency stop mechanisms, interlock protections during operation, overload sensors—and are compliant with safety standards relevant to high-risk environments such as chemical plants or energy storage facilities. These built-in guards protect workers and gear, meeting global checks without extras.
In busy spots, such features cut accident risks and keep insurance low.
Karvil provides expert consultation tailored to your formula’s requirements—including blade type selection, vacuum system integration, thermal control systems, and more. Teams listen to your setup and suggest tweaks that fit budget and space.
This personal touch ensures the machine works from day one, avoiding trial errors.
Commissioning support is available worldwide along with comprehensive operator training to ensure safe use and maintenance best practices. On-site help gets things running fast, with hands-on lessons that stick.
Follow-up checks make sure skills last, cutting learning curves for new staff.
With long-term service contracts and stocked spare parts inventory, Karvil ensures continuous operation with minimal disruption—even during high-volume production cycles. Quick access to fixes means less idle time and steady output.
Plans include check-ups that spot issues early, stretching machine life and value.
Whether you’re producing next-generation battery slurries or formulating advanced adhesives for aerospace applications, Karvil has a mixer that matches your ambition. Reach out via email or schedule a demo session to explore how their technology can streamline your process efficiency while elevating product quality. Talking to their experts opens doors to tips that boost your whole setup.
Many clients share how Karvil's help turned slow lines into fast ones. It's worth the chat to see if it fits your goals.
Q: What makes a double planetary mixer better than a single planetary mixer for high-viscosity materials?
A: Double planetary mixers offer multi-axis rotation which enhances shearing forces and improves dispersion. They’re designed for ultra-high viscosities up to 10 million cps compared to around 300,000 cps in single models. This edge shows in tougher jobs where singles struggle.
Q: Can I use a double planetary mixer in vacuum applications?
A: Yes. The company’s double planetary mixer adopts vacuum design to achieve high-quality mixing, essential for eliminating air bubbles in sensitive products like battery slurries or sealants. It keeps mixes pure and strong.
Q: What industries benefit most from double planetary mixers?
A: Industries such as energy storage (battery manufacturing), adhesives, pharmaceuticals, cosmetics, inks, dyes and food processing extensively use double planetary mixers due to their powerful performance with dense formulations. They handle what others can't, leading to top results.
