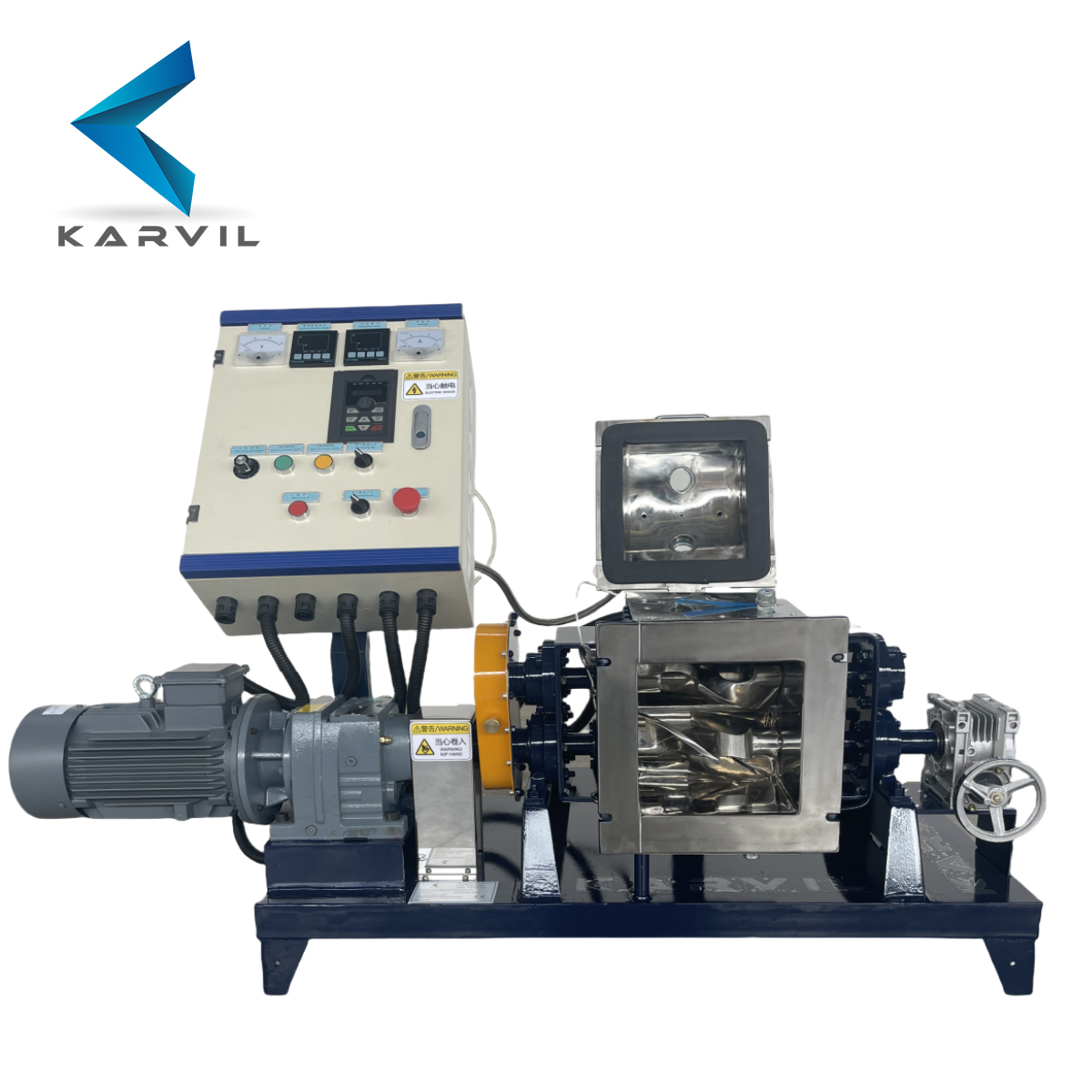

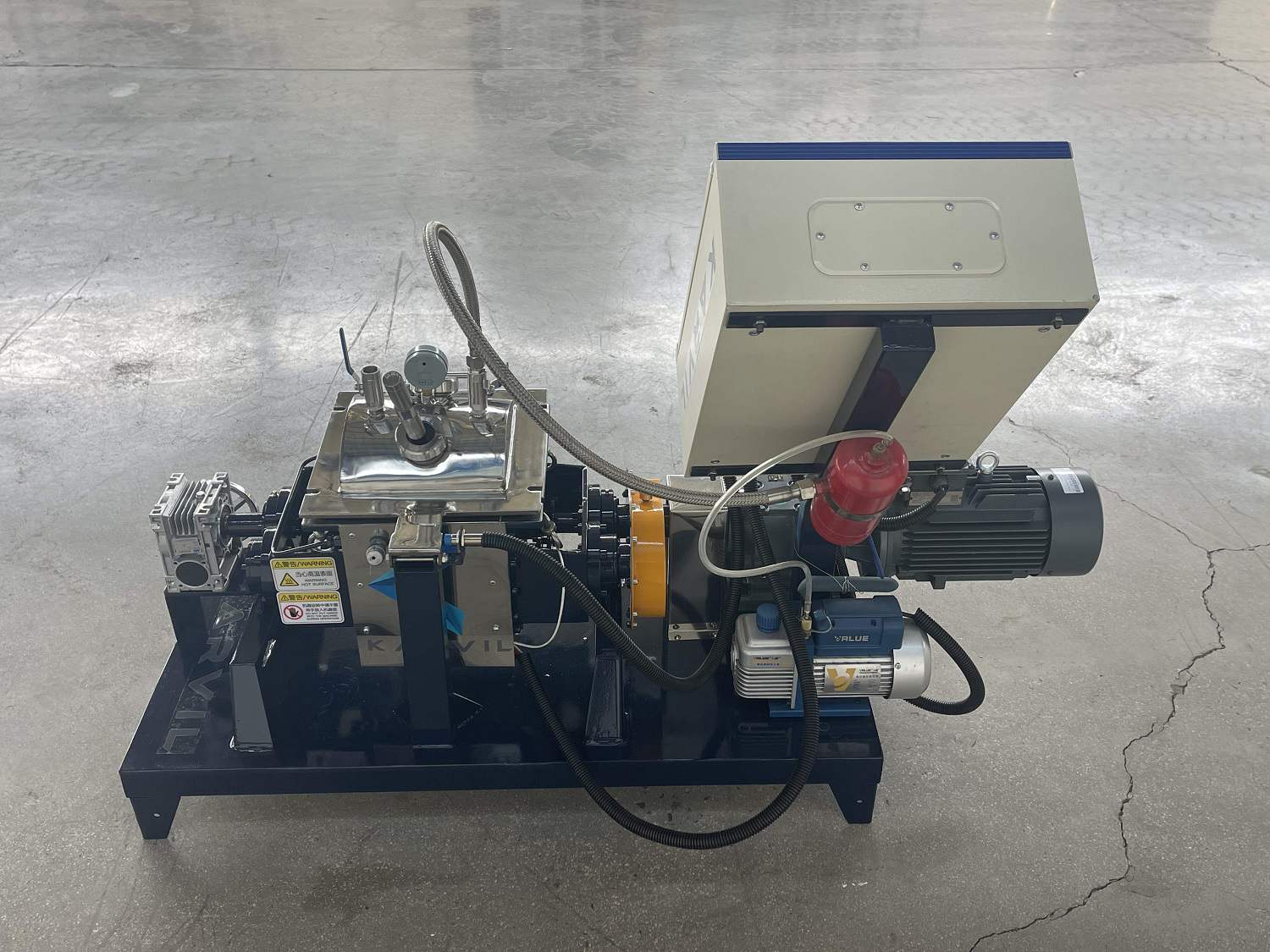

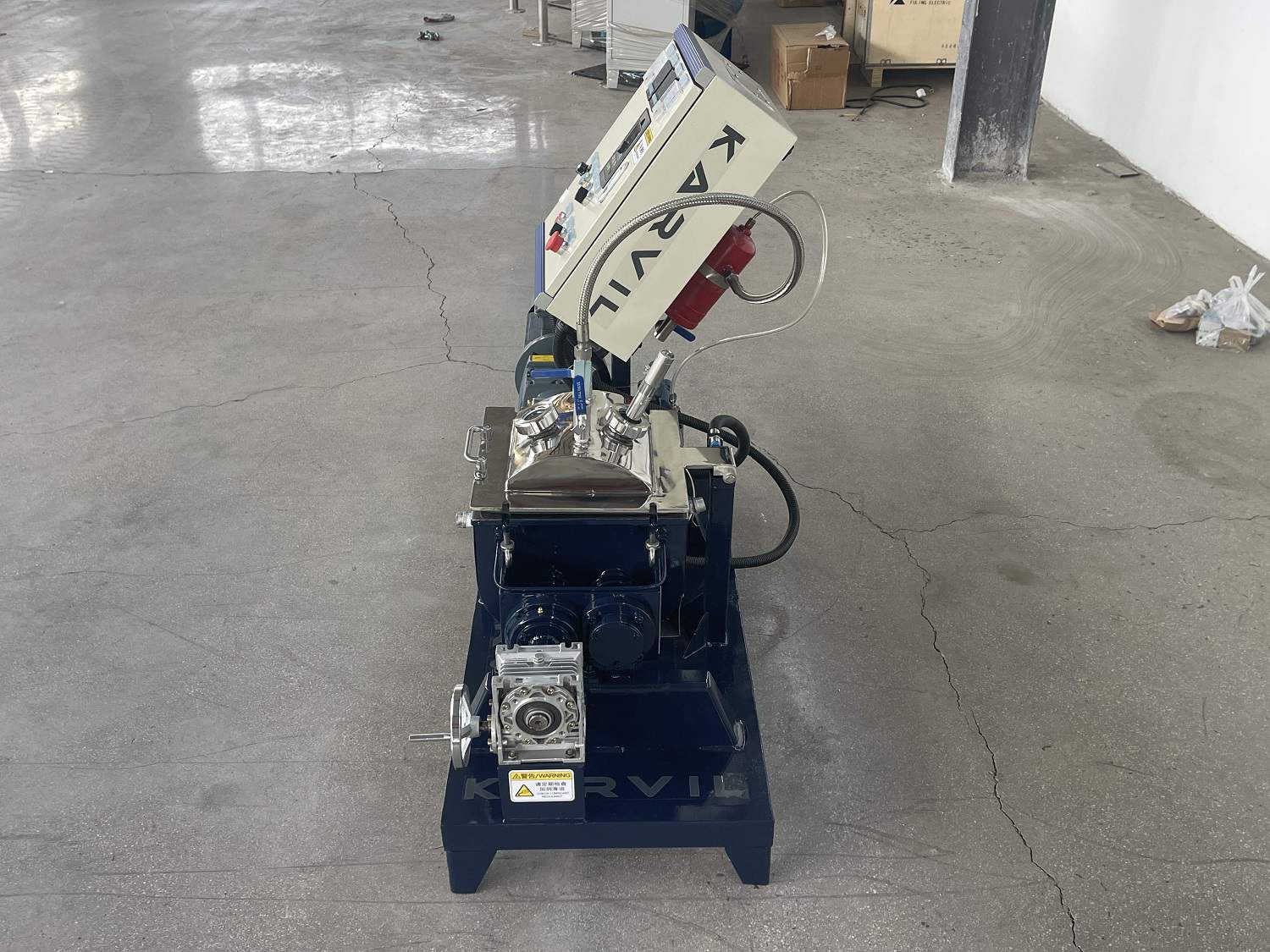

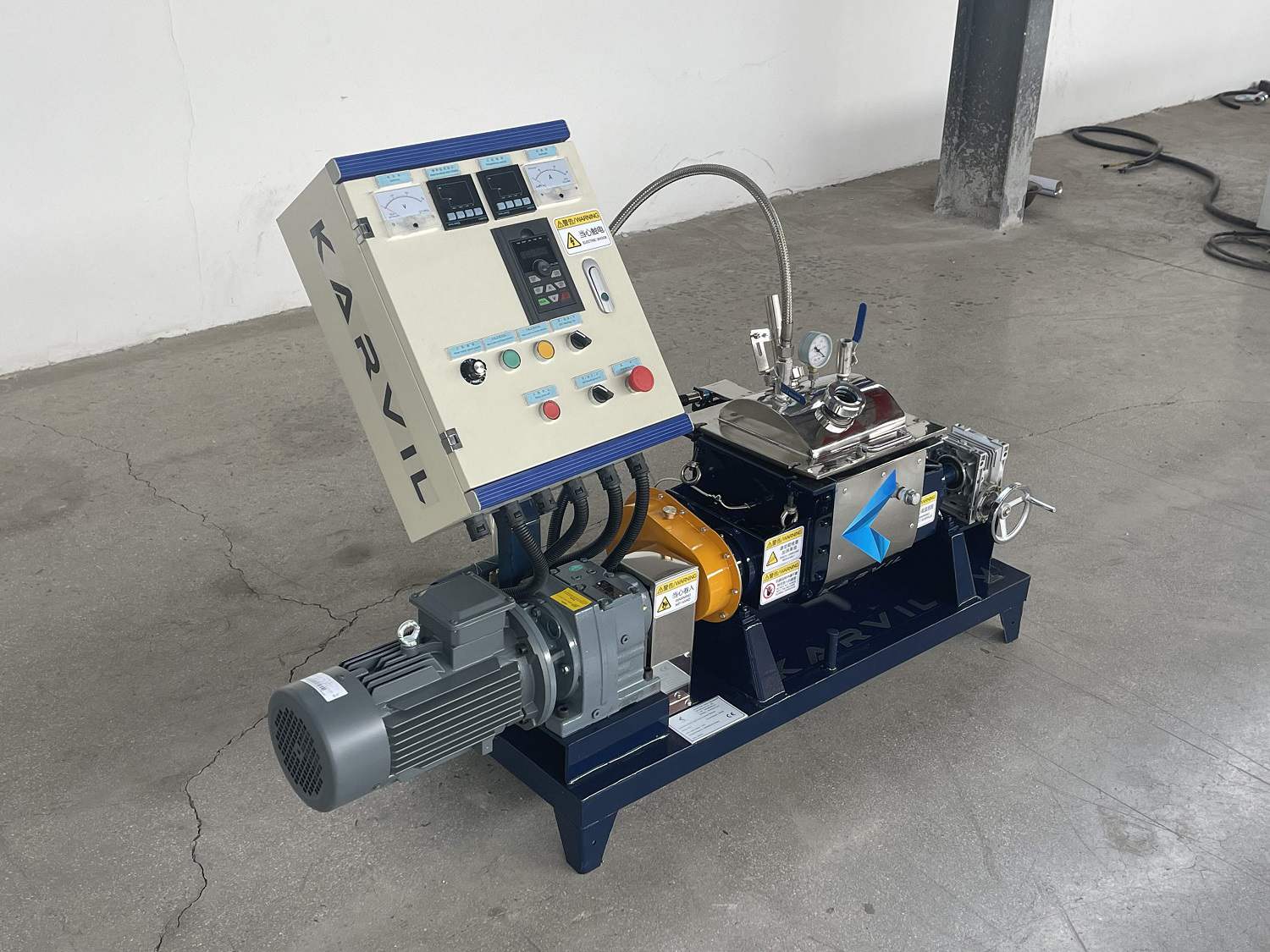

Electric Heating Sigma Mixer for Silicone Rubber

Standard Design（Customizable）:

Material: SUS 304, 316 or mild steel

Discharging: Tilting discharging/Screw extruding discharging/Bottom plate

Heating: Electric heating/Water heating/Oil heating/Steam heating

Cooling: Water cooling/Jacket cooling

Vacuum: Water-ring vacuum pump/ buffer tank.

Motor: Explosion proof motor

Independent Control Panel: Variable speed/ Temperature/Discharging

Working Volume: 5 to10,000 Cubic Feet (from experiment to production)

• Sigma mixer is also known as the z blade mixer or sigma kneader mixer, which is used for kneading, and mixing of high-viscosity materials. Sigma mixer is employed across diverse industries, including chemical, pharmaceuticals and food, due to its ability to effectively mix materials with high viscosities such as silicone rubber, adhesive, graphite and chewing gum.

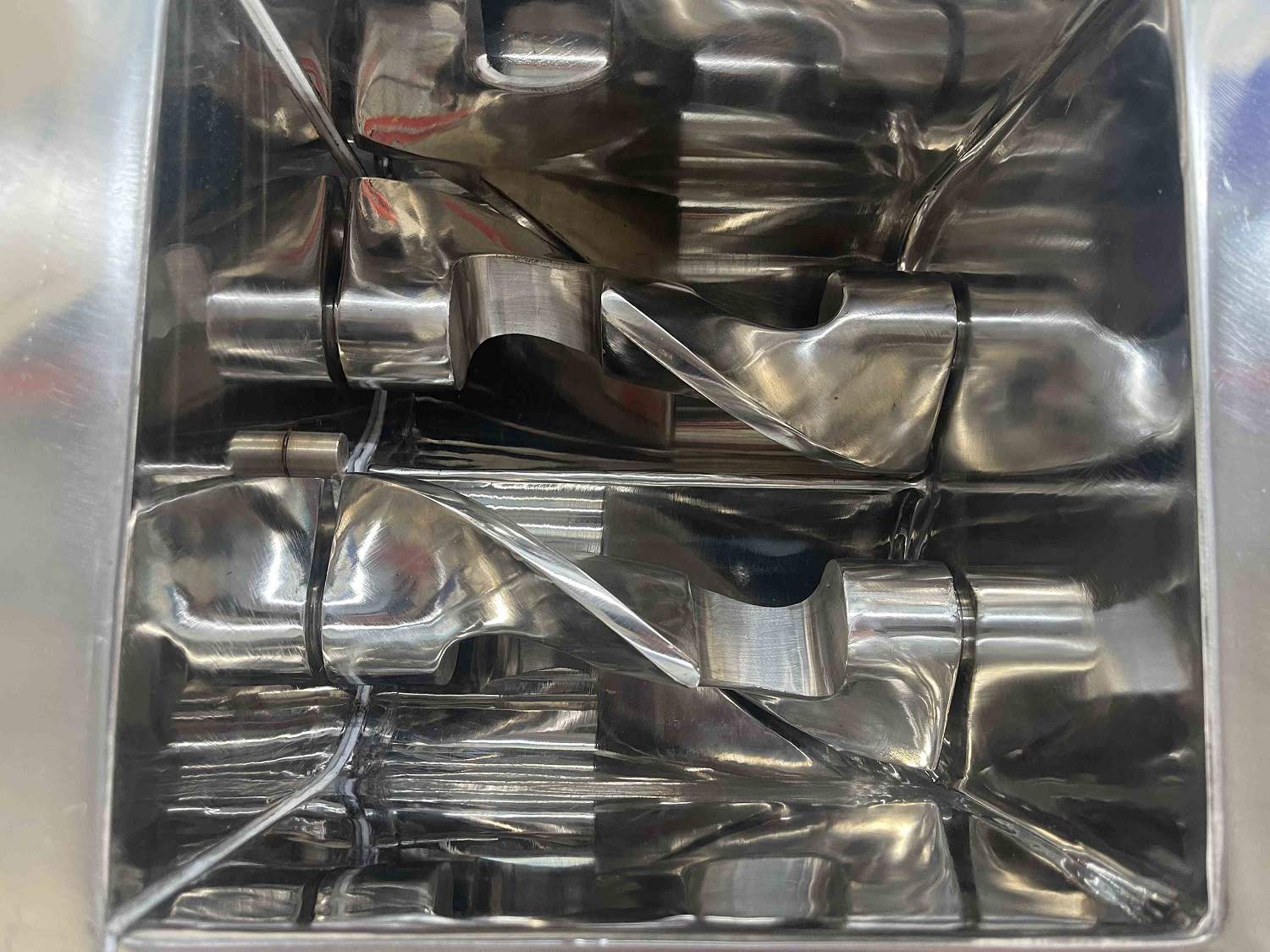

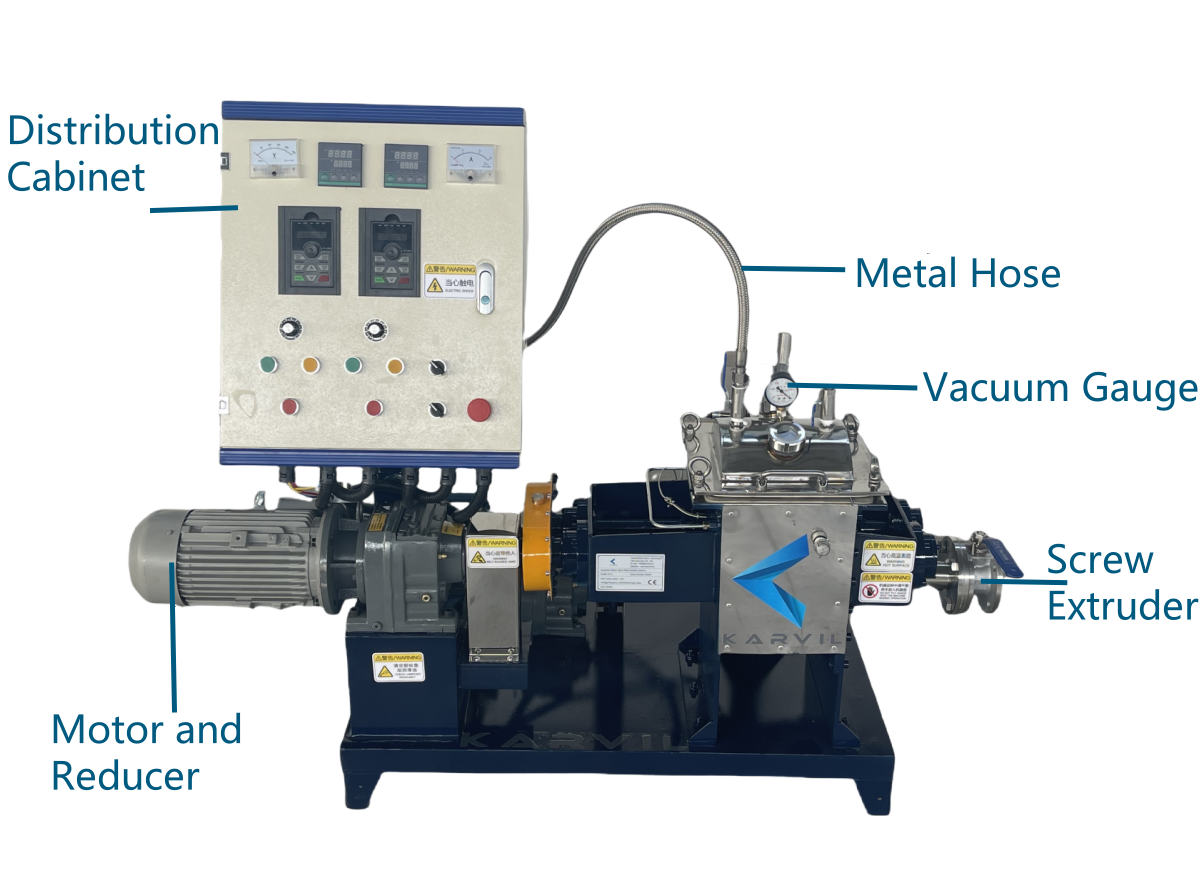

• The Karvil sigma mixer is consist of mixing chamber, frame support, hydraulic system, electric control system, discharge system and two Z shape blade in the chamber drove by the motor.

• In the field of sigma mixers, Karvil Machinery satisfy completely their customers’ needs. Through the action of the sigma blade, the hard and tough paste is mixed for a perfectly homogeneous mixture.

• Please contact us  and we will assist you in developing the right solution for you.

Technical Parameters

Type		NH-5	NH-10	NH-100	NH-300	NH-500	NH-1000	NH-1500	NH-2000	NH-3000	NH-4000	NH-5000
Total Volume (L)		5	10	100	300	500	1000	1500	2000	3000	4000	5000
Mixed amount/batch (L)		1.5-3.5	3.0-7	30-70	90-210	150-350	300-700	450-1050	600-1400	900-2100	1200-2800	1500-3500
Rotation Speed (rpm)		42/34	42/34	37/21	37/22	37/23	37/26	37/22	30/21	30/21	30/20	28/18
Main Motor Power (Kw)		0.75-1.5	1.1-3	5.5-11	7.5-30	15-37	22-90	22-90	30-110	30-110	45-110	55-132
Heating Methods	Steam Pressure (MPa)	Jacket for steam                                                                                    ≤0.3MPa
	Electric Power (Kw)	2.4	2.4	6	12	18	30	45	54	72	72	90
Vacuum (MPa)		0~ -0.096MPa (Vacuum Kneader)
Discharging Method		Tilting cylinder
		Screw extrusion

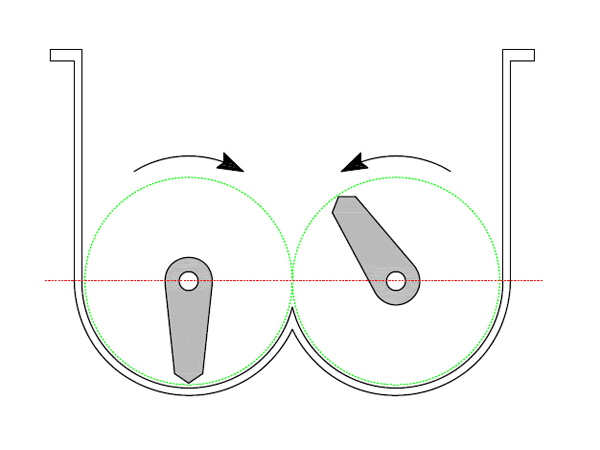

Sigma Mixer Working Principle

Sigma mixer mainly uses two Sigma-shaped blades to rotate or in opposite directions in the chamber to shear, squeeze, stir, flip the material, so as to achieve the purpose of uniform mixing.

• The two Sigma blades usually run at different speeds (one fast and one slow) to produce a strong shear zone.

• Combined with jacket heating/cooling, vacuum degassing, frequency conversion speed regulation, flip cylinder discharge and other systems,  control of the material can be achieved.

• Under vacuum state, bubbles can be effectively removed, oxidation can be prevented, and product density and uniformity can be improved.

Applications

Our Services

LABORATORY TEST In order to be able to demonstrate the advantages and modes of action of our industrial mixing machine with your products, our fully equipped modern laboratory/technical center is at your disposal.

PROFESSIONAL ENGINEER The experienced team of engineers is specialized in the R&D and design of mixers, grinding equipment, and plastic recycling machine.  Karvil explores new technical points constantly to create perfect solutions for customers.

DIRECT FACTORY Karvil factory has a series of strict standard system to control the procurement of raw materials, manufacturing process, in-process inspection, and product inspection, so as to ensure the quality of our products.

F.A.Q.

1. Manufacturer or trading company?

We are a manufacturer with strict production standards in China.

2. Where is your company?

Our company is located in Yantai, Shandong,——Powder Equipment Industry Belt.

3. About your company's visit?

We can pick you up at Qingdao Airport conveniently, and then we can take you to our factory.

4. What is the main market for your company?

Asia and Africa, Australia, America, Europe.

5. Can you provide customized products?

Yes, we have professional engineers to meet your special design needs, so we can provide customized products.

6. What is your delivery time?

It usually takes about 20 to 30 days, the exact time also depends on the type and quantity of the product.

7. About the product warranty?

Usually, we provide a 1-year warranty for the products that have been sold, but we can also provide life-long service when you need it to maintain a long-term relationship with you.

8. What are the payment terms?

T/T, L/C, etc.
