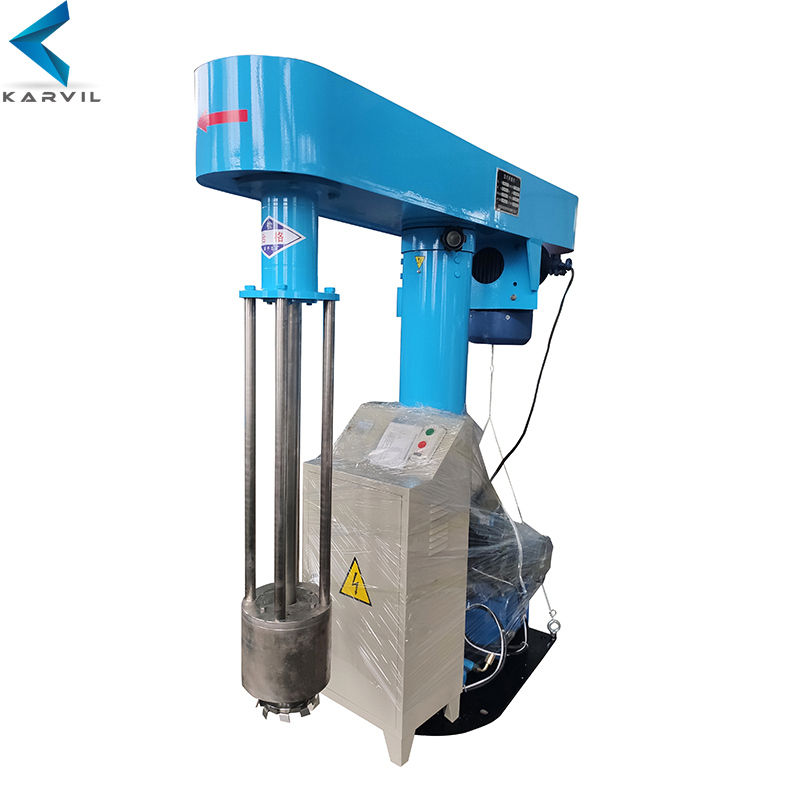

LM2.2
Karvil
847982
Availability: | |
---|---|
Advantage:
> Hydraulic lifting.
> Reliable frequency rotation speed control for various producing materials.
> 360 degrees can be achieved for convenient producing position.
> Equipment materials which touch the processed material: SS304/316L.
> Mixer shaft: single shaft/ double shaft/ customized.
> Mixing tank: single layer/ jacket heating/ jacket cooling/ vacuum system.
> Ex-proof system can be optional as required.
Model | Power(Kw) | Capacity(L) | Disc Dia(Mm) | Speed(Rpm) | Stroke(Mm) | Hydraulic Power(Kw) |
LM2.2 | 2.2 | 50-150 | 150 | 0-1440 | 600 | 0.75 |
LM4 | 4 | 50-200 | 200 | 0-1440 | 600 | 0.75 |
LM5.5 | 5.5 | 80-250 | 200 | 0-1440 | 800 | 0.75 |
LM7.5 | 7.5 | 100-300 | 250 | 0-1440 | 800 | 0.75 |
LM11 | 11 | 100-400 | 250 | 0-1440 | 800 | 0.75 |
LM15 | 15 | 150-500 | 300 | 0-1440 | 800 | 0.75 |
LM18.5 | 18.5 | 200-800 | 300 | 0-1440 | 1100 | 1.1 |
LM22 | 22 | 200-1000 | 300 | 0-1440 | 1100 | 1.1 |
LM30 | 30 | 300-1500 | 350 | 0-1440 | 1100 | 1.1 |
LM37 | 37 | 400-2000 | 400 | 0-1440 | 1100 | 1.5 |
LM45 | 45 | 500-2500 | 450 | 0-1440 | 1100 | 1.5 |
LM55 | 55 | 600-3000 | 450 | 0-1440 | 1300 | 2.2 |
LM75 | 75 | 800-4000 | 550 | 0-1440 | 1800 | 2.2 |
LM90 | 90 | 1200-6000 | 600 | 0-1440 | 1800 | 2.2 |
LM110 | 110 | 1600-8000 | 700 | 0-1440 | 2100 | 3 |
LM132 | 132 | 2000-10000 | 800 | 0-1440 | 2300 | 3 |
