⚡️ High-Speed Processing: 2000L High-Speed Dispersion Reactor significantly cuts reaction and mixing time for faster batch turnaround.
Unmatched Quality: High-shear dispersion ensures perfect blending of solid and liquid components (e.g., trace elements) for a stable, high-quality final product.
Filling Accuracy: The Double-Head Liquid Filling Machine guarantees consistent volume, reducing overfill waste and optimizing packaging efficiency.
️ Compliance: All liquid contact parts and seals are designed to handle corrosive fertilizers and adhere to international CE/Safety standards.
2000
KARVIL
| Component | Key Specification | Core Function & Benefit |

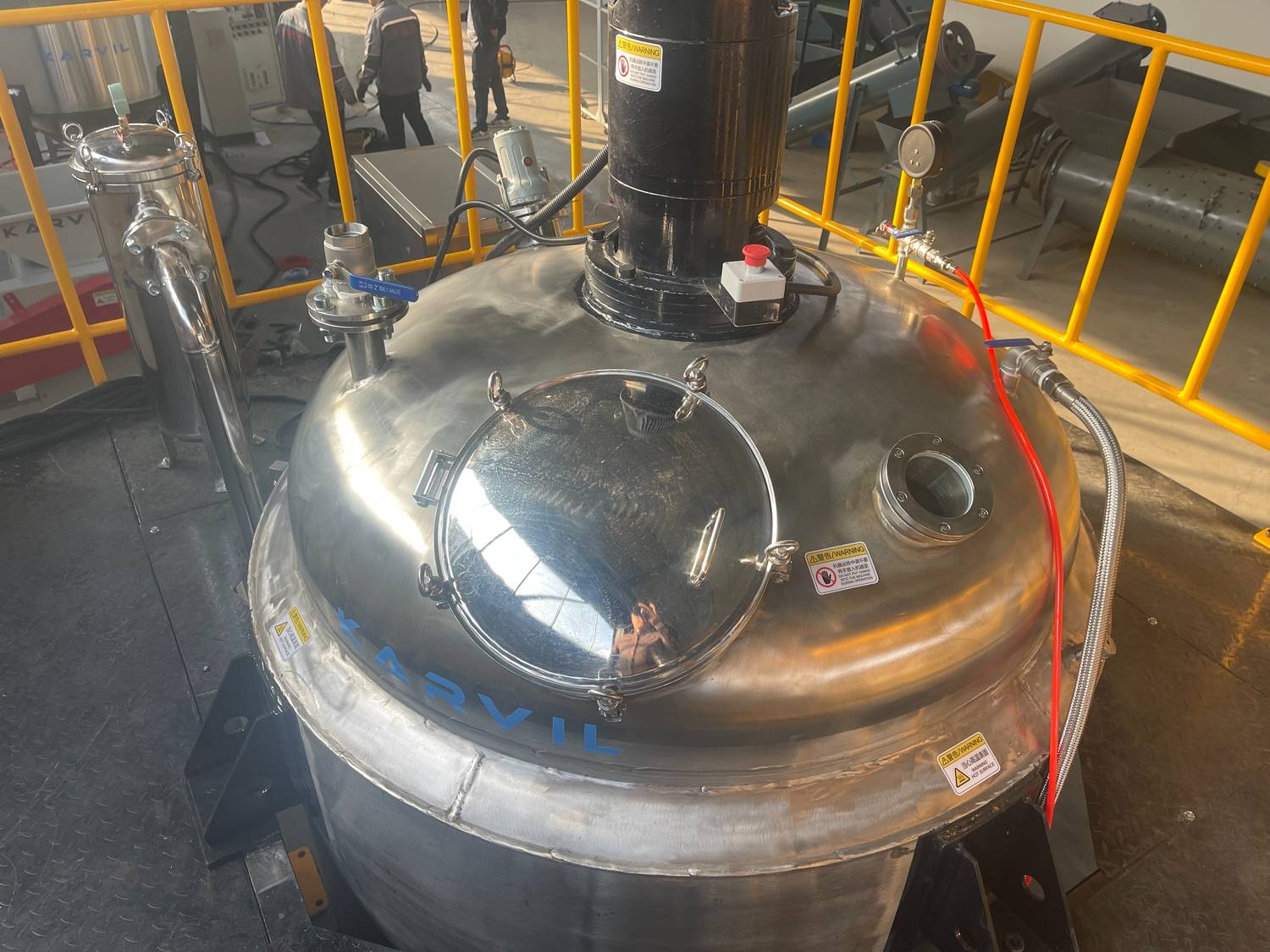

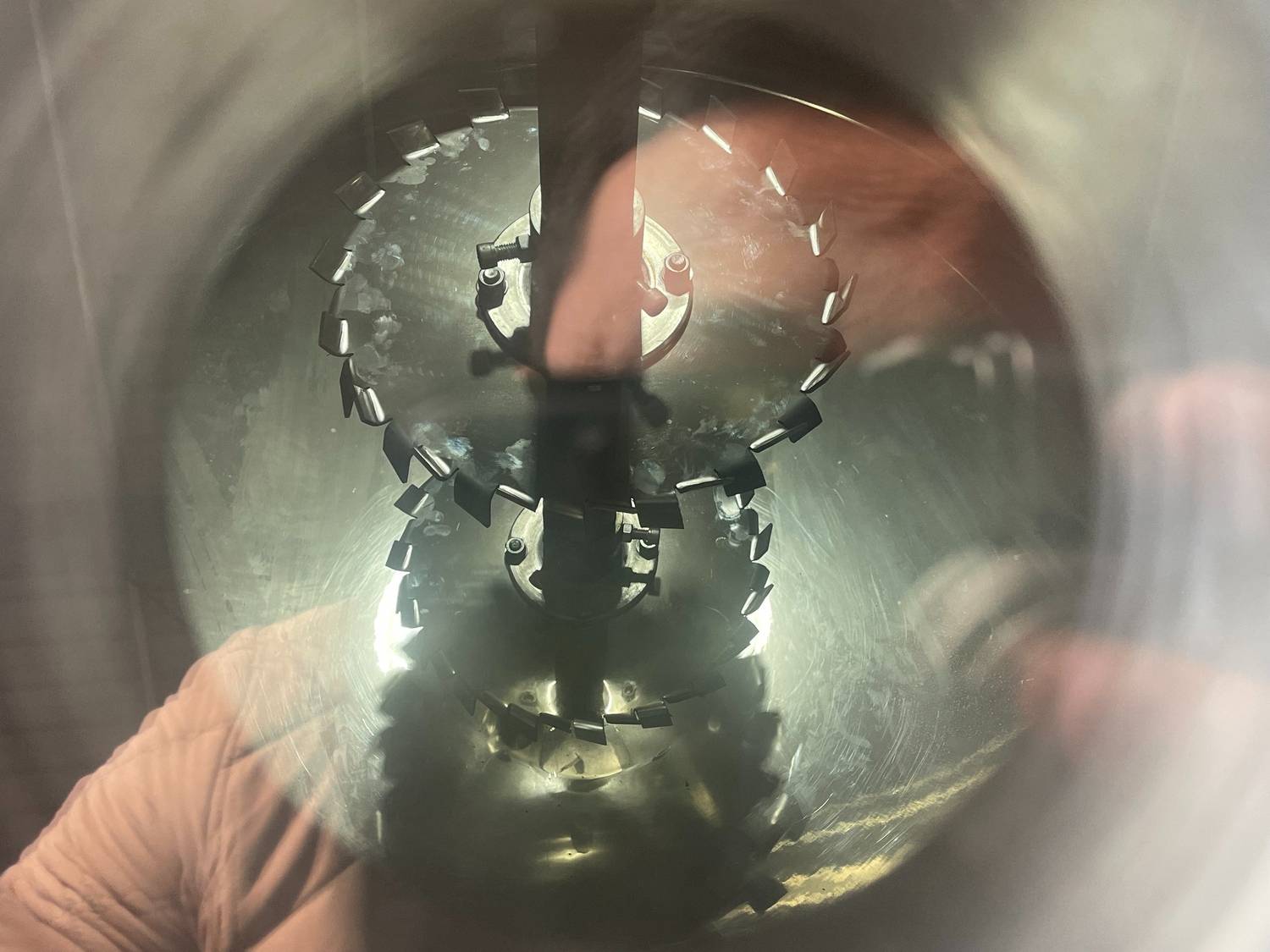

| 1. 2000L High-Speed Dispersion Reactor | Volume: 2000 Liters. Power: High-speed main motor (e.g., 22kW/30kW). Control: Variable Frequency Drive (VFD). | Provides intensive shear force for rapid dissolution and homogeneous mixing of powders (like Urea, trace elements) into the liquid base. VFD allows customization of shear intensity. |

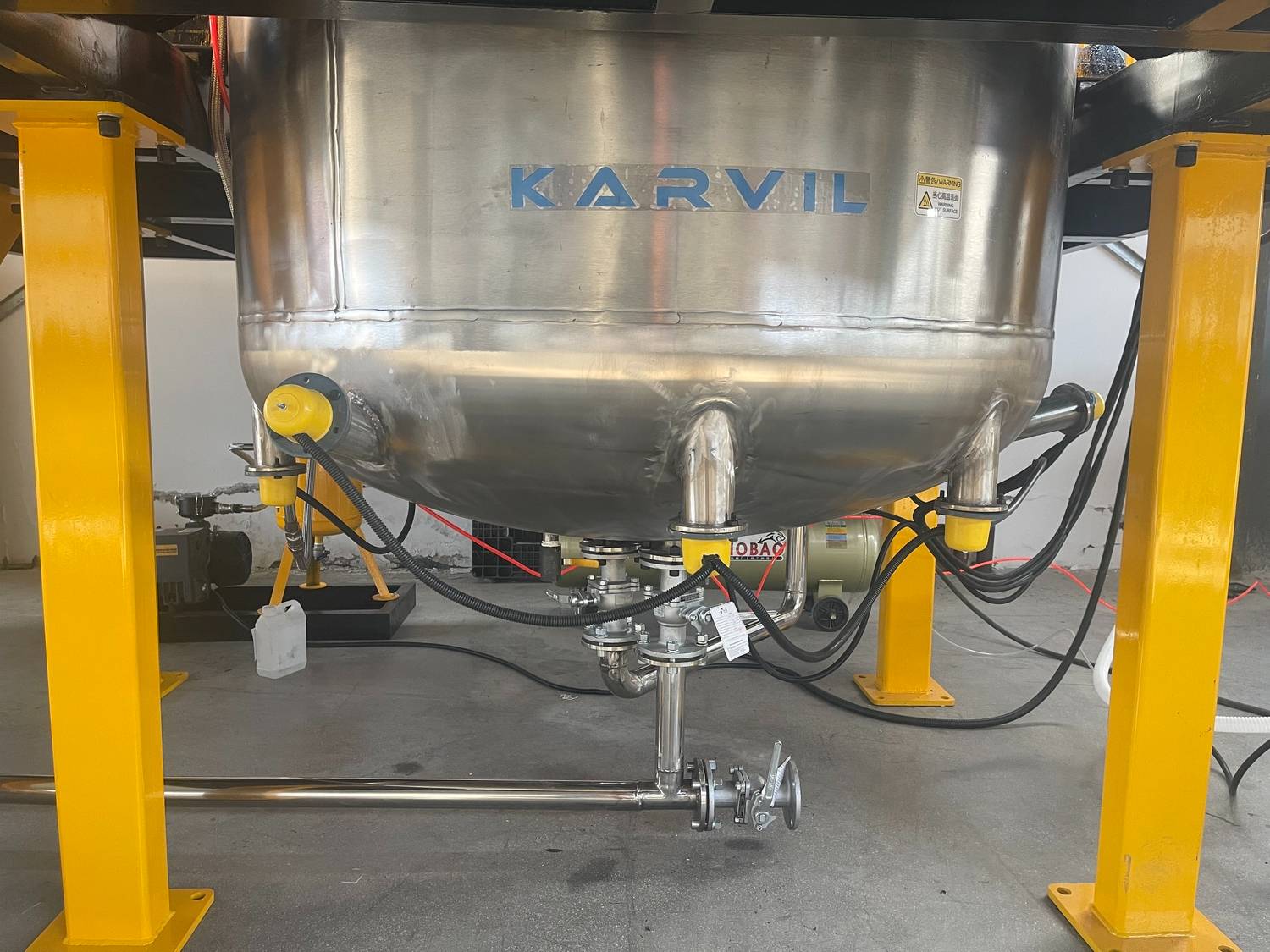

| 2. Reactor Material & Heating | Material: SUS 304/316L Stainless Steel (Contact Parts). Jacket: Cooling/Heating Coil or Jacket. | Corrosion Resistance is guaranteed. The jacket controls the temperature, critical for exothermic/endothermic chemical reactions and ensuring optimal solubility. |
| 3. Transfer Pump System | Type: High-Viscosity Rotary Lobe Pump or Centrifugal Pump. Seal: Mechanical Seal. | Rapidly transfers the finished liquid blend from the reactor to the storage tank or filler, ensuring no cross-contamination and minimal product shear during transfer. |
| 4. Storage/Buffer Tank | Volume: Matched to reactor/filling speed. Material: SUS 304. | Maintains a consistent liquid supply to the filler, preventing air cavitation and maximizing the efficiency of the downstream packaging process. |

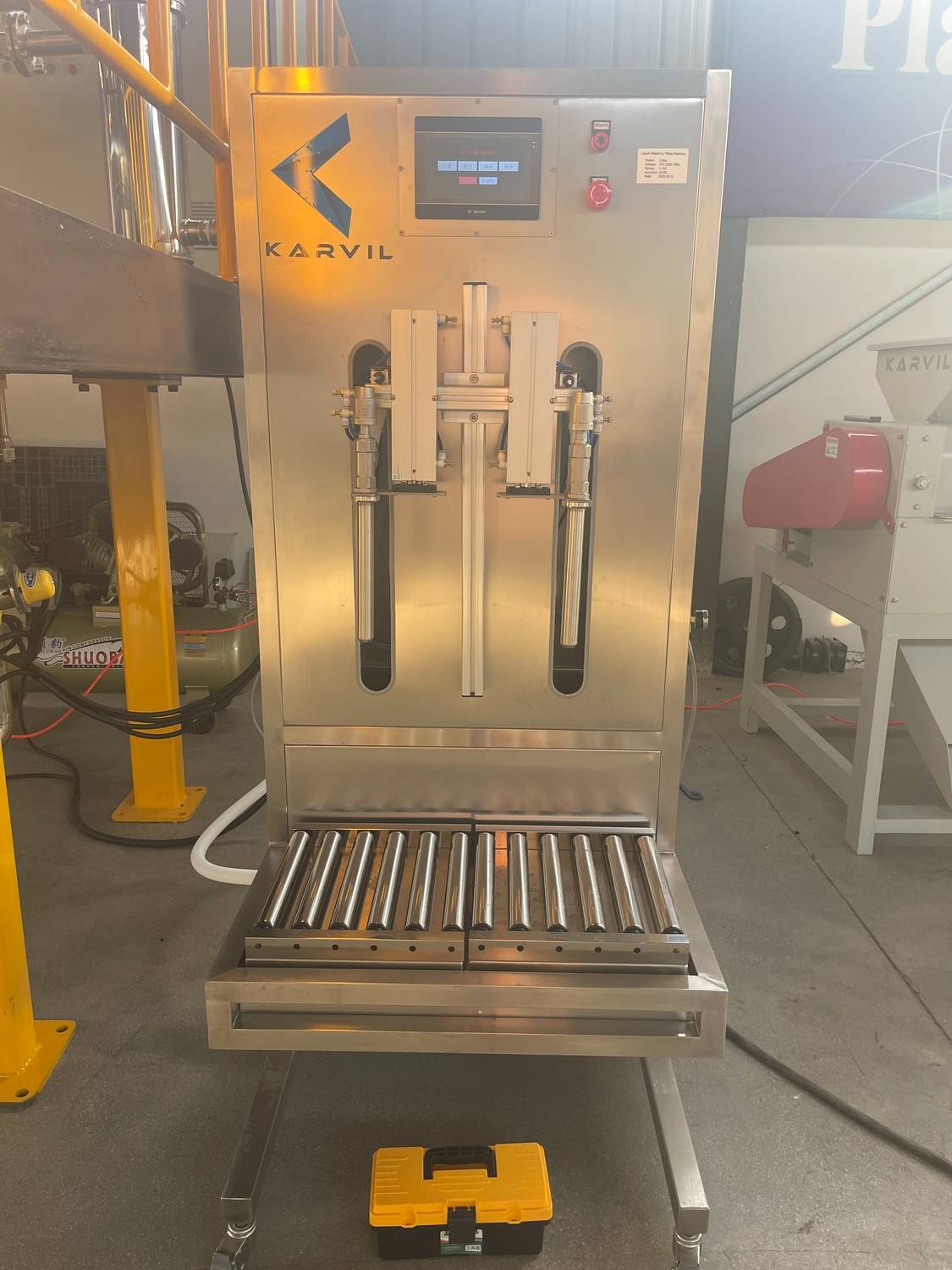

| 5. Dual-Head Liquid Filling Machine | Heads: Two (2). Filling Range: Suitable for 1L to 5L containers. Principle: Piston or Flow Meter volumetric control. | Doubles throughput compared to single-head systems. Volumetric accuracy ensures every bottle meets declared net weight, crucial for European regulation. |
| 6. Capping and Labeling Integration | Speed: Configurable to line speed. | Seamlessly integrates automatic capping and accurate labeling for a professional, market-ready finish. |
Over 20 years of manufacturing expertise in mixing and dispersing equipment
Customized turnkey solutions for food, cosmetics, and chemical production
Exported to 50+ countries worldwide
Reliable after-sales support and technical guidance
1. Manufacturer or trading company?
We are a manufacturer with strict production standards in China.
2. Where is your company?
Our company is located in Yantai, Shandong,——Powder Equipment Industry Belt.
3. About your company's visit?
We can pick you up at Qingdao Airport conveniently, and then we can take you to our factory.
4. What is the main market for your company?
Asia and Africa, Australia, America, Europe.
5. Can you provide customized products?
Yes, we have professional engineers to meet your special design needs, so we can provide customized products.
6. What is your delivery time?
It usually takes about 20 to 30 days, the exact time also depends on the type and quantity of the product.
7. About the product warranty?
Usually, we provide a 1-year warranty for the products that have been sold, but we can also provide life-long service when you need it to maintain a long-term relationship with you.
8. What are the payment terms?
T/T, L/C, etc.
