PM
KARVIL
| Tank Dia(mm): | |
|---|---|
| Tank hight(mm): | |
| Revolution motor (kw): | |
| Revolution speed(rpm): | |
| Dispersing motor(kw): | |

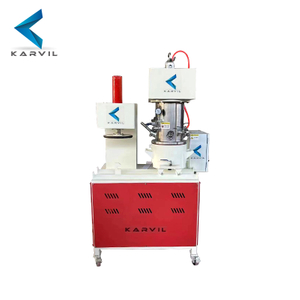

Planetary mixer is a new kind of advanced mixing equipment, which consists of high-speed part, low speed part, scraper axis activity part.
This equipment is designed for the mixing, dispersing and homogenizing of high-viscosity materials, such as a variety of liquids and powders.
1. Various stirring tools combinations including high-speed with high -speed, high-speed with low-speed, and low-speed with low-speed.

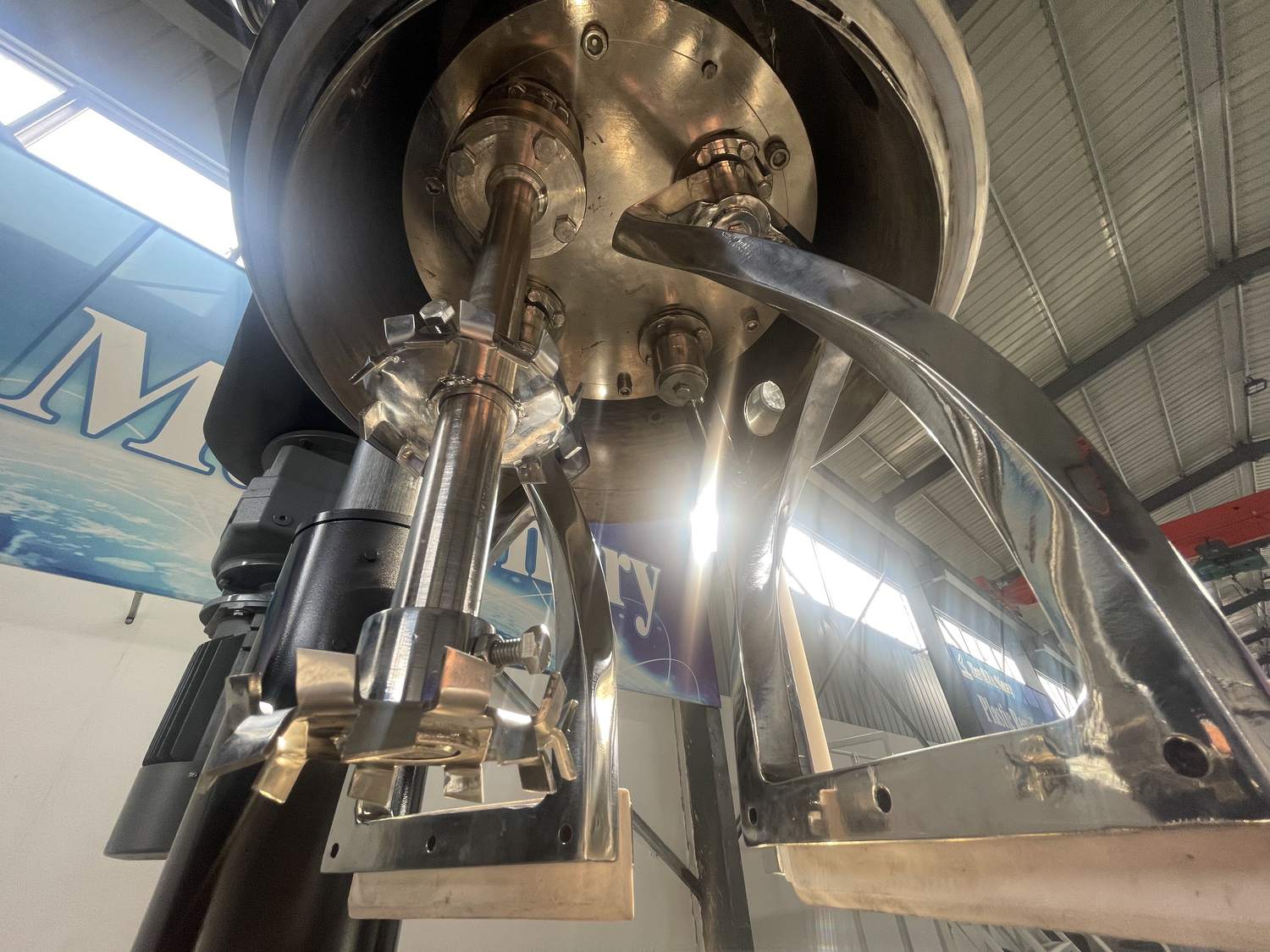

2. High-speed part is divided into high shear emulsification device, high-speed dispersion device, high-speed propulsion device and butterfly stirring device.
Low-speed part is divided into anchor stirring, paddle stirring, spiral stirring, helical ribbon stirring, rerctangular stirring and so on.
Any combination has its unique mixing effect for different materials.
3. Vacuum production condition can be achieve by reliable airproof tank.
4. Tank with jacket for heating or cooling requirement.
5. Changeable inner tank with precision process, easy cleaning.
6.Peculiar temperture sensor ensures no temperature difference contril and inspect function.
7. The mixing system frivern by hydraulic powder make the operation convenient.
8. Extensive adaptablity for different materials and processes.
This kind of mixer is suitable for dispersing, mixing and stirring of high viscosity materials, approximate viscosity from 10000cp-1000000cp.
1.Energy appliance: all kinds of battery paste, paste material (lithium battery, nickel-chromium battery, nickel-metal hydride battery, fuel cell, power battery, etc.)
2.Electronic appliance: solder paste, ceramic slurry, magnetic material, silica gel ink, electronic adhesive, PVC plastic, electronic potting glue, hot melt adhesive, all kinds of precious metal powder and slurry.
3.Chemicals appliance: a variety of sealant, adhesive, (silicone sealant, polysulfide sealant, the structure of insulating glass sealant, waterproof sealant, anaerobic adhesive, stone glue, etc.) synthetic resin, rubber, printing ink, putty, abrasives(cream), was products, all kinds of powder materials and ceramic pigment.
4.Pharmaceuticals appliance: all kinds of soft ointments, high polymer gels (medical paste, antifebrile paste for children, cold paste, ice paste, eye paste), dental products.
5.Cosmetics and daily chemicals appliance: moisturizer, lipstick, lotion, gel, facial mask, mascara, foundation, nail polish, toothpaste, soap.
6.Food appliance: all kinds of paste mixture, seasoning, jam, chocolate syrup.
 |  |  |  |
 |  |  |  |
| Model (L) | 5 | 15 | 30 | 50 | 100 | 300 | 500 | 1000 | |
| Tank Dia (mm) | 280 | 280 | 400 | 480 | 550 | 850 | 960 | 1160 | |
| Tank height (mm) | 180 | 325 | 325 | 365 | 550 | 650 | 810 | 1100 | |
| Revolution motor (kW) | 1.5 | 2.2 | 3 | 4 | 5.5 | 18.5 | 22 | 30-37 | |
| Revolution speed (rpm) | 0-60 | 0-60 | 0-84 | 0-62 | 0-70 | 0-45 | 0-35 | 0-35 | |
| Wall scraper rev (rpm) | 0-60 | 0-60 | 0-84 | 0-62 | 0-70 | 0-45 | 0-35 | 0-35 | |
| Rotation speed (rpm) | 0-100 | 0-100 | 0-130 | 0-75 | 0-110 | 0-62 | 0-60 | 0-45 | |
| Dispersing motor (kw) | 1.1 | 2.2 | 2.2 | 5.5 | 5.5 | 11 | 30 | 37 | |
| Dispersing rev (rpm) | 0-1500 | ||||||||
| Vacuum (MPa) | ≤-0.098 | ||||||||
| Lift travel (mm) | 360 | 400 | 430 | 650 | 700 | 900 | 1000 | 1100 | |
| External dimension (mm) | L | 1500 | 1700 | 1700 | 1700 | 1700 | 2500 | 2700 | 2700 |
| W | 900 | 900 | 900 | 900 | 1100 | 1200 | 1500 | 1800 | |
| H | 1700 | 2100 | 2300 | 2300 | 2300 | 2700 | 2900 | 3100 | |
| Weight (kg) | 500 | 800 | 1000 | 2000 | 2300 | 2700 | 3500 | 5000 | |
Shandong Karvil Machinery Technology Co., Ltd. is specializing in the research, design, manufacturing and sales of mixing machines, grinding equipment and reaction machines. The company is committed to the advanced technology of machines, strict quality control standards and perfect sales service experience to achieve a win-win situation with our customers.
Karvil products have been successful used in the field of powder processing, food, medicine, fine chemical industry, cosmetics, adhesives, paints, inks, dyes, pastes, organic solvents and ceramics, etc.
Karvil engineering team constantly explores new technical points and promotes perfect solutions for our clients through efficient communication according to the production application.
Our company has a series of strict standards system to control the purchase of raw materials, the rationality of design, manufacturing process, during the inspection, product inspection, which could ensure the high quality of our products and create value for our clients.
