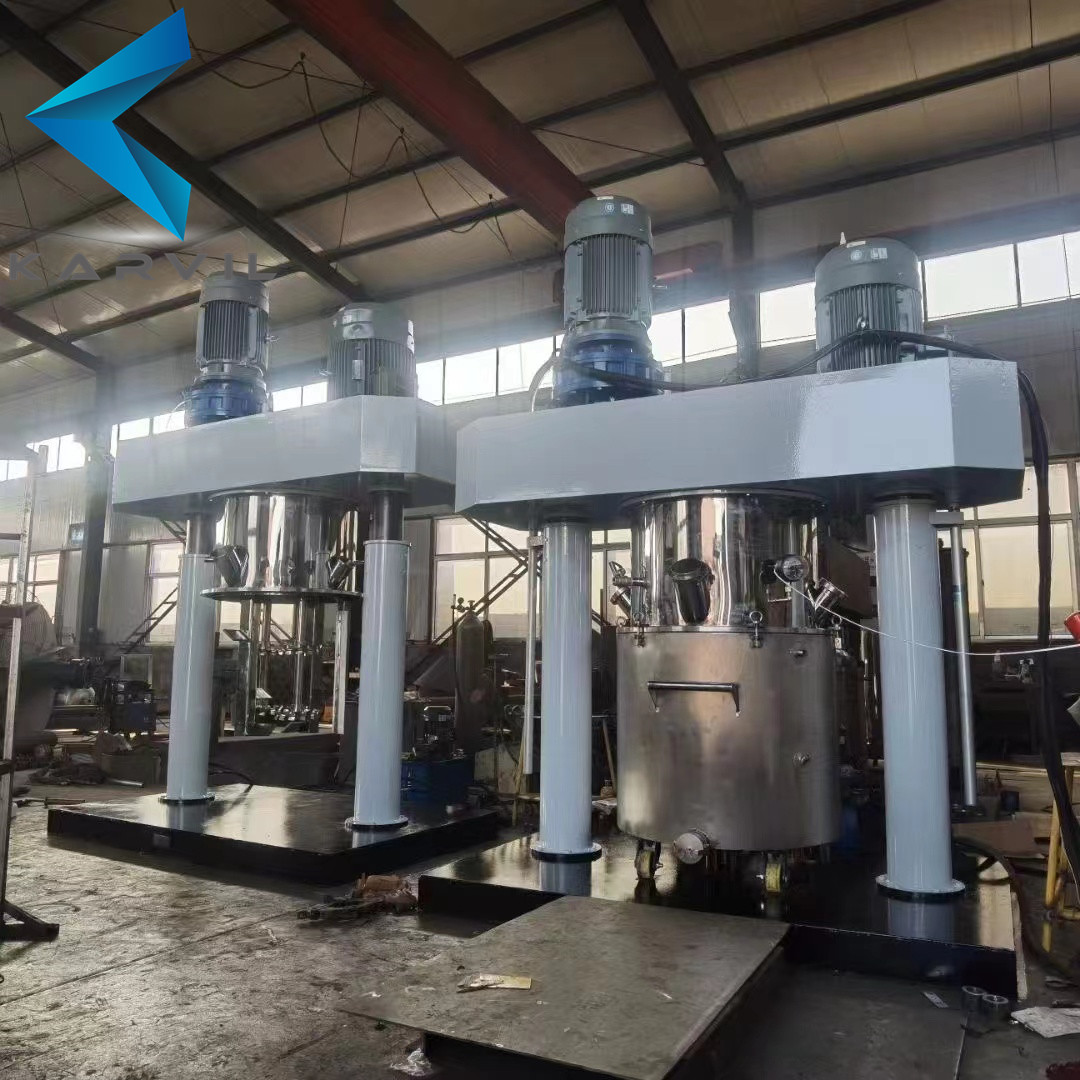

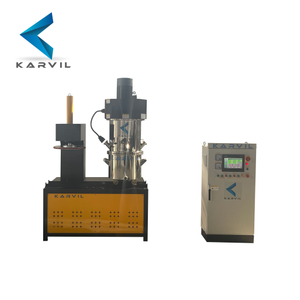

Planetary Dissolver Mixer

Planetary Mixer is a new kind of advanced mixing equipment, which consists of high-speed part, low speed part, scraper axis activity pa rt. This equipment is designed for the mixing, dispersing, and homogenizing of high-viscosity materials such as a variety of liquids and powders.
  • MP05
  • Karvil
  • 847982
Availability:

Advantage:

>High-speed part is divided into high shear emulsification device, high-speed

dispersion device, high-speed propulsion device and butterfly stirring device.

>Low-speed part is divided into anchor stirring, paddle stirring, spiral stirring, helical

ribbon stirring, rectangular stirring and so on.

>Any combination has its unique mixing effect for different materials.

>Vacuum production condition can be achieved by reliable airproof tank.

>Tank with jacket for heating or cooling requirement.

>Changeable inner tank with precision process, easy cleaning.

>Peculiar temperature sensor ensures no temperature difference control and inspect function.

>The mixing system driven by hydraulic power make the operation convenient.

>Extensive adaptability for different materials and processes.


Type MP05 MP15 MP30 MP50 MP100 MP300 MP500 MP1000
Volume(L) 5 15 30 50 100 300 500 1000
Tank Dia(Mm) 280 280 400 480 550 850 960 1160
Tank Height(Mm) 180 325 325 365 550 650 810 1100
Revolution Motor(Kw) 1.5 2.2 3 4 5.5 18.5 22 30-37
Revolution Speed(Rpm) 0-60 0-60 0-84 0-62 0-70 0-45 0-35 0-35
Wall Scraper Rev.(Rpm) 0-60 0-60 0-84 0-62 0-70 0-45 0-35 0-35
Rotation Speed (Rpm) 0-100 0-100 0-130 0-75 0-110 0-62 0-60 0-45
Dispersing Motor(Kw) 1.1 2.2 2.2 5.5 5.5 11 30 37
Dispersing Rev.(Rpm) 0-1500
Vacuum(Mpa) ≤0.098
Lift Travel(Mm) 360 400 430 650 700 900 1000 1100
External Dimension(Mm) 1500*900*1700 1700*900*2100 1700*900*2300 1700*900*2300 1700*1100*2300 2500*1200*2700 2700*1500*2900 2700*1800*3100
Weight(Kg) 500 800 1000 2000 2300 2700 3500 5000


This kind of mixer is suitable for dispersing, mixing and stirring of high viscosity materials, approximate viscosity from 10000cp-1000000cp.

1.Energy appliance: all kinds of battery paste, paste material (lithium battery, nickel-chromium battery, nickel-metal hydride battery, fuel cell, power battery, etc.)
2.Electronic appliance: solder paste, ceramic slurry, magnetic material, silica gel ink, electronic adhesive, PVC plastic, electronic potting glue, hot melt adhesive, all kinds of precious metal powder and slurry.
3.Chemicals appliance: a variety of sealant, adhesive, (silicone sealant, polysulfide sealant, the structure of insulating glass sealant, waterproof sealant, anaerobic adhesive, stone glue, etc.) synthetic resin, rubber, printing ink, putty, abrasives(cream), was products, all kinds of powder materials and ceramic pigment.
4.Pharmaceuticals appliance: all kinds of soft ointments, high polymer gels (medical paste, antifebrile paste for children, cold paste, ice paste, eye paste), dental products.
5.Cosmetics and daily chemicals appliance: moisturizer, lipstick, lotion, gel, facial mask, mascara, foundation, nail polish, toothpaste, soap.
6.Food appliance: all kinds of paste mixture, seasoning, jam, chocolate syrup.
