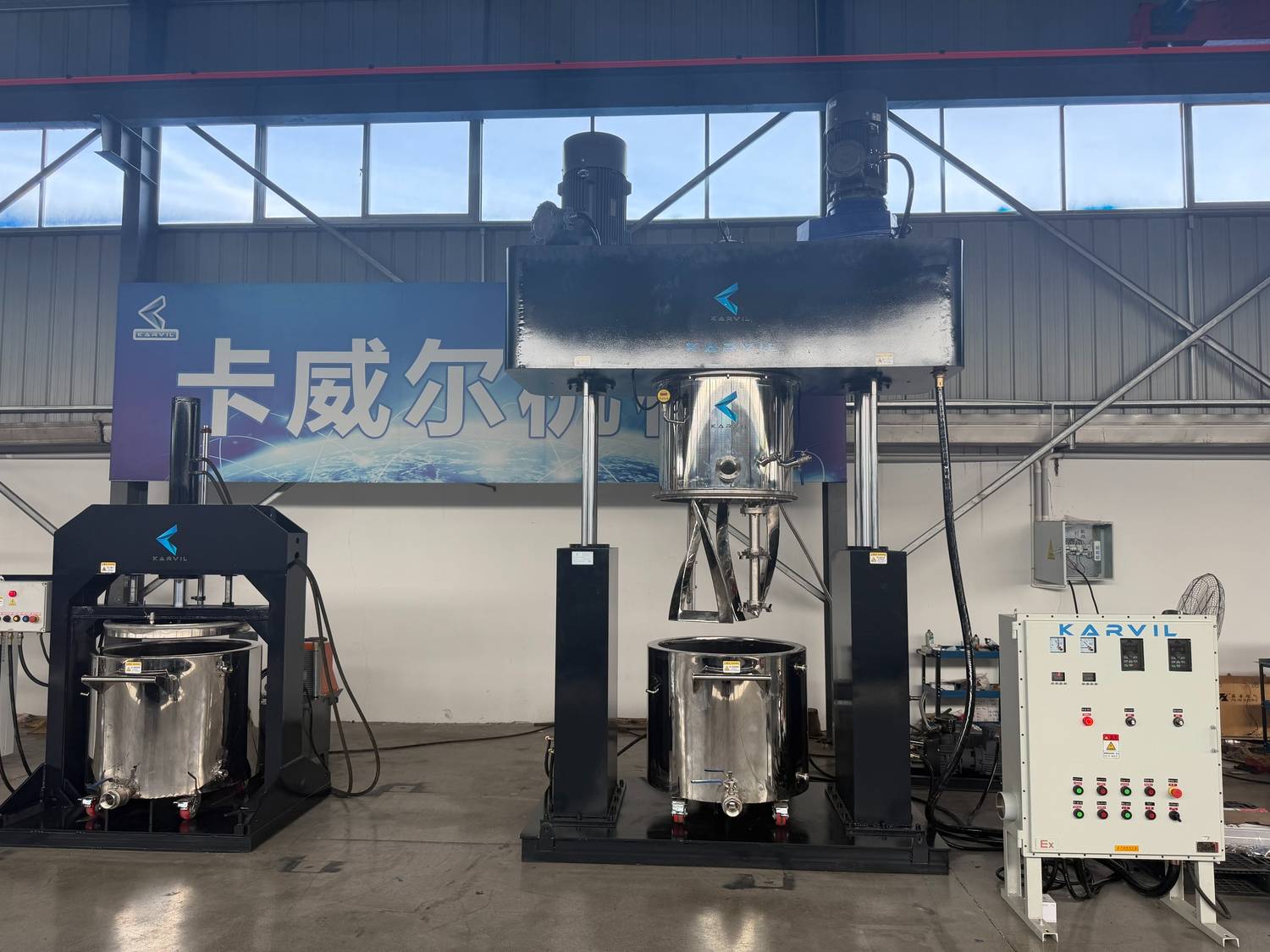

Dual Shaft Planetary Mixer

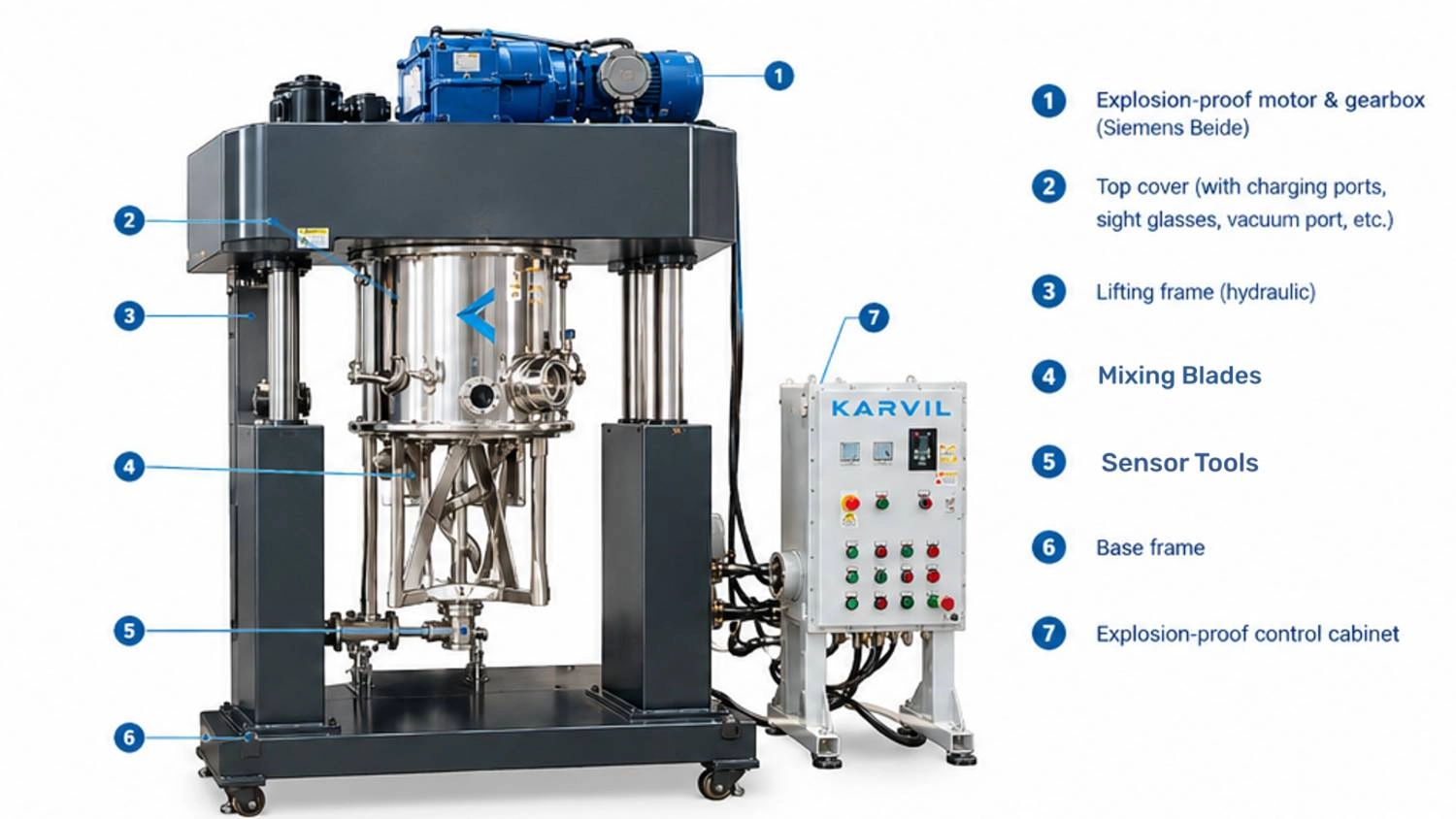

Planetary Mixer is a new kind of advanced mixing equipment,which consists of high-speed part, low speed part, scraper axis activity part. This equipment is designed for the mixing, dispersing, and homogenizing of high-viscosity materials such as a variety of liquids and powders.

Main features

1. Various stirring tools combinations including high-speed with high -speed, high-speed with low-speed, and low-speed with low-speed.

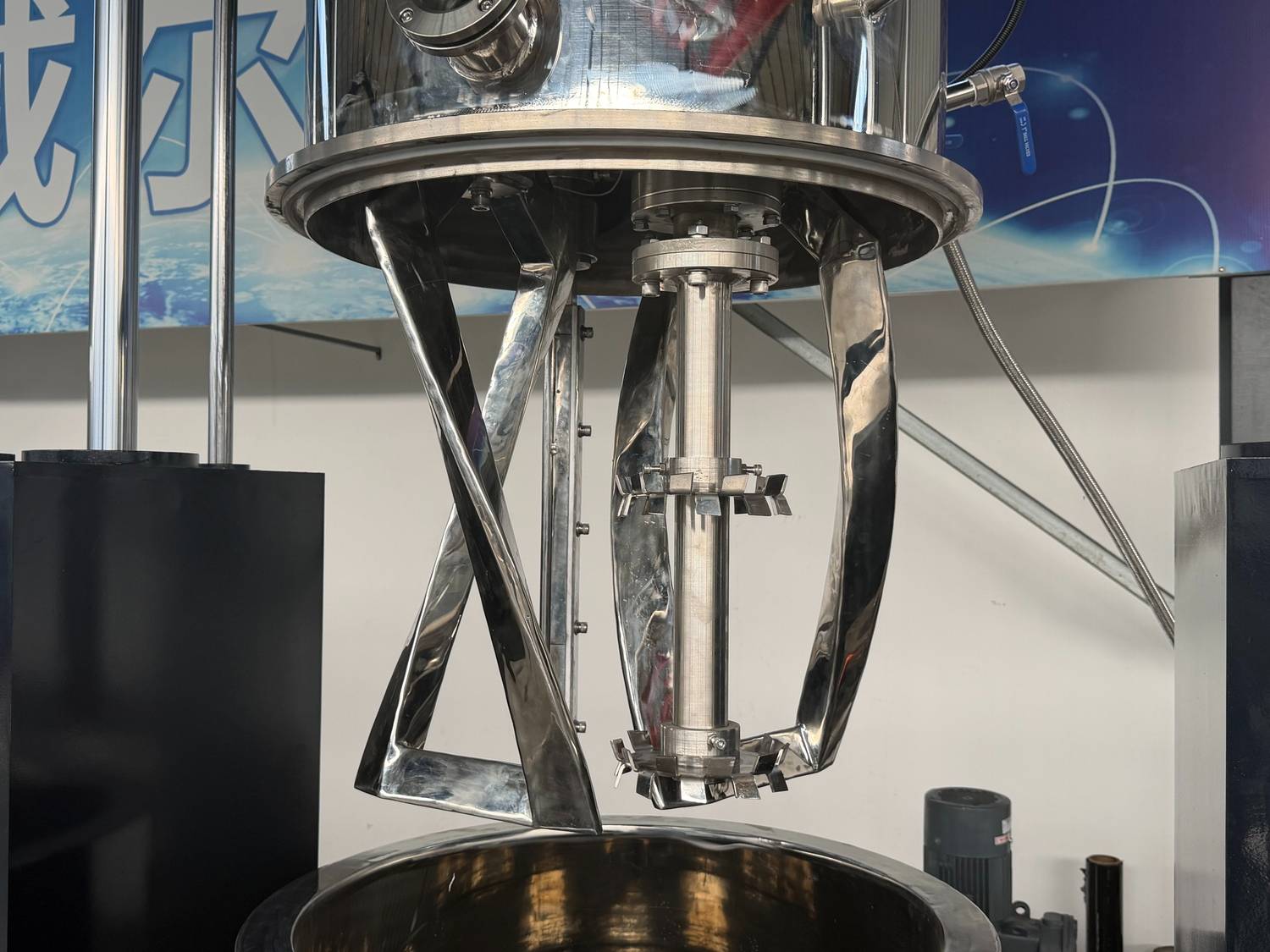

2.  High-speed part is divided into high shear emulsification device, high-speed dispersion device, high-speed propulsion device and butterfly stirring device.

Low-speed part is divided into anchor stirring, paddle stirring, spiral stirring, helical ribbon stirring, rerctangular stirring and so on.

Any combination has its unique mixing effect for different materials.

3. Vacuum production condition can be achieve by reliable airproof tank.

4. Tank with jacket for heating or cooling requirement.

5. Changeable inner tank with precision process, easy cleaning.

6.Peculiar temperture sensor ensures no temperature difference contril and inspect function.

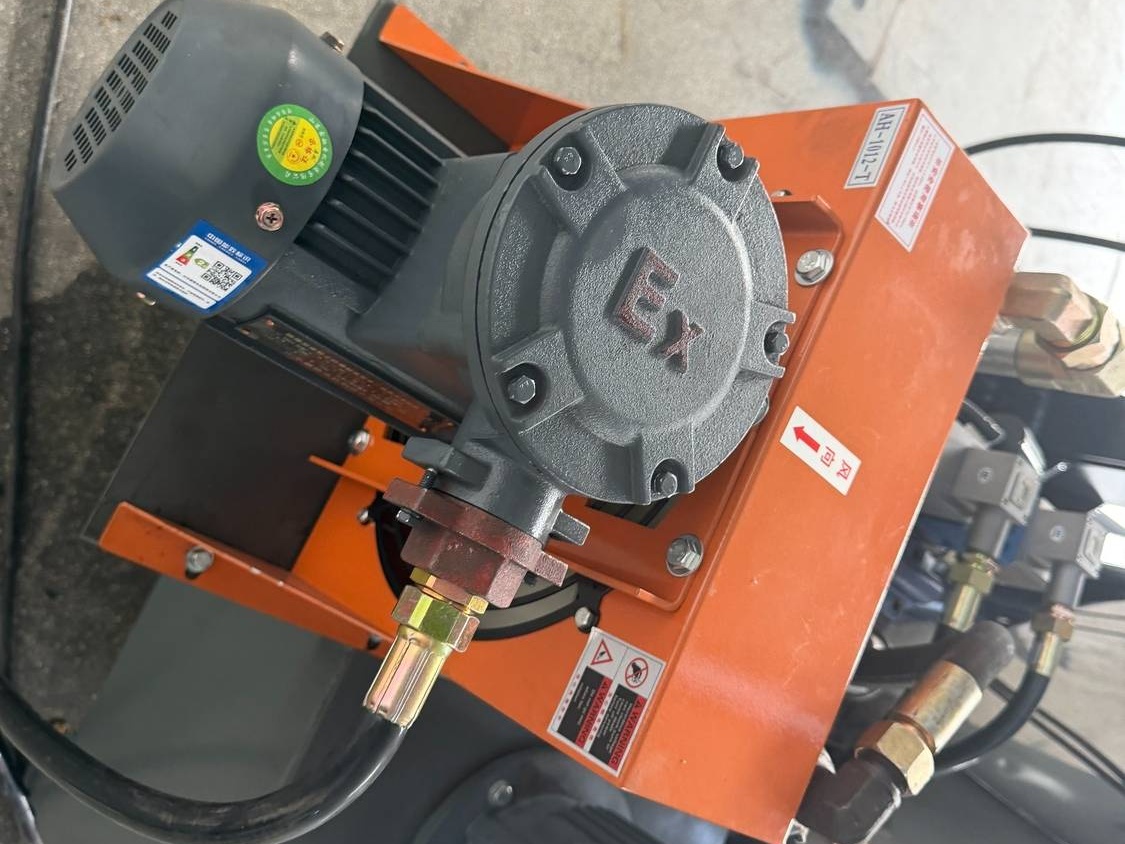

7. The mixing system frivern by hydraulic powder make the operation convenient.

8. Extensive adaptablity for different materials and processes.


ceramics-mixing-machine clay-mixer-machine-karvil masteratc-mixing-machine bakery-food-mixing-machine
silicone-rubber-mixing-machine chewing-gum-mixing-machine 粘合剂 candies-mixing-machine

This kind of mixer is suitable for dispersing, mixing and stirring of high viscosity materials, approximate viscosity from 10000cp-1000000cp.

1.Energy appliance: all kinds of battery paste, paste material (lithium battery, nickel-chromium battery, nickel-metal hydride battery, fuel cell, power battery, etc.)
2.Electronic appliance: solder paste, ceramic slurry, magnetic material, silica gel ink, electronic adhesive, PVC plastic, electronic potting glue, hot melt adhesive, all kinds of precious metal powder and slurry.
3.Chemicals appliance: a variety of sealant, adhesive, (silicone sealant, polysulfide sealant, the structure of insulating glass sealant, waterproof sealant, anaerobic adhesive, stone glue, etc.) synthetic resin, rubber, printing ink, putty, abrasives(cream), was products, all kinds of powder materials and ceramic pigment.
4.Pharmaceuticals appliance: all kinds of soft ointments, high polymer gels (medical paste, antifebrile paste for children, cold paste, ice paste, eye paste), dental products.
5.Cosmetics and daily chemicals appliance: moisturizer, lipstick, lotion, gel, facial mask, mascara, foundation, nail polish, toothpaste, soap.
6.Food appliance: all kinds of paste mixture, seasoning, jam, chocolate syrup.

Technical parameters

Model (L) 5 15 30 50 100 300 500 1000
Tank Dia (mm) 280 280 400 480 550 850 960 1160
Tank height (mm) 180 325 325 365 550 650 810 1100
Revolution motor (kW) 1.5 2.2 3 4 5.5 18.5 22 30-37
Revolution speed (rpm) 0-60 0-60 0-84 0-62 0-70 0-45 0-35 0-35
Wall scraper rev (rpm) 0-60 0-60 0-84 0-62 0-70 0-45 0-35 0-35
Rotation speed (rpm) 0-100 0-100 0-130 0-75 0-110 0-62 0-60 0-45
Dispersing motor (kw) 1.1 2.2 2.2 5.5 5.5 11 30 37
Dispersing rev (rpm) 0-1500
Vacuum (MPa) ≤-0.098
Lift travel (mm) 360 400 430 650 700 900 1000 1100
External dimension (mm) L 1500 1700 1700 1700 1700 2500 2700 2700
W 900 900 900 900 1100 1200 1500 1800
H 1700 2100 2300 2300 2300 2700 2900 3100
Weight (kg) 500 800 1000 2000 2300 2700 3500 5000


1. Manufacturer or trading company?
We are a manufacturer with strict production standards in China.
2. Where is your company?
Our company is located in Yantai, Shandong, --Powder Equipment Industry Belt.
3. About your company's visit?
We can pick you up at Qingdao Airport conveniently, and then we can take you to our factory.
4. What is the main market for your company?
Asia and Africa, Australia, America, Europe.
5. Can you provide customized products?
Yes, we have professional engineers to meet your special design needs, so we can provide customized products.
6. What is your delivery time?
It usually takes about 20 to 30 days, the exact time also depends on the type and quantity of the product.
7. About the product warranty?
Usually, we provide a 1-year warranty for the products that have been sold, but we can also provide life-long service when you need it to maintain a long-term relationship with you.
8. What are the payment terms?
T/T, L/C, etc.
