5Tons Unstaturated polyester resin reactor

Share to:
The reactor is widely used in petroleum, chemical, rubber, pesticide, dyes, medicine, food, used to complete the curing, nitrification, hydrogenation, alkylation, polymerization, condensation and other process.
  • R series
  • KARVIL
motor power:
Inner Material:
Reactor Type:
Speed :
Sealing Way:
Quantity:

Product Description

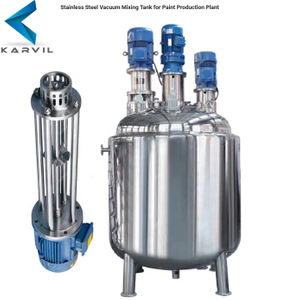

The reactor is a new type of reaction equipment developed on the basis of absorbing domestic and foreign advance technology. It has the characteristics of rapid heating, high temperature resistance, corrosion resistance, hygienic, no environmental pollution, no need for automatic heating of boiler, easy to use and so on.

1BLU%3MWLCYWJU(0OFQN

Main advantages

The equipment consists of a vertical condenser, a horizontal condenser, a reaction kettle, a water storage device and a fractionation column. It is a special equipment for producing unsaturated polyester resin. Unsaturated polyester resin equipment has reasonable design and advanced technology. It is the most ideal unsaturated resin production line in the domestic market. Users can order from our company according to their annual production capacity and technical requirements.

reactor 001
Main features


Material: SUS304 or SUS316L
Volume: 50L~20,000L
Agitator brand: Chinese brand or European brand
Agitator type: Propeller type, anchor type, scraper type, etc.
Agitator seal: Alloy mechanical seal
Structure: Single layer or with jacket, jacket for heating (can pass steam, hot water, hot heating oil), jacket for cooling, or jacket for both heating and cooling.
Jacket type: Dimple jacket, coil tube.
Temperature isolation material: PU foam or rock wool

Motor speed: fixed (36 rpm, 60 rpm, etc.), adjustable (like 10-100 rpm) through frequency inverter.

反应釜03


Technical paremeters

Capacity 50L 100L 300L 500L 1000L 2000L 3000L 4000L 5000L 10000L
Motor Power (kW) 1.1 1.5 4 4 5.5 7.5 7-11 11-15 15-18.5 30
Inner Material Stainless Steel 304/316
Outer Material Generally Carbon Steel (Can be customized all stainless steel)
Dimension (mm) L 800 900 1100 1200 1400 2000 2200 2600 2700 2100
W 800 900 1100 1200 1400 2000 2200 2600 2700 2100
H 1600 1700 2000 2000 2600 3200 3400 4000 4200 5000
Weight (Kg) 270 350 700 1000 1600 2100 2600 3200 4000 5000
Reactor Type Jacket electric heating reactor (water or oil) Steam heating reactor (steam) Outer coil reactor (water, oil and steam) Electric heating enamel reactor (water and oil) Harmonic kettle (oil)
Speed 63 rpm (with gear reducer)
Sealing Way Mechanical seals and packing seals
Stirring Way Generally frame type, 63 rpm (different speeds for different mixing methods)
KARVIL company profile

Shandong Karvil Machinery Technology Co., Ltd. is specializing in the research, design, manufacturing and sales of mixing machines, grinding equipment and reaction machines. The company is committed to the advanced technology of machines, strict quality control standards and perfect sales service experience to achieve a win-win situation with our customers.


Karvil products have been successful used in the field of powder processing, food, medicine, fine chemical industry, cosmetics, adhesives, paints, inks, dyes, pastes, organic solvents and ceramics, etc.

1

KARVIL family

FAQ

1. Manufacturer or trading company?

We are a manufacturer with strict production standards in China.


2. Where is your company?

Our company is located in Yantai, Shandong,——Powder Equipment Industry Belt.


3. About your company's visit?

We can pick you up at Qingdao Airport conveniently, and then we can take you to our factory.


4. What is the main market for your company?

Asia and Africa, Australia, America, Europe.


5. Can you provide customized products?

Yes, we have professional engineers to meet your special design needs, so we can provide customized products.


6. What is your delivery time?

It usually takes about 20 to 30 days, the exact time also depends on the type and quantity of the product.


7. About the product warranty?

Usually, we provide a 1-year warranty for the products that have been sold, but we can also provide life-long service when you need it to maintain a long-term relationship with you.


8. What are the payment terms?

T/T, L/C, etc.
