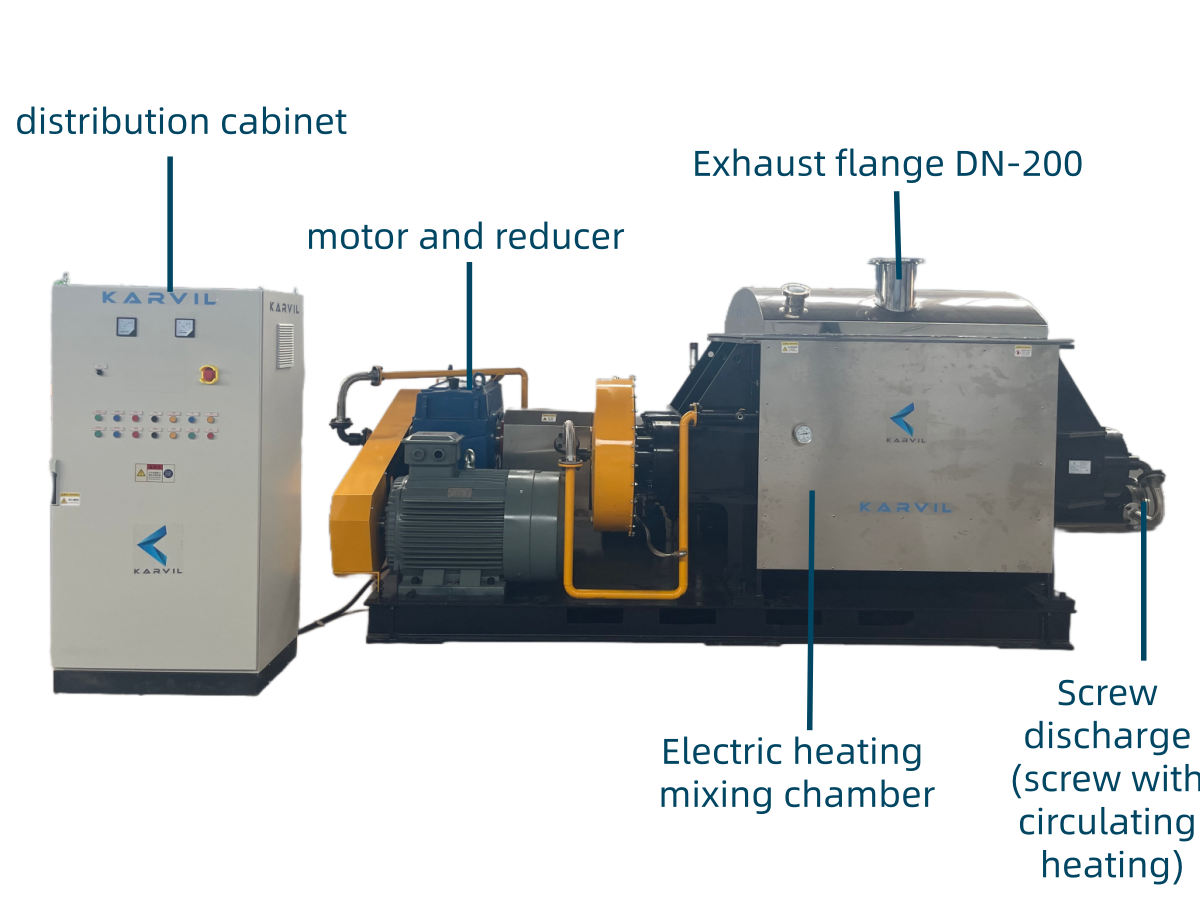

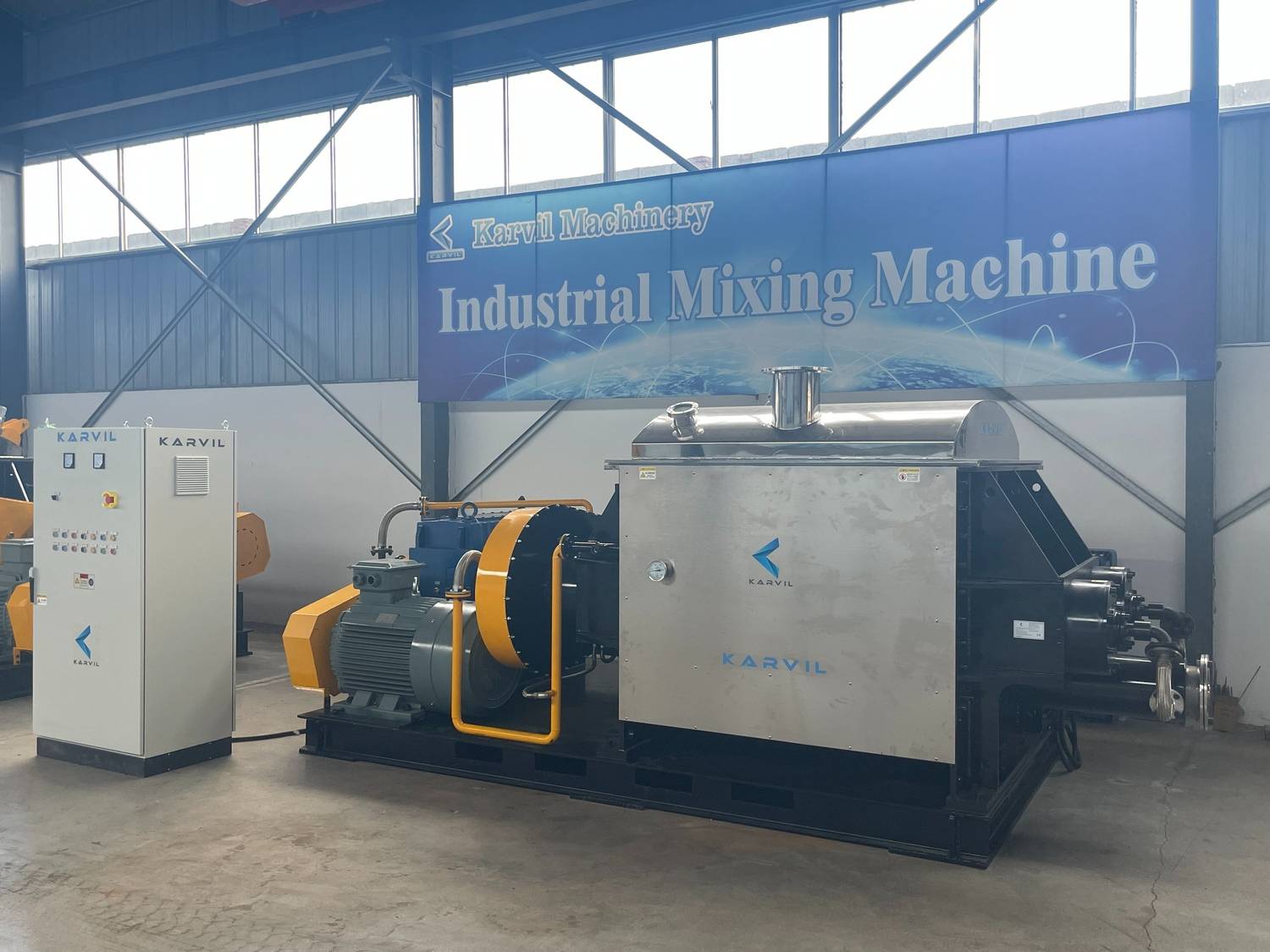

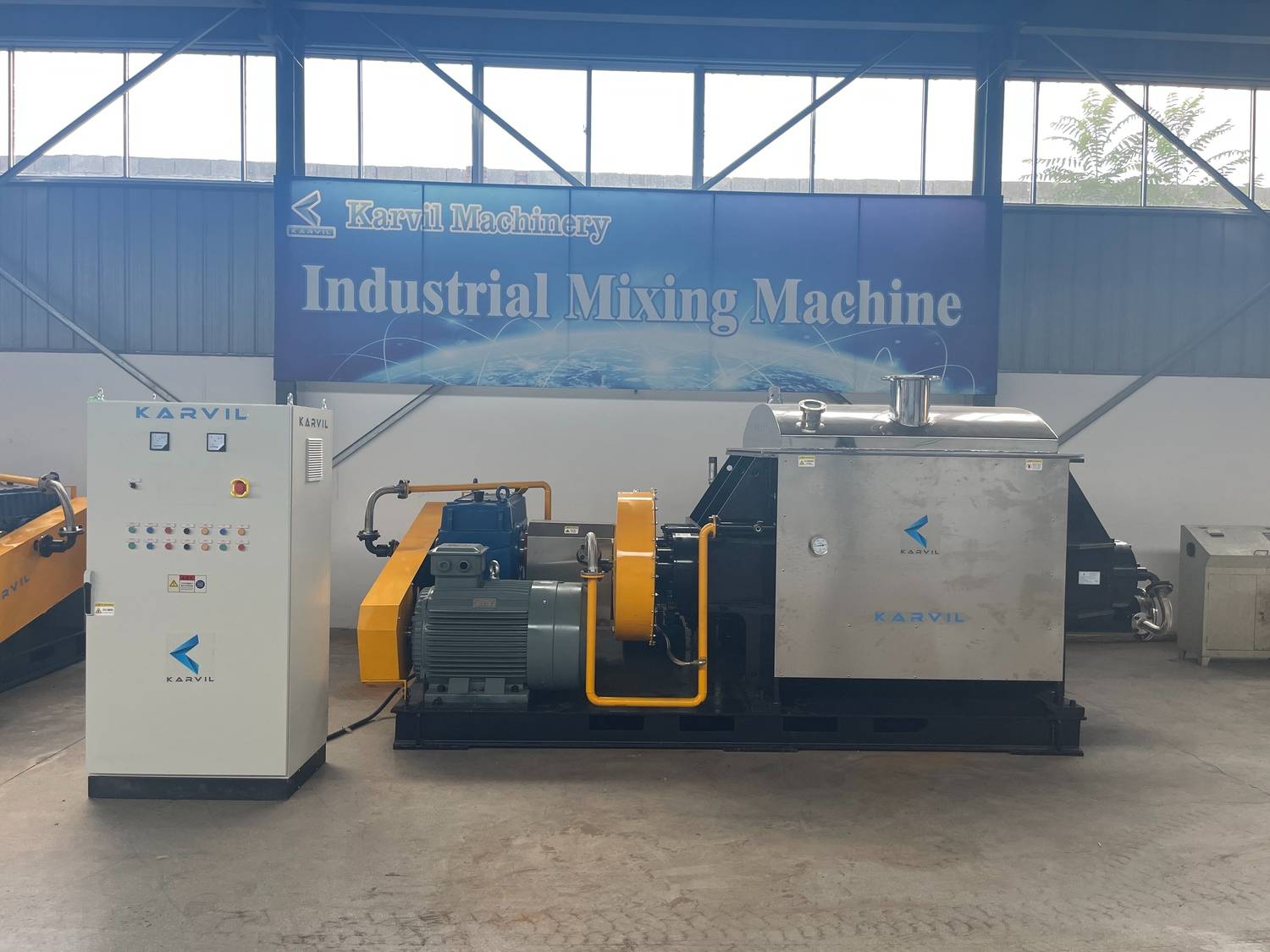

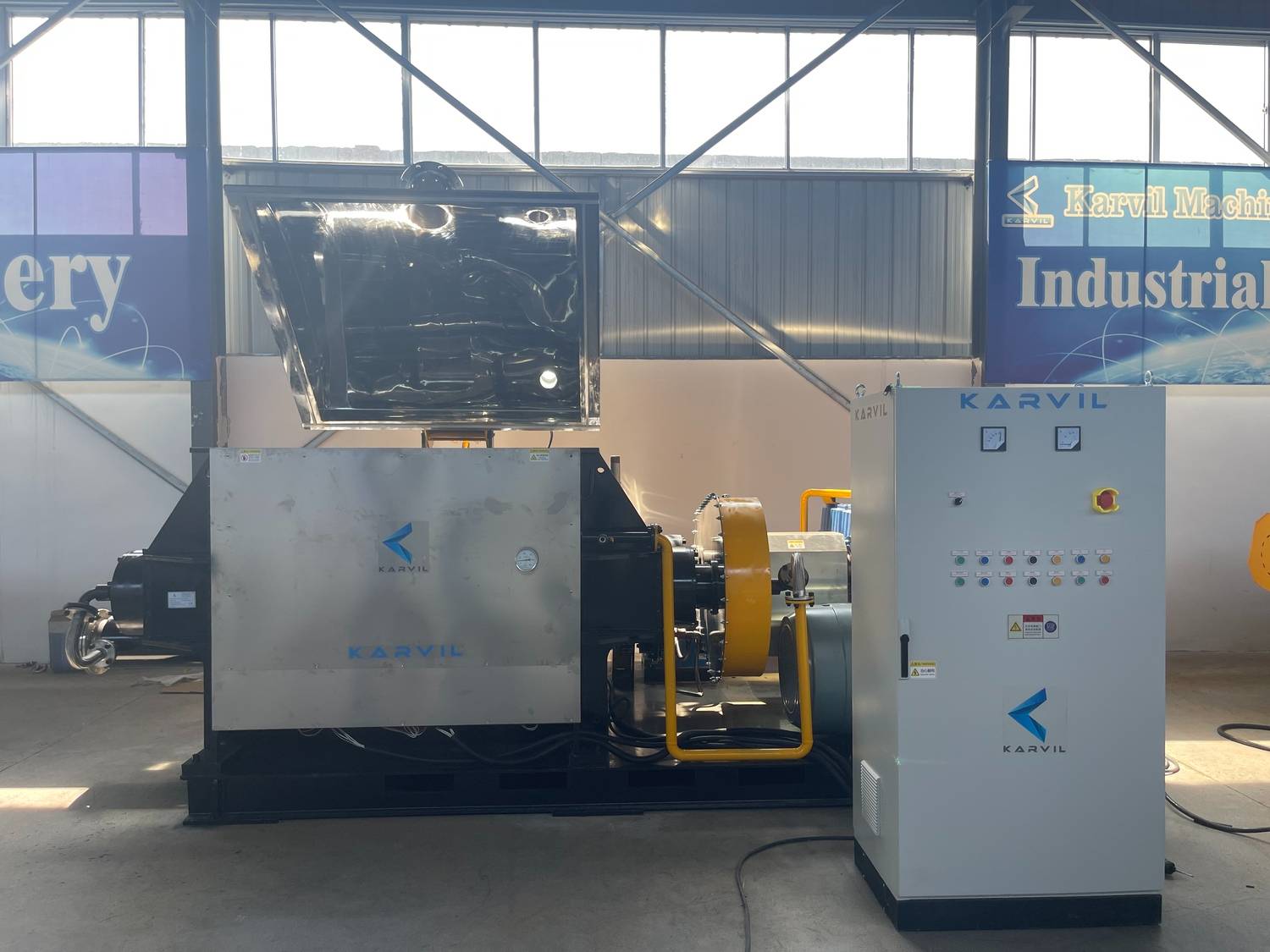

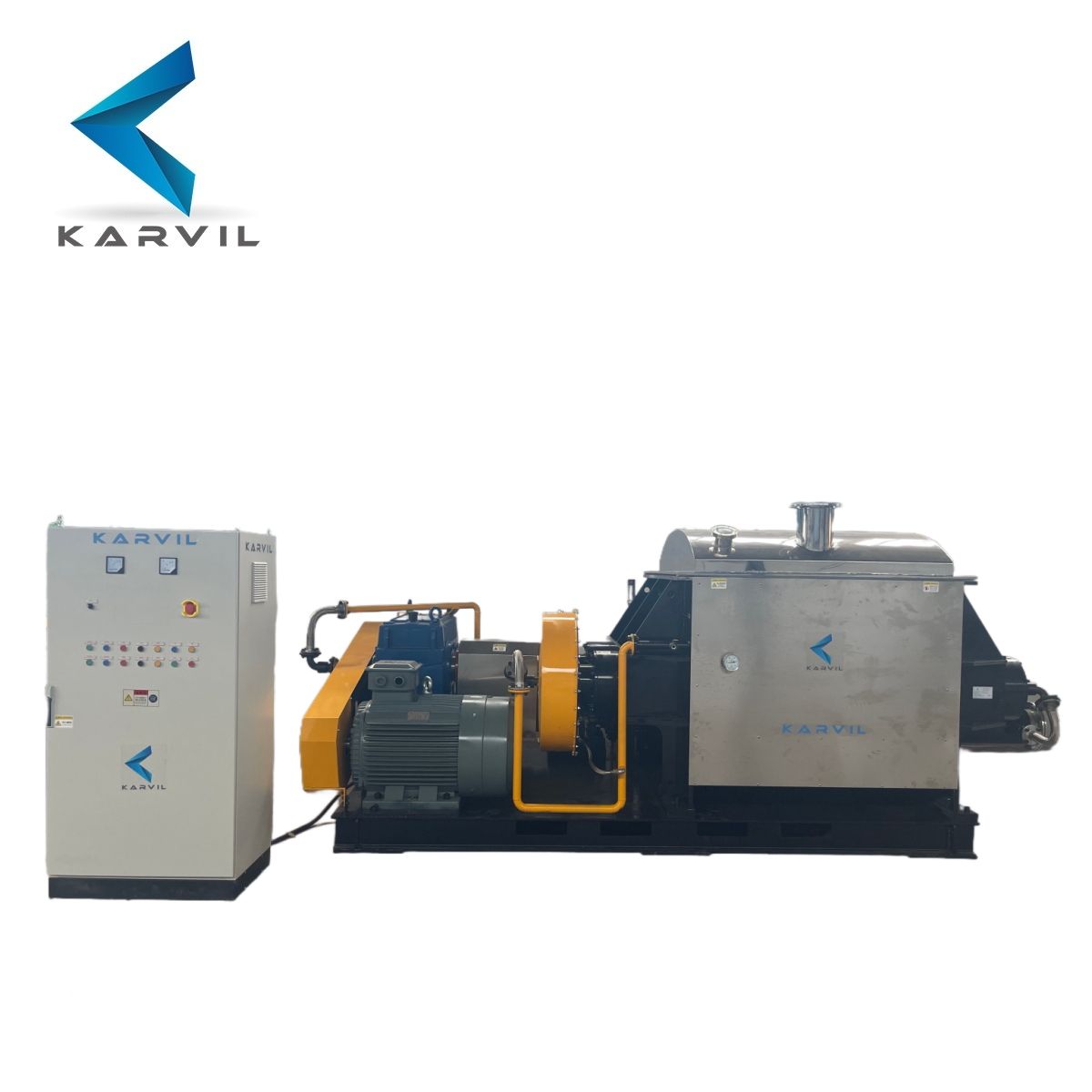

This 2000L electric heating sigma mixer is designed for heavy-duty mixing and kneading of high-viscosity materials. The machine is equipped with screw discharge, ensuring efficient and clean material output. With thermal oil circulation in the mixing blades, discharge screw, and external jacket, it provides precise temperature control for processing sensitive formulations.
It is widely used in the waterproof materials industry, adhesives, sealants, rubber compounds, and other applications that require controlled heating during mixing.
NH-2000
KARVIL
| Availability: | |
|---|---|
Standard Design（Customizable）:
Material: SUS 304, 316 or mild steel
Discharging: Tilting discharging/Screw extruding discharging/Bottom plate
Heating: Electric heating/Water heating/Oil heating/Steam heating
Cooling: Water cooling/Jacket cooling
Vacuum: Water-ring vacuum pump/ buffer tank.
Motor: Explosion proof motor
Independent Control Panel: Variable speed/ Temperature/Discharging
Working Volume: 5 to10,000 Cubic Feet (from experiment to production)
Capacity: 2000 liters total volume
Heating System: Thermal oil circulation in blades, screw, and mixing chamber jacket
Discharge Method: Hydraulic screw discharge for smooth and efficient unloading

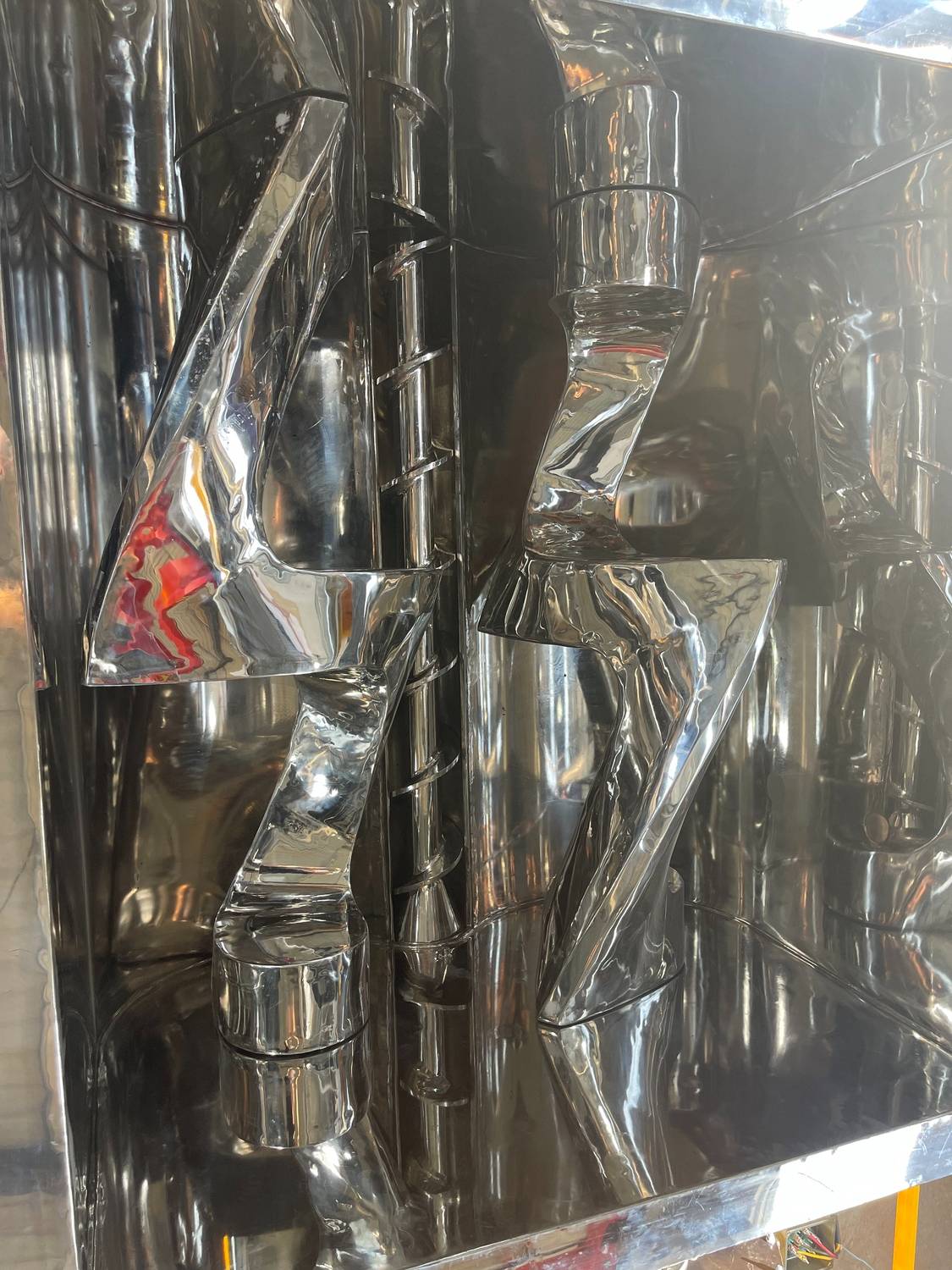

Mixer Type: Double Z-blade / sigma blade for strong kneading performance
Material of Construction: Stainless steel or carbon steel (customizable)
Temperature Control: Stable and uniform heating for consistent product quality
Application Materials: Waterproof coatings, sealants, adhesives, silicone rubber, high-viscosity paste
Uniform Heating: Full circulation of thermal oil prevents hotspots and ensures even processing
High Efficiency: Screw discharge reduces manual handling and speeds up production
Customizable Design: Options for vacuum, pressure, cooling, or explosion-proof configurations
Durability: Heavy-duty structure built for long-term industrial use
| Feature | Screw Extrusion Discharge (This Model) | Tilting Discharge |
|---|---|---|
| Efficiency | Continuous and controlled output, especially for sticky or viscous materials | Batch discharge, may leave residues |
| Material Flow | Smooth extrusion through screw barrel | Relies on gravity, less control |
| Space Requirement | Compact design, no need for tilting clearance | Requires larger working area for tank rotation |
| Operator Effort | Easier operation, minimal manual handling | Requires more manual operation |
| Best for | High-viscosity materials like silicone rubber, adhesives | Medium-viscosity materials, easier to flow |
Technical Parameters
| Type | NH-5 | NH-10 | NH-100 | NH-300 | NH-500 | NH-1000 | NH-1500 | NH-2000 | NH-3000 | NH-4000 | NH-5000 | |
| Total Volume (L) | 5 | 10 | 100 | 300 | 500 | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 | |
| Mixed amount/batch (L) | 1.5-3.5 | 3.0-7 | 30-70 | 90-210 | 150-350 | 300-700 | 450-1050 | 600-1400 | 900-2100 | 1200-2800 | 1500-3500 | |
| Rotation Speed (rpm) | 42/34 | 42/34 | 37/21 | 37/22 | 37/23 | 37/26 | 37/22 | 30/21 | 30/21 | 30/20 | 28/18 | |
| Main Motor Power (Kw) | 0.75-1.5 | 1.1-3 | 5.5-11 | 7.5-30 | 15-37 | 22-90 | 22-90 | 30-110 | 30-110 | 45-110 | 55-132 | |
| Heating Methods | Steam Pressure (MPa) | Jacket for steam ≤0.3MPa | ||||||||||
| Electric Power (Kw) | 2.4 | 2.4 | 6 | 12 | 18 | 30 | 45 | 54 | 72 | 72 | 90 | |
| Vacuum (MPa) | 0~ -0.096Mpa (Vacuum Kneader) | |||||||||||
| Discharging Method | Tilting cylinder | |||||||||||
| Screw extrusion | ||||||||||||
Our Services
 | LABORATORY TEST In order to be able to demonstrate the advantages and modes of action of our industrial mixing machine with your products, our fully equipped modern laboratory/technical center is at your disposal. |
PROFESSIONAL ENGINEER The experienced team of engineers is specialized in the R&D and design of mixers, grinding equipment, and plastic recycling machine. Karvil explores new technical points constantly to create perfect solutions for customers. |  |
 | DIRECT FACTORY Karvil factory has a series of strict standard system to control the procurement of raw materials, manufacturing process, in-process inspection, and product inspection, so as to ensure the quality of our products.
|
Applications
 |  |  |  |
 |  |  |  |
F.A.Q.
1. Manufacturer or trading company?
We are a manufacturer with strict production standards in China.
2. Where is your company?
Our company is located in Yantai, Shandong,——Powder Equipment Industry Belt.
3. About your company's visit?
We can pick you up at Qingdao Airport conveniently, and then we can take you to our factory.
4. What is the main market for your company?
Asia and Africa, Australia, America, Europe.
5. Can you provide customized products?
Yes, we have professional engineers to meet your special design needs, so we can provide customized products.
6. What is your delivery time?
It usually takes about 20 to 30 days, the exact time also depends on the type and quantity of the product.
7. About the product warranty?
Usually, we provide a 1-year warranty for the products that have been sold, but we can also provide life-long service when you need it to maintain a long-term relationship with you.
8. What are the payment terms?
T/T, L/C, etc.
