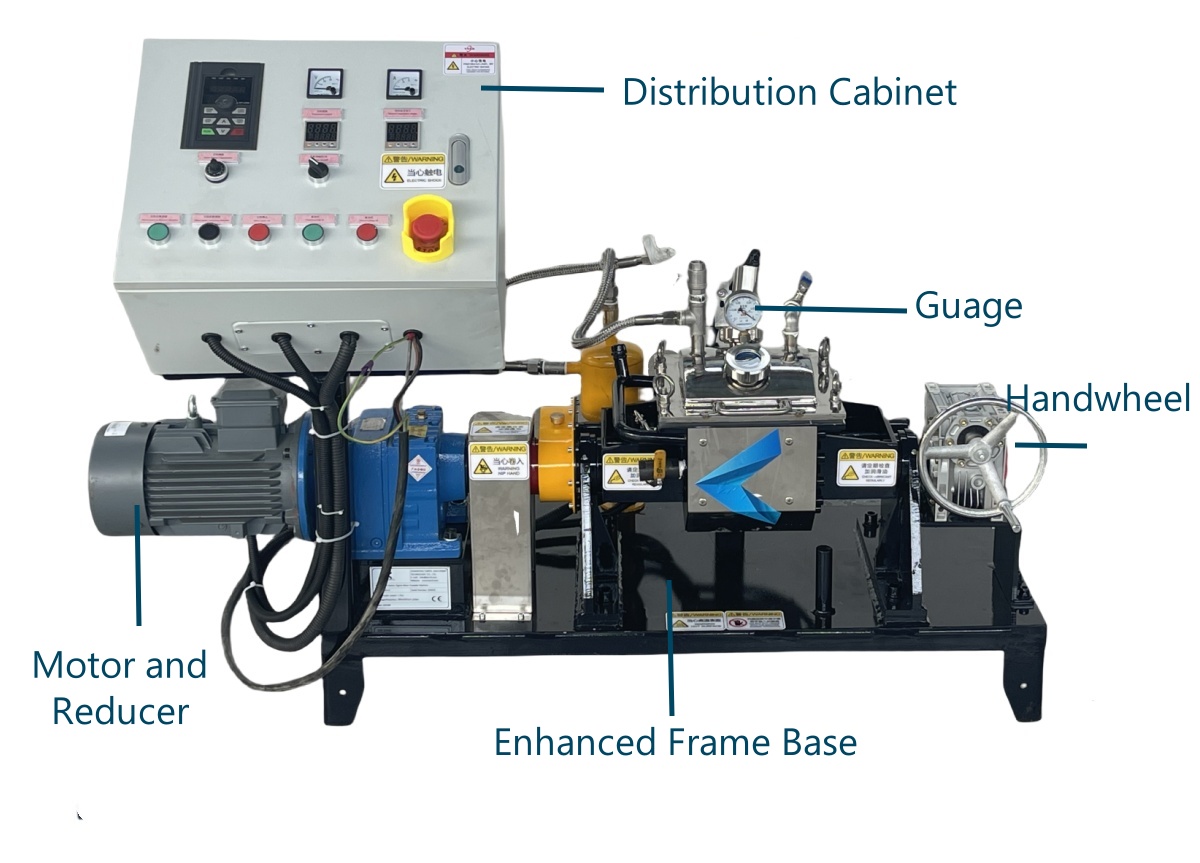

![Heavy-Duty-Sigma-Mixer _副本-_副本]( "Heavy-Duty-Sigma-Mixer _副本-_副本")
Standard Design（Customizable）:
Material: SUS 304, 316 or mild steel
Discharging: Tilting discharging/Screw extruding discharging/Bottom plate
Heating: Electric heating/Water heating/Oil heating/Steam heating
Cooling: Water cooling/Jacket cooling
Vacuum: Water-ring vacuum pump/ buffer tank.
Motor: Explosion proof motor
Independent Control Panel: Variable speed/ Temperature/Discharging
Working Volume: 5 to10,000 Cubic Feet (from experiment to production)
High-efficiency mixing solution for sticky liquid-solid materials
Product Introduction

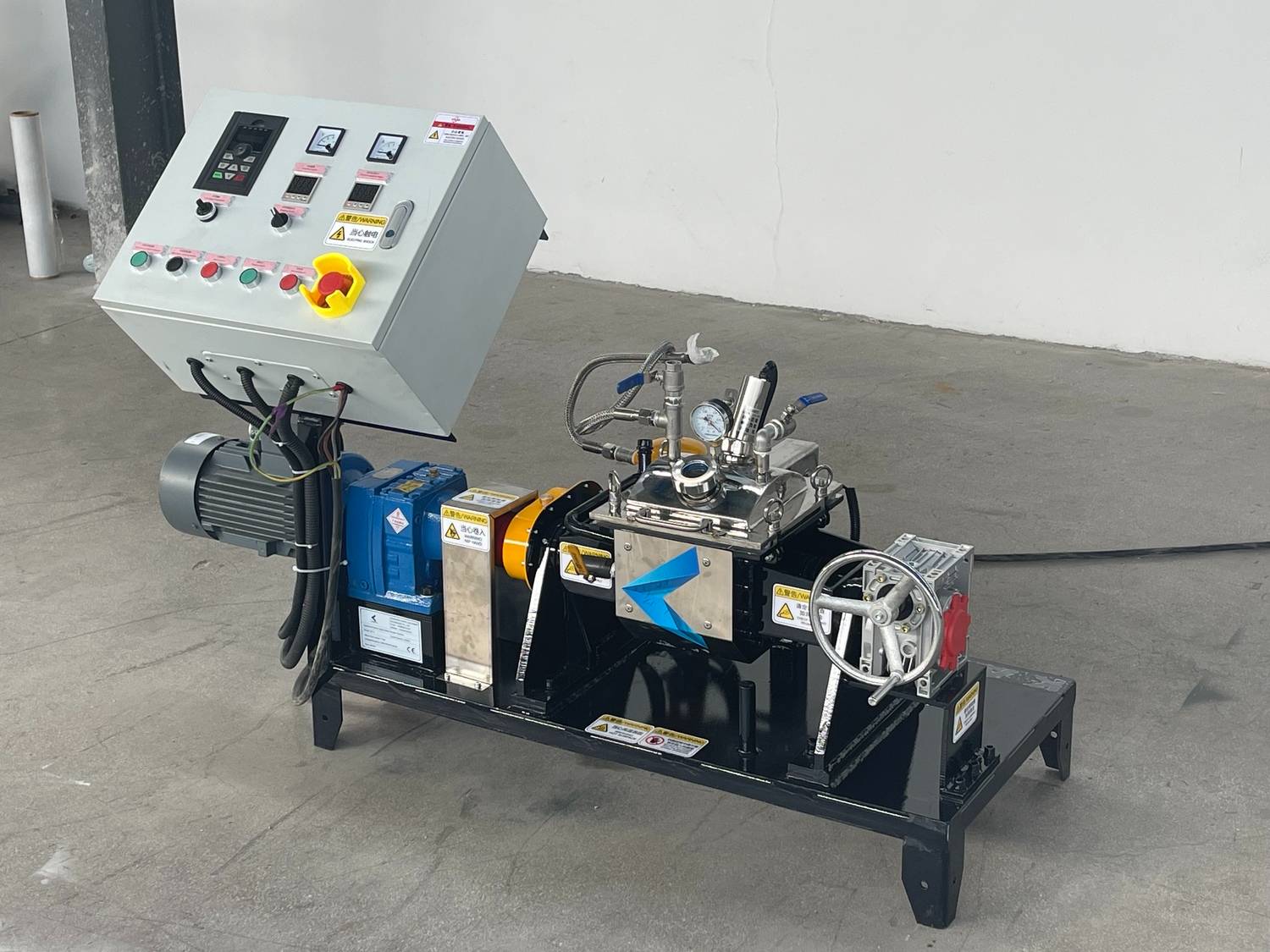

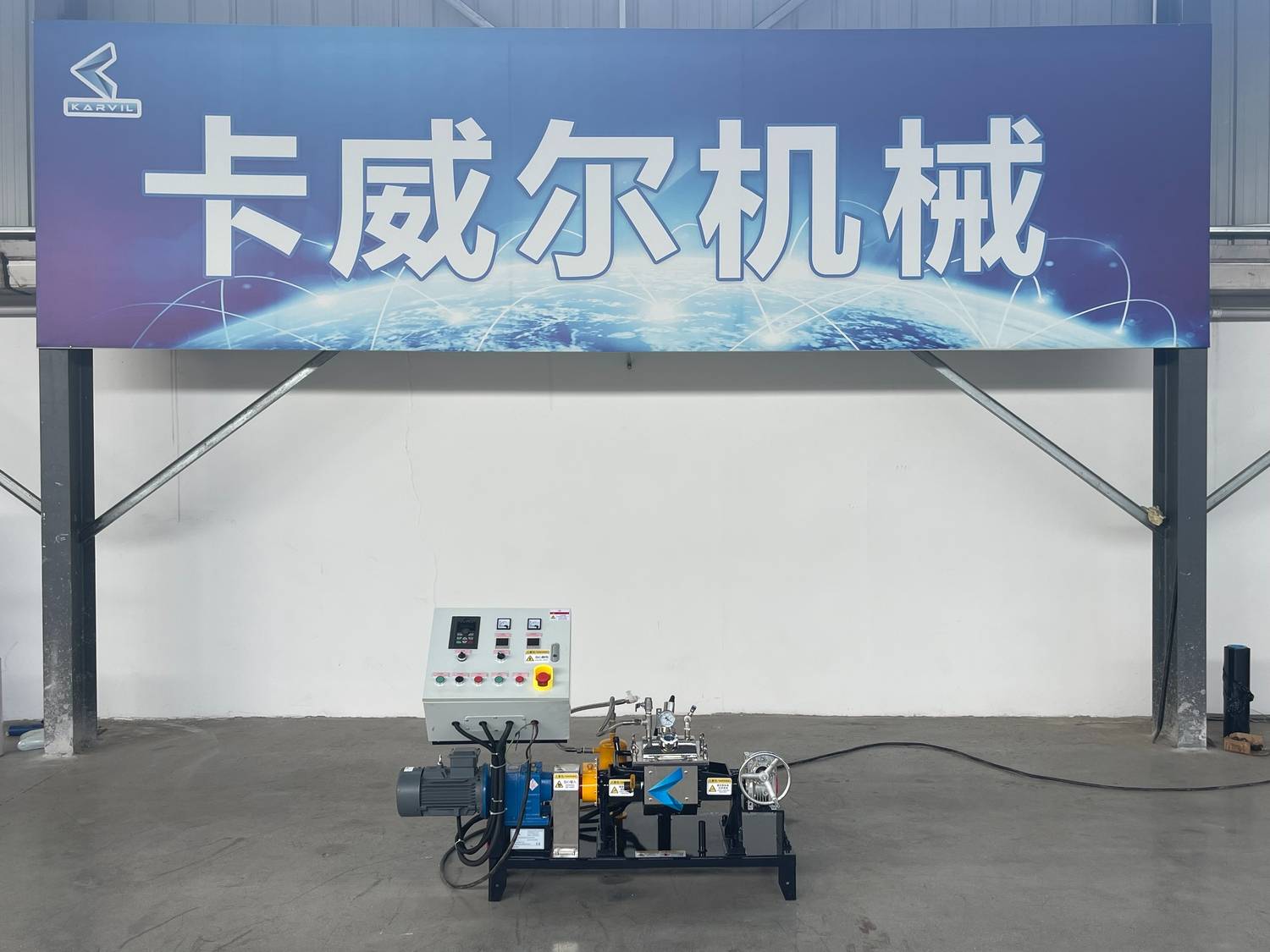

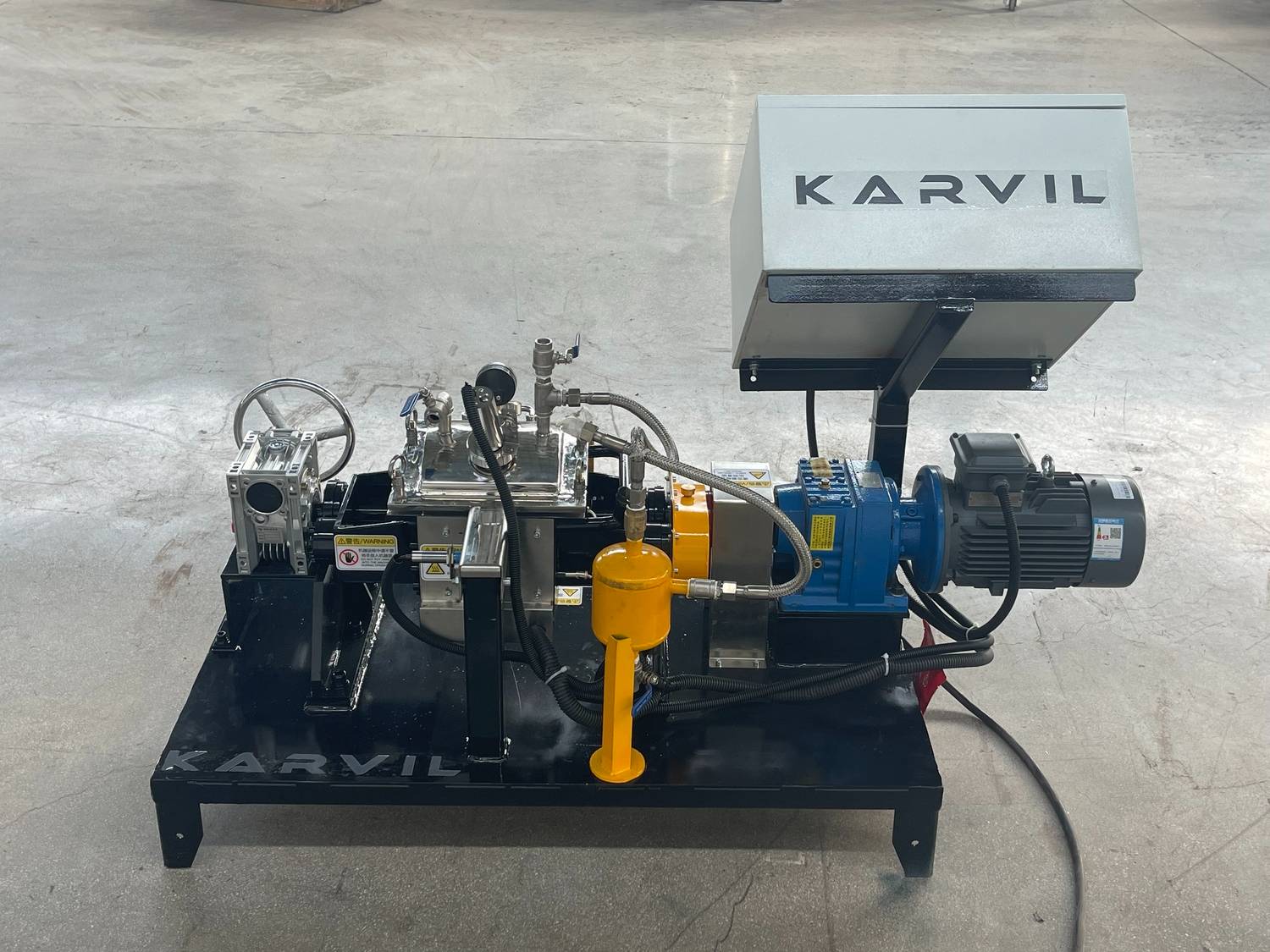

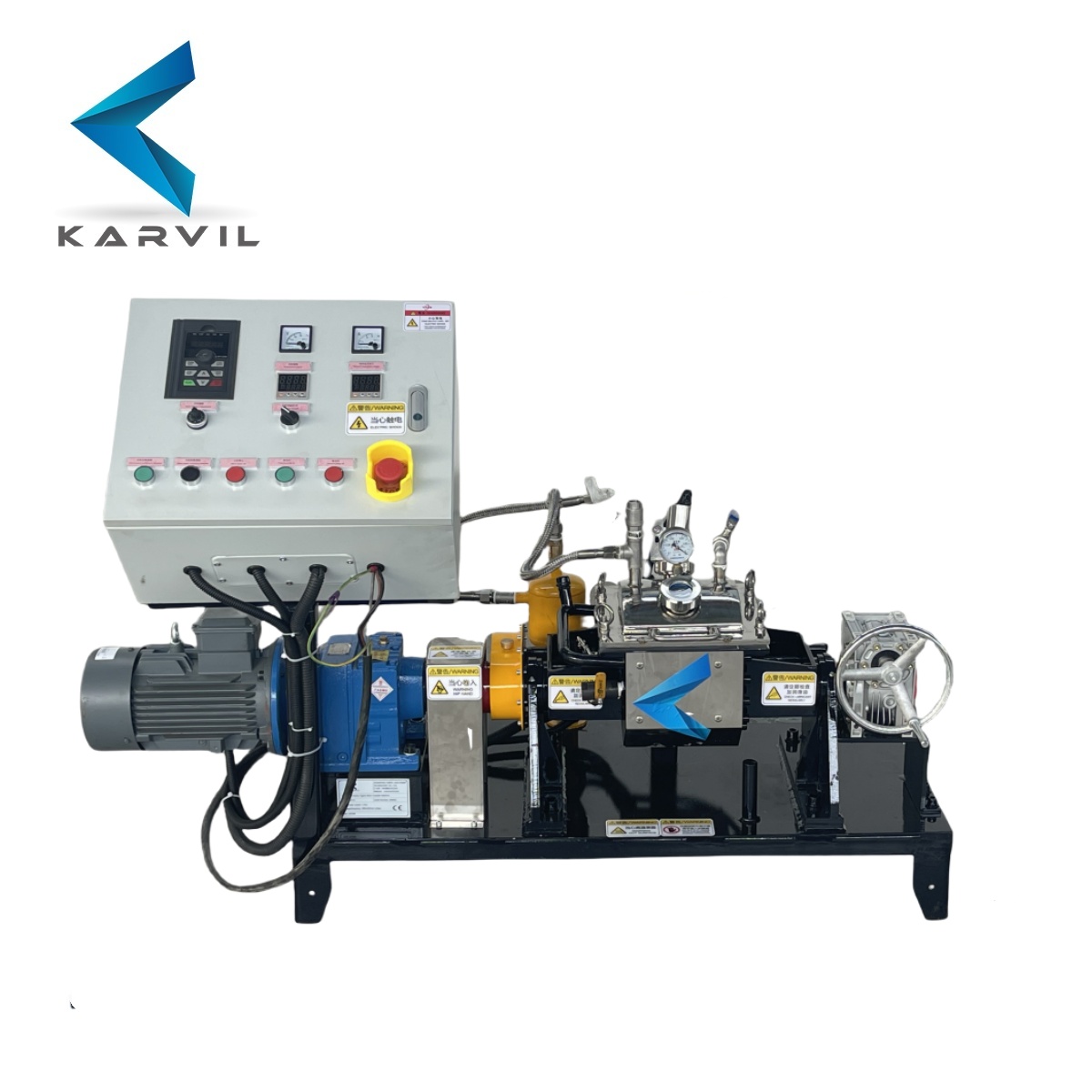

Karvil Machinery delivered a 2L vacuum sigma mixer to our customer in the Netherlands for processing sticky liquid-solid materials. This compact kneader is designed for laboratory and small-scale production, ensuring high precision, safety, and efficient mixing performance.
Highlights
✔ Compact design, suitable for sticky & viscous materials
✔ Electric heating jacket for precise temperature control
✔ Vacuum sealing up to -0.09 MPa
✔ Safety interlock cover for operator protection

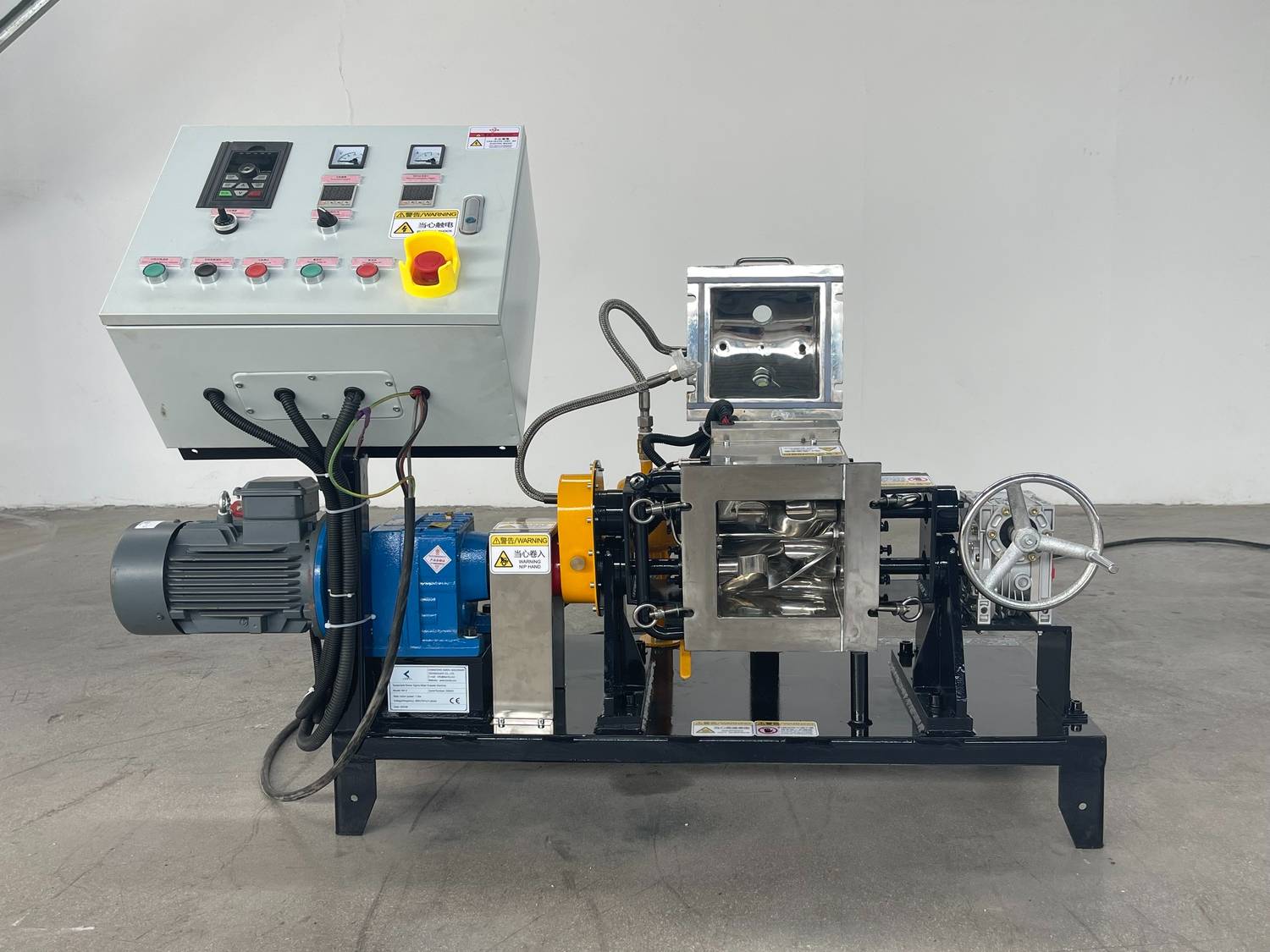

✔ Easy manual tilting discharge
Technical Parameters
| Type | NH-5 | NH-10 | NH-100 | NH-300 | NH-500 | NH-1000 | NH-1500 | NH-2000 | NH-3000 | NH-4000 | NH-5000 |
| Total Volume (L) | 5 | 10 | 100 | 300 | 500 | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 |
| Mixed amount/batch (L) | 1.5-3.5 | 3.0-7 | 30-70 | 90-210 | 150-350 | 300-700 | 450-1050 | 600-1400 | 900-2100 | 1200-2800 | 1500-3500 |
| Rotation Speed (rpm) | 42/34 | 42/34 | 37/21 | 37/22 | 37/23 | 37/26 | 37/22 | 30/21 | 30/21 | 30/20 | 28/18 |
| Main Motor Power (Kw) | 0.75-1.5 | 1.1-3 | 5.5-11 | 7.5-30 | 15-37 | 22-90 | 22-90 | 30-110 | 30-110 | 45-110 | 55-132 |
| Heating Methods | Steam Pressure (MPa) | Jacket for steam
≤0.3MPa |
| Electric Power (Kw) | 2.4 | 2.4 | 6 | 12 | 18 | 30 | 45 | 54 | 72 | 72 | 90 |
| Vacuum (MPa) | 0~ -0.096Mpa (Vacuum Kneader) |
| Discharging Method | Tilting cylinder |
| Screw extrusion |
Our Services
![d3decc020c846de83e6cd0ddfddaae9]( "d3decc020c846de83e6cd0ddfddaae9") |
LABORATORY TEST
In order to be able to demonstrate the advantages and modes of action of our industrial mixing machine with your products, our fully equipped modern laboratory/technical center is at your disposal.
![4cc6a298bf03570b88509020de7d969]( "4cc6a298bf03570b88509020de7d969") |
PROFESSIONAL ENGINEER![Food-Powder-Horizontal-Ribbon-Mixer-2_副本]( "Food-Powder-Horizontal-Ribbon-Mixer-2_副本")
The experienced team of engineers is specialized in the R&D and design of mixers, grinding equipment, and plastic recycling machine. Karvil explores new technical points constantly to create perfect solutions for customers.
![4cc6a298bf03570b88509020de7d969]( "4cc6a298bf03570b88509020de7d969")
| ![karvil-machinery-sigma-mixer-ribbon-mixer_副本]( "karvil-machinery-sigma-mixer-ribbon-mixer_副本") |
![karvil-machinery-sigma-mixer-and-ribbon-mixer]( "karvil-machinery-sigma-mixer-and-ribbon-mixer") |
DIRECT FACTORY
Karvil factory has a series of strict standard system to control the procurement of raw materials, manufacturing process, in-process inspection, and product inspection, so as to ensure the quality of our products.
![4cc6a298bf03570b88509020de7d969]( "4cc6a298bf03570b88509020de7d969")
|
Applications
F.A.Q.
Q1: What materials can the 2L vacuum sigma mixer handle?
A1: It is suitable for sticky, viscous, and paste-like materials, including adhesives, polymers, sealants, ceramic paste, and silicone formulations.
Q2: Does this mixer come with a vacuum pump?

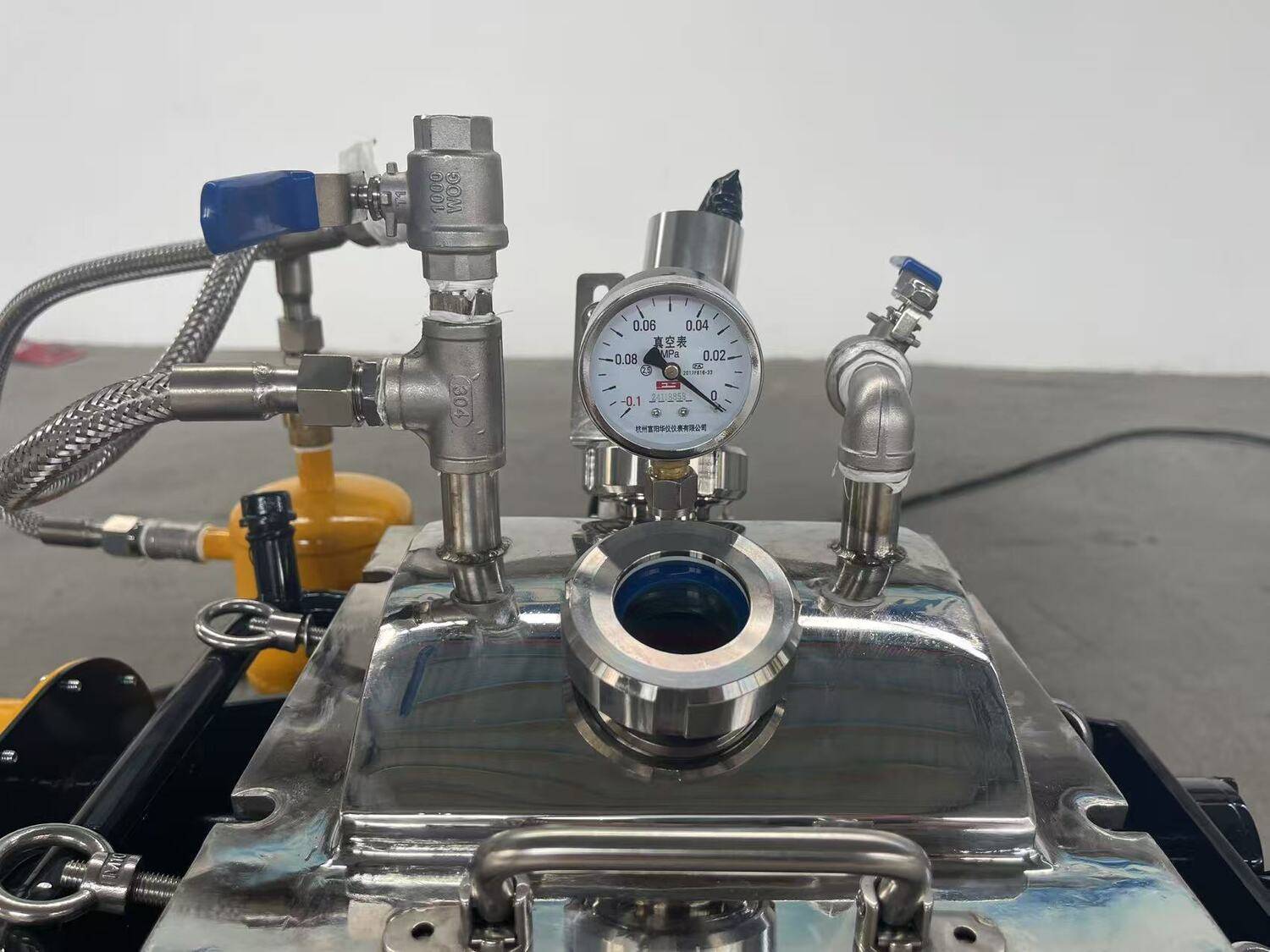

A2: No, the machine is equipped with a vacuum valve and gauge, but the pump is not included. Customers can connect their own pump to reach a vacuum level of -0.09 MPa.
Q3: What is the advantage of electric heating with jacket design?
A3: The electric heating jacket allows precise temperature control, helping to maintain uniform heat distribution during the mixing process and preventing product degradation.
Q4: How does the safety interlock work?
A4: The mixer is equipped with a safety limit switch. If the lid is opened during operation, the motor automatically stops, ensuring operator safety.
Q5: What is the discharge method?
A5: This unit uses manual tilting discharge, which is convenient for small batch production and laboratory use.
