NH-400
KARVIL
| Availability: | |
|---|---|
Standard Design（Customizable）:
Material: SUS 304, 316 or mild steel
Discharging: Tilting discharging/Screw extruding discharging/Bottom plate
Heating: Electric heating/Water heating/Oil heating/Steam heating
Cooling: Water cooling/Jacket cooling
Vacuum: Water-ring vacuum pump/ buffer tank.
Motor: Explosion proof motor
Independent Control Panel: Variable speed/ Temperature/Discharging
Working Volume: 5 to10,000 Cubic Feet (from experiment to production)

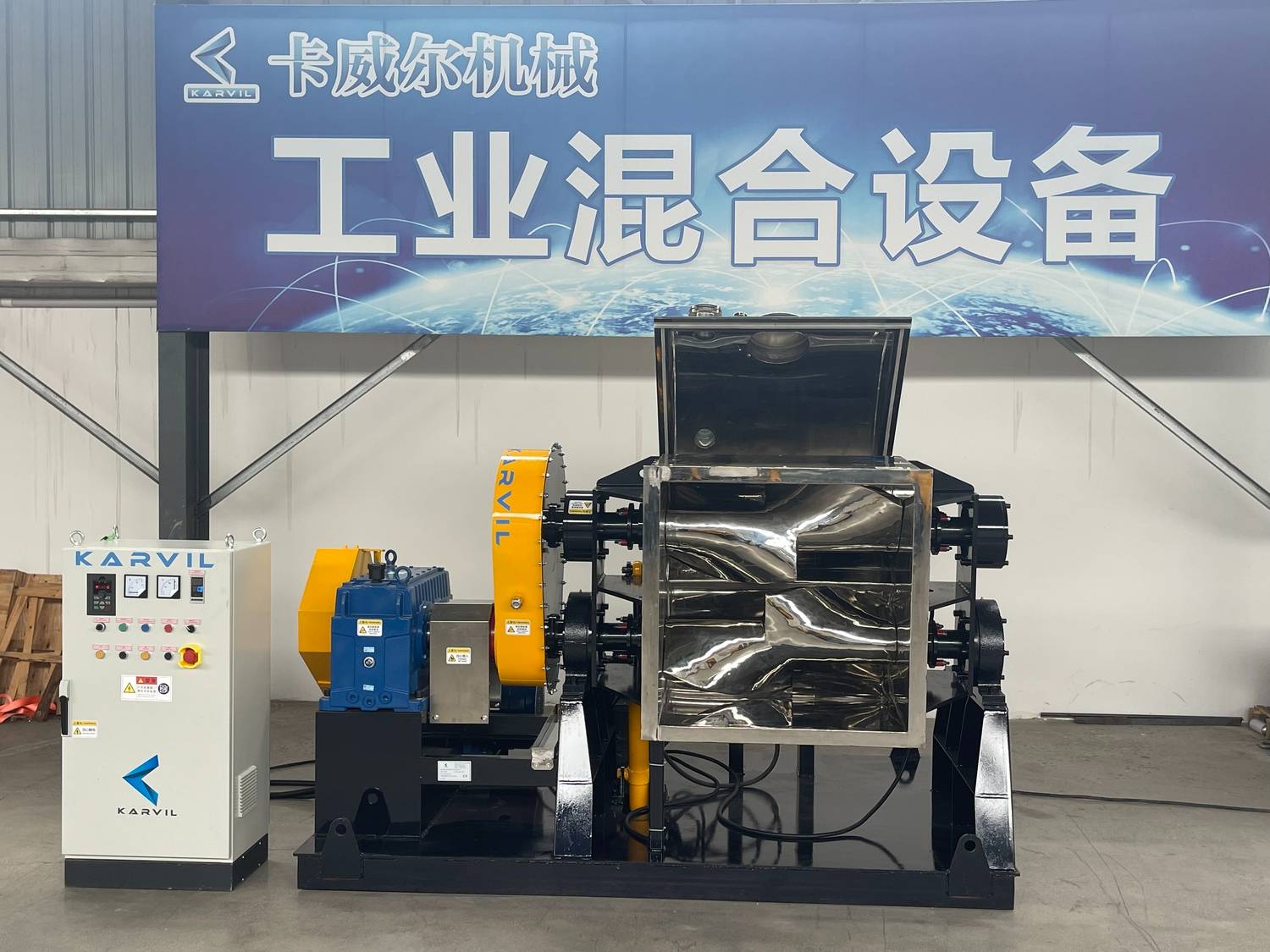

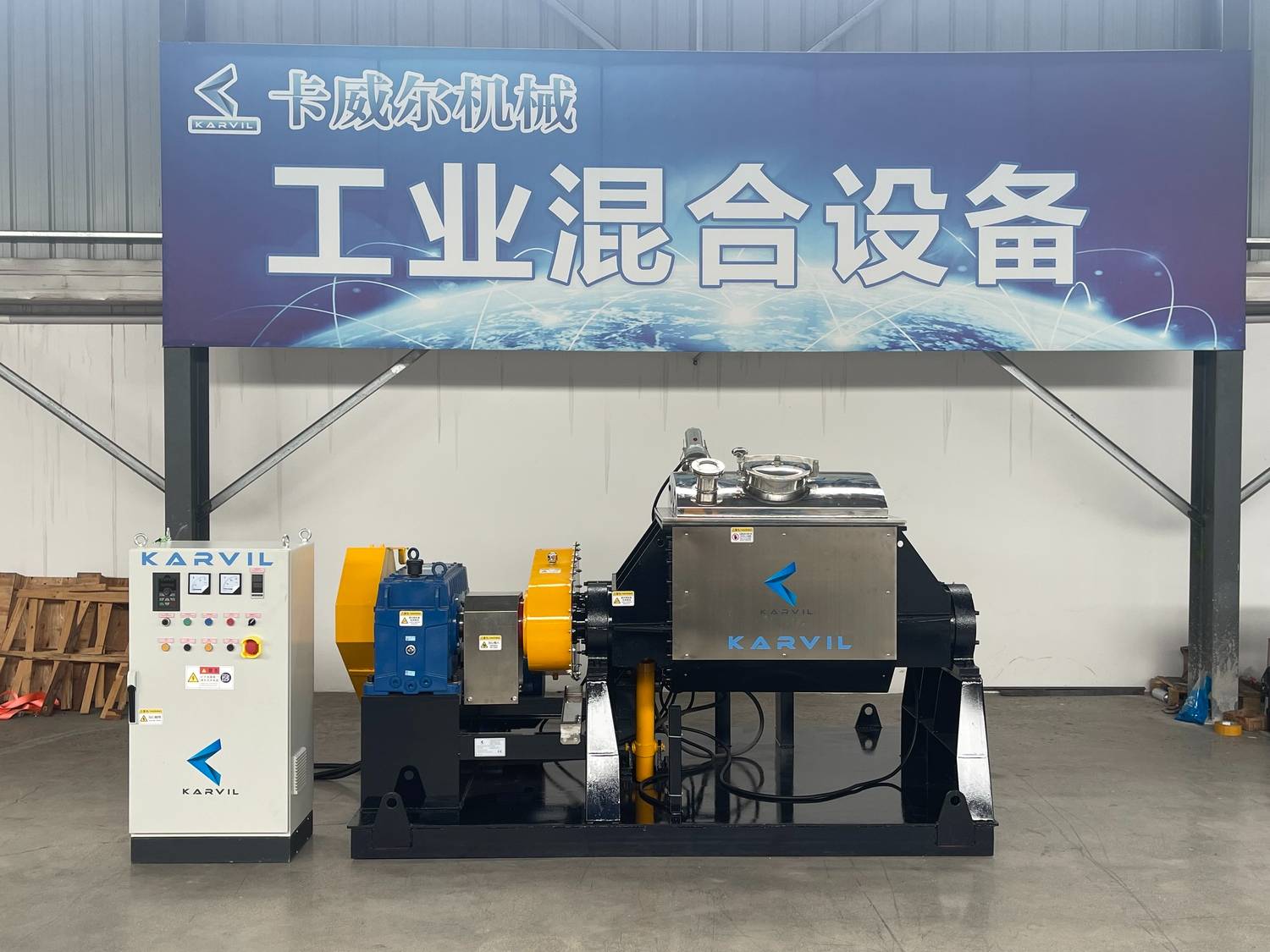

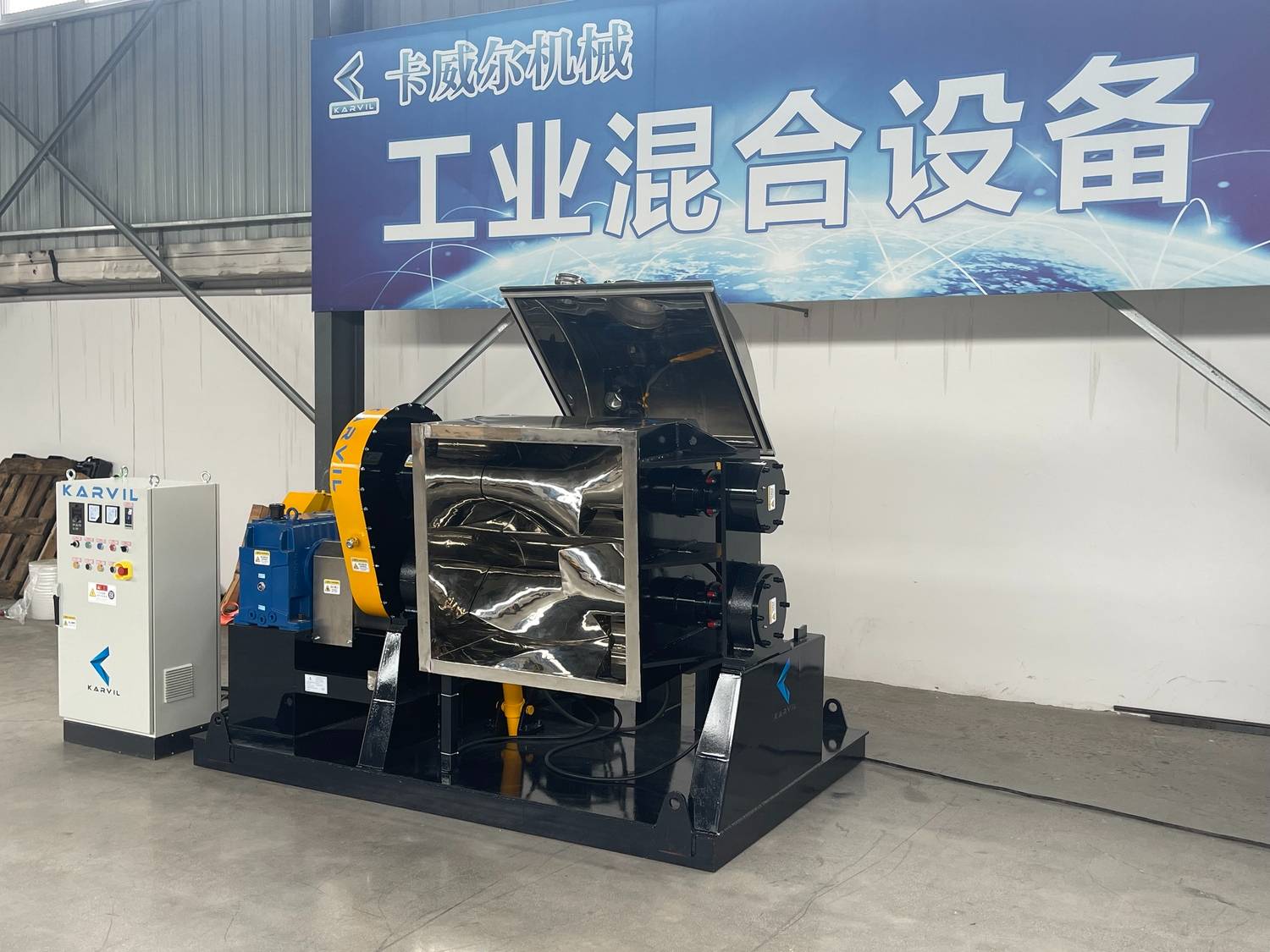

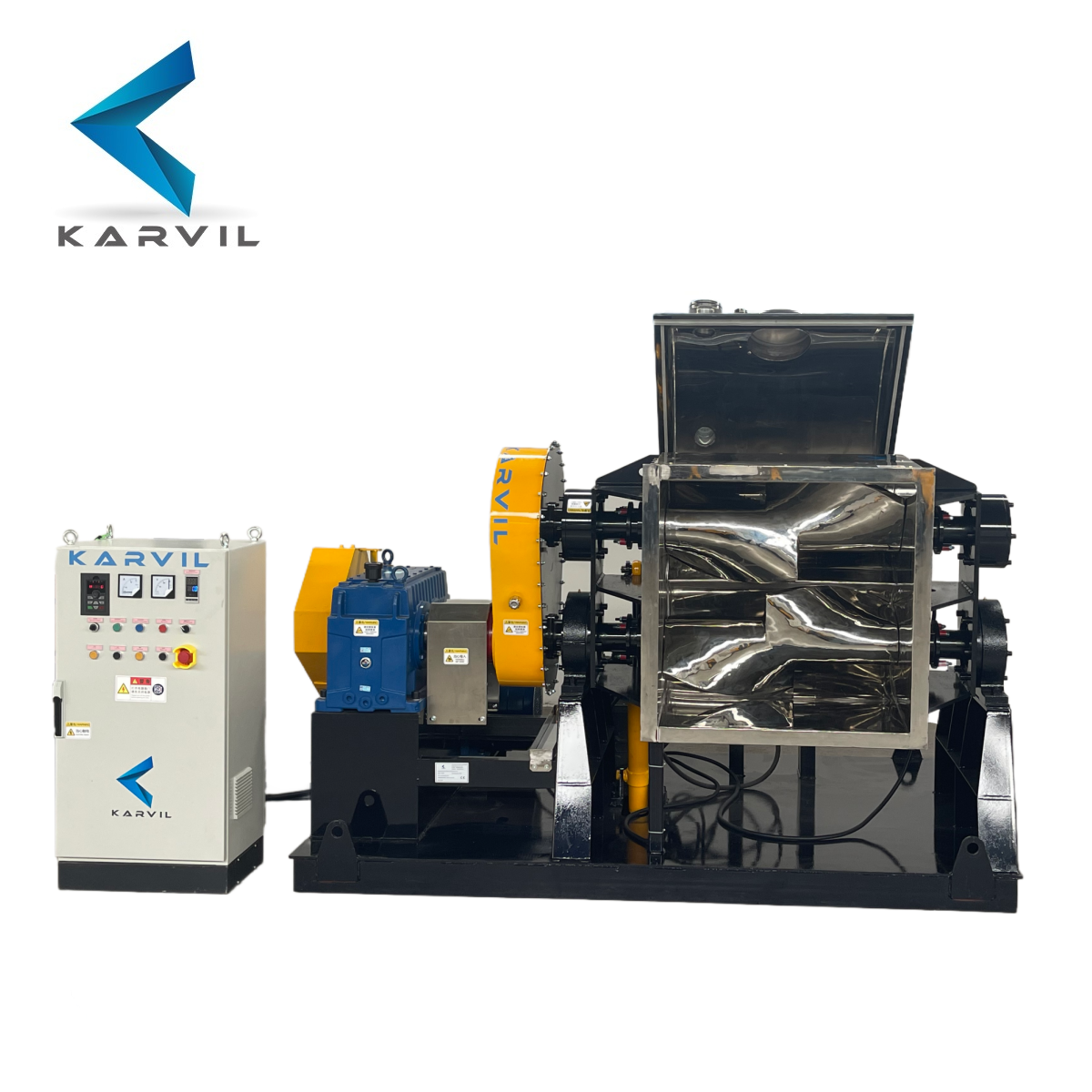

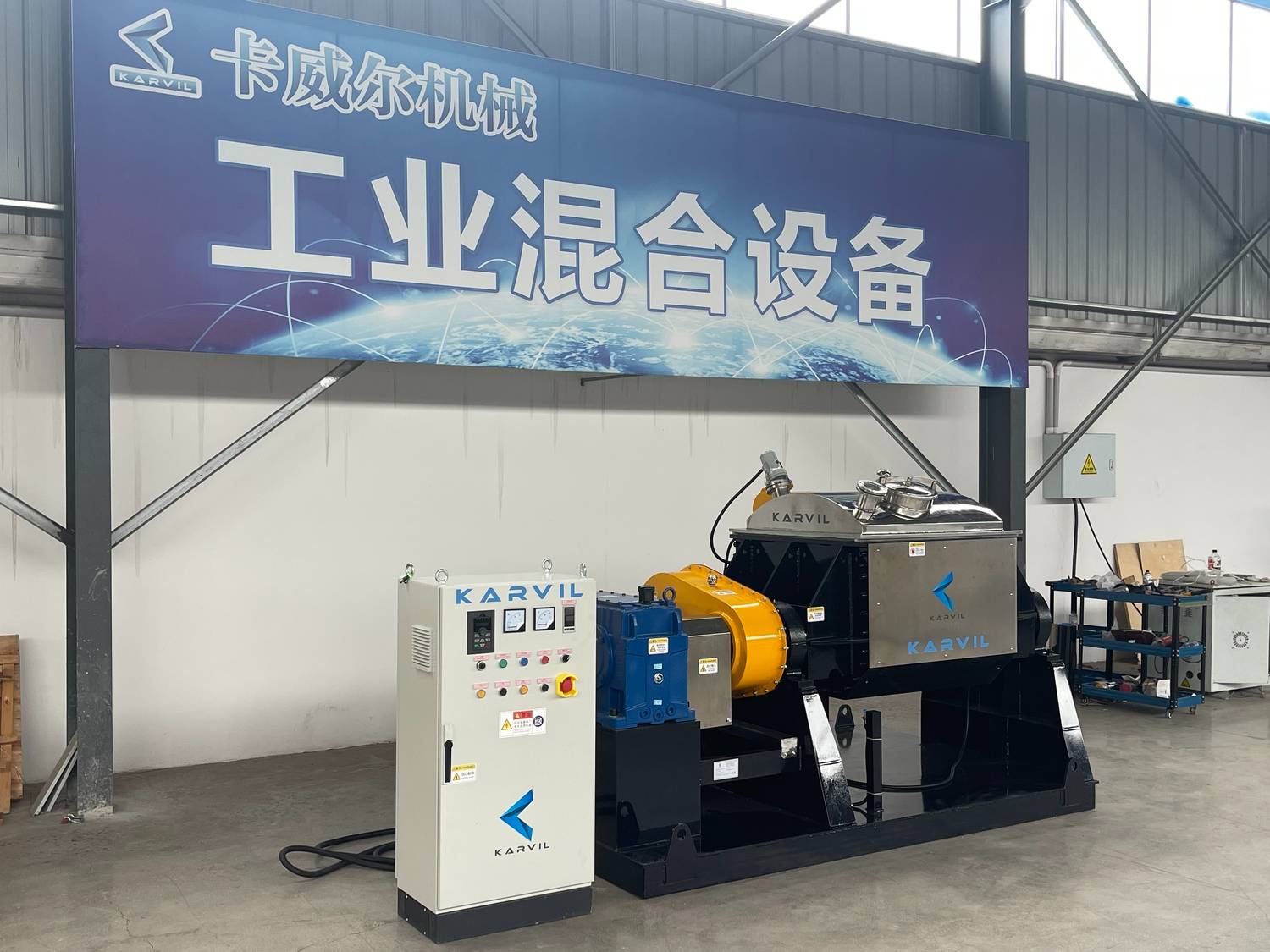

The Karvil 400L Heavy-Duty Sigma Mixer is designed for extremely sticky, hard, and glue-rich materials. Perfect for industries producing solid watercolors, rubber compounds, adhesives, and high-viscosity pastes, this mixer ensures efficient mixing, minimal waste, and long-lasting durability.
With reinforced Z-shaped blades, stainless steel contact parts, and a hydraulic tilting discharge system, it is built to handle tough materials that standard mixers cannot process reliably.
Heavy-duty Z blade mixer — it's a powerful industrial mixer built for really thick and sticky materials that regular mixers just can’t handle.

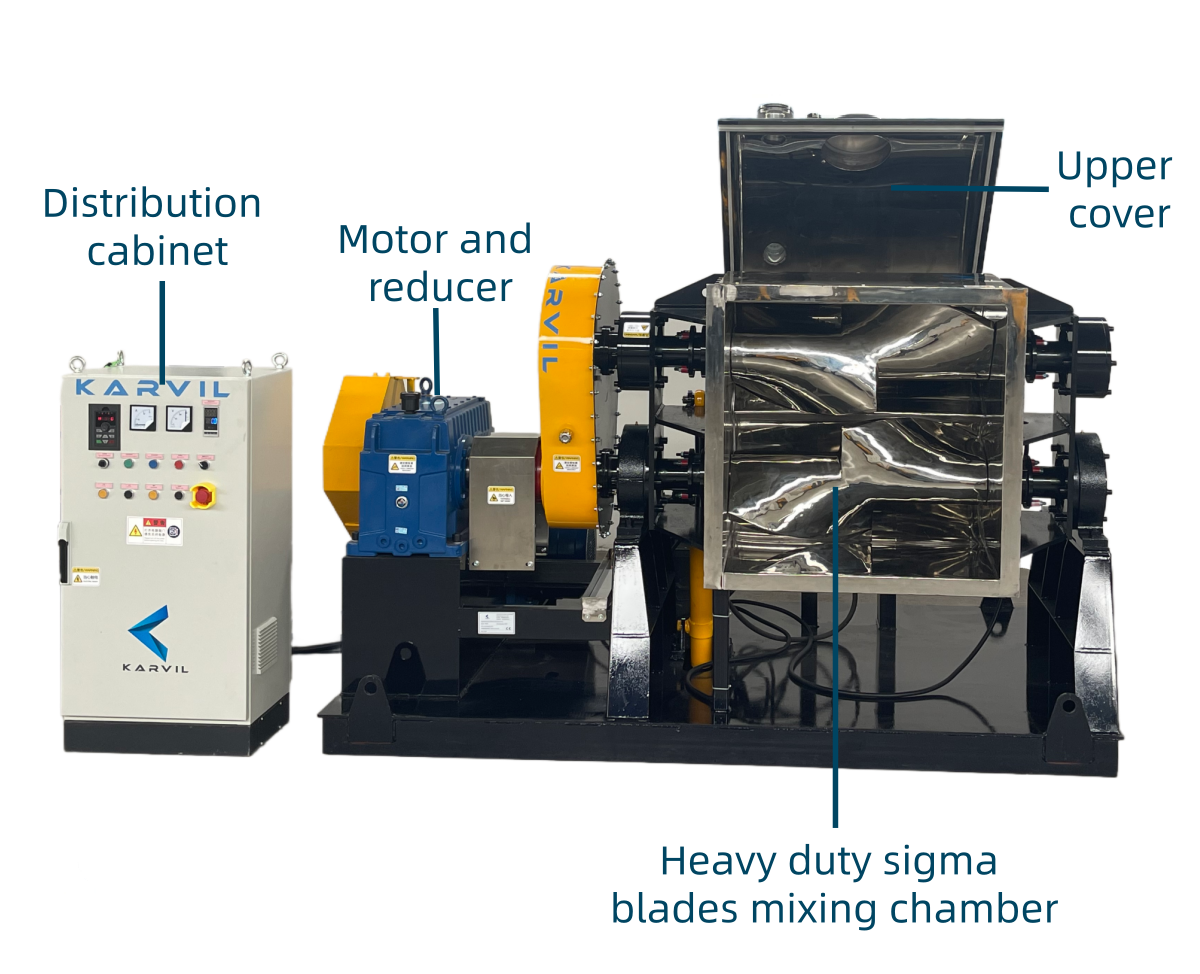

Inside the machine, you've got two big sigma-shaped blades spinning at different speeds. These blades work together to knead, stretch, and crush the material — perfect for things like putty, sealants, ceramic paste, and sticky adhesives.
Now, what makes it “heavy-duty”?
Well, first — the structure is super strong. The blades are reinforced, the frame is solid, and the motor gives you a ton of torque to keep things moving, even when the material’s tough.
And second — it can come with electric heating or even explosion-proof controls, which is great if you're working with flammable stuff.
High-Viscosity Handling: Easily mixes hard, glue-rich, or elastic materials.
Durable Construction: Heavy-duty cast steel blades with SS304 cladding.

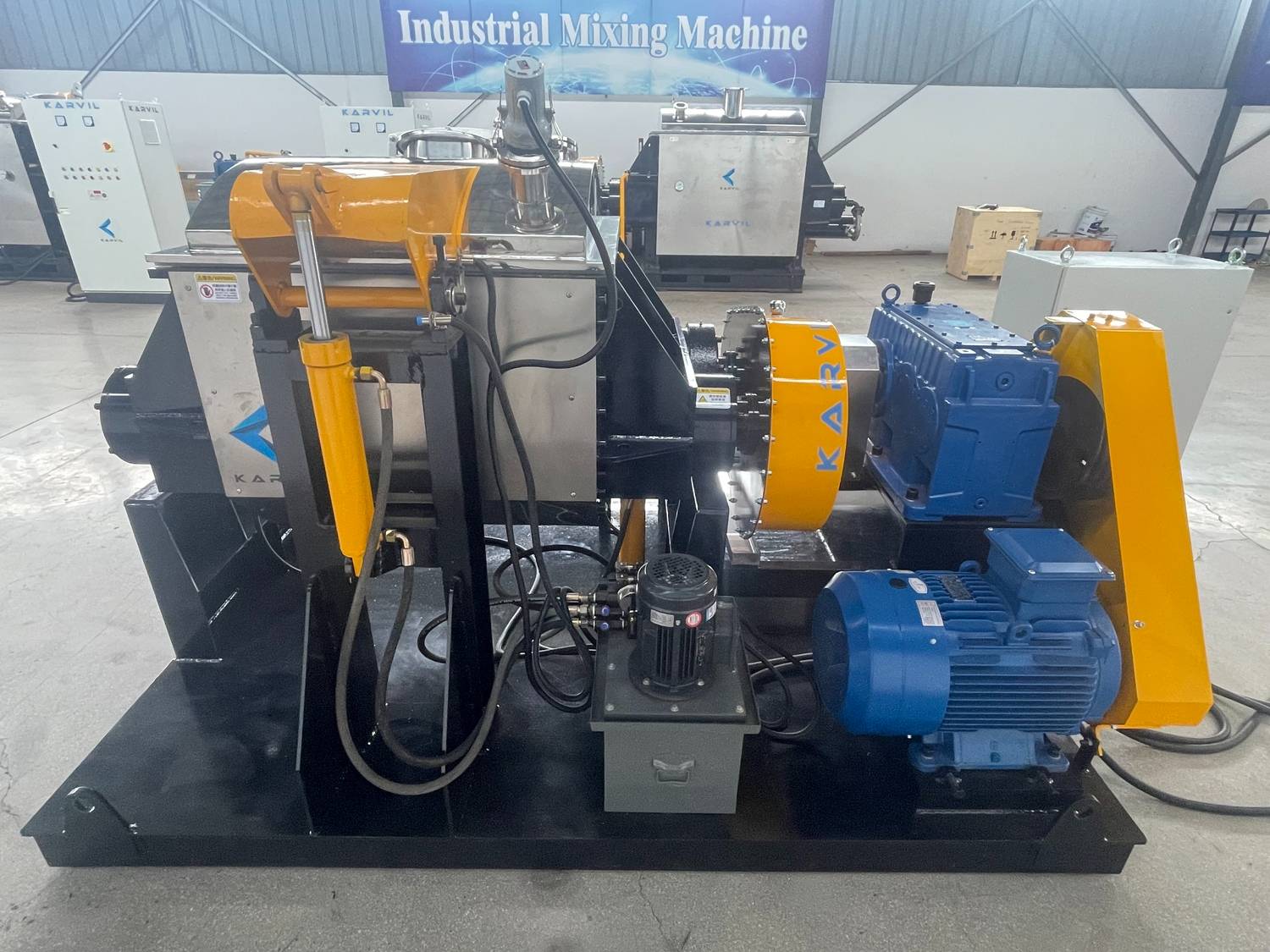

Hydraulic Tilting Discharge: Safe, clean, and fast emptying of material.
Hygienic & Easy to Clean: Mirror-polished SS304 contact surfaces.
Reliable Sealing System: PTFE stuffing box reduces leakage and maintenance time.
Enhanced Visibility: Two sight glasses, one with built-in light, for monitoring.
Technical Parameters
| Type | NH-5 | NH-10 | NH-100 | NH-300 | NH-500 | NH-1000 | NH-1500 | NH-2000 | NH-3000 | NH-4000 | NH-5000 | |
| Total Volume (L) | 5 | 10 | 100 | 300 | 500 | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 | |
| Mixed amount/batch (L) | 1.5-3.5 | 3.0-7 | 30-70 | 90-210 | 150-350 | 300-700 | 450-1050 | 600-1400 | 900-2100 | 1200-2800 | 1500-3500 | |
| Rotation Speed (rpm) | 42/34 | 42/34 | 37/21 | 37/22 | 37/23 | 37/26 | 37/22 | 30/21 | 30/21 | 30/20 | 28/18 | |
| Main Motor Power (Kw) | 0.75-1.5 | 1.1-3 | 5.5-11 | 7.5-30 | 15-37 | 22-90 | 22-90 | 30-110 | 30-110 | 45-110 | 55-132 | |
| Heating Methods | Steam Pressure (MPa) | Jacket for steam ≤0.3MPa | ||||||||||
| Electric Power (Kw) | 2.4 | 2.4 | 6 | 12 | 18 | 30 | 45 | 54 | 72 | 72 | 90 | |
| Vacuum (MPa) | 0~ -0.096Mpa (Vacuum Kneader) | |||||||||||
| Discharging Method | Tilting cylinder | |||||||||||
| Screw extrusion | ||||||||||||
Our Services
 | LABORATORY TEST In order to be able to demonstrate the advantages and modes of action of our industrial mixing machine with your products, our fully equipped modern laboratory/technical center is at your disposal. |
PROFESSIONAL ENGINEER The experienced team of engineers is specialized in the R&D and design of mixers, grinding equipment, and plastic recycling machine. Karvil explores new technical points constantly to create perfect solutions for customers. |  |
 | DIRECT FACTORY Karvil factory has a series of strict standard system to control the procurement of raw materials, manufacturing process, in-process inspection, and product inspection, so as to ensure the quality of our products.
|
Applications
 |  |  |  |
 |  |  |  |
F.A.Q.
Q1: Can this mixer handle extremely sticky materials?
A: Yes. The reinforced Z blades and heavy-duty motor are designed for high-viscosity, glue-rich materials.
Q2: Is cleaning difficult after sticky materials?
A: Not at all. All contact parts are mirror-polished stainless steel, making cleaning fast and hygienic.
Q3: How does hydraulic tilting improve safety?
A: Operators can empty the mixer without manual lifting or risk of spillage, reducing labor and accidents.
Q4: Can it be customized for my production needs?
A: Yes. Options include heating/cooling jackets, vacuum mixing, explosion-proof motors, and PLC control.
Q5: What industries benefit most from this mixer?
A: Solid watercolor, adhesives, polymers, rubber, sealants, food pastes, and specialty high-viscosity materials.
