For flammable resin and fibre compounds, the right sigma kneader configuration is determined by the complete process rather than by one special blade coating. Start with material compatibility, hazardous-area classification, blade and bowl material, mechanical clearances, drive and control protection, temperature management, static control, ventilation, discharge, and operating procedures. Special surface treatments should only be considered when a project-specific risk assessment identifies a clear need; they are not a default starting point for Z-blade selection.
Karvil Machinery develops industrial equipment for high-viscosity kneading, powder blending, dispersion, and production-line applications. Its range includes sigma kneaders, ribbon mixers, planetary mixers, dispersers, reactors, and related processing systems. Equipment can be adjusted around material behaviour, batch size, temperature, vacuum, discharge, control method, and site safety requirements.
Flammable resin processing rarely involves just one hazard. Vapours may build up near the mixer, while dry fibres or powders can create dust. Dense compounds also place heavy loads on the blades, shafts, gearbox, and seals. If two metal surfaces make unwanted contact, friction may create heat or sparks, so mechanical loading and ignition risks need to be considered together.
An explosion-proof motor does not automatically make the whole kneader suitable for an explosive atmosphere. A complete review should cover electrical components, control cabinets, bearings, shaft seals, hot surfaces, transmission parts, static discharge, and possible metal-to-metal contact.
The mixer’s location also matters. Gas and vapour environments may use different zone classifications from combustible-dust environments. The required protection level should be confirmed before production starts. Equipment quotations are much more reliable when the plant has already supplied a clear hazardous-area document.
ATEX requirements can apply to both electrical and non-electrical equipment because mechanical motion may create hot surfaces or friction sparks. Mixers, gearboxes, fans, and similar machines therefore need more than a suitable motor when they are installed in a potentially explosive atmosphere.
A sigma kneader uses two heavy Z-shaped blades to fold, stretch, compress, and shear a dense batch. The movement suits materials that cannot circulate freely in an ordinary liquid mixer, including resin compounds, sealants, silicone rubber, carbon paste, BMC, and DMC. Because the blades work under high torque and stay in direct contact with the batch, material selection should follow the actual formulation and cleaning process.

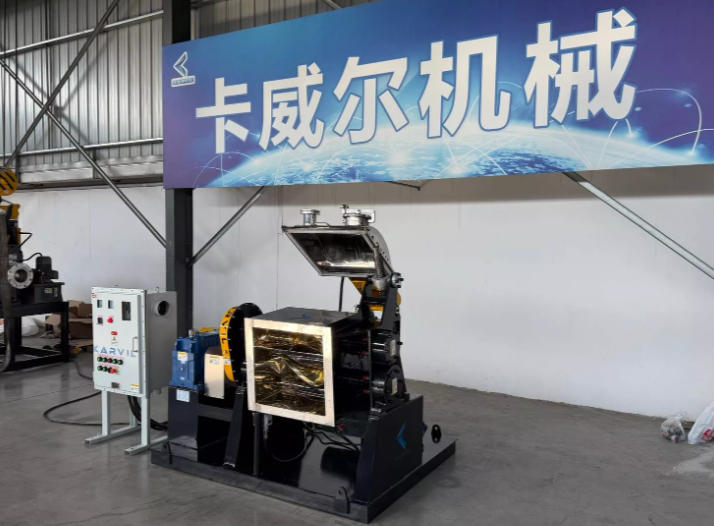

The Custom Explosion-Proof Sigma Kneader Mixer provides a reference configuration for high-torque processing of these batches. For practical production, blade selection should begin with the base material and the formula. The listed NH-100 configuration has a 100-litre total volume and a working capacity of up to 70 litres. Its blade speeds are 37 and 21 rpm, creating the unequal movement commonly used for kneading high-viscosity compounds.
Correct mechanical clearance is more important than relying on a surface treatment. Blade-to-bowl and blade-to-end-plate gaps should remain stable under torque and temperature changes. If a shaft bends, a bearing wears, or the bowl deforms, the root cause is mechanical and should be corrected through design, alignment, and maintenance.
In a small number of project-specific applications, a copper-coated surface may be considered when the process team identifies a defined need to reduce mechanical spark potential at an incidental contact point. It should be treated as an optional engineering measure rather than a standard Z-blade recommendation, and only after chemical compatibility, abrasion, cleaning, and contamination requirements have been checked.
No single construction material is best for every resin or fibre formula. The final choice should balance chemical resistance, abrasion, contamination limits, cleaning method, operating temperature, and the mechanical load created by the batch. These factors usually have a greater effect on long-term production reliability than selecting a coating first.
Before finalising product-contact materials, check how the resin, solvent, catalyst, filler, and cleaning agent interact with the proposed blade and bowl. Abrasive glass fibres and mineral fillers can accelerate surface wear, while aggressive chemicals or repeated cleaning cycles may require a more corrosion-resistant construction.
SS304 is widely used for product-contact areas because it offers good general corrosion resistance and can be mirror polished. SS316 can be selected for more demanding chemical or sanitary conditions. Mild steel may suit certain non-corrosive industrial compounds, although it is less common where cleanliness and corrosion control are central concerns.
Karvil Machinery lists SUS304, SUS316, and mild steel among its customizable construction choices. Heating, cooling, vacuum, controls, and discharge can also be matched to the process.
Blade material is only one part of a safe kneading system. Buyers should also review the lid switch, drive guards, cabinet layout, grounding and static control, temperature alarms, shaft sealing, mechanical clearances, and ventilation. These system-level details usually affect day-to-day safety more than any single visible feature.
The featured kneader includes a lid-open emergency stop. When the lid is opened, the limit switch stops the mixing action. Transmission areas can also be enclosed so operators cannot reach moving couplings, chains, gears, or shafts during normal use.
The product uses an explosion-proof drive and an explosion-proof control system. The bowl is supported by a reinforced chassis for high-torque kneading. These features matter when a resin becomes progressively thicker and the mixer load rises during the batch.
Karvil Machinery provides CE, ATEX, and FCM-certified configurations for relevant projects. The exact certificate scope should be checked against the machine model, protection category, material, destination country, and working environment rather than accepted from a general brochure statement.
High-viscosity compounds do not drain through a small valve. They stick to the bowl, wrap around the blades, and may require manual scraping. A suitable discharge system can reduce handling time and keep operators farther from the mixing chamber.
The NH-100 model uses a mechanical screw system to tilt the bowl. This gives controlled discharge angles without a hydraulic power unit. It also removes the risk of hydraulic oil leakage near the product or production floor.
Mechanical tilting can be a good fit for resin and fibre batches that need simple batch dumping. Screw extrusion may be better when you need controlled downstream feeding. Other sigma kneader configurations can use hydraulic tilting or bottom discharge, depending on viscosity, process layout, and cleaning needs.
There is a practical point here. Fast discharge is not only about saving a few minutes. Less residue means more saleable product, shorter cleaning work, and a lower chance that cured material will remain near the shaft seals.
Resin viscosity often falls as temperature rises, while reaction speed may increase at the same time. Friction from heavy kneading can add more heat. If temperature climbs too far, the batch may cure early, damage sensitive additives, release more vapour, or become harder to discharge.
Sigma mixers can be built with electric heating, hot-water circulation, thermal-oil heating, steam heating, or water cooling. Laboratory models may also use electromagnetic induction heating for gentle and accurate control of heat-sensitive materials.
Electric heating is convenient for standard laboratory work. Thermal oil gives more even high-temperature treatment. Steam provides rapid heat transfer. Cooling water is useful when kneading friction raises the product temperature. The selected method should follow the resin’s thermal limits and the required heating or cooling rate.
Do not compare only the controller’s set value. Check the set temperature, sensor reading, jacket temperature, and actual batch temperature. A thick resin near the centre of the bowl may respond more slowly than material close to the wall.
A sigma kneader fits high-viscosity, semi-solid, or rubber-like materials that require strong folding and shear. It is not the default machine for every mixing task.
The explosion-proof model is aimed at materials such as flammable resins, fibre composites, BMC, and DMC. Sigma kneaders can also process silicone rubber, hot-melt adhesive, butyl rubber, sealants, inks, carbon paste, chewing gum, protein bars, ceramic compounds, modified asphalt, and selected energetic or aerospace formulations.
For free-flowing powders such as flour, ice-cream powder, seasoning, or dry mortar, a horizontal ribbon mixer may be more suitable. Battery slurry, dental material, and some high-solid sealants may suit a planetary mixer with scrapers and optional high-speed dispersion. Karvil Machinery presents these options across its industrial mixer catalogue and application range.
This wider application experience helps when a project does not fit a standard model. Karvil Machinery reports equipment deliveries to more than 50 countries and offers customized solutions for adhesives, silicone products, food, pharmaceuticals, clays, waterproof materials, resins, and other process industries.
Explosion-proof equipment needs clear documents and accessible technical support. A well-built kneader becomes difficult to maintain when the wiring diagram is incomplete or the operator manual does not match the delivered controls.
Karvil Machinery provides a one-year warranty for sold equipment and lifetime technical consultation when customers need later help. Support may include remote installation guidance, video instruction, online troubleshooting, and engineer assistance.
Machines are supplied with a full-English operating manual and electrical drawings. Buyers can also use the company’s technical download centre when reviewing available equipment information. The engineering team provides material testing, equipment selection, and customized design support before production.
Q1: How Should Z-Blade Material Be Selected for Resin and Fibre Compounds?
A: Start with the formulation, corrosion risk, abrasion level, cleaning method, contamination limits, operating temperature, and mechanical load. SUS304, SUS316, or mild steel can be considered depending on the process requirements.
Q2: Why Is Mechanical Clearance Important in a Sigma Kneader?
A: Stable blade-to-bowl and blade-to-end-plate clearances help prevent unwanted contact under high torque and temperature changes. Shaft alignment, bearing condition, and bowl rigidity should therefore be checked as part of the machine design and maintenance plan.
Q3: Is an Explosion-Proof Motor Enough for ATEX Compliance?
A: No. The complete machine may include electrical and non-electrical ignition sources. The final configuration should match the required gas or dust zone and the project’s certification scope.
Q4: What Is the Working Capacity of the NH-100 Sigma Kneader?
A: The model has a 100-litre total bowl volume and can process up to 70 litres per batch, depending on density, viscosity, filling behaviour, and motor selection.
Q5: What Information Is Needed for a Custom Explosion-Proof Mixer?
A: Provide the material safety data, solvent and dust details, batch weight, density, viscosity, operating temperature, hazardous-area classification, discharge method, voltage, cleaning process, and required certificates.
