【Application Industry】：
Widely used in mixing and kneading of low-to-high viscosity products in many industries such as ceramics, silicone rubber, sealants, clay, chewing gum, candy, bakery food, pharmaceuticals, carbon paste, inks/pigments ,etc.
Karvil Machinery is the supplier of Siemens and provide the sigma blade mixer for its application
NH-300
KARVIL

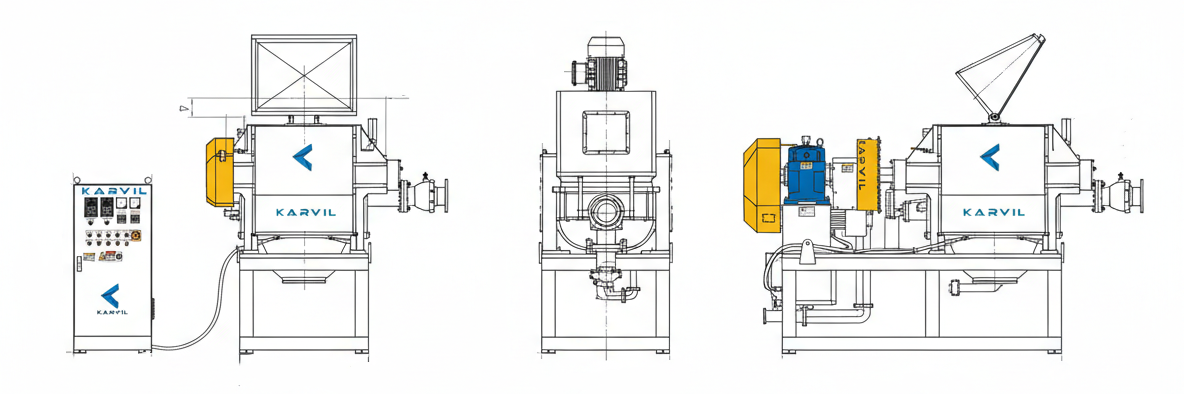

Standard Design（Customizable）:
Material: SUS 304, 316 or mild steel
Discharging: Tilting discharging/Screw extruding discharging/Bottom plate
Heating: Electric heating/Water heating/Oil heating/Steam heating
Cooling: Water cooling/Jacket cooling
Vacuum: Water-ring vacuum pump/ buffer tank.
Motor: Explosion proof motor
Independent Control Panel: Variable speed/ Temperature/Discharging
Working Volume: 5 to10,000 Cubic Feet (from experiment to production)

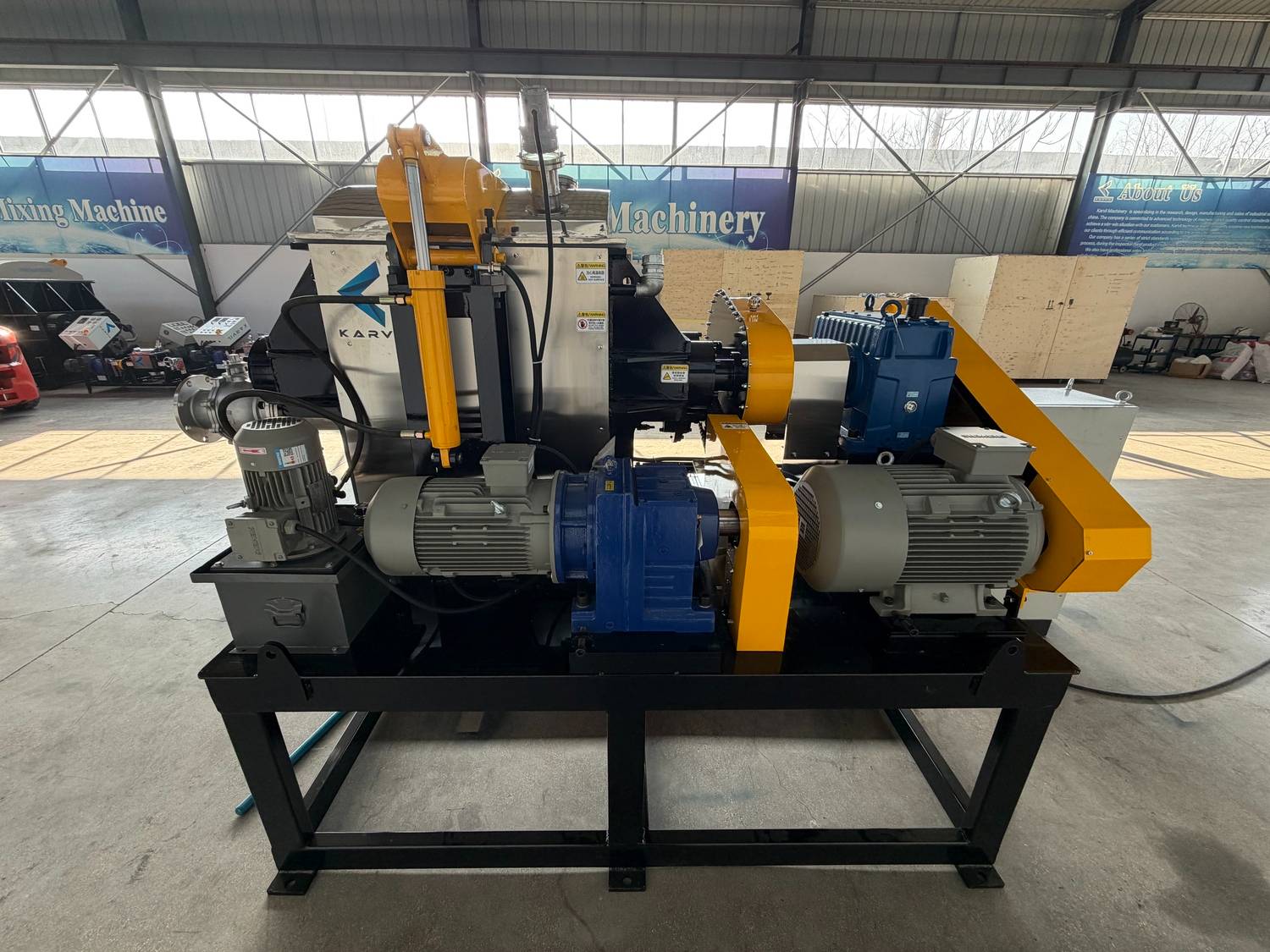

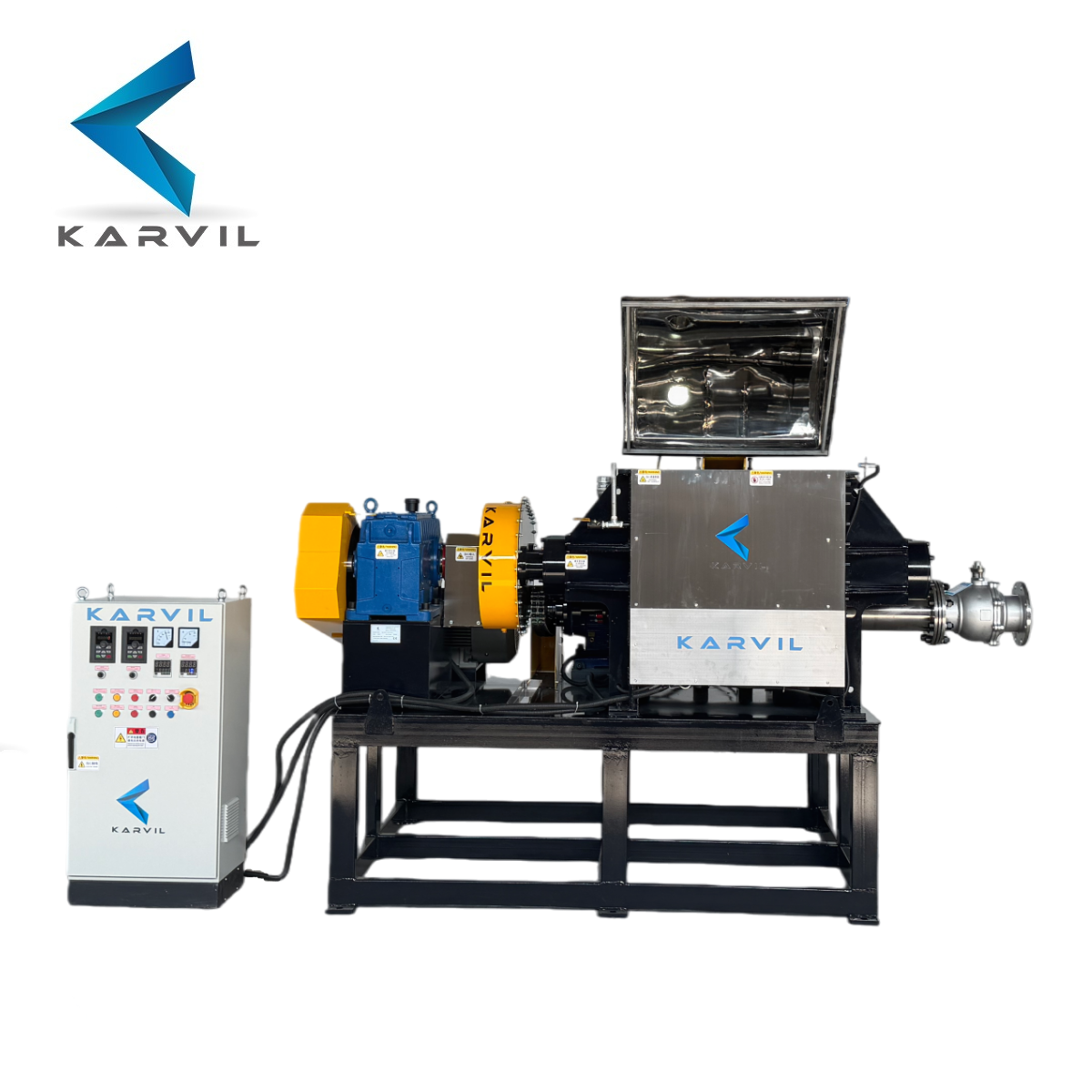

Model: NH-300L Screw Discharge Sigma Mixer
Application: Specialized for high-viscosity materials like adhesive putties similar to Blu Tack®.
This 300L sigma mixer is engineered for a Spanish client requiring precise temperature control and efficient discharge. Featuring a robust Innomotics (Siemens) motor and mirror-polished Double Sigma blades, it ensures uniform mixing for the toughest materials. The integrated screw extruder allows for continuous, automated discharge, significantly reducing labor intensity.

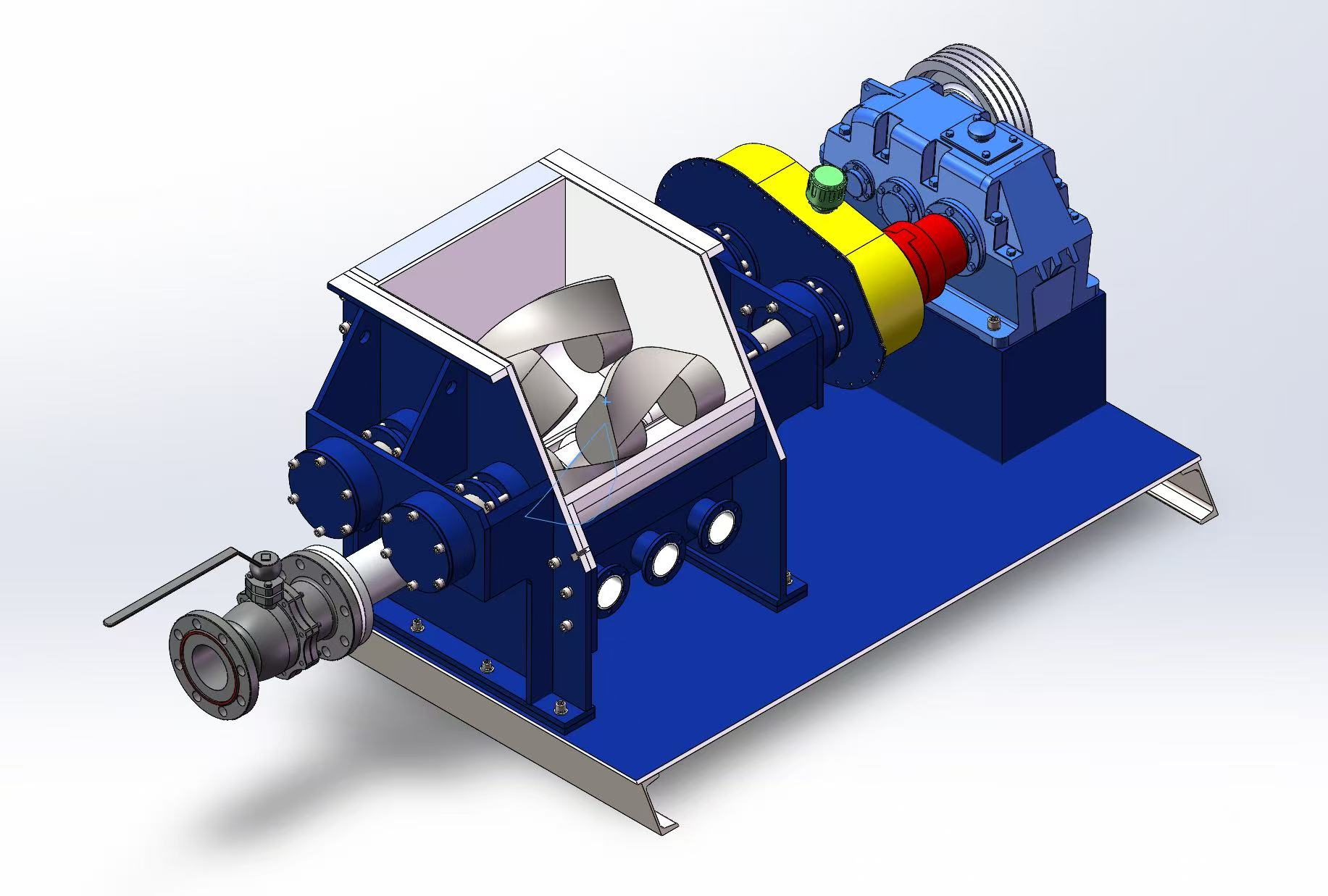

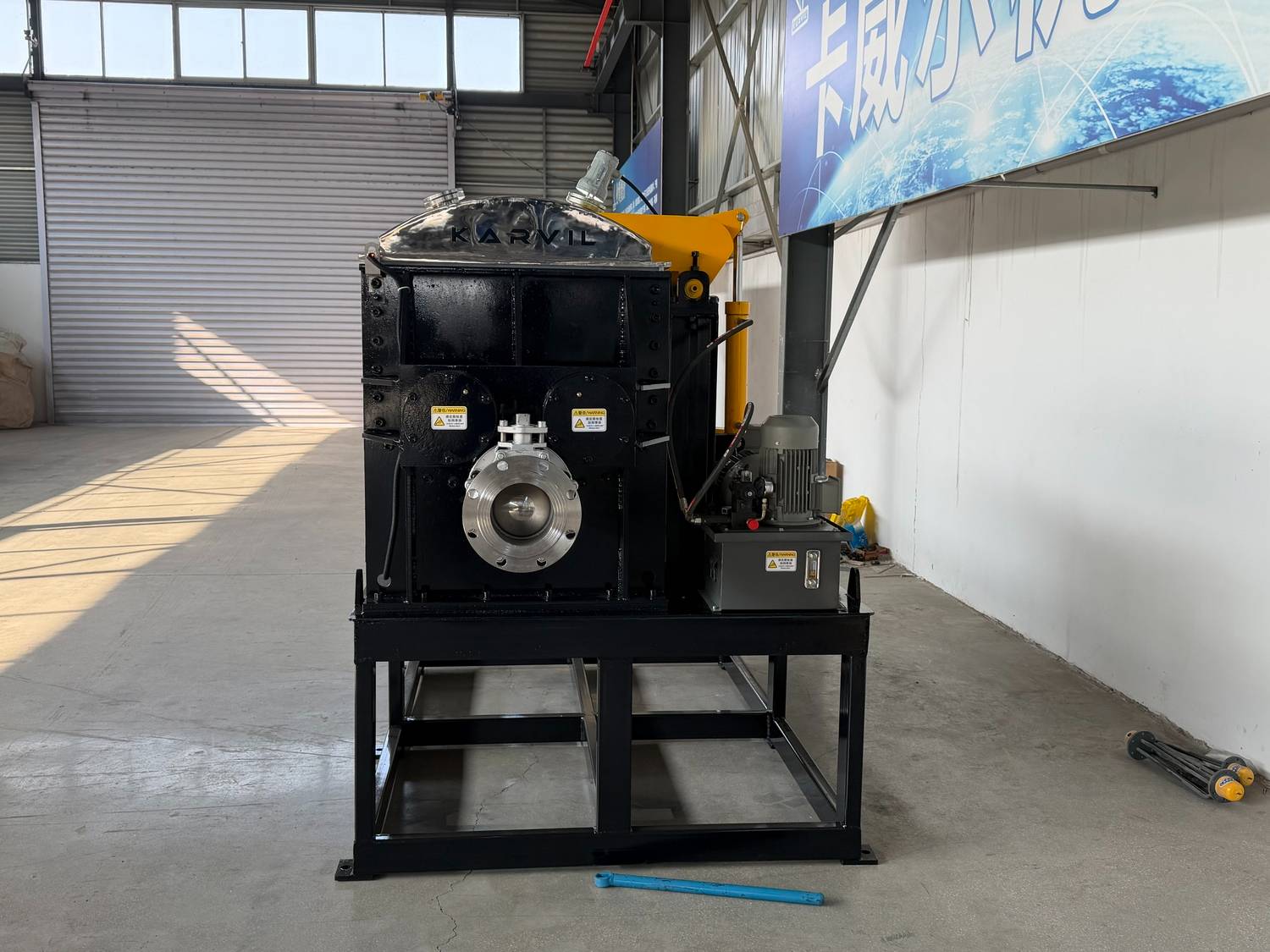

Efficient Discharge: Equipped with a powerful screw extruder and a DN150 manual ball valve for clean, controlled output of high-viscosity products.
Premium Power System: Powered by a 22KW Innomotics (Siemens) 4-pole motor with VFD control, ensuring stable torque and longevity.
Hygienic & Durable: All contact parts are Mirror Polished (Ra<0.4µm) to prevent material residue.
Precise Heating: Electric heating jacket (12KW) ensures optimal processing temperature for epoxy reactions.
Maintenance Friendly: Innovative stuffing box seal with PTFE packing, designed for quick and easy replacement without dismantling the shaft.
Safety First: Hydraulic lid opening system with safety interlocks for operator protection.
| Type | NH-5 | NH-10 | NH-100 | NH-300 | NH-500 | NH-1000 | NH-1500 | NH-2000 | NH-3000 | NH-4000 | NH-5000 | |
| Total Volume (L) | 5 | 10 | 100 | 300 | 500 | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 | |
| Mixed amount/batch (L) | 1.5-3.5 | 3.0-7 | 30-70 | 90-210 | 150-350 | 300-700 | 450-1050 | 600-1400 | 900-2100 | 1200-2800 | 1500-3500 | |
| Rotation Speed (rpm) | 42/34 | 42/34 | 37/21 | 37/22 | 37/23 | 37/26 | 37/22 | 30/21 | 30/21 | 30/20 | 28/18 | |
| Main Motor Power (Kw) | 0.75-1.5 | 1.1-3 | 5.5-11 | 7.5-30 | 15-37 | 22-90 | 22-90 | 30-110 | 30-110 | 45-110 | 55-132 | |
| Heating Methods | Steam Pressure (MPa) | Jacket for steam ≤0.3MPa | ||||||||||
| Electric Power (Kw) | 2.4 | 2.4 | 6 | 12 | 18 | 30 | 45 | 54 | 72 | 72 | 90 | |
| Vacuum (MPa) | 0~ -0.096Mpa (Vacuum Kneader) | |||||||||||
| Discharging Method | Tilting cylinder | |||||||||||
| Screw extrusion | ||||||||||||
Applications
 |  |  |  |
 |  |  |  |
Our Services
 | LABORATORY TEST In order to be able to demonstrate the advantages and modes of action of our industrial mixing machine with your products, our fully equipped modern laboratory/technical center is at your disposal. |
PROFESSIONAL ENGINEER The experienced team of engineers is specialized in the R&D and design of mixers, grinding equipment, and plastic recycling machine. Karvil explores new technical points constantly to create perfect solutions for customers. |  |
 | DIRECT FACTORY Karvil factory has a series of strict standard system to control the procurement of raw materials, manufacturing process, in-process inspection, and product inspection, so as to ensure the quality of our products.
|
F.A.Q.
1.Manufacturer or trading company?
We are a professional manufacturer with over 20 years of experience, specializing in Kneaders, Ribbon Blenders, and Planetary Mixers. Unlike trading companies, we have our own R&D team and strict quality control system, which allows us to offer direct factory prices and technical support.
2.What is the main market for your company?
Our machines have been exported to over 50 countries, including markets in Europe, America,Australia and Southeast Asia. We serve industries ranging from chemicals, adhesives, and sealants to food and pharmaceuticals.
3.How do you ensure the quality of the machine before delivery?
Quality is our priority. After production, we conduct a strict FAT (Factory Acceptance Test). We run the machine empty and with load (if applicable) for continuous hours to check noise, vibration, sealing, and temperature. We will send you a detailed running video. You are also welcome to visit or hire a third party (like SGS/BV) for inspection.
4.Can I track the production progress of my order?
Yes. During the production process, our sales team will update you with photos and videos of key stages (machining, welding, assembly, painting) so you can know exactly the status of your equipment.
5.How about the installation and commissioning services?
We provide comprehensive support:
Documents: Detailed English manual, electric diagram, and hydraulic diagram.
Online Support: Lifetime remote video guidance for installation and troubleshooting.
On-site Service: If needed, we can dispatch engineers to your factory for installation, commissioning, and staff training.
6.How do you pack the machine to ensure safety during long shipping?
We use export-standard plywood cases (fumigation-free) ensuring stability. For the machine surface, we apply anti-rust oil and wrap it with multiple layers of stretch film to prevent moisture and corrosion during sea transportation.
7.Can you provide customized products?
Yes, we have professional engineers to meet your special design needs, so we can provide customized products.
8.What are the payment terms and delivery time?
Production begins after confirming details and receiving a 50% deposit. It usually takes 20-30 days. Once you approve the machine via test videos or on-site inspection, we will arrange shipment immediately after the balance payment.
9.About the product warranty?
We provide a 12-month warranty starting from the date of the Bill of Lading. Within the warranty period, we provide free replacement parts . Beyond the warranty, we offer cost-price spare parts and lifetime technical support to ensure your machine runs smoothly for years.
