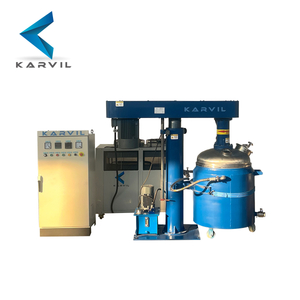

Multi-function mixer is customized mixer which can be applied in many products auch as pesticide, printing ink, adhesive, grease etc. Uaually the multi-function mixer contains the high speed and low speed and such a combination will greatly enhance the mixing efficiency , able to be applied for high viscosity material.
Techical parameters:
| Model | Power (KW) | Capacity (L) | Disc Dia (mm) | Speed (rpm) | Stroke (mm) | Hydraulic Power (KW) |
| LM2.2 | 2.2 | 50-150 | 150 | 0-1440 | 600 | 0.75 |
| LM4 | 4 | 50-200 | 200 | 0-1440 | 600 | 0.75 |
| LM5.5 | 5.5 | 80-250 | 200 | 0-1440 | 800 | 0.75 |
| LM7.5 | 7.5 | 100-300 | 250 | 0-1440 | 800 | 0.75 |
| LM11 | 11 | 100-400 | 250 | 0-1440 | 800 | 0.75 |
| LM15 | 15 | 150-500 | 300 | 0-1440 | 800 | 0.75 |
| LM18.5 | 18.5 | 200-800 | 300 | 0-1440 | 1100 | 1.1 |
| LM22 | 22 | 200-1000 | 300 | 0-1440 | 1100 | 1.1 |
| LM30 | 30 | 300-1500 | 350 | 0-1440 | 1100 | 1.1 |
| LM37 | 37 | 400-2000 | 400 | 0-1440 | 1100 | 1.5 |
| LM45 | 45 | 500-2500 | 450 | 0-1440 | 1100 | 1.5 |
| LM55 | 55 | 600-3000 | 450 | 0-1440 | 1300 | 2.2 |
| LM75 | 75 | 800-4000 | 550 | 0-1440 | 1800 | 2.2 |
| LM90 | 90 | 1200-6000 | 600 | 0-1440 | 1800 | 2.2 |
| LM110 | 110 | 1600-8000 | 700 | 0-1440 | 2100 | 3 |
| LM132 | 132 | 2000-10000 | 800 | 0-1440 | 2300 | 3 |
Easy to maintain.
Optional for single, double and three shaft.
High and low speed stirring in one device.
Optional for various impeller blade structures
Optional for vacuum function.
Disperser is a good solution for mixing, dispersing and dissolving.
Our product warranty period is one year. If the machine has broken within one year, you can send us videos and photos, and our engineers can help you analyze the problem. If you need to replace the parts, we will provide them for free within one year, and the parts will be charged after one year. The engineer's consulting service is free for life.
Shandong Karvil Machinery Technology Co., Ltd. is specializing in the research, design, manufacturing and sales of mixing machines, grinding equipment and reaction machines. The company is committed to the advanced technology of machines, strict quality control standards and perfect sales service experience to achieve a win-win situation with our customers.
Karvil products have been successful used in the field of powder processing, food, medicine, fine chemical industry, cosmetics, adhesives, paints, inks, dyes, pastes, organic solvents and ceramics, etc.
Karvil engineering team constantly explores new technical points and promote perfect solutions for our clients through efficient communication according to the production application
FAQ
1. Manufacturer or trading company?
We are a manufacturer with strict production standards in China.
2. Where is your company?
Our company is located in Yantai, Shandong, --Powder Equipment Industry Belt.
3. About your company's visit?
We can pick you up at Qingdao Airport conveniently, and then we can take you to our factory.
4. What is the main market of your company?
Asia and Africa, Australia, America, Europe.
5. Can you provide customized products?
Yes, we have professional engineers to meet your special design needs, so we can provide customized products.
6. What is your delivery time?
It usually takes about 20 to 30 days, the exact time also depends on the type and quantity of the product.
7. About the product warranty?
Usually, we provide a 1-year warranty for the products that have been sold, but we can also provide life-long service when you need it to maintain a long-term relationship with you.
8. What are the payment terms?
T/T, L/C, etc.
