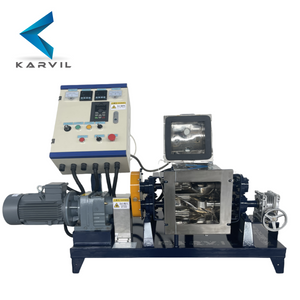

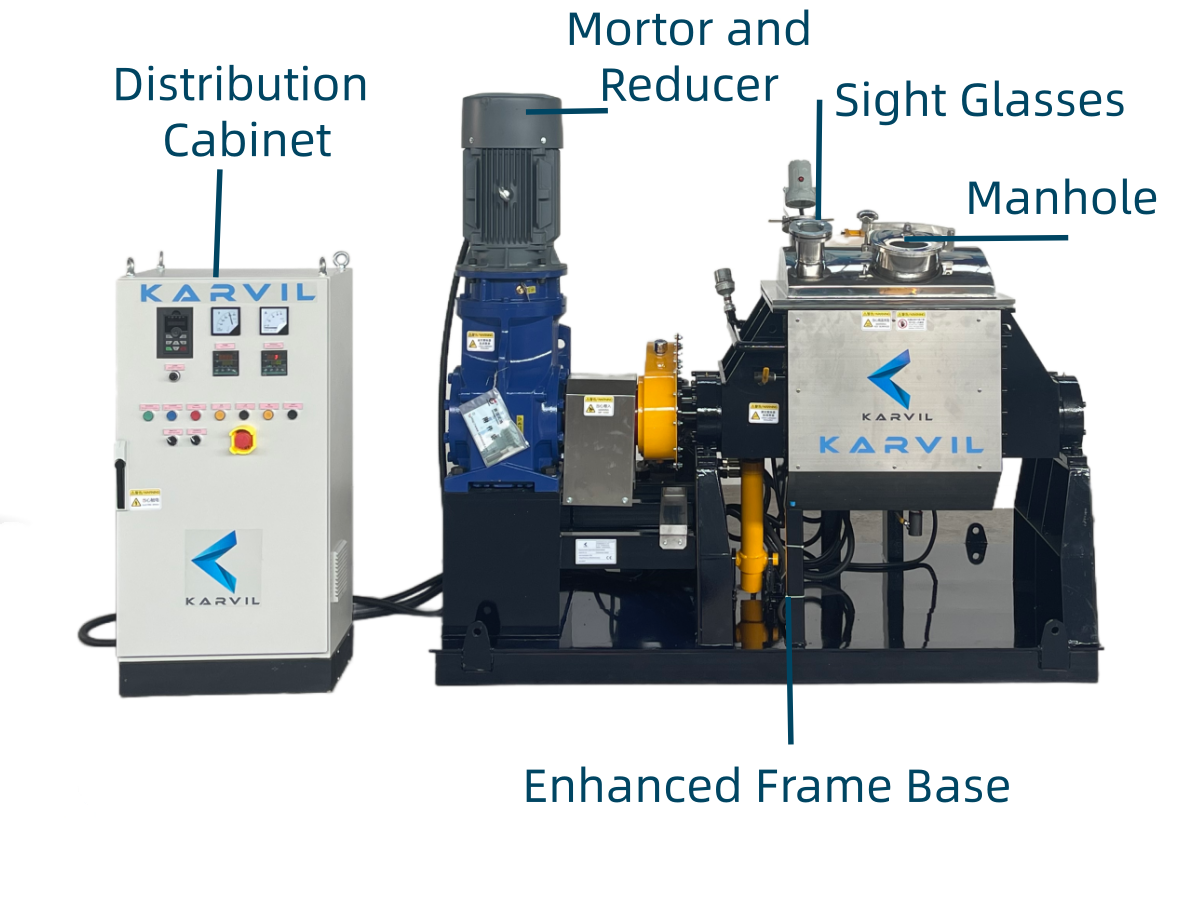

![Kneader-Mixer-for-Silicone-Rubber_副本_副本]( "Kneader-Mixer-for-Silicone-Rubber_副本_副本")
Standard Design（Customizable）:
Material: SUS 304, 316 or mild steel
Discharging: Tilting discharging/Screw extruding discharging/Bottom plate
Heating: Electric heating/Water heating/Oil heating/Steam heating
Cooling: Water cooling/Jacket cooling
Vacuum: Water-ring vacuum pump/ buffer tank.
Motor: Explosion proof motor
Independent Control Panel: Variable speed/ Temperature/Discharging
Working Volume: 5 to10,000 Cubic Feet (from experiment to production)
Product Overview

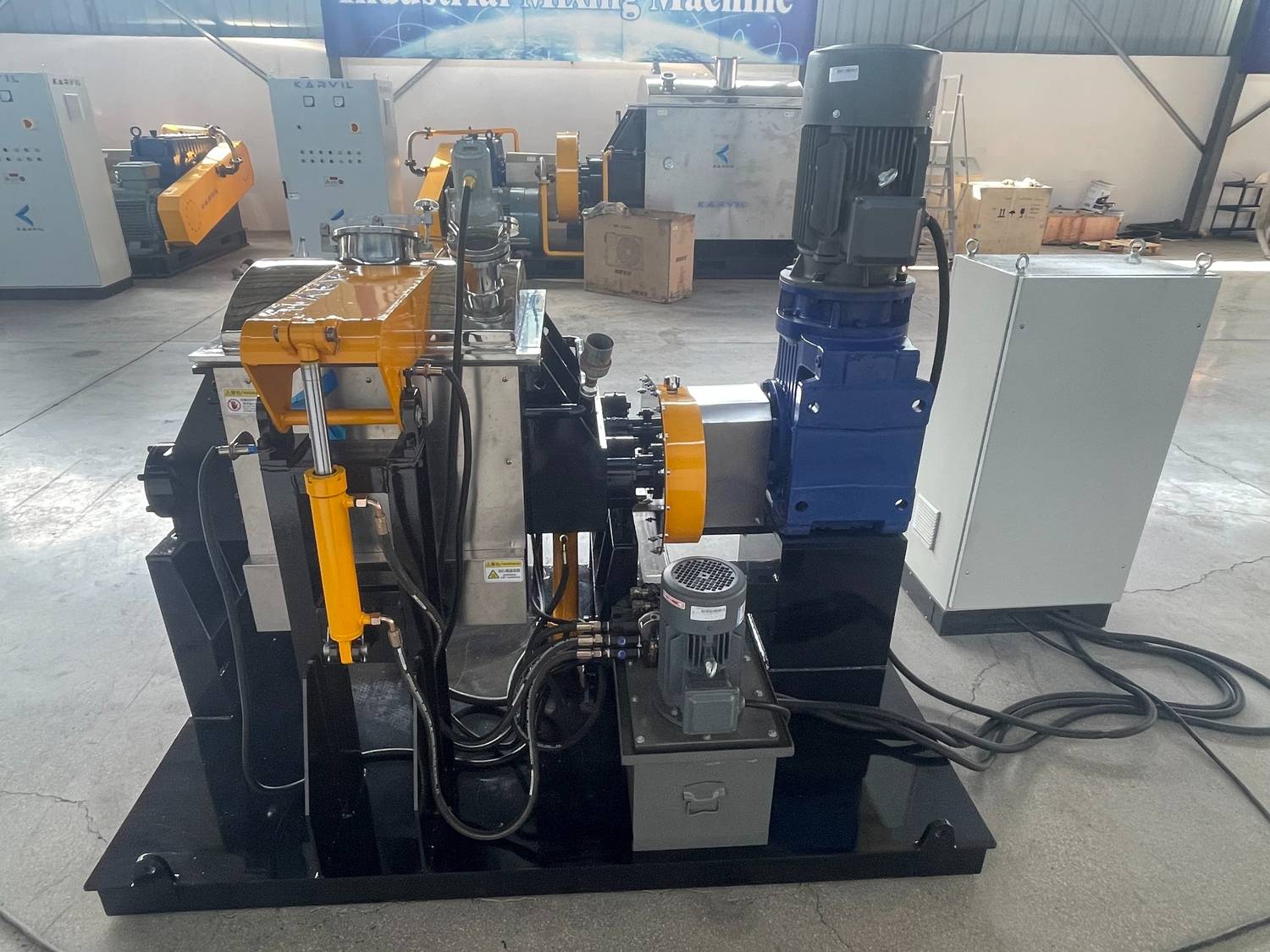

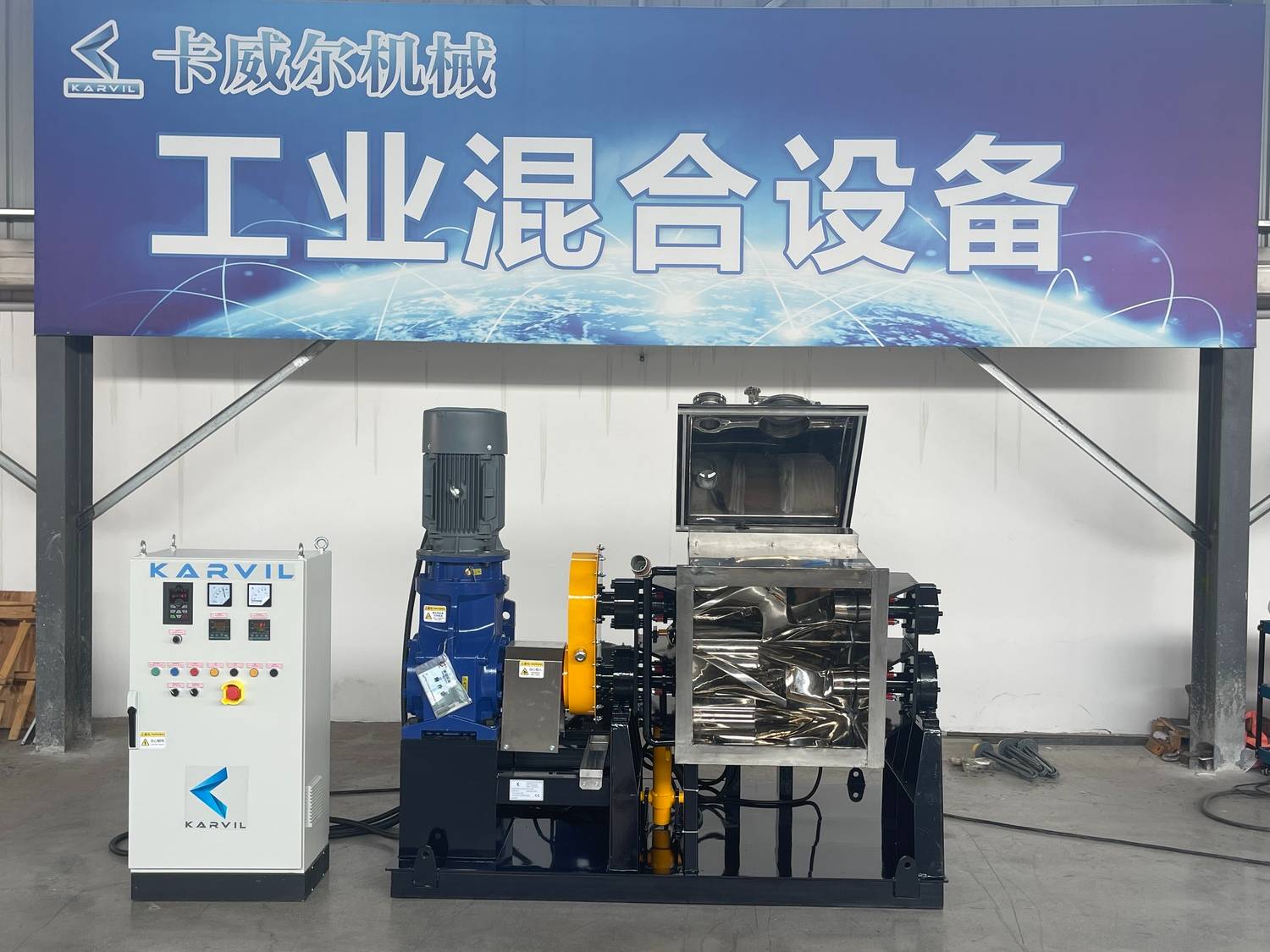

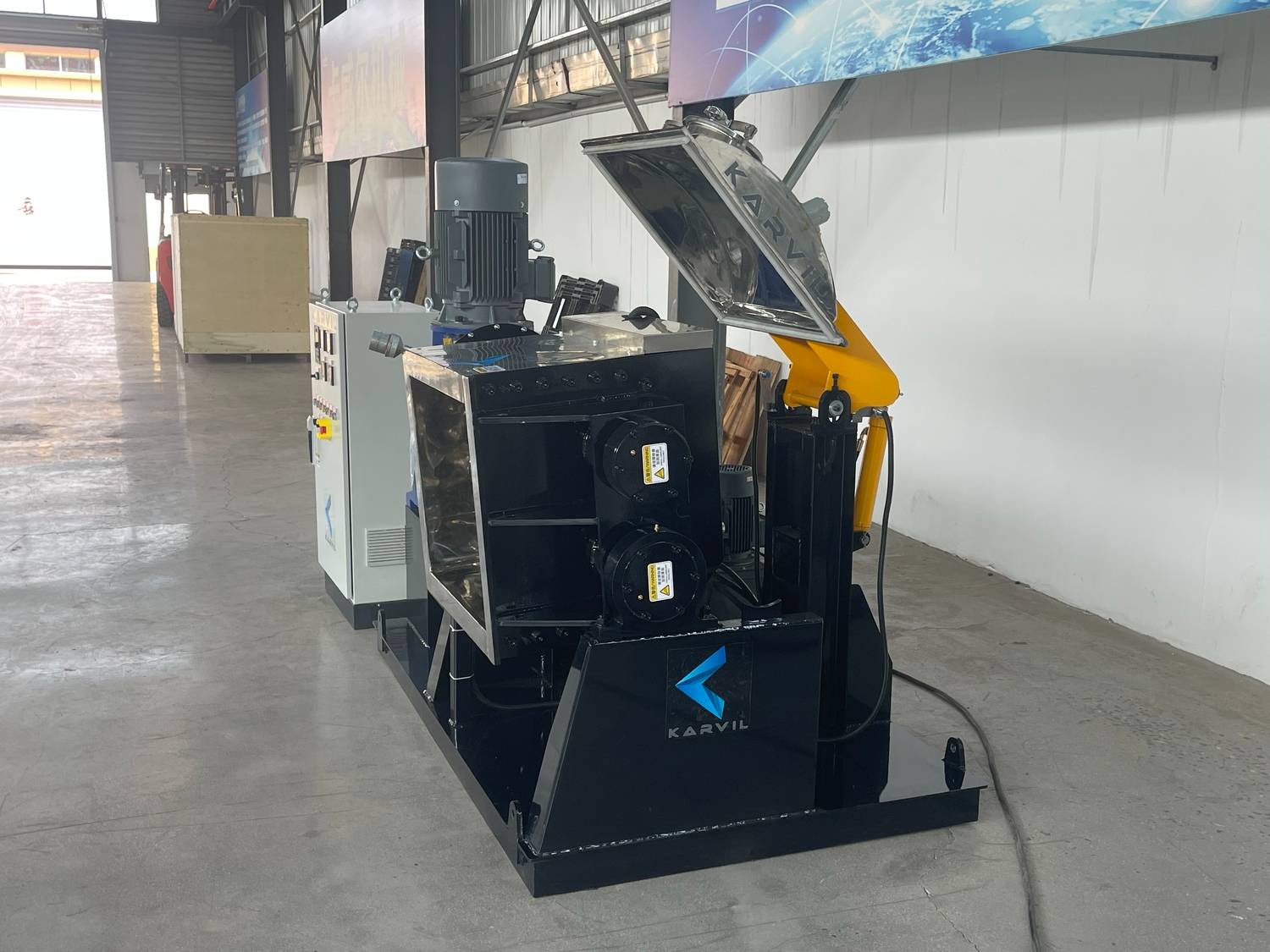

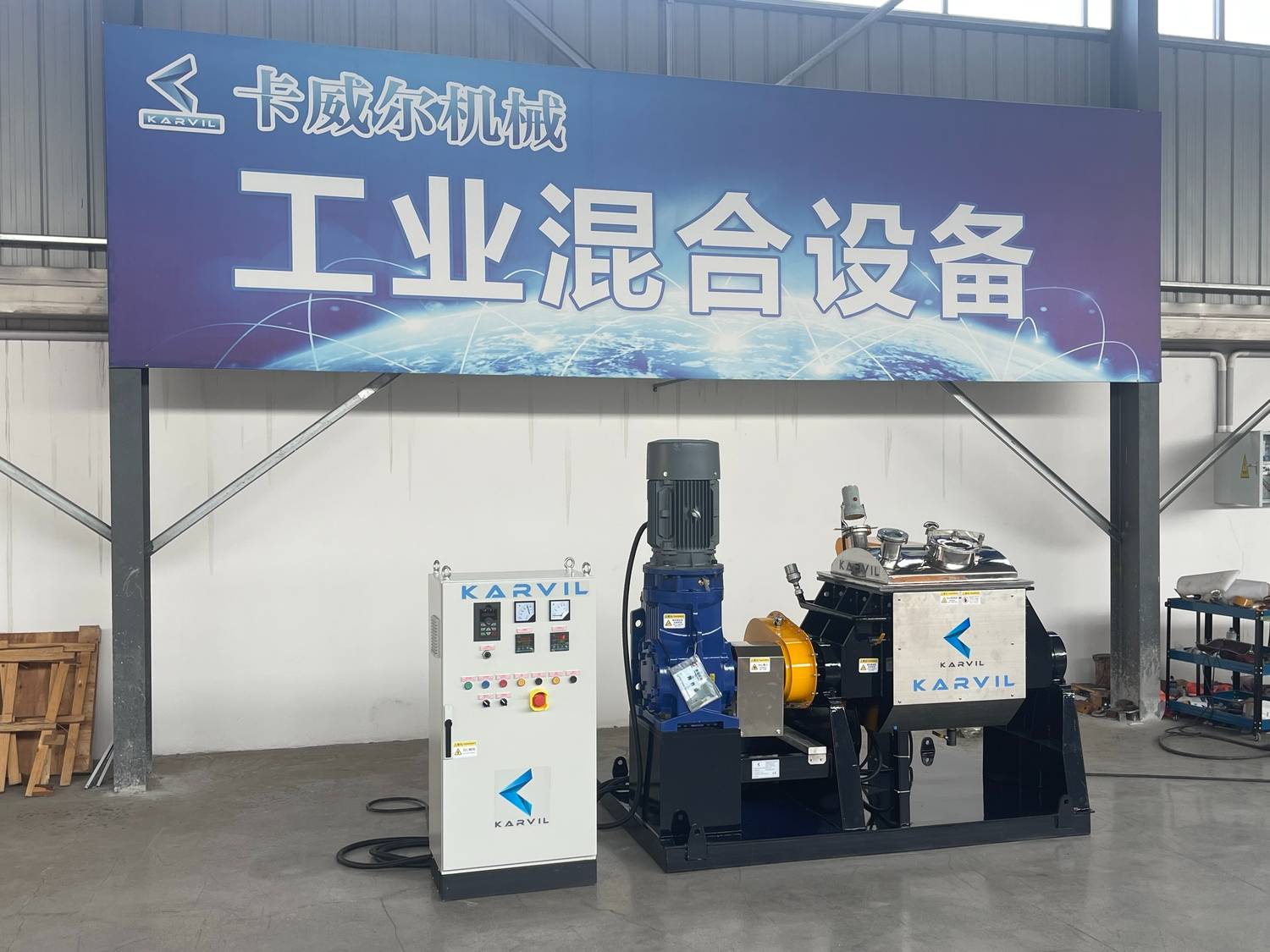

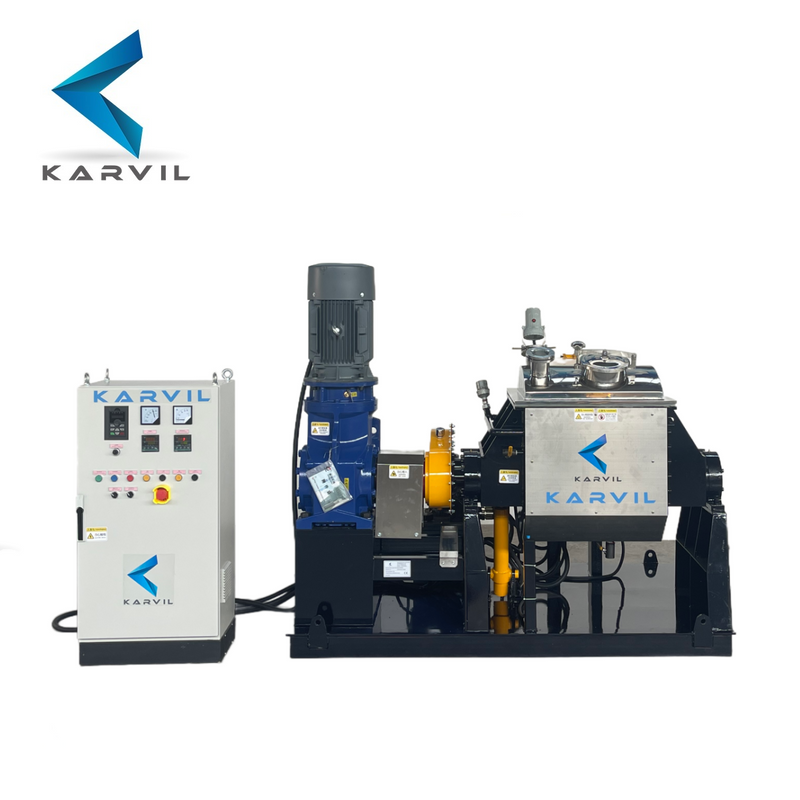

The 150L sigma mixer from Karvil Machinery is designed for processing sticky, elastic, and high-viscosity materials such as chewing gum, candy paste, adhesives, silicone, and resins. Equipped with electric heating and a tilting discharge system, it ensures efficient mixing, safe heating, and easy material handling.
Whether you are in the food, chemical, or rubber industry, this mixer is built to deliver stable performance and long service life.
Working Principle

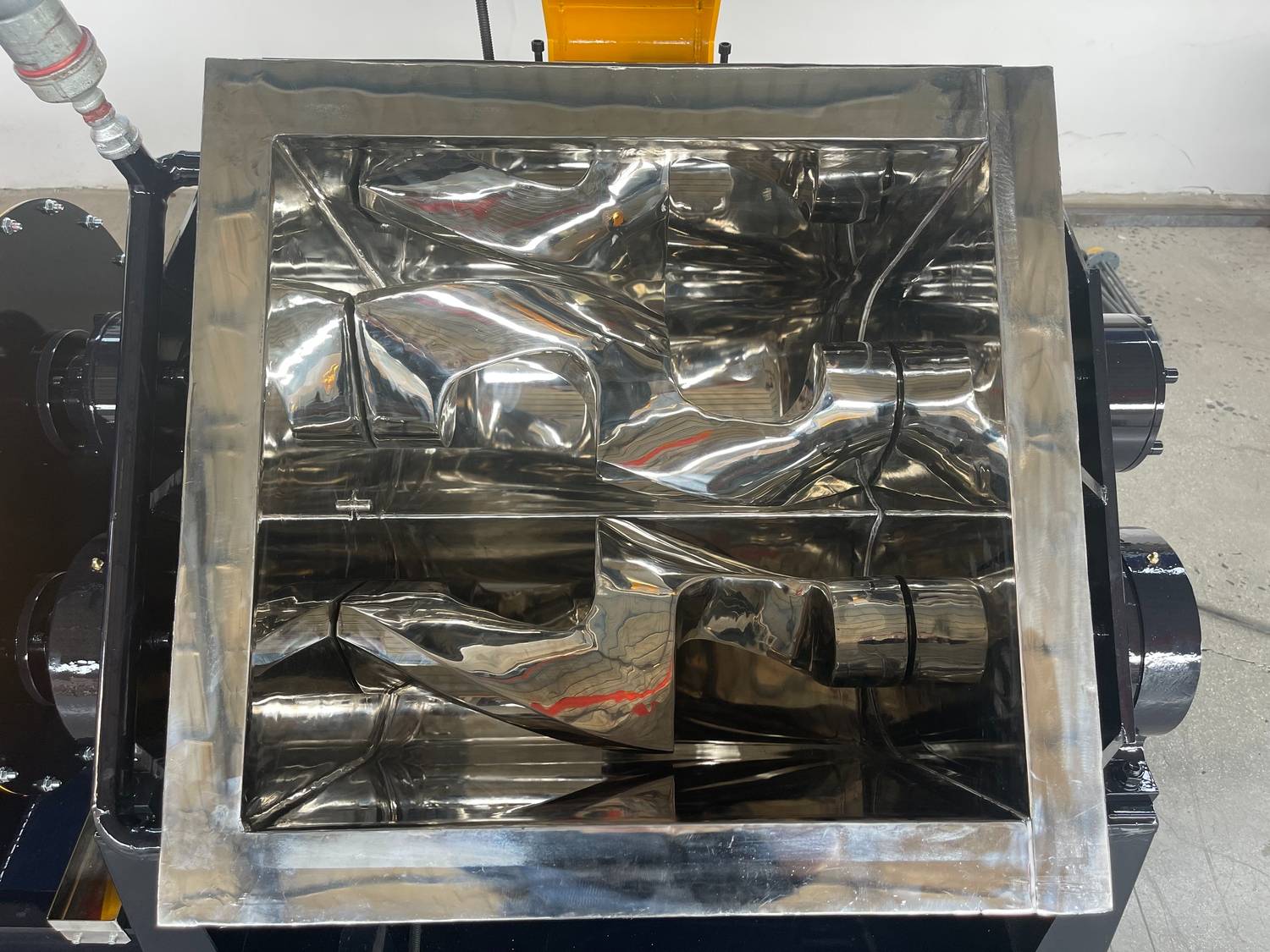

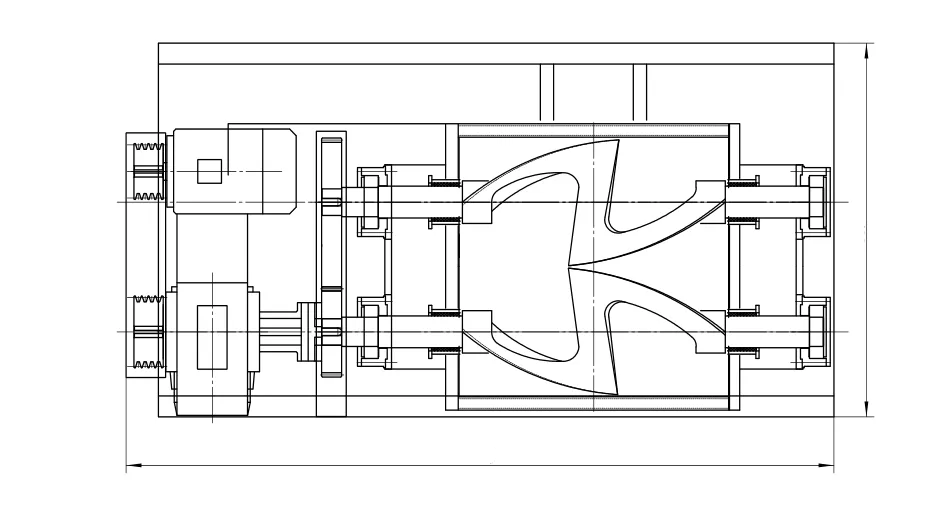

The sigma mixer uses two counter-rotating sigma blades to knead, shear, and mix high-viscosity materials. The forward and reverse rotation ensures better blending and uniform mixing.
With the electric heating jacket, the mixer maintains a stable temperature for processing candy-like products or adhesives that need controlled heating. Once mixing is finished, the tilting discharge system allows easy and complete unloading of the material.
Why Choose Karvil 150L Sigma Mixer?
Hygienic design – SS316 mirror-polished contact parts
Powerful performance – Siemens motor for heavy-duty mixing
Flexible operation – forward & reverse blade rotation
Safe heating – electric heating with thermal oil or pure water
Easy cleaning – polished stainless steel surface prevents residue
Efficient discharge – tilting system saves labor and time
Trusted worldwide – exported to 50+ countries
Technical Parameters
| Type | NH-5 | NH-10 | NH-100 | NH-300 | NH-500 | NH-1000 | NH-1500 | NH-2000 | NH-3000 | NH-4000 | NH-5000 |
| Total Volume (L) | 5 | 10 | 100 | 300 | 500 | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 |
| Mixed amount/batch (L) | 1.5-3.5 | 3.0-7 | 30-70 | 90-210 | 150-350 | 300-700 | 450-1050 | 600-1400 | 900-2100 | 1200-2800 | 1500-3500 |
| Rotation Speed (rpm) | 42/34 | 42/34 | 37/21 | 37/22 | 37/23 | 37/26 | 37/22 | 30/21 | 30/21 | 30/20 | 28/18 |
| Main Motor Power (Kw) | 0.75-1.5 | 1.1-3 | 5.5-11 | 7.5-30 | 15-37 | 22-90 | 22-90 | 30-110 | 30-110 | 45-110 | 55-132 |
| Heating Methods | Steam Pressure (MPa) | Jacket for steam
≤0.3MPa |
| Electric Power (Kw) | 2.4 | 2.4 | 6 | 12 | 18 | 30 | 45 | 54 | 72 | 72 | 90 |
| Vacuum (MPa) | 0~ -0.096Mpa (Vacuum Kneader) |
| Discharging Method | Tilting cylinder |
| Screw extrusion |
Our Services
![d3decc020c846de83e6cd0ddfddaae9]( "d3decc020c846de83e6cd0ddfddaae9") |
LABORATORY TEST
In order to be able to demonstrate the advantages and modes of action of our industrial mixing machine with your products, our fully equipped modern laboratory/technical center is at your disposal.
![4cc6a298bf03570b88509020de7d969]( "4cc6a298bf03570b88509020de7d969") |
PROFESSIONAL ENGINEER![Food-Powder-Horizontal-Ribbon-Mixer-2_副本]( "Food-Powder-Horizontal-Ribbon-Mixer-2_副本")
The experienced team of engineers is specialized in the R&D and design of mixers, grinding equipment, and plastic recycling machine. Karvil explores new technical points constantly to create perfect solutions for customers.
![4cc6a298bf03570b88509020de7d969]( "4cc6a298bf03570b88509020de7d969")
| ![karvil-machinery-sigma-mixer-ribbon-mixer_副本]( "karvil-machinery-sigma-mixer-ribbon-mixer_副本") |
![karvil-machinery-sigma-mixer-and-ribbon-mixer]( "karvil-machinery-sigma-mixer-and-ribbon-mixer") |
DIRECT FACTORY
Karvil factory has a series of strict standard system to control the procurement of raw materials, manufacturing process, in-process inspection, and product inspection, so as to ensure the quality of our products.
![4cc6a298bf03570b88509020de7d969]( "4cc6a298bf03570b88509020de7d969")
|
Applications
F.A.Q.
Q1: What kind of materials is this mixer suitable for?
A1: It’s ideal for sticky and elastic products like chewing gum, candy paste, silicone rubber, resins, and adhesives.
Q2: How does the heating system work?
A2: The mixer uses an electric heating jacket with thermal oil or pure water as the medium, reaching up to 80°C.
Q3: Can it be customized?
A3: Yes. Karvil can adjust capacity, heating type, discharge method, or controls based on your needs.
Q4: Is it easy to clean?
A4: Yes, the SS316 mirror-polished surfaces make cleaning simple and hygienic.
