Effective Working Volume: 15 liters
Contact Material: SS304 with PTFE (Teflon) coating – corrosion-resistant and non-stick
Mixing Type: Claw-type planetary mixing, optimized for thorough and uniform blending
Scraper System: Removable PTFE scrapers supported by SS304 with Teflon coating for improved durability and easy cleaning
Vacuum Function: Supports degassing during mixing to eliminate air bubbles and improve product quality
Discharge Method: Side-mounted DN15 discharge valve at the bottom of the mixing tank
Mobility: Fitted with heavy-duty casters for flexible movement
Agitator Speed: Variable frequency control, 0–60 rpm
Hydraulic Discharge System: Integrated platform design with safety interlock for secure operation and efficient material removal
PM-15
KARVIL
Availability: | |
---|---|
Karvil Machinery 15L Vacuum Planetary Mixer, an engineered solution for high-purity and sensitive applications such as dental material processing. This mixer ensures excellent material compatibility through full PTFE coating on all contact surfaces, making it ideal for mixing adhesives, pastes, and composite materials with strict hygiene requirements.
1. Various stirring tools combinations including high-speed with high -speed, high-speed with low-speed, and low-speed with low-speed.
2. High-speed part is divided into high shear emulsification device, high-speed dispersion device, high-speed propulsion device and butterfly stirring device.
Low-speed part is divided into anchor stirring, paddle stirring, spiral stirring, helical ribbon stirring, rerctangular stirring and so on.
Any combination has its unique mixing effect for different materials.
3. Vacuum production condition can be achieve by reliable airproof tank.
4. Tank with jacket for heating or cooling requirement.
5. Changeable inner tank with precision process, easy cleaning.
6.Peculiar temperture sensor ensures no temperature difference contril and inspect function.
7. The mixing system frivern by hydraulic powder make the operation convenient.
8. Extensive adaptablity for different materials and processes.
This kind of mixer is suitable for dispersing, mixing and stirring of high viscosity materials, approximate viscosity from 10000cp-1000000cp.
1.Energy appliance: all kinds of battery paste, paste material (lithium battery, nickel-chromium battery, nickel-metal hydride battery, fuel cell, power battery, etc.)
2.Electronic appliance: solder paste, ceramic slurry, magnetic material, silica gel ink, electronic adhesive, PVC plastic, electronic potting glue, hot melt adhesive, all kinds of precious metal powder and slurry.
3.Chemicals appliance: a variety of sealant, adhesive, (silicone sealant, polysulfide sealant, the structure of insulating glass sealant, waterproof sealant, anaerobic adhesive, stone glue, etc.) synthetic resin, rubber, printing ink, putty, abrasives(cream), was products, all kinds of powder materials and ceramic pigment.
4.Pharmaceuticals appliance: all kinds of soft ointments, high polymer gels (medical paste, antifebrile paste for children, cold paste, ice paste, eye paste), dental products.
5.Cosmetics and daily chemicals appliance: moisturizer, lipstick, lotion, gel, facial mask, mascara, foundation, nail polish, toothpaste, soap.
6.Food appliance: all kinds of paste mixture, seasoning, jam, chocolate syrup.
![]() | ![]() | ![]() | ![]() |
![]() | ![]() | ![]() | ![]() |
Model (L) | 5 | 15 | 30 | 50 | 100 | 300 | 500 | 1000 | |
Tank Dia (mm) | 280 | 280 | 400 | 480 | 550 | 850 | 960 | 1160 | |
Tank height (mm) | 180 | 325 | 325 | 365 | 550 | 650 | 810 | 1100 | |
Revolution motor (kW) | 1.5 | 2.2 | 3 | 4 | 5.5 | 18.5 | 22 | 30-37 | |
Revolution speed (rpm) | 0-60 | 0-60 | 0-84 | 0-62 | 0-70 | 0-45 | 0-35 | 0-35 | |
Wall scraper rev (rpm) | 0-60 | 0-60 | 0-84 | 0-62 | 0-70 | 0-45 | 0-35 | 0-35 | |
Rotation speed (rpm) | 0-100 | 0-100 | 0-130 | 0-75 | 0-110 | 0-62 | 0-60 | 0-45 | |
Dispersing motor (kw) | 1.1 | 2.2 | 2.2 | 5.5 | 5.5 | 11 | 30 | 37 | |
Dispersing rev (rpm) | 0-1500 | ||||||||
Vacuum (MPa) | ≤-0.098 | ||||||||
Lift travel (mm) | 360 | 400 | 430 | 650 | 700 | 900 | 1000 | 1100 | |
External dimension (mm) | L | 1500 | 1700 | 1700 | 1700 | 1700 | 2500 | 2700 | 2700 |
W | 900 | 900 | 900 | 900 | 1100 | 1200 | 1500 | 1800 | |
H | 1700 | 2100 | 2300 | 2300 | 2300 | 2700 | 2900 | 3100 | |
Weight (kg) | 500 | 800 | 1000 | 2000 | 2300 | 2700 | 3500 | 5000 |
This mixer is specifically designed for processing dental materials, but it is also suitable for other high-viscosity, sensitive substances such as medical pastes, adhesives, and silicone-based compounds.
PTFE coating provides excellent chemical resistance and non-stick properties, making it ideal for applications requiring high purity and ease of cleaning, especially in medical or dental industries.
The vacuum function removes air bubbles during mixing, ensuring a denser, more uniform product — which is critical for materials like dental compounds and high-precision adhesives.

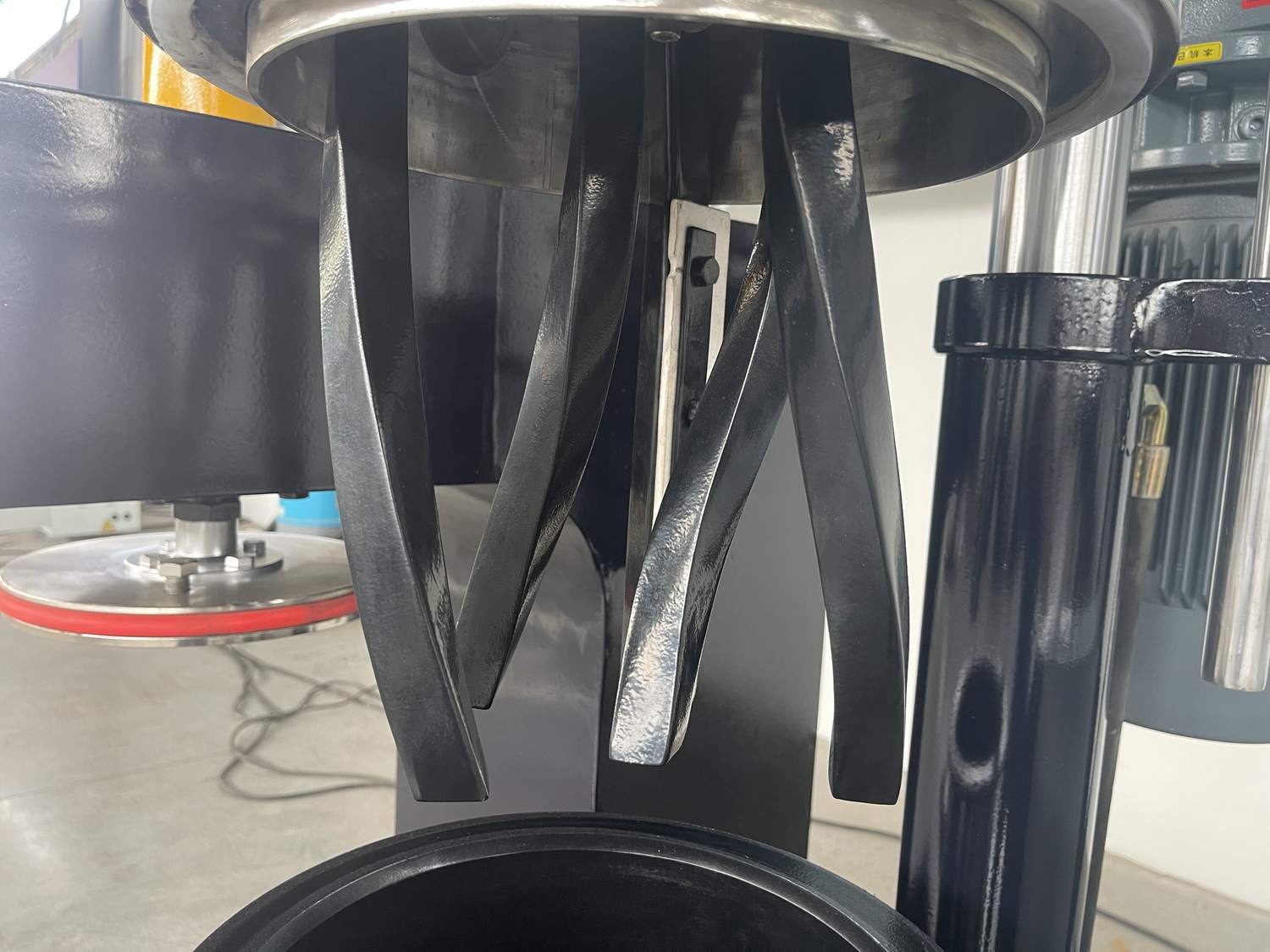

It uses a claw-type planetary agitator, which provides strong kneading and mixing action, ensuring thorough and consistent blending of viscous or sticky materials.
The mixer is equipped with a hydraulic discharge system, integrated with the platform, and features a safety interlock system to ensure operator safety and convenient product removal.
Yes. The mixer features removable PTFE scrapers that can be easily cleaned or replaced, enhancing usability and reducing downtime.
Yes, the unit is fitted with industrial casters (wheels), allowing for smooth relocation within laboratories or production facilities.
Karvil Machinery 15L Vacuum Planetary Mixer, an engineered solution for high-purity and sensitive applications such as dental material processing. This mixer ensures excellent material compatibility through full PTFE coating on all contact surfaces, making it ideal for mixing adhesives, pastes, and composite materials with strict hygiene requirements.
1. Various stirring tools combinations including high-speed with high -speed, high-speed with low-speed, and low-speed with low-speed.
2. High-speed part is divided into high shear emulsification device, high-speed dispersion device, high-speed propulsion device and butterfly stirring device.
Low-speed part is divided into anchor stirring, paddle stirring, spiral stirring, helical ribbon stirring, rerctangular stirring and so on.
Any combination has its unique mixing effect for different materials.
3. Vacuum production condition can be achieve by reliable airproof tank.
4. Tank with jacket for heating or cooling requirement.
5. Changeable inner tank with precision process, easy cleaning.
6.Peculiar temperture sensor ensures no temperature difference contril and inspect function.
7. The mixing system frivern by hydraulic powder make the operation convenient.
8. Extensive adaptablity for different materials and processes.
This kind of mixer is suitable for dispersing, mixing and stirring of high viscosity materials, approximate viscosity from 10000cp-1000000cp.
1.Energy appliance: all kinds of battery paste, paste material (lithium battery, nickel-chromium battery, nickel-metal hydride battery, fuel cell, power battery, etc.)
2.Electronic appliance: solder paste, ceramic slurry, magnetic material, silica gel ink, electronic adhesive, PVC plastic, electronic potting glue, hot melt adhesive, all kinds of precious metal powder and slurry.
3.Chemicals appliance: a variety of sealant, adhesive, (silicone sealant, polysulfide sealant, the structure of insulating glass sealant, waterproof sealant, anaerobic adhesive, stone glue, etc.) synthetic resin, rubber, printing ink, putty, abrasives(cream), was products, all kinds of powder materials and ceramic pigment.
4.Pharmaceuticals appliance: all kinds of soft ointments, high polymer gels (medical paste, antifebrile paste for children, cold paste, ice paste, eye paste), dental products.
5.Cosmetics and daily chemicals appliance: moisturizer, lipstick, lotion, gel, facial mask, mascara, foundation, nail polish, toothpaste, soap.
6.Food appliance: all kinds of paste mixture, seasoning, jam, chocolate syrup.
![]() | ![]() | ![]() | ![]() |
![]() | ![]() | ![]() | ![]() |
Model (L) | 5 | 15 | 30 | 50 | 100 | 300 | 500 | 1000 | |
Tank Dia (mm) | 280 | 280 | 400 | 480 | 550 | 850 | 960 | 1160 | |
Tank height (mm) | 180 | 325 | 325 | 365 | 550 | 650 | 810 | 1100 | |
Revolution motor (kW) | 1.5 | 2.2 | 3 | 4 | 5.5 | 18.5 | 22 | 30-37 | |
Revolution speed (rpm) | 0-60 | 0-60 | 0-84 | 0-62 | 0-70 | 0-45 | 0-35 | 0-35 | |
Wall scraper rev (rpm) | 0-60 | 0-60 | 0-84 | 0-62 | 0-70 | 0-45 | 0-35 | 0-35 | |
Rotation speed (rpm) | 0-100 | 0-100 | 0-130 | 0-75 | 0-110 | 0-62 | 0-60 | 0-45 | |
Dispersing motor (kw) | 1.1 | 2.2 | 2.2 | 5.5 | 5.5 | 11 | 30 | 37 | |
Dispersing rev (rpm) | 0-1500 | ||||||||
Vacuum (MPa) | ≤-0.098 | ||||||||
Lift travel (mm) | 360 | 400 | 430 | 650 | 700 | 900 | 1000 | 1100 | |
External dimension (mm) | L | 1500 | 1700 | 1700 | 1700 | 1700 | 2500 | 2700 | 2700 |
W | 900 | 900 | 900 | 900 | 1100 | 1200 | 1500 | 1800 | |
H | 1700 | 2100 | 2300 | 2300 | 2300 | 2700 | 2900 | 3100 | |
Weight (kg) | 500 | 800 | 1000 | 2000 | 2300 | 2700 | 3500 | 5000 |
This mixer is specifically designed for processing dental materials, but it is also suitable for other high-viscosity, sensitive substances such as medical pastes, adhesives, and silicone-based compounds.
PTFE coating provides excellent chemical resistance and non-stick properties, making it ideal for applications requiring high purity and ease of cleaning, especially in medical or dental industries.
The vacuum function removes air bubbles during mixing, ensuring a denser, more uniform product — which is critical for materials like dental compounds and high-precision adhesives.
It uses a claw-type planetary agitator, which provides strong kneading and mixing action, ensuring thorough and consistent blending of viscous or sticky materials.
The mixer is equipped with a hydraulic discharge system, integrated with the platform, and features a safety interlock system to ensure operator safety and convenient product removal.
Yes. The mixer features removable PTFE scrapers that can be easily cleaned or replaced, enhancing usability and reducing downtime.
Yes, the unit is fitted with industrial casters (wheels), allowing for smooth relocation within laboratories or production facilities.
