Production of heavy-duty adhesives and sealants is not for the faint of heart. The materials can be thick, sticky, heat-sensitive, solvent-based and, once mixed, difficult to dispense. A safe sigma kneader is more than just a machine surrounded by protective covers and warning labels. It is a complex machine whose various components such as torque, blades, temperature, discharge, hygiene, explosion protection and service support must function together in the long term. A buyer therefore has to ask one simple question: Can this machine process thick materials safely on a daily basis without putting the lives of man and animal, the quality of the products as well as the safety of the plant and the relevant regulations at risk?
Adhesives, sealants, hot melt materials, silicone rubber, butyl rubber, ink, carbon paste, and similar materials need strong shear force. Ordinary mixers often work well for low or medium-viscosity liquids, but high-viscosity and semi-solid materials need a machine built for forceful kneading.
A sigma kneader uses Z-shaped or sigma blades to press, fold, stretch, and shear thick materials. That is exactly why it works well for adhesive and sealant production. Still, the same power also means exposed moving parts are not acceptable.
A safer machine should keep all transmission areas covered, so operators cannot touch rotating or moving components during production. This sounds basic, but in real factories, the simple details matter. Guards, covered drive sections, safe access points, and clear operating procedures reduce accidents more than a nice-looking control panel ever will.
Dense sealant does not flow out like water. If the discharge design is wrong, workers may need to scrape, push, or clean material by hand. That is slow and unsafe.
A sigma mixer with screw extrusion solves this issue better for many non-self-flowing materials. Screw discharge pushes sticky material out automatically, reducing manual contact and improving batch handling. Hydraulic tilting is also common, but screw extrusion is often cleaner and more controlled when the material is heavy, tacky, or paste-like.
Before choosing a mixer, check the safety design as carefully as capacity and motor power. Karvil Machinery focuses on industrial mixers, including sigma blade mixers, ribbon mixers, planetary mixers, dispersing mixers, reactors, and production lines for hot melt adhesive, paint, resin, and related materials. You can learn more from the Karvil Machinery website, especially if your process involves high-viscosity materials and customized mixing requirements.
For heavy-duty kneading, an open lid should never be treated as a normal operating condition. A safer sigma kneader should include an emergency stop function when the lid is opened. This protects operators during feeding, inspection, cleaning, and maintenance.
In adhesive and sealant plants, operators may open the lid to check texture, add additives, or clean residue. A lid safety system helps prevent accidental contact with blades. It is one of those features that may not look exciting in a brochure, but plant managers usually care about it after the first safety audit.
Transmission parts should be covered to prevent human contact. This includes areas near the motor, reducer, coupling, chain or belt areas if present, and other moving parts. For a sigma kneader, this is especially important because the machine usually runs at lower speed but high torque.
Low speed can mislead new operators. The movement may look slow, but the force is serious. Covered transmission design makes daily use much safer.
A safe machine also needs clear control. Speed, temperature, discharging, timing, and other settings should be easy to read and adjust. Karvil Machinery can provide control options such as manual control, electric buttons, or PLC touch screen automatic control, depending on the process.
For adhesives and sealants, stable settings help avoid sudden changes in material behavior. If the speed is too aggressive, the batch may overheat. If temperature control is poor, additives may break down. If discharge starts at the wrong time, material handling becomes messy and risky.
Temperature is not only a process issue. It is also a safety issue. Many adhesive and sealant formulas change quickly when heat is uneven, too high, or too low. Some batches become too thick. Some may release vapor. Some may lose performance.

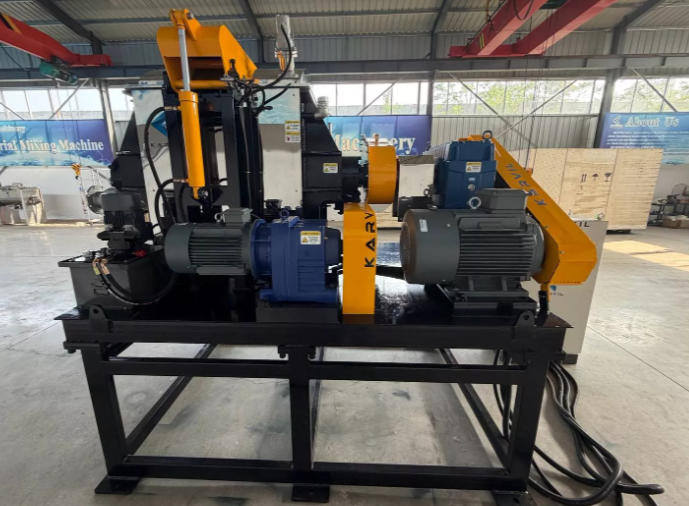

The 500L Electric Heating Sigma Kneader with Screw Extrusion is designed for high-viscosity production where kneading, heating, and controlled discharge are all important. Its 500L total volume and screw extrusion design make it suitable for production-scale adhesive, sealant, silicone rubber, carbon paste, clay, pigment, and similar dense materials.
Electric heating with a thermal oil jacket helps distribute heat more evenly than direct heating on one small area. For thick paste, this matters. Heat moves slowly in dense materials, and poor heat transfer can create local hot spots. Those hot spots may damage additives, affect viscosity, or lead to inconsistent batches.
Sigma mixers can use different heating and cooling systems. Electric heating is convenient for standard operation. Thermal oil circulation is useful when you need more even high-temperature processing. Steam heating can support fast heat transfer. Electromagnetic induction heating may suit heat-sensitive materials that need gentle and accurate temperature control.
For buyers, the right question is not “Which heating method is best?” It is “Which heating method fits this formula, this viscosity, and this safety requirement?” A silicone sealant line, a hot melt adhesive process, and a protein bar formula will not always need the same jacket design.
A factory may say its machine is safe, but export buyers usually need more than a verbal promise. Documentation, certifications, material proof, and design records all matter, especially for Europe, America, food production, explosive environments, or aerospace-related materials.
Karvil Machinery provides global compliance support, including CE certification for European safety and performance standards, ATEX certification for equipment used in explosive atmospheres, and FCM certification for materials intended to contact food. More company background and qualification details can be checked through Karvil Machinery About Us.
For explosive, solvent, or dust-risk applications, ATEX is not a decorative certificate. It relates to equipment used in potentially explosive atmospheres, including electrical and mechanical safety. In adhesive, sealant, energetic material, and aerospace-related production, this can be a serious purchasing point.
Some sigma kneaders are used for chewing gum, soft candy, protein bars, and other food-grade high-viscosity materials. In these cases, hygiene is not optional.
Karvil Machinery can design stainless steel food and pharmaceutical grade sigma mixers with mirror-polished product-contact surfaces and FCM-related standards. Product materials have passed the EU food contact material test and comply with (EC) No.1935/2004 regulations. Contact parts can use SUS304 or SUS316 based on the process, and mirror polishing helps reduce residue and supports easier cleaning.
A quick note from actual production: sticky food materials are often harder to clean than many people expect. Smooth surfaces, fewer dead corners, and proper discharge design save time every single shift.
No single sigma kneader fits every factory. Heavy-duty adhesive and sealant production may need vacuum degassing, explosion-proof motors, special shaft seals, PLC control, cooling water, screw extrusion, or different blade clearances.
Karvil Machinery has exported equipment to more than 50 countries and regions, with experience across Europe, the Americas, and other markets. Its equipment has been used in powder processing, food, medicine, fine chemicals, cosmetics, adhesives, paints, inks, dyes, pastes, organic solvents, ceramics, silicone rubber, carbon products, clays, waterproof materials, and more.
For sigma kneaders, important application fields include various adhesives, sealants, hot melt adhesive, butyl rubber, silicone rubber, carbon paste, graphite, chewing gum, protein bars, explosives, wear-resistant materials, and aerospace materials such as rocket propellant. These industries often overlap in one way: the material is hard to move, hard to discharge, and sensitive to process changes.
Karvil Machinery offers different industrial mixing equipment, not only sigma kneaders. Ribbon mixers are more suitable for powder and powder-liquid mixing, such as flour, ice cream powder, dry mortar, seasoning, additives, and building materials. Planetary mixers are often used for battery slurry, dental materials, sealants, adhesives, and some aerospace-related materials. Sigma kneaders are stronger candidates for ultra-high-viscosity rubber-like or paste-like materials.
This matters because choosing the wrong machine is a safety problem too. If a ribbon mixer is forced to handle a material that is too sticky, blockage and cleaning risk can increase. If a kneader has poor discharge design, operators may spend too much time near residual material.
A safe machine is not finished when it leaves the factory. Installation, training, manuals, spare parts, and technical response all affect the real operating result.
Karvil Machinery provides a one-year warranty for sold products. When customers need long-term help, the engineering team can also provide lifetime technical consultation and remote support. This includes remote installation guidance, video teaching, online maintenance support, and troubleshooting from professional engineers.
For overseas buyers, this support is practical. A small electrical problem, a parameter setting issue, or a cleaning question should not stop a production line for days. Full English operation manuals and electrical diagrams are also supplied, which helps local maintenance teams read, check, and repair the machine faster.
Karvil Machinery can provide one-to-one material testing, formula suggestions, equipment selection advice, and customized product design. If your product has unusual viscosity, abrasive fillers, heat sensitivity, or explosion-proof requirements, testing before final design can reduce many later problems.
You can also review application fields through the Karvil Machinery Application Center or download related materials from the Download Center. For a serious equipment purchase, those pages are worth checking before the first technical meeting.
Q1: What Makes a Sigma Kneader Safer for Adhesive and Sealant Production?
A: A safer sigma kneader combines covered transmission parts, lid opening emergency stop, stable control, suitable discharge, proper material selection, and compliance support. For sticky high-viscosity materials, screw extrusion also reduces manual handling during discharge.
Q2: Why Is Screw Extrusion Useful for High-Viscosity Sealants?
A: Screw extrusion pushes dense, non-self-flowing material out automatically. This helps reduce scraping, shortens discharge time, and lowers operator contact with sticky material after kneading.
Q3: Can a Sigma Kneader Be Used for Food-Grade Materials?
A: Yes. A sigma kneader can be designed with SUS304 or SUS316 contact parts, mirror-polished surfaces, and FCM-related material standards. Karvil Machinery offers product materials that passed EU food contact material testing and comply with (EC) No.1935/2004 regulations.
Q4: When Should You Ask For ATEX Certification?
A: You should ask for ATEX certification when the process involves explosive atmospheres, flammable solvents, combustible dust, energetic materials, or other high-risk environments. Adhesives, sealants, explosives, and aerospace materials may need this discussion during the design stage.
Q5: What Support Does Karvil Machinery Provide After Delivery?
A: Karvil Machinery provides a one-year warranty, lifetime technical consultation when needed, remote technical support from professional engineers, video guidance, online maintenance help, full English operation manuals, and electrical diagrams for easier daily use.
