NH-100
Karvil

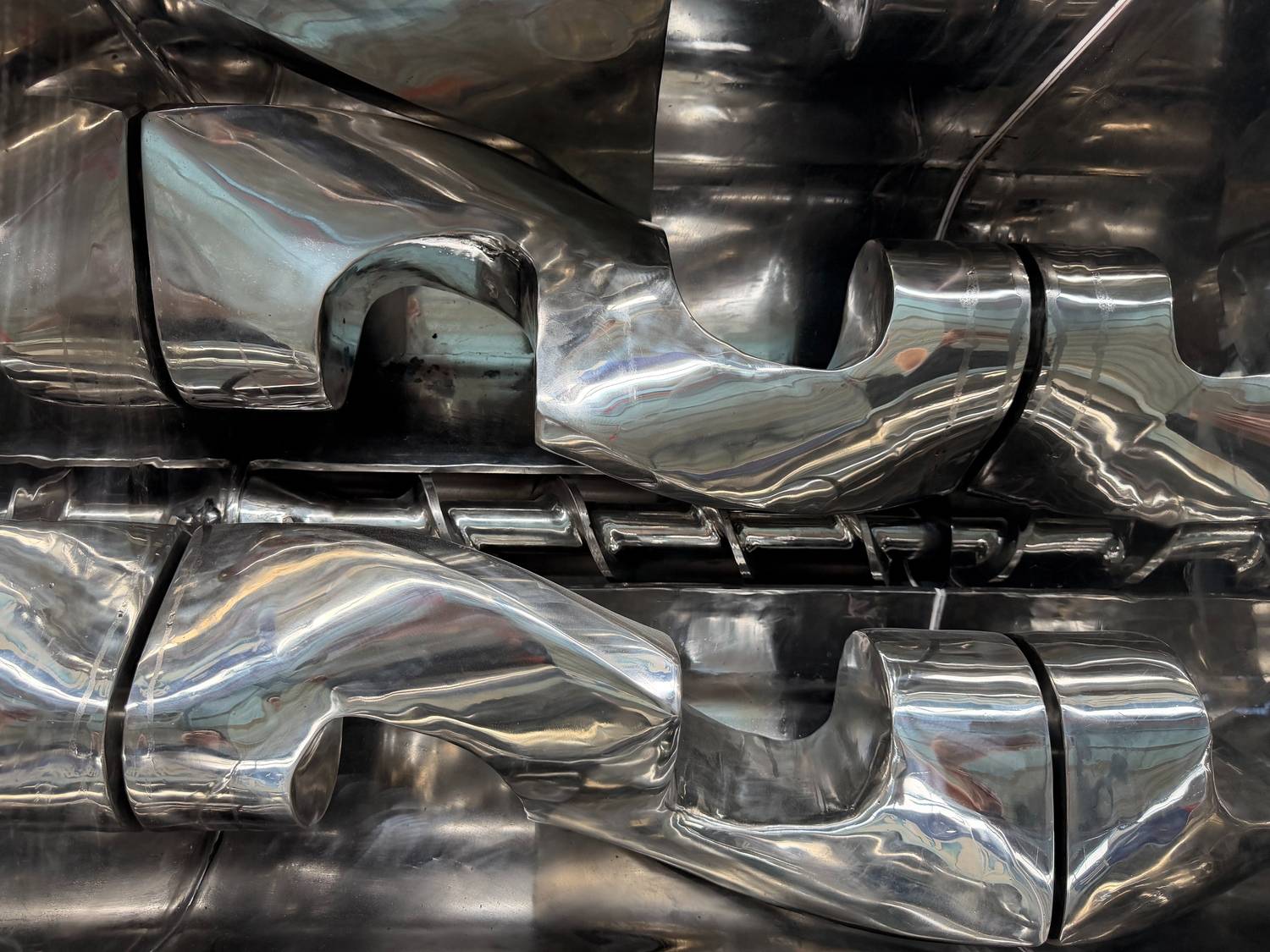

Mirror-polished SS304 Z-blades with a precise 3mm gap from the shell wall. Equipped with independent variable speed control (Fast: 0-37rpm, Slow: 0-21rpm) for intensive kneading with zero dead spots.

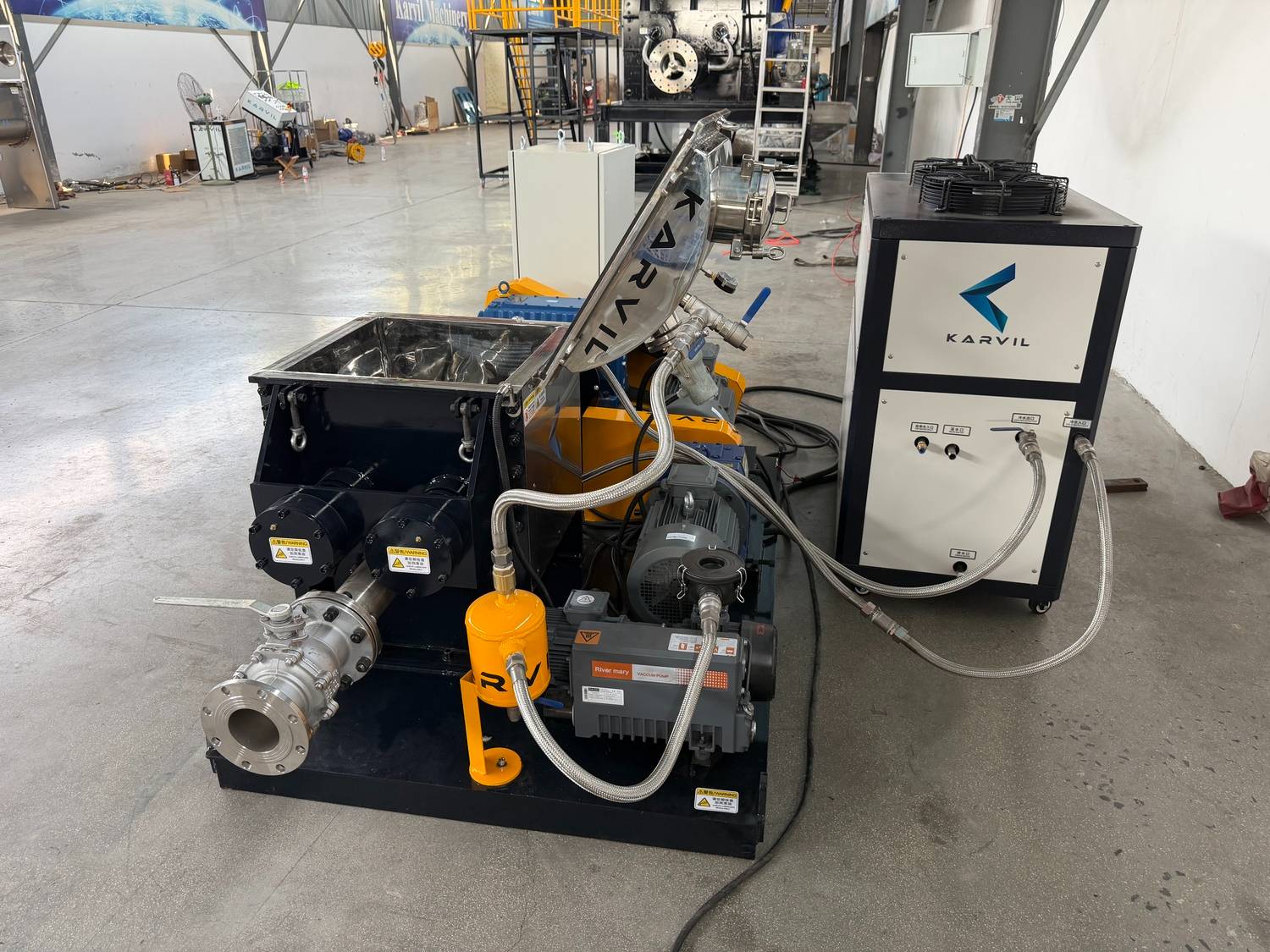

Unlike standard kneaders, this unit comes with an integrated 2P Heating & Cooling Chiller connected to the water jacket, ensuring strict temperature management to prevent silicone from curing prematurely.
Achieves up to -0.09Mpa vacuum degree. Includes a vacuum pump, buffer tank, and metal hoses, perfect for completely removing moisture and air bubbles from viscous pastes.

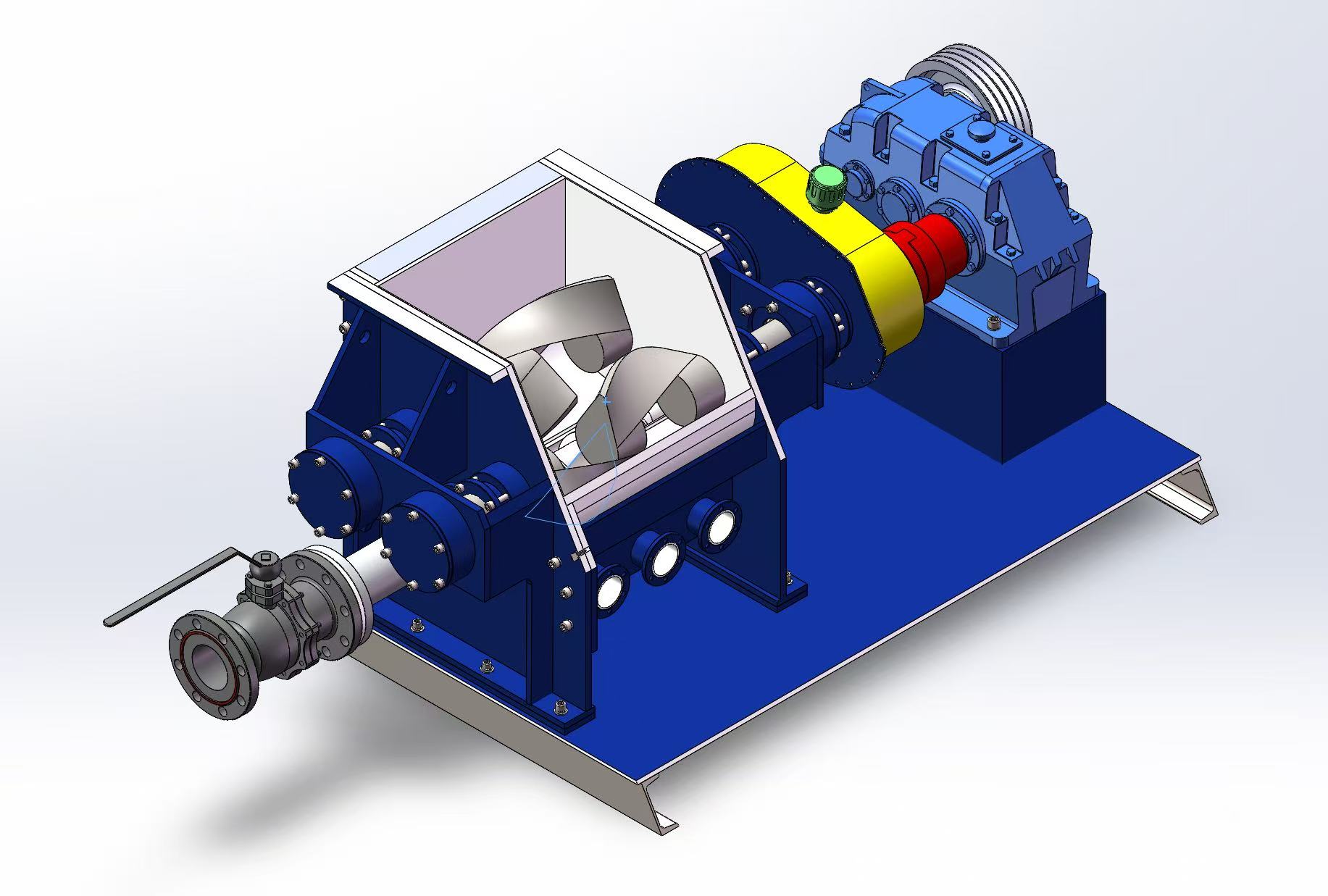

Say goodbye to manual scraping. The built-in bottom screw (Ø108mm, 0-65rpm) seamlessly extrudes the thickest silicone pastes, supporting forward and reverse rotation.
At Karvil Machinery, operator safety is paramount. This unit is built to international standards:
Smart Limit Switch
The mixer automatically stops functioning the moment the top lid is opened.
Dual-Circuit Emergency Stop
Upgraded safety relay ensures the E-stop works flawlessly even if primary relays fail.sible.
Safe Operating Voltagees
The control panel operates on a safe 24V current.
Premium Components
Fully equipped with Schneider electric parts, circuit breakers, and protective covers on all wiring terminals.

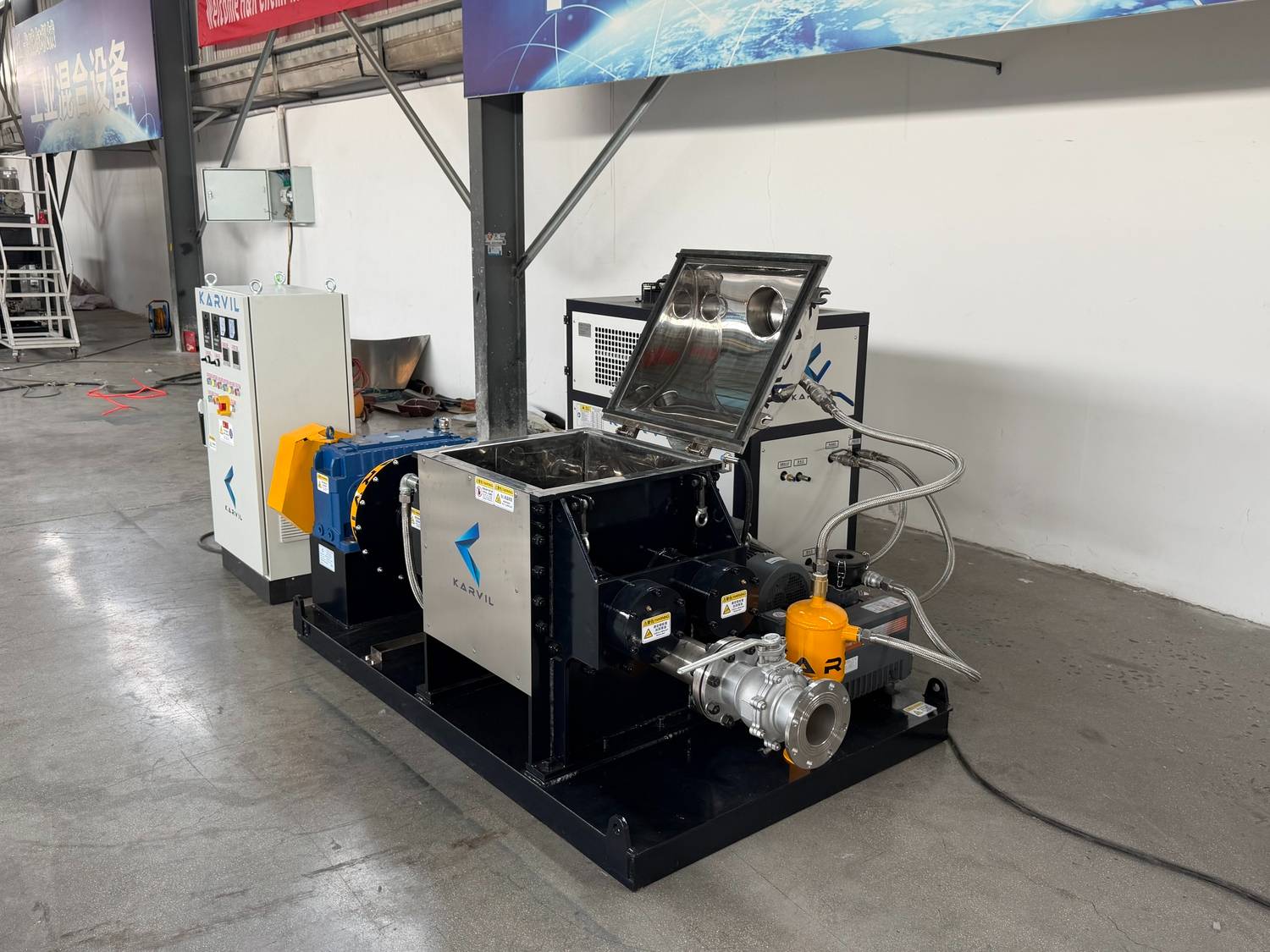

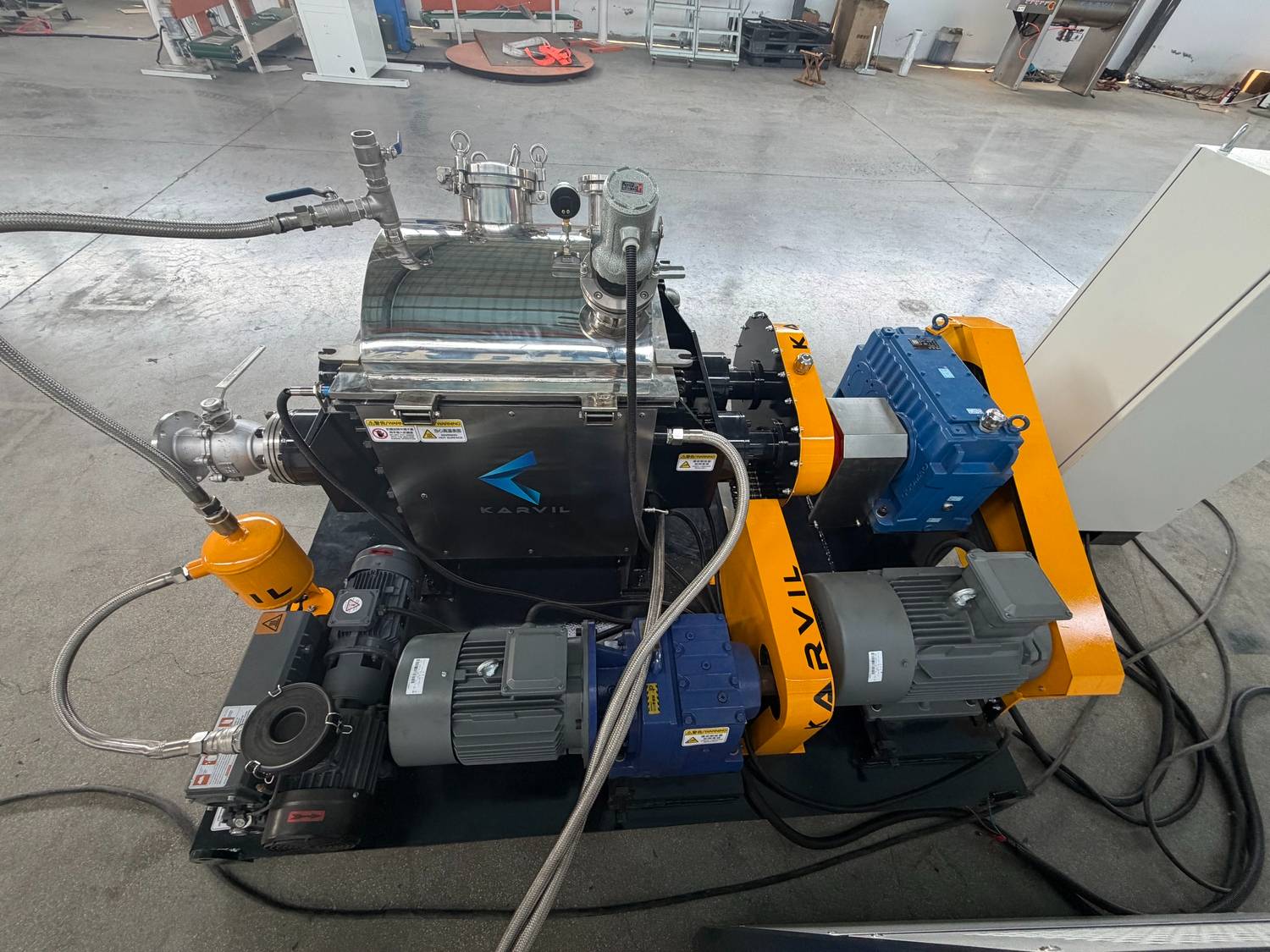

Check out the actual factory test run video above! This 100L Screw Extrusion Vacuum Kneader was customized and successfully tested for our client in Brazil, specifically designed for handling high-viscosity Silicone.
Type | NH-5 | NH-10 | NH-100 | NH-300 | NH-500 | NH-1000 | NH-1500 | NH-2000 | NH-3000 | NH-4000 | NH-5000 | |
Total Volume (L) | 5 | 10 | 100 | 300 | 500 | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 | |
Mixed amount/batch (L) | 1.5-3.5 | 3.0-7 | 30-70 | 90-210 | 150-350 | 300-700 | 450-1050 | 600-1400 | 900-2100 | 1200-2800 | 1500-3500 | |
Rotation Speed (rpm) | 42/34 | 42/34 | 37/21 | 37/22 | 37/23 | 37/26 | 37/22 | 30/21 | 30/21 | 30/20 | 28/18 | |
Main Motor Power (Kw) | 0.75-1.5 | 1.1-3 | 5.5-11 | 7.5-30 | 15-37 | 22-90 | 22-90 | 30-110 | 30-110 | 45-110 | 55-132 | |
Heating Methods | Steam Pressure (MPa) | Jacket for steam | ||||||||||
Electric Power (Kw) | 2.4 | 2.4 | 6 | 12 | 18 | 30 | 45 | 54 | 72 | 72 | 90 | |
Vacuum (MPa) | 0~ -0.096Mpa (Vacuum Kneader) | |||||||||||
Discharging Method | Tilting cylinder | |||||||||||
Screw extrusion | ||||||||||||
Trusted by Global Manufacturers in 50+ Countries. From silicone to adhesives, see how our Sigma Kneaders are solving complex mixing challenges for industry leaders worldwide.
Why does Karvil Machinery recommend a "Screw Extruder" for high-viscosity silicone instead of tilting discharge?
We offer a variety of high-quality materials for our cabinets, including solid wood, MDF, plywood, and laminate. Each material is carefully selected for Highly viscous and sticky materials like silicone rubber are extremely difficult to pour out or scrape manually. Karvil's built-in screw extrusion system acts like a powerful pump. Once mixing is complete, the screw seamlessly pushes the dense silicone out in a continuous, smooth stream. This ensures 100% safe, hands-free operation, minimizes material waste, and makes tank cleaning much faster.
How does the Temperature Control Unit (TCU) work with this kneader?
Can the vacuum system completely remove bubbles from the silicone?
What are the power supply requirements? My factory is outside of China.
How does Karvil Machinery handle after-sales service and installation for overseas buyers?
