Sigma mixers, also called z-blade mixers or sigma kneader mixers, are special tools for mixing thick, sticky materials. They have two Sigma-shaped blades that spin in opposite ways. This makes mixing thorough. The blades sit in a W-shaped trough. The trough often has a jacket to heat or cool the material. Their strong design lets them handle stuff that regular machines can’t mix well.
The main parts are:
· Mixing Blades: Sigma-shaped blades make strong pushing forces to mix thick stuff well.
· Trough: The W-shaped trough holds the material. It often has a jacket for temperature control.
· Drive System: A strong motor and gearbox keep the blades moving, even with heavy stuff.

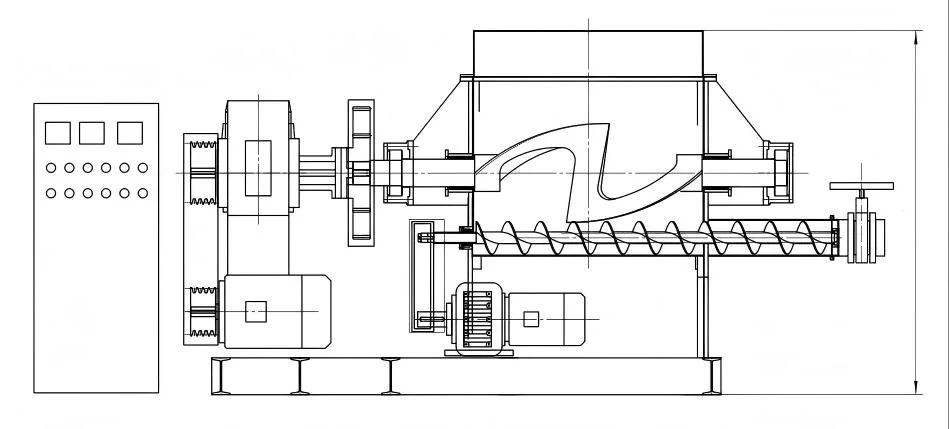

· Discharge Mechanism: Tilting discharging/Screw extruding discharging/Bottom plate.
· Vacuum System (Optional): Some models have a vacuum to pull out air bubbles while mixing.
Sigma mixers spin their blades in opposite directions inside the trough. This involves pushing, pulling, and folding actions. These actions mix high-viscosity materials evenly. If there’s a vacuum system, it removes air bubbles. The heating or cooling jacket keeps the material at the right temperature.
Sigma mixers are great for thick, sticky materials. They mix better than most machines. This makes them key in fields like food (gum, dough), medicine (creams, ointments), beauty (lipsticks, lotions), and chemicals (glue, rubber). They handle tough stuff like graphite or sealants. They ensure an even mix and good-quality products.
Sigma mixers help make gum, dough, and other thick food items. They mix ingredients evenly. This keeps the texture and quality the same every time.
The chemical industry uses these mixers for glue, sealants, silicone rubber, and graphite compounds. Their strong build handles super sticky stuff that regular mixers can’t.
Sigma mixers can handle tough materials like:
· Silicone rubber
· Glue
· Chewing gum
· Graphite compounds
The sigma-blade design mixes thoroughly. It makes strong pushing forces. This works well for thick or semi-solid stuff.
Regular mixers struggle with dense or sticky stuff. Sigma mixers do great here. Their solid build handles materials with tricky flow traits.
These mixers use power wisely. They handle heavy jobs without using too much energy.
Karvil’s sigma mixers have smart designs. They use Sigma-shaped blades that spin opposite ways for even mixing of thick stuff. Their solid build lasts a long time. They offer options like small lab models, vacuum systems, and heating or cooling jackets. These ensure great mixing for things like glue, rubber, and gum. Karvil’s mixers can be adjusted for different industry needs.
The blades are the heart of a sigma mixer. They’re Sigma-shaped and spin in opposite directions. This makes strong pushing forces. It ensures an even mix for thick stuff like silicone rubber, glue, or gum. The blade shape causes pushing, pulling, and folding actions. This makes the mix smooth, even for hard jobs.
These mixers are made to last. Their solid design handles heavy tasks without breaking. The trough holding the blades often has a jacket. You can heat or cool it with electric heat, steam, or water. This works for different material needs.
You can adjust these mixers for your needs. Options include:

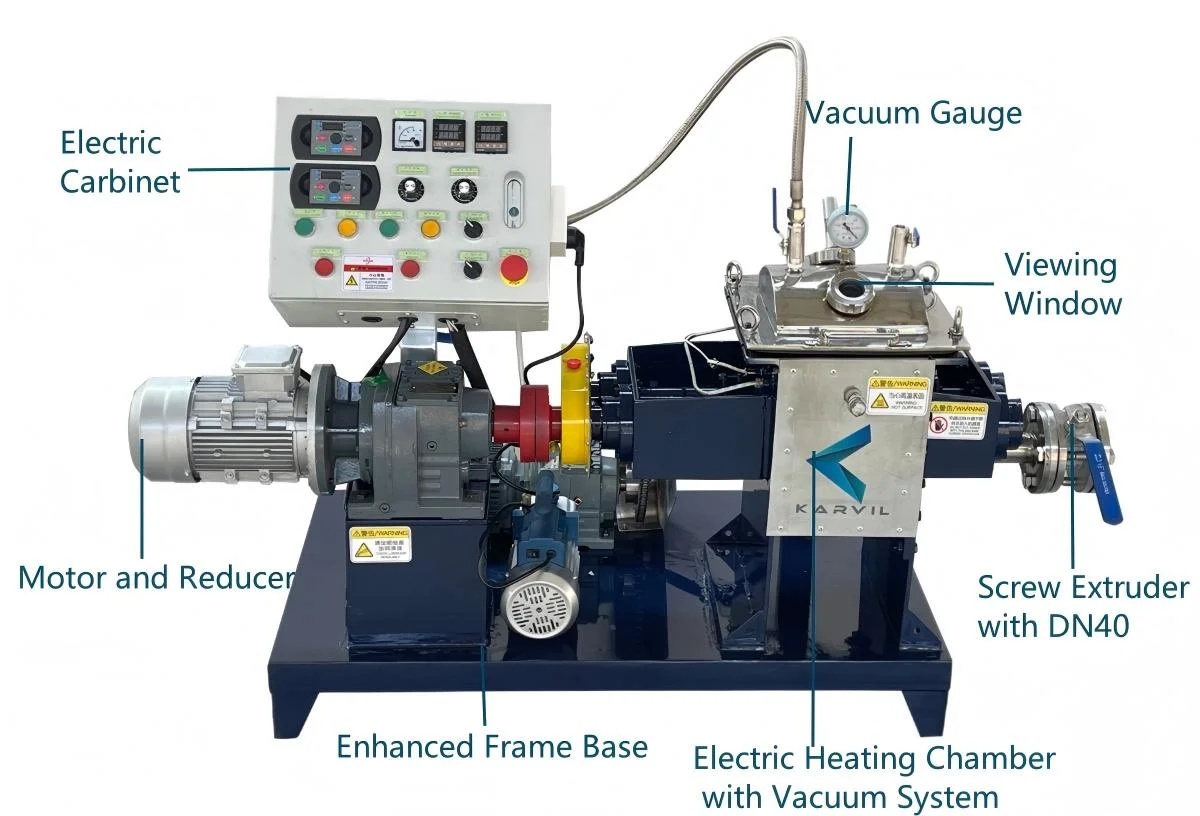

· Lab-scale models: Good for small batches or lab tests.
· Vacuum systems: Great for removing air bubbles while mixing.
· Heating or cooling jackets: Control temperature with oil, steam, or water systems.
These choices let you fit the mixer to your job.
When picking a sigma mixer, think about size needs (small for lab work or big for factories), material traits (how sticky or air-sensitive it is), and cleaning ease (easy-to-reach parts, automatic emptying). Choosing the right mixer ensures great results for thick or sensitive stuff.
Picking the right size is key. For small tests or lab work, choose lab-scale mixers. For big factory jobs, go for larger models. This keeps things running smoothly.
How sticky your material is matters. Sigma mixers are great for thick stuff like rubber or glue. If your material hates air bubbles, get a model with a vacuum system.
Easy cleaning saves time. Look for mixers with parts that are simple to clean or fix. Automatic emptying systems make work faster by cutting down on hand labor.
New tech makes mixers better. Improved blade shapes mix more evenly. Power-saving motors use less energy but still work well.
Being green is important now. New mixers save power and use materials that can be recycled. These changes help the planet and meet global green goals.
Q1: How are sigma mixers different from regular mixers?
A1: Sigma mixers handle thick, sticky stuff with strong pushing forces. Regular mixers work better for thin liquids or powders.
Q2: Can sigma mixers work with heat-sensitive stuff?
A2: Yes. Most have jackets to control temperature with heating or cooling systems.
Q3: Are there options for small jobs?
A3: Yes. Lab-scale sigma mixers work for small batches or research.
