This guide explains how to set up and use Sigma Kneader Mixers. These machines are common in industries like chemicals, medicines, and food. They mix thick, sticky materials well. This article covers space needs, room conditions, power requirements, and safety steps for installation. Karvil Machinery offers modern designs with strong stainless steel parts and smart controls for great performance. We also discuss picking the right model, planning for upkeep, and testing the machine to make sure it works perfectly. A FAQ section answers common questions about floor strength, terms, and how versatile the machines are.

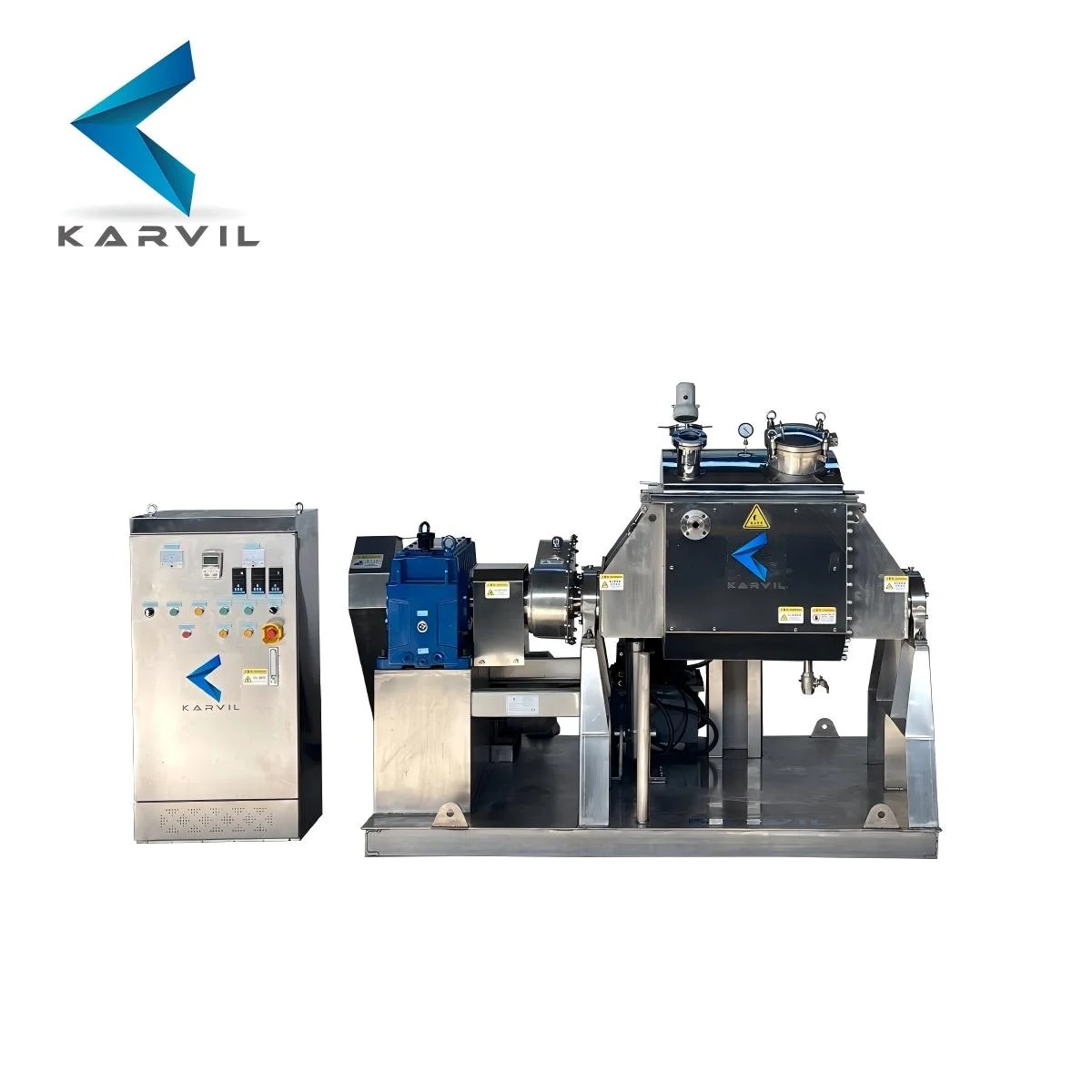

A Sigma Kneader Mixer, sometimes called a z blade mixer or sigma blade mixer, is built for blending and kneading very thick materials. It handles tough jobs well. You’ll see it in places that make things like silicone rubber, glue, graphite pastes, or even chewing gum. These mixers work in many fields, such as chemicals, medicines, and food, because they mix heavy, sticky stuff effectively.
The mixers come in different types. Some have vacuum features to remove air from sensitive materials. Others have extruders for easy unloading. For example, a sigma mixer with extruder uses a screw to push out thick materials automatically. For small tests or lab work, there are smaller versions. A lab sigma mixer is designed for tiny batches and research.
If you want a trustworthy supplier with clever and useful designs, Karvil Machinery is a great choice. They focus on building industrial mixers like sigma blade mixers, ribbon mixers, planetary mixers, and dispersing mixers. They also provide full production lines.
Karvil Machinery’s mixers have smart agitator designs. These ensure even mixing and steady power flow. Their machines use modern mixing ideas and strong technology. This makes mixing faster and better. They offer features like stainless steel parts, which resist rust, and PLC control systems. These systems let you watch and adjust things like speed and temperature during mixing. This keeps the process safe and accurate.
Before picking a model, look at your facility’s space. The machine’s size depends on its capacity. For instance:
· Lab scale models are about 1 to 2 meters long, 0.5 to 1 meter wide, and 1 to 1.5 meters tall.
· Industrial-grade Sigma Kneader Mixers can be 3 to 5 meters long.
Make sure there’s enough room for the machine and extra systems, like feeders or conveyors. Leave space around it for easy access.
Thick materials can be sensitive to their surroundings. Too much heat might make materials harden too soon. Cold temperatures can make them hard to move. Keep the room at a steady temperature to help the mixer work well.
Good airflow keeps workers safe by clearing out fumes from mixing. If you use powdery or reactive materials, a dust collection system is a must. It stops dust from spreading and keeps things safe.
The machine’s length depends on the mixing chamber’s size. The height comes from how parts are stacked. Always add at least 1 meter of space around the machine for repairs and checks.
Big mixers can be very heavy, weighing several tons when full. A weak floor might need extra support. Check your floor’s strength before setting up the mixer.
Use vibration pads under the machine’s anchor points. This reduces stress on the floor during use.
Most industrial Sigma Kneader Mixers need three-phase power, like 380V at 50Hz. Check if your local power matches this. If not, you may need adjustments.
Add circuit breakers and emergency stop buttons. These meet safety rules and keep workers safe.
Some mixers use compressed air for parts like discharge valves. Others need cooling water to manage heat during long runs. Plan for these based on your model.
Put the mixer near where raw materials are added. But leave enough space around it for repairs and access. This makes work easier.
Bolt the mixer to a strong platform. This stops it from moving when mixing heavy materials at high power.
You can connect the mixer to automated feeders, like screw feeders. These save time and make batches more consistent. For sticky or heavy materials, choose a sigma mixer with extruder for automatic unloading.
Keep walkways clear around the machine. Place emergency stop buttons where workers can reach them easily.
Put locked guards over gears and blades. This stops accidents during mixing or cleaning.
Set control panels at eye level near the machine’s entry. This lets workers check settings safely without entering risky areas.
The NH-5 works well in tight spaces. It’s great for labs or small-batch production. It delivers strong results without needing much room.
The NH-100 series is good for growing operations. It balances size and output, perfect if you have limited space but need more mixing power.
The NH--500 series and larger models are built for huge jobs. They have strong motors and big chambers for heavy industrial needs.
Leave room around bearings, seals, motors, and discharge ports. This makes regular checks easier without moving other structures.
Yes, if you plan access from the start. Hinged covers or removable panels make repairs quicker and simpler.
Use tools to check if the machine is level. Make sure all anchor bolts are tight. Check that the motor and gearbox are lined up properly before turning it on.
First, run the mixer empty with help from technical staff. Then, test it with small batches. Watch temperature and power readings using the machine’s sensors. Karvil’s technical support team can help check your site and setup.
Q1: Can I put a Sigma Kneader Mixer on any concrete floor?
A: Not always. These mixers can be very heavy. A weak floor may need extra strength. Check your floor’s load limit before installing.
Q2: Is a z blade mixer different from a Sigma Kneader Mixer?
A: No, they are the same. Both names describe a machine for mixing thick materials. A sigma mixer is also called a z blade mixer or sigma kneader mixer.
Q3: Can one machine work for different products?
A:Yes, many models have flexible designs. You can adjust them for different tasks. Karvil’s mixers use a modular design, which adapts to various processes easily.
