What Is the Capacity Range of Sigma Kneader Mixers in Industrial Use?

Views: 1     Author: Site Editor     Publish Time: 2025-07-31      Origin: Site

What Is the Capacity Range of Sigma Kneader Mixers in Industrial Use?

What Is the Capacity Range of Sigma Kneader Mixers in Industrial Use?

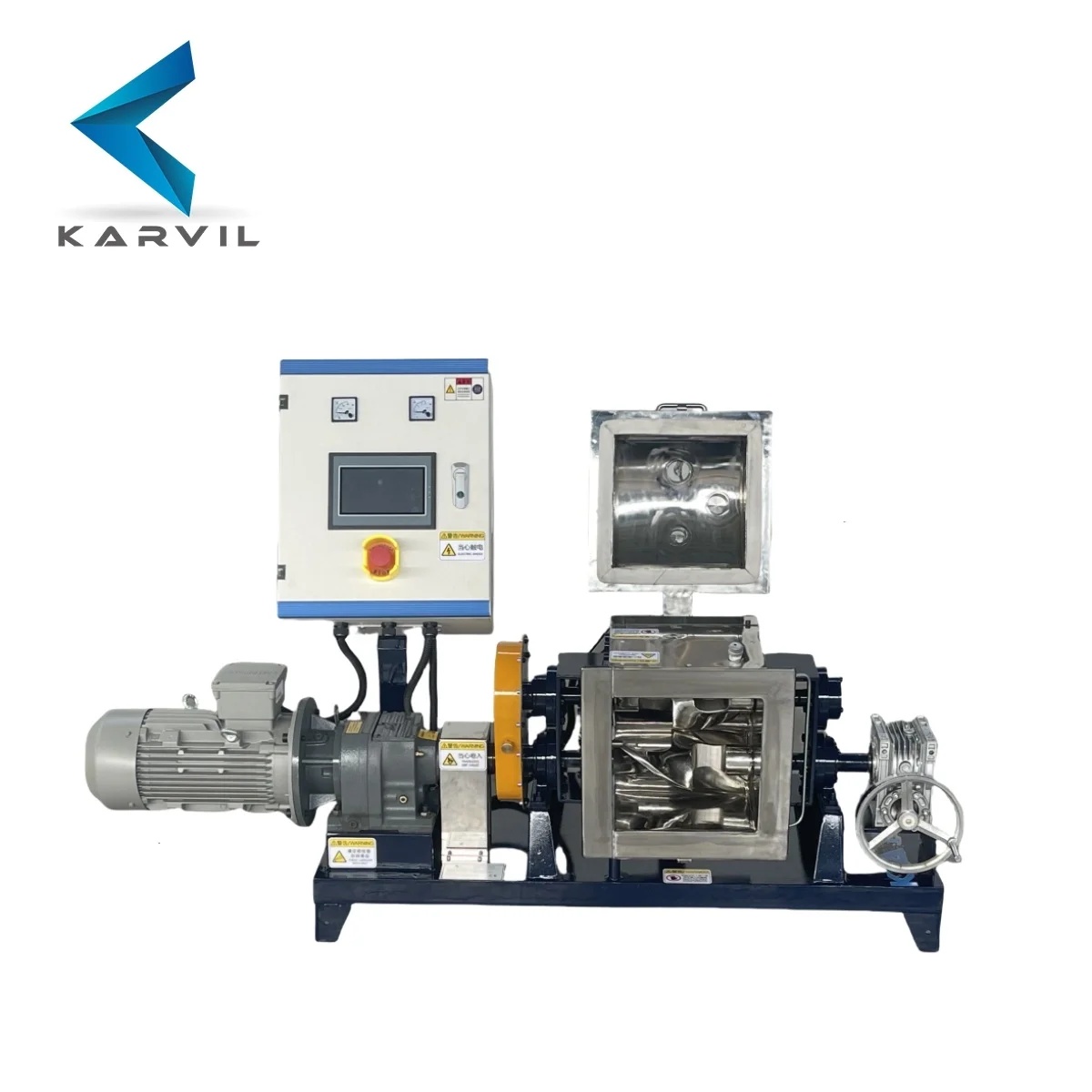

The Sigma Kneader Mixer, also known as the Z blade mixer, is a tough machine made for mixing thick, gooey stuff. It works well with sticky materials like rubber or dough. The mixer has two blades shaped like the Greek letter sigma (Σ). These blades sit in a W-shaped cylinder. They spin in opposite directions at different speeds. This creates a strong tugging and folding motion. So, it mixes tough materials nicely.

What Are Sigma Kneader Mixers Used for in Industrial Applications?


Sigma Kneader Mixers are awesome for mixing heavy, sticky stuff that other mixers can’t handle. They work with things like silicone rubber, glue, or chewing gum. Their design makes strong mixing forces. This makes them great for thick pastes or semi-solid stuff.

How Does the Structural Design and Working Principle Enable Efficient Mixing?


The mixer’s unique setup makes it mix well. The two sigma-shaped blades move in different ways. One might spin quicker than the other. This makes a strong pushing and pulling action. The W-shaped cylinder keeps the material moving around. As a result, everything gets mixed evenly. Unlike regular mixers, which are better for liquids or light powders, Sigma Kneader Mixers are made for tough, sticky materials. They make sure every bit of the mix is blended properly.

Where Are Sigma Kneader Mixers Commonly Applied Across Industries?


These mixers are used in lots of places. For example, you’ll find them in chemical factories, drug-making plants, glue production, food businesses, and rubber factories. Sigma Kneader Mixers can handle hard-to-mix stuff like silicone sealants or special rubbers. They make sure the final product is smooth and even, no matter how tough the job is.

What Factors Influence the Capacity Range of Sigma Kneader Mixers?


Several things decide how much a Sigma Kneader Mixer can mix at once. Let’s look at them one by one.

Why Do Material Viscosity and Processing Requirements Matter?


How sticky the material is matters a lot. Really gooey stuff, like hot melt glue or silicone rubber, needs more power to mix. It also takes longer to blend well. For these, smaller batches are better to keep the mix even. But less sticky materials can be mixed in bigger amounts without losing quality. So, the material’s thickness decides how much the mixer can handle.

How Does Batch vs. Continuous Operation Affect Capacity?


Most Sigma Kneader Mixers mix one batch at a time. This is good for tricky materials that need careful mixing. However, some mixers have a screw discharge system. This pushes out the mixed material automatically. It makes the process feel a bit like continuous mixing. This setup boosts output while still controlling the mix.

What Role Do Motor Power and Torque Play?


Thick materials need strong motors. The motor has to give steady power, especially when the material gets super sticky. A good motor keeps the blades moving smoothly, even during tough mixing moments. Bigger mixers need stronger motors to handle larger amounts.

How Do Chamber Volume and Blade Configuration Impact Output?


The size of the mixing chamber is super important. A bigger cylinder can hold more material per batch. The shape and angle of the blades also change how the material moves inside. If the blades are designed well, the mixer can handle more without slowing down. Good blade design keeps mixing smoothly and fast.

What Capacity Ranges Are Typical in Industrial Settings?


Sigma Kneader Mixers come in different sizes for different tasks. Here’s a quick look at the main types.

How Are Small-Scale Units Used in Labs and R&D Facilities?


Small mixers, with sizes from 2L to 50L, are perfect for labs. They’re used to test new recipes or make small batches. These Sigma Kneader Mixers are great for industries like cosmetics or special chemicals. They help researchers get the mix just right before making bigger batches. Getting it exactly is super important in these small units.

What Is the Role of Mid-Capacity Mixers in Standard Production Lines?


Mid-size mixers, from 100L to 500L, are common in factories. They’re awesome for making things like rubber compounds or industrial glues. These mixers are big enough to make a good amount but small enough to save energy and be easy to clean. They fit nicely in many production setups.

Why Choose Large-Capacity Units for High-Volume Manufacturing?


Big Sigma Kneader Mixers, from 1000L to 10000L, are made for huge jobs. They handle large amounts of thick stuff, like sealants or rubber compounds. These mixers often have automatic feeding systems or special ways to empty, like screw extrusion or tilting cylinder. These features make big production faster and easier.

Can Customization Enhance Capacity Flexibility?


Yes, you can change Sigma Kneader Mixers to fit your needs. Here’s how that works.

How Do Variable Speed Drives and Temperature Controls Help?


Some mixers have speed controls you can adjust. These let you change how fast the blades spin based on the material. For example, you might start slow and then speed up. Temperature controls are also key. They keep the mix at the right heat, which is important for stuff like plastics or sensitive chemicals. Karvil mixers often have smart systems. These watch and tweak speed and temperature as the mix happens.

Why Incorporate Vacuum or Inert Atmospheres?


A vacuum system can pull out air bubbles from thick mixes. This is important for things like electronic sealants or medical-grade materials. Using an inert gas, like nitrogen, stops the material from reacting with air. This keeps the mix safe and top-quality, especially for delicate products.

Can Contact Surfaces Be Tailored for Different Materials?


Yes, you can customize the mixer’s surfaces. For example, stainless steel is great for drug-making because it doesn’t rust. Special coatings can be added for rough or sticky materials. This makes the mixer last longer and keeps the product clean.

Which Sigma Kneader Mixer Should You Choose From Karvil’s Lineup?


Karvil Machinery is famous for making awesome Sigma Kneader Mixers. They have machines for all kinds of jobs, from tiny lab tests to huge factory production. Karvil uses cutting-edge technology and careful quality checks to make sure their mixers work great every time.

What Capacities Does Karvil Offer Across Its Product Range?


· Entry-Level Models (2L–50L): These are perfect for research labs. They help make exact recipes for small batches.

· Mid-Tier Solutions (100L–500L): These are great for factories making different products. They balance size and output.

· High-Capacity Units (1000L–10000L): These are for big factories needing to mix tons of tough materials.

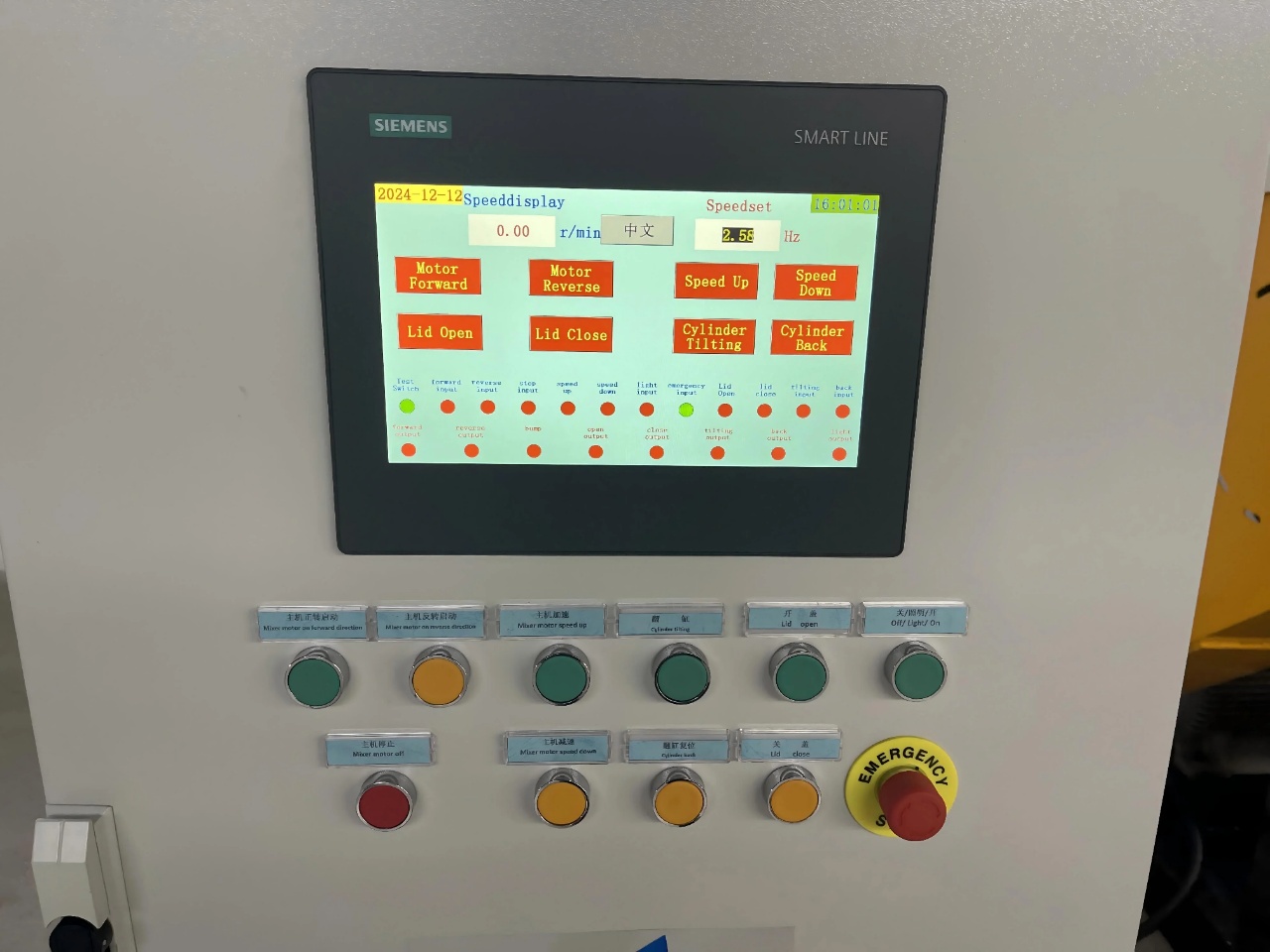

Titl-Kneader-Mixer-with-PLC-System

Karvil also has small machines for research and bigger ones for mass production. Their mixers often come with smart PLC systems. These make it easy to find the best mixing settings for your product.

How Seamlessly Can You Integrate These Mixers into Your Production Line?


Is Automation Supported by Control Systems Integration?


Karvil mixers use modern PLC systems. These hook up easily with factory software like SCADA or MES. You can check things like mixing speed, temperature, or power use as it happens. This helps manage recipes and keeps production steady across shifts.

Are Maintenance Access Points Designed With Safety in Mind?


Safety comes first for Karvil. Their mixers have things like pressure sensors and emergency stop buttons. They also have overload protection to stop the machine from breaking. Easy-to-reach panels make cleaning and fixing simple. This cuts downtime and keeps workers safe.

What Trends Are Shaping Future Developments in Mixing Technology?


The world is always changing. Here’s what’s new and exciting.

Why Is Modular Design Becoming More Important?


Factories want machines that can grow with them. Modular designs let you add parts, like extra tanks or stronger motors, as your business gets bigger. Karvil mixers use this idea. It makes them flexible for different jobs without needing a brand-new machine.

How Does Energy Efficiency Influence Equipment Selection Today?


Saving energy is super important now. It cuts costs and helps the planet. Karvil makes mixers with efficient motors and clever blade shapes. These can save 20% to 30% on energy. Some models even use clean energy tech. Picking an energy-saving mixer helps you meet green goals while keeping production strong.

FAQs


Q1: Can I use one Sigma Kneader Mixer for different products?


A1: Yes, with changes like swap-out blades or speed tweaks, one mixer can handle different products with similar thickness.

Q2: What discharge method should I pick?


A2: For super sticky stuff, screw extrusion is best to cut waste. Tilting systems are good for quick batch switches.

Q3: Is a vacuum system needed if my materials aren’t reactive?


A3: Even for non-reactive stuff, a vacuum helps get rid of air bubbles. This makes the mix smoother and stops problems later.
