DMC is hard to mix because resin, mineral fillers, additives, and glass fibres do not behave like a free-flowing liquid. The batch becomes dense and sticky, yet excessive shear can shorten the fibres that support the final part’s strength. Poor blade geometry leaves dry filler pockets. Weak temperature control changes resin viscosity. Slow discharge turns each batch change into a scraping job.
The best sigma kneader mixer for DMC is not simply the machine with the largest motor. It should give you controlled kneading, repeatable temperature, safer operation, and a discharge system made for non-flowing compounds. Karvil Machinery develops equipment for high-viscosity materials, powders, food products, fine chemicals, adhesives, pastes, and ceramics. Its industrial mixer range includes sigma mixers, ribbon mixers, planetary mixers, dispersing equipment, reactors, and production lines.
A DMC mixer needs strong kneading action, but more force is not always better. Resin and filler must be folded, compressed, and redistributed without turning the glass reinforcement into excessively short fibres. This balance starts with blade shape, speed ratio, and clearance.

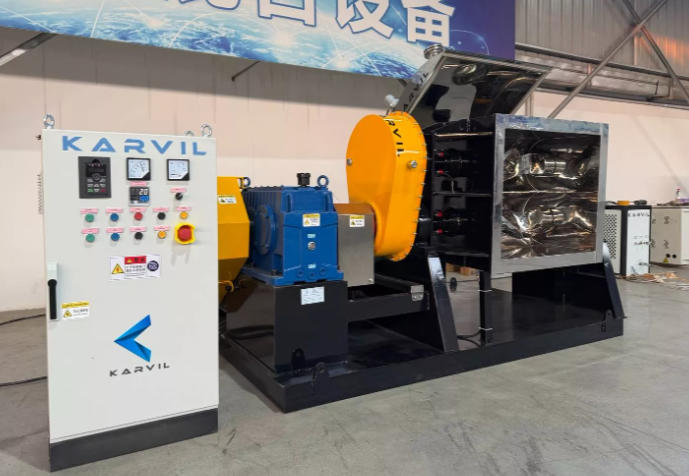

Double Sigma blades, also called Z-blades, rotate at different speeds and create repeated folding and shearing. In the 300-litre Sigma Kneader Mixer for DMC, the fast blade runs from 0 to 37 rpm and the slow blade from 0 to 22 rpm through variable-frequency control. Calibrated clearance supports resin and filler mixing while reducing unnecessary fibre damage. The geometry also pulls material away from corners where unmixed resin or dry powder can collect.
Do not ask only how powerful the motor is. Ask how blade profile, speed ratio, wall clearance, and end-plate clearance match your formula.
DMC does not need one fixed speed from loading to discharge. Early wetting, filler incorporation, glass-fibre addition, final kneading, and cleaning place different loads on the drive. Variable speed lets you change the process instead of forcing every formula through one setting.
A lower start speed can reduce sudden load peaks as heavy ingredients enter the bowl. Speed can rise while resin wets the filler, then drop after glass fibres are added. This staged method can protect fibre length and limit friction heat.
The featured model has a 300-litre total volume, a 210-litre effective volume, and a 30 kW four-pole main motor. Filling level, bulk density, fibre content, viscosity, and cycle time still affect the actual load. The company background shows that equipment can be designed around specific production needs rather than treated as a fixed catalogue item.
Temperature changes viscosity, wetting, reaction rate, and discharge behaviour. A few degrees can make a dense compound move more freely or begin reacting earlier than planned. You need stable heat transfer, not just a temperature number on the screen.
A jacketed sigma mixer can use electric heating, hot water, thermal oil, steam, or cooling water. Laboratory units may also use electromagnetic induction heating for gentler control of heat-sensitive materials. Electric heating is convenient for standard work. Thermal oil suits even high-temperature processing. Steam transfers heat quickly, while cooling water removes friction heat.
The DMC model supports steam or oil heating and water cooling. This keeps resin viscosity within a workable range and lowers the risk of premature curing or heat damage. During trials, compare the set, measured, and actual material temperatures. They are not always identical, and that small gap can explain a large batch difference.
A uniform batch is not useful if a large part stays in the bowl. DMC does not drain like liquid, so discharge design affects labour, product recovery, cleaning time, and cross-contamination risk.
The featured mixer uses a hydraulic cylinder to tilt the bowl by up to 90 degrees. Dense material can move toward the receiving container with less manual scraping. Screw extrusion may suit other high-viscosity products when you need steadier transfer into the next process. Bottom-plate discharge is another available configuration, though it fits fewer sticky recipes.
Hydraulic tilting is practical for many DMC batches. Screw discharge becomes attractive when controlled feeding matters more than simple batch dumping. Karvil Machinery lists tilting, screw extrusion, and bottom discharge among its customizable kneader options.
DMC may contain calcium carbonate, glass fibres, and other abrasive fillers. Over time, worn or scratched surfaces trap residue, slow cleaning, and may add unwanted particles to later batches.
The standard 300-litre configuration uses mirror-polished SUS304 for product-contact parts. SUS316L can be selected where stronger corrosion resistance or stricter hygiene is needed. Mild steel may suit some non-corrosive industrial duties, but the final choice should follow the material, cleaning chemicals, operating temperature, and expected service life.
Mirror polishing reduces rough areas where sticky compound can cling. A sealed lid with two sight glasses, including one with an integrated light, lets operators check the batch without repeatedly opening the vessel. It sounds like a small detail, but it becomes useful with dark, heavily filled materials.
A mixer should be reviewed as part of the complete work area. Operators load ingredients, inspect the bowl, clean the blades, and work near a high-torque drive. These jobs need guards, interlocks, clear controls, and a safety level suited to the plant.
Karvil Machinery designs can include an emergency stop when the lid opens and covers around transmission points so operators cannot reach moving parts. CE certification supports European safety and performance requirements. ATEX-certified configurations are available for suitable potentially explosive environments, but the project still needs review of the zone, material hazard, motor, electrical parts, and non-electrical ignition risks.
Food producers also care about sanitary contact materials. FCM-certified materials are available, and the product materials have passed EU food-contact testing in line with Regulation (EC) No 1935/2004, which applies to materials and articles intended to contact food.
DMC may be your main application, but wider process experience still matters. Similar kneading challenges appear in silicone rubber, adhesives, sealants, carbon paste, chewing gum, protein bars, ceramics, regulated explosive compounds, and aerospace formulations such as rocket propellants. Planetary mixers overlap in battery slurry, dental materials, sealants, and other high-solid formulas. Ribbon mixers are better suited to powders such as flour, ice-cream powder, and dry mortar.
Karvil Machinery reports exports to more than 50 countries and experience across many industries. Its application information and downloadable technical brochure help you compare equipment types. Capacity, contact material, heating, vacuum, controls, voltage, safety level, and discharge method can be adjusted to the project.
After delivery, support includes a one-year warranty, full-English operating manuals, electrical drawings, remote installation guidance, video instruction, online maintenance help, and remote engineer support. Lifetime technical consultation is also available. For an overseas buyer, good documents matter. A solid machine with a vague wiring diagram can still waste a week.
Q1: What Makes a Sigma Kneader Mixer Suitable for DMC?
A: Double Z-blades provide folding and shear for dense resin and filler, while controlled clearance and variable speed help reduce glass-fibre damage and unmixed dead zones.
Q2: What Is the Best Discharge Method for DMC?
A: Hydraulic tilting is practical for sticky batch discharge and easier cleaning. Screw extrusion suits processes that need steadier transfer to downstream equipment.
Q3: Can a Sigma Kneader Mixer Heat and Cool the Batch?
A: Yes. Jacket options can use electric heating, thermal oil, steam, hot water, or cooling water. The best choice depends on the resin, target temperature, heat sensitivity, and cycle time.
Q4: Is an Explosion-Proof Motor Enough for ATEX Use?
A: No. The full machine and installation should be reviewed for the specified hazardous area, including electrical parts, hot surfaces, mechanical friction, static risk, controls, and site conditions.
Q5: What Information Should You Send Before Requesting a Quotation?
A: Provide the material description, batch weight, density, starting and final viscosity, fibre content, target temperature, cycle time, preferred discharge, cleaning method, voltage, and required certificates.
