Views: 23 Author: Site Editor Publish Time: 2026-03-26 Origin: Site
When a client crosses the globe to order from you again, it’s the ultimate validation of equipment reliability.

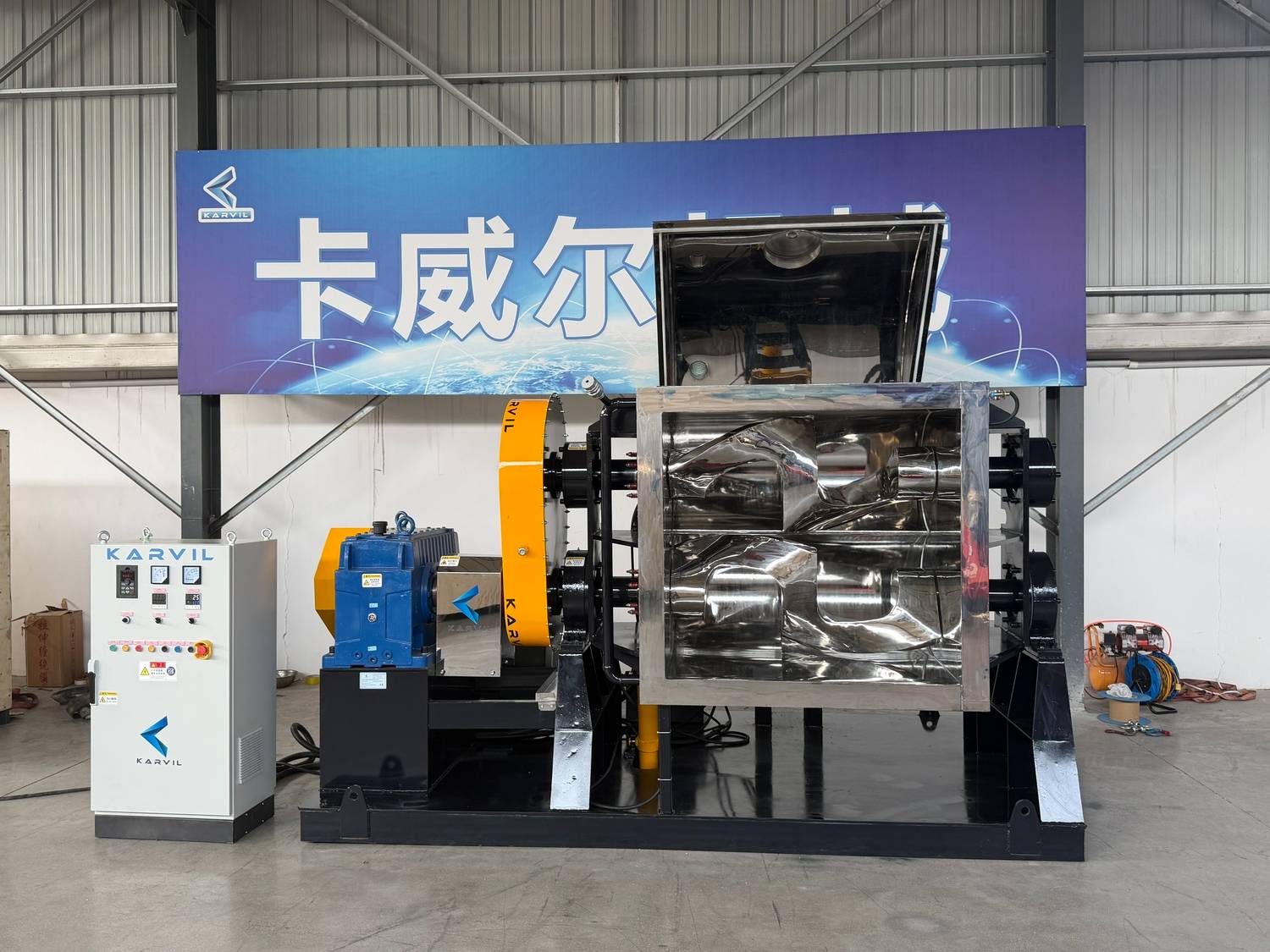

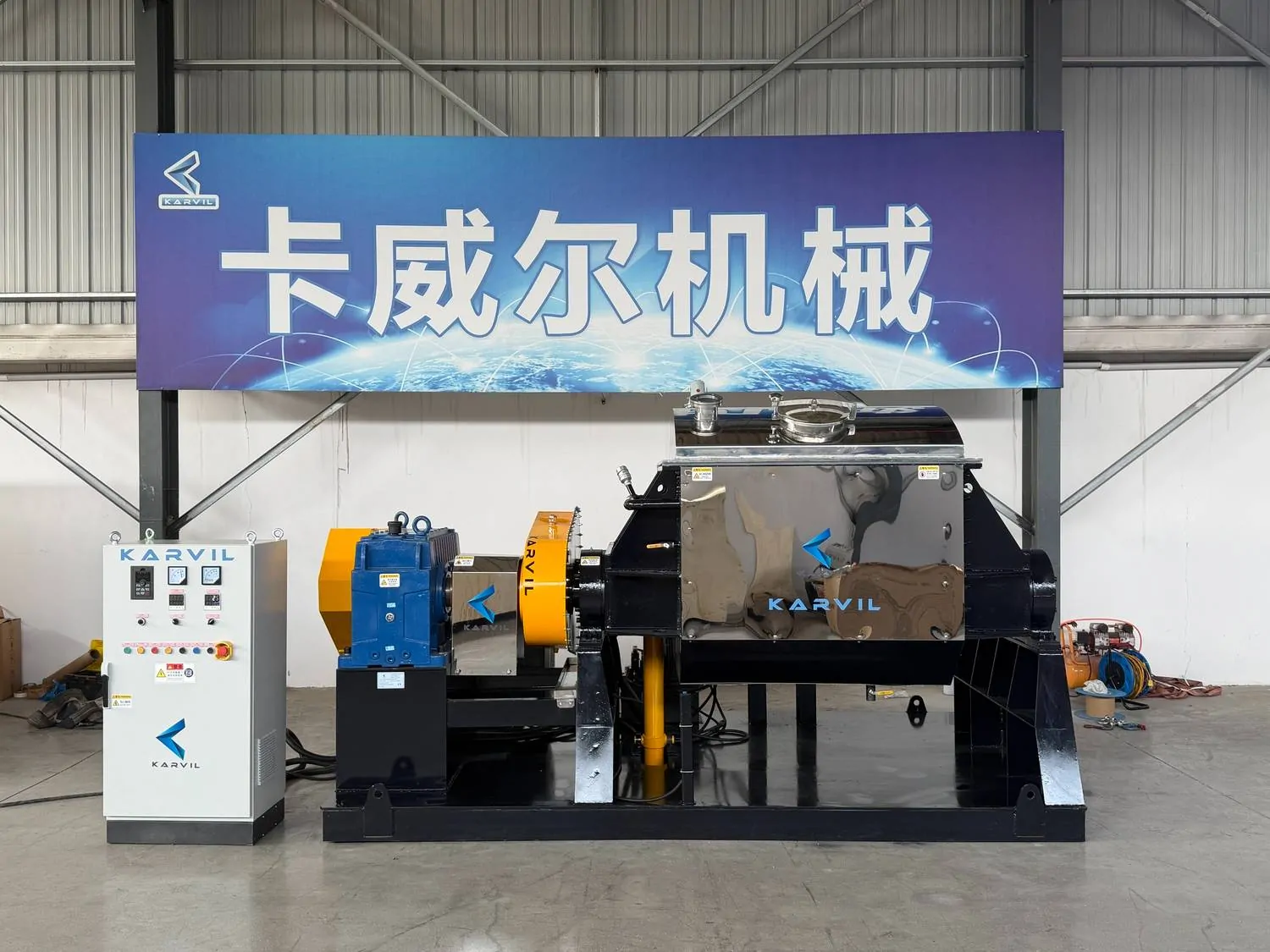

Recently, our engineering team successfully completed the Factory Acceptance Test (FAT) for a custom-built 1000L Electric Heating Sigma Kneader. This powerhouse machine is now packed and on its way to a repeat customer in South Africa, where it will be deployed for the high-demand production of putty-type adhesives and butyl putty.
Processing extremely viscous and sticky compounds has always been a challenge in the adhesive industry. Standard mixers often struggle with motor strain, chronic shaft leakage, and difficult cleaning processes.
To solve these exact pain points, we engineered this 1000L Sigma Kneader with upgraded power, zero-leakage sealing technology, and uncompromising safety standards.
If you are manufacturing thick, heavy-duty sealants or adhesives, here is why this machine is built for your production floor:
1. Unstoppable Kneading Power

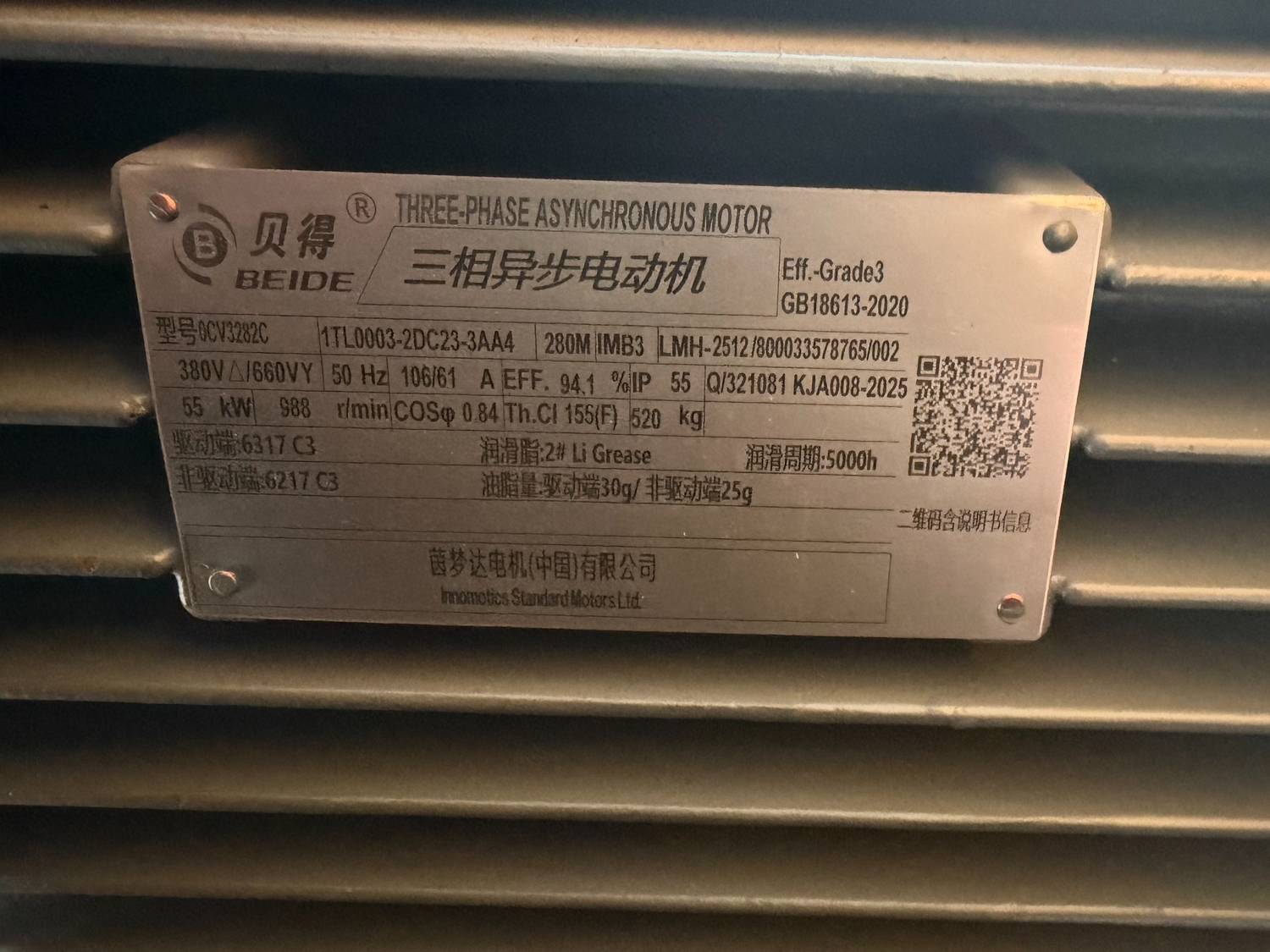

At the heart of this mixer is a robust 55kW (6-pole) Siemens Beide motor. Paired with our classic, heavy-duty Sigma (Σ) blades, it delivers immense shearing and folding force. Whether it's tough butyl rubber or dense putty, the machine ensures a homogeneous mix without stalling or overheating.
2. Zero-Leakage & Easy-Maintenance Sealing
Sticky materials escaping through the shaft is a nightmare for maintenance teams. We’ve designed an innovative combined stuffing box utilizing PTFE packing and PTFE seals. Not only does this guarantee zero leakage, but the accessible design allows your operators to replace the packing quickly—without the need to dismantle the entire shaft assembly. Minimal downtime, maximum efficiency.
3. Mirror-Polished for Zero Sticking

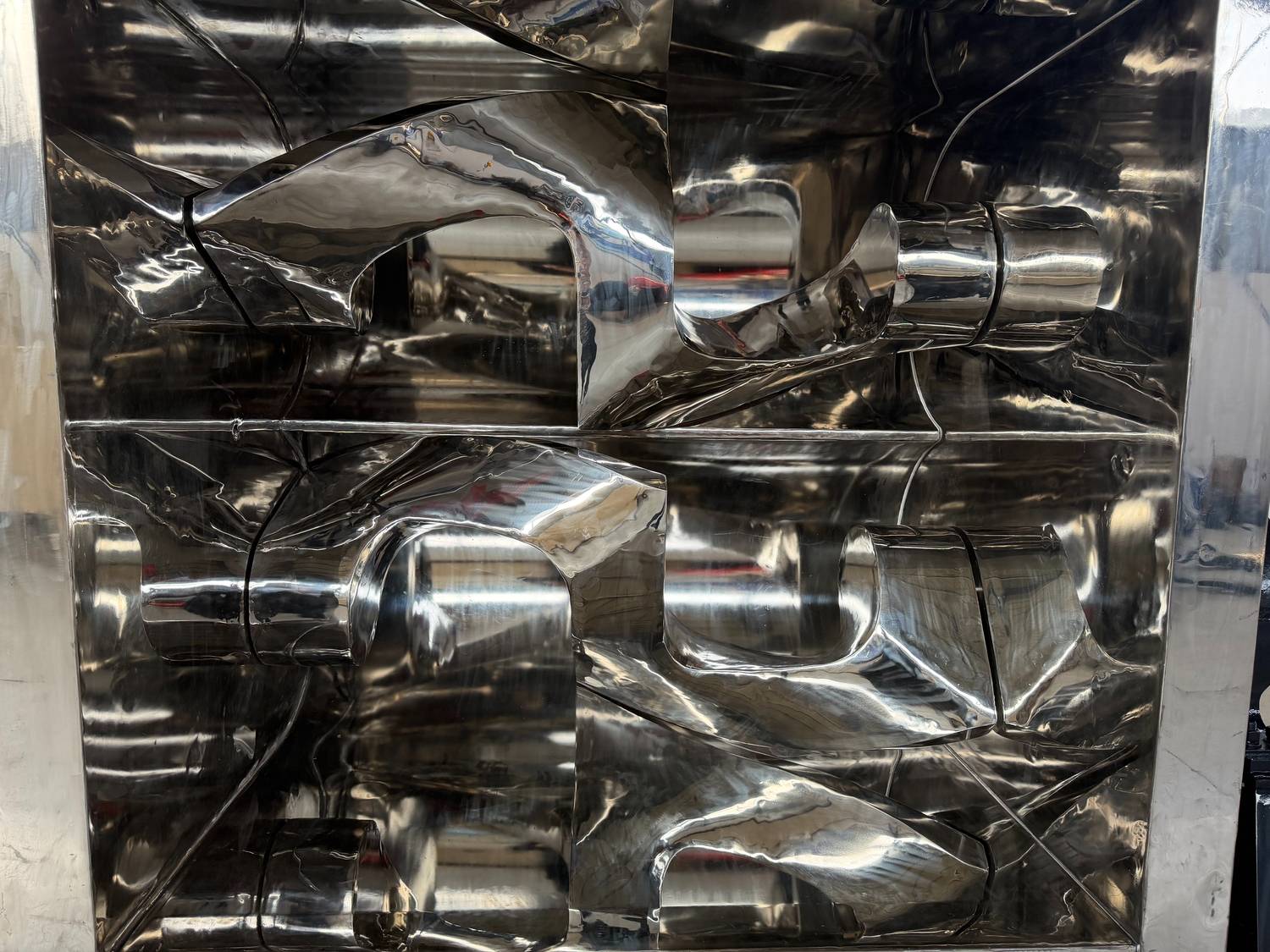

To tackle the sticky nature of putty, all wetted parts—including the mixing chamber, Sigma blades, and top cover—are crafted from premium SS304 stainless steel and treated with a high-grade mirror polish. This ultra-smooth surface significantly reduces material residue, making batch changeovers and cleaning exceptionally fast and hygienic.
4. Advanced Safety & Process Control
Operator safety is our top priority. The mixer comes standard with an auto-stop limit switch—the moment the top cover is opened, the blades come to an immediate halt. Furthermore, the large DN-300 manhole is equipped with dual sight glasses and a high-intensity inspection lamp, giving operators a clear, safe, and real-time view of the kneading process.
5. Smooth Hydraulic Discharge

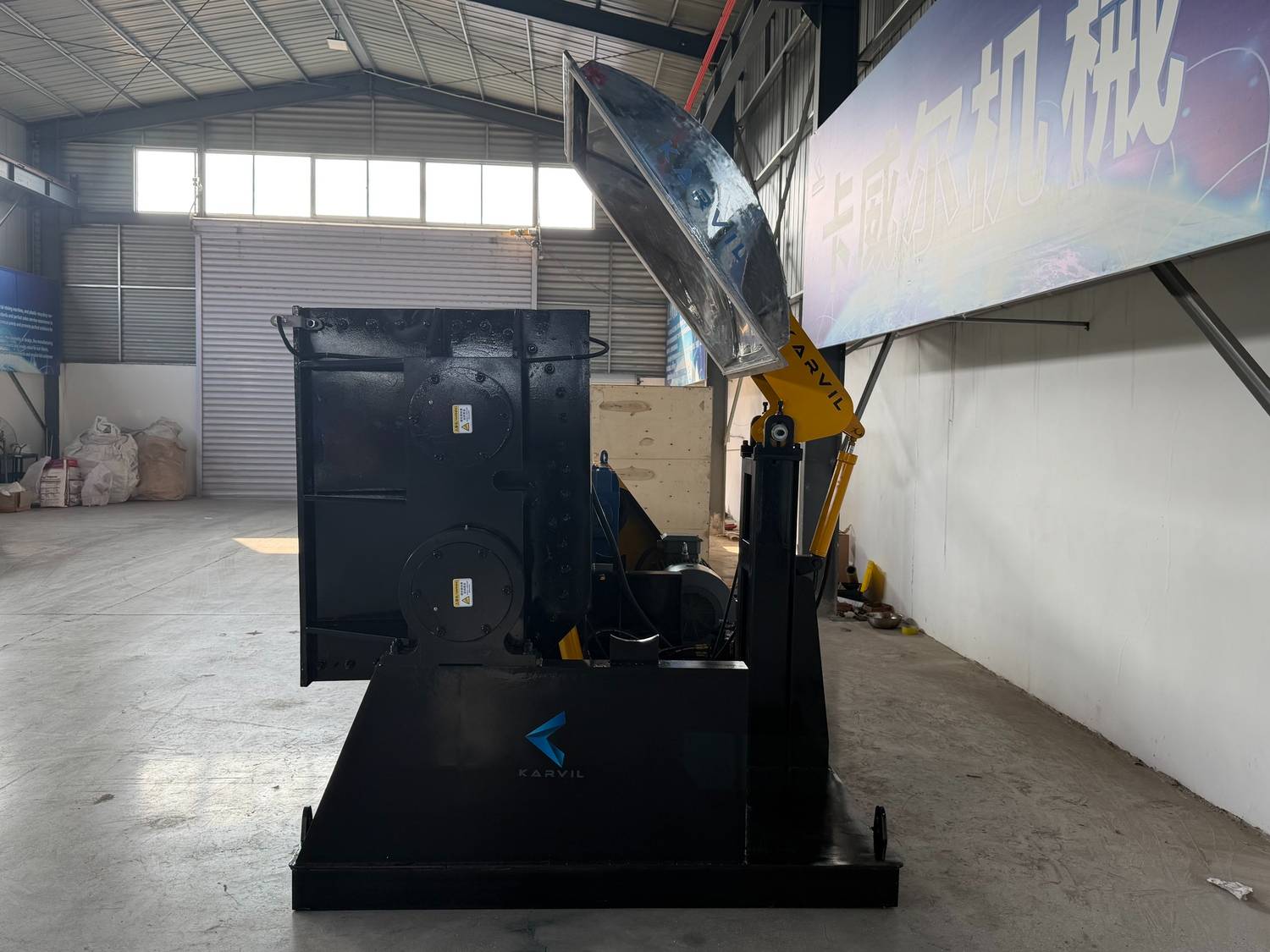

Discharging dense, heavy batches is effortless thanks to the independent 2.2kW Siemens hydraulic station, which smoothly tilts the 1000L chamber to the optimal angle for fast and clean material transfer.
Before shipping, every machine undergoes strict empty-load and operational testing. Watch the video below to see the smooth operation of the Siemens motor, the instant-response safety switch, and the seamless hydraulic tilt action.
Are you struggling with mixing high-viscosity adhesives, sealants, or doughs? Our Sigma Kneader Mixers can be fully customized with thermal oil heating, cooling jackets, vacuum systems, and tailored discharge methods to meet your exact formula requirements.
Ready to boost your production efficiency?
