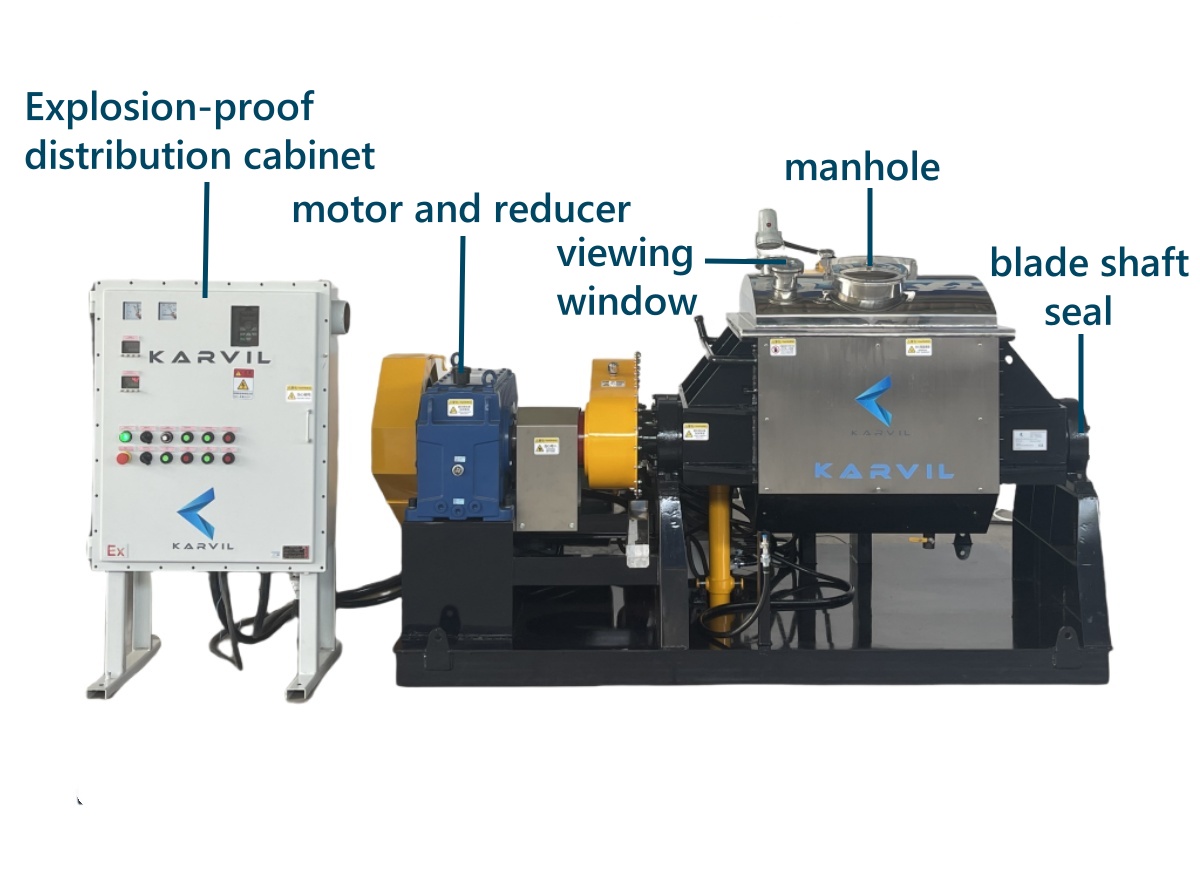

![Explosion-Proof-Sigma-Kneader-Mixer]( "Explosion-Proof-Sigma-Kneader-Mixer")
Standard Design（Customizable）:
Material: SUS 304, 316 or mild steel
Discharging: Tilting discharging/Screw extruding discharging/Bottom plate
Heating: Electric heating/Water heating/Oil heating/Steam heating
Cooling: Water cooling/Jacket cooling
Vacuum: Water-ring vacuum pump/ buffer tank.
Motor: Explosion proof motor
Independent Control Panel: Variable speed/ Temperature/Discharging
Working Volume: 5 to10,000 Cubic Feet (from experiment to production)

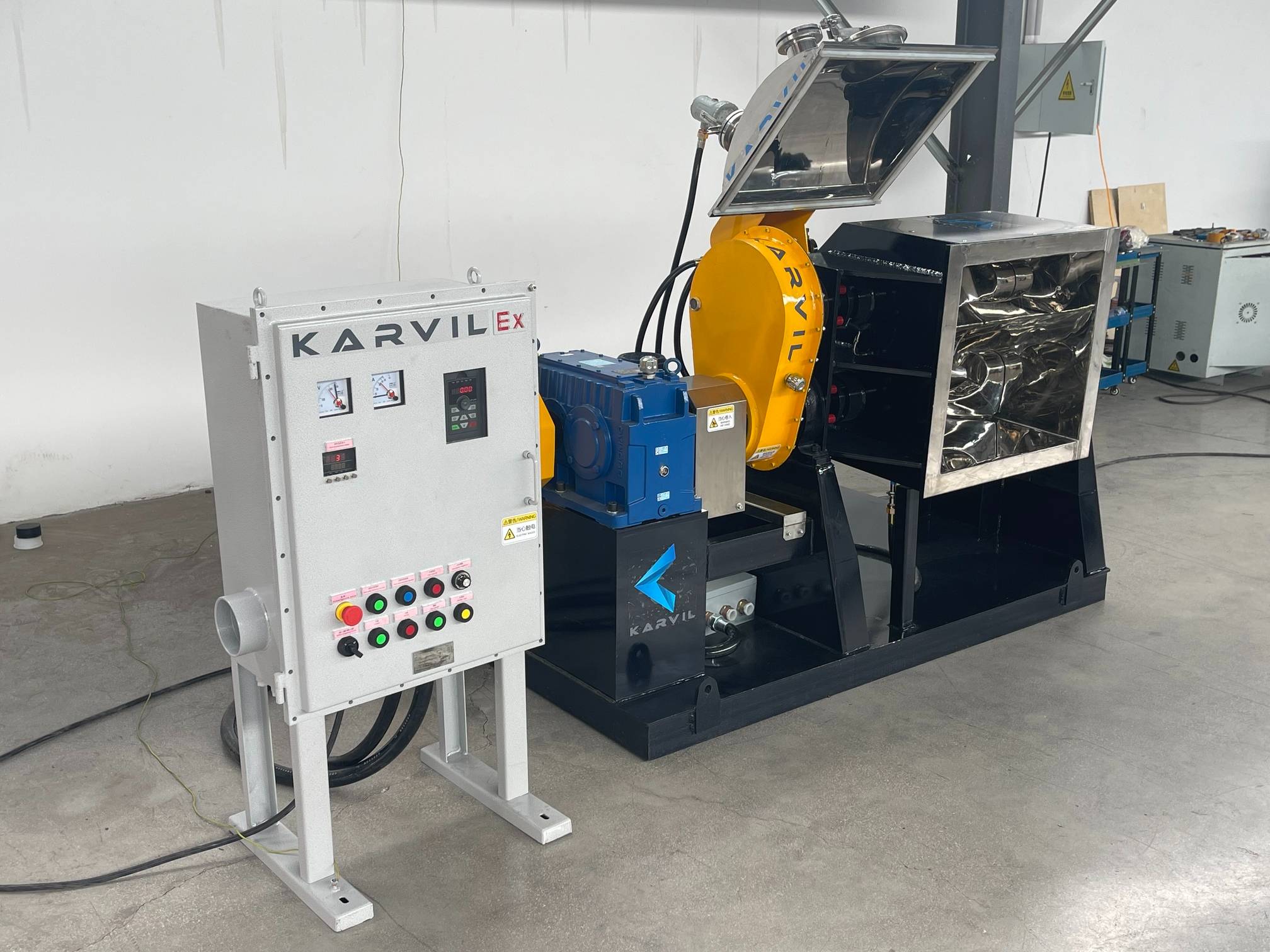

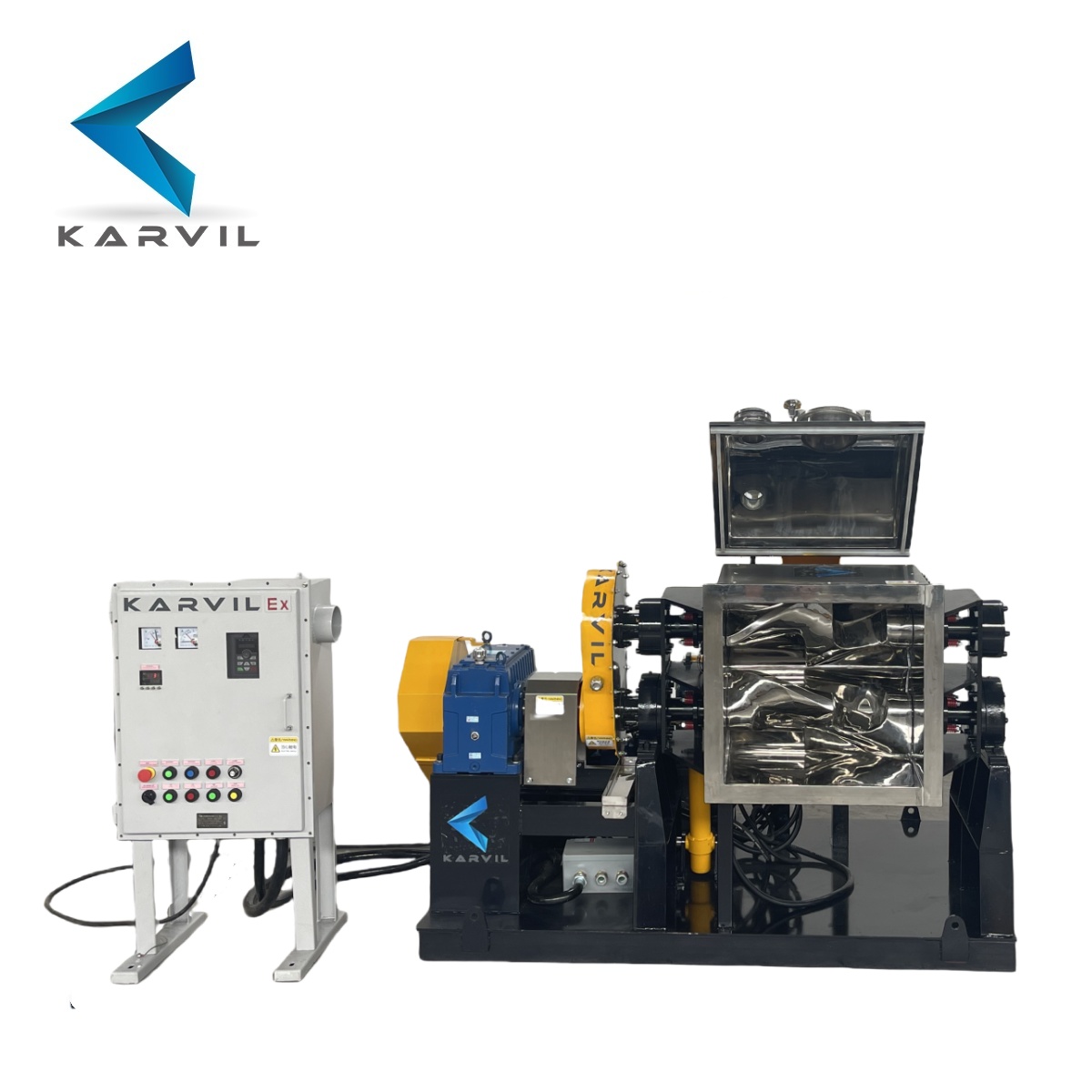

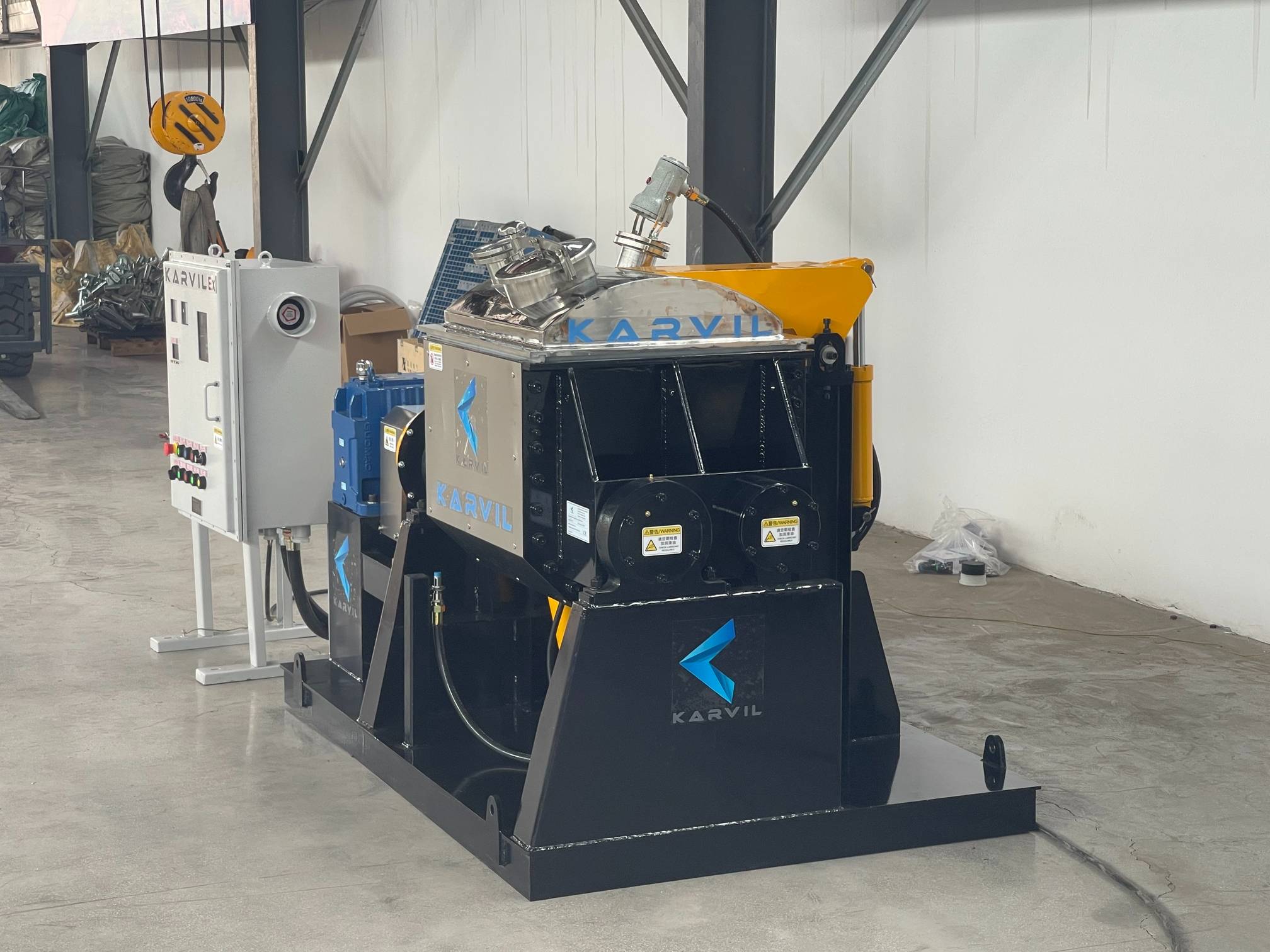

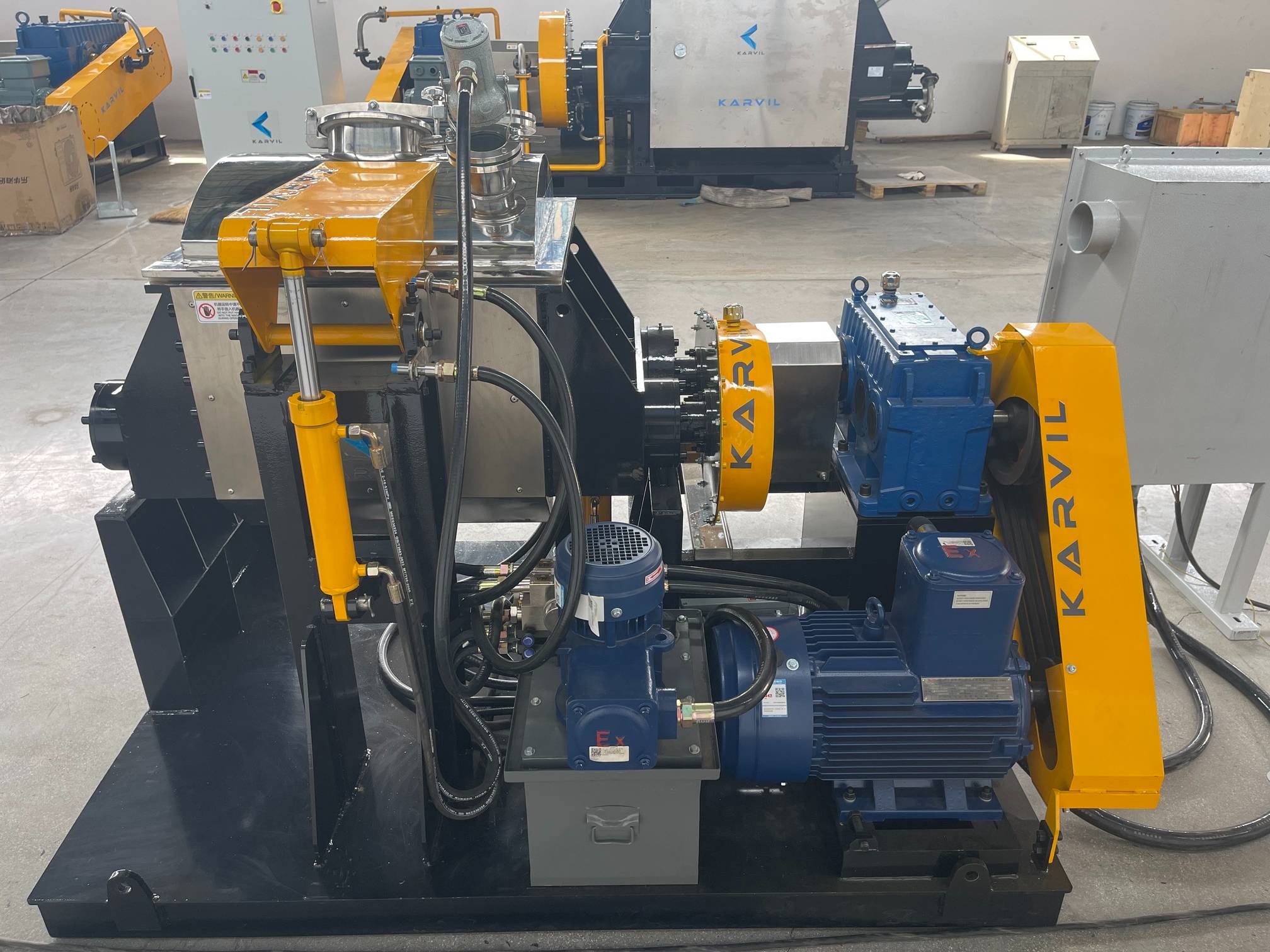

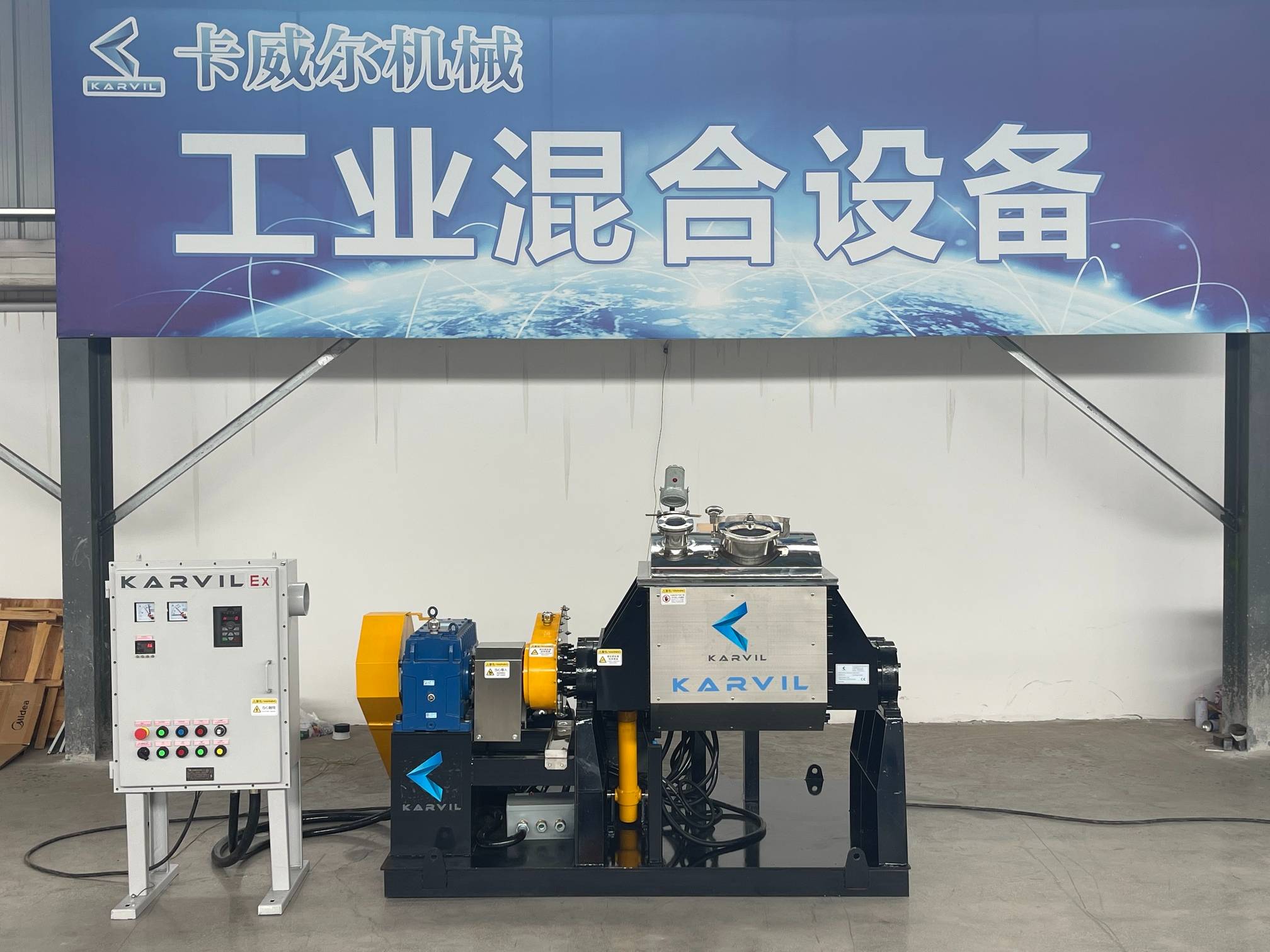

Explosion-Proof 150L Z Blade Mixer with Hydraulic Tilting Discharge
Product Introduction
Karvil Machinery delivers a custom-built 150L explosion-proof sigma kneader mixer for a customer, designed for the safe and efficient processing of nitrocellulose suspension. This heavy-duty machine meets ATEX Zone 21 safety requirements and is engineered to handle flammable and hazardous materials in demanding industrial environments.
Advantages
Complies with ATEX Zone 21 safety regulations
High mixing efficiency for viscous or hazardous materials
Easy and safe material discharge via hydraulic tilting
Durable components for long-term performance under demanding conditions
Easy maintenance with quick-access seal replacement design
Technical Parameters
| Type | NH-5 | NH-10 | NH-100 | NH-300 | NH-500 | NH-1000 | NH-1500 | NH-2000 | NH-3000 | NH-4000 | NH-5000 |
| Total Volume (L) | 5 | 10 | 100 | 300 | 500 | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 |
| Mixed amount/batch (L) | 1.5-3.5 | 3.0-7 | 30-70 | 90-210 | 150-350 | 300-700 | 450-1050 | 600-1400 | 900-2100 | 1200-2800 | 1500-3500 |
| Rotation Speed (rpm) | 42/34 | 42/34 | 37/21 | 37/22 | 37/23 | 37/26 | 37/22 | 30/21 | 30/21 | 30/20 | 28/18 |
| Main Motor Power (Kw) | 0.75-1.5 | 1.1-3 | 5.5-11 | 7.5-30 | 15-37 | 22-90 | 22-90 | 30-110 | 30-110 | 45-110 | 55-132 |
| Heating Methods | Steam Pressure (MPa) | Jacket for steam
≤0.3MPa |
| Electric Power (Kw) | 2.4 | 2.4 | 6 | 12 | 18 | 30 | 45 | 54 | 72 | 72 | 90 |
| Vacuum (MPa) | 0~ -0.096Mpa (Vacuum Kneader) |
| Discharging Method | Tilting cylinder |
| Screw extrusion |
Our Services
![d3decc020c846de83e6cd0ddfddaae9]( "d3decc020c846de83e6cd0ddfddaae9") |
LABORATORY TEST
In order to be able to demonstrate the advantages and modes of action of our industrial mixing machine with your products, our fully equipped modern laboratory/technical center is at your disposal.
![4cc6a298bf03570b88509020de7d969]( "4cc6a298bf03570b88509020de7d969") |
PROFESSIONAL ENGINEER![Food-Powder-Horizontal-Ribbon-Mixer-2_副本]( "Food-Powder-Horizontal-Ribbon-Mixer-2_副本")
The experienced team of engineers is specialized in the R&D and design of mixers, grinding equipment, and plastic recycling machine. Karvil explores new technical points constantly to create perfect solutions for customers.
![4cc6a298bf03570b88509020de7d969]( "4cc6a298bf03570b88509020de7d969")
| ![karvil-machinery-sigma-mixer-ribbon-mixer_副本]( "karvil-machinery-sigma-mixer-ribbon-mixer_副本") |
![karvil-machinery-sigma-mixer-and-ribbon-mixer]( "karvil-machinery-sigma-mixer-and-ribbon-mixer") |
DIRECT FACTORY
Karvil factory has a series of strict standard system to control the procurement of raw materials, manufacturing process, in-process inspection, and product inspection, so as to ensure the quality of our products.
![4cc6a298bf03570b88509020de7d969]( "4cc6a298bf03570b88509020de7d969")
|
Applications
F.A.Q.
1. Manufacturer or trading company?
We are a manufacturer with strict production standards in China.
2. Where is your company?
Our company is located in Yantai, Shandong,——Powder Equipment Industry Belt.
3. About your company's visit?
We can pick you up at Qingdao Airport conveniently, and then we can take you to our factory.
4. What is the main market for your company?
Asia and Africa, Australia, America, Europe.
5. Can you provide customized products?
Yes, we have professional engineers to meet your special design needs, so we can provide customized products.
6. What is your delivery time?
It usually takes about 20 to 30 days, the exact time also depends on the type and quantity of the product.
7. About the product warranty?
Usually, we provide a 1-year warranty for the products that have been sold, but we can also provide life-long service when you need it to maintain a long-term relationship with you.
8. What are the payment terms?
T/T, L/C, etc.
