Lab-scale vacuum sigma mixing reduces production risk by exposing how a high-viscosity formula behaves under real kneading, heat transfer, vacuum, and discharge conditions before a larger mixer is specified. It allows the R&D team to replace assumptions with process data and identify problems that a beaker or low-torque stirrer cannot reveal.
The 2L Vacuum Sigma Mixer from Karvil Machinery has a 2L total volume, 1.4L working volume, dual sigma blades with forward and reverse rotation, VFD speed control, vacuum up to -0.09MPa, SS304 mirror-polished contact parts, a 35-100 C water temperature controller, and manual tilting discharge.
A formula that mixes easily in a small cup may become non-uniform when batch depth increases. Powder can remain on the surface, liquid can collect below the blades, temperature gradients can develop, and trapped air can change density or appearance. Torque and discharge behavior also increase nonlinearly as the batch becomes larger.
Scale-up risk is highest when the process window is narrow. Adhesives may cure if overheated, silicone can trap bubbles, pigment pastes can form dry pockets, and filled compounds can overload the drive. A small sigma trial helps identify the workable order of addition, blade speed, temperature, vacuum stage, and endpoint.
Trial Variable | What to Record | Scale-Up Value |
Order of addition | Time and condition of each ingredient addition | Reduces agglomeration and overload risk |
Blade speed | Forward/reverse speed and changes during batch | Defines shear and folding sequence |
Temperature | Product and jacket temperature over time | Shows heat generation and control demand |
Vacuum | Pressure, timing, and foaming response | Supports deaeration and volatile removal |
Torque/load | Motor load trend or observed resistance | Provides a basis for drive sizing |
Discharge | Time, residue, and material temperature | Reveals handling and cleaning needs |
The goal is not to copy laboratory time directly into a production mixer. The goal is to identify relationships: when torque rises, how quickly heat is removed, when the batch becomes cohesive, and whether vacuum changes texture or volume. Those relationships guide the larger equipment specification.

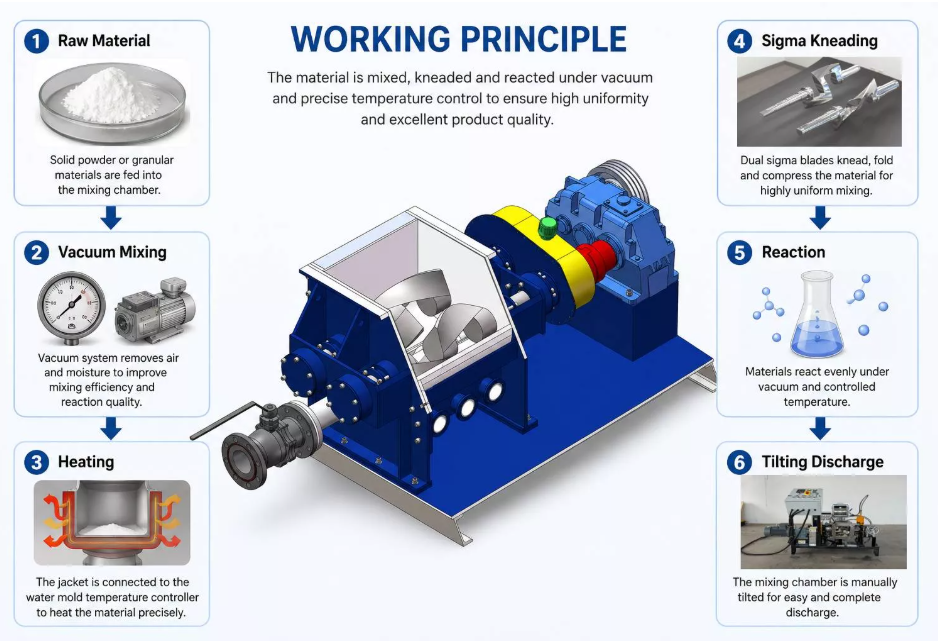

Sigma blades fold, stretch, compress, and shear material rather than simply circulating liquid. Forward and reverse operation can help release material, change flow direction, and evaluate how the compound behaves under different kneading patterns.
VFD control lets the operator begin slowly during powder charging, increase speed during wetting and dispersion, and reduce speed near a temperature or torque limit. Recording the speed sequence makes the trial repeatable and gives the production team a process starting point.
Vacuum can remove trapped air, support deaeration, and assist with selected volatile removal. The operator should watch for foaming and sudden volume expansion. Vacuum level, application timing, and batch temperature need to be recorded together.
The 6kW water temperature controller provides a controlled jacket-water range of 35-100 C. The material temperature may not equal the water setting, so product temperature should be measured directly. A trial can reveal whether heat is needed to reduce viscosity or whether shear heat already pushes the formula toward its limit.
Manual tilting allows the team to observe whether the batch releases cleanly, stretches in long strands, adheres to blades, or remains in corners. This information is important when choosing production discharge by tilting, screw extrusion, bottom discharge, or another method.
Adhesives and sealants benefit when trapped air, filler wetting, and temperature affect bond quality. Silicone and rubber compounds use the trial to check filler incorporation and deaeration. Pigment, carbon, ceramic, and battery-related pastes can be assessed for dispersion and discharge. Food and chewing-gum development may also use sigma kneading, subject to appropriate food-contact construction and cleaning controls.
The machine is most valuable when the trial material is representative. A low-filler substitute may be easier to mix but will not reveal the torque, heat, or discharge problems of the actual formula. Use the intended particle size, liquid viscosity, and solids loading whenever safe and practical.
• Define the decision the trial must support: formula selection, process window, or equipment sizing.
• Set the batch mass within the 1.4L working-volume limit and allow room for expansion.
• Prepare an ingredient charging sequence and safety review.
• Record speed, temperature, vacuum, time, observations, and sample results.
• Use the same endpoint test for every trial, such as viscosity, density, dispersion, or cure response.
• Photograph residue and discharge behavior before cleaning.
• Repeat the best condition to confirm reproducibility.
SS304 mirror-polished contact parts can simplify cleaning, but sticky compounds may remain around blade ends, seals, and discharge edges. The trial should include the real cleaning solvent or method, the time needed, and any disassembly. A formula that performs well but requires excessive cleaning may be unsuitable for frequent product changes.
Where materials are reactive or solvent-based, confirm seal compatibility, motor and electrical protection, ventilation, grounding, and safe vacuum handling. The machine configuration must match the material hazard assessment; vacuum alone does not make a process safe.
Share the approved formula range, working density, maximum viscosity or torque trend, temperature profile, vacuum requirement, cycle time, discharge behavior, cleaning method, and target batch output. Production scale may require a different blade ratio, drive power, heat-transfer area, and discharge system.
Review Karvil sigma mixers after the trial report is complete. The supplier can then discuss scale-up with evidence rather than relying on a material name such as adhesive or silicone.
A 2L vacuum sigma mixer turns high-viscosity development into a controlled engineering exercise. It reveals kneading, heat, vacuum, torque, discharge, and cleaning behavior before those issues are multiplied in a production machine.
The most valuable output is a repeatable batch record and a clear equipment specification. A successful sample without process data does little to reduce scale-up risk.
Q1: Why Is the Working Volume Lower Than the Total Volume?
A: The batch needs free space for movement, folding, ingredient addition, and possible expansion under vacuum. Filling to total volume can overload the mixer or prevent proper circulation.
Q2: Does -0.09MPa Vacuum Remove All Bubbles?
A: Not automatically. Bubble removal depends on viscosity, temperature, batch depth, vacuum time, and how readily gas can travel through the material.
Q3: Can Lab Mixing Time Be Multiplied Directly for Scale-Up?
A: No. Heat transfer, blade geometry, torque, and flow change with scale. Use the lab trial to identify process stages and limits, then engineer the larger mixer.
Q4: Why Record Discharge Time?
A: Discharge affects total cycle time, product loss, operator effort, and cleaning. It can determine whether tilting is acceptable or a screw discharge is needed.
Q5: What Is the Most Important Trial Result?
A: A repeatable process window that links ingredient sequence, speed, temperature, vacuum, time, and quality results is more useful than one successful batch.
