NH-2
Karvil
Removes air bubbles and moisture while improving reaction quality and product density.
Integrated water mold temperature controller maintains stable heating for laboratory reactions.
SS304 mirror polished mixing chamber and sigma blades ensure easy cleaning and contamination-free processing.

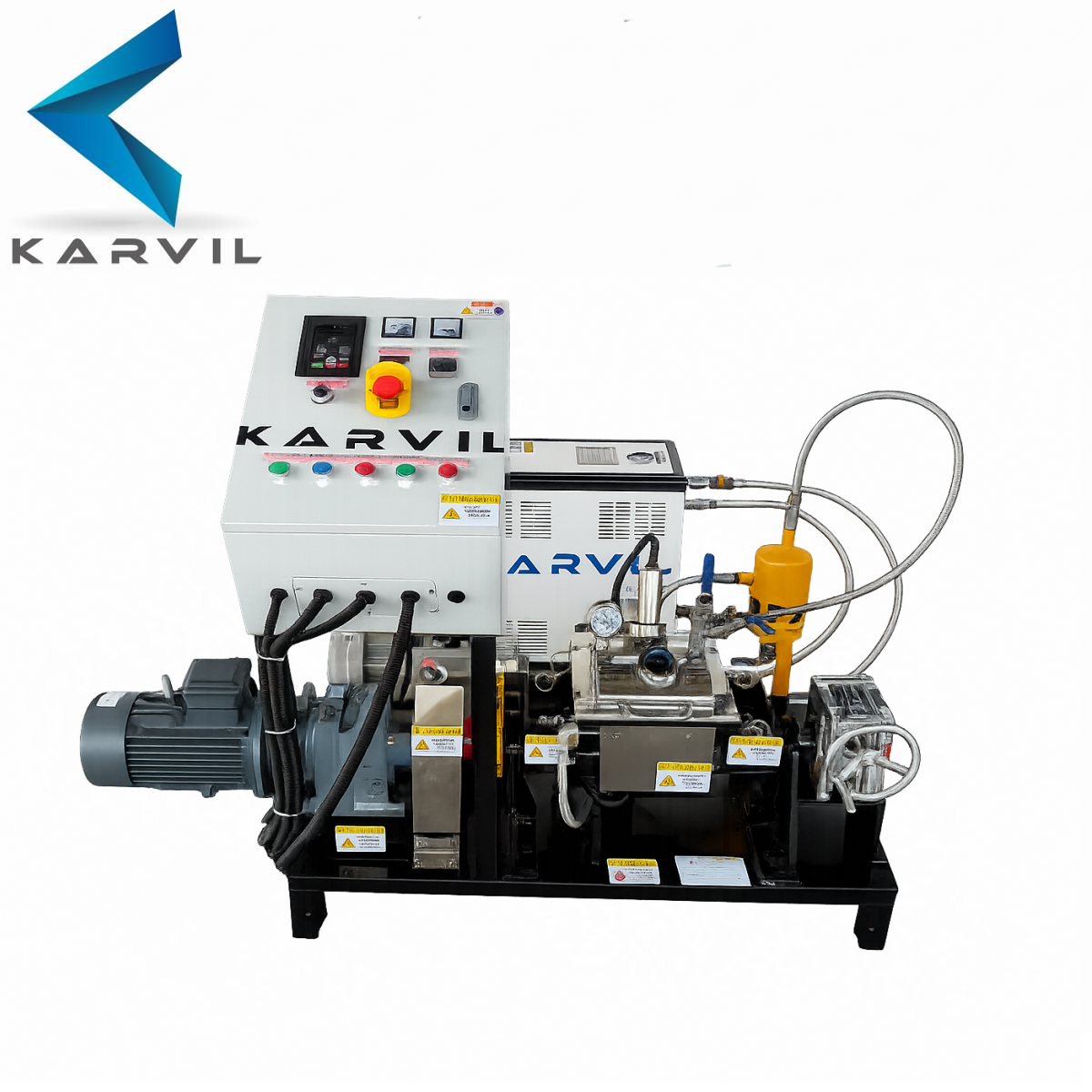

The laboratory mixer uses the same Sigma mixing principle as industrial models, allowing users to optimize formulations before mass production.

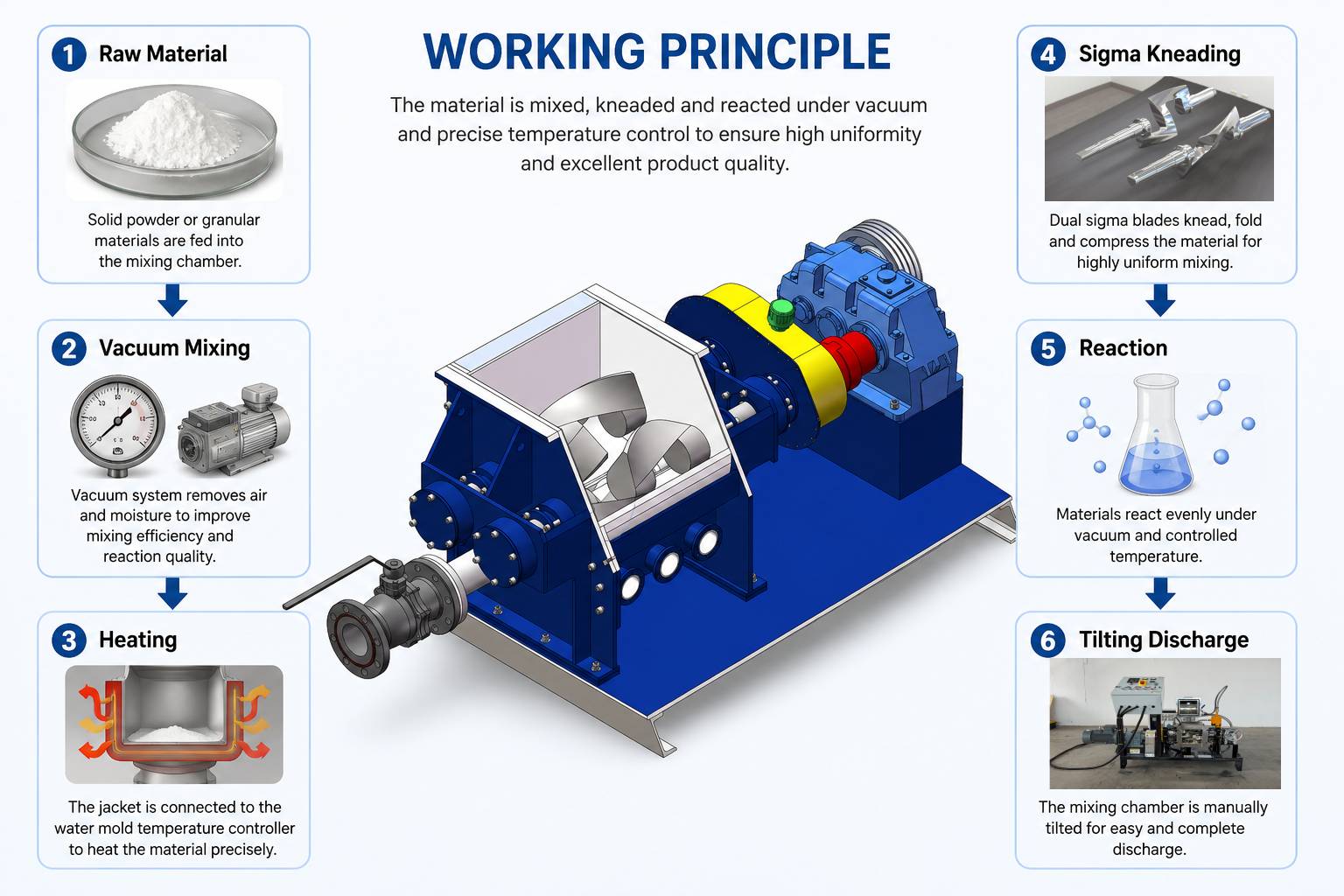

Two counter-rotating Sigma blades continuously divide, stretch, compress and fold materials inside the mixing chamber. Under vacuum conditions, air and moisture are removed while temperature is accurately controlled through the jacket connected to the water mold temperature controller. The result is highly efficient mixing with excellent reaction consistency.
Solution:

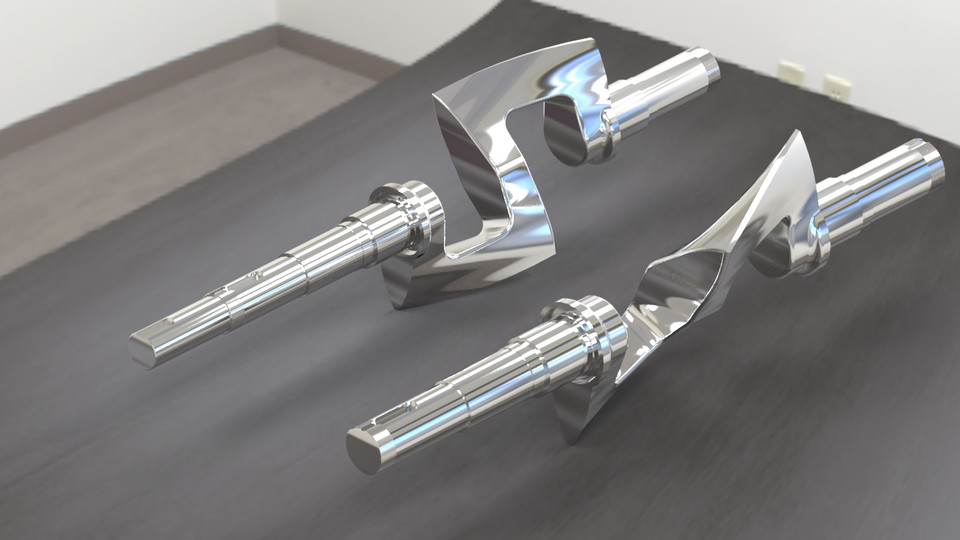

Dual Sigma blades continuously fold, stretch and compress materials to achieve highly homogeneous mixing.
Solution:

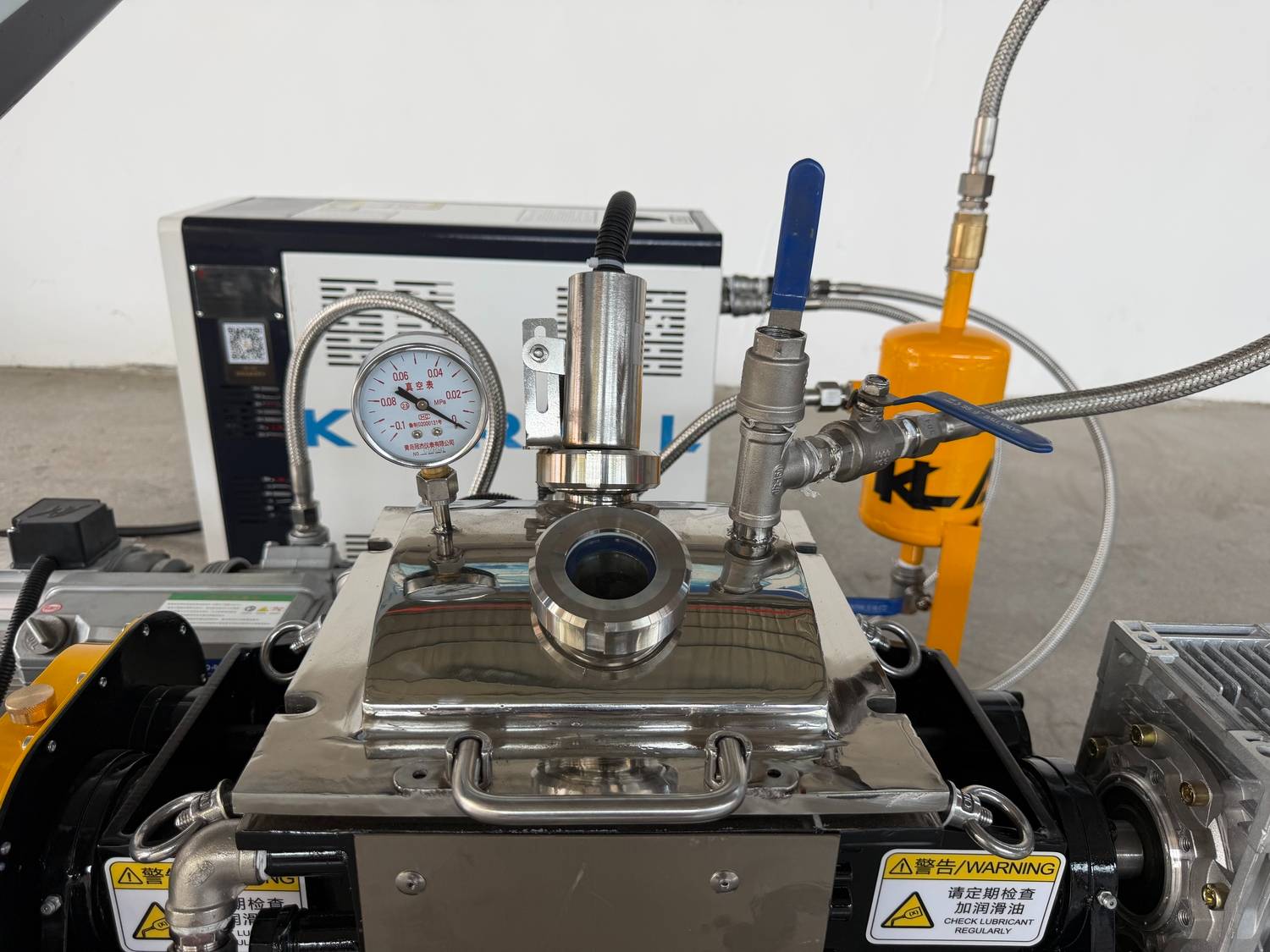

Integrated vacuum system reaches -0.09 MPa to eliminate bubbles and improve reaction stability.
Solution:
Water mold temperature controller provides accurate heating between 35°C and 100°C (customized).
Solution:

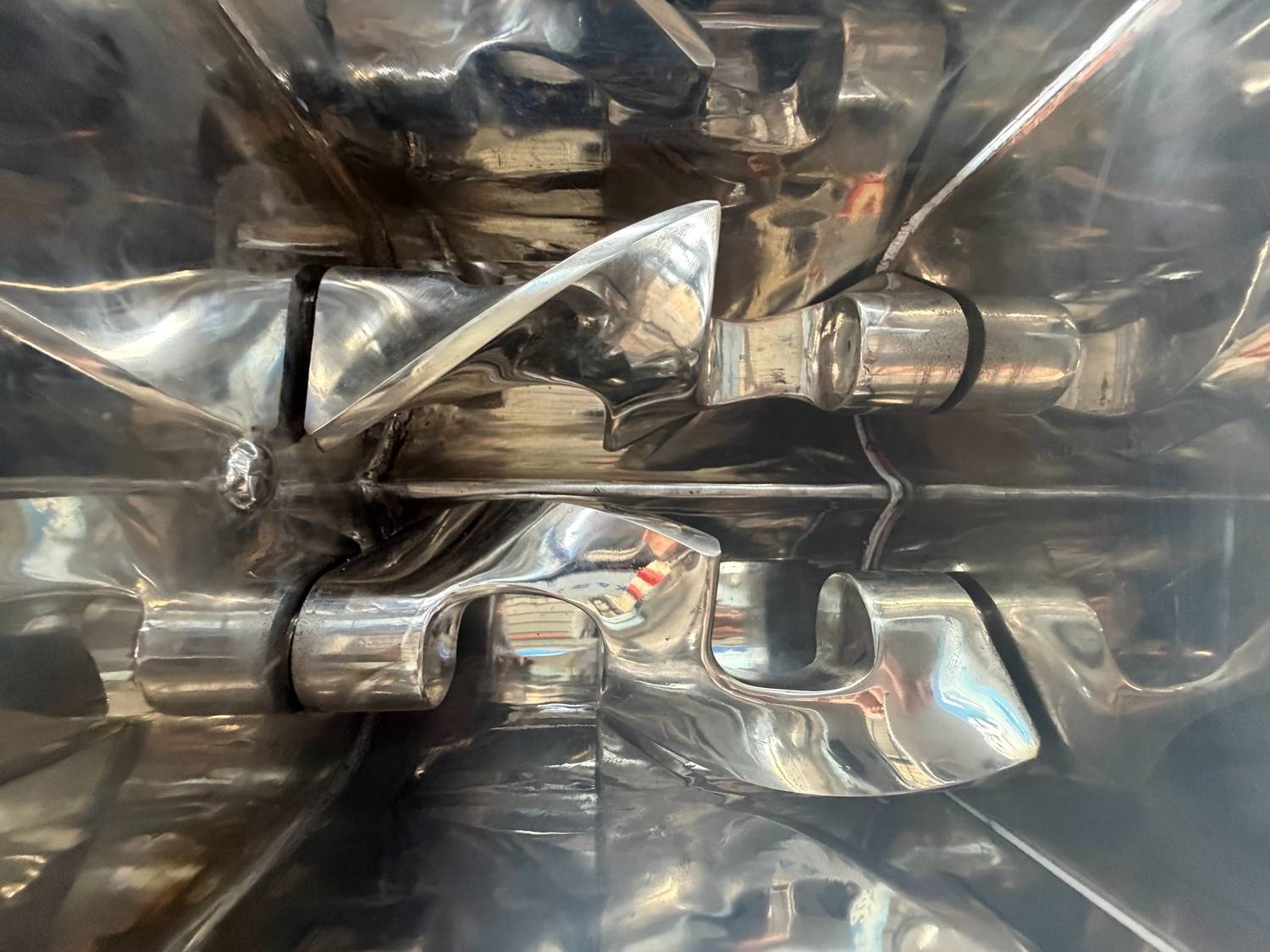

Mirror-polished SS304 contact surfaces and manual tilting discharge make cleaning fast and convenient.

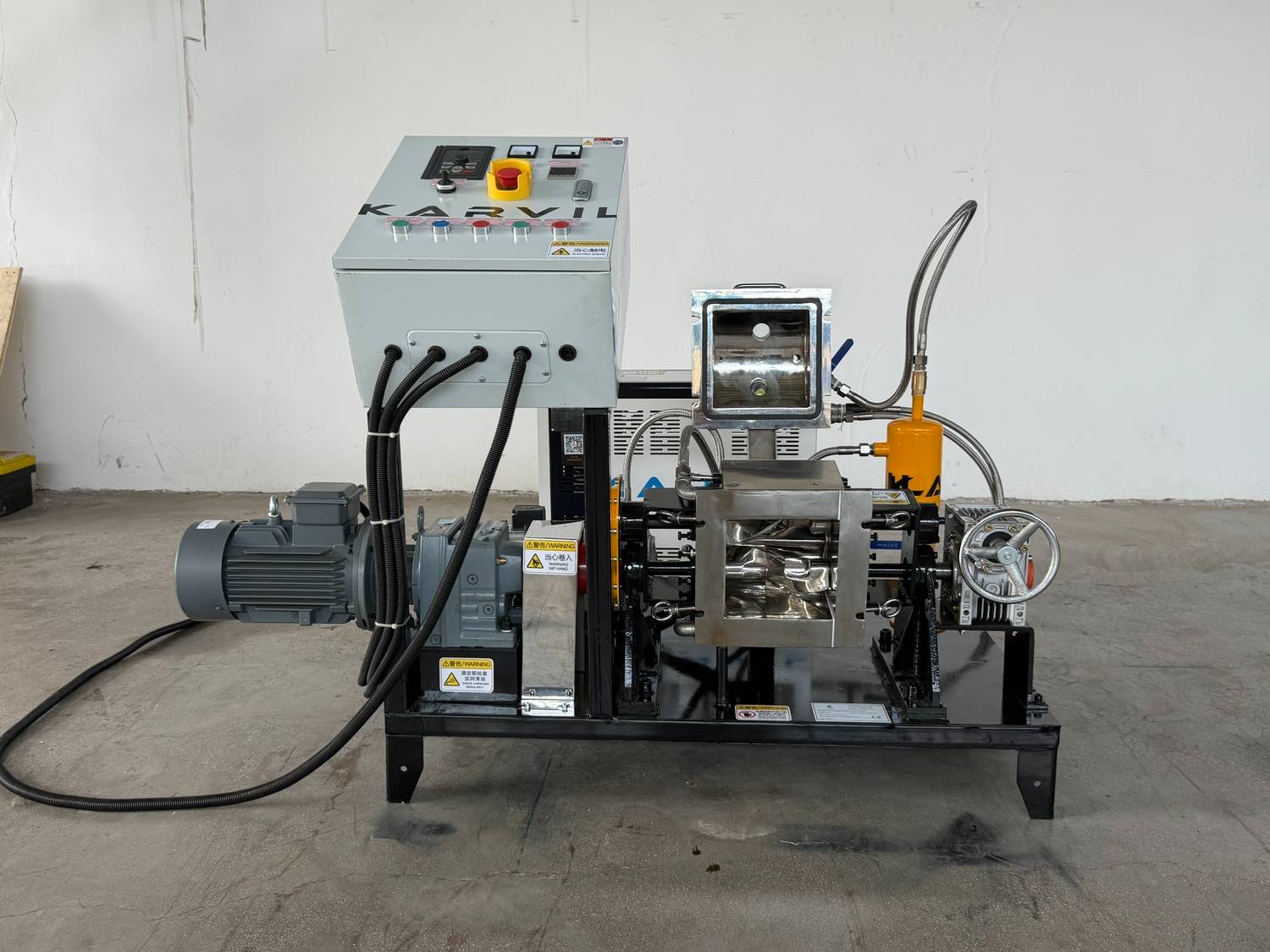

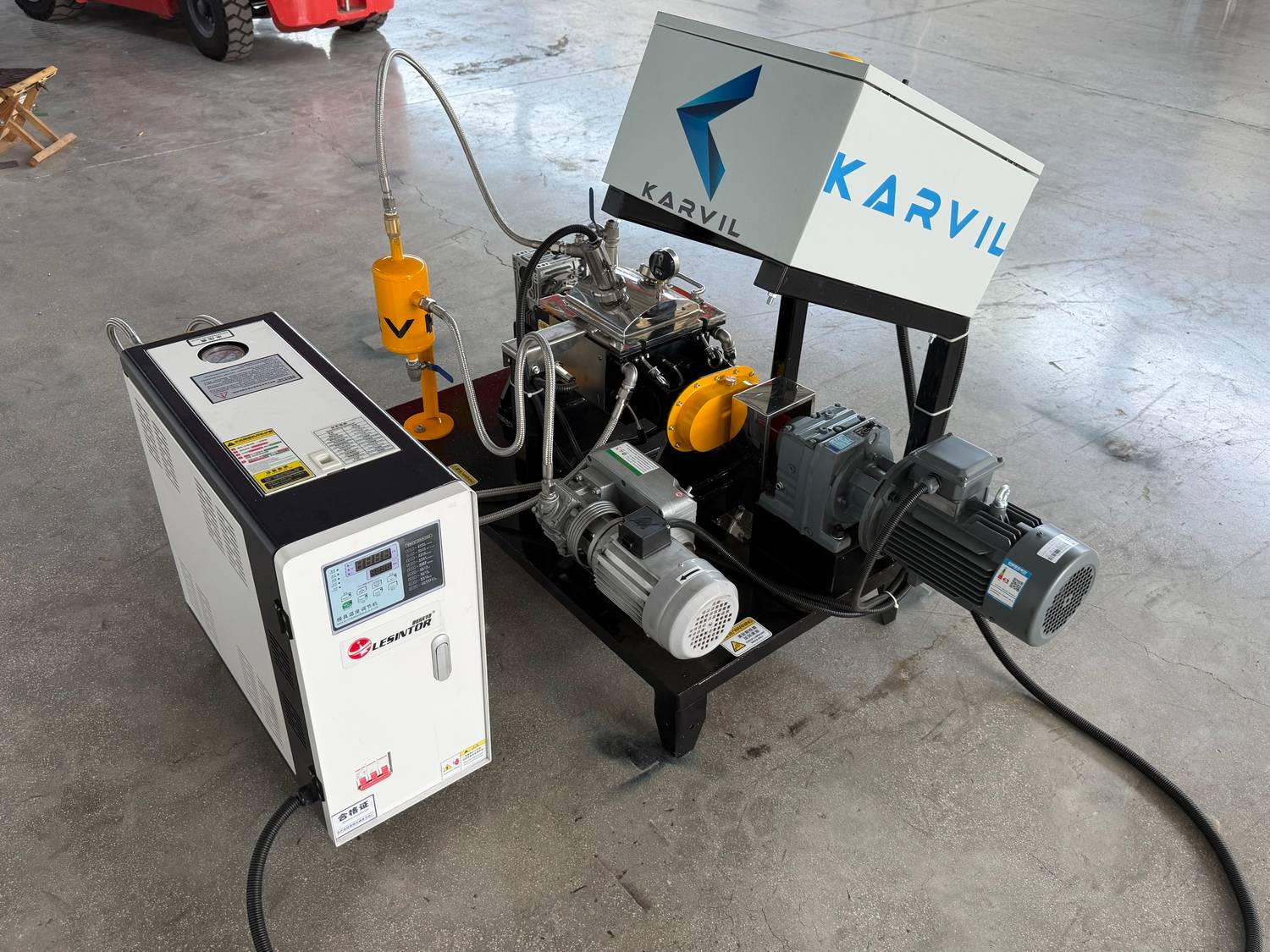

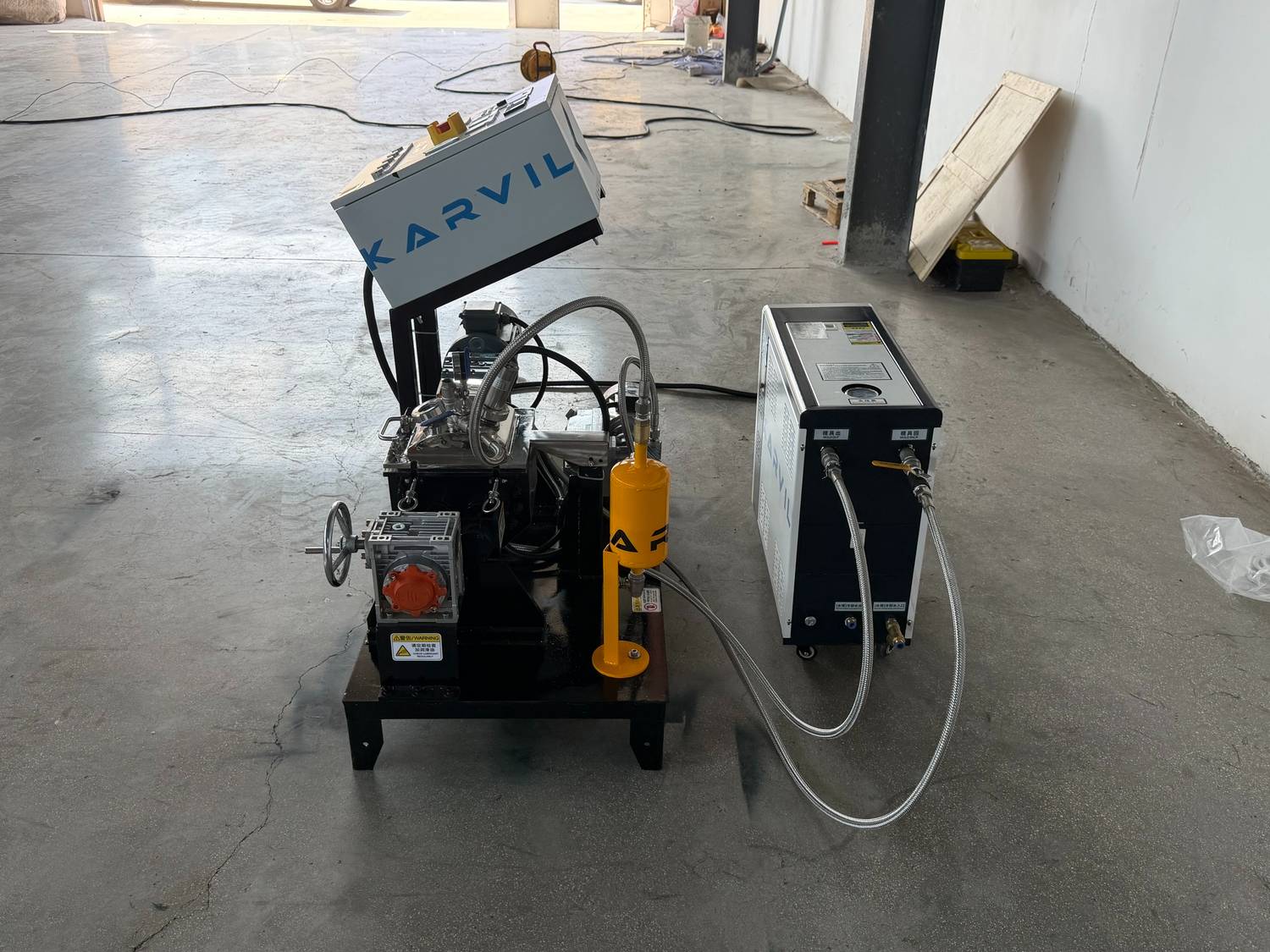

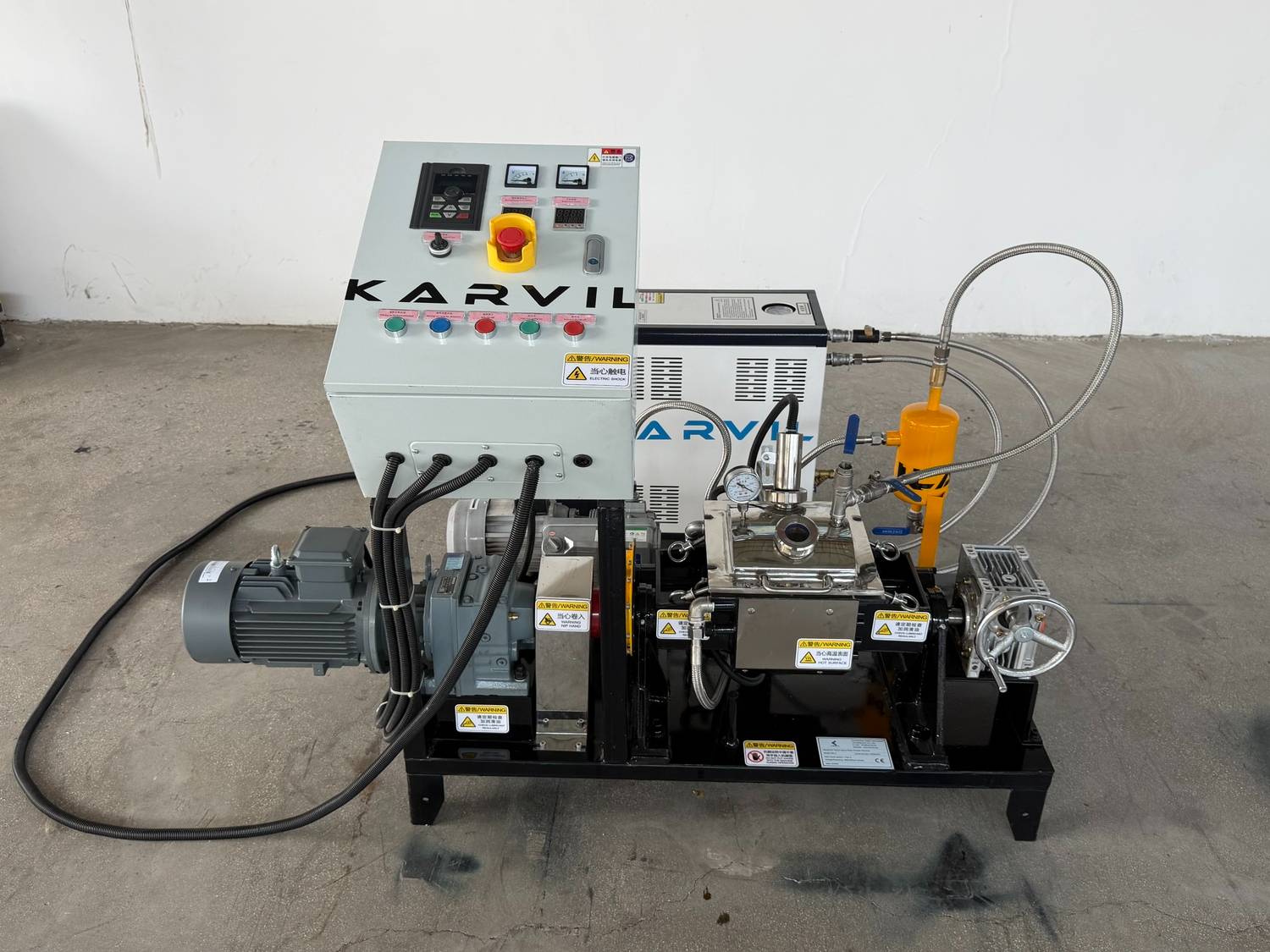

Watch the factory testing of our 2L Laboratory Vacuum Sigma Mixer before shipment to our customer in Thailand.
This compact laboratory kneader is specially designed for solid powder reactions, high-viscosity materials, and research & development applications.
Type | NH-5 | NH-10 | NH-100 | NH-300 | NH-500 | NH-1000 | NH-1500 | NH-2000 | NH-3000 | NH-4000 | NH-5000 | |
Total Volume (L) | 5 | 10 | 100 | 300 | 500 | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 | |
Mixed amount/batch (L) | 1.5-3.5 | 3.0-7 | 30-70 | 90-210 | 150-350 | 300-700 | 450-1050 | 600-1400 | 900-2100 | 1200-2800 | 1500-3500 | |
Rotation Speed (rpm) | 42/34 | 42/34 | 37/21 | 37/22 | 37/23 | 37/26 | 37/22 | 30/21 | 30/21 | 30/20 | 28/18 | |
Main Motor Power (Kw) | 0.75-1.5 | 1.1-3 | 5.5-11 | 7.5-30 | 15-37 | 22-90 | 22-90 | 30-110 | 30-110 | 45-110 | 55-132 | |
Heating Methods | Steam Pressure (MPa) | Jacket for steam | ||||||||||
Electric Power (Kw) | 2.4 | 2.4 | 6 | 12 | 18 | 30 | 45 | 54 | 72 | 72 | 90 | |
Vacuum (MPa) | 0~ -0.096Mpa (Vacuum Kneader) | |||||||||||
Discharging Method | Tilting cylinder | |||||||||||
Screw extrusion | ||||||||||||
Trusted by Global Manufacturers in 50+ Countries. From silicone to adhesives, see how our Sigma Kneaders are solving complex mixing challenges for industry leaders worldwide.
Our modern, fully equipped technical center is at your disposal. We welcome you to test your products to experience the advantages of our industrial mixers firsthand.
Specializing in mixers, grinding, and recycling machines, Karvil's experienced engineering team constantly explores new technologies to create perfect solutions for you.
Is this mixer suitable for laboratory research?
Yes. The 2L capacity is ideal for formulation development, material testing and pilot-scale production.
Can the mixer operate under vacuum?
Can temperature be controlled accurately?
Can the blades rotate in both directions?
Can this laboratory mixer be customized?
