NH-400
Karvil

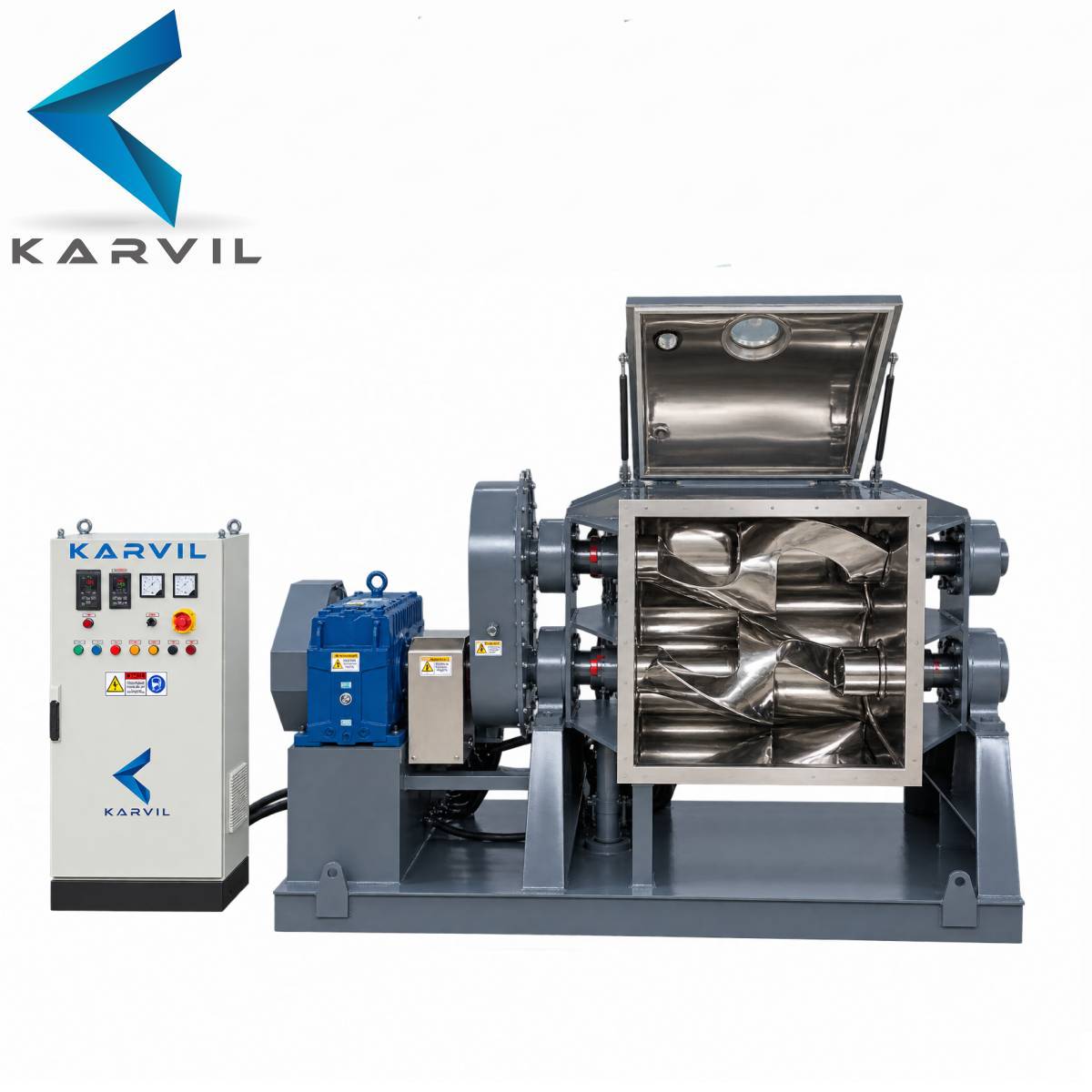

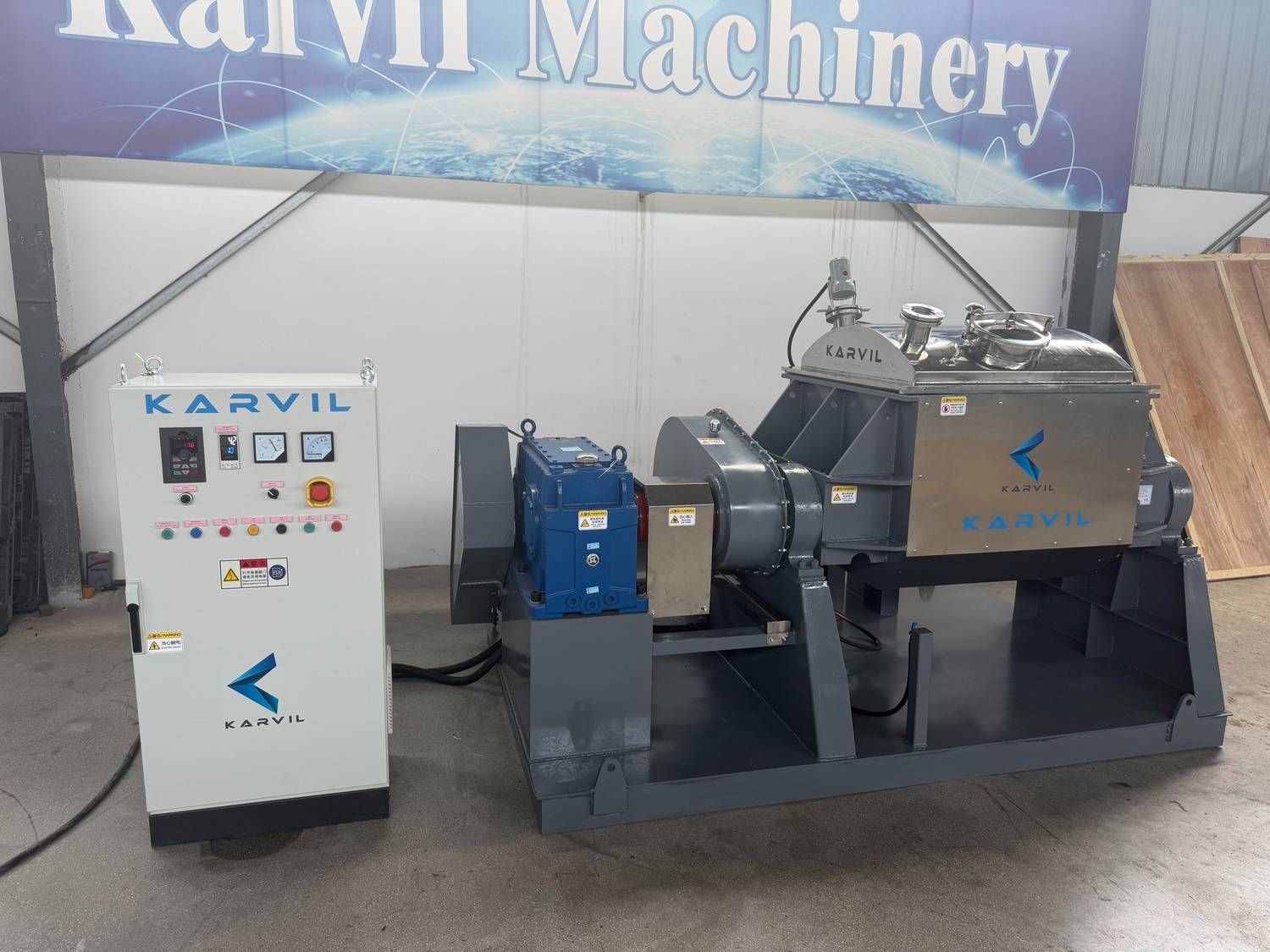

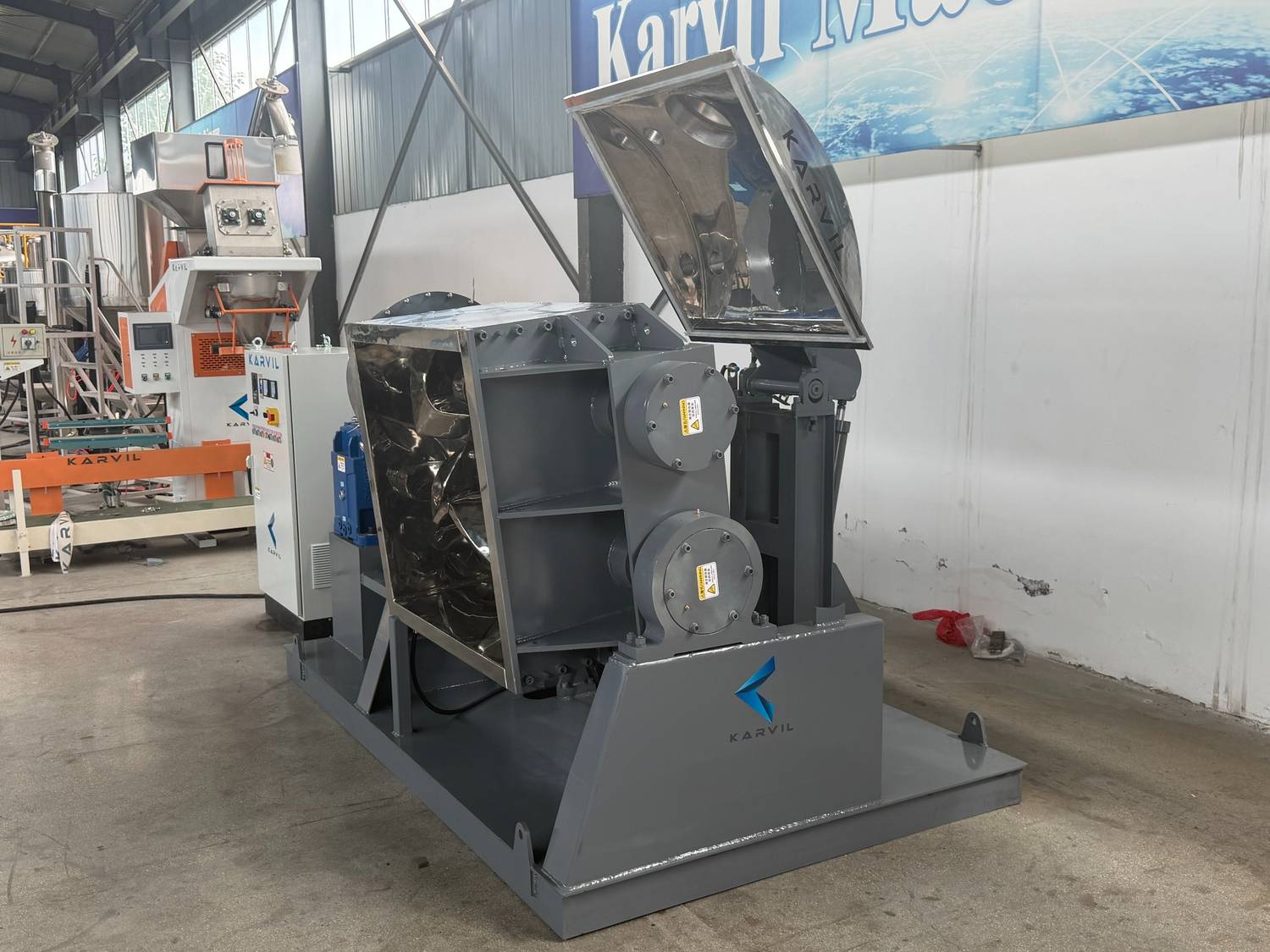

Hydraulic Tilting Discharge
Stainless Steel Contact Parts

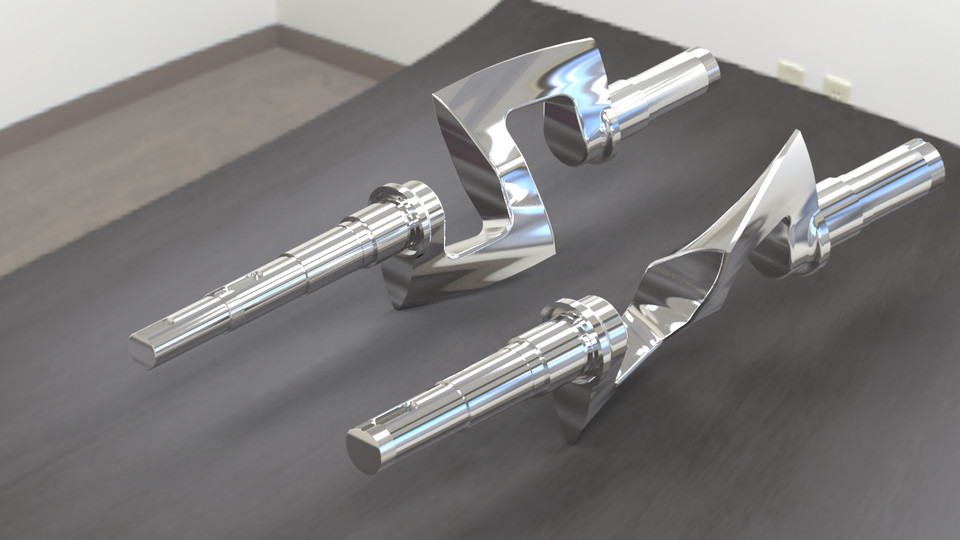

Sigma Blades Mixing
Reliable Drive System
Material: SUS 304, 316 or mild steel
Discharging: Tilting discharging/Screw extruding discharging/Bottom plate
Heating: Electric heating/Water heating/Oil heating/Steam heating
Cooling: Water cooling/Jacket cooling
Vacuum: Water-ring vacuum pump/ buffer tank.

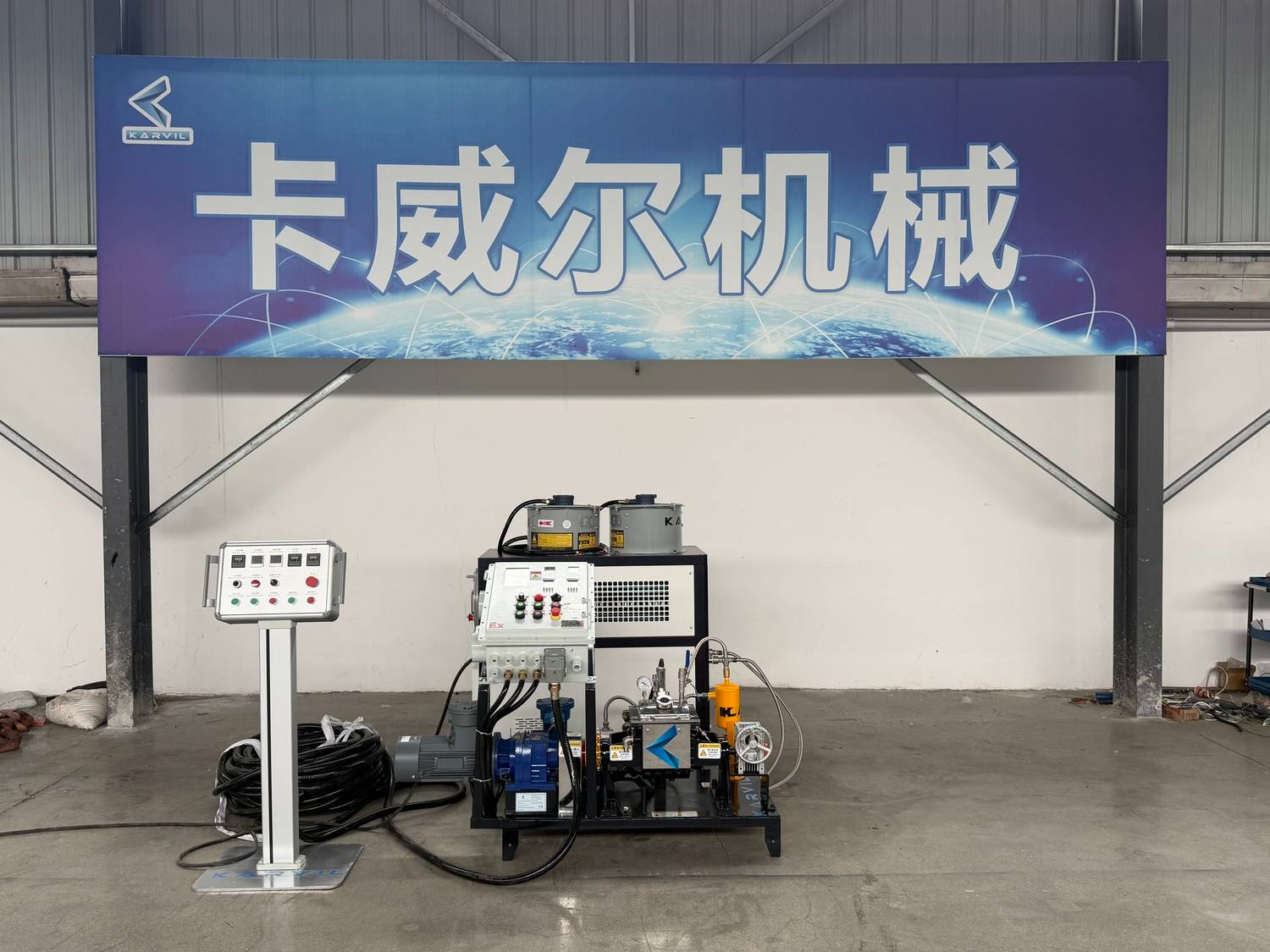

Motor: Explosion proof motor
Independent Control Panel: Variable speed/ Temperature/Discharging
Working Volume: 5 to10,000 Cubic Feet (from experiment to production)

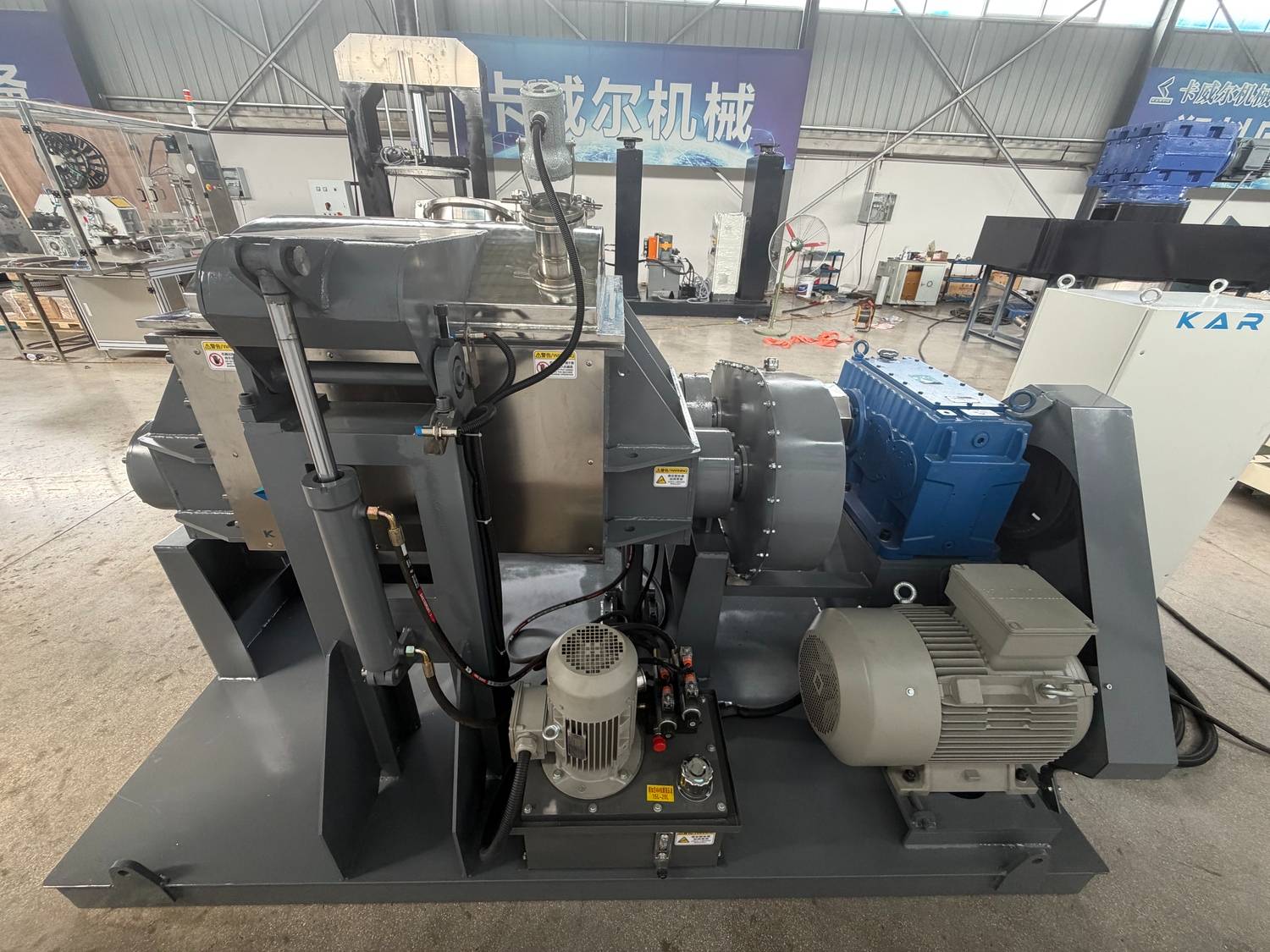

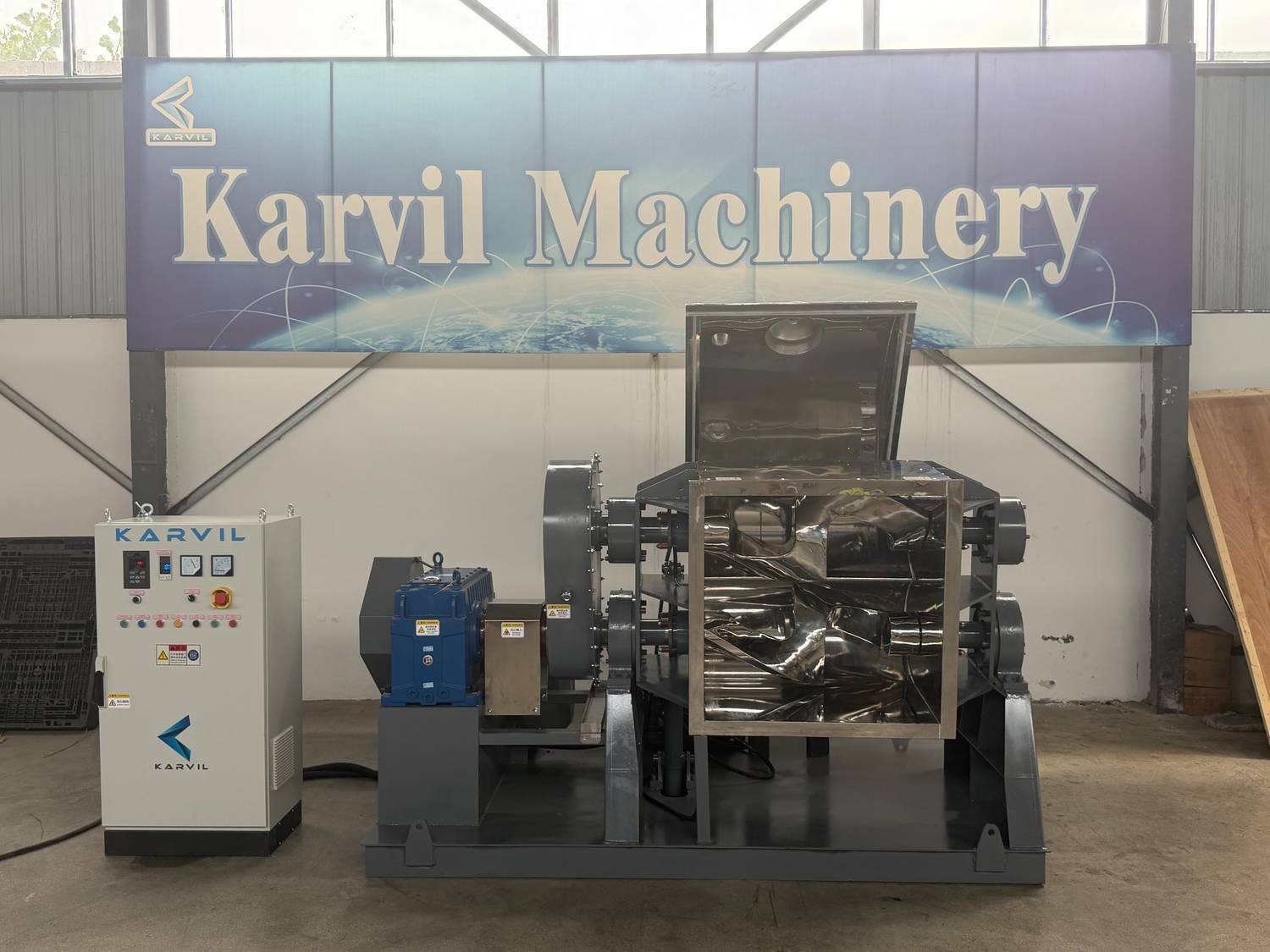

This 400L hydraulic tilting Sigma kneader is undergoing factory testing at Karvil Machinery before delivery to our customer in Japan.
The test verifies the Sigma blade rotation, variable-speed operation, hydraulic tilting system and overall mechanical performance before shipment.
Tell us your material and production requirements
Get a customized Sigma kneader solution.
Type | NH-5 | NH-10 | NH-100 | NH-300 | NH-500 | NH-1000 | NH-1500 | NH-2000 | NH-3000 | NH-4000 | NH-5000 | |
Total Volume (L) | 5 | 10 | 100 | 300 | 500 | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 | |
Mixed amount/batch (L) | 1.5-3.5 | 3.0-7 | 30-70 | 90-210 | 150-350 | 300-700 | 450-1050 | 600-1400 | 900-2100 | 1200-2800 | 1500-3500 | |
Rotation Speed (rpm) | 42/34 | 42/34 | 37/21 | 37/22 | 37/23 | 37/26 | 37/22 | 30/21 | 30/21 | 30/20 | 28/18 | |
Main Motor Power (Kw) | 0.75-1.5 | 1.1-3 | 5.5-11 | 7.5-30 | 15-37 | 22-90 | 22-90 | 30-110 | 30-110 | 45-110 | 55-132 | |
Heating Methods | Steam Pressure (MPa) | Jacket for steam | ||||||||||
Electric Power (Kw) | 2.4 | 2.4 | 6 | 12 | 18 | 30 | 45 | 54 | 72 | 72 | 90 | |
Vacuum (MPa) | 0~ -0.096Mpa (Vacuum Kneader) | |||||||||||
Discharging Method | Tilting cylinder | |||||||||||
Screw extrusion | ||||||||||||
Trusted by Global Manufacturers in 50+ Countries. From silicone to adhesives, see how our Sigma Kneaders are solving complex mixing challenges for industry leaders worldwide.

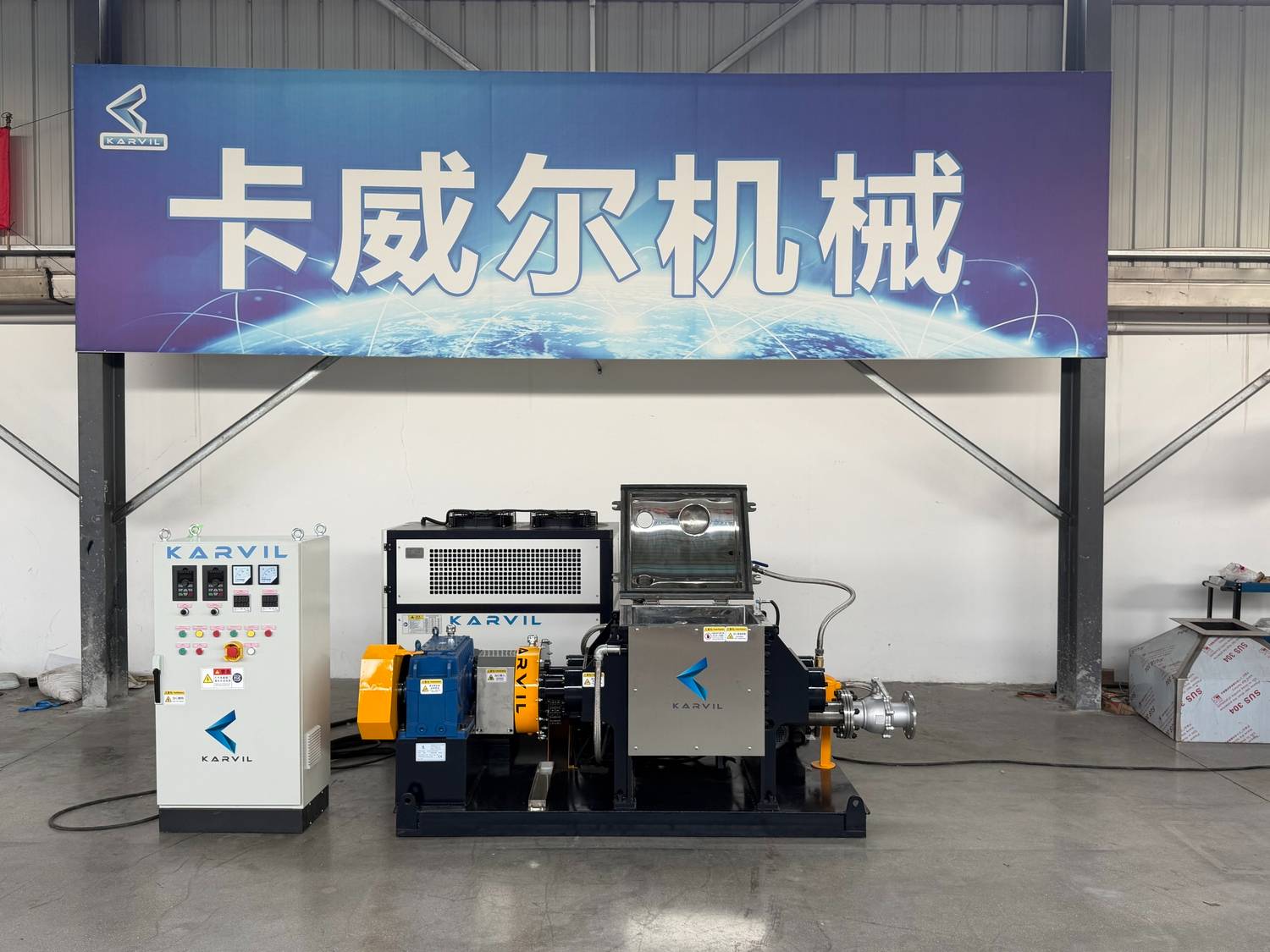

Mastering High-Viscosity Silicone Mixing: Why a Vacuum Kneader with a Screw Extruder is the Ultimate Solution

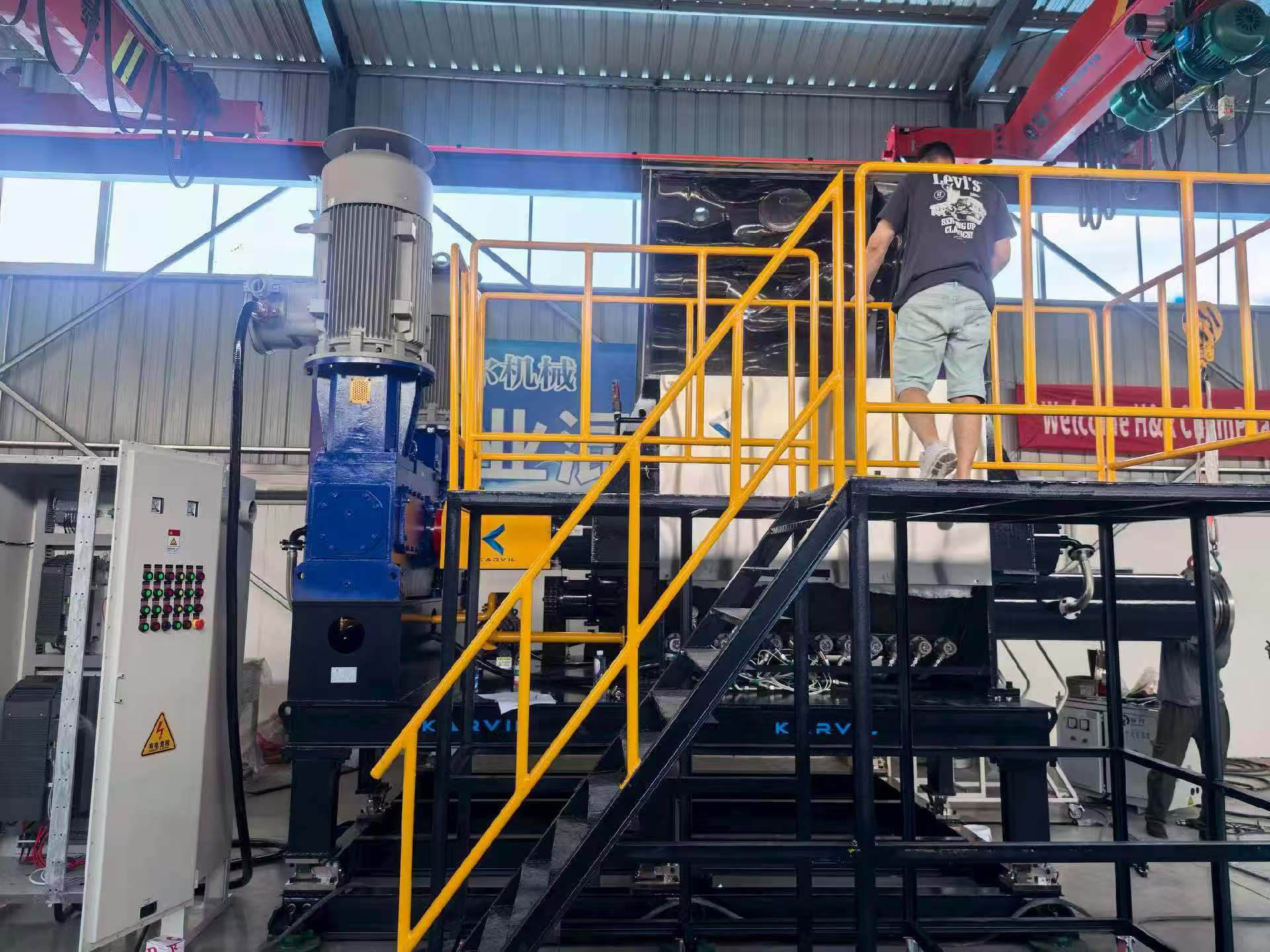

Successful FAT of a 3000L Sigma Mixer for Our UK Client
Why a Serbian Explosives Manufacturer Chose Karvil Sigma Kneaders for 3 Consecutive Orders
From material testing to customized equipment, Karvil Machinery provides the expertise you need for a reliable mixing solution.
LABORATORY TEST
Test your materials in our laboratory to find the right mixing solution.
PROFESSIONAL ENGINEERS
Experienced engineers provide expert mixing and process solutions.
DIRECT FACTORY
Strict quality control from raw materials to final inspection.
CUSTOMIZED SOLUTIONS
Mixer design and configuration tailored to your process.
How can I select the right Sigma kneader?
The most important factors include material type, viscosity, moisture content, bulk density, required batch size, mixing time, temperature requirements, discharge method, and downstream processing. Send us your material information and required capacity, and our engineers can recommend a suitable configuration.
Why is hydraulic tilting discharge used?
Can the blade speed be adjusted?
Can the mixer handle materials other than clay and zeolite?
Can Karvil customize the mixer?
