Material left inside a mixer means lost product, longer changeovers, extra labor, and possible cross-contamination. Epoxy putty makes the problem worse because it does not flow freely and becomes harder to discharge as it cools.
Karvil Machinery develops mixing equipment for adhesives, pastes, powders, food materials, fine chemicals, and other demanding products. Its company background covers sigma mixers, ribbon mixers, planetary mixers, dispersers, reactors, and production lines. For epoxy putty, lower residue does not come from motor power alone. You need suitable blades, smooth surfaces, stable temperature, a matched batch size, and positive discharge. Karvil Machinery has exported equipment to more than 50 countries and supports customized designs.
Epoxy putty may stretch, cling to steel, and resist gravity after mixing stops. Several causes often work together, so changing only the outlet or motor may not fix it.
High-viscosity putty is often non-self-flowing. When a bottom valve opens, material may stay around the blades, end plates, shaft, and outlet. Gravity alone is often not enough.
The discharge system must apply physical force to move the finished product. Otherwise, operators may have to scrape the chamber repeatedly, which raises labor costs and increases contact with moving or heated machine parts.
Uneven welds, scratches, sharp corners, and wide gaps give putty places to collect. A mirror-polished chamber reduces adhesion and makes cleaning easier to repeat. Residue may look small during one trial, but across three shifts it stops being small.
The chamber, blades, shaft area, and discharge passage should all receive attention. A polished vessel with a poorly finished outlet can still trap a noticeable amount of material.
Putty can stiffen while containers are prepared. A batch that moves well after kneading may become difficult ten minutes later. Keep set, measured, and actual temperatures close, then discharge without a long idle period.
Large differences between the displayed temperature and the real material temperature may affect mixing quality, additive stability, and discharge speed. A reliable temperature-control method helps you keep the putty inside a workable viscosity range.
For epoxy putty, an effective sigma mixer joins double Z-shaped blades with screw extrusion and polished product-contact parts.
Two sigma blades create shear, compression, stretching, and folding. This suits epoxy putty, sealants, rubber compounds, carbon paste, chewing gum, and other dense materials. Sigma mixers may also control speed, temperature, vacuum, and mixing time.
Blade clearances still matter. Gaps that are too large leave thick layers near the wall. Gaps that are too tight raise wear and heat. The final geometry should match viscosity, abrasiveness, solids content, and batch size.

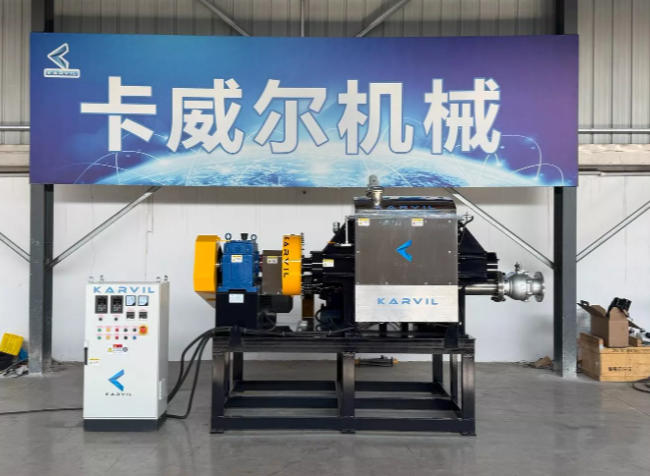

The Industrial Screw Discharge Sigma Mixer for Epoxy Putty Adhesives uses screw extrusion with a DN150 manual ball valve. Instead of relying on gravity, the screw pushes finished putty toward the outlet in a controlled stream and reduces heavy manual scraping.
The listed unit has a 300-liter total volume, a 210-liter working volume, a 22 kW drive, VFD control, and a 12 kW electric heating jacket. Torque, usable volume, screw speed, and temperature all affect retained material.
The product page states that the contact parts use a mirror finish below Ra 0.4 μm. A fine surface gives sticky putty fewer irregularities to grip and makes inspection faster.
No mixer can promise zero residue for every formula. Fillers, tackifiers, temperature, cure chemistry, and cleaning methods still matter. The practical goal is lower retained mass and a discharge result your operators can repeat.
Daily operation matters too. Loading, temperature, speed, and discharge timing can change residue with the same mixer and recipe.
Size the batch from working volume, density, and mass. Underfilling may keep material below the blade zone. Overfilling can reduce circulation or push product toward seals. The reference machine’s 300-liter total volume and 210-liter working volume show why the two numbers differ.
Your production target should therefore use actual working capacity. Selecting equipment only from the largest volume shown in a specification sheet can lead to weak circulation or frequent overloads.
A jacket can keep putty soft enough for kneading and discharge, but excess heat may shorten working time or harm sensitive additives. Karvil Machinery sigma mixers can use electric, water, thermal-oil, or steam heating, plus water or jacket cooling.
Laboratory units may use electric heating, thermal-oil circulation, steam, or electromagnetic induction for heat-sensitive formulas. Small trials help set a safe window before scale-up.
Electric heating is convenient for standard operation. Thermal-oil circulation supports more even high-temperature treatment. Steam transfers heat quickly, while electromagnetic induction offers more controlled heating for materials that react badly to sudden temperature changes.
The best kneading speed is not always the best screw speed. VFD control lets you use one range for mixing and another for extrusion. Start discharge soon after the batch reaches its target condition.
The wider industrial mixer range also includes tilting, vacuum, jacketed, and laboratory sigma mixers, so you can compare discharge structures before choosing a production model.
Residue control should never increase operator risk. High-torque blades, a discharge screw, and heated jackets require guards and dependable controls.
Use an open-lid emergency stop or safety interlock. Enclose transmission areas so operators cannot touch rotating parts. Safety grids, emergency stops, guarded discharge parts, and overload protection should match your work method.
Screw extrusion also limits direct handling because the chamber can stay closed and stationary while material leaves the machine. This is helpful when the putty is hot, heavy, or too sticky for safe manual removal.
Karvil Machinery lists CE certification for European safety requirements, ATEX certification for equipment used in explosive atmospheres, and FCM certification for food-contact materials.
For ATEX projects, check the plant zone, dust or vapor risk, motor, controls, and mechanical ignition sources. The certificate scope must match the supplied machine.
Explosion-proof requirements may affect the motor, electrical cabinet, sensors, transmission design, seals, and mechanical clearances. These details should be confirmed before manufacturing, not added after the machine arrives.
Food processors pay special attention to steel grade, surface finish, welds, and every part that touches the batch. Karvil Machinery states that relevant materials have passed EU food-contact testing and comply with Regulation (EC) No. 1935/2004.
An epoxy putty line normally follows chemical-process requirements rather than food rules. Still, documented materials and polished construction show useful production discipline. Specify the compliance path that fits your real product, not the strictest label simply for appearance.
Residue is formula-specific. Before final design, share a sample or data on viscosity, density, temperature, solvents, abrasiveness, batch size, and cleaning targets.
Karvil Machinery has supplied equipment across more than 50 countries and regions. Sigma mixers can serve adhesives, sealants, explosives, rocket propellants, rubber, chewing gum, and protein bars. Planetary mixers may handle battery slurry, dental materials, sealants, and aerospace compounds, while ribbon mixers suit powders such as flour, ice-cream powder, and dry mortar.
The application center helps compare mixer types, but material tests remain more useful than a general industry label.
A customized machine may involve changes to capacity, contact material, blade geometry, heating method, cooling system, vacuum level, discharge method, safety grade, control system, or factory voltage. That flexibility is important when a standard design cannot match your putty formula.
Karvil Machinery provides a one-year warranty and offers lifetime technical consultation when customers need support. Professional engineers provide remote guidance, video assistance, and online troubleshooting. Machines also include an English operation manual and electrical drawings, which helps overseas maintenance teams work faster.
The technical download center provides general equipment material. Before shipment, confirm manuals, wiring, spare-parts lists, test records, and support contacts.
Review the screw discharge sigma mixer with feeding, temperature control, receiving containers, ventilation, and cleaning access. A poor downstream setup can still create residue problems.
For high-viscosity epoxy putty, a strong route combines double sigma kneading, controlled heat, polished contact parts, prompt discharge, and screw extrusion. This setup cuts retained product and makes each batch easier to repeat.
Q1: Why Does Epoxy Putty Stay inside a Mixer after Discharge?
A: Epoxy putty has high yield stress and poor natural flow. It sticks to walls, blades, end plates, and outlets unless mechanical discharge force, suitable heat, and smooth surfaces help move it.
Q2: Is Screw Discharge Better than Tilting Discharge?
A: Screw discharge gives controlled, positive movement and reduces heavy manual handling. Tilting can also work, but the right choice depends on viscosity, batch size, floor layout, cleaning, and packaging.
Q3: Can a Sigma Mixer Heat and Cool Epoxy Putty?
A: Yes. Karvil Machinery can configure electric, water, thermal-oil, or steam heating, together with water or jacket cooling.
Q4: Which Safety Features Matter Most?
A: Check for an open-lid stop, emergency stops, enclosed drives, guarded discharge areas, overload protection, and suitable CE or ATEX documentation where required.
Q5: What Information Is Needed for a Mixer Quote?
A: Provide the formula type, viscosity or sample, batch mass, density, temperature range, solvent details, discharge form, cleaning target, electrical standard, hazardous-area classification, and automation level.
