Appearance alone is not a guarantee of performance. A seemingly smooth mix at the filling point can turn into disaster at the application point. Dry filler pockets, Lack of homogeneity, pigment streaks and unexpected air in the sealant can lead to hold points and material waste. When producing high-viscosity resin-and-filler mixes that need to be kneaded, the question of whether a Sigma Mixer can handle the mix is not as important as the ability of the production plant to reproduce the same acceptable batch from shift to shift. While we supply equipment to produce these very special materials, the producer needs a documented process from the check of the raw materials through in-process tests to release of the finished goods.
l Start with the incoming filler, resin identity and weighing accuracy. Many wet-out problems are caused before the Sigma Mixer is switched on.
l Use a defined charging sequence and observable mixing milestones rather than rely on minutes to achieve uniformity.
l Test samples at agreed positions in the production flow. Compare viscosity, appearance, density and application behavior against formulation-specific limits.
l Record any deviations and the cleaning status of a batch in a practical production log. In this way, variations in the material can be easily distinguished from variations in equipment or from human errors.
Waterproofing sealants and filled coating compounds of high viscosity contain polymers, mineral powders, pigments and other functional additives. The powder wetting and kneading properties of these materials can be greatly affected by even slight variations in the individual components. A seemingly uniform batch can, for example, produce irregular beads, uneven films or even varying results from filled containers. It is therefore essential to control the material variations occurring during incoming inspection rather than trying to correct them further down the line.
A damp or lumped filler is quite different from a dry, free-flowing feedstock. The change in particle size distribution and/or bulk density affects feeding in terms of apparent paste consistency. Check supplier identity, storage conditions, whether lumps can be screened off and the weighing record before use. Special consideration may be required for certain moisture sensitive or reactive formulations, in accordance with their formulation and site specific safety procedures.
Don’t increase the blade speed or add resin as a quick fix when the wet-out isn’t happening as expected. Check the actual weights that were added in the correct order, and also check if any compacted powder had entered the mixing vessel. Determine which of the incoming raw materials’ properties need to be tested for, which need to be checked visually and who can release a suspect batch. More kneading time can mask a material problem that will reappear the next shift.
Map out your production in as much detail as possible. Start with pre-weighing the lot, followed by charging the resin, subsequent adding of the filler in stages and kneading. End with a check on the mixture before it leaves the mixer and is filled. Mark up all possible points of contamination, increase of solvents as well as possible delays. In order to give you an idea of possible equipment for such a production, Karvil Machinery published a production of waterproof materials with a 2000L Sigma Mixer. This is however not a substitute for testing the corresponding production with your specific material and subsequent processing.
The charging order defines how fine particles are distributed within a cohesive resin. A large amount of powder can form a ‘skin’ around unwetted material whereas excessive liquid can form soft, concentrated areas or ‘pockets’ within the mix. An approved charging order must be defined and hold points recorded. The order will often depend on the specific formulation and whether the system starts with resin or not. Some may require premixing of minor ingredients or addition in a controlled manner.
Trials can be run charging powder in portions under control and monitoring if each portion of powder has time to enter the moving mass of paste before the next portion is added. Powder may collect above the active zone or near the lid of the vessel. However, charging of powder in trials must be by methods to contain dust as for main facility. Compare adding powder in shorter intervals versus dispersion whilst keeping total mass of additive the same as for approved process.
When a trial has achieved reduction of dry pockets, verify the results at typical production fill. Material temperature and equipment load can be noted as observations rather than set values for all instances. A new filler supplier may require slow feed or premix, quantities of re-active components or timing changes of these require formulation or quality approval prior to production.
Additional colorants, catalysts, fibers or other minor ingredients can be sensitive to over-mixing or high temperatures. Determine an appropriate addition point, based on the original formulation and subsequent trial. Ensure that late-added pigment receives sufficient mixing to eliminate any visible streaks. Establish an addition window, a recognized end-point and allow for a specific time delay prior to transfer of mixture.
A timer cannot be used to determine whether filler has been incorporated into product. Link time stamp to end of following stages: initial wetting, cohesive mass formation, disappearance of agglomerates, production of an acceptable sample. Plot against time where available: motor load, product temperature, blade speed. Motor current is a process indicator but only prove a product parameter if specifically tested against it.
Surface texture, dry islands, wall build-up and any material movement through the blades can be recorded by operators and described using consistent wording. Wherever possible approved photographs or reference samples should be used to support descriptions of material conditions. A sudden change in load does not necessarily mean the end of the part’s production, it could indicate a change in the feeding of material or some variation in the material itself. In such cases where the condition falls outside of the validated limits of ‘normal’ then the part should be held for investigation rather than allowing the part to complete.
Sampling from the trough surface using a scoop can easily miss dense filler pockets. Safe sampling of materials must be based upon points that are accessible and where material is moving. This may involve identifying samples to be taken from the early, middle and late portions of the discharge, and taking vessel samples only in accordance with an appropriate procedure. Testing must be conducted at the same temperature and at the same time as material has been allowed to condition. Do not open or reach into moving pieces of equipment to take samples. Visually uniform material is not necessarily chemically uniform.
Record defects before attempting a correction. Classify the symptom, retain a representative sample, and link it to material lots, charging events and process data. The following patterns are investigation hypotheses, not universal diagnoses. Confirm a suspected cause using agreed tests before changing the operating procedure.
Residual powder appears as hard grains or dry specks. These may be agglomerated powder, over-charged powder, under-contacted resin or insufficiently kneaded paste. Streaks of pigment indicate that pigment has been added at the wrong point in the process or that the mix has not circulated properly in a localized area of the batch. Check the retained powder and resin, cut open the paste to inspect it and retraverse the process to establish the events which occurred. The Sigma Mixer Extruder moves cohesive paste to pack but a bad batch made in the mixer is not corrected by it. Check for contamination of the hose, static in the outlet and for clean filler hopper. Record which check confirms or rejects each suspected cause of a problem.
Pinholes or package-weight variation can occur at any point in the process including charging, transfer, filling as well as formulation. Compare density and appearance of early and late production samples and adjust as necessary. Problems with cure or adhesion are likely to be caused by additive dosage, reaction time or test-substrate. Find the root cause of the problem, mixing is not always the cause of all defects.
Left over material at the blades, shafts or outlet of a mixer can be a big problem in batch production. It can get into the next batch when color, catalyst or resin are changed. Document the special clean up for each recipe, the points to be cleaned and the release criteria. Keep a log of cleaning tools and agents and check for compatibility with material contact surfaces. For the blade areas this only has to be done after the required energy isolation and safe access procedure for the respective site.
When changing over to a new formula verify the old and new recipes and select a validated full clean, targeted clean or compatible process sequence. Check the charge port, vessel surface, cutting blades, seals and transfer route. A first-off inspection after restart can reveal unexpected color changes, foreign bodies or higher-than-expected viscosity prior to commencement of filling-up. Verify the cleaning and access procedures for the chemicals and equipment involved.

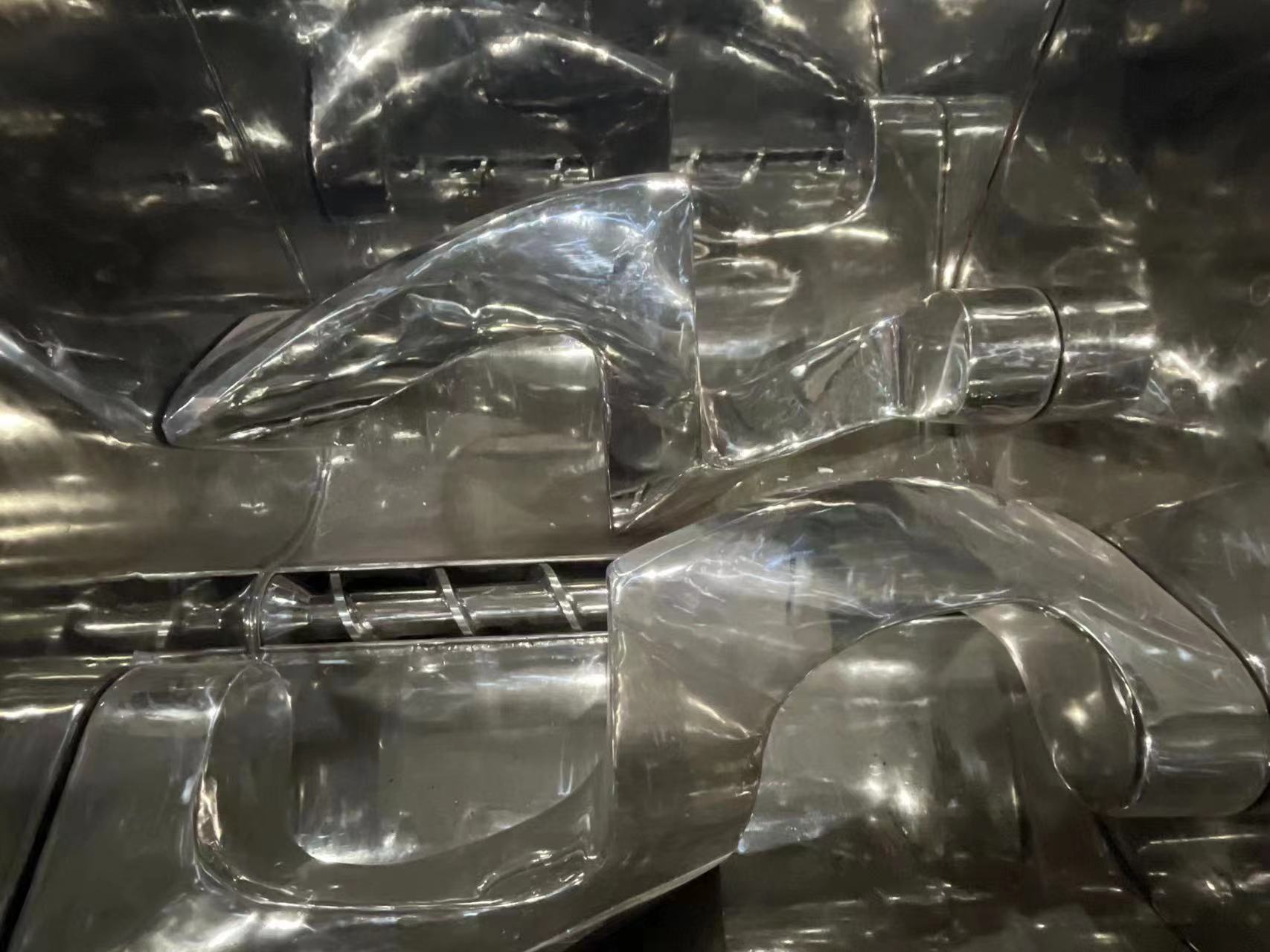

The Sigma Mixer category includes several models of industrial kneaders. However, the process owner will require access to contact-surface drawings of the installed mixer, together with cleaning instructions and safe points of inspection. This information is contained within the company overview for Karvil Machinery, a supplier of wider industrial mixing equipment. Production teams will benefit from a machine-specific changeover sheet that can be followed by and signed by shift teams as necessary as opposed to vague cleaning instructions that can be left until the mixer’s chamber looks clean enough.
Use one batch record to tie together material inputs, production observations and release results.
1. Incoming materials: Supplier lot numbers, approved storage, weights, and any special checks for powder or resin before use are recorded.
2. Charging sequence: Record each addition, record the approximate time of each addition, record who added it, reference approved recipe version, and any interruptions or deviations from plan.
3. Kneading observations: These must include validated process milestones, material temperature, time and any trends observed with the equipment and process load.
4. Product samples: Where do you take samples from and when? Check appearance, viscosity/rheology, density and application.
5. Release and Changeover: Acceptance decision, retained samples, excess material, cleaning verification, authorized rework or disposal.
The Karvil Machinery application page lists various industrial materials that can be mixed using the different Karvil mixers. For waterproof-compound manufacturers, the final inspection plan and corresponding acceptance limits must be defined by their own validated formula and product requirements and not copied from an application-related equipment catalog.
Production trials should produce a usable standard operating procedure, not just proof that the machine ran. Compare batches of the approved recipe while recording material and feeding differences. Set an operating window, sampling locations, product-release limits and a route for abnormal batches. Karvil Machinery can advise on kneader access, controls and documentation; the manufacturer must validate its own product criteria. Keep records searchable so a recurring defect can be traced to a material lot, shift, procedure or equipment condition.
Q1: When dry filler lumps appear in a waterproof compound, what is the first thing to check?
Check filler condition, batch weight and feed rate before altering kneading time. Compare retained powder to original product in attempt to replicate and then make one controlled change. Lumps are typically a result of a feeding problem not insufficient power.
Q2: Can the same mixing time guarantee identical waterproofing batches?
No. Time works only with controlled inputs and a validated endpoint. Therefore, Material lots, weighing, addition sequence and delays must be taken into account and integrated into the process milestones with appropriate representative product tests.
Q3: Which production samples best reveal inconsistent batches?
A: A safe test plan would compare early, middle and late conversion and retain material as necessary. Test at same temperature and use same type of test, e.g. surface test. One surface test sample may hide great variation.
Q4: Are all pinhole and curing defects caused by the Sigma Mixer?
A: No. Air may enter during filling; cure variation may come from dosage, preparation or formulation chemistry. Identify the defect stage before choosing corrective action.
