A heated sigma kneader mixes high-viscosity, sticky, or dough-like materials by repeatedly folding, compressing, and shearing the batch between two sigma blades while a jacket controls process temperature. For difficult materials, mixing quality depends less on nominal tank volume than on usable batch load, torque, blade-speed relationship, temperature profile, and how the finished mass is discharged. A screw-discharge design is especially useful when the material is too cohesive to drain cleanly by gravity.
For processors comparing equipment around a real high-viscosity recipe rather than a generic mixer label, Karvil Machinery can be evaluated against the required working volume, temperature profile, blade loading, discharge method, cleaning plan, and batch-acceptance test.
l Blade speed and batch load must create repeatable folding and kneading without unstable motor loading.
l The heating profile should bring the product to the required processing temperature without creating avoidable hot spots or excessive heat exposure.
l Screw extrusion should discharge a cohesive batch consistently while keeping retained material and manual removal under control.
A sigma kneader does not rely on the free circulation used in a powder blender. Two heavy-duty sigma blades work the material through repeated deformation, folding, compression, and shear. Because the blades operate as a coordinated pair, the process can keep moving pastes and elastoplastic masses that barely flow under their own weight.
The process window depends on viscosity, solids loading, adhesion, temperature, and batch size. A formulation that softens when heated can load the drive very differently from a highly filled compound that stays stiff, so motor power, blade action, and temperature control should be evaluated together.
For many high-viscosity formulations, temperature changes wetting, softness, dispersion, and release from metal surfaces. A jacketed kneader can add or remove heat while the blades keep the batch moving, but trials should record actual product temperature, heat-up time, torque response, and the point at which the material reaches its required processing condition.
Karvil's guidance on a sigma kneader mixer for high-viscosity materials supports the same selection logic: blade action, temperature control, torque, and discharge should be evaluated as one process rather than as independent machine features.
Variable | Effect on Process | What to Test |
Blade speed | Shear, folding, and motor load | Torque trend and sample uniformity |
Jacket temperature | Viscosity and heat transfer | Product temperature vs. setpoint |
Batch load | Blade engagement and drive demand | Low, target, and upper batch sizes |
Screw discharge | Residue and transfer consistency | Discharge time and retained material |

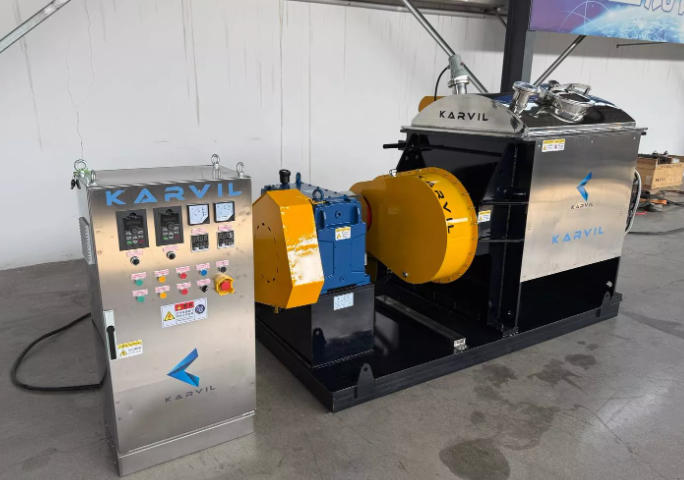

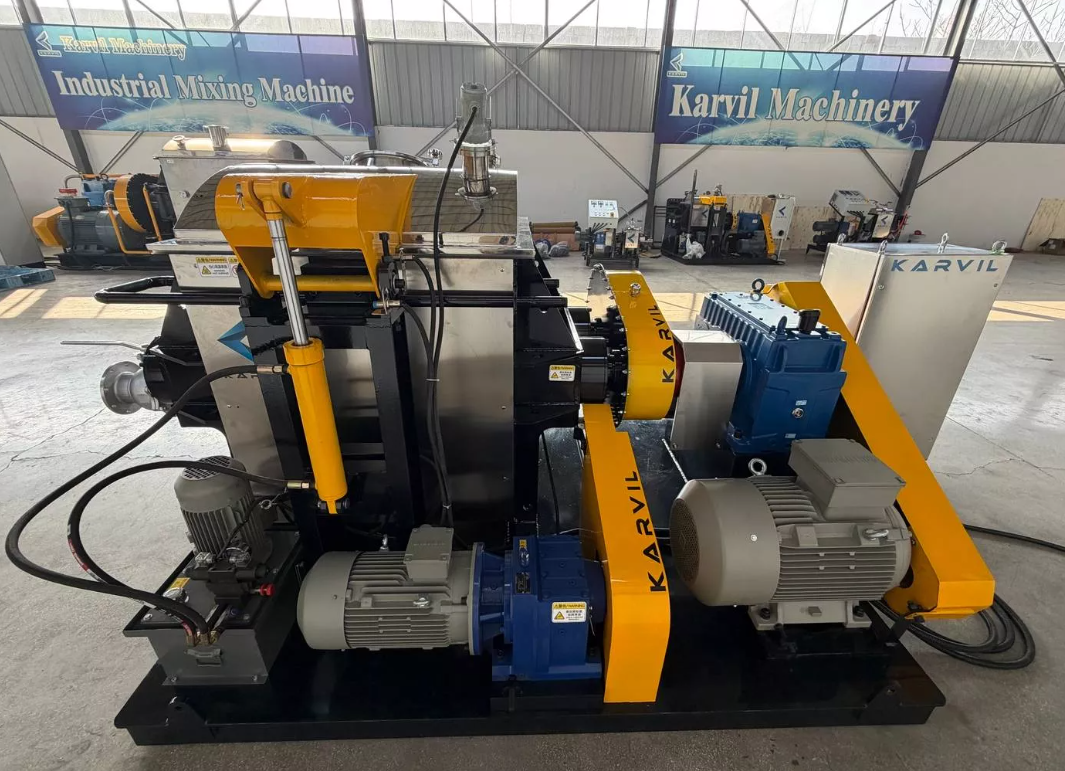

The Heated Sigma Kneader with Screw Discharge is a relevant reference for viscous and sticky materials that need controlled heating and mechanical discharge. The featured NH-500 configuration lists 500 L total volume, 350 L effective working volume, a 30 kW Siemens Innomotics main motor, mirror-polished sigma blades with an SS316 welded overlay, a full heating jacket, and screw extrusion through a DN125 manual ball valve. Karvil Machinery also lists customizable material, heating, cooling, vacuum, motor, and discharge configurations for different processes.
A useful technical brief should include target and minimum batch size, viscosity or consistency range, solids loading, abrasive or sensitive ingredients, required product temperature, heating or cooling method, vacuum requirement, discharge expectation, cleaning method, and the test used to confirm batch uniformity.
One mistake is testing with water or an easy low-viscosity surrogate and assuming the same settings will work for a sticky production mass. Another is judging the batch only by mixing time without recording temperature and motor load. A third is ignoring discharge behavior even though the material may mix well and still leave significant residue in the trough or screw barrel.
Sigma kneader performance should be validated with the actual formulation or a representative production-like material. The objective is to prove the complete process window: mixing, temperature control, discharge, cleaning, and repeatability from batch to batch.
A Sigma Kneader should be tested with material that behaves like the real batch because viscosity, adhesion, solids loading, particle shape, temperature, and moisture can all change torque and discharge behavior. An easy liquid or soft paste test can confirm rotation and controls, but it cannot prove that the machine will knead, heat, and empty a difficult production formulation consistently.
A serious trial records motor-load or torque trend, product temperature, mixing time, visible or analytical dispersion, discharge time, retained material, and cleaning time. For sticky compounds, inspect the shaft zones, blade surfaces, end plates, screw barrel, and outlet after the batch is removed.
The specification should define not only maximum vessel volume but also the practical working-volume range. Many kneading problems appear when a machine is loaded far below or above the batch size used during qualification.
What viscosity, consistency, solids loading, particle content, or abrasive character describes the real material?
What batch-size range, product temperature, heating, cooling, or vacuum condition is required?
How will dispersion or uniformity be measured, and at what point in the batch or discharge stream will samples be taken?
How must the finished mass leave the mixer, and what residue or cleaning time is acceptable after screw discharge?
A sigma kneader needs enough material for the blades to work the whole mass while still leaving room for repeated deformation and folding. A very light batch may not maintain the same blade engagement as the qualified load, while an excessive batch can push motor demand and temperature beyond the intended range. The effective working volume is therefore more useful for process planning than shell volume alone.
Material behavior should be described by viscosity or consistency, solids content, particle-size range, adhesion, temperature sensitivity, and whether powders or liquids must be incorporated gradually. These properties determine how quickly the batch wets out, how strongly it loads the blades, and whether agglomerates remain after the nominal mixing time.
Sampling should be planned before the trial starts. For a viscous batch, samples from several locations or from defined stages of screw discharge can show whether color, filler concentration, active ingredient, or other measurable properties are truly consistent rather than uniform only at the first sample point.
Discharge residue is part of batch quality. A cohesive material can meet its mixing target yet remain around blade ends, seals, the trough bottom, or the discharge barrel. Residue reduces yield and increases cross-batch cleaning, so the discharge test belongs in equipment approval rather than being treated as a separate handling issue.
Ingredient addition order should also be tested. Powders added too quickly can form dry pockets, while liquids introduced at the wrong stage can change wetting, torque, and the time needed to reach a uniform mass. The best sequence is the one that gives stable incorporation without unnecessary load spikes or cleaning problems.
The kneader should be checked at the smallest routine batch as well as the target production batch. Plants often size equipment around peak capacity but later run partial batches, where blade engagement, heating rate, and discharge behavior can differ from the original qualification run.
Define the mixing end point before the machine starts. Depending on the product, the release criterion may be dispersion, color consistency, concentration, temperature, torque stabilization, air removal, or a combination of these. A fixed number of minutes is useful only after it has been tied to a repeatable quality measurement.
Temperature should be treated as a controlled process variable. Heating can lower resistance in some formulations and improve flow, while excessive temperature can alter product quality or change discharge behavior. Compare the jacket setting with the actual batch temperature and record how the motor load changes during the heating stage.
Screw discharge should be observed through the full emptying cycle. Check whether the material feeds continuously into the screw, whether the outlet remains controllable, and how much product is retained after the main flow stops. For very cohesive masses, this test can be as important as the mixing result itself.
Cleaning method should be specified with the formulation. Manual scraping, solvent cleaning, water wash, or other plant procedures affect access, seal review, turnaround time, and surface-finish expectations. Mirror-polished contact surfaces can help reduce adhesion, but the actual batch still needs to be checked for retained material.
Scale-up should not rely only on a volume ratio. Blade loading, heat-transfer area, product temperature response, mixing time, discharge resistance, and ingredient-addition sequence can all change when a formula moves from laboratory or pilot equipment to production scale.
A useful equipment inquiry does not need confidential formulation details. A processor can begin with viscosity or consistency range, batch size, solids loading, abrasive content, target temperature, vacuum need, discharge method, cleaning expectation, and the quality test used to release a finished batch.
A production trial is stronger when it uses a measurable tracer, filler concentration, color value, or another analytical marker instead of appearance alone. Samples from defined times and several batch or discharge points can identify the earliest repeatable moment when quality meets the acceptance limit while temperature and motor load remain inside the intended process window.
Longer kneading is not automatically safer. Extra run time adds energy and extends exposure to heat and shear, so sensitive or highly filled materials should be judged by quality together with product temperature, motor-load trend, surface condition, and discharge residue.
Repeat the test at the smallest routine batch and at the normal production load. If dispersion, temperature response, torque, or screw discharge changes sharply with load, the plant has found an operating boundary that belongs in the work instruction. That validated process window is more useful than a single maximum-capacity figure.
A heated sigma kneader is used for materials that are too viscous, sticky, or dough-like for conventional powder mixers. Applications include silicone rubber, sealants, carbon paste, inks and pigments, clay, chewing gum, candy, bakery products, and other formulations that need strong kneading with controlled heating.
A sigma kneader mixer uses two heavy-duty sigma-shaped blades to fold, compress, and shear the batch while the jacket controls process temperature. Final blade, temperature, and mixing-time settings should be established with the real formulation because viscosity and batch size change the required load.
Screw discharge is useful when the finished product is too cohesive to empty reliably by gravity or simple bottom discharge. It provides controlled mechanical transfer from the trough, but the trial should still verify discharge time, retained material, outlet control, and cleaning access.
Before purchase, compare the wider sigma mixer category by working volume, viscosity, drive margin, temperature control, vacuum need, contact material, screw discharge, sealing, and cleaning access - not tank volume alone.
