Multi-Function Mixer
Karvil
The low-speed frame agitator provides controlled bulk mixing while the scraper system helps improve material movement along the vessel walls and bottom.
A separate high-speed dispersing system provides intensive shear for faster and more uniform dispersion.
The closed vessel is equipped with a vacuum system capable of reaching at least -0.09 MPa for vacuum processing and deaeration.
This system is supplied with a dedicated hydraulic pressure discharge machine for controlled material discharge.

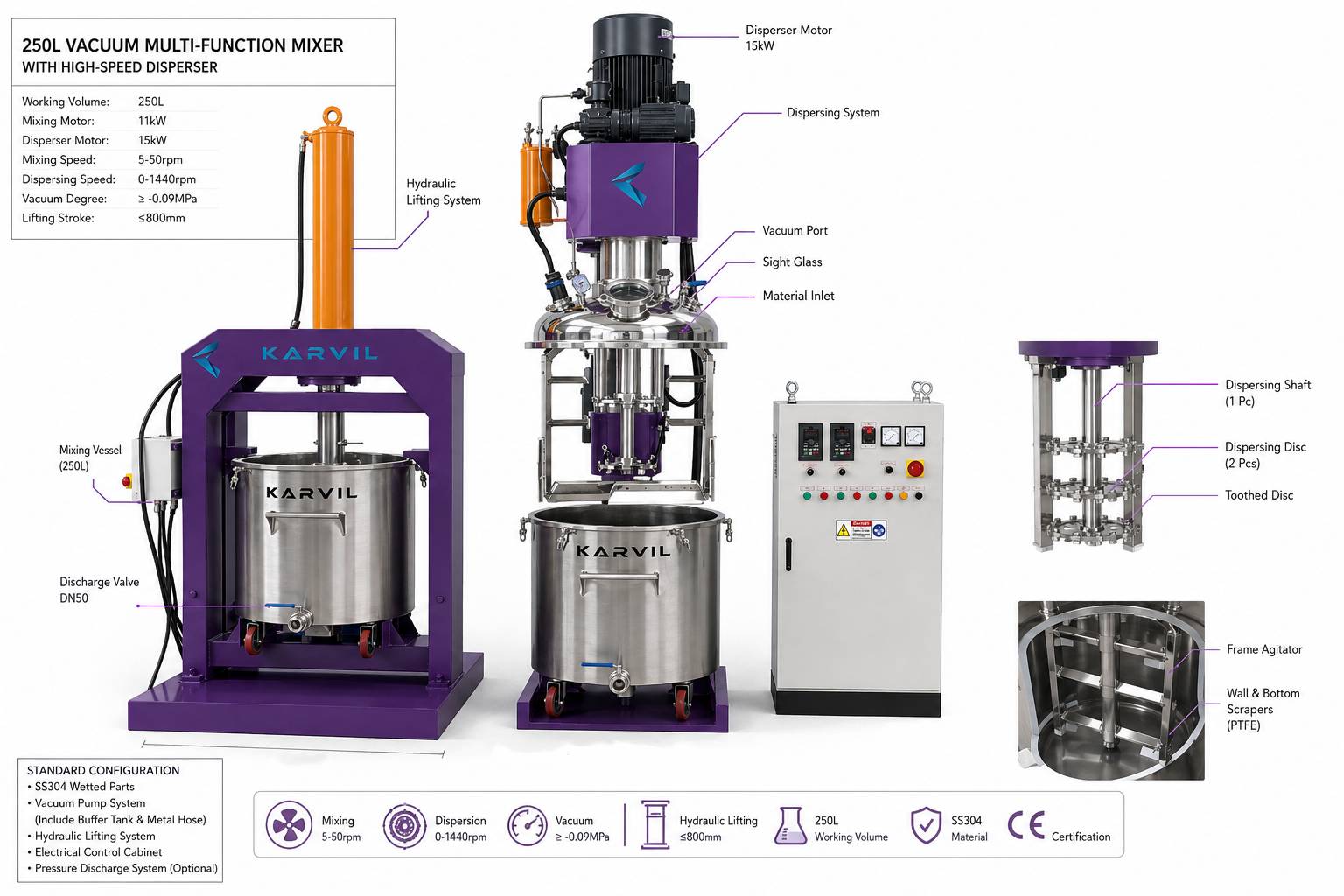

11 kW low-speed mixing motor

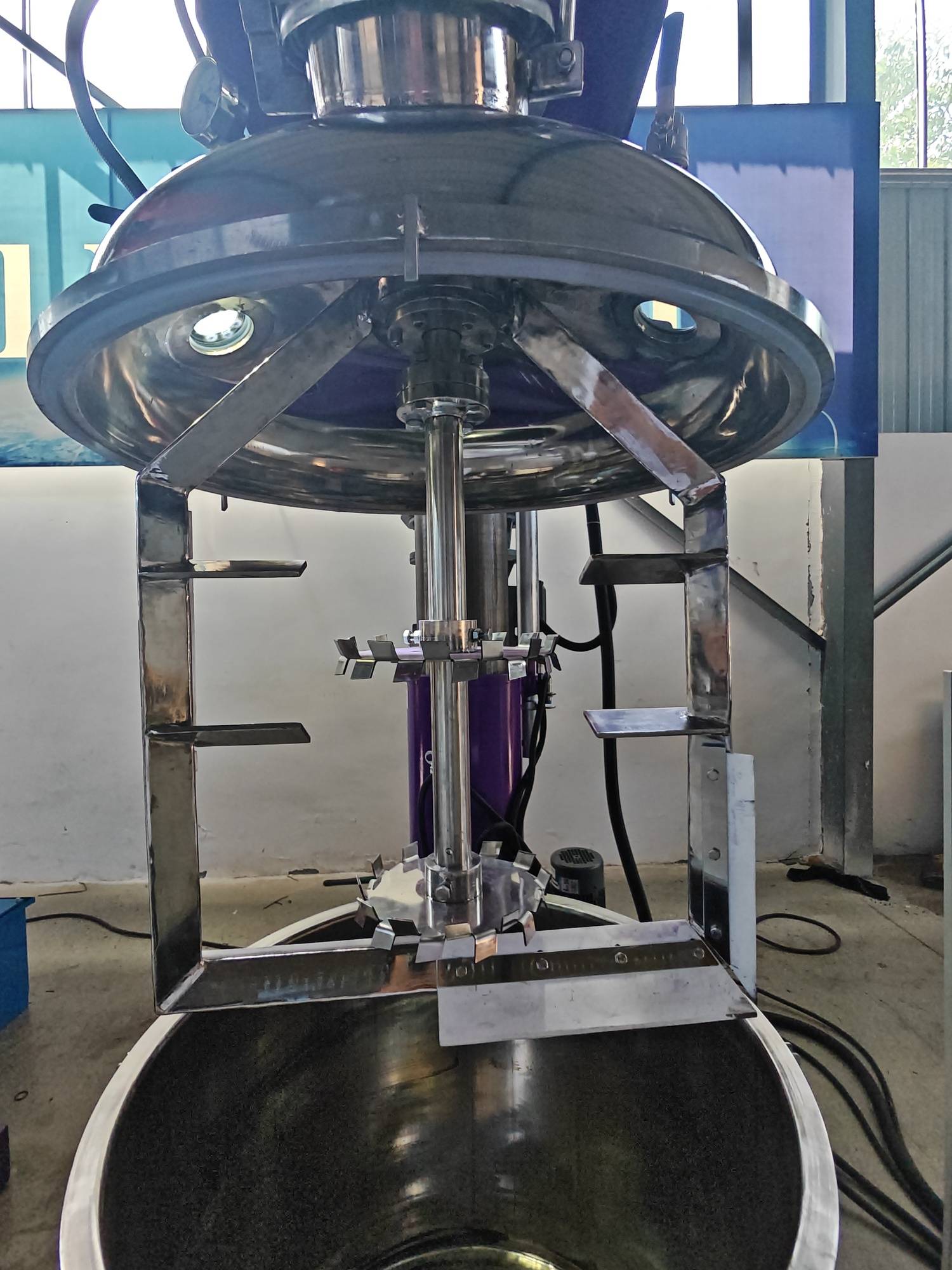

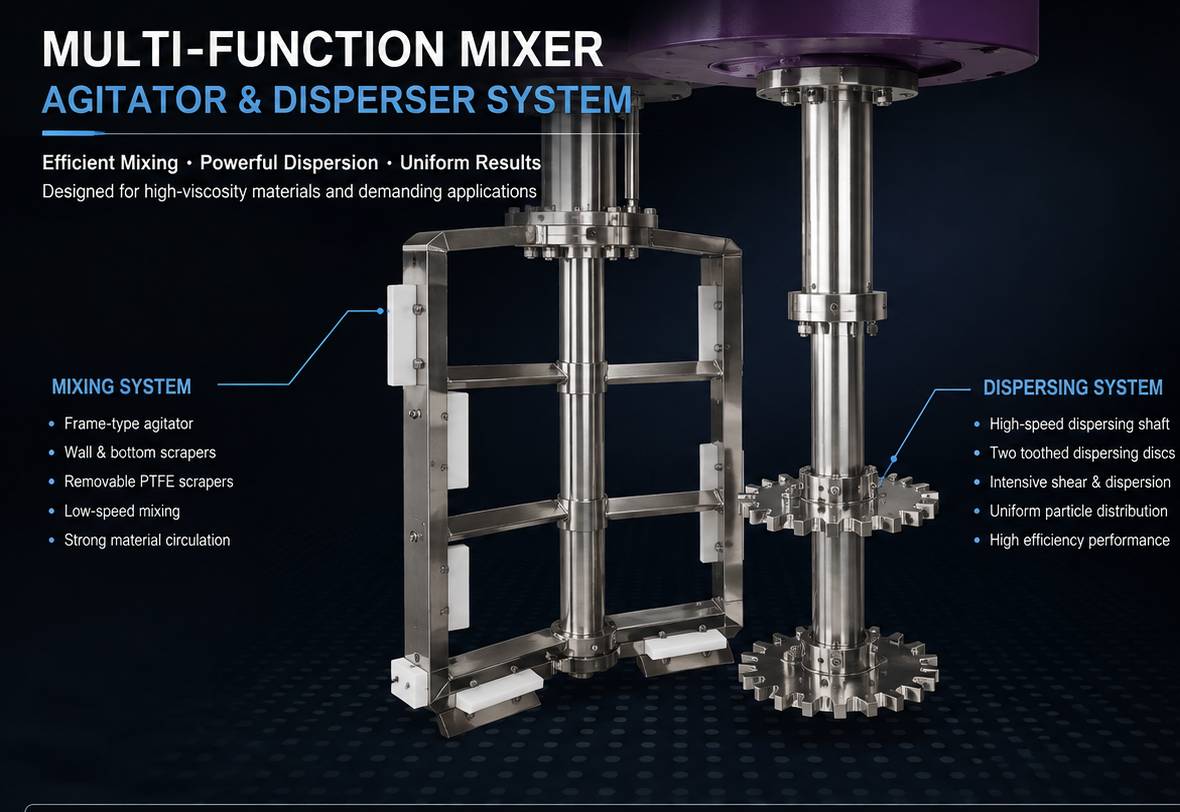

Frame-type agitator with PTFE wall and bottom scrapers for effective bulk mixing.
15 kW high-speed disperser
Two toothed dispersing discs provide intensive dispersion with speeds up to 1,440 rpm.
Vacuum down to -0.09 MPa
Designed for closed-vessel vacuum processing and air removal.
Integrated pressure discharge
A dedicated hydraulic pressure unit helps discharge high-viscosity materials after mixing.
Emergency Stop
Pressing the emergency stop immediately stops the equipment.
Vacuum Interlock
The lifting system cannot raise the crossbeam until the vessel has returned to atmospheric pressure.
Vacuum Oil Backflow Protection
We stand for fair and affordable pricing policy and we have very beneficial regular discounts.
Motor & Drive Protection

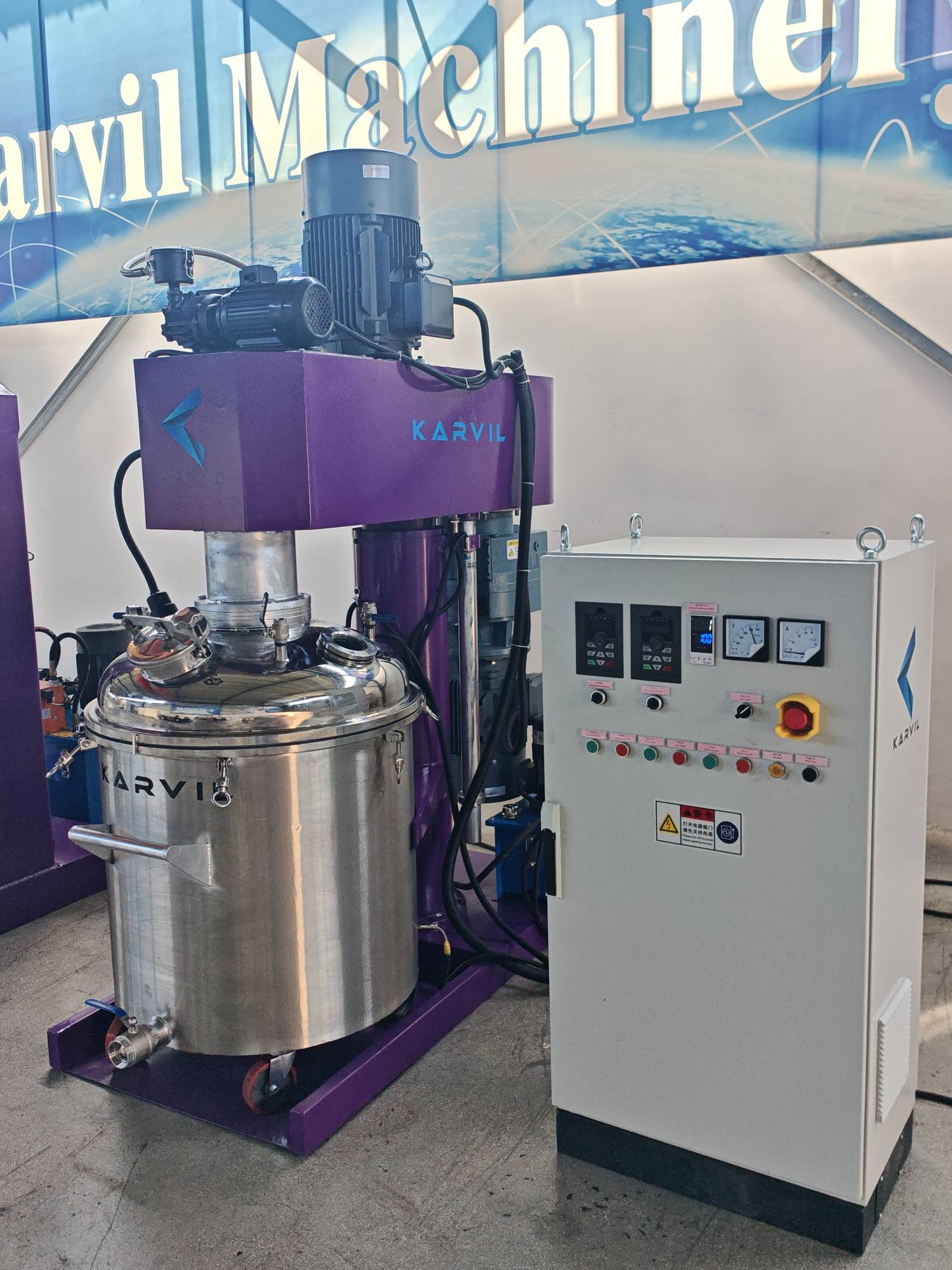

The variable frequency drive provides protection against overload, overcurrent, overvoltage, leakage and phase loss.
After mixing, high-viscosity waterproof coatings can be difficult to remove from the mixing vessel by gravity alone.

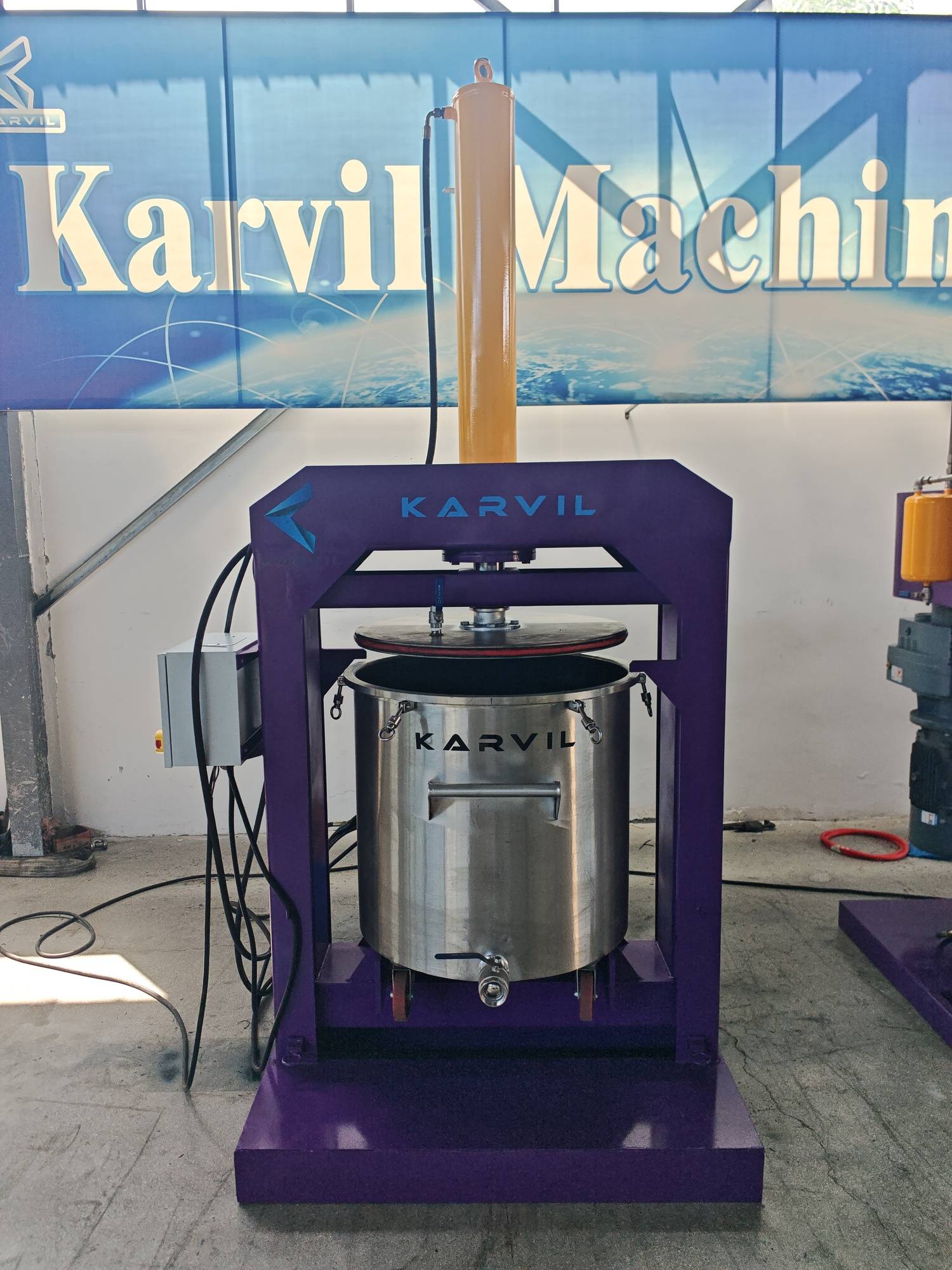

For this reason, the system is supplied with an SXDYJ-250 hydraulic pressure discharge machine.
The pressure discharge unit uses a hydraulic cylinder and matching pressure plate to push the material out of the vessel, providing a more practical solution for viscous coating materials.

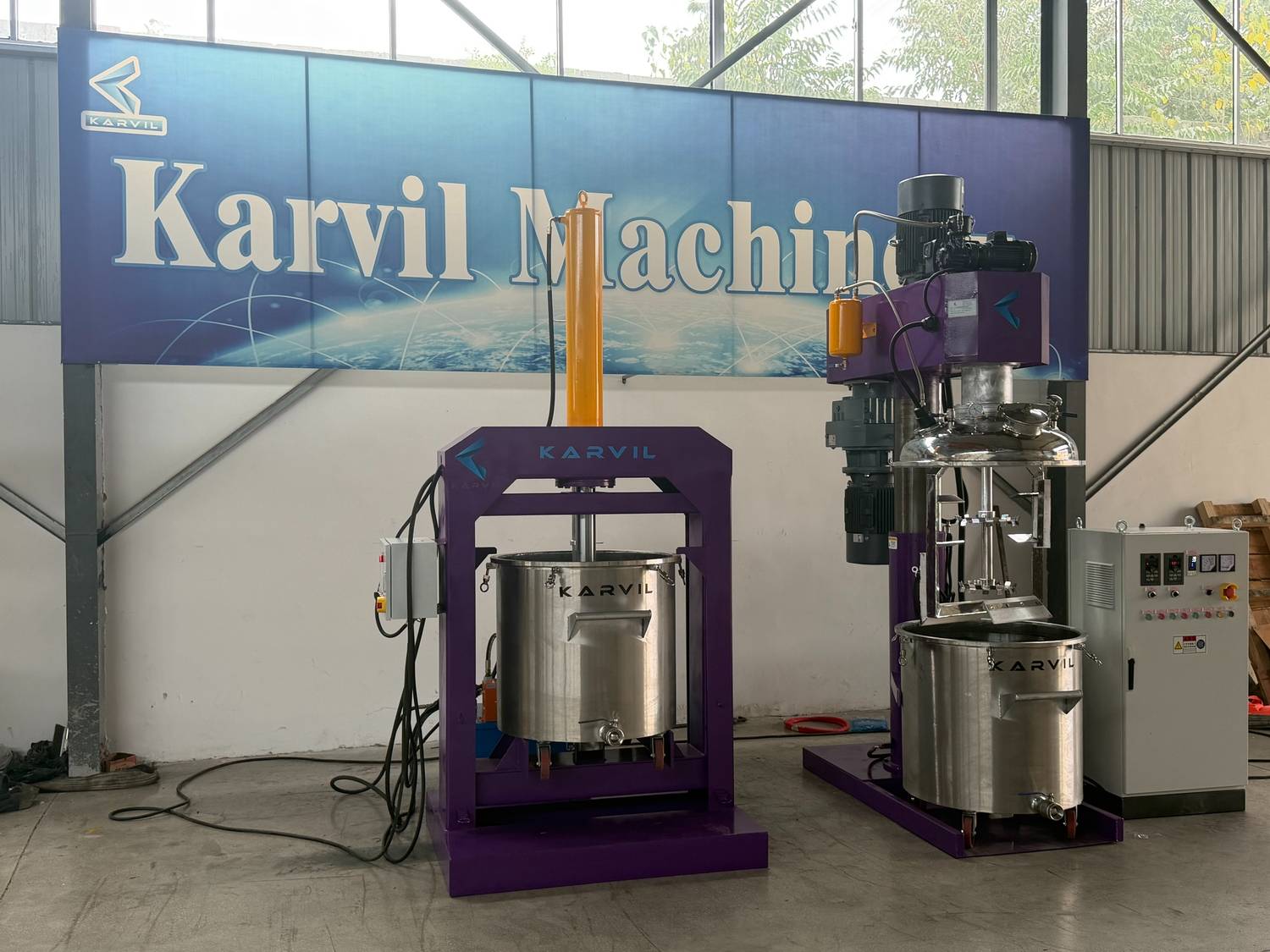

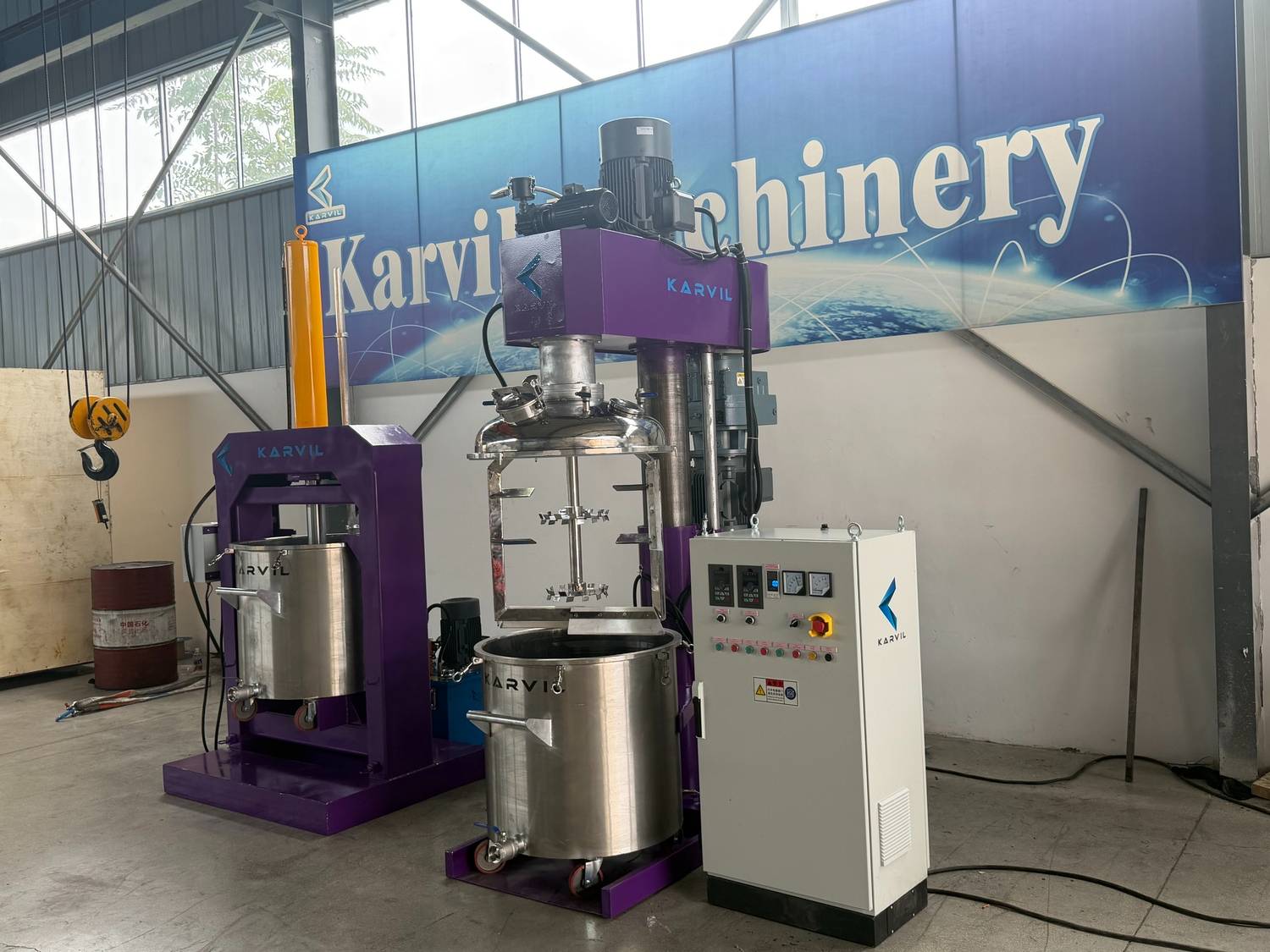

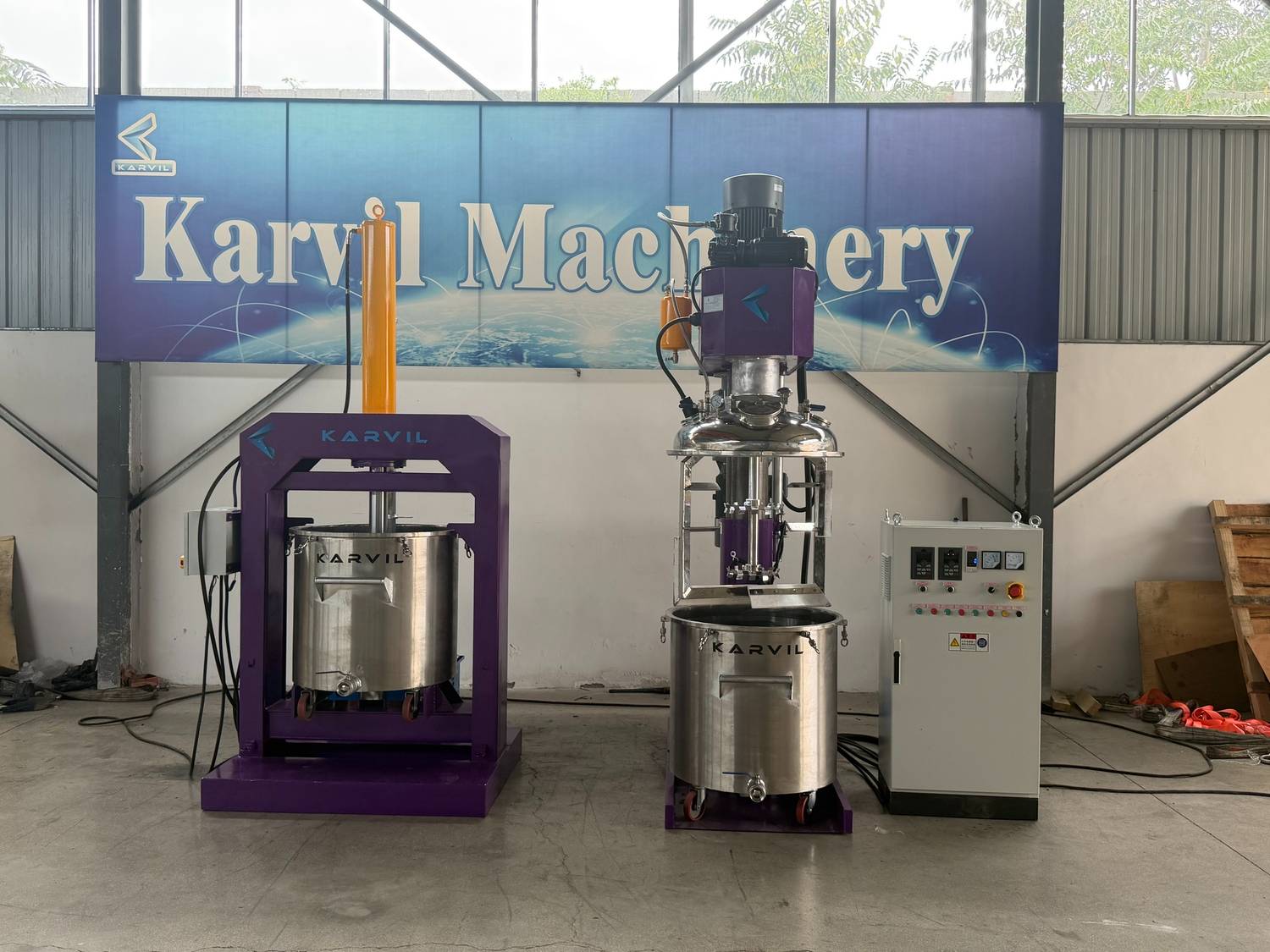

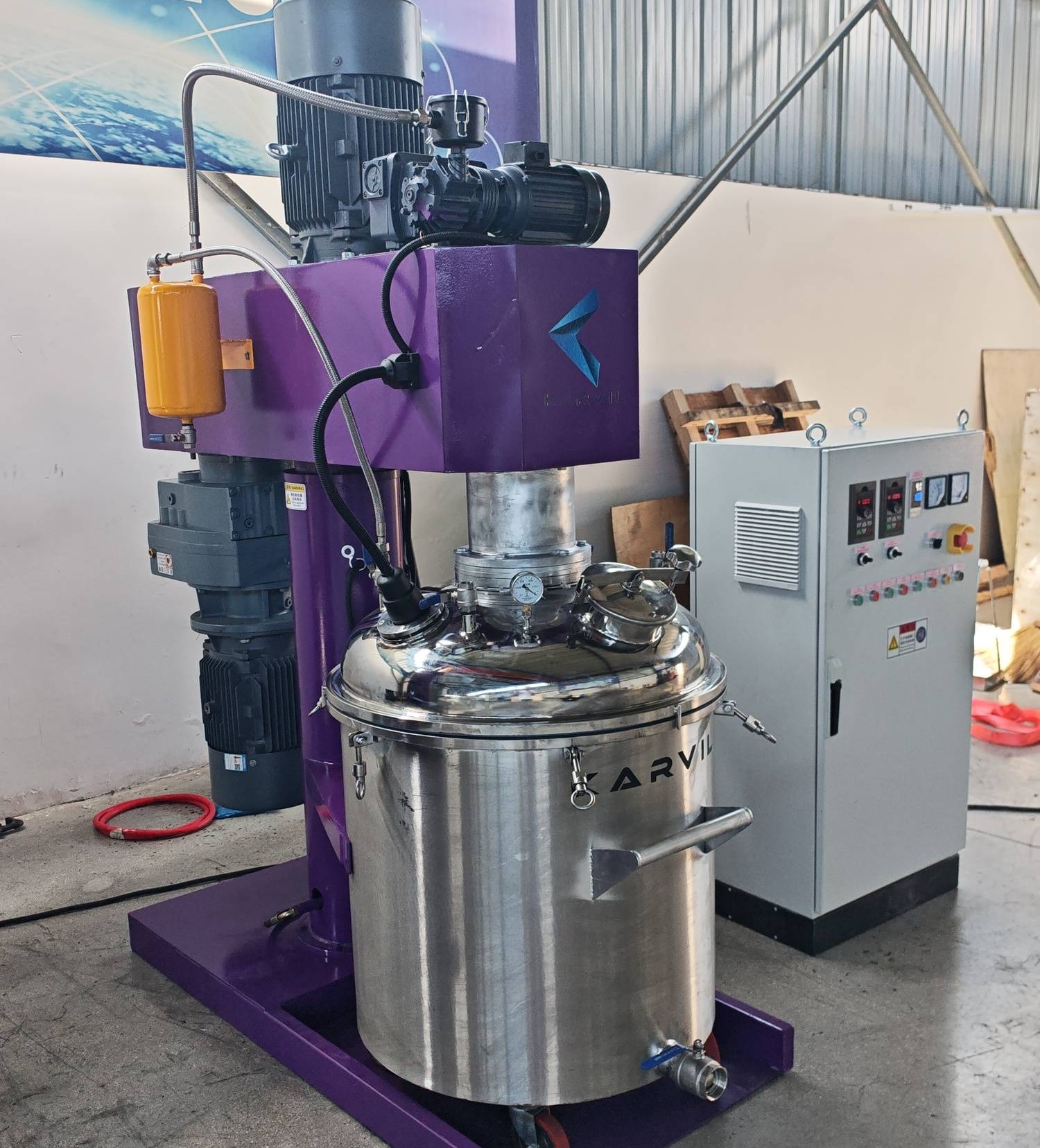

Watch the factory test of Karvil Machinery's 250L vacuum multi-function mixer, designed for waterproof coating and other demanding industrial mixing applications.
This system combines low-speed mixing, high-speed dispersion and vacuum processing in one integrated machine.
Contact Us for Custom Requirements & Free 3D Layout
Trusted by Global Manufacturers in 50+ Countries. From silicone to adhesives, see how our Sigma Kneaders are solving complex mixing challenges for industry leaders worldwide.
Our modern, fully equipped technical center is at your disposal. We welcome you to test your products to experience the advantages of our industrial mixers firsthand.
Specializing in mixers, grinding, and recycling machines, Karvil's experienced engineering team constantly explores new technologies to create perfect solutions for you.
Can this mixer be used for waterproof coatings?
Yes. This specific 250L system was designed for processing roof waterproof coating materials and combines low-speed mixing, high-speed dispersion and vacuum processing.
Does the mixer have vacuum capability?
Can it handle high-viscosity materials?
What is the difference between the mixer and disperser?
Can the mixer be customized?
