Sigma mixer working volume controls how effectively a cohesive batch stays engaged with both Z blades, while material viscosity, moisture, blade speed, and discharge behavior determine whether the kneading result can be repeated. A mixer can have adequate motor power and still give inconsistent results if the batch is loaded outside the useful working range or the material becomes too sticky to fold and turn. Before a sigma mixer is selected, the actual material and target batch size should be tested together.
l Working volume should keep the batch continuously engaged with both Sigma blades without overloading the chamber.
l Viscosity, moisture, bulk density, and stickiness change torque demand, folding behavior, and discharge difficulty.
l Blade speed and rotation direction affect shear, stretching, folding, and the time needed to reach a repeatable kneading result.
l Hydraulic tilting discharge should be checked for unloading efficiency, residue, cleaning access, and safe resetting between batches.
A sigma mixer uses two heavy Z-shaped blades to work material through repeated shear, folding, stretching, and compression. The blades do not simply circulate a free-flowing powder. They continuously pull and press cohesive material through the chamber. If the batch is too small, part of the material may not stay fully engaged with both blades. If the batch is too large or too resistant, turnover can slow and the drive can be exposed to unnecessary load.
Uniformity principles from sigma mixer kneading show why working volume and material behavior should be discussed before motor power and total chamber size alone. A low-viscosity paste, a clay-and-mineral batch, and a sticky sealant do not respond to the same blade speed or discharge method.
High-viscosity materials can change behavior quickly as fillers, liquids, temperature, or moisture are added. A clay-based batch may become much harder to fold than the starting materials suggest. Trial sampling should therefore compare several locations and, when possible, early, middle, and late discharge portions. One surface sample cannot show whether a dense or sticky zone stayed close to a blade, wall, or corner of the chamber.
Parameter | Specification or Check | Why It Matters |
Working volume | 250 L working volume within 400 L total | Keeps the batch within the selected machine's specified loading range |
Material condition | Viscosity, moisture, bulk density, and stickiness | Predicts torque demand and kneading/discharge behavior |
Blade speed | 0–37 rpm / 0–26 rpm, forward/reverse | Controls shear, folding, stretching, and kneading intensity |
Hydraulic tilting | 2.2 kW hydraulic system | Helps unload cohesive material and assess residue and cleaning |

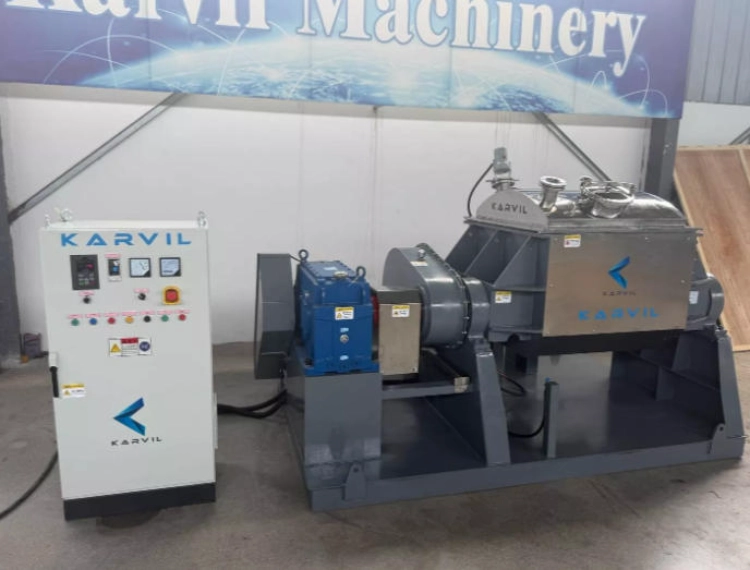

The 400L Hydraulic Tilting Sigma Blade Mixer should be evaluated against actual material consistency, target batch volume, mixing time, ingredient order, temperature requirement, and discharge behavior. The selected NH-400 configuration has a 400 L total volume, 250 L working volume, a 30 kW main drive, forward/reverse Sigma blades at 0–37 rpm and 0–26 rpm, and hydraulic tilting discharge. Karvil Machinery can support equipment selection when the material information and required capacity are available before quotation.
Two plant-level pitfalls are easy to miss. Operators may reduce the batch for a short production run and move away from the loading condition used during the successful trial. They may also add liquid or binder too quickly, creating a localized sticky mass that increases torque before the rest of the batch has incorporated it. The same nominal mixing time can then produce a very different result.
A sigma mixer is not ideal for every material. Low-viscosity liquids or free-flowing dry powders may be handled more efficiently by another mixer family, while highly reactive, abrasive, or temperature-sensitive formulas may need a different chamber material, seal, heating, cooling, vacuum, or discharge configuration before production approval.
A high-viscosity batch can look uniform at the exposed surface while material near the chamber wall, blade root, or discharge side has experienced a different shear history. Sampling should therefore cover more than one location and more than one discharge stage. The target property—such as moisture, filler concentration, color, or another process-specific measurement—should be defined before the trial begins.
Mixing time should be recorded together with batch volume, material condition, ingredient order, blade speeds, rotation direction, and temperature. Without those conditions, a successful kneading result cannot be reproduced reliably when production changes a raw-material lot, operator, or batch size.
Sticky or cohesive materials may need changes in charging order, liquid-addition rate, blade speed, or discharge timing. The mixer can develop strong kneading action and still lose repeatability if the material cools, stiffens, traps air, or remains in the chamber too long before unloading.
Residue left in a sigma kneader is not only a cleaning burden. It can reduce yield, contaminate the next batch, and change formulation accuracy when valuable binders, pigments, fillers, or active ingredients remain on the blades and chamber surfaces. Trial records should therefore include the amount and location of residue after normal discharge.
For the selected NH-400 configuration, the material-contact parts are SS304 with mirror-polished surfaces, and the shaft sealing system uses a combined packing seal box with PTFE packing. Those details matter because blades, chamber surfaces, seals, and discharge geometry all affect how quickly operators can remove sticky material between formulas.
Before purchase, define whether the process needs frequent changeover, heating or cooling, vacuum, dust or vapor control, special contact materials, or a different discharge method. Karvil lists tilting, screw extrusion, and bottom-plate discharge as configurable options, so the final arrangement should be chosen around the actual material rather than nominal volume alone.
The trial file for a Sigma Mixer should preserve batch volume, material viscosity or consistency, moisture, ingredient order, blade speeds, rotation direction, mixing time, temperature, discharge condition, residue, and test results. Those variables determine whether the kneading result can be repeated instead of relying on one visually successful batch.
A second batch is valuable because it exposes operator dependence. If uniformity, torque behavior, temperature, or discharge changes when the same recipe is repeated, the machine setting or material-preparation method needs more definition before production approval. The selected 400L mixer is factory-tested for blade rotation, variable-speed operation, hydraulic tilting, and overall mechanical performance before shipment.
The final specification should also list materials that require a separate engineering review. Very abrasive fillers, strongly reactive formulas, unusually high-temperature processes, solvent-sensitive environments, or batches that fall far outside the validated working volume may require another seal, motor, chamber material, safety configuration, or equipment family.
The trial report for a Sigma Mixer should allow another operator to reproduce the successful batch. Material order, working volume, blade speeds, direction, time, temperature, discharge method, residue, and cleaning result should be recorded together. A setting such as “mix for 20 minutes” is incomplete if the operator does not also know the load and material condition used during that run.
If the material is expensive or its composition is tightly controlled, sample locations should be defined before the trial. Random sampling after a good-looking batch can miss a sticky zone at the wall, material trapped around a blade, or a concentration difference that only appears during discharge.
Maintenance access should be checked during the trial, not after installation. Blades, shaft seals, bearings, the hydraulic tilting system, cover hardware, and drive components all need enough space for routine inspection and service. Poor access can turn a simple seal or cleaning task into avoidable downtime.
A mixer should be ordered with its expected changeover pattern in mind. A line running one formulation repeatedly can prioritize stable throughput, while a line that changes color, binder, or filler often must give more weight to residue, chamber access, surface finish, and cleaning time.
Repeat orders should not rely on the first accepted batch alone. Keep a retained reference for the Sigma Mixer process, record the accepted operating condition, and compare later batches against the same measurement method. That practice helps separate true equipment variation from normal changes in raw materials, temperature, operator technique, or batch preparation.
If a later order needs a different capacity, contact material, heating method, vacuum level, discharge route, formulation, or installation condition, treat it as a controlled variation rather than a casual repeat. A short variation record protects the original approval while giving the new requirement enough engineering attention to avoid a hidden mismatch.
The retained record should include the first accepted result and the reason it was accepted. That extra note helps the next production team distinguish a true specification change from normal process variation and provides a clearer basis for future scale-up.
Too little material may not remain fully engaged with both blades, while too much material can reduce turnover and raise mechanical load. The acceptable batch volume should be confirmed with the actual formulation rather than assumed from total chamber volume alone.
Take samples from several chamber positions or discharge stages and test the property that matters for the formula, such as moisture, filler concentration, color, or another validated measurement. Keep the same sampling plan for repeat batches.
Hydraulic tilting moves the entire mixing chamber into a discharge position, which helps cohesive or high-viscosity material leave the trough more easily than it would through a conventional small outlet. It can also make residue and cleaning access easier to evaluate after the batch.
Uniform kneading depends on material behavior, working volume, blade settings, and discharge method. See the Karvil Machinery Sigma Mixer range for related kneader configurations and selection options.
