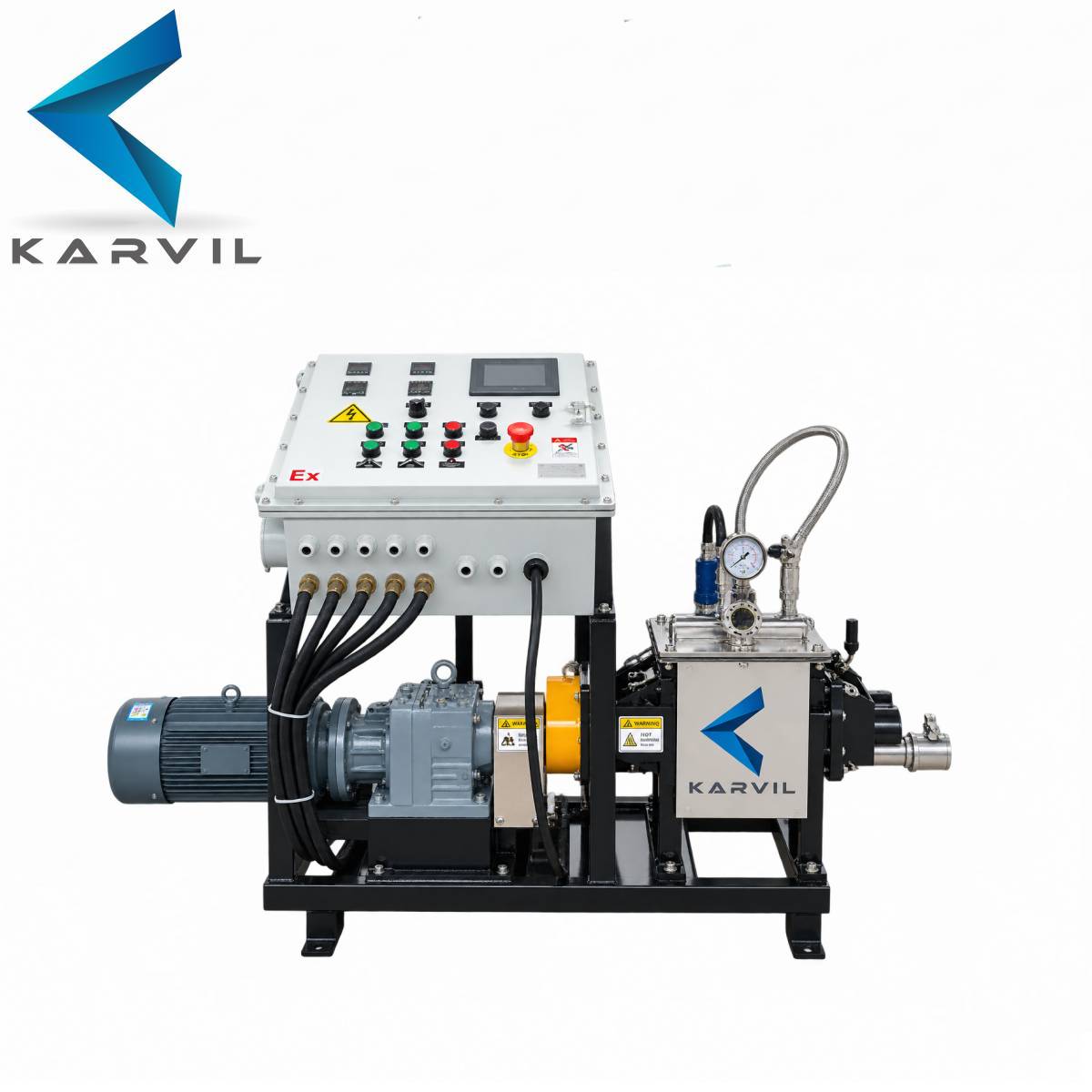

This 5L explosion-proof vacuum Sigma kneader is designed for small-batch processing, material development and specialty production applications.
The machine combines Sigma blade kneading, electric heating, vacuum processing and screw extrusion discharge in one compact system. The material-contacting parts are made of SS304 stainless steel with mirror-polished surfaces, providing a clean and durable processing environment.
With a 5L total volume and 3.5L effective working volume, this kneader is suitable for applications where the material value is high, the batch size is small, or precise process control is required.

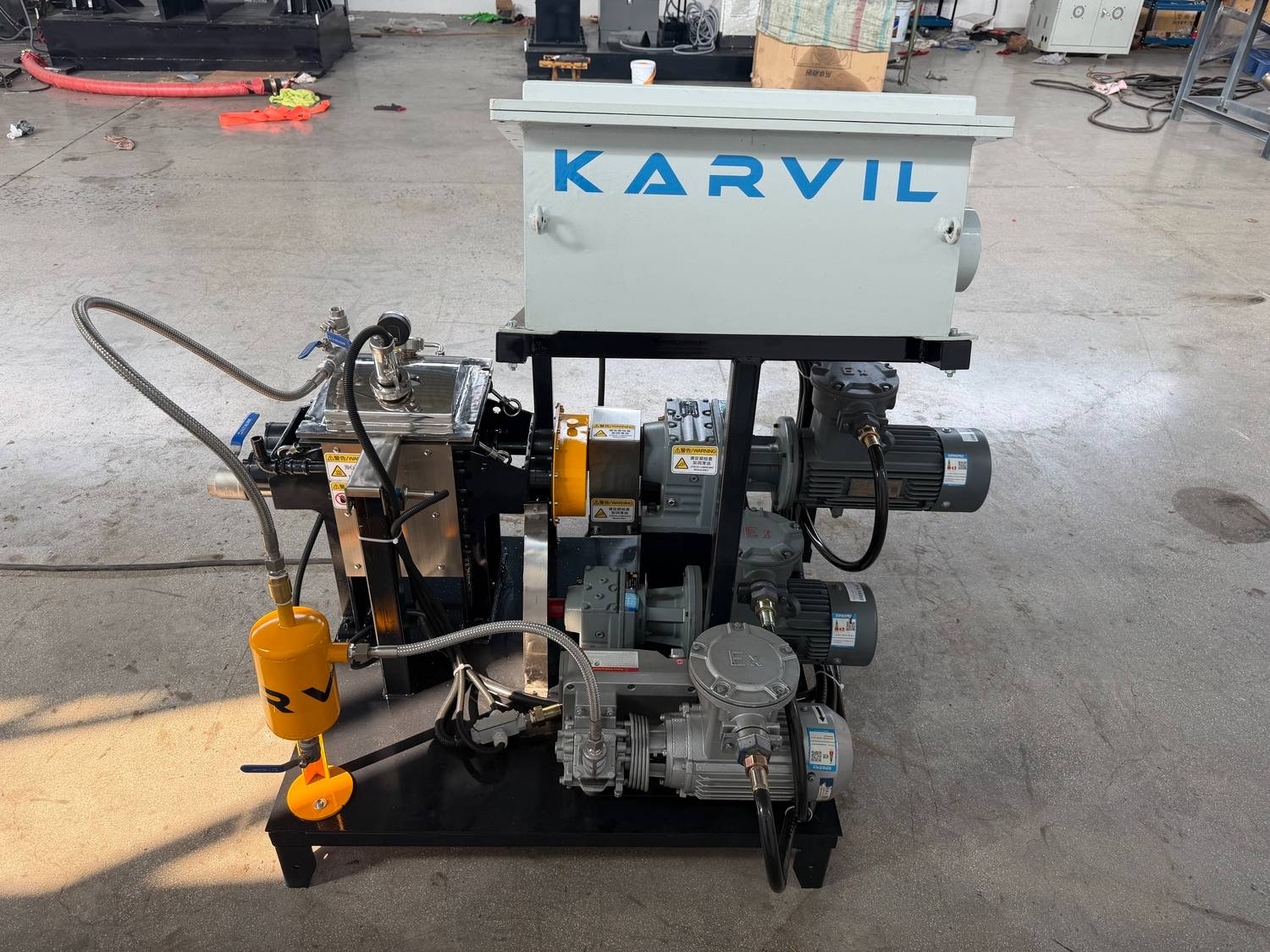

The complete system is equipped with an explosion-proof main motor, explosion-proof screw motor, explosion-proof heating system, explosion-proof vacuum pump and explosion-proof control cabinet.
NH-5
Karvil
The machine is equipped with explosion-proof motors, electrical components, heating and vacuum equipment, together with a dedicated explosion-proof control cabinet.
The jacket uses thermal oil as the heating medium, with a total explosion-proof heating power of 2.4 kW, designed for heating temperatures up to 160°C.

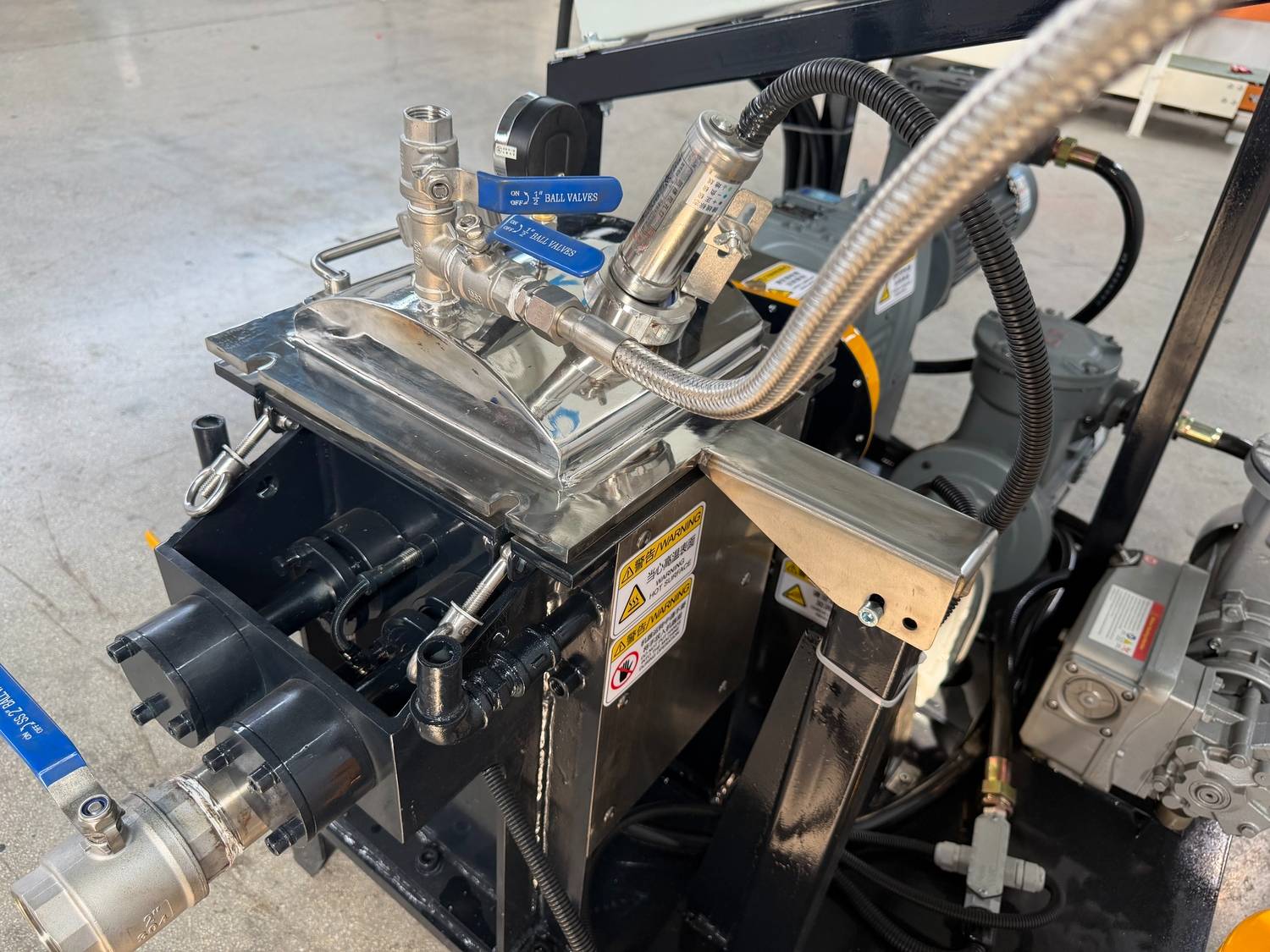

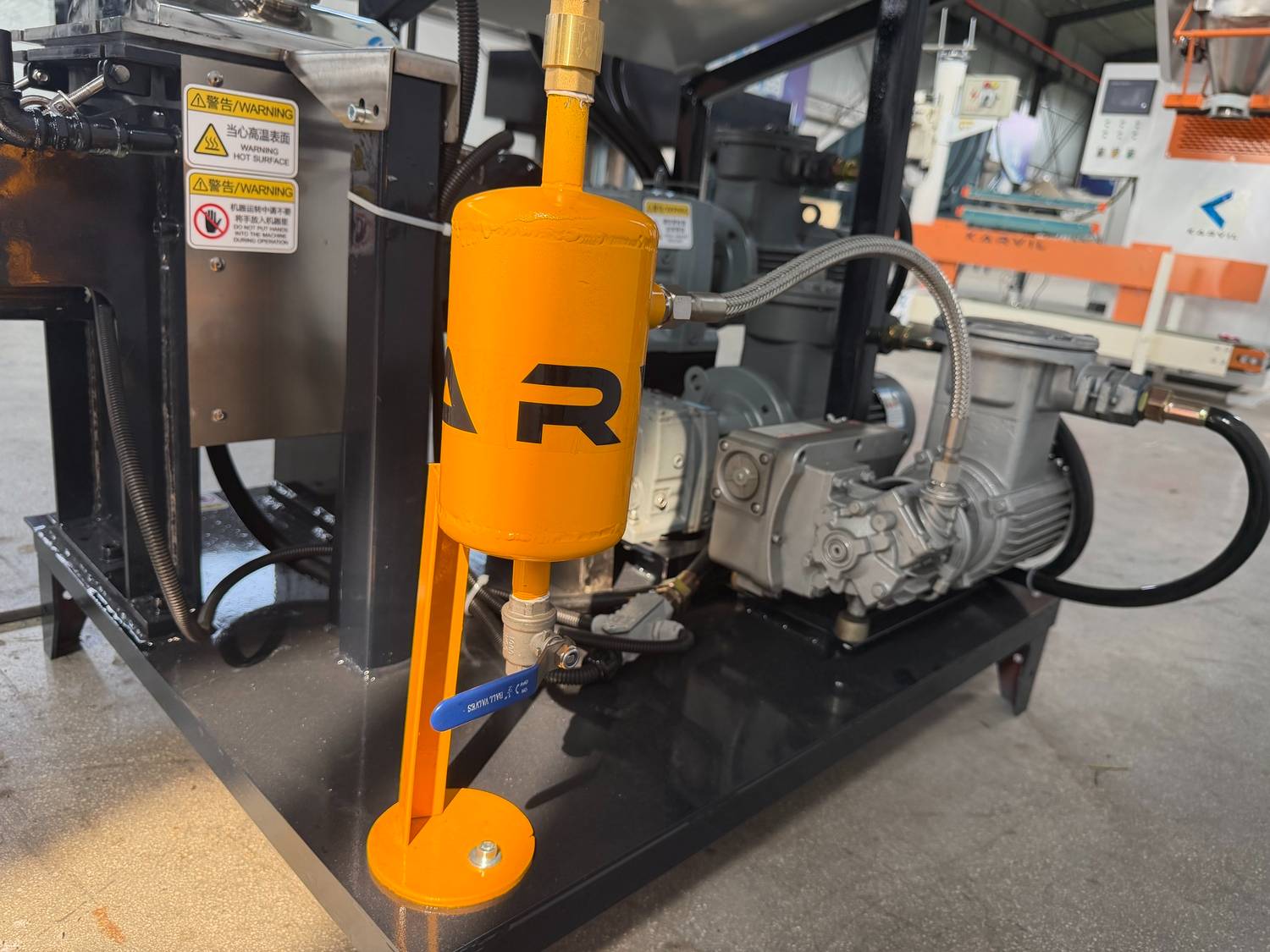

An explosion-proof vacuum pump, buffer tank and metal flexible hose are included. The vacuum system can achieve a vacuum level of up to -0.09 MPa.
Two Sigma blades provide strong compression, folding and shearing forces for high-viscosity and difficult-to-mix materials.
The integrated screw extrusion system provides controlled discharge of high-viscosity materials through a DN50 manual ball valve.
With a 3.5L effective working volume, the machine is ideal for R&D, process development, laboratory-scale production and small-batch specialty materials.

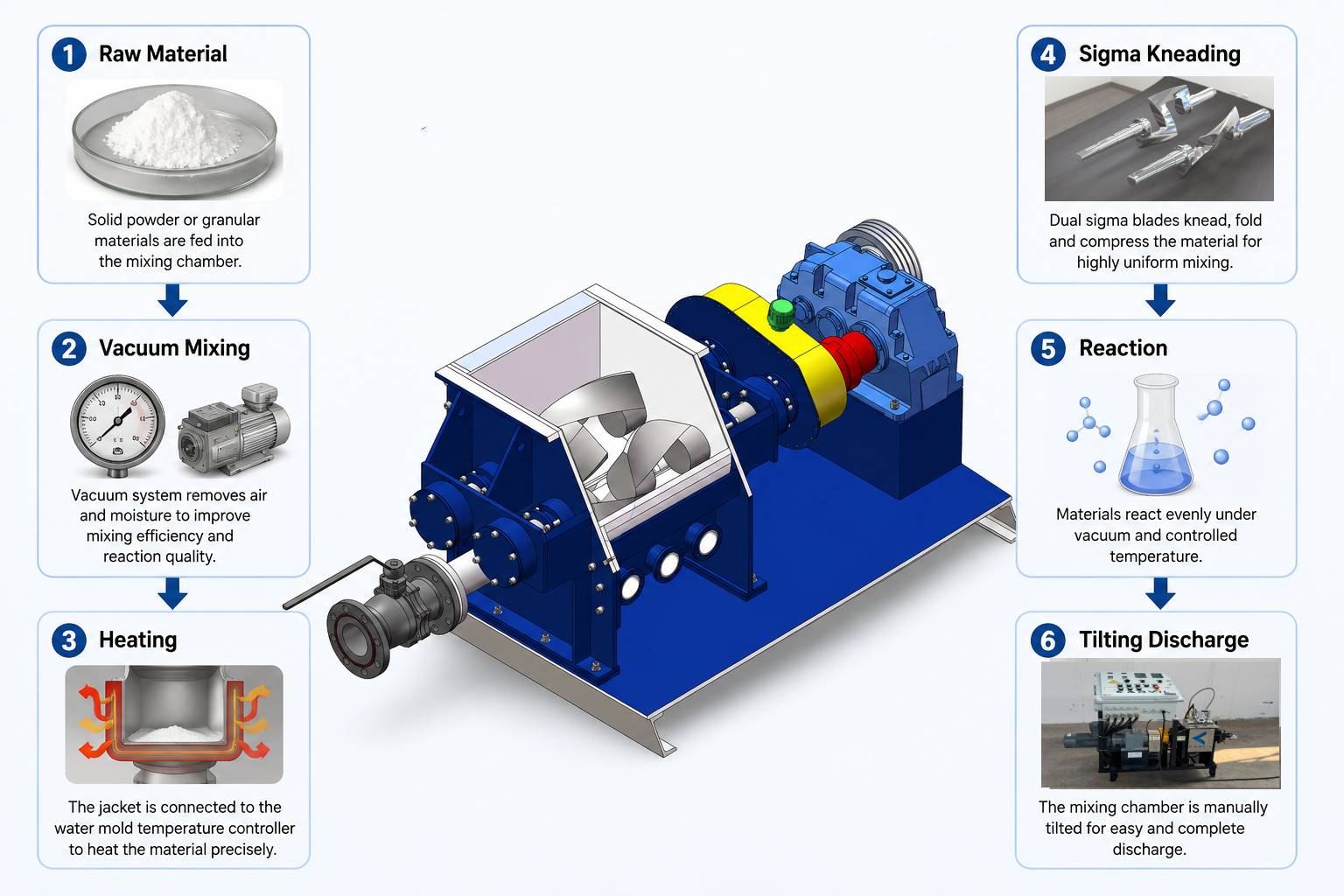

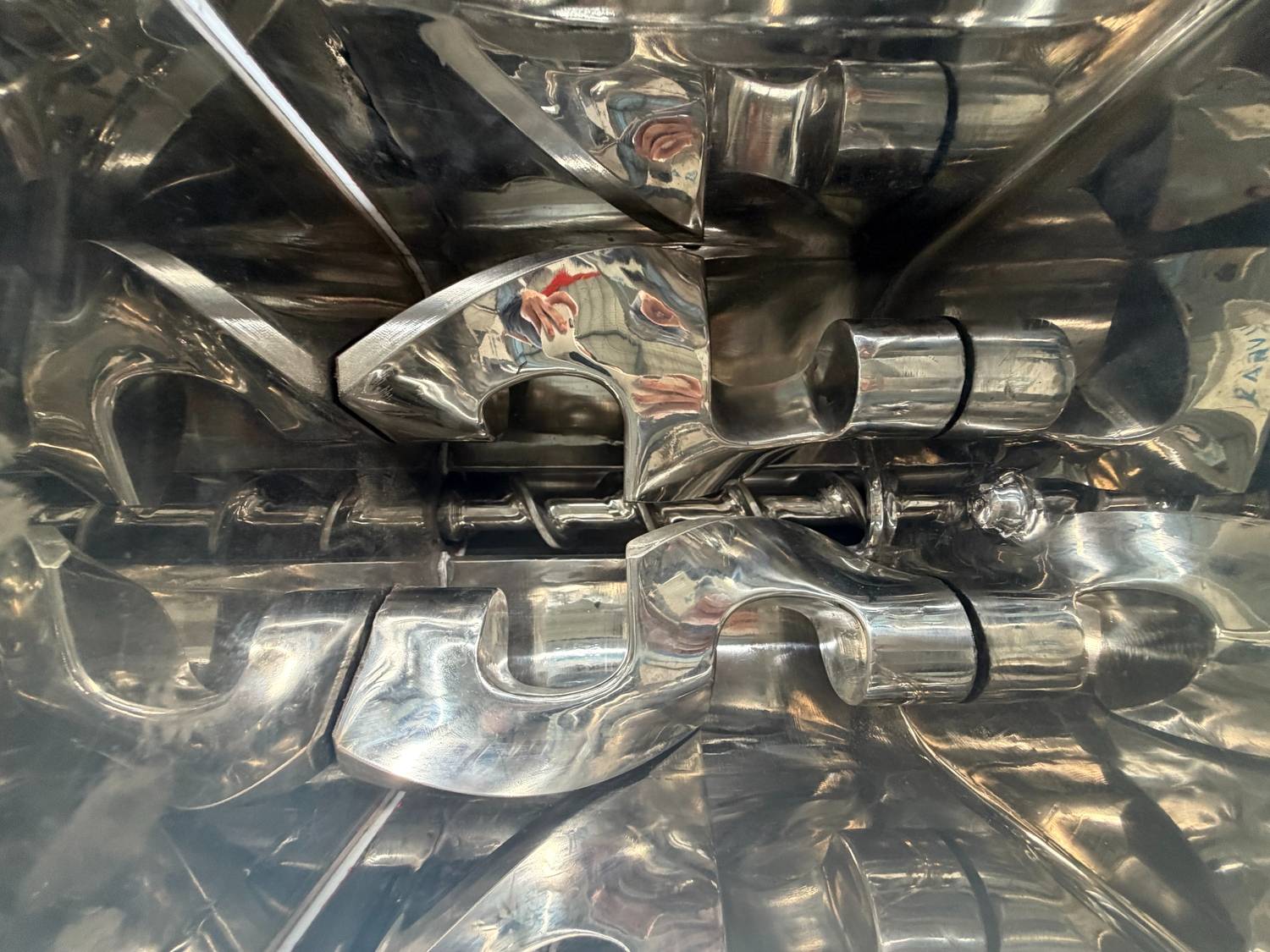

The machine uses two Z-shaped sigma blades rotating inside the mixing chamber.
During operation, the blades continuously lift, fold, compress and shear the material. This creates strong kneading forces that are particularly effective for high-viscosity and semi-solid materials.
At the same time, the electric heating jacket transfers heat to the mixing chamber to bring the material to the required processing temperature.
When vacuum processing is required, the mixing chamber is evacuated to remove trapped air, moisture and volatile components.
After the mixing process is completed, the screw discharge mechanism pushes the material toward the outlet for controlled discharge.
Material: SUS 304, 316 or mild steel
Discharging: Tilting discharging/Screw extruding discharging/Bottom plate
Heating: Electric heating/Water heating/Oil heating/Steam heating
Cooling: Water cooling/Jacket cooling
Vacuum: Water-ring vacuum pump/ buffer tank.
Motor: Explosion proof motor
Independent Control Panel: Variable speed/ Temperature/Discharging
Working Volume: 5 to10,000 Cubic Feet (from experiment to production)

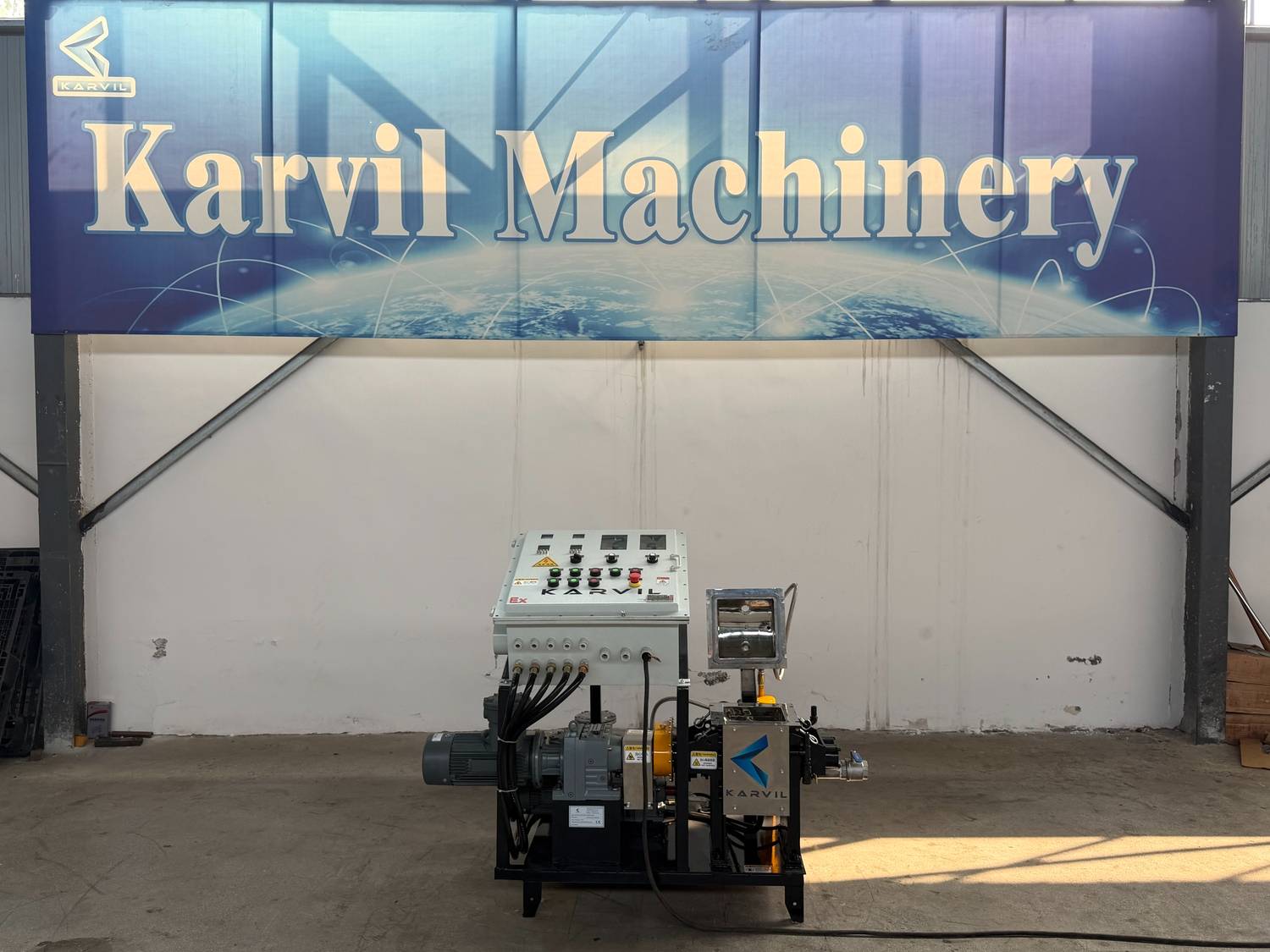

Customer Location: North Macedonia
Machine: 5L Explosion-Proof Vacuum Sigma Kneader
Heating: Electric Heating
Discharge: Screw Discharge
Material: Thermoplastic Composite Materials & Heat-Resistant Insulating Materials
Contact Us for Custom Requirements & Free 3D Layout
Type | NH-5 | NH-10 | NH-100 | NH-300 | NH-500 | NH-1000 | NH-1500 | NH-2000 | NH-3000 | NH-4000 | NH-5000 | |
Total Volume (L) | 5 | 10 | 100 | 300 | 500 | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 | |
Mixed amount/batch (L) | 1.5-3.5 | 3.0-7 | 30-70 | 90-210 | 150-350 | 300-700 | 450-1050 | 600-1400 | 900-2100 | 1200-2800 | 1500-3500 | |
Rotation Speed (rpm) | 42/34 | 42/34 | 37/21 | 37/22 | 37/23 | 37/26 | 37/22 | 30/21 | 30/21 | 30/20 | 28/18 | |
Main Motor Power (Kw) | 0.75-1.5 | 1.1-3 | 5.5-11 | 7.5-30 | 15-37 | 22-90 | 22-90 | 30-110 | 30-110 | 45-110 | 55-132 | |
Heating Methods | Steam Pressure (MPa) | Jacket for steam | ||||||||||
Electric Power (Kw) | 2.4 | 2.4 | 6 | 12 | 18 | 30 | 45 | 54 | 72 | 72 | 90 | |
Vacuum (MPa) | 0~ -0.096Mpa (Vacuum Kneader) | |||||||||||
Discharging Method | Tilting cylinder | |||||||||||
Screw extrusion | ||||||||||||
Trusted by Global Manufacturers in 50+ Countries. From silicone to adhesives, see how our Sigma Kneaders are solving complex mixing challenges for industry leaders worldwide.
Our modern, fully equipped technical center is at your disposal. We welcome you to test your products to experience the advantages of our industrial mixers firsthand.
Specializing in mixers, grinding, and recycling machines, Karvil's experienced engineering team constantly explores new technologies to create perfect solutions for you.
Is this mixer suitable for laboratory research?
Yes. The 5L capacity is ideal for formulation development, material testing and pilot-scale production.
Can the mixer operate under vacuum?
Can the machine be customized?
What is the advantage of screw discharge?
Is the machine suitable for hazardous environments?
