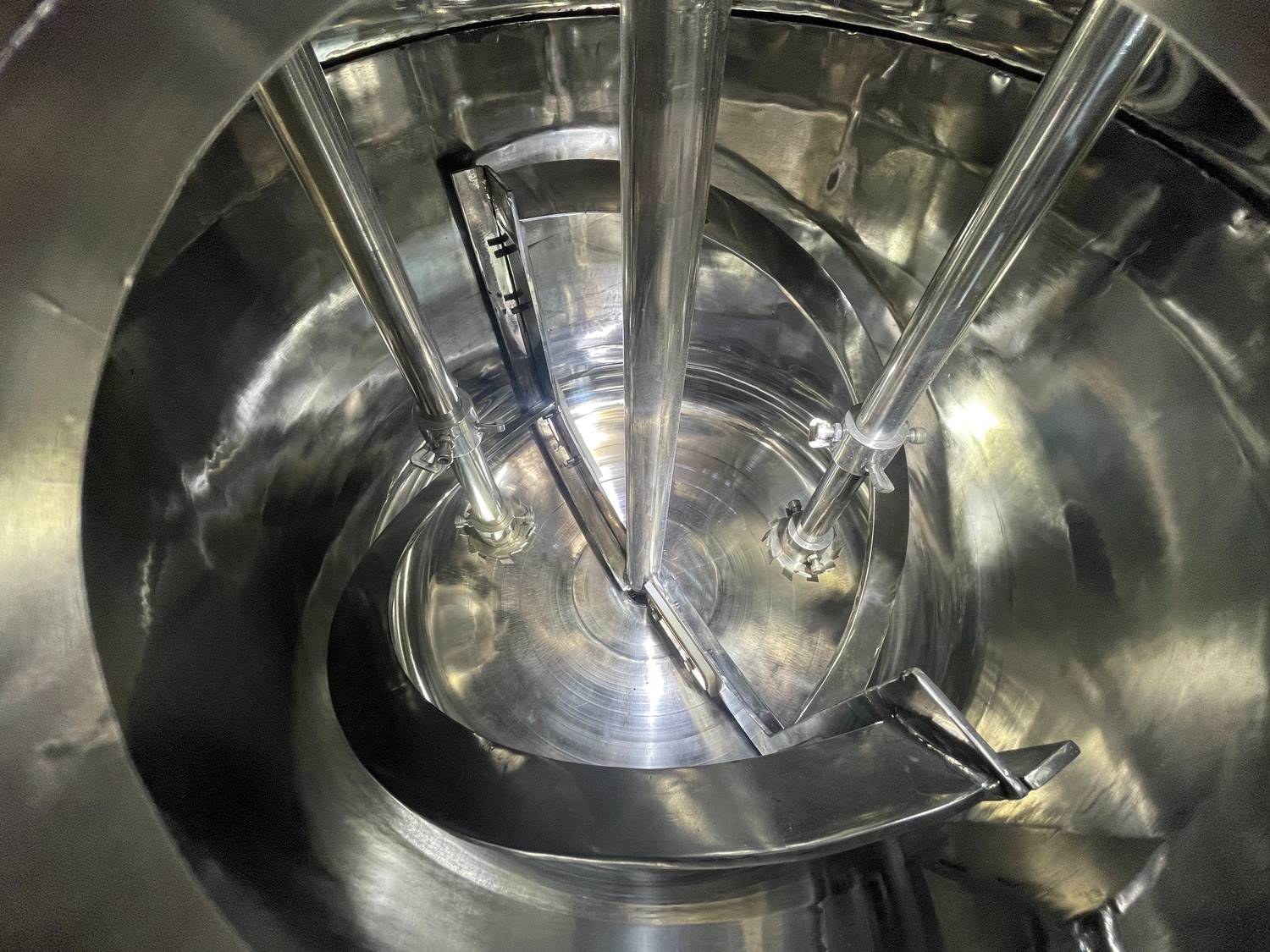

Mixing System Type: Three-Axis (Triple-Shaft) Mixer, typically combining:
Anchor Mixer (with Scrapers)
High-Speed Disperser
High-Shear Emulsifier / Homogenizer
Temperature Control: Integrated Tank Jacket or Internal Cooling Coil (System is customizable based on heat transfer needs).
Pressure Range: Operates from Full Vacuum (down to -0.1 MPa) up to Atmospheric Pressure (0.1 MPa).
Contact Material: All parts contacting the product are constructed from High-Grade Stainless Steel (Standard: SUS304 / Premium: SUS316L, fully customizable).
Shaft Speed Control: Each shaft utilizes an independent Variable Frequency Drive (VFD) for precise and step-less speed regulation.
Discharge Method: Options include a sanitary Bottom Outlet Valve or a hydraulic Tilting Discharge mechanism.
Sealing: Equipped with a reliable Mechanical Seal system, specifically designed for stable operation under vacuum conditions.
Target Viscosity: Engineered to handle high-viscosity materials, typically effective up to 1,000,000 cP (centipoise) and potentially higher, depending on the final power configuration.
Lifting System: Integrated hydraulic or electric system for convenient raising and lowering of the mixing head assembly.
100
karvil

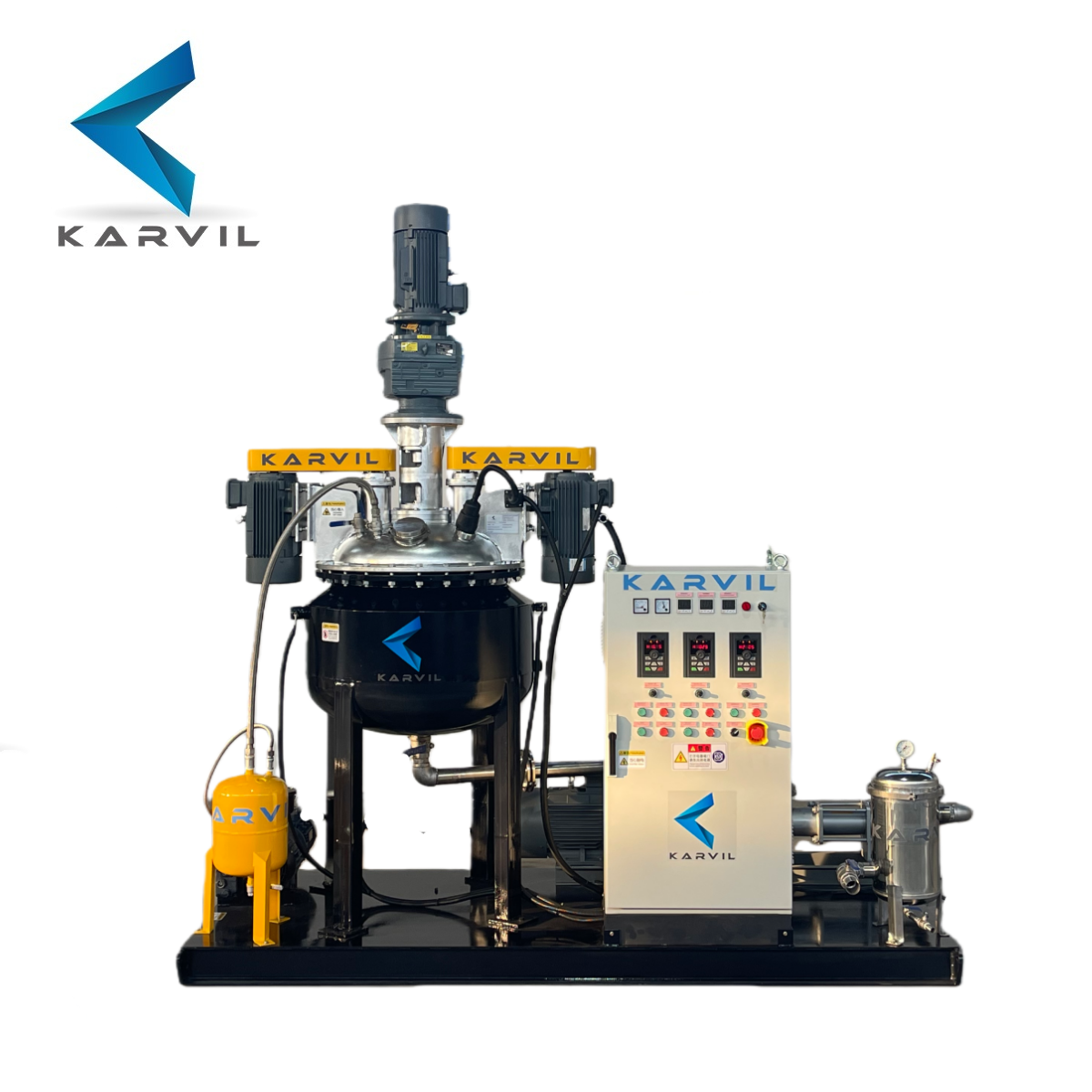

Super-Strong Mixing Power: This machine is built with a Triple-Shaft (Three-Axis) Mixing System. Basically, it has three different agitators working at once: one high-speed blade for breaking up clumps (disperser), one low-speed paddle to keep the whole batch moving and scraping the sides (anchor mixer), and a high-shear head for a super-fine finish. This combination is essential for thoroughly mixing PVC resin into plasticizer and getting a perfectly smooth plastisol.
The Right Size: It's a 100 Liter Working Volume reactor. This is perfect for your smaller production runs, pilot testing, or making those high-value, specialized batches.
Stays Cool Under Pressure: PVC Plastisol mixing generates a lot of heat, which can be a problem. That’s why we included an Internal Cooling Coil (or Jacket). It gives you precise temperature control so the mix doesn't get too hot and gel prematurely, keeping your product consistent.

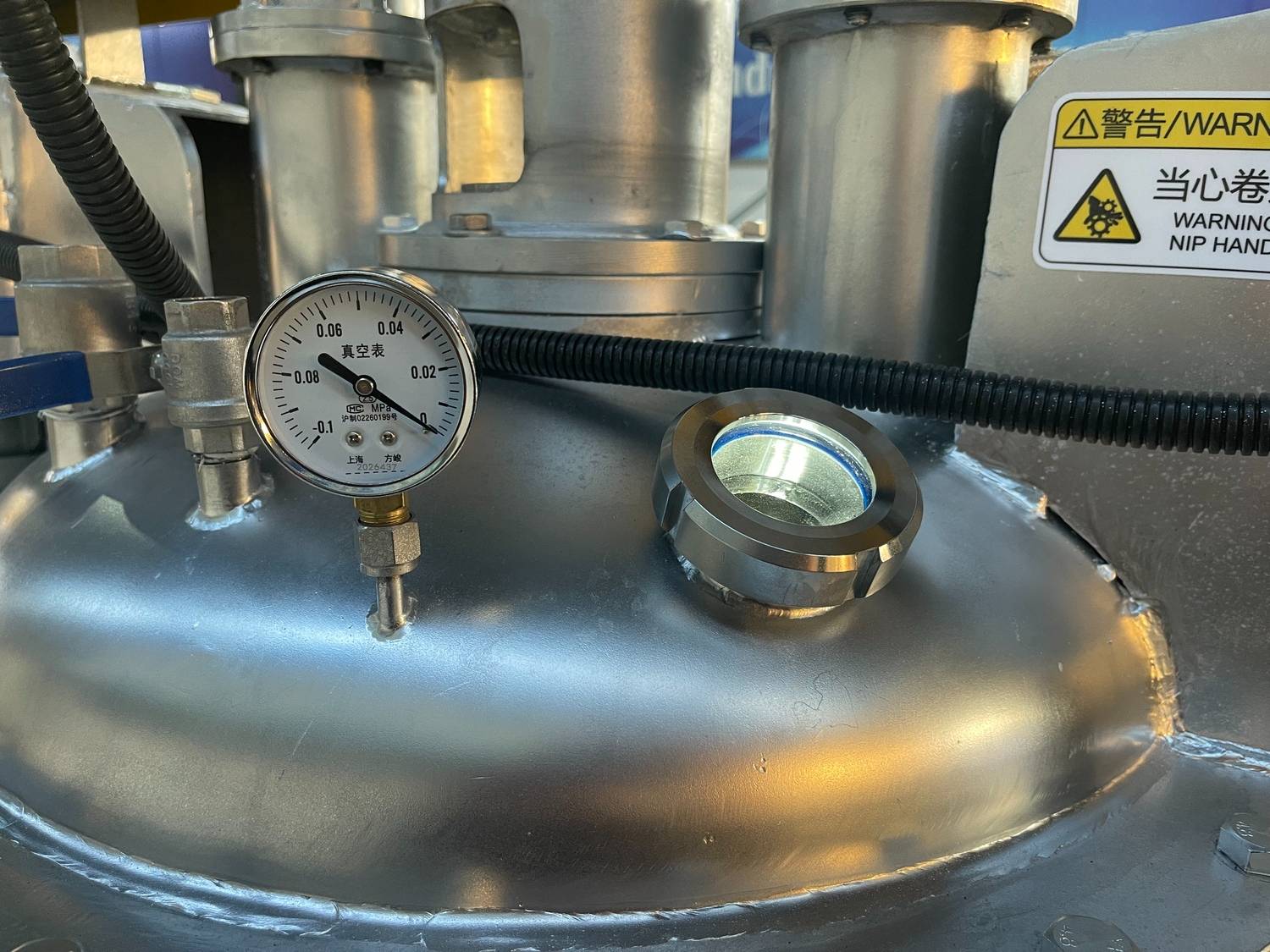

No More Bubbles: The built-in Full Vacuum Capability is a big deal. You can pull a deep vacuum on the batch to quickly suck out all the tiny air bubbles and volatile stuff. This gives you a smooth, high-quality, defect-free final product—exactly what customers in Malaysia expect.
Built to Last: All the parts that touch your product are made from Top-Quality Stainless Steel (like SUS304 or SUS316L). It’s easy to clean and won't corrode, even with harsh chemicals.
Easy Access: We designed it with a hydraulic or electric Lifting System. This means you can easily raise the mixing head completely out of the tank to change out the vessel or give it a proper clean, minimizing your downtime.
Techical parameters:
 | LABORATORY TEST In order to be able to demonstrate the advantages and modes of action of our industrial mixing machine with your products, our fully equipped modern laboratory/technical center is at your disposal. |
PROFESSIONAL ENGINEER The experienced team of engineers is specialized in the R&D and design of mixers, grinding equipment, and plastic recycling machine. Karvil explores new technical points constantly to create perfect solutions for customers. |  |
 | DIRECT FACTORY Karvil factory has a series of strict standard system to control the procurement of raw materials, manufacturing process, in-process inspection, and product inspection, so as to ensure the quality of our products.
|
Disperser is a good solution for mixing, dispersing and dissolving.
Our product warranty period is one year. If the machine has broken within one year, you can send us videos and photos, and our engineers can help you analyze the problem. If you need to replace the parts, we will provide them for free within one year, and the parts will be charged after one year. The engineer's consulting service is free for life.
Shandong Karvil Machinery Technology Co., Ltd. is specializing in the research, design, manufacturing and sales of mixing machines, grinding equipment and reaction machines. The company is committed to the advanced technology of machines, strict quality control standards and perfect sales service experience to achieve a win-win situation with our customers.
Karvil products have been successful used in the field of powder processing, food, medicine, fine chemical industry, cosmetics, adhesives, paints, inks, dyes, pastes, organic solvents and ceramics, etc.
Karvil engineering team constantly explores new technical points and promote perfect solutions for our clients through efficient communication according to the production application
FAQ
1. Manufacturer or trading company?
We are a manufacturer with strict production standards in China.
2. Where is your company?
Our company is located in Yantai, Shandong, --Powder Equipment Industry Belt.
3. About your company's visit?
We can pick you up at Qingdao Airport conveniently, and then we can take you to our factory.
4. What is the main market of your company?
Asia and Africa, Australia, America, Europe.
5. Can you provide customized products?
Yes, we have professional engineers to meet your special design needs, so we can provide customized products.
6. What is your delivery time?
It usually takes about 20 to 30 days, the exact time also depends on the type and quantity of the product.
7. About the product warranty?
Usually, we provide a 1-year warranty for the products that have been sold, but we can also provide life-long service when you need it to maintain a long-term relationship with you.
8. What are the payment terms?
T/T, L/C, etc.
Super-Strong Mixing Power: This machine is built with a Triple-Shaft (Three-Axis) Mixing System. Basically, it has three different agitators working at once: one high-speed blade for breaking up clumps (disperser), one low-speed paddle to keep the whole batch moving and scraping the sides (anchor mixer), and a high-shear head for a super-fine finish. This combination is essential for thoroughly mixing PVC resin into plasticizer and getting a perfectly smooth plastisol.
The Right Size: It's a 100 Liter Working Volume reactor. This is perfect for your smaller production runs, pilot testing, or making those high-value, specialized batches.
Stays Cool Under Pressure: PVC Plastisol mixing generates a lot of heat, which can be a problem. That’s why we included an Internal Cooling Coil (or Jacket). It gives you precise temperature control so the mix doesn't get too hot and gel prematurely, keeping your product consistent.
No More Bubbles: The built-in Full Vacuum Capability is a big deal. You can pull a deep vacuum on the batch to quickly suck out all the tiny air bubbles and volatile stuff. This gives you a smooth, high-quality, defect-free final product—exactly what customers in Malaysia expect.
Built to Last: All the parts that touch your product are made from Top-Quality Stainless Steel (like SUS304 or SUS316L). It’s easy to clean and won't corrode, even with harsh chemicals.
Easy Access: We designed it with a hydraulic or electric Lifting System. This means you can easily raise the mixing head completely out of the tank to change out the vessel or give it a proper clean, minimizing your downtime.
Techical parameters:
| LABORATORY TEST In order to be able to demonstrate the advantages and modes of action of our industrial mixing machine with your products, our fully equipped modern laboratory/technical center is at your disposal. |
PROFESSIONAL ENGINEER The experienced team of engineers is specialized in the R&D and design of mixers, grinding equipment, and plastic recycling machine. Karvil explores new technical points constantly to create perfect solutions for customers. | |
| DIRECT FACTORY Karvil factory has a series of strict standard system to control the procurement of raw materials, manufacturing process, in-process inspection, and product inspection, so as to ensure the quality of our products.
|
Disperser is a good solution for mixing, dispersing and dissolving.
Our product warranty period is one year. If the machine has broken within one year, you can send us videos and photos, and our engineers can help you analyze the problem. If you need to replace the parts, we will provide them for free within one year, and the parts will be charged after one year. The engineer's consulting service is free for life.
Shandong Karvil Machinery Technology Co., Ltd. is specializing in the research, design, manufacturing and sales of mixing machines, grinding equipment and reaction machines. The company is committed to the advanced technology of machines, strict quality control standards and perfect sales service experience to achieve a win-win situation with our customers.
Karvil products have been successful used in the field of powder processing, food, medicine, fine chemical industry, cosmetics, adhesives, paints, inks, dyes, pastes, organic solvents and ceramics, etc.
Karvil engineering team constantly explores new technical points and promote perfect solutions for our clients through efficient communication according to the production application
FAQ
1. Manufacturer or trading company?
We are a manufacturer with strict production standards in China.
2. Where is your company?
Our company is located in Yantai, Shandong, --Powder Equipment Industry Belt.
3. About your company's visit?
We can pick you up at Qingdao Airport conveniently, and then we can take you to our factory.
4. What is the main market of your company?
Asia and Africa, Australia, America, Europe.
5. Can you provide customized products?
Yes, we have professional engineers to meet your special design needs, so we can provide customized products.
6. What is your delivery time?
It usually takes about 20 to 30 days, the exact time also depends on the type and quantity of the product.
7. About the product warranty?
Usually, we provide a 1-year warranty for the products that have been sold, but we can also provide life-long service when you need it to maintain a long-term relationship with you.
8. What are the payment terms?
T/T, L/C, etc.
