Vacuum sigma kneading removes trapped air only when blade circulation, blade-to-wall clearance, paste viscosity, temperature, and vacuum timing are matched to the material. Thick adhesives, sealants, silicone compounds, carbon pastes, pigments, and filled formulas do not release bubbles at the same rate. A useful mixer trial therefore checks surface behavior, temperature rise, discharge residue, and final density rather than mixing time alone.
l Vacuum removes air more effectively after the ingredients are wetted and the paste is moving consistently.
l Sigma blade geometry and blade-to-wall clearance affect folding, kneading, and stagnant zones inside the trough.
l Viscosity changes with temperature, filler loading, and shear history during the batch.
l Screw discharge and cleaning should be tested because sticky residue affects yield and changeover.
Vacuum lowers the pressure above the paste, helping trapped bubbles expand and leave the material. The process works only when kneading keeps bringing material from inside the bulk toward regions where air can escape. If a thick formula folds slowly or leaves stagnant zones, the vessel may show strong vacuum while fine air remains trapped.
The equipment selection issues behind a sigma mixer become sharper under vacuum. Viscosity, filler shape, blade geometry, motor load, and temperature control decide whether deaeration is practical within the required batch time.
High-viscosity products can wrap around blades or smear on metal surfaces. The working gap and relative blade speeds therefore matter as much as nominal mixer power. A trial should watch how paste folds between the Z blades, how the wall is renewed, and how much material remains after normal discharge.
Trial Check | What to Observe | Decision Value |
Vacuum timing | Bubble collapse, foam, and surface behavior | Sets when vacuum should be applied |
Sigma blade path | Folding around blades, wall, and bottom | Reveals dead zones and weak turnover |
Temperature rise | Batch temperature during kneading | Protects viscosity and curing behavior |
Screw discharge residue | Weight left after extrusion | Shows yield and cleaning burden |

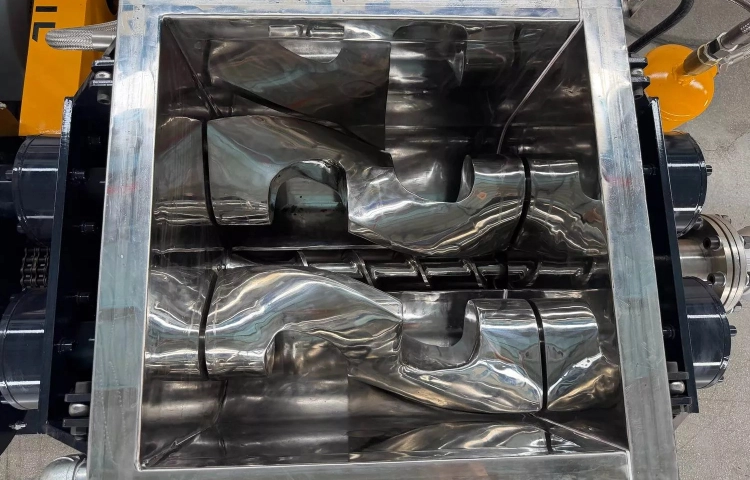

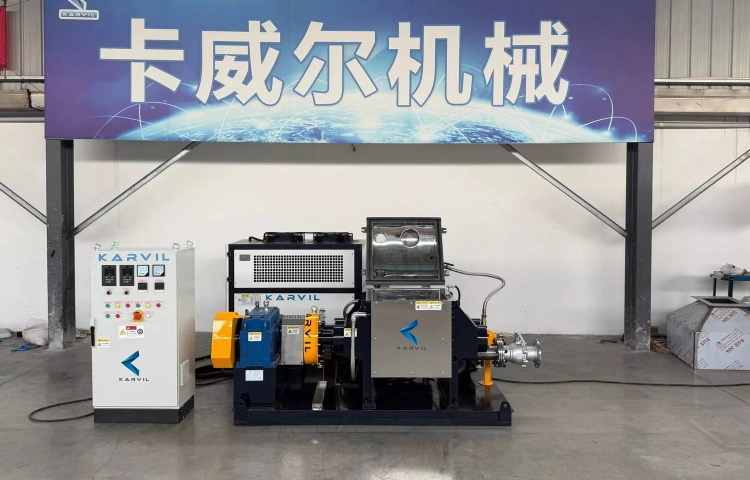

For sealants and other viscous formulas that need kneading and air removal, the 100L Vacuum Sigma Kneader with Extruder Discharge should be assessed with the actual recipe. It is listed with 100 L total volume, 70 L working volume, SS304 contact parts, a 3 mm blade-to-wall gap, independently controlled Z-blade speeds, vacuum around -0.09 MPa, and bottom screw discharge. Karvil Machinery can support mixer discussions when trial material data is provided early.
Two failure points often appear in pilot runs. Vacuum may be applied before ingredients are fully incorporated, causing foaming. Or the batch may warm during intensive kneading, changing viscosity enough to make a successful first run hard to repeat. Vacuum timing and batch temperature should therefore be recorded together.
A sigma kneader should not be treated as a universal answer for every thick material. Formulas that need very fine particle-size reduction, very high-speed dispersion, or continuous processing may require another mixer type or an additional dispersing stage.
A paste can look smooth while still holding fine bubbles. Comparing density before and after vacuum kneading gives a more objective view of air removal. Temperature should be tracked at the same time because flow behavior can shift as the batch warms.
Blade and wall behavior should also be inspected during the trial. If material remains as a thick film or moves only in one local loop, later discharge can pull less-kneaded paste into the batch. That may create streaks, filler variation, or density differences.
Vacuum timing should be tested in stages: complete wet-out first, establish stable kneading, then pull vacuum in a controlled way. Applying full vacuum too early can expand dry pockets or make the surface foam before ingredients are uniformly incorporated.
A vacuum sigma kneader is well suited to many dense batches, but blade geometry does not remove every process limit. Abrasive fillers can accelerate wear, reactive materials may need tighter cooling, and formulas that need intense particle-size reduction may require separate dispersion equipment.
Discharge method should be chosen with viscosity and downstream handling in mind. The selected unit uses a bottom screw to push dense material out rather than relying only on gravity. During testing, watch discharge flow, residue around the blade zone, and the amount left after normal emptying.
The best equipment discussion includes viscosity range, filler percentage, target vacuum level, batch temperature limit, cleaning method, discharge expectation, and final quality test. Those data reduce guesswork before quotation and make the trial easier to evaluate.
The trial file for a vacuum sigma kneader should preserve batch weight, fill level, ingredient order, blade speeds, mixing time, temperature, vacuum condition, discharge setting, residue, and test results. These variables determine whether the first successful batch can be repeated.
A second batch is valuable because it exposes operator dependence. If density, uniformity, temperature rise, or screw discharge changes when the same recipe is repeated, the machine setting or material preparation needs more definition before production approval.
The final specification should list materials or operating conditions that need separate review. Very abrasive fillers, highly reactive formulas, unusually sticky pastes, or very small fill levels may require another configuration or a different equipment family.
The trial report should make the successful vacuum sigma kneader batch repeatable by another operator. Record ingredient order, fill level, blade speeds, time, temperature, vacuum timing, screw speed, discharge method, residue, and cleaning result.
If the material is expensive or active ingredients are tightly controlled, sample locations should be defined before the run. One random sample can miss a dense wall zone, a less-kneaded pocket near discharge, or filler segregation.
Maintenance access should be checked during the trial, not after installation. Vacuum seals, bearings, Z blades, the trough, screw discharge parts, and service connections need enough space for inspection and replacement. Poor access turns routine work into downtime.
A kneader should be ordered with its expected changeover pattern in mind. Long campaigns can prioritize throughput and stable settings, while frequent color or chemistry changes make cleaning access and residual hold-up more important.
Repeat orders should not rely on the first sample alone. Keep a retained reference batch, record the accepted density, texture, temperature profile, and discharge condition, and compare later runs with the same measurement method. This helps keep vacuum sigma kneading stable when inputs change.
If a later order needs a different capacity, contact material, vacuum level, temperature range, screw arrangement, recipe, or installation condition, treat it as a controlled variation instead of a casual repeat. A short variation record protects the original approval.
The retained record should include the first accepted result and the reason it was accepted. That detail helps the next team distinguish a true specification change from normal process variation.
Vacuum is usually more effective after the ingredients are fully wetted and the Z blades have established stable circulation. Pulling vacuum too early can create foaming or interfere with powder incorporation.
Bubbles can remain when viscosity is very high, blade turnover is weak, vacuum time is too short, the paste warms during kneading, or local zones are not being renewed. Density checks help separate these causes.
Check uniformity, density before and after deaeration, temperature rise, blade circulation, vacuum stability, screw discharge yield, residue, cleaning time, and whether a second batch can reproduce the result.
Vacuum deaeration in a sigma kneader is a circulation and pressure problem as much as a vacuum-pump problem. The Sigma Mixer equipment range can help compare kneading and discharge configurations, while the final choice should be proven with representative material, temperature, density, residue, and repeatability.
