NH-500
Karvil
Full SS304 Construction

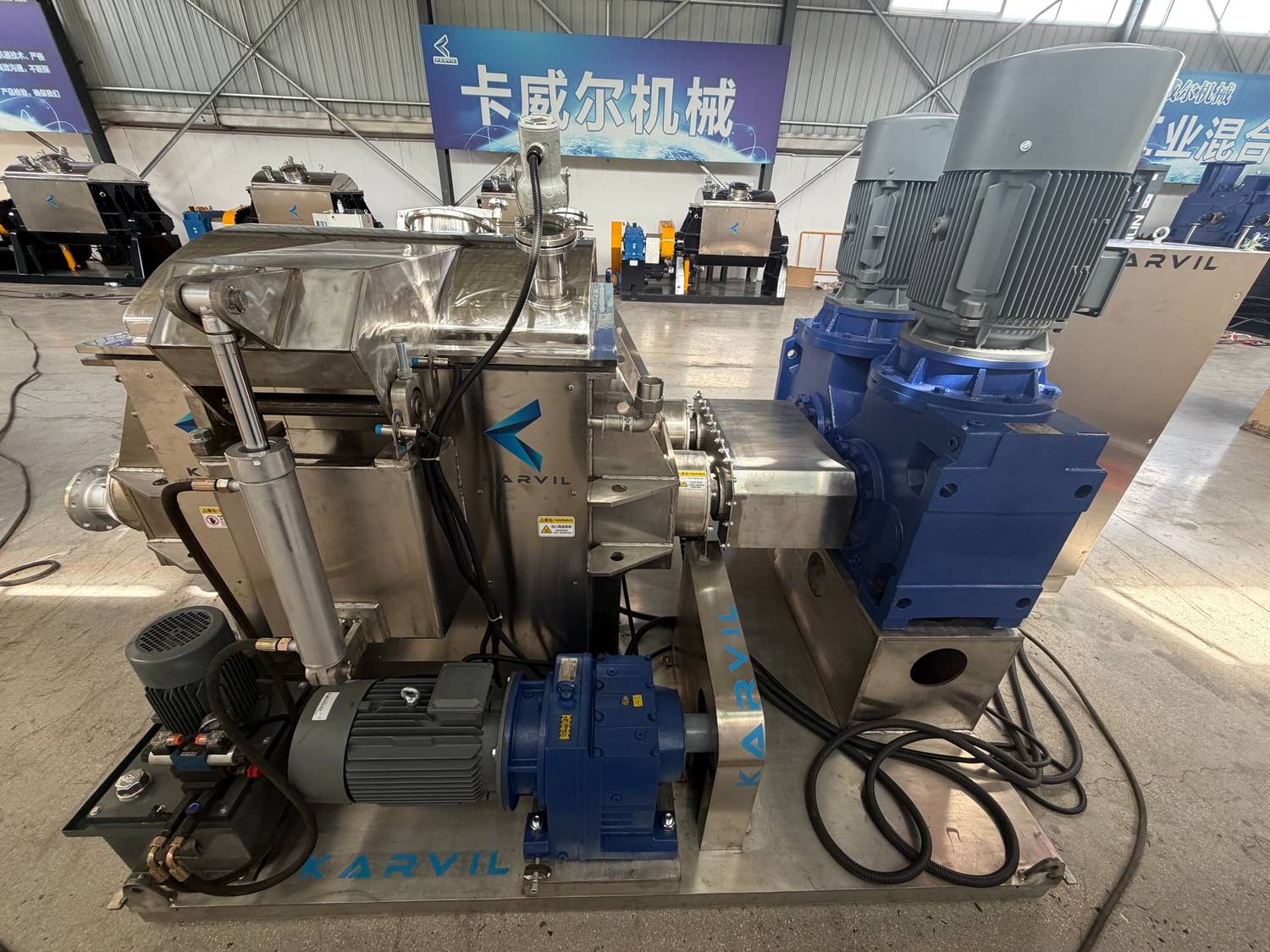

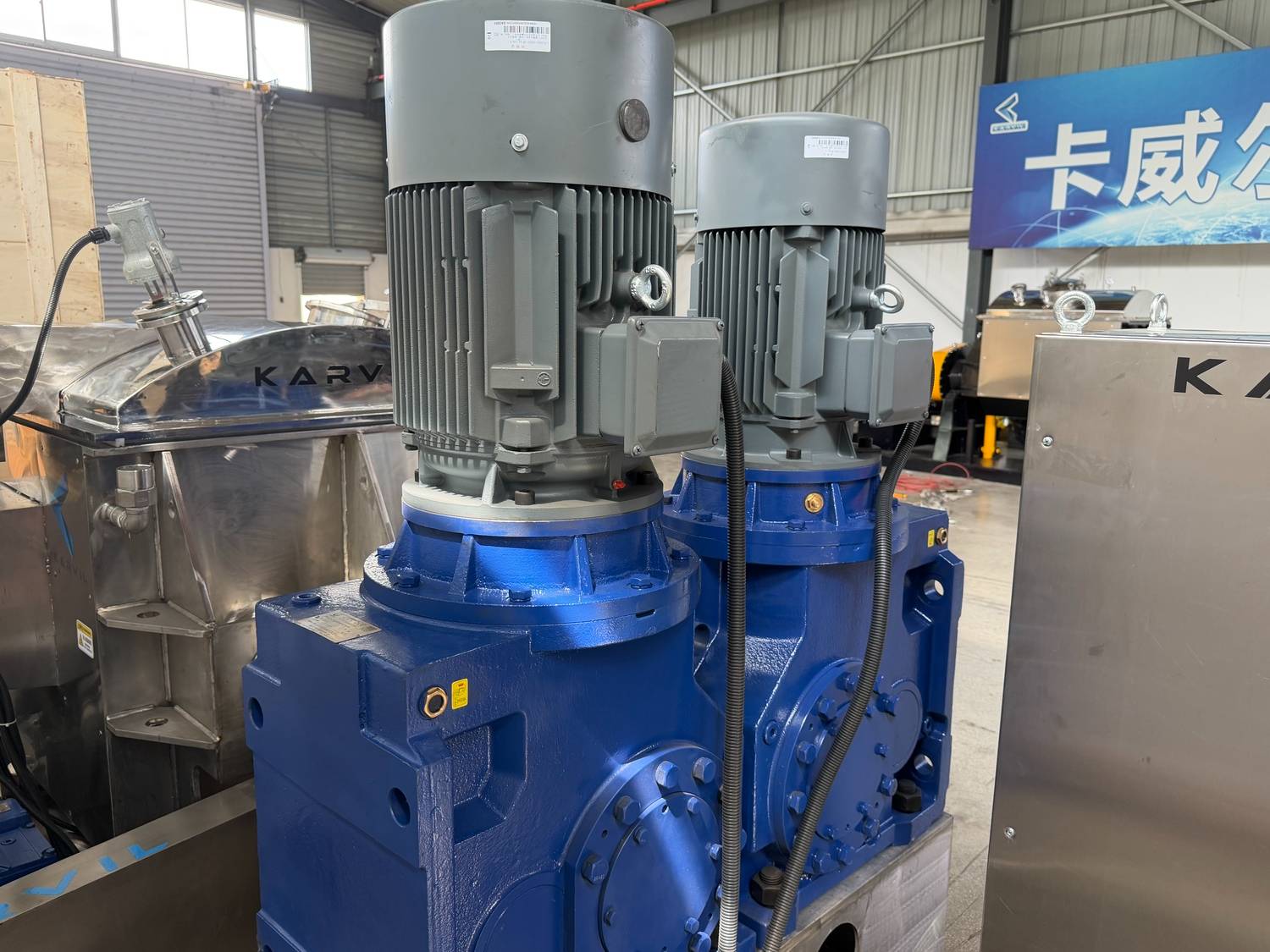

Dual-Motor Drive
Electric Heating Jacket

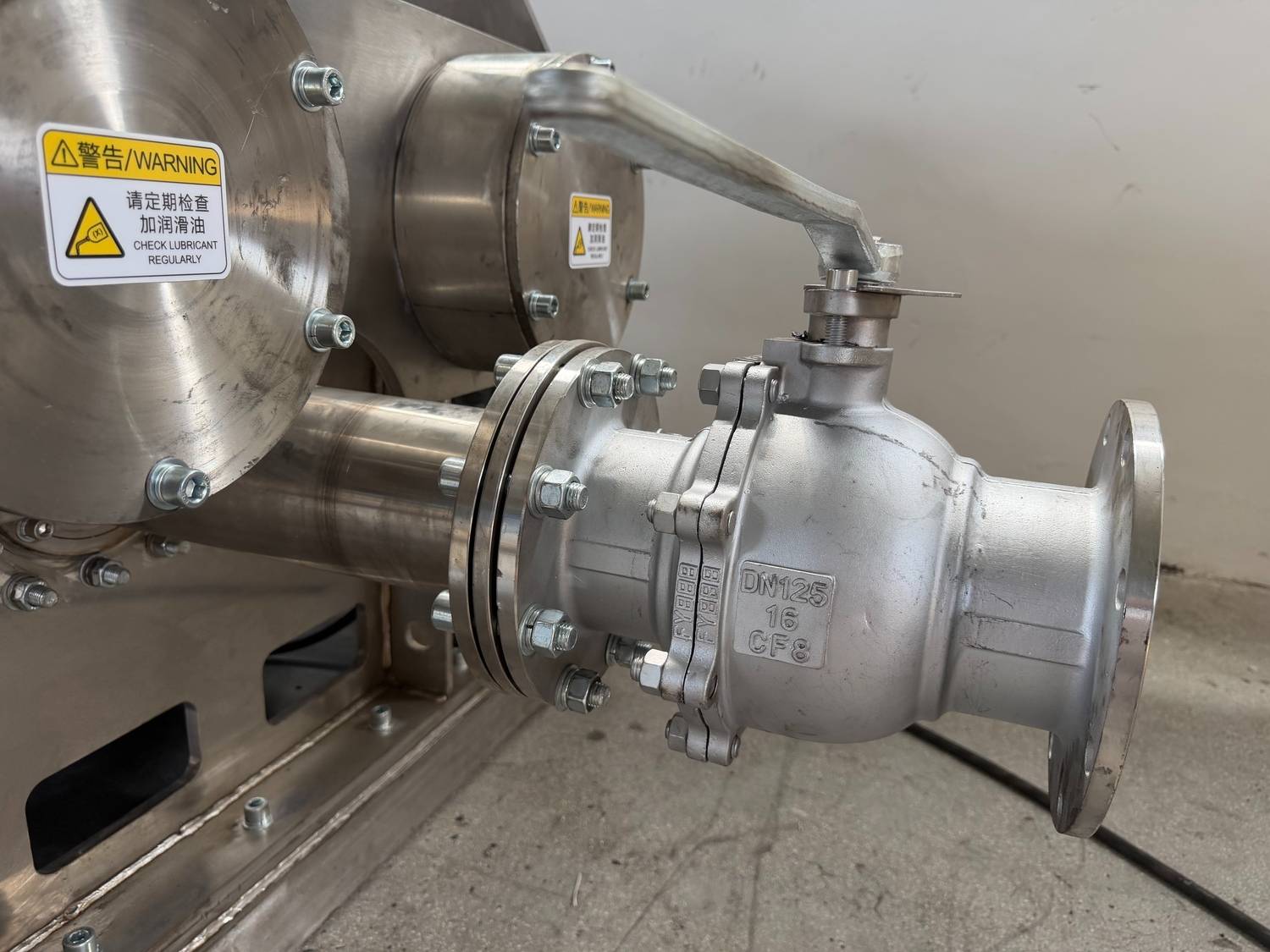

Screw Extrusion Discharge
Material: SUS 304, 316 or mild steel
Discharging: Tilting discharging/Screw extruding discharging/Bottom plate
Heating: Electric heating/Water heating/Oil heating/Steam heating
Cooling: Water cooling/Jacket cooling
Vacuum: Water-ring vacuum pump/ buffer tank.
Motor: Explosion proof motor
Independent Control Panel: Variable speed/ Temperature/Discharging
Working Volume: 5 to10,000 Cubic Feet (from experiment to production)

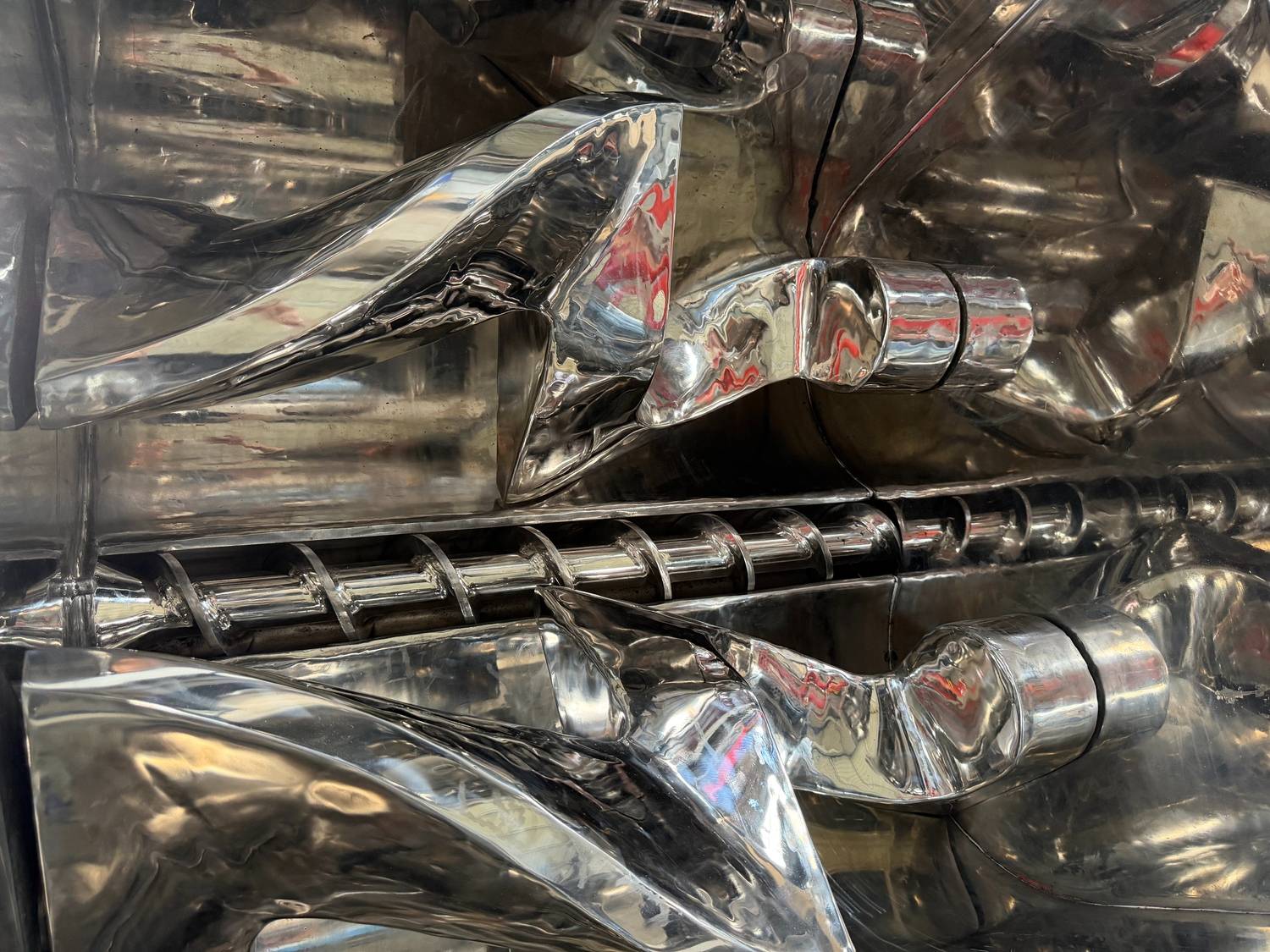

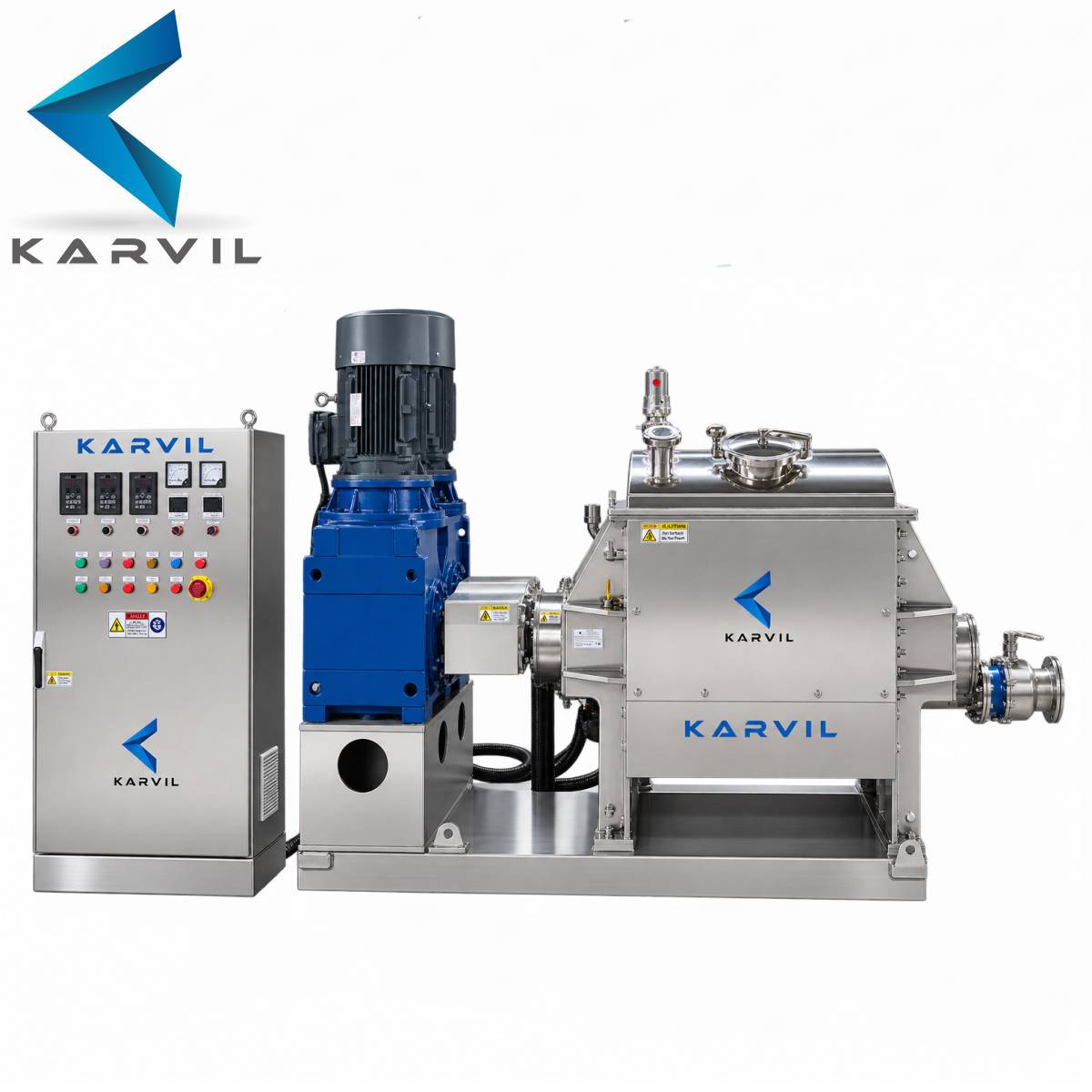

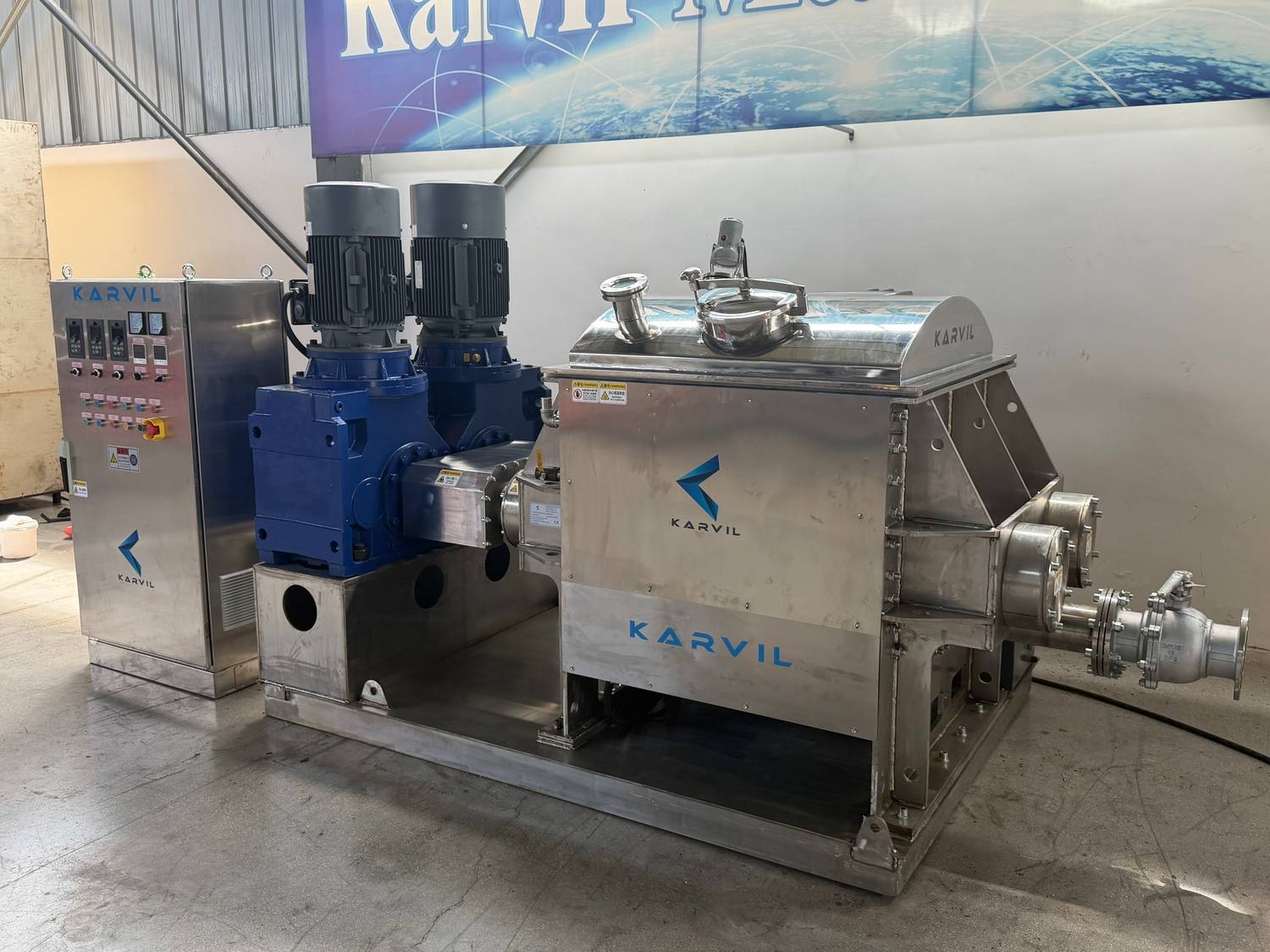

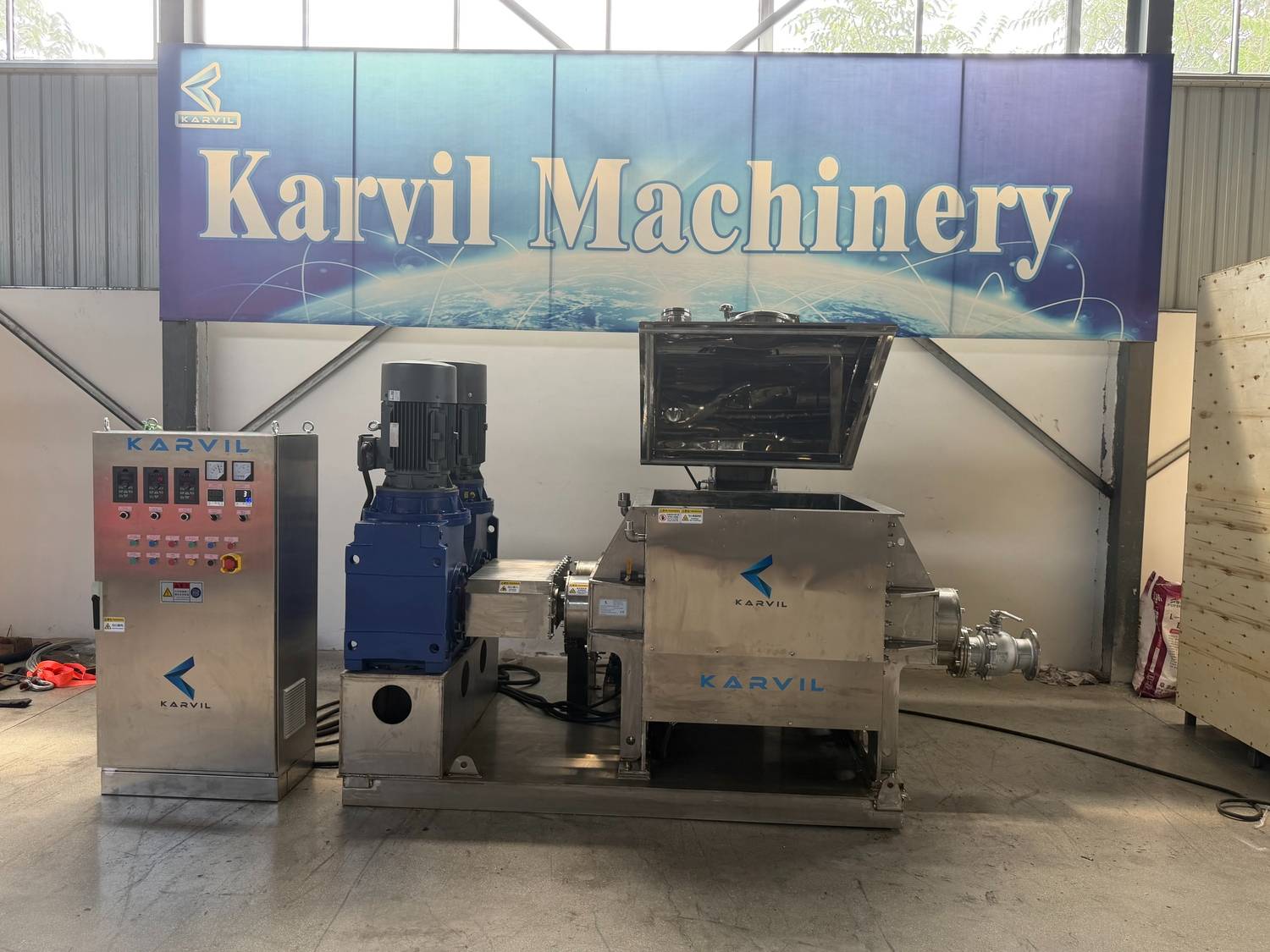

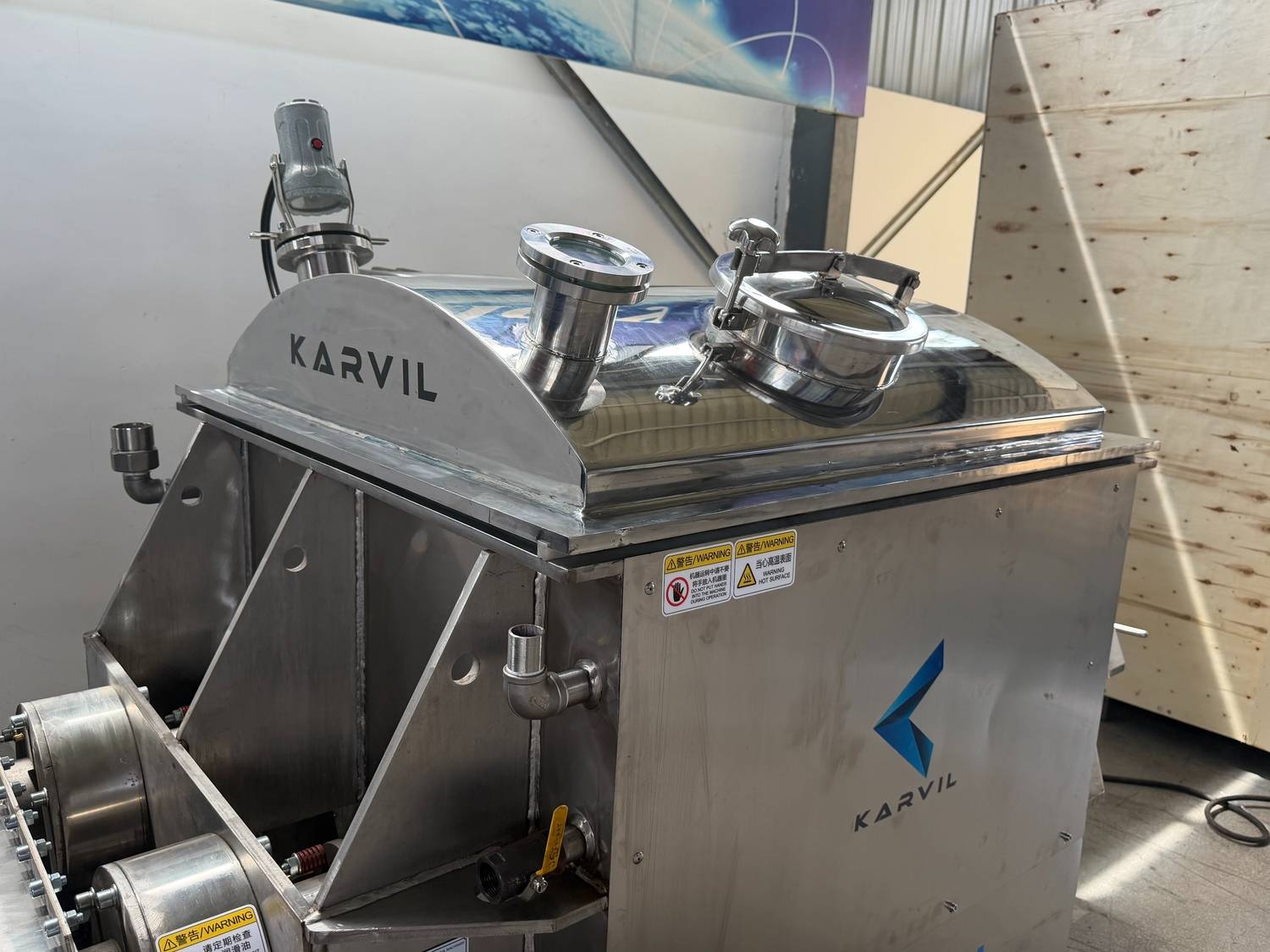

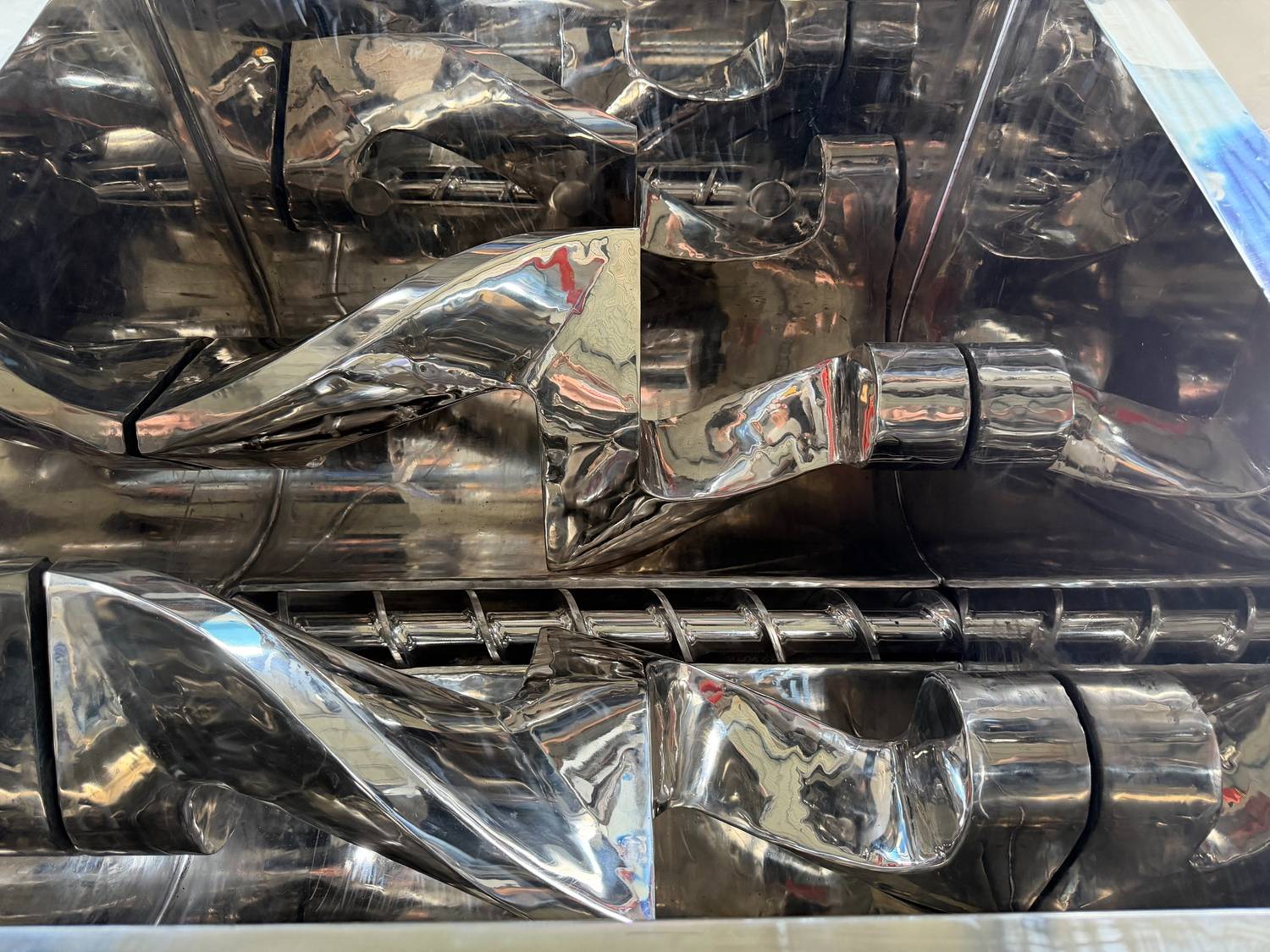

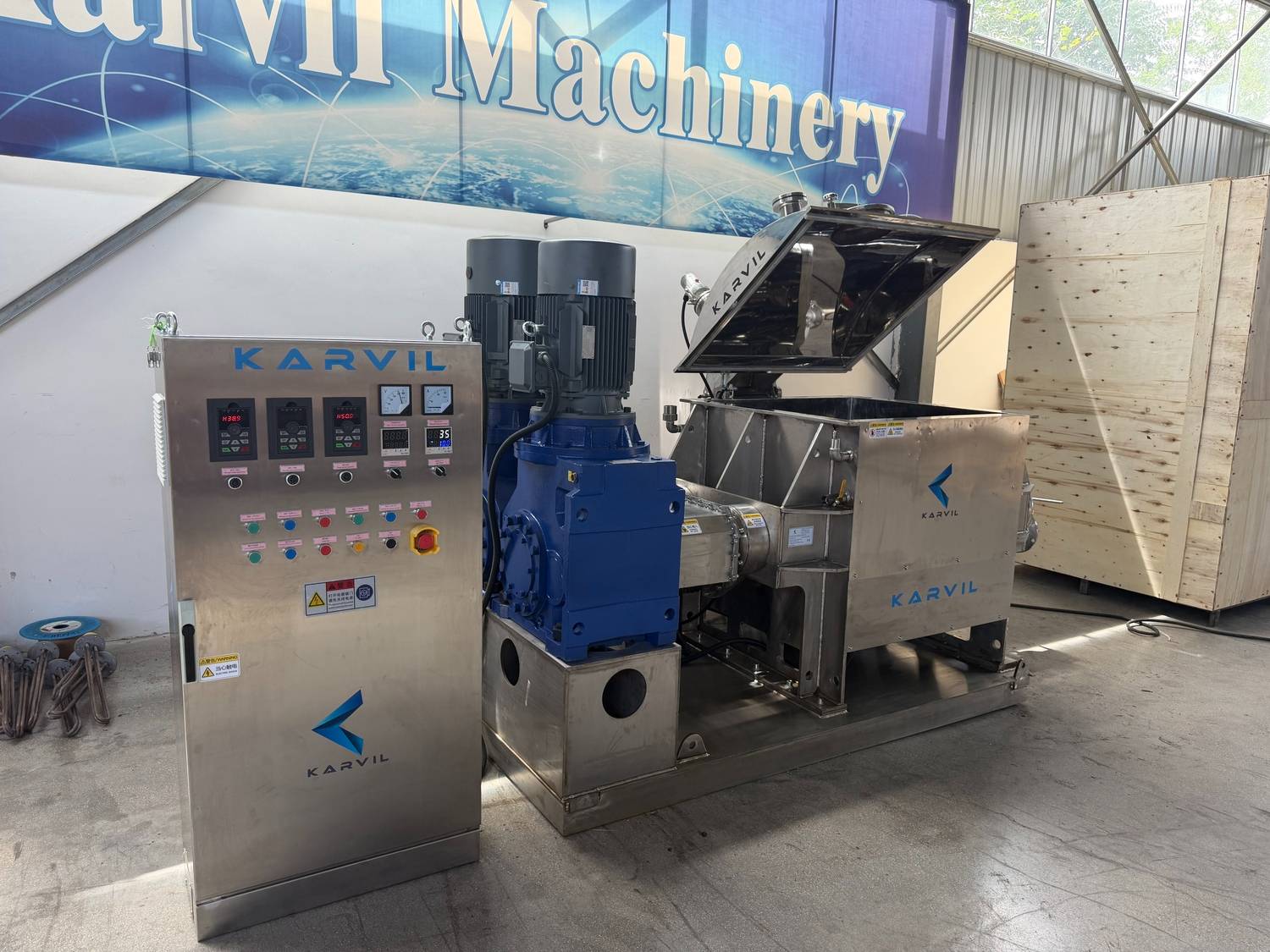

Karvil Machinery manufactured this 500L sigma mixer according to the customer's requirements for processing sugar paste. The machine combines dual-motor sigma blades, jacket heating and screw extrusion discharge in one integrated system.
Tell us your material and production requirements
Get a customized Sigma kneader solution.
Type | NH-5 | NH-10 | NH-100 | NH-300 | NH-500 | NH-1000 | NH-1500 | NH-2000 | NH-3000 | NH-4000 | NH-5000 | |
Total Volume (L) | 5 | 10 | 100 | 300 | 500 | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 | |
Mixed amount/batch (L) | 1.5-3.5 | 3.0-7 | 30-70 | 90-210 | 150-350 | 300-700 | 450-1050 | 600-1400 | 900-2100 | 1200-2800 | 1500-3500 | |
Rotation Speed (rpm) | 42/34 | 42/34 | 37/21 | 37/22 | 37/23 | 37/26 | 37/22 | 30/21 | 30/21 | 30/20 | 28/18 | |
Main Motor Power (Kw) | 0.75-1.5 | 1.1-3 | 5.5-11 | 7.5-30 | 15-37 | 22-90 | 22-90 | 30-110 | 30-110 | 45-110 | 55-132 | |
Heating Methods | Steam Pressure (MPa) | Jacket for steam | ||||||||||
Electric Power (Kw) | 2.4 | 2.4 | 6 | 12 | 18 | 30 | 45 | 54 | 72 | 72 | 90 | |
Vacuum (MPa) | 0~ -0.096Mpa (Vacuum Kneader) | |||||||||||
Discharging Method | Tilting cylinder | |||||||||||
Screw extrusion | ||||||||||||
Trusted by Global Manufacturers in 50+ Countries. From silicone to adhesives, see how our Sigma Kneaders are solving complex mixing challenges for industry leaders worldwide.
Mastering High-Viscosity Silicone Mixing: Why a Vacuum Kneader with a Screw Extruder is the Ultimate Solution
Successful FAT of a 3000L Sigma Mixer for Our UK Client
Why a Serbian Explosives Manufacturer Chose Karvil Sigma Kneaders for 3 Consecutive Orders
From material testing to customized equipment, Karvil Machinery provides the expertise you need for a reliable mixing solution.
LABORATORY TEST
Test your materials in our laboratory to find the right mixing solution.
PROFESSIONAL ENGINEERS
Experienced engineers provide expert mixing and process solutions.
DIRECT FACTORY
Strict quality control from raw materials to final inspection.
CUSTOMIZED SOLUTIONS
Mixer design and configuration tailored to your process.
What materials can this 500L sigma mixer process?
The most important factors include material type, viscosity, moisture content, bulk density, required batch size, mixing time, temperature requirements, This mixer is designed for high-viscosity and paste-like materials, including sugar paste, confectionery pastes, food fillings and other dense food formulations. Final suitability depends on material viscosity and processing requirements.
Is the mixer suitable for food processing?
How is the material discharged?
Can the sigma blades rotate in both directions?
Can Karvil Machinery customize the sigma mixer?
