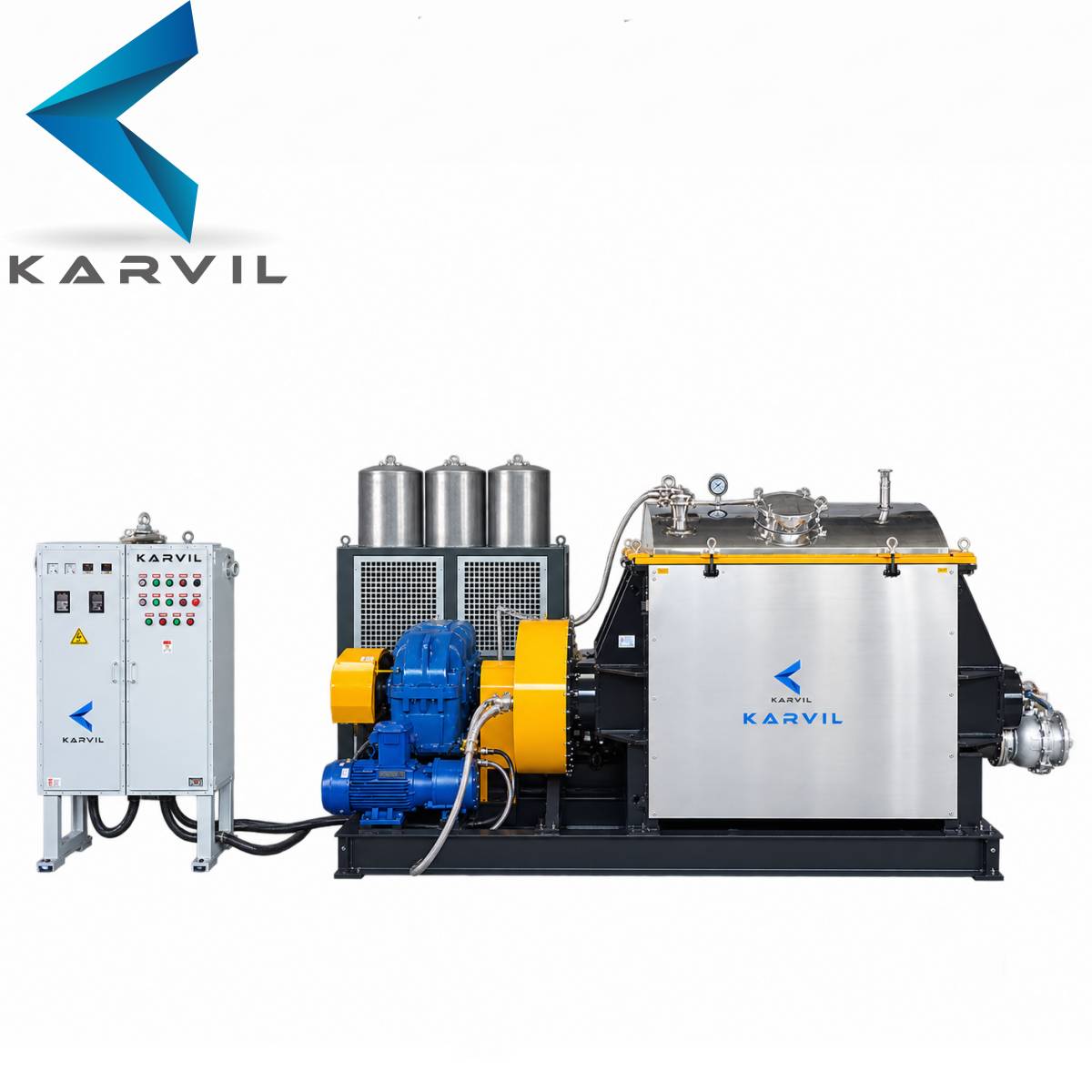

Built for demanding adhesive and other high-viscosity materials, this 3000L sigma kneader combines heavy-duty mixing blades, vacuum processing, jacket cooling and screw discharge in one robust machine.
Key Features
NH-3000
Karvil
The mixer is configured for applications where flammable materials or vapors require explosion-protection measures. Electrical and drive components can be selected according to the required hazardous-area conditions.

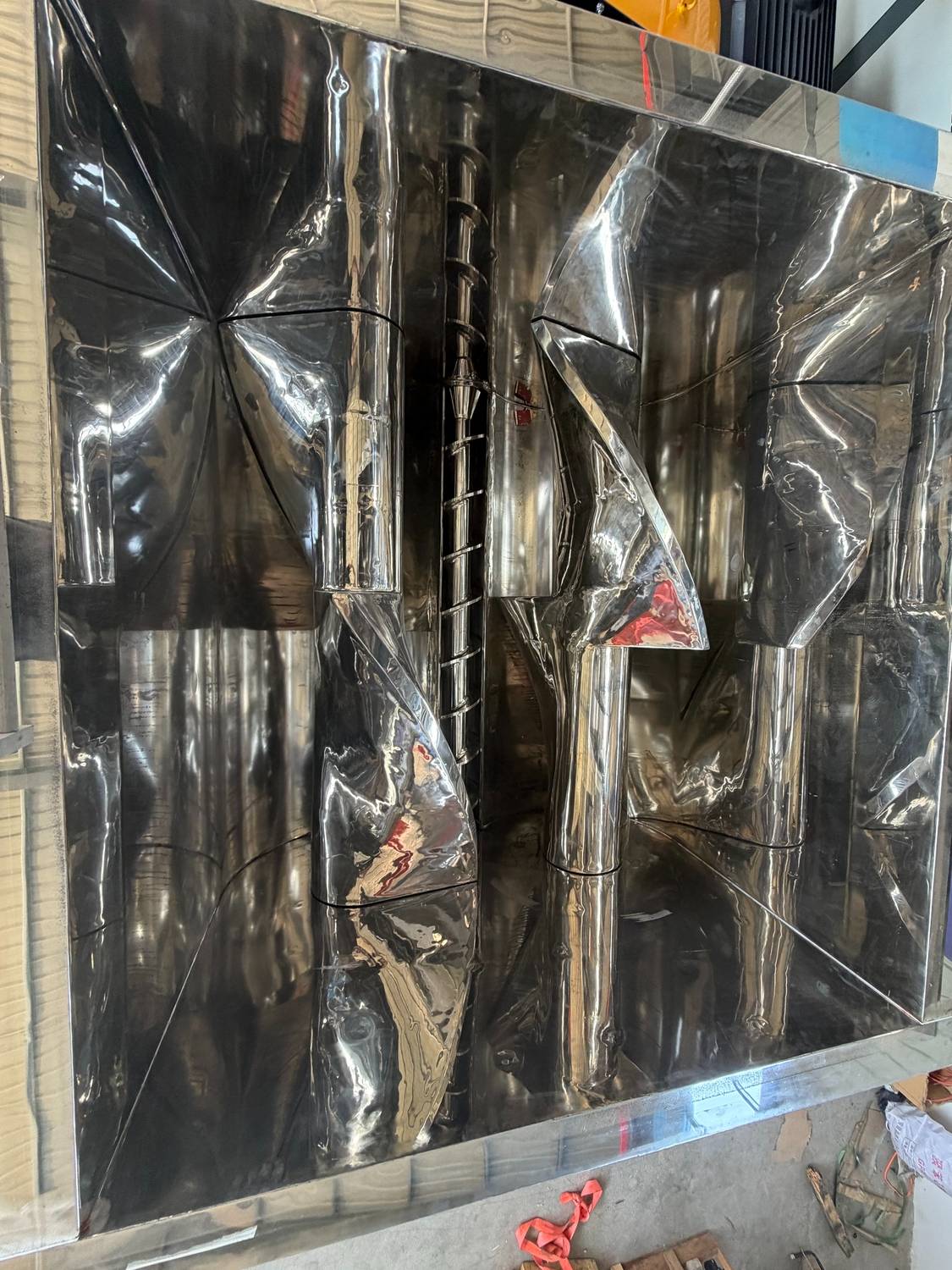

Two sigma blades are designed to handle high-viscosity, dense and adhesive materials. The blade geometry provides strong kneading action while moving material through the working chamber.
The vacuum system helps remove entrapped air and volatile components during processing. This is useful for adhesive and other materials where air inclusion can affect the final product.

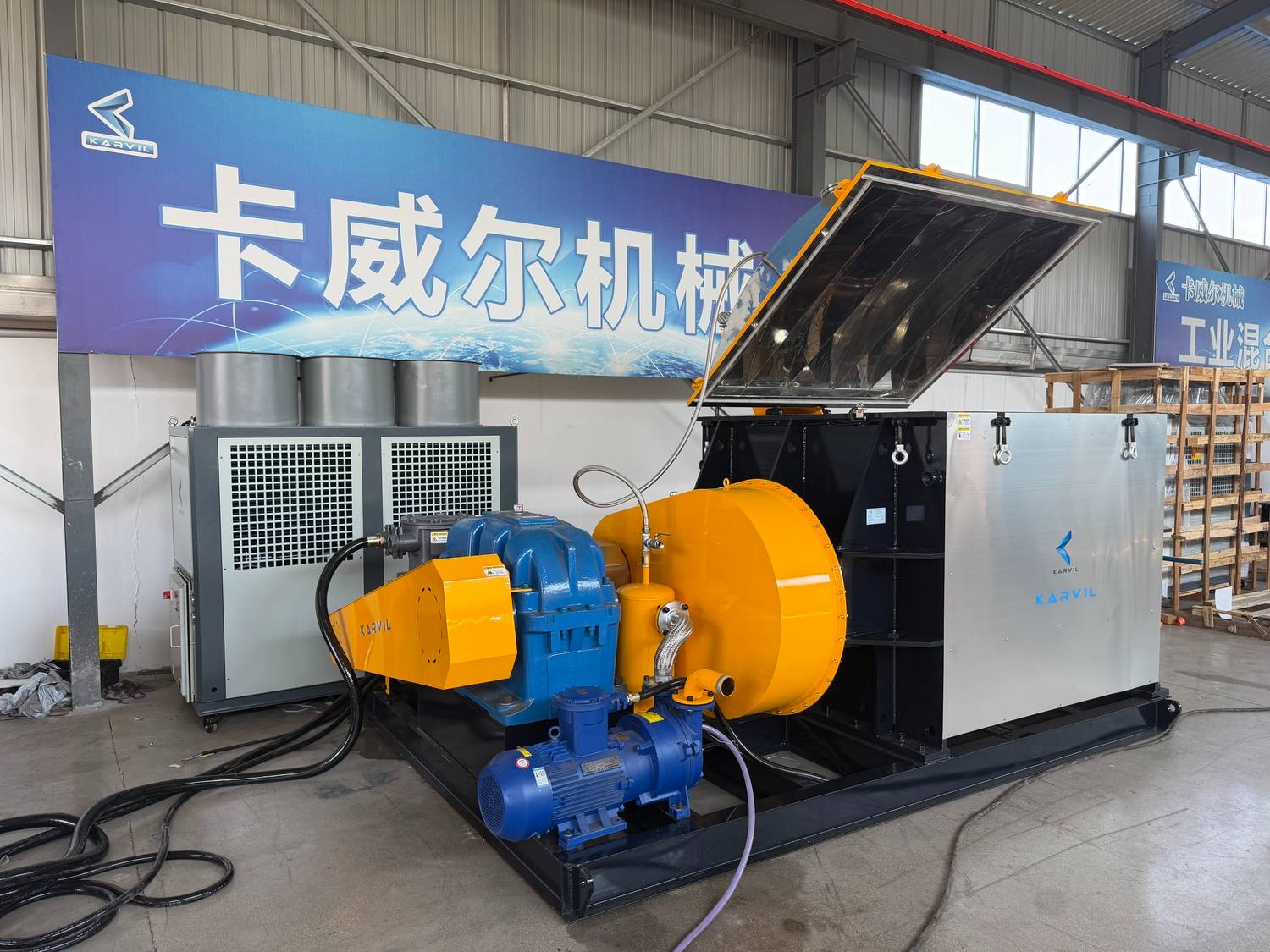

The mixing chamber is equipped with a cooling jacket connected to an external water chiller. This allows the process temperature to be controlled during high-load mixing.

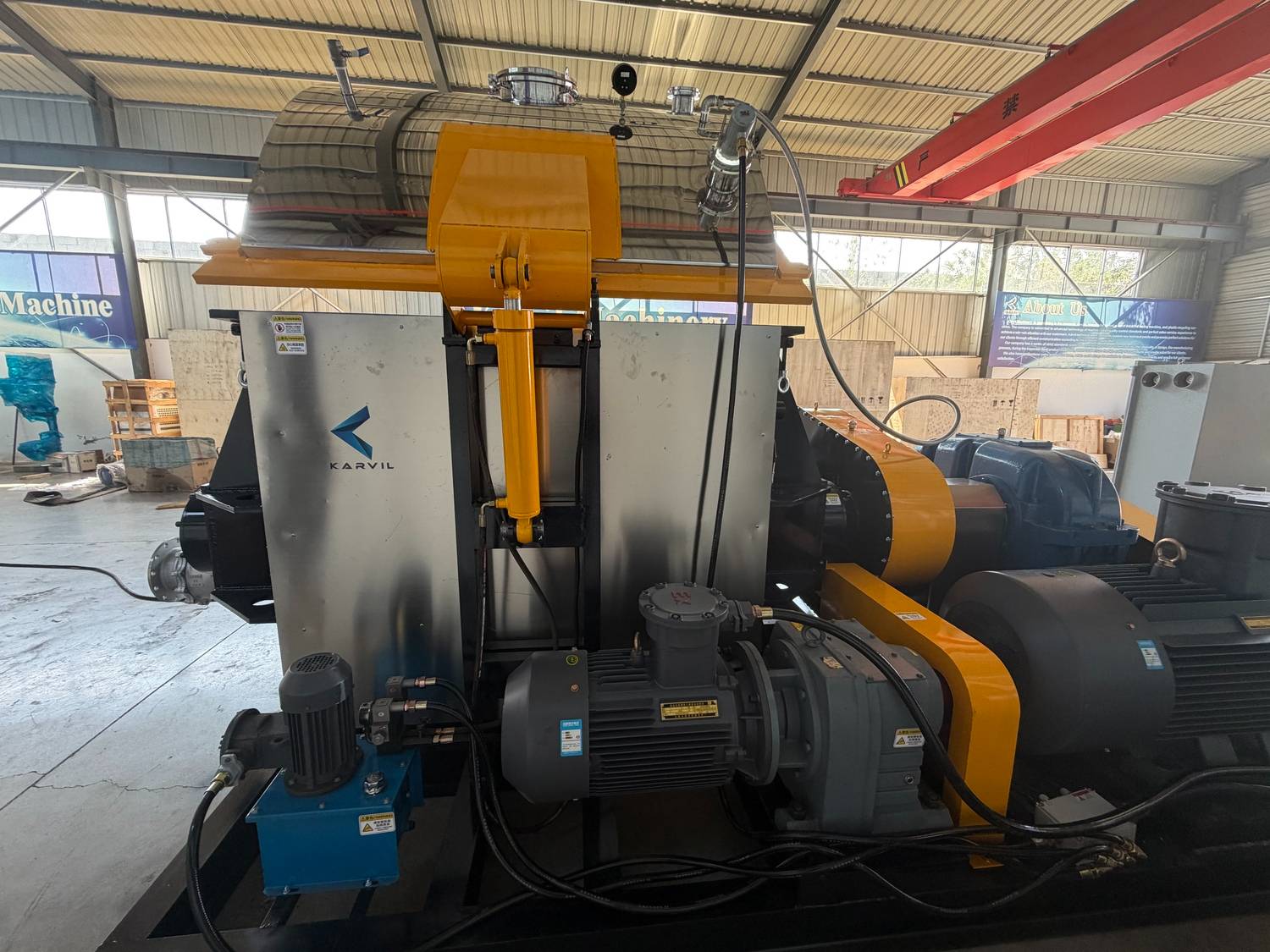

For highly viscous materials that do not flow easily under gravity, screw discharge provides a controlled way to move the finished material out of the mixing chamber.
The 3000L vessel provides a large working volume for industrial-scale production while maintaining the heavy-duty construction required for demanding mixing applications.

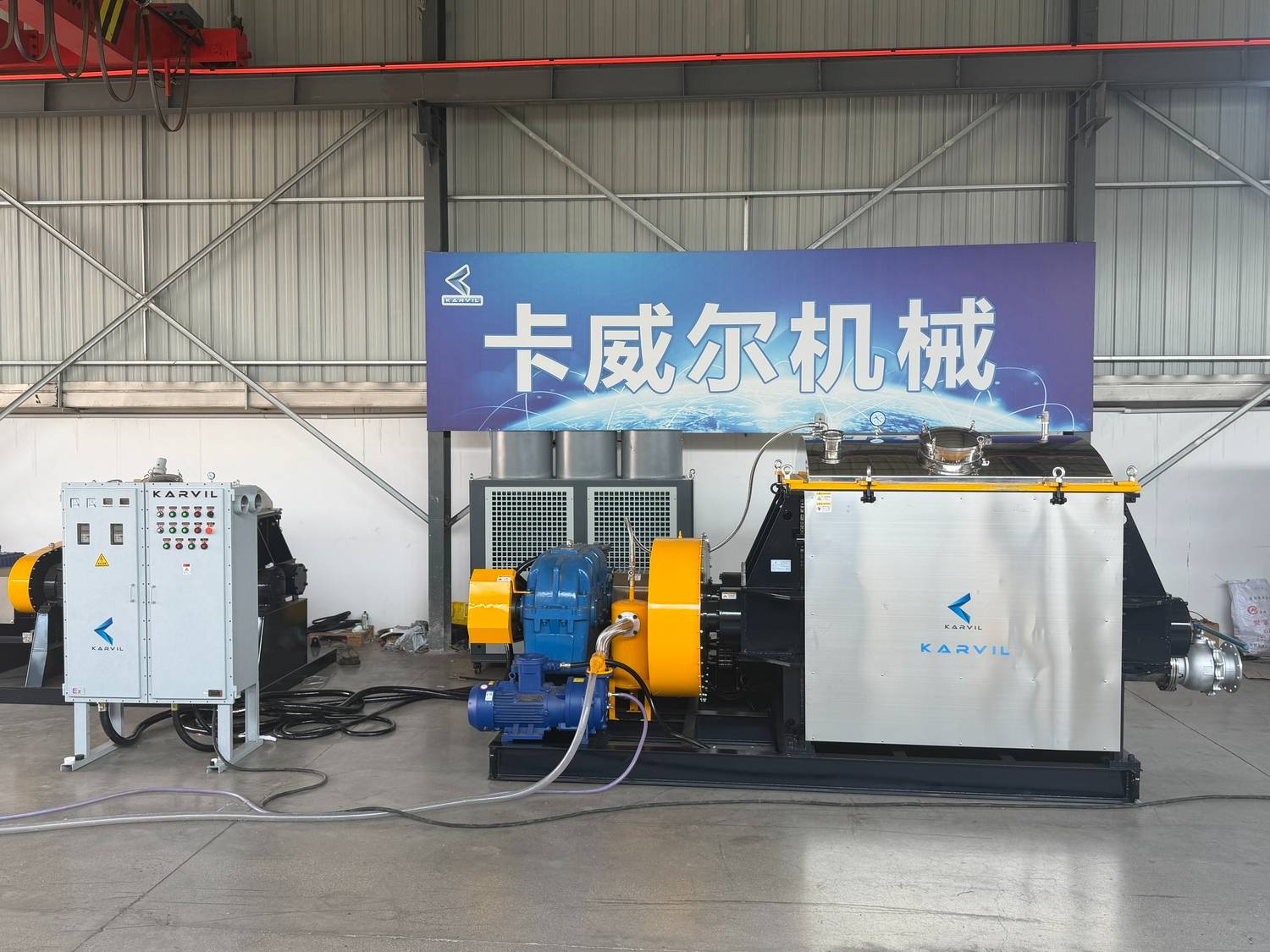

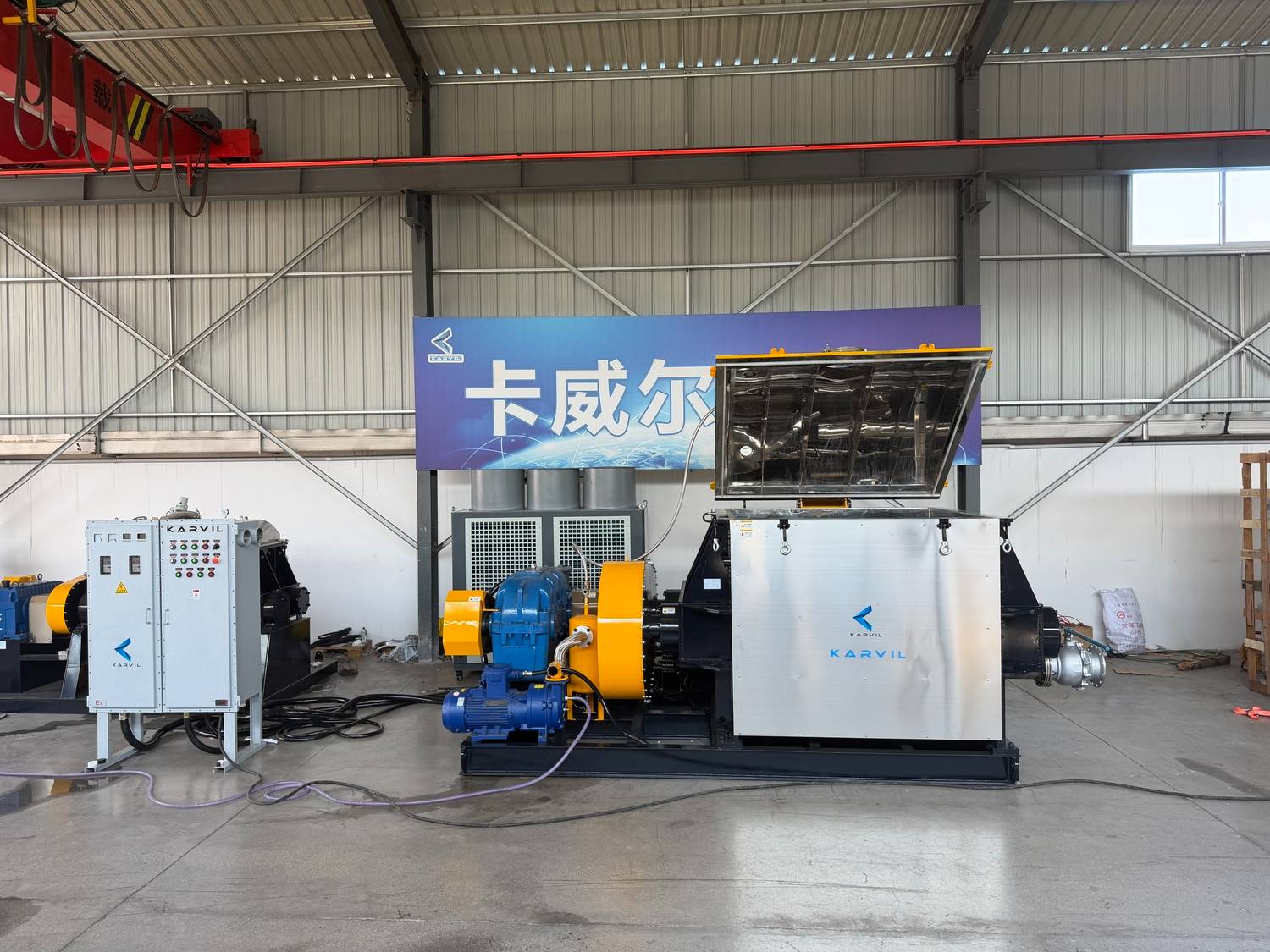

This 3000L explosion-proof vacuum sigma kneader was manufactured for a customer in the United States.
Application: Adhesive Materials
Machine Size: 3000L
Configuration: Explosion-Proof + Vacuum + Cooling + Screw Discharge
Customer Location: USA
Raw materials are loaded into the mixing chamber according to the required formulation.
The two sigma blades rotate and continuously fold, compress and shear the material.
Thermal oil can circulate through the jacket and, where required, through the blades to control material temperature.
After mixing, the processed material is discharged through the selected discharge system, such as tilting or screw extrusion.
Material: SUS 304, 316 or mild steel
Discharging: Tilting discharging/Screw extruding discharging/Bottom plate
Heating: Electric heating/Water heating/Oil heating/Steam heating
Cooling: Water cooling/Jacket cooling
Vacuum: Water-ring vacuum pump/ buffer tank.
Motor: Explosion proof motor
Independent Control Panel: Variable speed/ Temperature/Discharging
Working Volume: 5 to10,000 Cubic Feet (from experiment to production)
Type | NH-5 | NH-10 | NH-100 | NH-300 | NH-500 | NH-1000 | NH-1500 | NH-2000 | NH-3000 | NH-4000 | NH-5000 | |
Total Volume (L) | 5 | 10 | 100 | 300 | 500 | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 | |
Mixed amount/batch (L) | 1.5-3.5 | 3.0-7 | 30-70 | 90-210 | 150-350 | 300-700 | 450-1050 | 600-1400 | 900-2100 | 1200-2800 | 1500-3500 | |
Rotation Speed (rpm) | 42/34 | 42/34 | 37/21 | 37/22 | 37/23 | 37/26 | 37/22 | 30/21 | 30/21 | 30/20 | 28/18 | |
Main Motor Power (Kw) | 0.75-1.5 | 1.1-3 | 5.5-11 | 7.5-30 | 15-37 | 22-90 | 22-90 | 30-110 | 30-110 | 45-110 | 55-132 | |
Heating Methods | Steam Pressure (MPa) | Jacket for steam | ||||||||||
Electric Power (Kw) | 2.4 | 2.4 | 6 | 12 | 18 | 30 | 45 | 54 | 72 | 72 | 90 | |
Vacuum (MPa) | 0~ -0.096Mpa (Vacuum Kneader) | |||||||||||
Discharging Method | Tilting cylinder | |||||||||||
Screw extrusion | ||||||||||||
Trusted by Global Manufacturers in 50+ Countries. From silicone to adhesives, see how our Sigma Kneaders are solving complex mixing challenges for industry leaders worldwide.
Mastering High-Viscosity Silicone Mixing: Why a Vacuum Kneader with a Screw Extruder is the Ultimate Solution
Successful FAT of a 3000L Sigma Mixer for Our UK Client
Why a Serbian Explosives Manufacturer Chose Karvil Sigma Kneaders for 3 Consecutive Orders
From material testing to customized equipment, Karvil Machinery provides the expertise you need for a reliable mixing solution.
LABORATORY TEST
Test your materials in our laboratory to find the right mixing solution.
PROFESSIONAL ENGINEERS
Experienced engineers provide expert mixing and process solutions.
DIRECT FACTORY
Strict quality control from raw materials to final inspection.
CUSTOMIZED SOLUTIONS
Mixer design and configuration tailored to your process.
What materials can this 3000L sigma kneader process?
This machine is designed for highly viscous materials, including high molecular weight PIB and additives. Sigma kneaders can also be configured for polymers, rubber compounds, adhesives, sealants and other demanding materials.
How is the material discharged?
Can the screw discharge system handle very high-viscosity materials?
How do I select the right sigma mixer?
