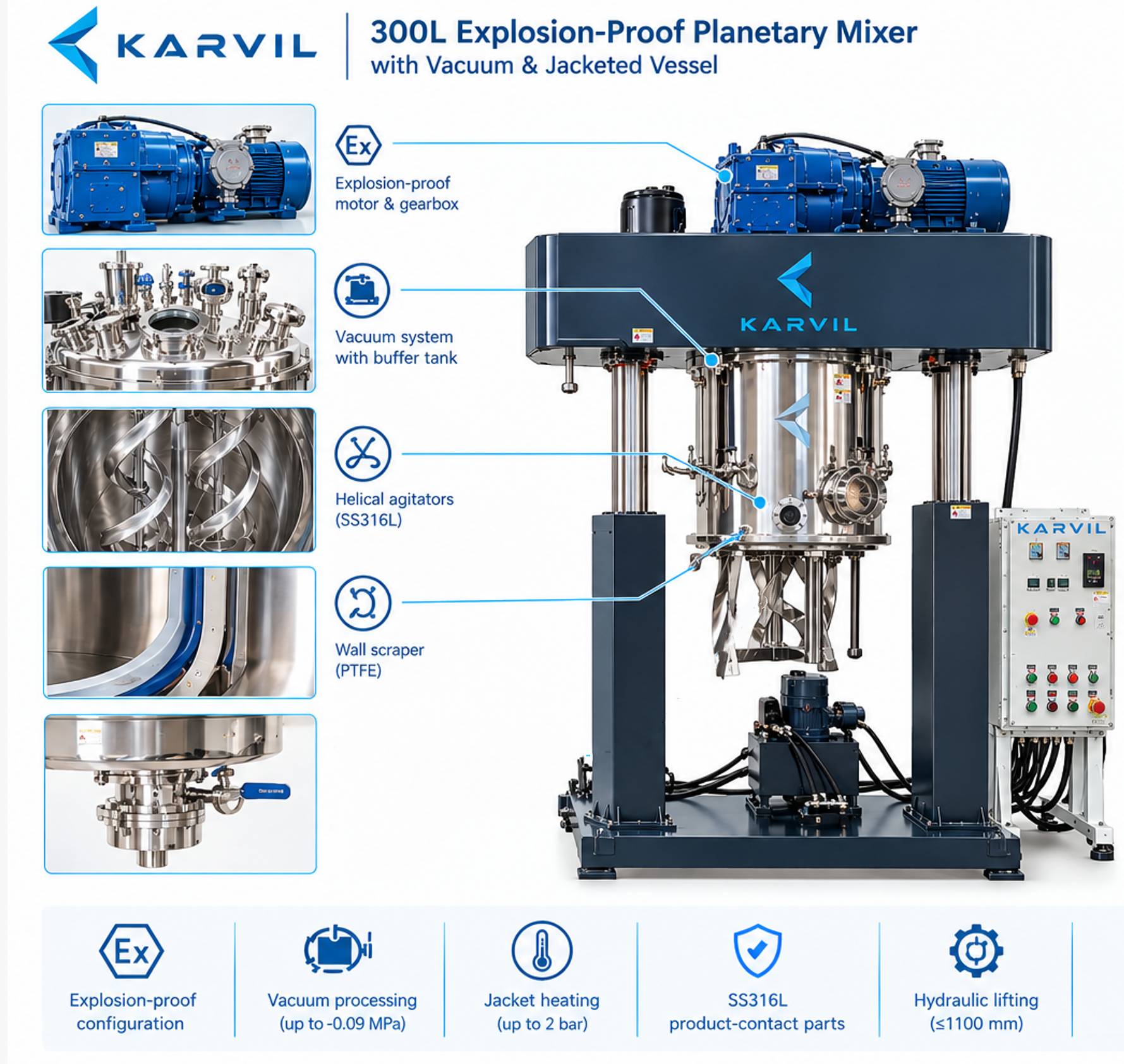

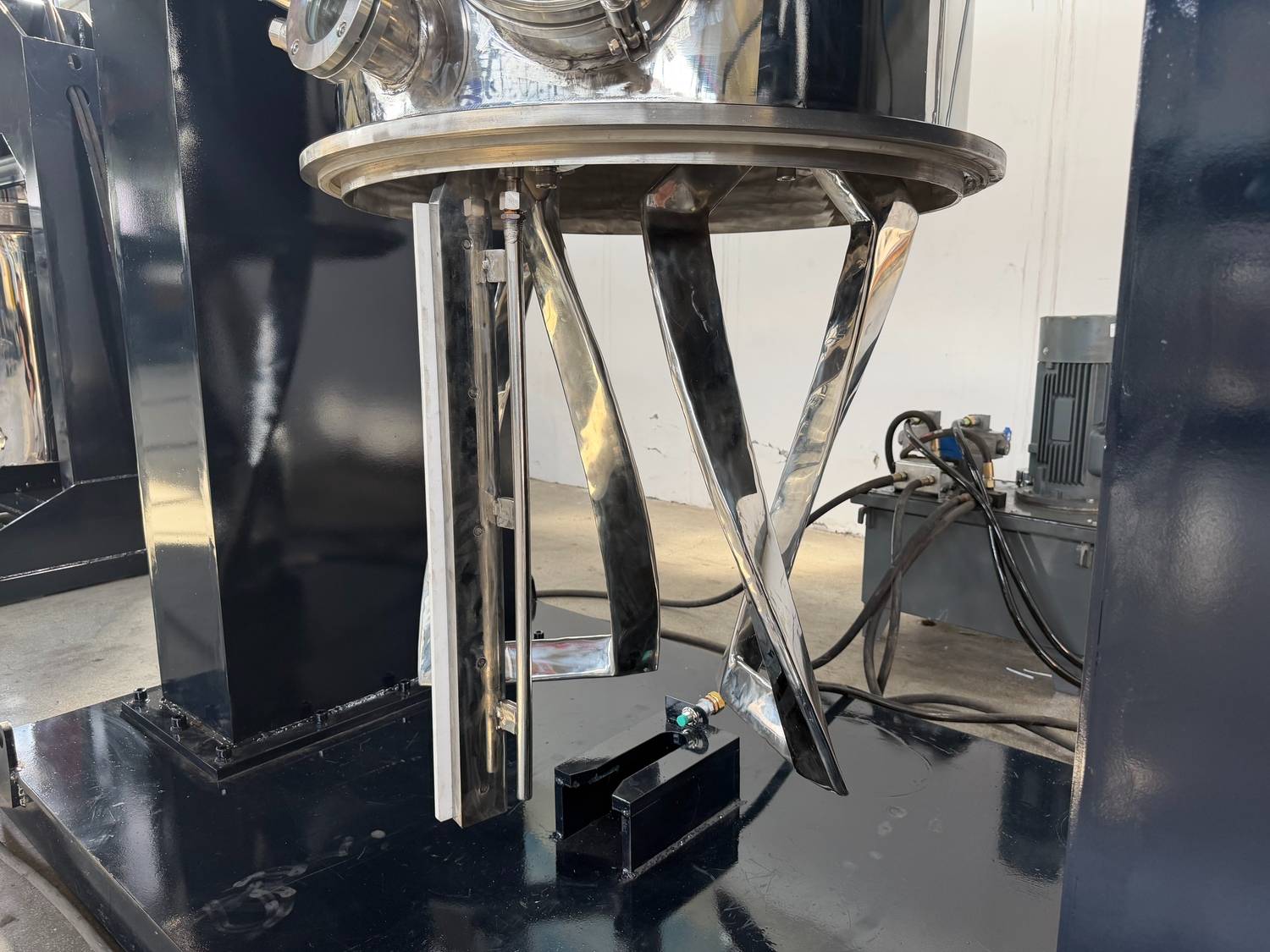

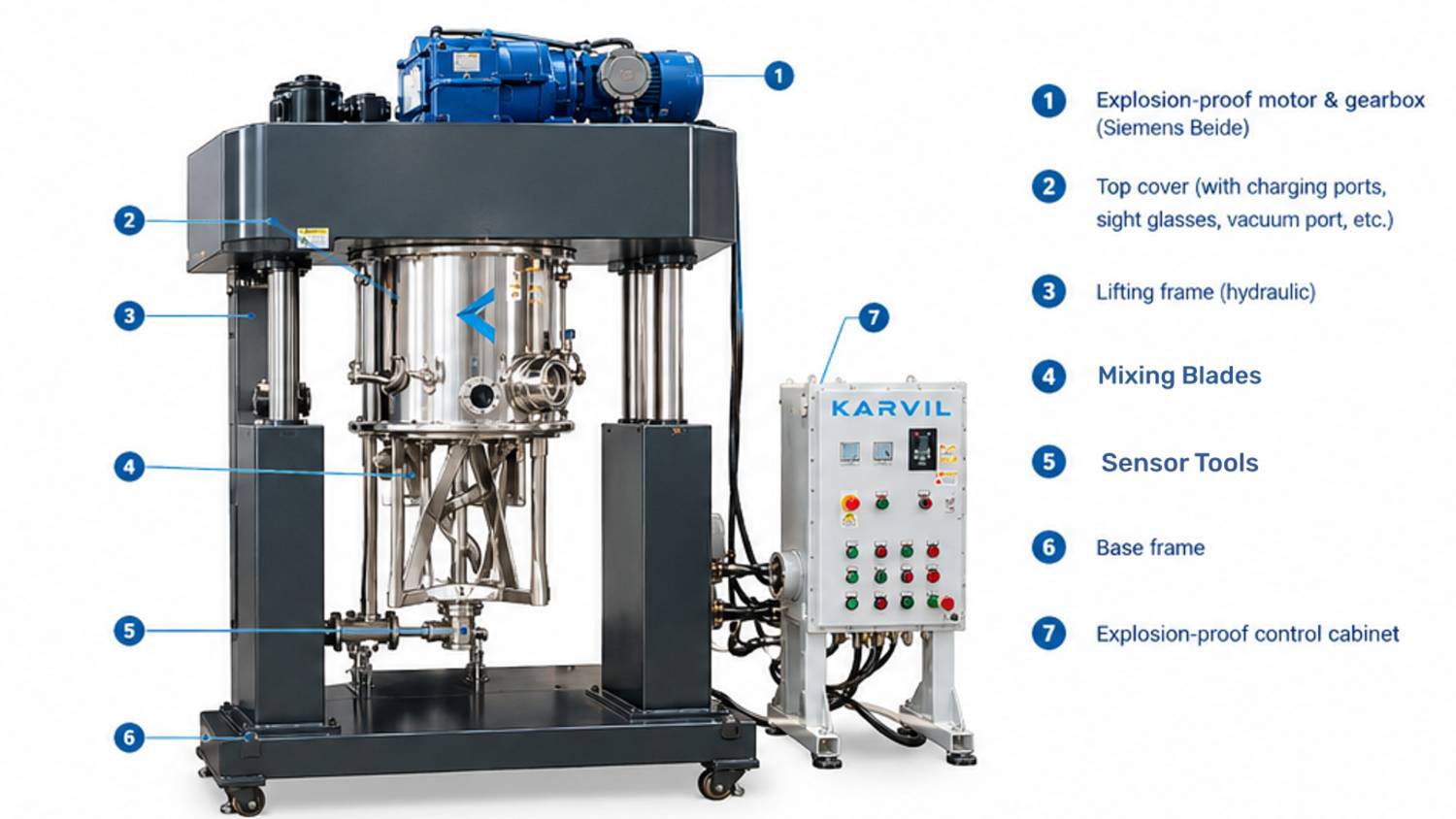

The main agitator is powered by a 22 kW explosion-proof motor with a hardened-surface gearbox. Mixing speed is adjustable from 5 to 50 rpm, allowing the operator to match the mixing intensity to the material.
The vessel can be connected to an explosion-proof vacuum pump and buffer tank. The system is rated for a vacuum level of up to -0.09 MPa.
The buffer tank also helps protect the mixing vessel from vacuum-pump oil returning through the vacuum line.

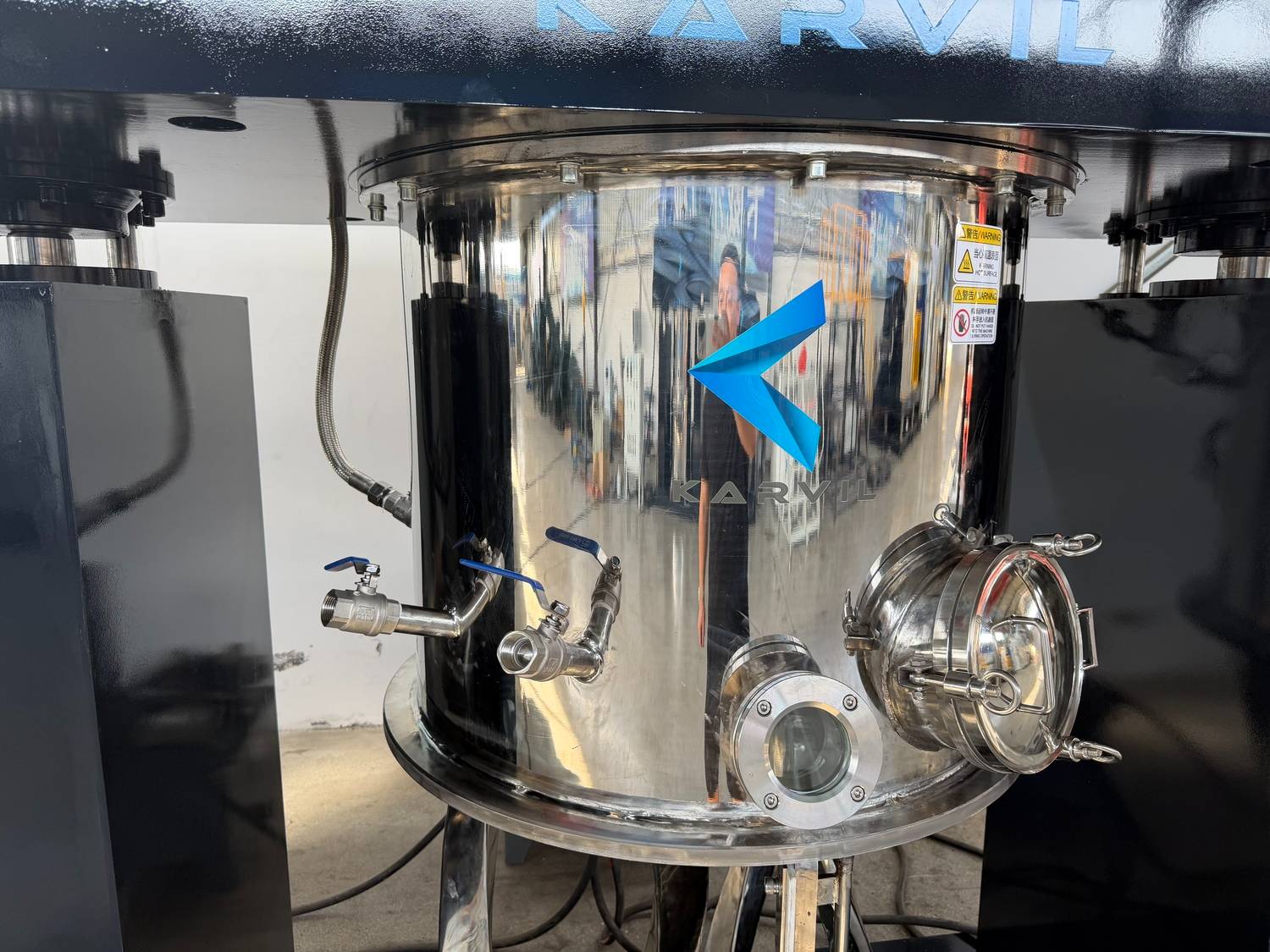

The 381L mixing vessel is equipped with a heating jacket rated for up to 2 bar. Jacket connections are DN25.
This gives the process a separate heat-transfer circuit without exposing the material directly to the heating medium.
The vessel, agitators and other major product-contact components use SS316L stainless steel.
The vessel has a mirror-polished internal and external finish, making it suitable for applications where corrosion resistance and surface finish are important.
Safety Interlocks for Hazardous Processing
The machine incorporates multiple mechanical and electrical interlocks to reduce operating risks during lifting, mixing and vacuum processing.
Emergency Stop
Mixing & Lifting Interlock
Vacuum Pressure Interlock
Automatic Cover Stop
Vacuum Backflow Protection
Factory Test Before Shipment

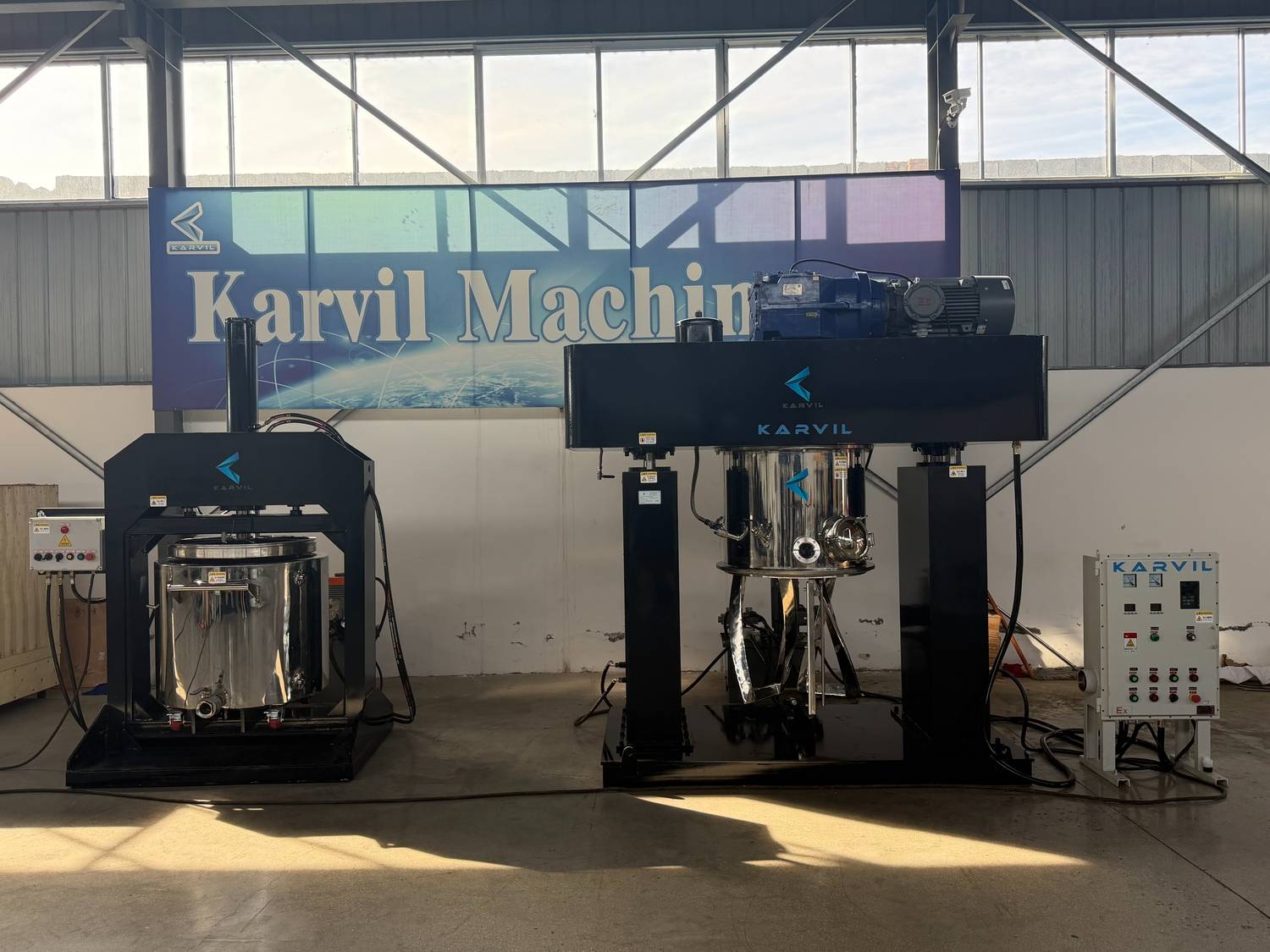

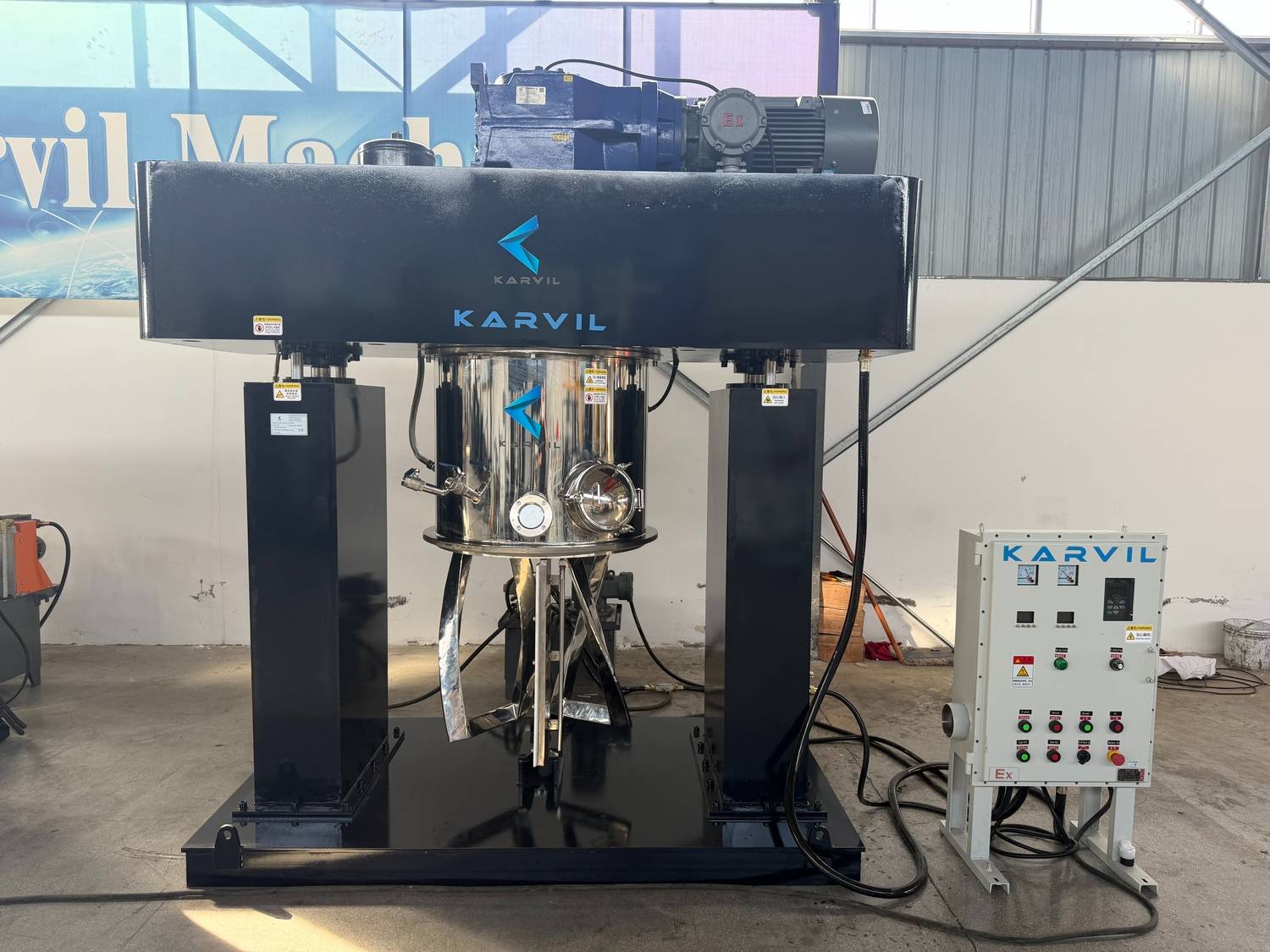

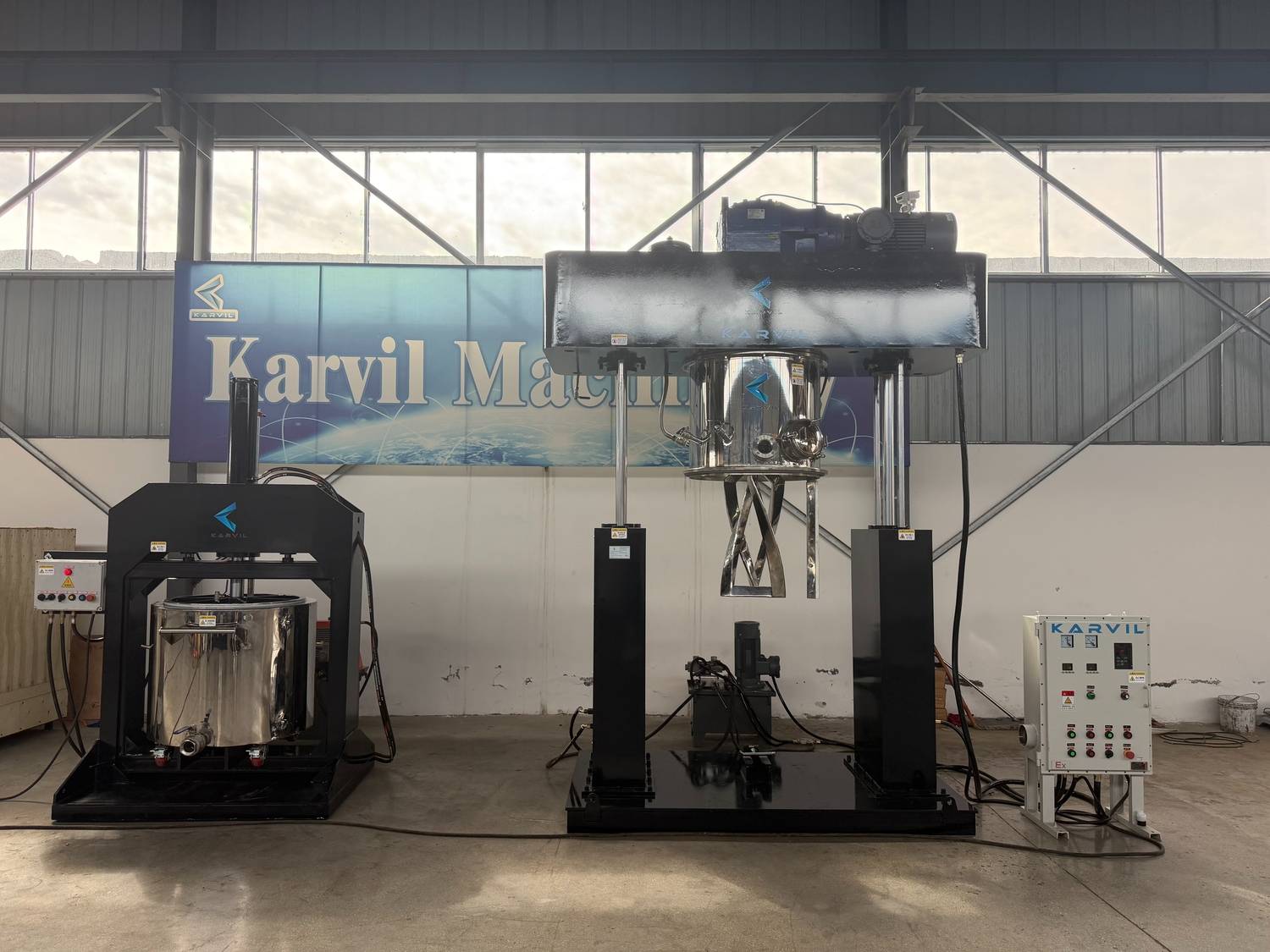

Before delivery, the complete system was assembled and tested at the Karvil factory.
The test covers the planetary mixing system, hydraulic lifting, vacuum system, temperature monitoring and control functions.
Watch the factory test video to see the 300L explosion-proof planetary mixer in operation.
Trusted by Global Manufacturers in 50+ Countries. From silicone to adhesives, see how our Sigma Kneaders are solving complex mixing challenges for industry leaders worldwide.
Our modern, fully equipped technical center is at your disposal. We welcome you to test your products to experience the advantages of our industrial mixers firsthand.
Specializing in mixers, grinding, and recycling machines, Karvil's experienced engineering team constantly explores new technologies to create perfect solutions for you.
Is this planetary mixer explosion-proof?
Yes. This configuration uses explosion-proof components for the mixing drive, vacuum system and electrical control system. The exact explosion-proof specification should be matched to the customer's hazardous-area classification.
What material are the product-contact parts made from?
Can the mixer work under vacuum?
Can the mixer heat the material?
Can Karvil customize the mixer for hazardous materials?
