How Ribbon Blender RPM Affects Capacity Calculation and Efficiency

A ribbon blender’s RPM (revolutions per minute) plays a big role in how well it mixes, how much it can handle, and how much energy it uses. The machine’s dual helical ribbons move materials in opposite directions. This creates a strong mixing action. The best ribbon blender RPM depends on the material’s traits, like its weight, flow, and particle size. Fast RPM speeds up mixing but can harm delicate particles. Slow RPM is kinder but takes longer. Factors like ribbon shape, fill level, and material type affect performance. Tools like variable frequency drives (VFDs) let you adjust ribbon blender RPM for different batch sizes or fragile mixes. Choosing the right RPM balances quality, energy, and machine life. Testing in small batches helps find the best settings.

What Makes Ribbon Blenders Work Efficiently?

How does the basic structure and operation of a ribbon blender support its performance?

A ribbon blender is simple but works well. It has a U-shaped chamber. Inside, a central shaft holds two helical ribbons—one inside, one outside. These ribbons push materials in opposite ways. This creates a thorough mixing action. The ribbons move materials side to side and around. The outer ribbon is close to the chamber’s walls, adding shear for better mixing. A gearmotor powers the ribbons. It spins them at speeds up to 300 feet per minute. This setup ensures materials blend evenly and quickly.



Why is ribbon blender RPM critical for achieving desired mixing outcomes?

The ribbon blender RPM affects how fast mixing happens, how much energy is used, and how uniform the mix is. High RPM makes mixing faster and more turbulent. But it can break particles or add too much shear. Low RPM is gentler. However, it may take too long to mix well. The force from high RPM can also break solids. So, picking the right RPM for the material is key to good results.

How do ribbon geometry and rotational speed interact in blending?

The ribbon’s design—like its width, angle, and gap from the walls—works with ribbon blender RPM to shape how materials flow. Wide ribbons at high RPM push materials strongly but may break fragile ones. Narrow ribbons at medium RPM suit delicate ingredients. The aim is to balance force and even mixing. Proper design and speed ensure materials blend without damage.

What Parameters Influence Ribbon Blender Capacity?

What distinguishes working volume from total volume in capacity calculation?

Total volume is the full space inside the blender’s chamber. Working volume is the part used for mixing. It’s usually 40% to 70% of the total volume. This depends on the material and mixing goals. Too much material blocks good flow. Too little reduces efficiency. Getting the right working volume is important for smooth operation.

How do bulk density, flowability, and particle size distribution affect capacity?

Bulk density decides how much material fits in the blender. For example, the Ross Model 42N-1/2S sanitary ribbon blender handles free-flowing materials with bulk density up to 64 lb/ft³. Flowability affects how easily materials move. Sticky powders may clump or block the blender. Particle size distribution (PSD) impacts how evenly materials mix. A wide range of particle sizes can be separated during mixing. Careful control is needed to avoid this.

Why does fill level matter in blending effectiveness?

The right fill level ensures ribbons touch the material properly. Overloading or underfilling causes problems. Layered filling—adding materials in steps—helps spread them evenly. This improves mixing where ribbons alone may not reach all areas.

How Does Ribbon Blender RPM Influence Mixing Efficiency?

What are ideal ribbon blender RPM ranges for different material types like powders or granules?

Light powders need low RPM, around 20–40, to avoid dust or air bubbles. Heavy granules work better with higher RPM, up to 60, for stronger mixing. Fragile materials, like coated particles, need slow speeds to stay intact. Choosing the right RPM protects the material and ensures a good mix.

What happens when you operate above or below optimal speed?

Too-high RPM can overmix, create heat, or break particles. This changes the particle size distribution (PSD), making smaller bits from larger ones. Too-low RPM leads to uneven mixing because the force is too weak. Both affect quality, so staying in the right RPM range is crucial.

How Can You Calculate Ribbon Blender Capacity Based on Speed and Material Properties?

Are there formulas for estimating throughput and mixing time?

Yes, simple formulas help estimate mixing time and throughput. One formula is:

Mixing Time ≈ k × (Volume / Ribbon Blender RPM)^n

Here, k depends on the material, and n is usually 0.5 to 1. Throughput is calculated as:

Throughput = Batch Volume / Mixing Time

These help predict how much you can process and how long it takes.

How do you adjust the ribbon blender RPM when batch sizes vary significantly?

For smaller batches, like 20–50% of capacity, lower RPM keeps mixing smooth. It prevents overmixing or unmixed spots. Variable Frequency Drives (VFDs) make this easy by letting you change RPM for different batch sizes.

Can you see this applied in real equipment examples?

Karvil’s Ribbon Mixers show this in action. They offer VFDs for adjustable ribbon blender RPM. These suit powder processing in industries like food or chemicals. Their flexible designs handle various batch sizes effectively.

What Is the Energy Profile at Different Speeds?

Does power consumption change significantly across different ribbon blender RPMs?

Yes, energy use grows quickly with higher RPM. This is because denser or stickier materials need more force. Still, ribbon blenders are efficient, using only 3–5 kW/m³. This is low compared to other mixers, even at higher speeds.

How do you balance energy use against product quality?

You must weigh mixing time against energy use. Fast cycles save time but use more power. Slow cycles save energy but take longer. The best choice depends on whether you value speed or quality more.

Are fixed-speed drives less efficient than variable-speed systems?

Fixed-speed drives can’t adjust for different batch sizes or delicate materials. Variable Frequency Drives (VFDs) offer better control. They let you tweak the ribbon blender RPM based on what the batch needs. Modern blenders, like those from Karvil, include user-friendly panels to set and monitor RPM.

What Design Features Improve Performance in Professional Equipment Lines?

Which custom options help maximize performance consistency?

Modern ribbon blenders have many custom features. Jacketed chambers control temperature. Spray bars add liquids during mixing. Air-purged seals and sanitary valves keep things clean. Vacuum-rated covers suit special needs. Variable Frequency Drives (VFDs) allow precise ribbon blender RPM control for different mixes. The integration of IoT technologies in ribbon blenders enables real-time monitoring and predictive maintenance, reducing downtime by up to 15% and improving operational efficiency.

 (verifiedmarketreports.com) Wide chambers improve material spread. Tight gaps near walls add shear. Rounded trough corners prevent unmixed spots.

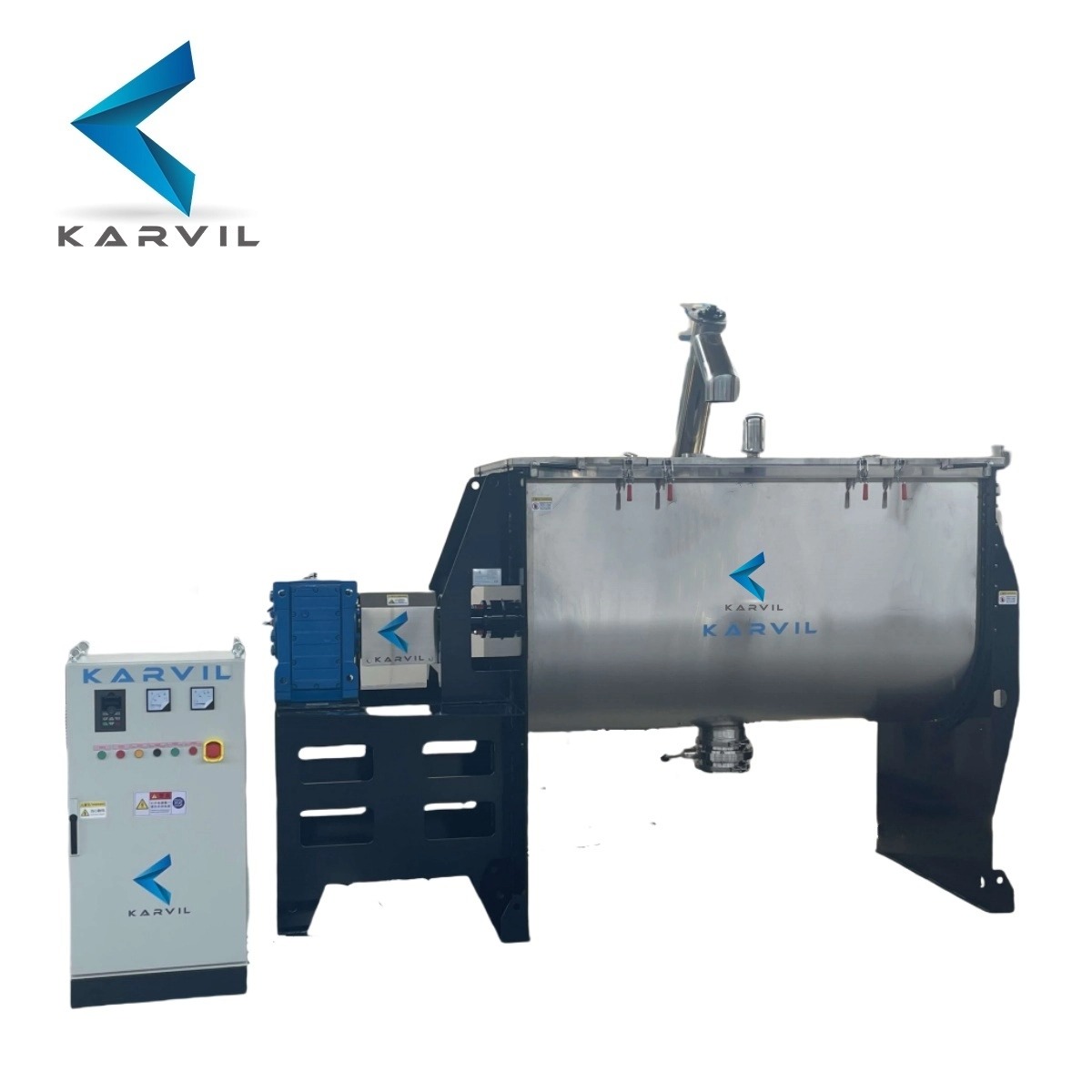

Karvil’s Ribbon Mixers work well for food powders, chemical granules, and more. They include PLC interfaces, sanitary designs, screw feeders, and stainless-steel builds. These suit strict industries like medicine or fine chemicals. From small lab units to large production lines, Karvil offers reliable options with great technical support.



How Should You Choose The Right Ribbon Blender RPM Setting For Industrial Use Cases?

How can process goals align with machine specifications effectively?

First, decide what matters most: speed, accuracy, energy cost, or gentle handling. Then, match these to the blender’s specs. Consider chamber size, drive type (fixed or VFD), ribbon design, and ribbon blender RPM range. This ensures the machine fits your material’s needs.

Will operating outside optimal ribbon blender RPM ranges impact maintenance cycles?

Yes, high RPM wears out bearings and seals faster. It also causes vibrations that stress the machine. Special seals can protect against wear. Too-low RPM may leave material stuck, requiring manual cleaning. Both increase maintenance needs.

Are there expert guidelines available for setting optimal parameters?

Experts suggest testing with real material samples before full production. Small-scale tests help find the best ribbon blender RPM based on actual results, not just guesses.

FAQ

Q: Can I run my ribbon blender at maximum RPM all the time?

A: No. Constantly high ribbon blender RPM can overmix fragile materials or harm the machine. It causes extra heat or vibrations.

Q: How do I know if my fill level is too low?

A: If materials don’t mix well with both ribbons or take too long to blend evenly, the fill level is likely too low.

Q: Is it okay to mix materials with different bulk densities together?

A: Yes, but only if they flow well together. Otherwise, they may separate after mixing. Adjust the ribbon blender RPM or add baffles to help.
