Properly selected shaft seals can greatly reduce material leakage and vacuum loss. The seal must fit with the material, the material temperature, any shaft movement, vacuum level and cleaning frequency and method. A cheap seal will not perform against sticky rubber, abrasive fillers, hot adhesives etc that deteriorate as the seal is heated and then cooled.
This matters because a sigma kneader does more than stir. Its Z-shaped blades fold, stretch, compress, and shear materials that may barely flow on their own. That load reaches the shaft ends and sealing points during every batch. Karvil Machinery develops industrial mixing systems for these demanding processes, from laboratory trials to full production. Its wider industrial mixer range covers sigma kneaders, ribbon mixers, planetary mixers, dispersing equipment, and complete production lines.
Seal failure rarely comes from one cause. High torque, pressure changes, material chemistry, temperature, and shaft alignment work together. A small mismatch may first appear as a dirty shaft end. Later, you may notice vacuum instability, material loss, bearing damage, or inconsistent batches.
For high-viscosity and semi-solid materials such as for example silicone rubber, sealants, hot-melt adhesive, butyl rubber, carbon paste, chewing gum and protein bars a sigma kneader is the ideal machine. These type of materials will pull against the blades of a sigma kneader instead of flowing around them like water.
That resistance creates radial and axial loads near the shaft seals. When packing is too soft, poorly compressed, or unsuitable for the process temperature, material slowly pushes through the sealing area. Tightening the gland may stop leakage for a while, but excessive tightening adds friction and heat. That usually trades one problem for another.
Vacuum mixing removes trapped air, limits oxidation, and supports cleaner, denser products. Yet each pressure cycle places extra demand on the seal. A small air path around the shaft may prevent the chamber from reaching or holding the required vacuum.
Temperature changes also matter. Heating expands the shaft and surrounding metal. Cooling contracts them. Repeated cycles may loosen packing or create uneven contact. The actual material temperature can also differ from the controller setting, especially when a thick batch transfers heat slowly. It is not the glamorous part of a kneader, but the seal often decides whether Monday’s batch behaves like Friday’s.
Carbon powders, mineral fillers, ceramic particles, and other solids may enter the sealing area and wear the packing. Solvents, acids, oils, or reactive ingredients may attack an unsuitable sealing material.
Shaft misalignment makes the problem worse. Uneven blade clearance, worn bearings, vibration, or vessel deformation can create irregular pressure on the seal. Replacing the packing without checking the shaft may bring only a short repair. The whole drive, shaft, bearing, seal, and vessel arrangement should be checked as one system.
A good sealing system must contain material without placing unnecessary drag on the shaft. It should also remain serviceable. Complicated seals are not automatically better if your maintenance team cannot inspect or replace them quickly.

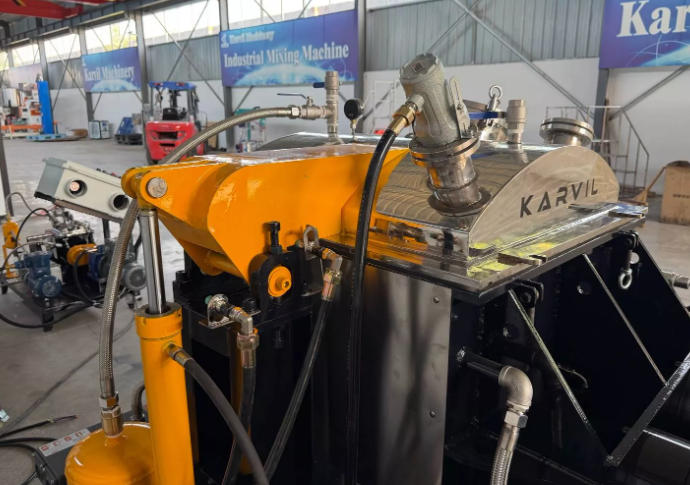

The 300L Explosion-Proof Sigma Kneader uses a composite stuffing box with PTFE packing and a PTFE seal. The structure is designed for easier replacement while helping contain sticky material and hold vacuum.
PTFE offers low friction and broad chemical resistance, which makes it useful in many adhesive, rubber, food, and chemical processes. The packing still needs correct compression. Too loose allows leakage. Too tight increases temperature and shaft wear. A steady, gradual adjustment works better than forcing the gland fully closed.
Air pockets can cause visible holes, weak bonding points, poor density, and unstable texture. Sealants may cure with internal voids. Adhesives may show uneven application. Chewing gum and protein-bar mixtures may develop unwanted texture changes. In energetic materials and aerospace compounds, tighter process control becomes even more important.
A stable vacuum system supports degassing and limits air returning through the shaft opening. The 300L model pairs its sealed mixing chamber with an explosion-proof vacuum pump, buffer tank, metal hoses, vacuum gauge, and valve. Its listed vacuum range reaches approximately minus 0.096 MPa on vacuum configurations.
Do not wait for a large leak. Check the shaft ends when you notice:
Material collecting around the gland, vacuum pressure drifting during a batch, repeated packing adjustment, unusual bearing heat, higher motor load, new vibration, or a longer degassing time.
Also record how quickly the vacuum drops after the pump stops. A repeatable hold test helps separate shaft-seal leakage from problems at the lid gasket, valves, hoses, gauges, or vacuum connections.
Seal performance should be judged with the rest of the machine. Blade load, vacuum equipment, temperature control, discharge design, and operator protection all affect long-term reliability.
The machine has a 300-liter total volume and a 210-liter effective volume. It uses double Sigma, or Z-type, blades with mirror-polished surfaces and hydraulic tilt discharge. Product-contact parts, including the cylinder, blades, and top cover, use SUS304 stainless steel with a polished inner finish.
The thermal-oil jacket connects to explosion-proof heating and cooling equipment. This helps you manage rubber curing, adhesive viscosity, and heat-sensitive formulations. Hydraulic tilting is also useful because highly viscous material may not flow through a basic bottom valve.
Laboratory sigma mixers can use different jacket systems before scale-up. Available choices may include electric heating for routine tests, thermal-oil circulation for even high-temperature processing, steam for quick heat transfer, and electromagnetic induction for gentler control of heat-sensitive materials.
Safety starts with physical design. The cover includes a limit switch that stops blade rotation when the lid opens. Transmission areas can be enclosed so operators cannot reach moving parts during normal use. These details are especially important when you process solvent-based compounds, explosive materials, or aerospace products.
Karvil Machinery provides equipment with CE, ATEX, and FCM certification options. For food applications, product-contact material has passed European food-contact testing and complies with Regulation (EC) No. 1935/2004. This matters for chewing gum, candy, protein bars, and other products that touch the vessel, blades, cover, and discharge surfaces.
The company’s application experience covers chemical products, adhesives, sealants, silicone rubber, ceramics, food, pharmaceuticals, energetic materials, and other specialized formulations. Equipment has been supplied to more than 50 countries, with customized designs for different industries and regional requirements.
Start with your real process rather than a standard catalog specification. Send the supplier your material viscosity, solid content, particle abrasiveness, solvent content, operating temperature, target vacuum, batch size, blade speed, cleaning method, and required discharge style.
Ask these practical questions:
Can the sealing material resist every ingredient in the formula? Is the shaft finish suitable for packing contact? How is packing replaced? Can the seal be adjusted without dismantling the drive? What vacuum hold result is expected? Are spare packing sets supplied? Has the complete machine been tested under load?
Factory acceptance testing should cover noise, vibration, sealing, temperature, blade direction, vacuum performance, safety interlocks, and discharge. A running video is useful, but recorded test values are better.
After delivery, Karvil Machinery provides a one-year warranty, English operating manuals, electrical drawings, remote installation guidance, troubleshooting support, and lifetime technical consultation. Professional engineers can help with material testing, equipment selection, and customized process requirements. Additional technical downloads can support training and maintenance work.
Q1: Can a New Shaft Seal Completely Stop Sigma Kneader Leakage?
A: A correctly selected and installed seal can greatly reduce leakage. However, worn shafts, poor alignment, damaged bearings, excessive pressure, and incorrect packing compression must also be corrected.
Q2: Why Does a Sigma Kneader Lose Vacuum During Mixing?
A: Common causes include worn shaft packing, a loose lid gasket, leaking valves, damaged hoses, loose gauge fittings, or an undersized vacuum system.
Q3: How Often Should PTFE Packing Be Replaced?
A: There is no fixed interval for every process. Check it regularly and replace it when adjustment no longer controls leakage, vacuum recovery slows, or the packing becomes hard, glazed, contaminated, or unevenly worn.
Q4: Is SUS304 Suitable for Food Materials?
A: SUS304 is widely used for food-contact mixer parts. Karvil Machinery also offers sanitary polished designs and certified material options that comply with European food-contact requirements.
Q5: Which Materials Can a Vacuum Sigma Kneader Process?
A: Karvil Machinery can configure sigma kneaders for silicone rubber, adhesives, sealants, clay, carbon paste, chewing gum, candy, protein bars, pharmaceuticals, explosive compounds, and aerospace materials such as rocket-propellant mixtures.
