Bulk molding compound (BMC) combines thermoset resin, mineral fillers, pigments, release agents, initiator and chopped reinforcing fibers. A sigma kneader, also called a z blade mixer, is designed for high-viscosity, semi-solid compounds and provides the torque, shear and folding action needed to turn these ingredients into a uniform, moldable mass.
In BMC production, the kneader is more than a mixing vessel. Its blade geometry, jacket, vacuum system, control panel and discharge arrangement determine wetting, temperature history, air removal, batch recovery and the consistency of the compound delivered to the molding line.

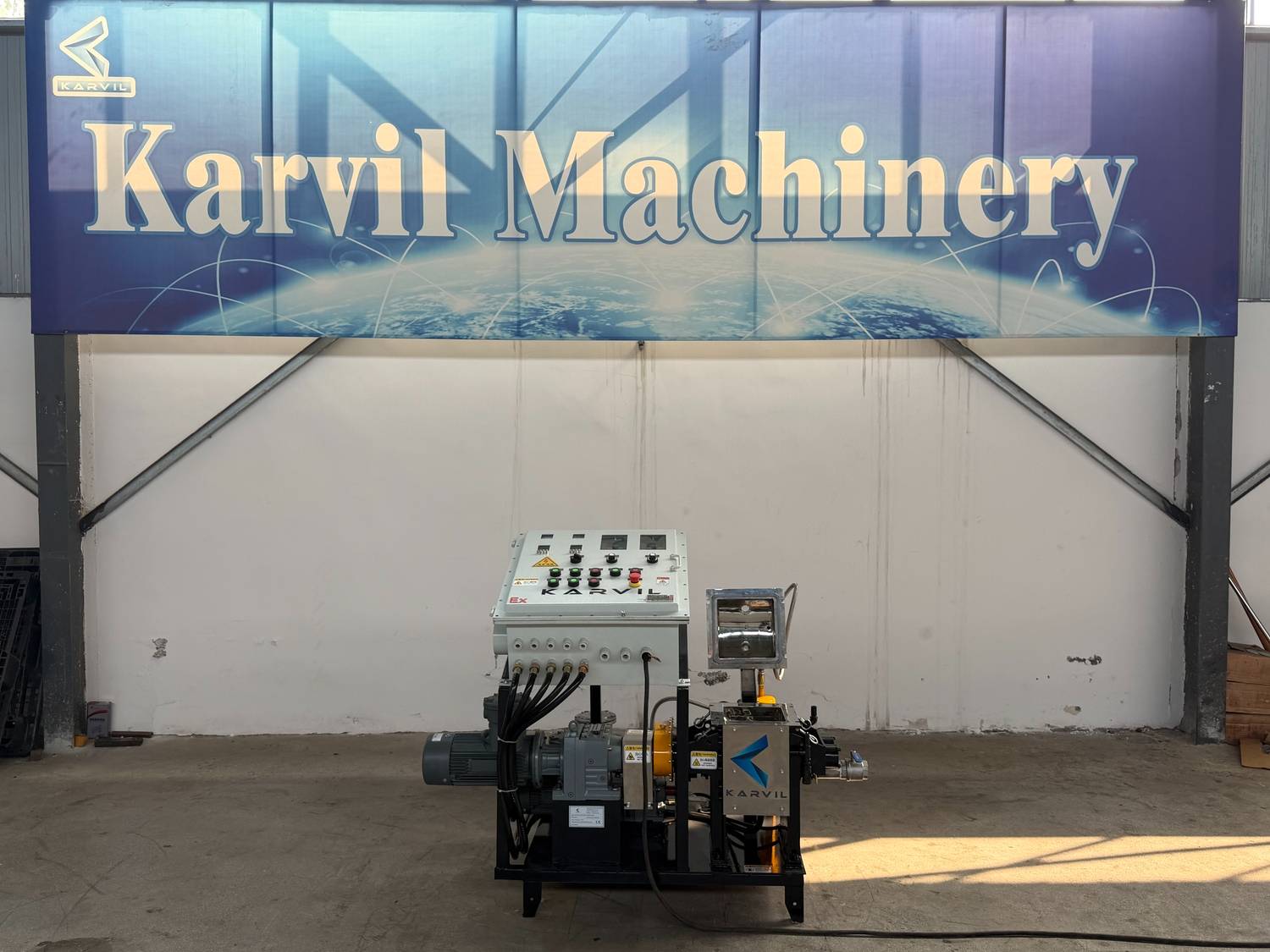

Start with the formulation and the required batch size. Laboratory sigma kneaders support small-batch development, while larger machines support repeatable production. Confirm the effective working volume rather than relying on total vessel volume, and select contact materials such as SUS 304, SUS 316 or carbon steel according to resin, filler and cleaning requirements. Karvil Machinery can customize capacity, motor power, control system and safety level for the process.
Charge resin and liquid additives first so the trough and blades are coated before dry filler is introduced. Add filler and pigment in controlled portions to reduce lumping, then add chopped fiber after sufficient resin is available for wetting. Record the lot, temperature, moisture condition and addition time of each ingredient so torque and quality changes can be traced to the recipe.
A rising torque curve may indicate increasing filler loading or incomplete wetting; a sharp change may signal a temperature shift, material release or an operating event. Torque should be read together with product temperature, mixing time and visual appearance rather than used as a stand-alone quality test.
BMC reinforcement must be distributed through the resin-rich matrix without unnecessary shortening. Blade clearance, speed, fill level, temperature and residence time all influence fiber damage. Use the lowest effective shear that achieves uniform wetting, and verify retained fiber length or molded-part performance when reinforcement is critical.
Take samples from consistent locations and times. The top layer, wall zone, blade zone and discharge portion can differ in wetting or fiber concentration, especially when the batch is large relative to the vessel. Consistent sampling makes development trials comparable.

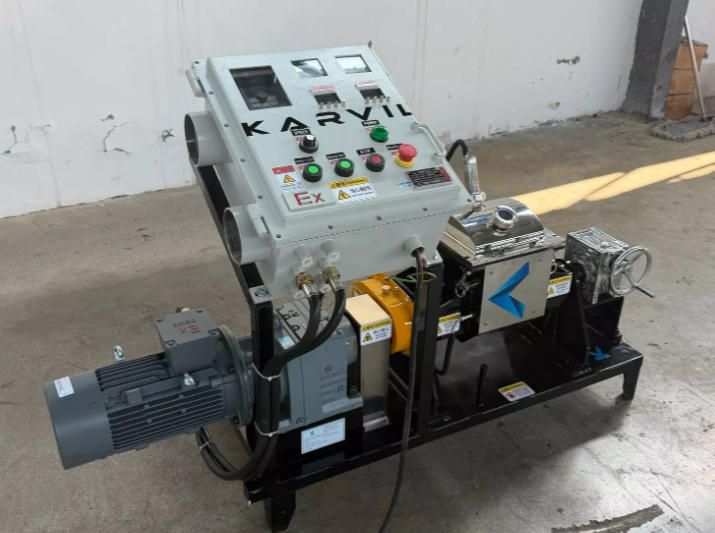

The 7L Explosion-Proof Tilting Sigma Mixer for BMC can be reviewed for a small compound development program where controlled mixing, temperature, safety, and tilt discharge are required. Confirm working capacity, contact materials, blade clearance, speed, heating or cooling, explosion-protection basis, guarding, tilt range, discharge, and cleanout. Treat 7L as the approved working load unless the supplier confirms it is total vessel volume.
Karvil Machinery's sigma mixer products can be compared by viscosity, batch size, heating, vacuum, and discharge method. The final choice should follow the BMC formulation and the sample required for the next molding test, not the nominal vessel volume alone.
Tilting discharge changes the material path around the blades, walls and outlet. Define the tilt angle, speed, receiving container and time from mixing stop to final recovery. A controlled hydraulic tilt can empty a high-viscosity batch quickly while limiting hold-up and reducing variation between the first and last portions.
After discharge, weigh recovered material and inspect the blades, shaft entries, corners, lid and wall surfaces. Fiber, pigment, filler or resin residue can contaminate the next formulation. Smooth contact surfaces and a defined cleaning method help maintain color, cure and dimensional consistency.
A visually uniform wet compound can still differ in air content, fiber distribution or resin wetting. Pair kneader records with a molding or cure test that checks flow, surface finish, voids, fiber visibility, strength and dimensional behavior. This links machine settings to the properties required in the finished BMC part.
Repeat the discharge check at the beginning and end of the working window. Record the angle at which flow begins, emptying time, wall residue and the condition of the compound after a short pause. These observations can identify the need to adjust blade settings, temperature, fill level or discharge speed.
The hazard review should identify dust, vapor, solvent and ignition risks in the real formulation and cleaning process. Grounding, ventilation, electrical equipment, temperature control, guarding and emergency isolation should follow that assessment. Explosion-proof motors and controls are available when the process requires them, but the atmosphere and operating procedure must still be defined.
Before scale-up, compare the laboratory receiving container, cooling rate, storage condition and sample preparation with the production route. BMC can continue changing in a warm, deep container after discharge, so the trial endpoint should include the condition and time at which the compound is molded or tested.
Retain representative samples from replicate batches under controlled storage. Keep the formulation, raw-material lots, working load, speed, blade geometry, temperature profile, vacuum level, endpoint, discharge time and quality results together in the batch record.
Repeat an approved BMC recipe using the same raw-material conditioning and sampling method. Compare torque, temperature, mixing time, vacuum behavior, discharge recovery and molded quality. If results differ, investigate weighing, ingredient moisture, operator timing, sample location and equipment condition before selecting a scale-up reference.
Production equipment changes heat transfer and circulation, so the scale-up report should distinguish process mechanisms from laboratory settings. Preserve the recipe and acceptance criteria while confirming the new vessel capacity, motor torque, jacket duty and discharge performance.
If final BMC properties depend on retained fiber length, compare incoming fiber with samples taken after selected kneading times using a consistent microscopy, burn-off or molded-part method. The optimum endpoint balances wetting, dispersion, air removal and fiber preservation; longer mixing is not automatically better.
Define minimum and maximum working loads for the kneader. Too little material may not circulate through the blade zone; too much can restrict folding, overload the drive or remove safe headspace. Record torque, temperature and sample uniformity at both limits.
Cleanout between BMC formulations must address resin, filler, pigment and fiber deposits. Inspect shaft entries, blade backs, lid seals, corners and the tilting pivot area. Cleaning tools and solvents should be compatible with the mixer materials and the compound.
Karvil Machinery's laboratory sigma mixer range and contact page can support a BMC trial plan using ingredient condition, hazard basis, blade settings, temperature, torque, tilt discharge, residue, and molded quality data.
Q1: Why is a sigma kneader suitable for BMC?
A: Its z blades provide strong folding and shear for high-viscosity, high-solid-content compounds, allowing resin, filler, pigment and fiber to become a moldable mass.
Q2: Which options are useful in BMC production?
A: Jacket heating/cooling, vacuum degassing, variable-speed control, explosion-proof motors and tilting or screw discharge can be selected according to the formulation and plant requirements.
Q3: What should be monitored during a BMC kneading batch?
A: Record ingredient condition and sequence, working load, speed, torque, actual product temperature, vacuum level, mixing endpoint, sample location, discharge recovery and molded-part test results.
Q4: When should vacuum be applied?
A: Use vacuum when entrained air, bubbles or oxidation can harm the BMC surface or downstream molding quality. The timing and vacuum level should be validated with the formulation.
Q5: How should the discharge method be chosen?
A: Tilting is practical for fast emptying of paste-like batches, while screw extrusion supports controlled automatic discharge. The choice should reflect viscosity, batch size, recovery target and downstream equipment.
