Karvil has completed a customized 3000L SS316 horizontal ribbon mixer line for a customer in France. Designed for blending fine powders used in water treatment products, aquaculture treatment agents and other industrial formulations, this project demonstrates our ability to supply integrated powder mixing and packaging solutions.

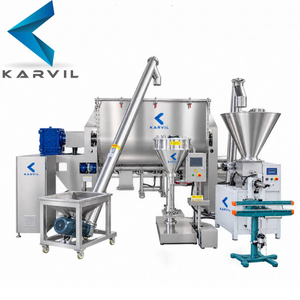

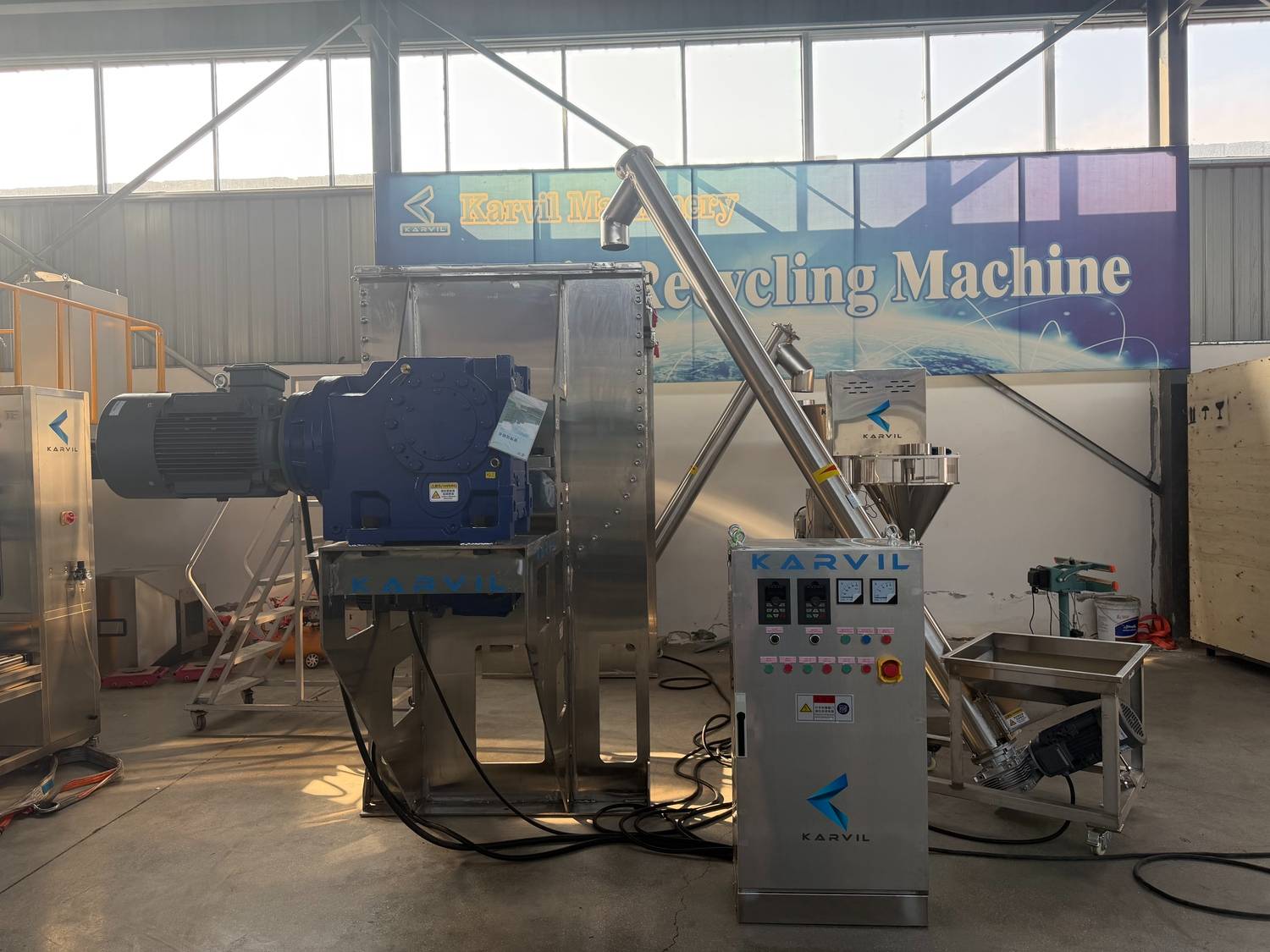

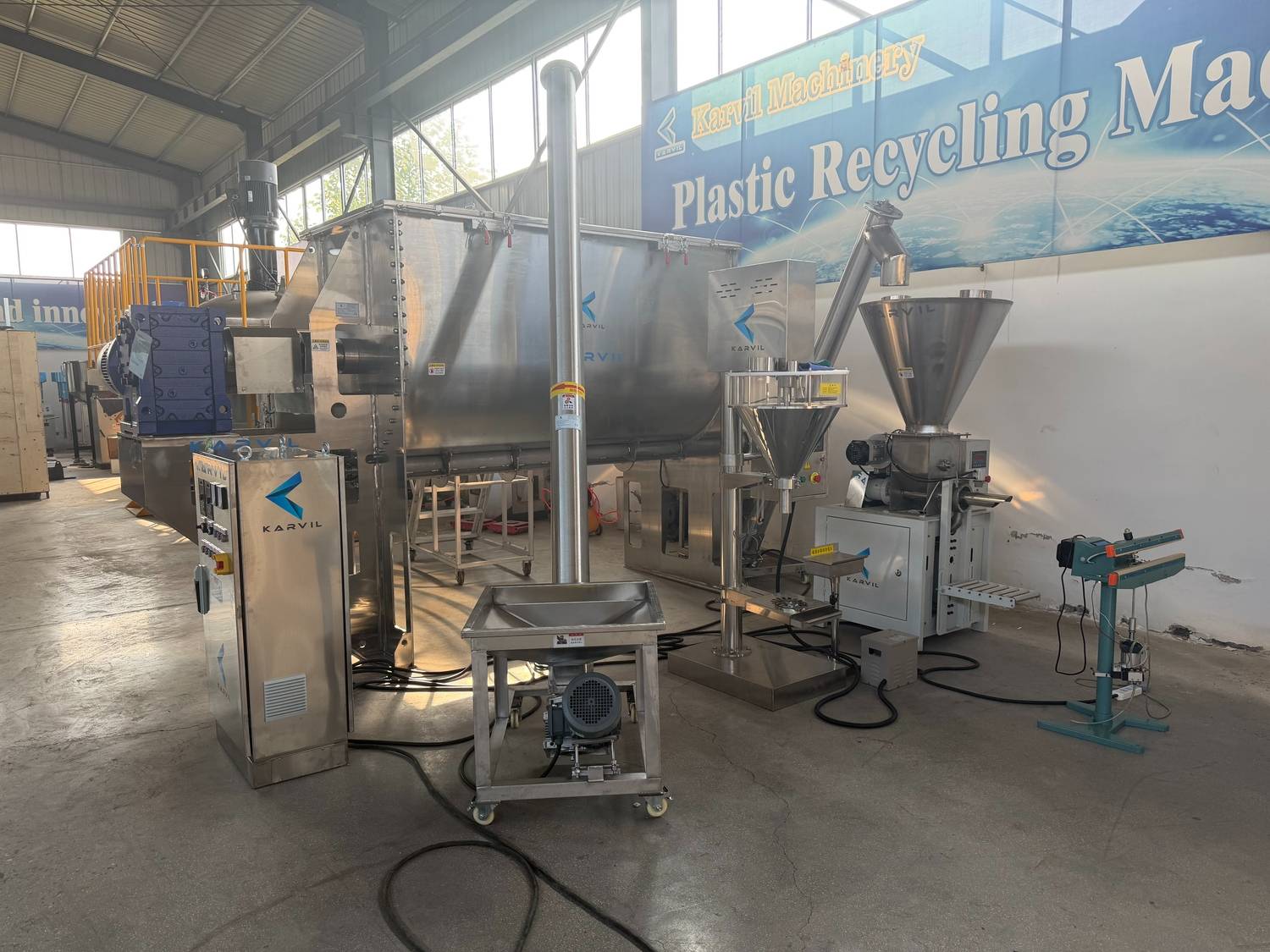

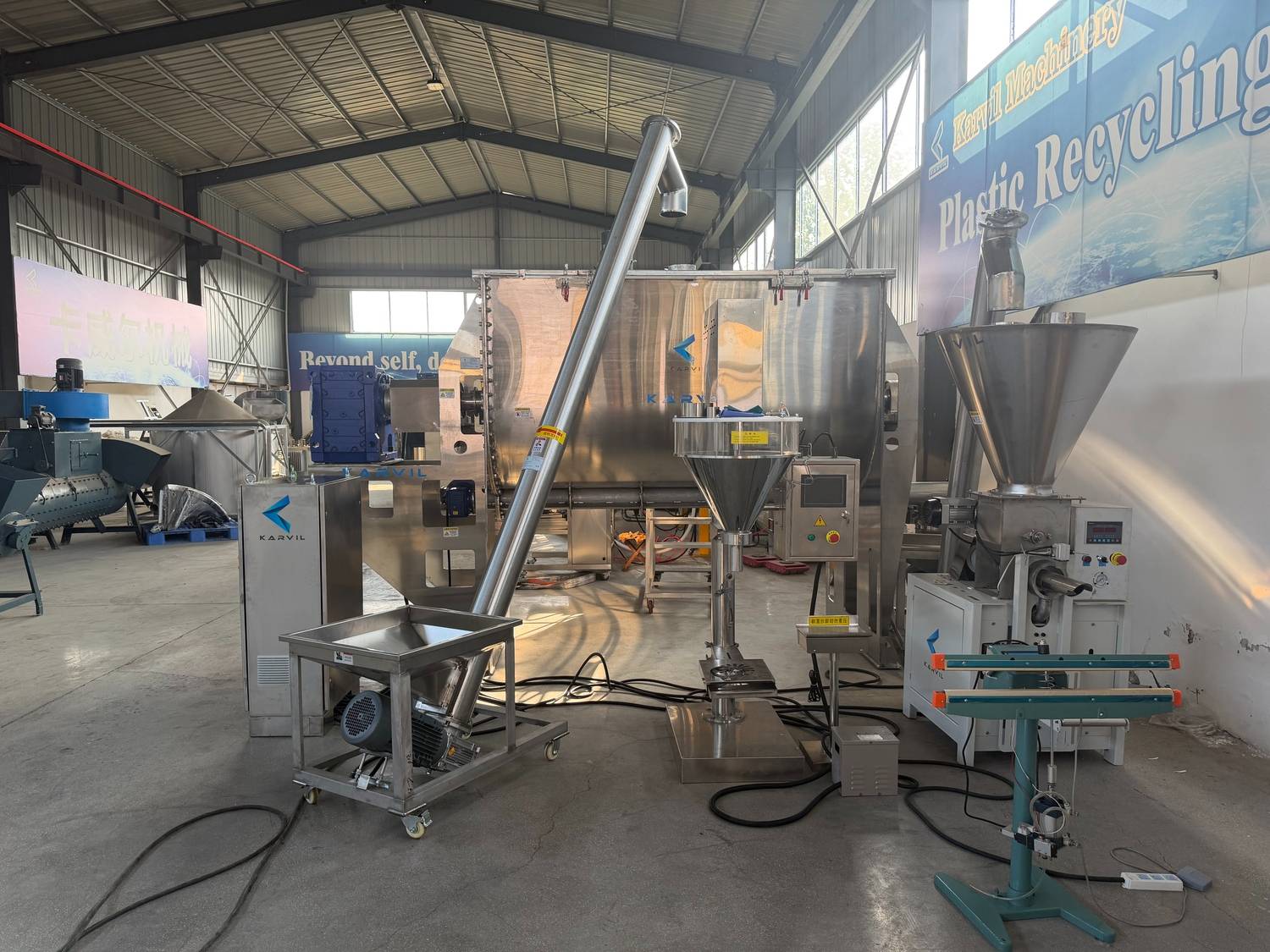

The system combines a large-capacity ribbon mixer, screw conveyors and packaging equipment to support a more streamlined powder production process.
Different powder formulations require different approaches to mixing, conveying and packaging. For this project, the customer needed a complete equipment configuration for processing fine and relatively fragile powders.
Karvil configured the line around the customer's material handling requirements, incorporating SS316 stainless steel contact surfaces, variable-speed mixing and dedicated conveying and discharge equipment.
The solution is designed to connect the main production stages, from powder feeding and blending to discharge and packaging.

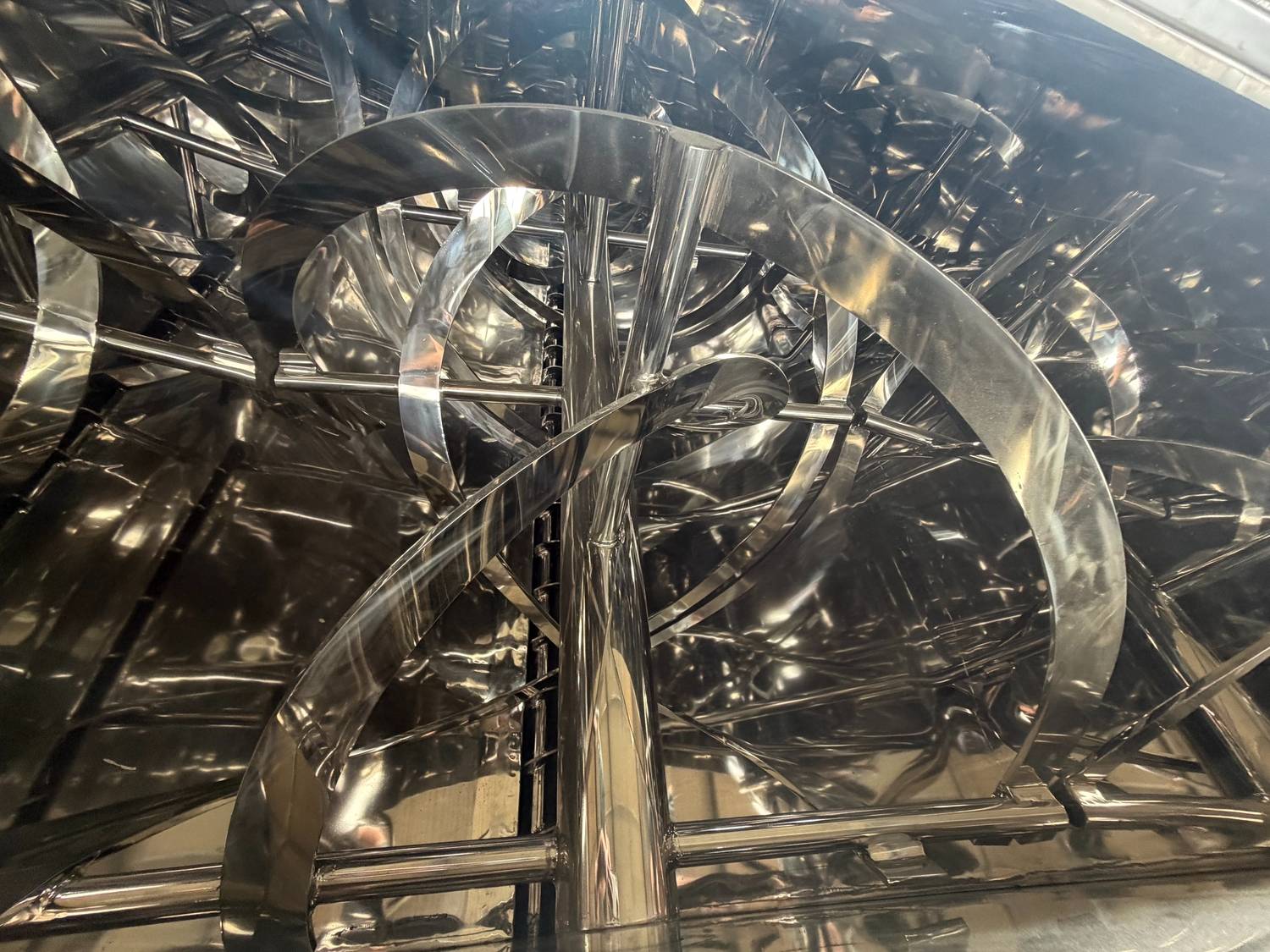

The horizontal ribbon mixer features SS316 material-contact surfaces, a mirror-polished interior and a brushed exterior. This configuration supports corrosion resistance and easier cleaning, depending on the material and cleaning conditions.
The mixer has a total volume of 3000L and an effective working capacity of 1800L. Its 22 kW Siemens Beide motor and variable-frequency drive allow the mixing speed to be adjusted from 0 to 27 rpm.
Two SS316 screw conveyors are included in the configured line to support powder feeding and material transfer. The mixer also features a bottom-side screw discharge arrangement with a pneumatic butterfly valve.
The specified packaging equipment includes a screw-valve bagging machine for 5–50 kg bags and a separate packaging machine covering 380 g–10,000 g packs. The final packaging configuration can be selected according to product format and production requirements.
Horizontal ribbon mixers are widely used for blending dry powders and granules across various industries.
Potential applications for a suitably configured system include:
Water treatment powder products
Aquaculture treatment formulations
Industrial chemical powders
Other compatible dry powder blends
For fine or fragile materials, mixing speed, batch loading and mixing time should be evaluated carefully. The final settings depend on the formulation and the required blending quality.
Karvil supplies more than standalone industrial mixers. We can configure powder processing equipment around each customer's production workflow.
Depending on the application, a customized line may include:
Screw conveyors, vacuum feeders and bucket elevators
Horizontal ribbon mixers and other powder blending equipment
Vibrating screens and powder screening systems
Screw discharge systems and pneumatic valves
Weighing, filling and bagging machines
Dust collection equipment and PLC control systems
Equipment selection depends on material characteristics, target output, packaging requirements and available factory space.
Whether you need a 3000L horizontal ribbon mixer or a complete powder mixing and packaging system, Karvil can help you evaluate a suitable configuration for your process.
With experience in industrial mixing equipment manufacturing and international projects, we work with customers to define equipment capacity, material-contact requirements, feeding and discharge methods, and control options.
